HIGH RATE DATA HIDING IN SPEECH SIGNAL

Ehsan Jahangiri and Shahrokh Ghaemmaghami

Electronics Research Center, Sharif University of Technology, Tehran, Iran

Keywords: Data Hiding, Steganography, Encryption, Multi-band Speech Coding, MELP.

Abstract: One of the main issues with data hiding algorithms is capacity of data embedding. Most of data hiding

methods suffer from low capacity that could make them inappropriate in certain hiding applications. This

paper presents a high capacity data hiding method that uses encryption and the multi-band speech synthesis

paradigm. In this method, an encrypted covert message is embedded in the unvoiced bands of the speech

signal that leads to a high data hiding capacity of tens of kbps in a typical digital voice file transmission

scheme. The proposed method yields a new standpoint in design of data hiding systems in the sense of

three major, basically conflicting requirements in steganography, i.e. inaudibility, robustness, and data rate.

The procedures to implement the method in both basic speech synthesis systems and in the standard mixed-

excitation linear prediction (MELP) vocoder are also given in detail.

1 INTRODUCTION

The modern broadband technologies have

significantly improved the transmission bandwidth,

which has made the multimedia signals such as

video, audio and images quite popular in Internet

communications. This has also increased the need

for security of the media contents that has recently

gained much attention. A typical approach to the

issue is to provide secure channels for

communicating entities through cryptographic

methods. However, the use of encrypted signals over

public channels could make malicious attackers

aware of communications of secret messages. Such

attacks may even include the attempts for

disconnecting the transmission links through

jamming, in the cases that the plaintext is

inaccessible.

To solve the problem arising with encryption,

steganography is employed that refers to the science

of "invisible" communications. While cryptography

conceals the secret message itself, steganography

strives to hide presence of secret message from

potential observers. Steganography is essentially an

ancient art, first used by the Romans against the

Persians, but has evolved greatly over recent years

(Kharrazi et al., 2004).

A typical representation of the information

hiding requirements in digital audio is the socalled

magic triangle, given in Figure 1, denoting

inaudibility, embedding rate, and robustness to

manipulation. Basically, there is a tradeoff between

these factors. For instance, by increasing the

embedding rate, inaudibility may be violated. This is

particularly more critical in audio, as compared to

image or video, because Human Auditory System

(HAS) is more sensitive to deterioration or

manipulation than the human visual system (Agaian

et al., 2005). This means that embedding rate in

secure transmission of audio signals is more

challenging than that of digital images.

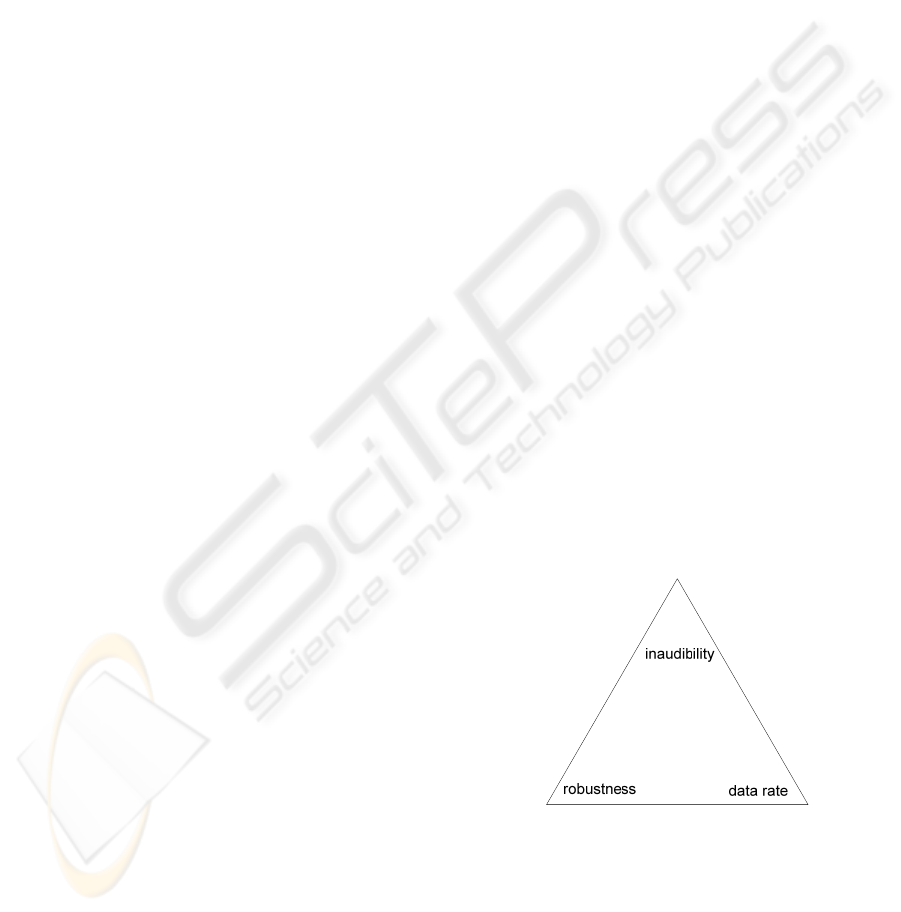

Figure 1: Magic triangle for data hiding.

Most steganography techniques proposed in the

literature use either psychoacoustic properties of

HAS, such as temporal and spectral masking

properties (Gopalan and Wenndt, 2006), or spread

spectrum concepts (Matsuoka, 2006). Gopalan and

Wenndt (Gopalan and Wenndt, 2006) employed

spectral masking property of HAS in audio

291

Jahangiri E. and Ghaemmaghami S. (2007).

HIGH RATE DATA HIDING IN SPEECH SIGNAL.

In Proceedings of the Second International Conference on Signal Processing and Multimedia Applications, pages 287-292

DOI: 10.5220/0002137102870292

 SciTePress

steganography. They used four tones masked in

frames of the cover signal and, based on relative

power of this tones, achieved an embedding capacity

of two bits per frame that led to a maximum

embedding capacity of 250 bps. In (Gopalan, 2005)

Gopalan used the same strategy as that in (Gopalan

and Wenndt, 2006) in cepstrum domain.

Chang and Yu (Chang and Yu, 2002) embedded

covert message in the final stage of multistage

vector quantization (MVQ) of the cover signal.

Because most of signal's data is extracted in the

primary stages, embedding data in the last stage

makes no substantial perceptual difference. They

could embed 266.67 bps in the four-stage VQ of

Mixed Excitation Linear Prediction (MELP) speech

coding system, introduced by (McCree et al., 1997),

and 500 bps in the two-stage VQ of G.729 standard

coder (ITU 1996). The phase coding technique

proposed in (Bender et al., 1996) could embed only

16-32 bps. The echo-based coding algorithm

(Mansour, 2001) achieved an embedding rate of

about 40-50 bps. Ansari et al. (Ansari et al., 2004)

claimed reaching a capacity of 1000 bits of data in a

one-second segment of audio, using a frequency-

selective phase alteration technique.

In this paper, we propose a different approach to

high capacity data hiding that can embed a large

amount of encrypted message in unvoiced parts of

speech signals conveyed by a typical voice file, e.g.

a wav file. The proposed method exploits the noise-

like signal, resulting from a data encryption process,

to construct unvoiced parts of speech signal in either

a binary or a multi-band speech synthesizer.

The rest of paper is organized as follows. The

main concept of the proposed method is described in

section 2 and basic implementation of the method is

given in section 3. Section 4 addresses the multi-

band based implementation and section 5 is

allocated to implementation of the method in the

MELP coding model. The paper is concluded in

section 6.

2 THE PROPOSED METHOD

The key idea in the proposed method for increasing

the hidden data embedding capacity is to exploit a

voicing-discriminative speech synthesizer, within a

high-capacity voice filing framework, to generate

cover signal. This releases a large data space in the

voice file that is used to accommodate the encrypted

covert message. The simplest structure for such a

speech synthesis system uses a binary excitation

model, in which each frame of the signal is

reconstructed by applying either a periodic pulse

train (for voiced speech) or a random sequence (for

unvoiced speech) to the synthesis filter (Chu, 2003).

In this basic coding scheme, the covert message is

converted into a noise-like sequence through

encryption, which is employed instead of a random

generator to excite the synthesis filter to produce

unvoiced frames.

The encrypting process attempts to remove

correlation between samples and makes ciphertext a

noise-like sequence. This can be achieved by using a

stream cipher, for instance, in which the ciphertext is

obtained from a simple function of exclusive-or

between plaintext stream and key stream (C=P⊕K;

Figure 2). In the simplest form, Linear Feedback

Shift Registers (LFSRs), which satisfy Golomb's

criteria in one period, can be used to generate the

key stream (Beker and Piper, 1982). It can be shown

that if any bit of key stream occurs independently

with occurrence probability of 0.5 for bits 0 and 1,

the ciphertext is also an independent identically

distributed (i.i.d) stream with occurrence probability

of 0.5 for bits 0 and 1.

There are some tests proposed by National

Institute of Standards and Technology (NIST) in

order to determine randomness degree of a stream

cipher. Any stream cipher of a higher degree of

randomness can be more secure. Stream ciphers like

SNOW.2 and SOSEMANUK, both with key sizes of

128 or 256 bits, can provide adequate degree of

randomness.

⊕⊕⊕

⊕

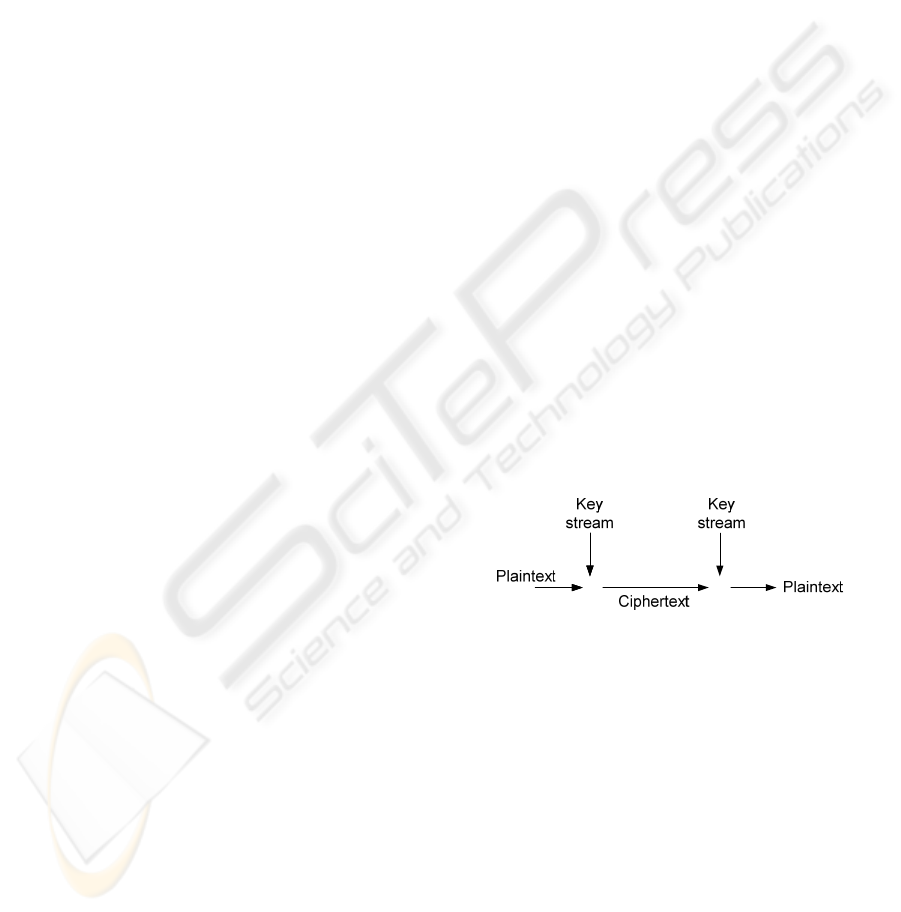

Figure 2: Stream cipher scheme.

Figure 3 shows block diagram of the basic

embedding method using a simple binary excitation

speech synthesizer. The hiding process is reversible,

such that the ciphertext can be extracted from the

cover signal at the decoder and is deciphered to

attain the covert message. In order to exactly recover

original plaintext, it is required to employ an error-

free encryption method associated with a reliable

extraction process. Using stream cipher in

encryption comes with the advantage of avoiding

error propagation that is of great concern here. This

is because encryption in stream cipher is a bit-wise

process with no feedback loops. Conversely, in

block ciphers, like AES, a flipped bit could affect

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

292

the whole ciphertext or the reproduced plaintext

depending on the mode of use (see Heys, 2001).

⊗

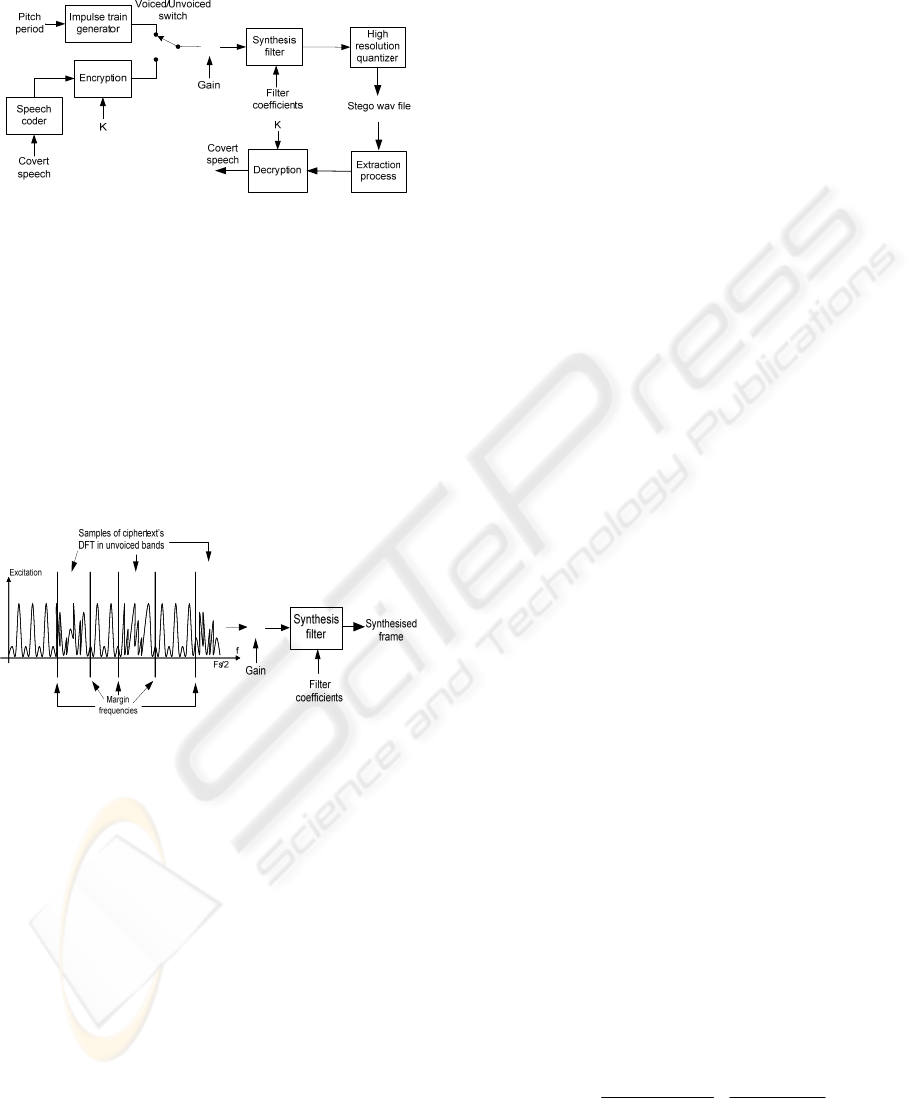

Figure 3: Block diagram of the basic embedding method.

To achieve a higher performance in both cover

signal quality and information hiding capacity, we

use a multi-band excitation (MBE) speech coding

system (Griffin and Lim, 1988), rather than the

binary excitation model mentioned earlier. The MBE

based vocoders resolve the complexity associated

with “mixed” voiced/unvoiced characteristics of

speech. Some speech coding algorithms based on

MBE, such as INMARSAT-M (Kondoz, 1994) and

MELP (McCree et al., 1997), substantially improve

quality of the synthetic speech, as compared to non-

MBE vocoders in low bit rates.

⊗

Figure 4: Data hiding based on multi-band speech

synthesis.

In an MBE coder, the excitation spectrum is

taken as a series of voiced/unvoiced (v/uv) bands

that are computed and arranged based on the original

signal spectrum for each frame of the signal (Chiu

and Ching, 1994). This allows each speech segment

to be partially voiced and partially unvoiced in the

frequency domain. Although there is basically no

limits to the number and patterns of v/uv bands, it

has been shown in (Chiu and Ching, 1994) that a

small number of v/uv bands can adequately

reconstruct a near natural and intelligible speech

signal. Many other findings in low-rate speech

coding confirmed this assertion (see e.g. McCree et

al., 1997).

Figure 4 illustrates an MBE based speech

synthesis system. We replace the excitation signals,

in unvoiced bands, with the ciphertext that conveys

the covert message. The embedding procedure is

reversible, such that the message can be recovered

from the synthesized speech by an authorized

receiver. More details are given in the next sections.

3 IMPLEMENTATION

The procedure described here uses a binary

excitation model in an LPC (Linear Prediction

Coding) system to generate the cover speech, as

shown in figure 3. This is a simple, basic structure

for implementing the method, in which a frame of

speech is assumed to be fully periodic (voiced) or

entirely noise-like (unvoiced). In this basic

experimental model, the signal is sampled at 8 kHz

and is decomposed into 40ms frames (320 samples),

with 50% overlap, using a rectangular window. The

whole excitation sequence is then reconstructed

through an overlap-add procedure applied to all

voiced and unvoiced frames. This long excitation

sequence, of the same length of cover signal,

contains noise-like parts that are replaced by the

ciphertext of covert message.

The resulting excitation sequence in then

segmented into the same frame lengths, with 50%

overlap, which excite the synthesis filter constructed

using the coefficients calculated in the LPC analysis.

The cover signal, now containing the ciphertext, is

generated by an overlap-add procedure applied to

the synthesized speech at the output of the synthesis

filter. The resulting speech, called the stego signal

(sounds like cover), can be located in a typical voice

file, e.g. in wav format. It is to be noted that the

ciphertext remains detectable if the excitation signal

is constructed with an error less than one-half of the

quantization step in unvoiced frames.

The ciphertext detection process uses inverse

filtering in the LPC model to retrieve the excitation

signal. However, because one-half of successive

excitation frames are identical in our basic 50%

overlapped framing procedure, same parts are used

to excite j

and (j-1)

synthesis filters in the first

half of the j

frame of synthesized stego speech,

over the range of (j-1)×160≤n<j×160 (n is the

sample index). Hence, we can extract the first half of

the j

frame of excitation by inverse filtering of the

stego signal in this interval, using (j-1)

and j

synthesis filters, as:

),1(

]

)(

)1(

[)(

−

∑∑

−

(1)

HIGH RATE DATA HIDING IN SPEECH SIGNAL

293

where g(0)=0, a

0,i

=0, and a

(j-1),i

, a

j,i

, g(j-1), and g(j)

are coefficients and gains of (j-1)

and j

LPC

synthesis filters, respectively.

The above-mentioned procedure can precisely

recover the excitation sequence. However, due to

finite register length of calculations in the employed

implementation platform, some errors may be

encountered. For instance, in MATLAB (64-bit

floating-point), the error between original and the

extracted excitation sequence is bounded by

something less than 0.5×10

-12

. This error determines

the number of bits that we can allocate to each

sample of excitation signal in unvoiced frames,

which is calculated as:

0.5×10

-12

< ∆ / 2 = X

/ ((2

-1)×2) (2)

where ∆ is the quantization step for unvoiced

excitation samples, X

is the quantization range that

is 1 here, and n is the number of bits per sample.

In no-quantization case of stego speech, we can

allocate at most 39 bits to each sample of excitation

in unvoiced parts. In a practical system, however, we

need to quantize the synthesized stego speech that

restricts us to lower number of bits allocated to each

unvoiced sample. In this basic experiment, we can

use a 16 or 32 bits per sample PCM signal in 'data'

chunk of a wav format file. As an actual example,

assuming that 25% of speech frames are unvoiced,

and allocating 8 bits per sample to unvoiced

excitation, we reach an embedding rate of

0.25×8×8kHz=16 kbps, in 8kHz sampling rate.

4 MBE BASED HIDING

The basic embedding procedure, described earlier,

can be applied to an MBE based speech coding

system that discriminates periodic and noise-like

components of the signal in individual bands in

frequency domain. To demonstrate the method in

such a paradigm, we use a simple dual-band speech

synthesizer as the simplest MBE structure. It has

been shown that for the case of two excitation bands,

the lower frequency one is usually voiced while the

other is unvoiced. Thus in our MBE implementation

we embed covert message in upper frequency band.

An example of such a dual-band speech synthesis

system can be found in (Chiu and Ching, 1994).

Cover signal, sampling rate, overlap percentage and

frame length are all the same as those used in the

binary excitation experiment. However, unlike the

binary excitation system, in which we embedded

ciphertext in time domain, we embed DFT (Discrete

Fourier Transform) of ciphertext in unvoiced bands

in frequency domain. This is due to the MBE model

that is typically implemented in frequency domain.

The ciphertext is embedded in every other

frames, e.g. odd frames, to avoid ciphertext muddle

due to overlapping structure (50% overlap in this

case), where deterministic random sequences are

used to form unvoiced bands of even frames. Hence,

an authorized receiver can generate even frames,

reconstruct odd frames, and then extract

corresponding ciphertext from unvoiced bands, by

removing the overlapping effect. Average

embedding capacity in this system depends on the

mean of voiced/unvoiced transition frequency,

which we found to be about 2.2 kHz in a typical 4

kHz 2-band excitation system (Figure 5). This leads

to an embedding rate of 28.8 kbps for 8 bits per

sample encoding schemes.

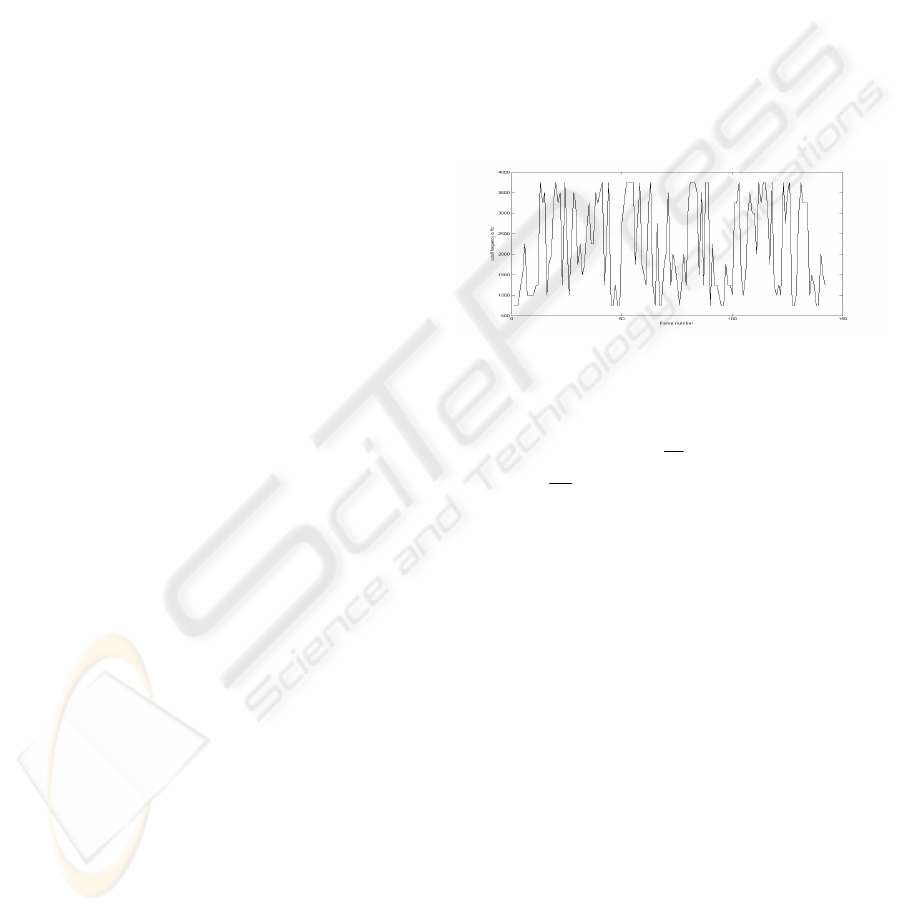

Figure 5: Demonstration of margin frequencies between

voiced and unvoiced bands for frames of cover speech.

In general, the embedding capacity is given as:

BPSffC

××−= )2(

(3)

where

, and BPS are sampling frequency,

average transition frequency in cover speech, and

the number of bits per sample, respectively.

This MBE based scheme can be generalized for

most MBE based speech synthesis systems with any

overlapping structure. The use of the proposed

method in a standard MBE based coding system is

described in the next section.

5 DATA HIDING IN MELP

A block diagram of the MELP model of speech

production is shown in Figure 6. Periodic excitation

and noisy excitation are first filtered using the pulse

shaping filter and noise shaping filter, respectively.

Signals at the filters’ outputs are added together to

form the “mixed” excitation. In FS MELP (McCree

et al., 1997), each shaping filter is composed of five

31-tap FIR filters, called the synthesis filters, which

are employed to synthesize the mixed excitation

signal in the decoding process. Each synthesis filter

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

294

controls one particular frequency band, with pass-

bands assigned as 0–500, 500–1000, 1000–2000,

2000–3000, and 3000–4000 Hz. The synthesis

filters, connected in parallel, define the frequency

responses of the shaping filters. Responses of these

filters are controlled by a set of parameters called

voicing strengths; these parameters are estimated

from the input signal.

⊕

⊗

⊕

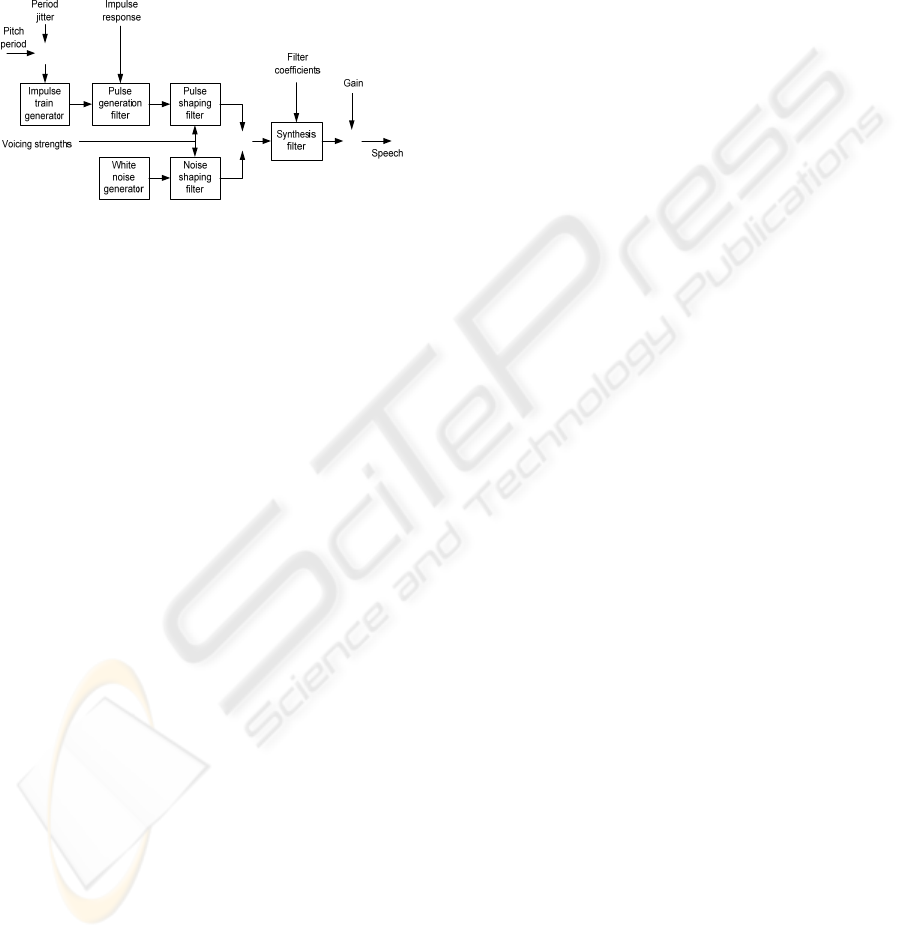

Figure 6: The MELP model of speech production

(reproduced from (Chu, 2003)).

By varying the voicing strengths with time, a

pair of time-varying filters results. These filters

decide the amount of pulse and the amount of noise

in the excitation at various frequency bands (Chu,

2003). Denoting the impulse responses of the

synthesis filters by

51],[ toinh

, the total

response of the pulse shaping filter is:

∑

][][

iip

nhvsnh

(4)

with

10 ≤≤

being the voicing strengths. The noise

shaping filter, on the other hand, has the response:

∑

−=

][)1(][

iin

nhvsnh

(5)

Thus, the two filters complement each other in

the sense of the gain in frequency domain.

Normalized autocorrelation and aperiodic flag

determines voicing strength of each band, which is

quantized with one bit per frame. During decoding

for speech synthesis, the excitation signal is

generated on a pitch-period basis, where voicing

strengths are linearly interpolated between two

successive frames. Thus, even though transmitted

voicing strengths in coded bit stream is 0 or 1 for

each frame, they have values in the interval [0,1]

between two frames during interpolation at the

decoder side.

In order to achieve a reversible embedding

process, generation of the pulse excitation (shown in

the upper branch of mixed excitation in Figure 6)

should be repeatable at the decoder by an authorized

receiver. Following encryption of covert message,

the DFT of ciphertext is embedded in unvoiced

excitation bands (

6.0

≤

), where each unvoiced

band is multiplied by complement voicing strength

(

−

) of that band. By adding noise excitation, that

includes the DFT of ciphertext, to the pulse

excitation, we construct a mixed excitation signal to

excite the synthesis filter.

The only random variable in the pulse excitation

is the period jitter (see Figure 6) that is usually

distributed uniformly over the range of ±25% of the

pitch period to generate erratic periods, simulating

the conditions encountered in transition frames. The

actual pitch period to use is given as:

).1(

xjitterTT +=

(6)

where

denotes the decoded and interpolated pitch

period, and x represents a uniformly distributed

random number in the interval [-1, 1]. For voiced

frames, the value of jitter is assigned according to

jitter←0.25, if aperiodic flag is equal to one;

otherwise, jitter←0 (Chu, 2003). Thus, in order to

build a pulse excitation to be reproducible at the

authorized decoder, we generate a random but

deterministic x uniformly distributed over the

interval [-1,1]. This deterministic random sequence

can be the key stream of a stream cipher that the

authorized decoder has its initial key.

To attain ciphertext, we produce mixed

excitation by filtering the synthesized stego speech

by inverse filter of spectral enhancement filter, pulse

dispersion filter, and synthesis filter in cascade.

Subsequently, the mixed excitation is subtracted

from the pulse excitation signal, generated at the

authorized decoder side, to get noise excitation

signal that includes DFT of the ciphertext. Then, we

multiply unvoiced bands of the noise excitation

signal by inverse of related complement voicing

strengths to extract the DFT of ciphertext, which is

then computed using inverse DFT.

In generation of pulse excitation, we use 31-tap

FIR filters but, for generating the noisy excitation

signal, we embed the DFT of ciphertext in

determined frequency intervals, using a flat

frequency response filter, to make the ciphertext

detectable at the authorized receiver. By using this

embedding method and allocating 8 bits to each

sample of noisy excitation, it is possible to embed

approximately 20 kbps in a phonetically-balanced

TIMIT phrase as cover speech.

It is to be noted that, unlike most typical

stenography methods, there is no simple tradeoff

between embedding capacity, inaudibility, and the

quality of reconstructed speech in the proposed

method. Rather, structure of the coding system and

the multi-band excitation scheme designate

HIGH RATE DATA HIDING IN SPEECH SIGNAL

295

interrelation between these attributes. This is while

inaudibility is always guaranteed, if no statistical

restrictions are imposed on the pseudo-random

sequences employed to generate unvoiced bands.

6 CONCLUSIONS

In this paper, we have introduced a novel method for

hiding data in a cover voice file that can yield a high

data embedding rate. In this method, an encrypted

covert message is embedded in the unvoiced bands

of speech signal, encoded by an MBE-based coding

system, which leads to a high data hiding capacity of

tens of kbps in a typical digital voice file

transmission scheme. By using this method, it is

possible to embed even a larger than the host covert

message within the cover signal. The method also

provides an unsuspicious environment for data

hiding strategies, e.g. steganography, due to keeping

the statistical properties of the cover speech almost

unchanged. However, the ultimate chance for an

attack to the system to detect the message will

remain the same as that in a cipher system used to

encrypt a secret message.

REFERENCES

Agaian, S.S., Akopian, D., Caglayan, O., D'Souza, S.A.,

2005. Lossless Adaptive Digital Audio

Steganography. Thirty-Ninth Asilomar Conference on

Signals, Systems and Computers, October 28 -

November 1, On page(s): 903- 906.

Ansari, R., Malik, H., Khokhar, A., 2004. Data-hiding in

audio using frequency-selective phase alteration.

International Conference on Acoustics, Speech, and

Signal Processing (ICASSP '04), 17-21 May, vol.5 on

page(s): V- 389-92.

Beker, H., and Piper, F., 1982. Cipher Systems: The

Protection of Communications, John Wiley & Sons.

Bender, W., Gruhl, D., Morimoto, N., Lu, A., 1996.

Techniques for data hiding. IBM system Journal,

vol.35,nr. 3/4.

Chang, P.C., Yu, H.M., 2002. Dither-like data hiding in

multistage vector quantization of MELP and G.729

speech coding. Thirty-Sixth Asilomar Conference on

Signals, Systems and Computers, 3-6 November,

Volume 2, Page(s):1199 – 1203.

Chiu, K.M., Ching, P.C., 1994. A dual-band excitation

LSP codec for very low bit rate transmission.

International Symposium on Speech, Image

Processing and Neural Networks, 13-16 April, vol.2

on page(s): 479-482.

Chu, W. C., 2003. Speech Coding Algorithms: Foundation

and Evolution of Standardized Coders, John Wiley &

Sons.

Gopalan, K., 2005. Audio steganography by cepstrum

modification. (ICASSP ‘05) Volume 5, 18-23 March,

v/484 Vol. Page(s):v/481.

Gopalan, K., Wenndt, S., 2006. Audio Steganography for

Covert Data Transmission by Imperceptible Tone

Insertion. IASTED Con.f. Comm. Systems and

Applications Banff, Alberta, Canada July 3-5.

Griffin, D.W., Lim, J.S., 1988. Multi-band excitation

vocoder. IEEE Trans. ASSP, 36(8); August, 664-678.

Heys, H.M., 2001. An Analysis of the Statistical Self-

Synchronization of Stream Ciphers. Proceedings of

INFOCOM, Anchorage, Alaska, Apri,, pp. 897-904.

ITU 1996. Coding of Speech at 8 kbit/s Using Conjugate-

Structure Algebraic-Code-Excited Linear-Prediction

(CS-ACELP)—ITU-T Recommendation G.729.

Kharrazi, M., Sencar, H.T., Memon, N., 2004. Image

Steganography: Concepts and Practice. April 22,

WSPC/Lecture Note Series.

http://www.ims.nus.edu.sg/preprints/2004-25.pdf.

Kondoz, A.M., 1994. Digital Speech: coding for Low Bit

Rate Communications Systems, John Wiley & Sons.

Mansour, M.F., Tewfik, A.H., 2001. time-scale invariant

audio data embedding. IEEE International conference

on Multimedia and Expo, ICME, Japan, August.

Matsuoka H., 2006. Spread Spectrum Audio

Steganography Using Sub-band Phase Shifting.

Intelligent Information Hiding and Multimedia Signal

Processing, IIH-MSP '06. on Dec, Page(s):3 – 6.

McCree, A.V., Supplee, L.M., Cohn, R.P., Collura, J.S.,

1997. MELP: The New Federal Standard at 2400 bps.

IEEE ICASSP, pp. 1591–1594.

Sencar, H., Ramkumar, M., Akansu, A., 2004. Data

Hiding Fundamentals and Applications: Content

Security in Digital Multimedia, ELSIVIER

ACADEMIC PRESS.

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

296
