DESIGN AND IMPLEMENTATION OF MULTI-STANDARD

AUDIO DECODER

Kong Ji, Liu Peilin

Department of Electronic Engineering, Shanghai Jiaotong University, Dongchuan Road 800#, Shanghai, China

Deng Ning, Fu Xuan, Zhang Guocheng, He Bin, Liu Qianru

Fujitsu R&D Center Co.,LTD, Shanghai, China

Department of Electronic Engineering, Shanghai Jiaotong University, Shanghai, China

Keywords: Multi-Standard, Algorithm Analysis, IMDCT, Software/Hardware Co-Design, FILTERBANK.

Abstract: In this paper, a design and implementation for Multi-Standard Audio Decoder is presented. The architecture

of the decoder is designed to support MPEG-2/MPEG-4 AAC LC Profile (ISO/IEC 13818-7 2006)

(ISO/IEC 14496-3 2006), Dolby AC-3 (ATSC 1995), Ogg Vorbis (Xiph.org Foundation 2004), Windows

Media Audio (WMA) (Microsoft 2006) and MPEG-1 Layer 3 (MP3) (ISO-IEC/JTC1 SC29 1991). Based on

the analysis of algorithms of these multi-standards, software/hardware co-design method is used to

implement the audio decoder in which a module called FILTERBANK is designed as a hardware engine.

The FILTERBANK which can support IMDCT (Inverse Modified Discrete Cosine Transform) process of

different standards is configured by CPU according to the decoded information. Compared with the

solutions of DSP/RISC or ASIC multi-standard decoders, our Multi-Standard decoder has achieved a

balance between software’s flexibility and hardware’s high efficiency. Also it meets the requirement of low

cost, low power and high audio quality. The implementation results on FPGA are given and the

performance of the decoder is evaluated.

1 INTRODUCTION

Nowadays, there are various audio compression

standards such as AAC, MP3, AC-3, Vorbis and

WMA etc. Besides, new audio standards will be

issued in the future. The question is, are today’s

audio decoders capable of processing so many

existing standards and ready for handling the new

comers?

Audio decoders are usually implemented on DSP,

microprocessor or ASIC. While a solution based on

DSP or microprocessor possesses certain flexibility,

it entails somewhat higher frequency and higher

power, which can hardly meet the increasing

demand of low power applications.

On the other hand, an ASIC solution is often

characterized by lower frequency, lower power, but

with less flexibility. Once new standards are issued

or upgrading needed, the whole system will be re-

designed.

In order to solve these problems, software

hardware co-design method is used in our Multi-

Standard decoder, which reduces the consumption of

power, area, cost, and meanwhile retaining re-

configurability and excellent performance.

Main features of the proposed Multi-Standard

Audio Decoder are as follows:

 Low frequency for real-time decoding (required

clock frequency < 20MHz for AAC decoding)

 Low power consumption

 Compatibility for AAC, MP3, AC-3, Vorbis and

WMA

 Expansibility for new standards or program

updating

 Pipeline architecture between software/hardware

 Multi-Standard FILTERBANK (straightforward

interface for SOC applications as an IP macro)

 An architecture considering the shared arithmetic

modules and memories

 Broad applications: personal audio player, set-top

box, audio system on motorcar, PDA/portable

terminals and Internet multimedia.

305

Ji K., Peilin L., Ning D., Xuan F., Guocheng Z., Bin H. and Qianru L. (2007).

DESIGN AND IMPLEMENTATION OF MULTI-STANDARD AUDIO DECODER.

In Proceedings of the Second International Conference on Signal Processing and Multimedia Applications, pages 301-304

DOI: 10.5220/0002137803010304

 SciTePress

This paper presents the analysis of algorithms of

various audio standards, and then introduces the

software/hardware co-design method which is used

to implement multiple audio standards into a

universal architecture. After that the architecture of

the Multi-Standard FILTERBANK and its operation

flow are presented. At the end, the implementation

results on FPGA with the performance evaluation

and the conclusion are given.

2 ALGORITHM ANALYSIS &

MULTI-STANDARD

IMPLEMENTATION

2.1 Algorithm Analysis of Multiple

Audio Standards

Most of the existing audio standards are based on

Psycho-acoustic Model to achieve high compression

ratio and ensure high audio quality. The algorithms

of main stream decoders are mainly composed of

Lossless Decoding, IQ (inverse quantization) and IT

(inverse transform).

Lossless Decoding, usually realized by VLD

(variable length decode), is used to decompress the

information which is originally compressed without

any distortions, and the most popular algorithm of

VLD is Huffman Decoding.

The IQ algorithms in various audio standards are

mostly nonlinear. For example, in AAC standard,

the IQ algorithm is realized by a nonlinear function

of 4/3 power.

The IT algorithm is used to transform spectral data

to the time domain, and in most audio standards

IMDCT is used as the realization method.

2.2 Complexity Analysis

For complexity analysis on various audio standards

(include AAC, MP3, AC-3, Vorbis and WMA),

some typical standards such as AAC, MP3 and

Vorbis are profiled to find out the key operation

modules.

The AAC LC decoder for the complexity analysis

is mainly composed of IMDCT, Huffman Decoding,

Inverse Quantization and some other modules. The

profile is based on MetaWare IDE for ARC

Version7.4.3, which simulates the ARC600 core.

The result of AAC profile is given in Figure 1,

which shows that the IMDCT module consumes

47.98% of decoding time.

Besides, Vorbis Standard is profiled on Sun Sparc

RISC CPU with a typical Vorbis Decoder referenced

by Vorbis Library. The largest time consumption

part of Vorbis decoder is IMDCT transform with

34% of total time.

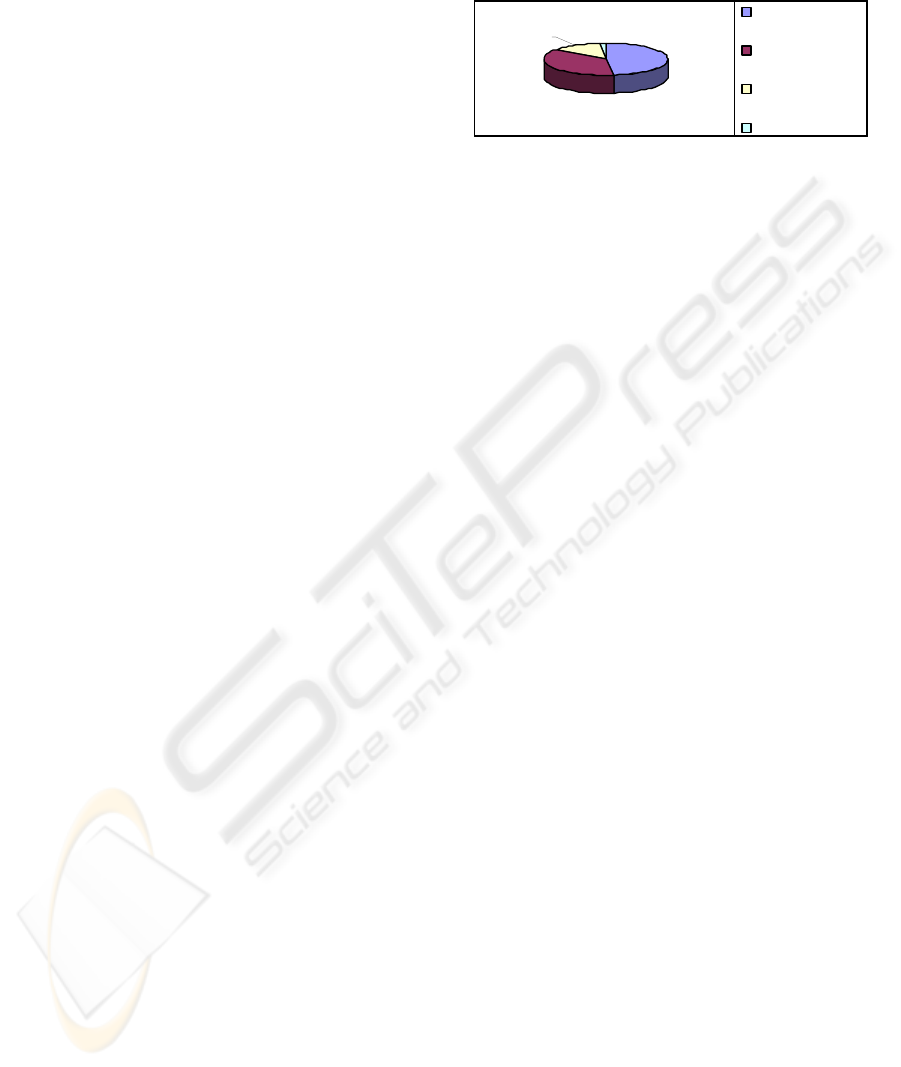

Figure 1: Profile of AAC Decoder.

The conclusions from the algorithm and complexity

analysis of multiple audio standards are:

a) The filter-bank module in each standard

consumes the largest portion of decoding

time.

b) Most of the filter-banks are realized by

Radix-2 points IMDCT. (36-point or 12-

point IMDCT for MP3).

c) Other arithmetic tools are usually nonlinear

or composed of conditional branches, and

have significant distinctions among different

audio standards.

2.3 Software/Hardware Co-Design

Method for the Implementation of

Multi-Standard Decoder

The filter-bank modules of various standards are

realized by IMDCT, while other modules, which

may have significant distinctions among different

standards, usually introduce conditional branches or

de-multiplex processes. Therefore, these modules

are much more suitable to be implemented by CPU.

On the other hand, filter-bank modules of different

standards are quite similar except for the number of

points of IMDCT or the window shape. And filter-

bank module is also the key part in each standard. So

a common hardware engine implementation will be

much more efficient and convenient. As shown in

Figure 2, the decoding flows of AAC & MP3

standards are divided into software and hardware. In

hardware part, the Multi-Standard FILTERBANK is

configured to support different standards (AAC or

MP3) by parameter settings. More details about the

structure of Multi-Standard FILTERBANK will be

given in section 3.

Besides, the software on CPU and the hardware

engine are executing in pipeline. Figure 3 shows the

decoding process of MP3. After the software on

CPU decodes the first granule of a frame (including

left and right channel), CPU starts FILTERBANK

and continue to decode the second granule of this

47. 98

37. 54

1. 72

12. 76

IMDCT

Hu f f man

De c o d i n g

Inverse

Quant i zat i on

ot her s

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

306

frame. After software finished the second granule of

this frame, it will wait for a completion signal from

FILTERBANK to start a new frame.

SoftwareHardware

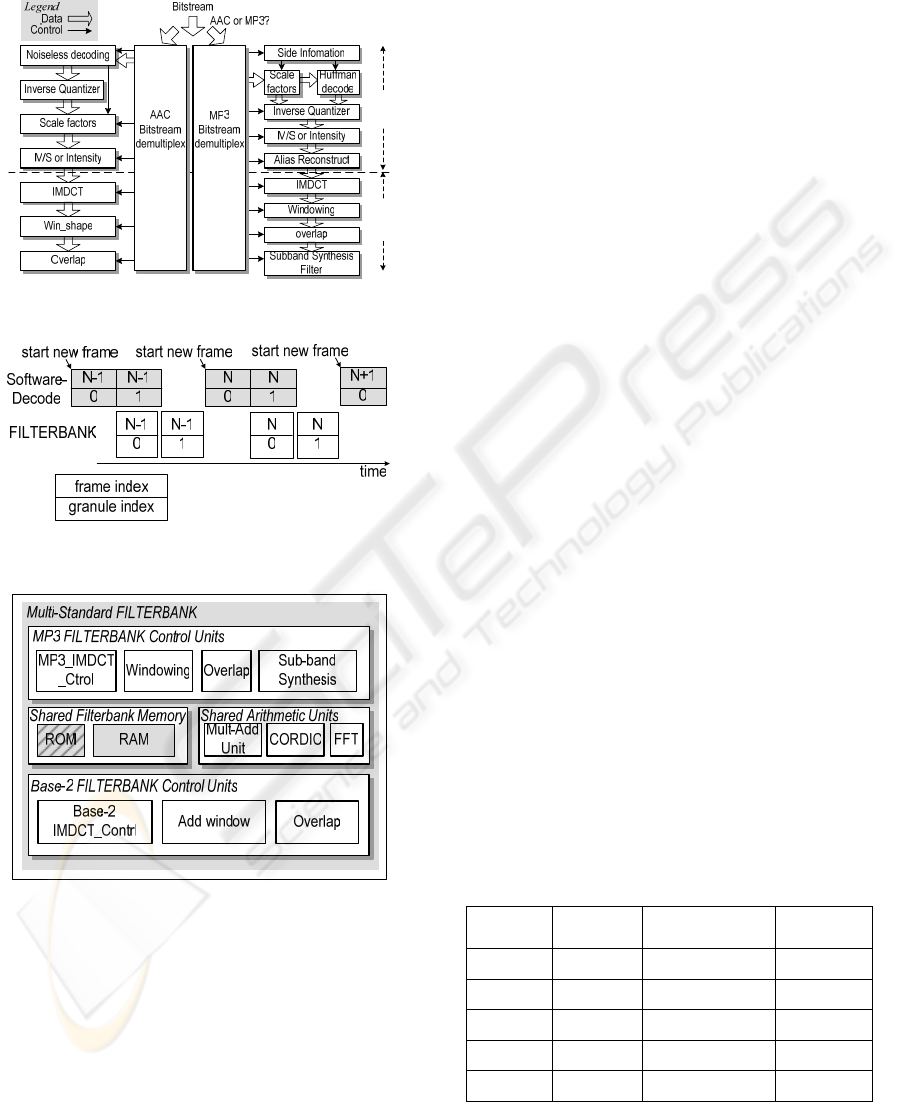

Figure 2: Hardware/Software Co-Design for AAC & MP3.

Figure 3: Pipeline of Software/Hardware for MP3.

Figure 4: Multi-Standard FILTERBANK Structure.

3 MULTI-STANDARD

FILTERBANK

3.1 The Architecture of

Multi-Standard FILTERBANK

The architecture of Multi-Standard FILTERBANK

is shown in Figure 4. In this architecture, two

different strategies, coarse granule sharing and fine

granule sharing, are used to share the resources. For

Radix-2 points IMDCT, FFT (R. Gluth 1991)

module as a coarse granule is used for IMDCT

implementation for different standards. On the other

hand, fine granule, which is to realize IMDCT with

CORDIC (Coordinate Rotation Digital Computer)

(Despain 1974), is used for 36-point or 12-point

IMDCT in MP3 standard.

The CORDIC module can calculate the FFT

coefficients and Sine Window coefficients online

without any ROM to store cosine function tables and

is free of multipliers, which is a major consumer of

resources.

3.2 Operation Flow of Multi-Standard

FILTERBANK

The Multi-Standard FILTERBANK works under

different modes to decode bit streams for different

standards. The operation modes are related to the

decoded information such as block length, which

can be different among various standards. Table 1

gives the mode to be configured by CPU. Once

started by the CPU, the Multi-Standard

FILTERBANK receives decoding information and is

re-configured to the corresponding mode.

In AAC bit stream, the block length in each

frame is constant (1024 or 128), so the

FILTERBANK is configured only at the beginning

of decoding each frame (including both left and right

channel) and sends the ‘IMDCT_Complete’ signal

to CPU after the IMDCT process of the whole frame

is done.

In AC-3 mode, FILTERBANK works similarly

to AAC mode. But in WMA or Vorbis mode, the

current block length may be different from that of

pre-block, therefore the FILTERBANK must be

configured at the beginning of each block.

Table 1: Operation Modes and Decoded Information of

Multi-Standard FILTERBNAK.

Standard

Block

Length

Configure

FILTERBANK

Window

Shape

AAC 1024/128 once/frame Sine/KBD

MP3 36/12 once/frame Sine

AC-3 256/128 once/frame KBD

Vorbis 64-8192 once/block Sine/KBD

WMA 64-2048 once/block Sine

DESIGN AND IMPLEMENTATION OF MULTI-STANDARD AUDIO DECODER

307

4 IMPLEMENTATION RESULTS

The Multi-Standard Audio Decoder is implemented

on Altera Stratix FPGA to evaluate the performance.

The size of each module is given in Table 2 on the

basis of unit of LE (logic element). These data are

the synthesis result of Quartus II Version 5.1, and

the whole audio decoder uses about 7645 LEs.

Table 2: Size of Each Block.

Module name Size/LE

CPU & BUS 2156

Bass-2 FILTERBANK Control

Units

1669

MP3 FILTERBANK Control Units 1878

Shared ALU 144

Shared CORDIC 1362

Shared FFT 436

To evaluate the performance of our Multi-

Standard Audio Decoder, it is set to the operation

mode of AAC and MP3 separately, and the

minimum real-time decoding frequency is obtained

for several sequences. Table 3 shows the average

decoding cycles for each AAC frame and the

frequency requirement for several sequences, and

Table 4 for each MP3 frame. The frequency needed

for real-time decoding is calculated by equation (1).

frequency_needed =

(cycles_per_frame×sample_frequency)

⎩

⎨

⎧

3MPfor1152

AACfor1024

(1)

5 CONCLUSIONS

A design and implementation for Multi-Standard

Audio Decoder is presented in this paper. Based on

the analysis of algorithms of these audio standards,

software/hardware co-design method is used to

implement the audio decoder, in which a module

called FILTERBANK is designed as a hardware

engine. The FILTERBANK, which supports IMDCT

process of different standards, is configured by CPU

according to the decoded information. Compared

with the solutions of pure DSP/RISC or ASIC multi-

standard decoders, our multi-standard decoder has

achieved a balance between software’s flexibility

and hardware’s high efficiency. Also it meets the

requirement of low cost, low power and high audio

quality. The presented decoder is capable of real-

time decoding for MP3/AAC/AC-3/Vorbis/WMA

standards, and is easy to be extended to new

standards or updated to new program versions.

Table 3: AAC frequency test results.

Test

AAC

sequences

Bit

rate

/kbps

Sample

rate

/kHz

Cycle

per

_frame

Frequency

Needed

/MHz

Hot 96

48 169513 8.0

Diamond 288

48 211769 9.3

Love 128

44.1 246046 10.6

Once you 224

44.1 329723 14.2

Mayday 160

44.1 290996 12.6

Liang Zhu 192

44.1 324050 14.0

Believe 320

44.1 372695 16.9

Table 4: MP3 frequency test results.

Test

MP3

sequences

Bit

rate

/kbps

Sample

rate

/kHz

Cycle

per

_frame

Frequency

Needed

/MHz

Test case 128

44.1 296205 11.3

Air 192

44.1 310800 11.9

David 192

44.1 335832 12.8

Happy 250

44.1 379191 14.5

Drum 320

44.1 421035 16.1

ACKNOWLEDGEMENTS

This work is supported by Fujitsu RD Center

Co.,LTD. and Fujitsu Laboratories LTD.

REFERENCES

ISO/IEC 13818-7, 2006, Generic Coding of Moving

Picture and Associated Audio Information C Part7:

Advanced Audio Coding

ISO/IEC 14496-3, 2006, Information technology - Coding

of audio-visual objects - Subpart 4: General Audio

Coding (GA) C AAC, TwinVQ, BSAC

ATSC, 1995, Digital Audio Compression (AC-3) Standard

Xiph.org Foundation, 2004, Vorbis I specification.

Microsoft, 2006, http://www.microsoft.com/windows.

ISO-IEC/JTC1 SC29, 1991, CD 11172-3 Coding of

Moving Pictures and Associated Audio for Digital

Storage Media at up to about 1.5 MBIT/s Part 3 Audio

Contents

R. Gluth, 1991, Regular FFT-related transform kernels for

DCT/DST-based polyphase filter banks. In ICASSP

Despain, 1974, A.M., Fourier Transform Computations

Using CORDIC Iterations, IEEE Transactions on

Computers, Vol.23,1974,pp.993-1001

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

308
