REALIZATION AND OPTIMIZATION OF H.264 DECODER

FOR DUAL-CORE SOC

Jia-Ming Chen

#,+

, Chiu-Ling Chen

,Jian-Liang Luo

, Po-Wen Cheng

, Chia-Hao Yu

Shau-Yin Tseng

and Wei-Kuan Shih

Department of Computer Science National Tsing Hua University Hsinchu, Taiwan, 300, ROC

SoC Integration Division of STC, ITRI, Hsinchu, Taiwan, 300, ROC

Keywords: H264/AVC, asymmetric dual-core SoC, parallel programming.

Abstract: This paper presents an H.264/AVC decoder realization on a dual-core SoC (System-on-Chip) platform by

the well-designed macroblock level software partitioning. Furthermore, optimizations of the procedures

executed on each core, and data movement between two cores are captured from software and hardware

techniques. The evaluation results show that a video with D1 (720×480 pixels) resolution can reach real-

time decoding by the implementation, which provides a valuable experience for similar designs.

1 INTRODUCTION

The emerging IP-based multimedia applications,

such as IPTV, video-on-demand services, and video

telephony may benefit from coding efficiency of the

H.264/AVC video standard (ITU-T Rec.H.264, 2003;

Schwarz, 2006) by the lower bit-rates and superior

video quality in comparison to existing video stan-

dards (Wiegand, 2003; Raja, 2004). However, added

features and functionalities of the H.264/AVC codec

involving extra computation complexity that directly

affects the cost effectiveness of commercializing

those applications, especially on resource-constraint

embedded devices. Numerous researches (Horowitz,

2003; Ostermann, 2004; Kalva, 2005) attended to

complexity analysis and profiling of the H.264/AVC

codec, while several approaches (Suh, 2006; Wang,

2004; Chen, 2006; Lin, 2006) came up with reduc-

ing the implementation complexity. Most of the re-

sults were devoted to algorithm level optimization in

which specific characteristics of a single processor

with or without hardware accelerator engines are

utilized.

Instead, in this paper, the H.264/AVC decoder is

realized on an asymmetric dual-core platform, upon

which macroblock (MB) level software partitioning

is applied from data and control flow perspectives.

This approach exploits several advantages. First, I/O

and control-intensive operations (e.g., entropy de-

coding procedure and memory management control

procedures) are separated from computation-

intensive operations handled by distinct cores for the

purpose of smoothly optimization. Second, data

communication can be hidden by pipelined process-

ing between two cores (described later in Section 3)

for saving the space complexity as mentioned in

(Horowitz, 2003). Third and lastly, realizing compu-

tation-intensive software portions on a VLIW DSP

provides programmable and efficient techniques

consistent with comparable audio and video codecs.

Additionally, from the proposed software pipe-

lined processing between two cores (explained later

in Section 3.4), performance improvement can be

reached through optimizing several conceptually

pipelined stages from three aspects: 1) entropy de-

coding on MPU core, 2) data movement between the

MPU and DSP cores, and 3) software portions exe-

cuted on DSP core. These advanced optimizations

complete the entire H.264/AVC decoder of a dual-

core system. The main contribution here brings a

valuable experience in software programming model

for realizing multimedia applications on a dual-core

application processor (particularly equipped with a

VLIW DSP) emerged in the recent marketplace,

such as the TI’s DaVinci™ processor (DaVinci™

technology, 2007).

The rest of the paper is organized as follows. The

PAC DSP is first introduced in Section 2. Then we

explain the software partition flow and data memory

allocation in Section 3. Next, in Section 4, the opti-

mization techniques for enhancing the performance

309

Chen J., Chen C., Luo J., Cheng P., Yu C., Tseng S. and Shih W. (2007).

REALIZATION AND OPTIMIZATION OF H.264 DECODER FOR DUAL-CORE SOC.

In Proceedings of the Second International Conference on Signal Processing and Multimedia Applications, pages 305-312

DOI: 10.5220/0002138403050312

 SciTePress

of decoder are summarized. Experimental results are

given in Section 5, and conclusions are finalized in

Section 6.

2 OVERVIEW OF THE PAC DSP

The PAC DSP (parallel architecture core digital sig-

nal processor) is a 32-bit fixed-point, 5-way issue,

and 9-stage pipelined DSP designed by STC/ITRI

organization (STC’s Multimedia SoC, 2007) in Tai-

wan. It features low power and high performance

through cluster-based VLIW datapath with parti-

tioned register files, and power/clock gating mecha-

nisms. Figure 2-1 shows the detail architecture of the

PAC DSP, where the major components and features

are explained as follows.

PSCU (Program Sequence Control Unit)—

dispatches instructions to the scalar unit and clus-

tered VLIW data path, executes control flow instruc-

tions, and handles the interrupt/exception events.

Scalar Unit—executes the scalar instructions with

low parallelism but high data dependency, controls

the interfaces of accelerators and power control unit.

Clusters (VLIW datapath)—each cluster owns a

LSU (Load/Store Unit) and an AU (Arithmetic

Unit). The AU provides arithmetic, comparison, data

transfer, bit manipulation, multiplication and accu-

mulation and special instructions, while LSU pro-

vides load/store instructions instead of multiplication

and accumulation instructions. As shown in Figure

2-1, the register files (RFs) within a cluster are dis-

tributed as coefficient, private and Ping-Pong RFs.

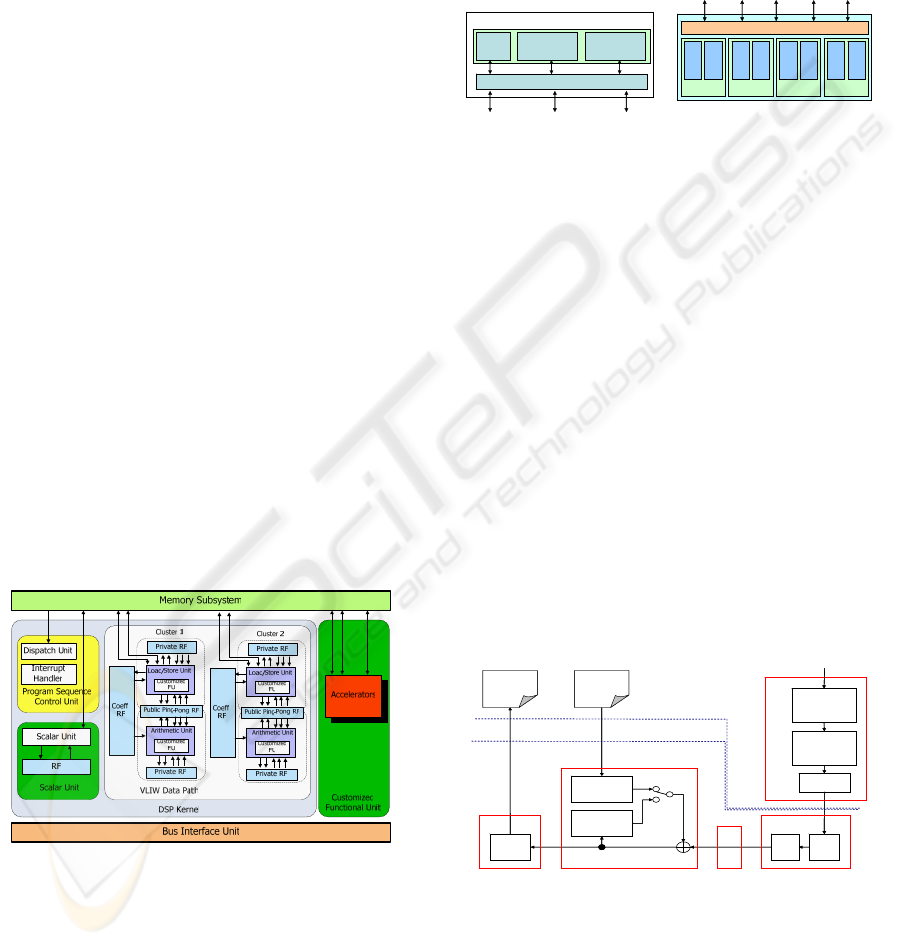

Figure 2-1: Architecture of the PAC DSP core.

Memory subsystem—PAC DSP provides 32 kB

instruction memory and 64 kB data memory. The

memory interface unit (MIU) of PAC DSP provides

a maximum bandwidth of 32 bytes, where 8 bytes

for each cluster and CFU, 4 bytes for Scalar Unit

and BIU. In addition, it is byte, half-word, word or

double word addressable according to the instruction

types of the LSU. As shown in Figure 2-2, the data

memory is divided into eight banks in 8 kB

(64×1024 bits), forming four groups for the purpose

of reducing access conflicts for a multi-issued proc-

essor. Especially note that consecutive two data

banks in a group can be configured to be interleav-

ing mode or not, providing convenient data parti-

tions for multimedia applications.

Group 1 Group 2 Group 3Group 0

Tag

256x17

16K Byte 16K Byte

ICH

Instruction Cache

DSP BIU/Bus ICE

Bank

Data Memory Interface Unit

Scalar Cluster1 Cluster2 BIU CFU

(a) Instruction Cache

(b) Data Memory

Figure 2-2: Memory subsystem of the PAC DSP.

3 SOFTWARE PARTITION

AND DATA STRUCTURE

In this section, the software partitioning, MB level

processing flow, and data communication of an

H.264 decoder for an asymmetric dual-core system,

that is, a RISC MPU plus a VLIW PAC DSP, are

described in the following subsections.

3.1 Software Partition

As Figure 3-1 shows, the MPU is in charge of the

entropy decoding (ED) due to inherently table-

lookup and control operations. The inverse quantiza-

tion/inverse transformation (IQ/IT), picture predic-

tive compensation (PPC) and deblocking filter (DF)

processes are handled by the DSP because of natu-

rally computation-intensive property.

Entropy

decode

(slice data)

Reorder

-1

Intra

prediction

Filter

F’

(reconstructed)

F’

(refererence)

Entropy

decode

(sps/pps/sh)

IQ/ITDF

PPC

MPU

DMA

DSP

NAL

Entropy

decode

(slice data)

Reorder

-1

Intra

prediction

Filter

F’

(reconstructed)

F’

(refererence)

Entropy

decode

(sps/pps/sh)

IQ/ITDF

PPC

MPU

DMA

DSP

NAL

Figure 3-1: Partitioned decoding flow of H.264/AVC

3.2 Data Structure

and Memory Allocation

In terms of MB decoding flow, and preventing con-

flict of data access to maximizing the throughput

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

310

and parallelism, decoding video data should be well-

organized mapped into the data memory of PAC

DSP. Taking a D1 (720×480) video clip as an exam-

ple, Figure 3-2 displays its memory allocation onto

the data memory of PAC DSP results in 45×30 MBs

in raster order. The MBs of each row is equally di-

vided into four parts spreading amount distinct

banks of the data memory with repeatedly sequence

group index 0, 1, 2, 3, therefore preventing data ac-

cess contentions.

0 1 2 3 0 1 2 3

．．．

1 2 3

0 1 2 3 0 1 2 3 1 2 3

．．．

0 1 2 3 0 1 2 3 1 2 3

．．．

0 1 2 3 0 1 2 3 1 2 3

．．．

３０

４５

Figure 3-2: Example of data arrangement for D1 resolu-

tion (in the unit of MB).

In other words, the pipelined execution method-

ology (described later in Section 3.4) for an asym-

metric dual-core system can benefit from the alloca-

tion scheme. When IQ/IT is processing the i

MB in

the group k, where k =i mod 4, the DMA (triggered

by the MPU) can transfer the (i-1)

MB from the

DSP data memory to external memory without ac-

cess conflicts. Meantime, when PPC is processing

the i

MB in group k, it can move the residual data

of the next (i+1)

MB to the DSP data memory

(through the DMA), result in preventing memory or

data contentions.

For each row, there are 12 MBs and 12 PreRow

data entries (PreRow data will be explained later in

Section 3.3) saved in the first group while the other

groups have 11 MBs and 11 PreRow data entries

respectively. Each MB is stored into a fixed size

memory space with MB data and reference data.

Data (include MB data and reference data) will

be overwritten when the newest data is transferred to

the memory group. At the moment, PreRow data

needs to be maintained because the reference data

from the left, upper, and upper-right MBs still be

required at inter/intra prediction and DF stage. As

shown in Figure 3-3, the centered 16×16 or 4×4

blocks represent the processing data during the op-

eration; while the blocks (outside the centered block)

represent the referenced PreRow data. In Figure 3-

3(c), the reference data used by inter prediction is

not in the current processing picture, therefore re-

quired data should be transferred via the picture

buffer from the MPU to the DSP through the DMA

controller.

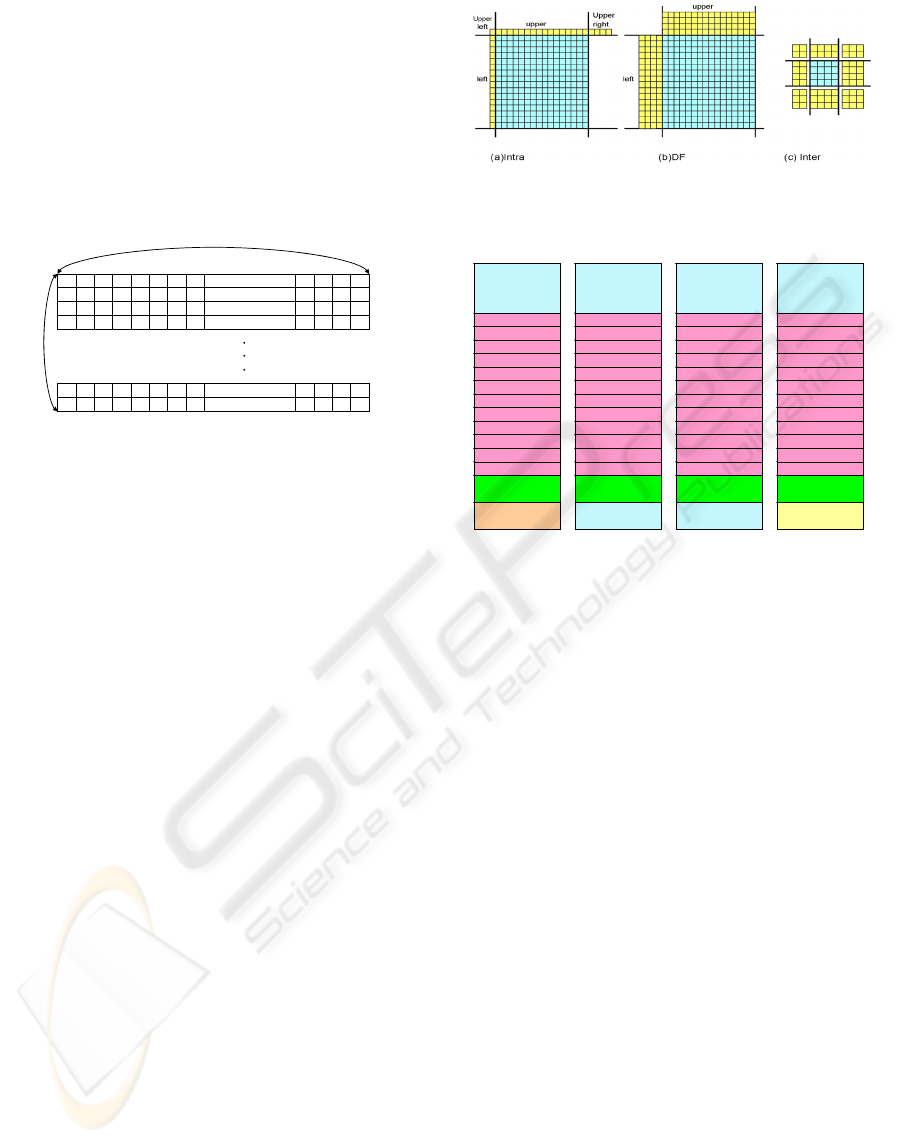

Figure 3-3: Residual blocks with relative reference data

for (a) intra prediction, (b) DF, and (c) inter prediction.

Parameter

flag

MB data

&reference

MB data

&reference

MB data

&reference

MB data

&reference

PreRow data[1]

PreRow data[2]

PreRow data[3]

PreRow data[4]

PreRow data[5]

PreRow data[6]

PreRow data[7]

PreRow data[8]

PreRow data[9]

PreRow data[10]

PreRow data[11]

PreRow data[12]

temp

PreRow data[1]

PreRow data[2]

PreRow data[3]

PreRow data[4]

PreRow data[5]

PreRow data[6]

PreRow data[7]

PreRow data[8]

PreRow data[9]

PreRow data[10]

PreRow data[11]

PreRow data[12]

PreRow data[1]

PreRow data[2]

PreRow data[3]

PreRow data[4]

PreRow data[5]

PreRow data[6]

PreRow data[7]

PreRow data[8]

PreRow data[9]

PreRow data[10]

PreRow data[11]

PreRow data[12]

PreRow data[1]

PreRow data[2]

PreRow data[3]

PreRow data[4]

PreRow data[5]

PreRow data[6]

PreRow data[7]

PreRow data[8]

PreRow data[9]

PreRow data[10]

PreRow data[11]

PreRow data[12]

Parameter

flag

Group0 Group1 Group2 Group3

MB data

&reference

MB data

&reference

MB data

&reference

MB data

&reference

PreRow data[1]

PreRow data[2]

PreRow data[3]

PreRow data[4]

PreRow data[5]

PreRow data[6]

PreRow data[7]

PreRow data[8]

PreRow data[9]

PreRow data[10]

PreRow data[11]

PreRow data[12]

temp

PreRow data[1]

PreRow data[2]

PreRow data[3]

PreRow data[4]

PreRow data[5]

PreRow data[6]

PreRow data[7]

PreRow data[8]

PreRow data[9]

PreRow data[10]

PreRow data[11]

PreRow data[12]

PreRow data[1]

PreRow data[2]

PreRow data[3]

PreRow data[4]

PreRow data[5]

PreRow data[6]

PreRow data[7]

PreRow data[8]

PreRow data[9]

PreRow data[10]

PreRow data[11]

PreRow data[12]

PreRow data[1]

PreRow data[2]

PreRow data[3]

PreRow data[4]

PreRow data[5]

PreRow data[6]

PreRow data[7]

PreRow data[8]

PreRow data[9]

PreRow data[10]

PreRow data[11]

PreRow data[12]

Parameter

flag

MB data

&reference

MB data

&reference

MB data

&reference

MB data

&reference

PreRow data[1]

PreRow data[2]

PreRow data[3]

PreRow data[4]

PreRow data[5]

PreRow data[6]

PreRow data[7]

PreRow data[8]

PreRow data[9]

PreRow data[10]

PreRow data[11]

PreRow data[12]

temp

PreRow data[1]

PreRow data[2]

PreRow data[3]

PreRow data[4]

PreRow data[5]

PreRow data[6]

PreRow data[7]

PreRow data[8]

PreRow data[9]

PreRow data[10]

PreRow data[11]

PreRow data[12]

PreRow data[1]

PreRow data[2]

PreRow data[3]

PreRow data[4]

PreRow data[5]

PreRow data[6]

PreRow data[7]

PreRow data[8]

PreRow data[9]

PreRow data[10]

PreRow data[11]

PreRow data[12]

PreRow data[1]

PreRow data[2]

PreRow data[3]

PreRow data[4]

PreRow data[5]

PreRow data[6]

PreRow data[7]

PreRow data[8]

PreRow data[9]

PreRow data[10]

PreRow data[11]

PreRow data[12]

Parameter

flag

Group0 Group1 Group2 Group3

MB data

&reference

MB data

&reference

MB data

&reference

MB data

&reference

PreRow data[1]

PreRow data[2]

PreRow data[3]

PreRow data[4]

PreRow data[5]

PreRow data[6]

PreRow data[7]

PreRow data[8]

PreRow data[9]

PreRow data[10]

PreRow data[11]

PreRow data[12]

temp

PreRow data[1]

PreRow data[2]

PreRow data[3]

PreRow data[4]

PreRow data[5]

PreRow data[6]

PreRow data[7]

PreRow data[8]

PreRow data[9]

PreRow data[10]

PreRow data[11]

PreRow data[12]

PreRow data[1]

PreRow data[2]

PreRow data[3]

PreRow data[4]

PreRow data[5]

PreRow data[6]

PreRow data[7]

PreRow data[8]

PreRow data[9]

PreRow data[10]

PreRow data[11]

PreRow data[12]

PreRow data[1]

PreRow data[2]

PreRow data[3]

PreRow data[4]

PreRow data[5]

PreRow data[6]

PreRow data[7]

PreRow data[8]

PreRow data[9]

PreRow data[10]

PreRow data[11]

PreRow data[12]

Figure 3-4: data layout in DSP local memory (in 4 groups)

After the calculation completed on the 1

MB in

the 1

row, the reference data (PreRow data) re-

quired by the 1

MB in 2

row is saved in the same

group, such that each MB can access the data re-

quired in the same group as well. That is why the

MB is allocated in the groups by index. Figure 3-4

shows the data layout reside in memory partitioned

into 4 groups. Global variables such as parameter

and flag are placed at fixed location in group 0.

Temporarily memory area is located at group 3.

The usage of memory space is assuming the

maximum requirement. For example, (9×9 +3×3)

×16 bytes are needed for reference data, because

(4×4+2×2) ×16 bytes are required in inter prediction

for a MB. Required reference data for each process

is shown in Figure 3-3.

3.3 Data Format Transformation

Compaction

and PreRow Data Reservation

3.3.1 Data Format Transformation

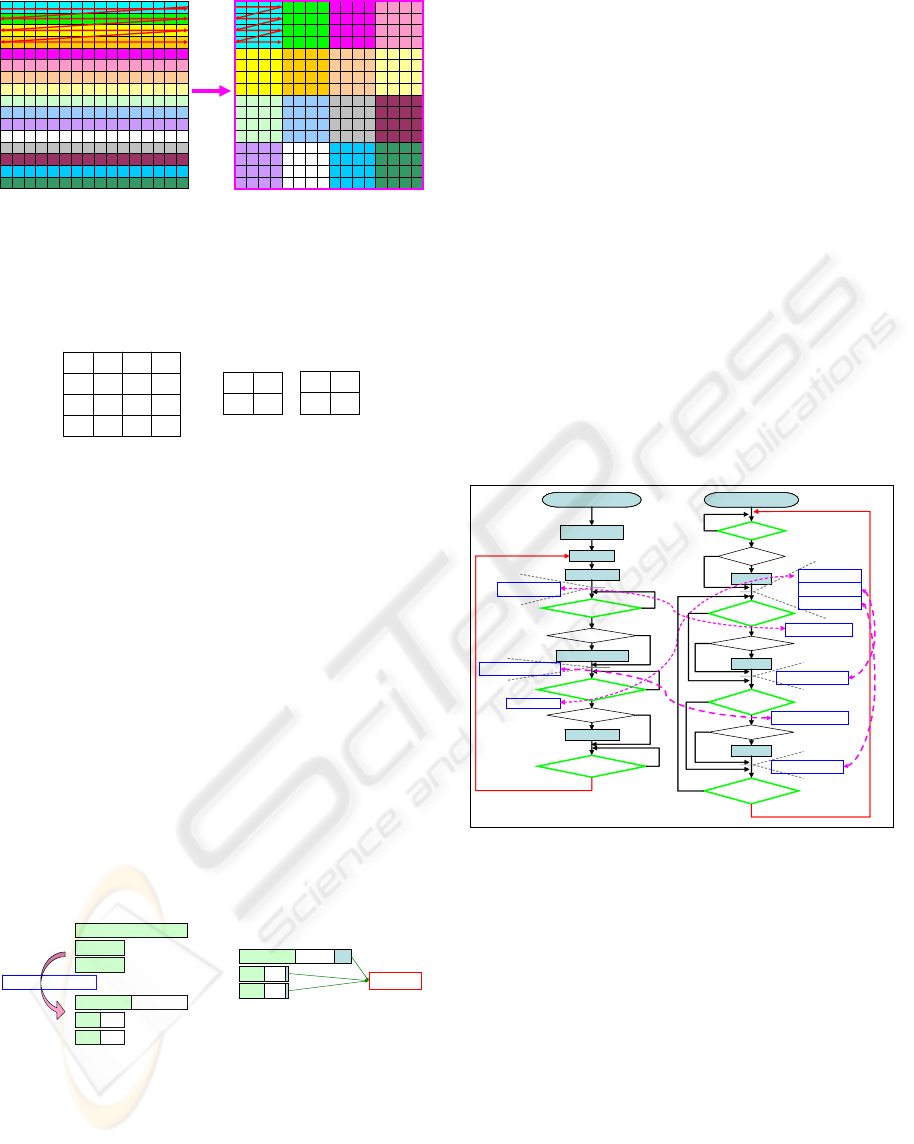

As shown in Figure 3-5, the DFT (Data Format

Transformation) is applied after the IQ/IT for reor-

dering the data in the purpose of smoothly PPC and

DF processing according to the data locality.

REALIZATION AND OPTIMIZATION OF H.264 DECODER FOR DUAL-CORE SOC

311

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

0 1 2 3

4 5 6 7

8 9 10 11

12 13 14 15

0 1 2 3

4 5 6 7

8 9 10 11

12 13 14 15

0 1 2 3

4 5 6 7

8 9 10 11

12 13 14 15

0 1 2 3

4 5 6 7

8 9 10 11

12 13 14 15

0 1 2 3

4 5 6 7

8 9 10 11

12 13 14 15

0 1 2 3

4 5 6 7

8 9 10 11

12 13 14 15

0 1 2 3

4 5 6 7

8 9 10 11

12 13 14 15

0 1 2 3

4 5 6 7

8 9 10 11

12 13 14 15

0 1 2 3

4 5 6 7

8 9 10 11

12 13 14 15

0 1 2 3

4 5 6 7

8 9 10 11

12 13 14 15

0 1 2 3

4 5 6 7

8 9 10 11

13 14 15

0 1 2 3

4 5 6 7

8 9 10 11

12 13 14 15

0 1 2 3

4 5 6 7

8 9 10 11

12 13 14 15

0 1 2 3

4 5 6 7

8 9 10 11

12 13 14 15

0 1 2 3

4 5 6 7

8 9 10 11

12 13 14 15

0 1 2 3

4 5 6 7

8 9 10 11

12 13 14 15

(a) (b)

Figure 3-5: Data format transformation.

Figure 3-6 shows the representation of luma (left), and

chroma (Cb and Cr), transforming large Z raster scan

order into little z raster scan order.

0 1

2 3

4 5

6 7

8 9

10 11

12 13

14 15

0 1

2 3

0 1

2 3

Figure 3-6: Sub-MB order for luma, and chroma (Cb and

Cr) MBs.

3.3.2 Data Format Compaction

Encoder will extend 1 byte into 2 bytes during mo-

tion estimation stage and transform it into NAL bit-

streams by entropy encoding. Decoder should re-

verse this compress transformation on the residual

data after entropy decoding for getting the original

data. The memory space with size 768 bytes (512

bytes for luma, 128 bytes for chroma Cb, and 128

bytes for chroma Cr) in an MB is reserved for restor-

ing residual data, which is extracted by entropy de-

coding from the bit-streams. After the PPC stage of

decoder, a pixel in 2 bytes will be converted into 1

byte, thus, half of original memory space will be

freed as shown in Figure 3–7. This memory space

can be used for saving pre-column and upper-left

data, which will be used by the next MB at the intra

prediction stage, as shown in Figure 3-3(a).

512 bytes

128 bytes

256

Data format compact

Luma

Chroma Cb

Chroma Cr

Chroma Cb

Chroma Cr

256

Chroma Cb

Chroma Cr

PreColumn

Data

Luma

Figure 3-7: Data format compaction

3.3.3 PreRow Data Reservation

Since reference data required by the PPC and DF

comes from temporal and spatial locations (either in

inter or intra frames within contiguous marcrobloks

as depicted in Figure 3-3). Reserving the whole ref-

erenced frame in the DSP data memory is unpracti-

cal, therefore the proposed PreRow data as shown in

Figure 3-4 can efficiently handle the problem, thus

reducing the frequently data movement between

memories (i.e., the DSP data memory and external

memory) during the PPC and DF operations.

3.4 Program Control Flow

and Data Flow

3.4.1 Control Flow Perspective

MB is the unit of iterations, which means that the

MPU and DSP are synchronized with MB. The con-

trol flow between the MPU and DSP is handled by

the flag resided in share memory. As shown in Fig-

ure 3-8, the MPU and DSP are started at the same

time. The DSP keeps polling the flag until the data

from the MPU is ready and the flag is set. The dot-

ted lines represent the time setting flag and the effect

on MPU and DSP after setting flag.

ED(MB)

(SPS,PPS)

DMA_W_Done

DMA_W(Ref.)

!DF _Done

DMA_R

DF_Done

= 0

ED_Done

DMA_W(ED)

column > 2

column > 4

yes

DF_Done

column > 3

ED_Done&&

!IT/IQ_Done

DMA_W_Done

&& !PPC_Done

column > 1

column > 2

IT/IQ

PPC

ED_Done = 0

DMA_W_Done = 0

yes

MPU DSP

!IT/IQ_Done||

!PPC_Done

DF_Done = 1

IT/IQ_Done=1

PPC_Done = 1

ED_Done = 1

DMA_W_Done = 1

Figure 3-8: Control flow perspective in a dual-core system

MPU－ Stage ED gets the SPS, PPS fields in

NAL and goes into the main control flow. ED com-

mands DMA to write data on the DSP data memory

after the operation on 1

MB data finishes. The flag

ED_Done is set to be 1. Next, check if the

DMA_W_Done is set to be 0. Negative results con-

tinuous polling on DMA_W_Done until the flag is

cleared. If DMA_W_Done is 0, then the condition

column > 2 would be checked for transfer reference

data to the DSP or not. If column <= 2, transfer ac-

tion would be skipped. To determine whether the

MPU should restore the data processed by the DSP

(DMA_R) or not, the flag DF_Done has to be

checked. If DF_Done is 1, routine DMA_R is exe-

cuted and DF_Done is cleared, the value of column

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

312

will also be checked here. If ED_Done is set as 0,

then executes next iteration.

PAC DSP－Flag DF_Done will be checked first.

If it is cleared by the MPU, then the DSP will check

if column > 3 to determine if the execution of DF is

needed. Flags DF_Done, IT/IQ_Done and

PPC_Done will be checked next. If DF_Done = 1,

IT/IQ_Done = 0 and PPC_Done = 0, means that DF

operation completes while IT/IQ and PPC had not.

When IT/IQ_Done=0 and ED_Done=1 (ED finished

and data transferred to the DSP memory), IT/IQ can

be executed. Also, column will be checked here. If

column <= 1, IT/IQ is skipped. Negative results the

execution of IT/IQ. IT/IQ_Done is set for announc-

ing that IT/IQ had been executed, despite the value

of IT/IQ_Done.

The same operation will be applied on PPC.

DMA_W_Done (1 means reference data had been

written to the DSP, 0 means had not) and PPC_Done

(1 means PPC executed, 0 means not) check first. If

DMA_W_Done=1 and PPC_Done = 0, check if col-

umn > 2 for execution of PPC required or not.

PPC_Done is set at last. While IT/IQ_Done =

PPC_Done = 1, next iteration will go on.

3.4.2 Data Flow Perspective

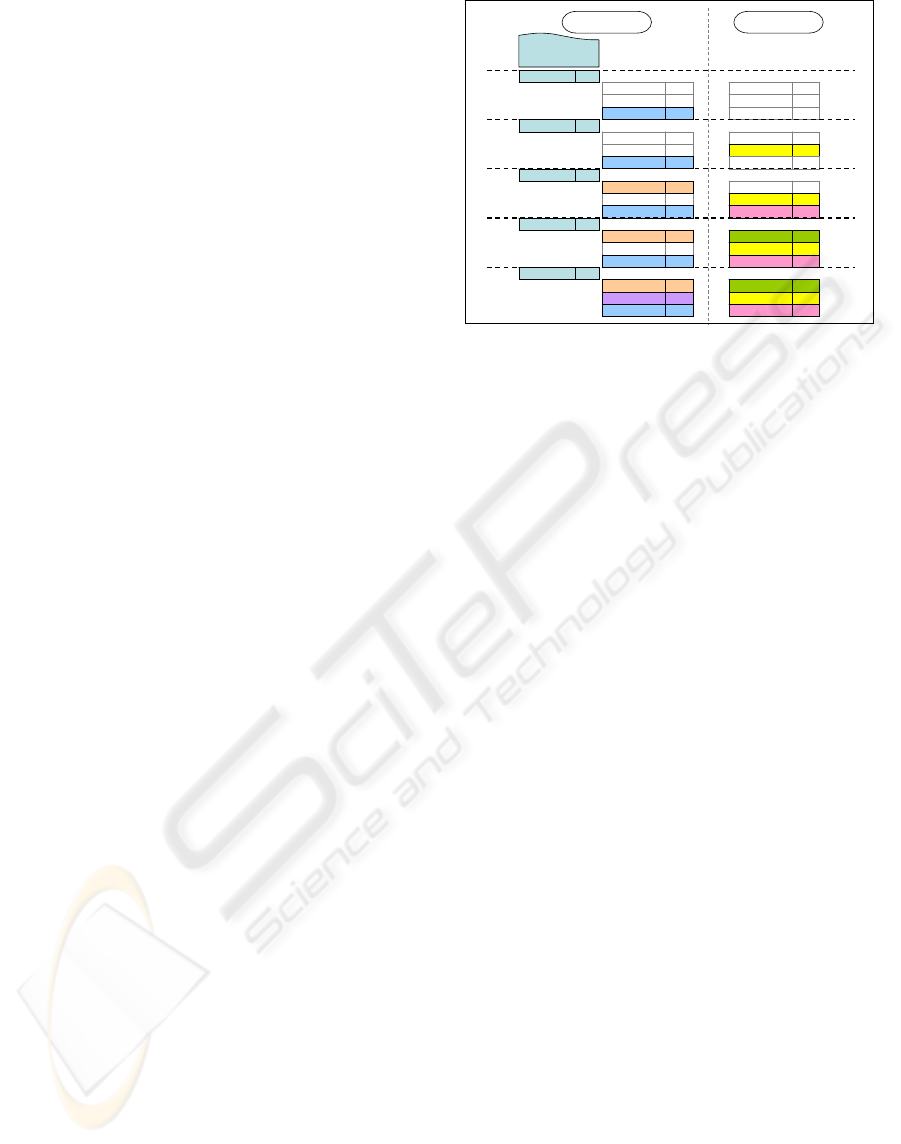

In Figure 3-9, function blocks in MPU are located at

the left hand side and those in the DSP are located at

the right hand side. Iterations are separated by dotted

lines; functions are represented by blocks with their

names, and the following label m-n means the m

slice and the n

MB processed by the function.

There are 2 areas of buffer in MPU for storing

data processed by ED. ED will process the data in 1

slice and place it in one buffer. Those 2

slices are

placed in the other. As shown in Figure 3-9, ED

(Slice 0) represents the data processed by ED.

The blocks (with grey line) represent the func-

tion of iteration taking no action which corresponds

to the block of column value check in Figure 3-8.

The DMA_W(Ref.) function is executed by the

DMA (commanded via the MPU) for moving refer-

ence data and the DMA_W(ED) is for moving the

residual MB data (after the ED procedure).

IT/IQ+DFT, and PPC+DFC are the respective stage

for MB processing executed by the PAC DSP. The

synchronization between the PAC DSP and MPU is

controlled by polling flags (resided in shared mem-

ory) as shown in Figure 3-8.

DF 0-1DF 0-1

IT/IQ+DFT 0-3IT/IQ+DFT 0-3

PPC+DFC 0-2PPC+DFC 0-2

DMA_R 0-0DMA_R 0-0

DMA_W(Ref.) 0-2DMA_W(Ref.) 0-2

DMA_W(ED) 0-4DMA_W(ED) 0-4

DF 0-0DF 0-0

IT/IQ+DFT 0-2IT/IQ+DFT 0-2

PPC+DFC 0-1PPC+DFC 0-1

DMA_RDMA_R

DMA_W(Ref.) 0-1DMA_W(Ref.) 0-1

DMA_W(ED) 0-3DMA_W(ED) 0-3

DFDF

IT/IQ+DFT 0-1IT/IQ+DFT 0-1

PPC+DFC 0-0PPC+DFC 0-0

DMA_RDMA_R

DMA_W(Ref.) 0-0DMA_W(Ref.) 0-0

DMA_W(ED) 0-2DMA_W(ED) 0-2

DFDF

IT/IQ+DFT 0-0IT/IQ+DFT 0-0

PPC+DFCPPC+DFC

DMA_RDMA_R

DMA_W(Ref.)DMA_W(Ref.)

DMA_W(ED) 0-1DMA_W(ED) 0-1

DFDF

IT/IQ+DFTIT/IQ+DFT

PPC+DFCPPC+DFC

DMA_RDMA_R

DMA_W(Ref.)DMA_W(Ref.)

DMA_W(ED) 0-0DMA_W(ED) 0-0

ED (slice 0)

ED 1-0ED 1-0

ED 1-1ED 1-1

ED 1-2ED 1-2

ED 1-3ED 1-3

ED 1-4ED 1-4

Iteration 1

Iteration 2

Iteration 3

Iteration 4

Iteration 5

MPU DSP

Figure 3-9: Data flow perspective in a dual-core system.

4 OPTIMIZATION

Based on the proposed MB level parallel processing

among two cores, optimization can be achieved from

three aspects of the ED procedure on MPU core,

data communication among two cores, and the pro-

cedures, such as IT/IQ, PPC, and DF executed on

PAC DSP core. The detail optimization techniques

of each landscape are described separately in the

following subsections.

4.1 Entropy Decoding on MPU

The performance of ED procedure can be improved

from the dominated kernel algorithm, Context-

Adaptive Variable Length Coding (CAVLC).

Through statistic analysis of various typical video

clips, we found that around 60% of 4×4 blocks de-

coded from bitstreams appeared in 500 bitstream

patterns within length of 12 bits (especially around

87% for length of 8 bits). Therefore designing a bit-

stream pattern table of these 500 bitstream patterns

to directly decoding the 4×4 blocks (via table lookup)

can improve the ED substantially. Furthermore the

bitstream pattern table can be constructed by sepa-

rating into four 8-bit pattern tables and twenty-one

4-bit pattern tables for the purpose of saving mem-

ory usage instead of using a single 12-bit pattern

table. Accordingly a two-phase pattern search algo-

rithm is derived (as shown in Figure 4-1) to speedup

the CAVLC decoding algorithm contained in the ED

procedure executed on the MPU core. Detail infor-

mation can be found in (Tseng, 2006).

REALIZATION AND OPTIMIZATION OF H.264 DECODER FOR DUAL-CORE SOC

313

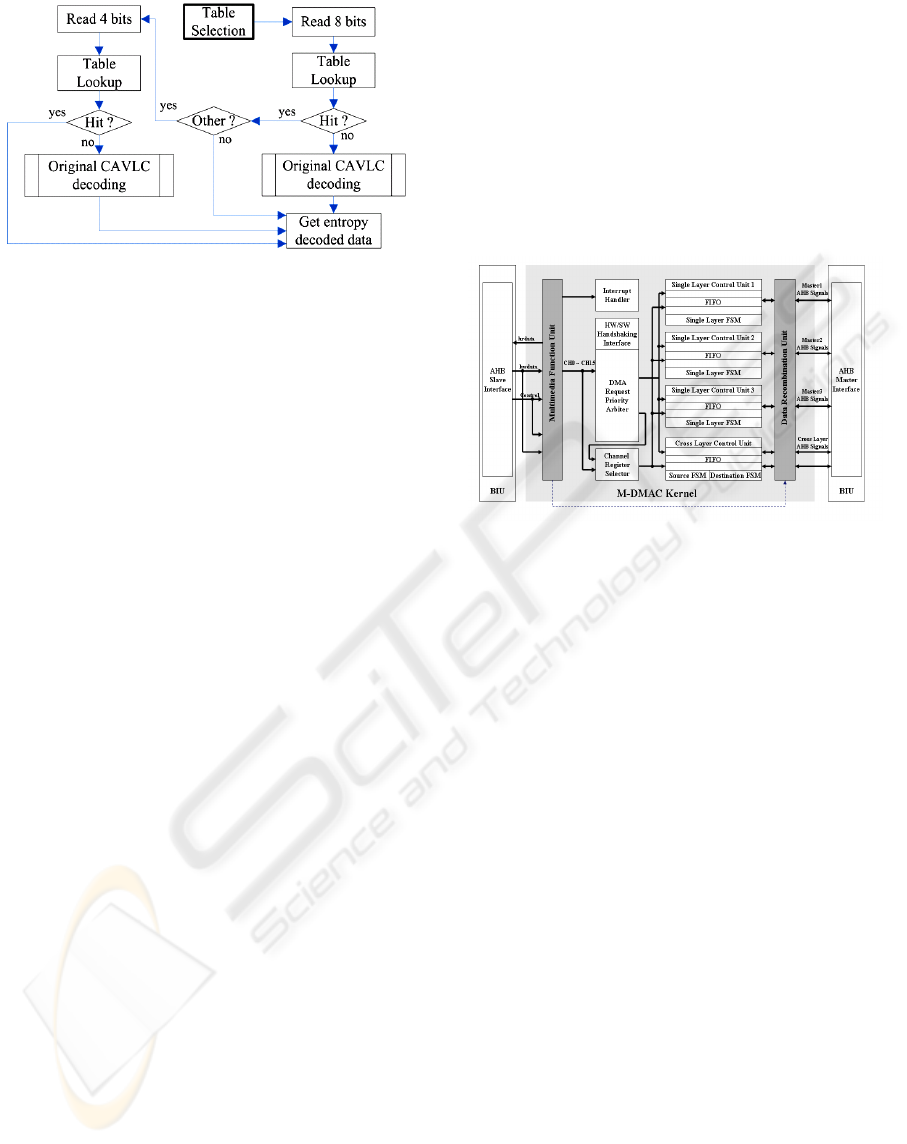

Figure 4-1: Two-phase pattern search algorithm of

CAVLC decoding.

4.2 Data Communication among MPU

and PAC DSP

The data movement between two cores is accom-

plished by DMA controller (commended by the

MPU). However, large amount of small-size refer-

ence data (as depicted in Figure 3-3) is required for

inter prediction of MBs, result in too frequently set-

ting the DMA channels. Additionally, the reference

data are located in two-dimension (2D) mode and

spread randomly, which hurts a traditional DMA in

transforming the 2D coordination into physical ad-

dress in terms of longer channel register setting time.

Moreover, in general the addresses of the reference

data are non-word alignment, since the widths of

reference blocks are often odd and determined dy-

namically. This phenomenon forces a traditional

DMA to transfer the data in a unit of byte, degrading

bus bandwidth utilization. Therefore, to tackle three

major inherently issues of moving reference data

(between two cores), a multimedia enhanced DMA

controller (or so called M-DMAC) is proposed to

replace original used DesignWare DMAC (so called

DW-DMAC) provided by Synopsys company.

Figure 4-2 shows the architecture of proposed

M-DMAC, where two functional units, Multimedia

Functional Unit (MFU), and Data Recombination

Unit (DRU) are introduced. On the one hand, DRU

handles recombining of 2D source blocks, facilitat-

ing M-DMAC to transfer non-word alignment ad-

dress. The M-DMAC supports four transfer modes

(i.e., any combination of 1D and 2D), and sixteen

physical channels to shorten the busy waiting time

of application programs or issued interrupts. On the

other hand, MFU supports not only physical address

interface for linear data transmission, but also 2D

awareness interface, where the block size, and the

X-Y coordination of 2D block, width, height, and

starting address of source/destination video frames.

Moreover, there are also motion vector parameters

describing the locations of source reference blocks.

To reduce the setting times of channel registers,

common block size and frame resolution are built

inside MFU and can be designated through an index

table. For 2D block, user can directly input 2D data

information via the 2D awareness interface. Thereaf-

ter the 2D information is transformed into physical

address, thereby reducing the time for calculating

physical address, and achieving high parallelism

between application programs and M-DMAC opera-

tions.

Figure 4-2: Architecture of M-DMAC.

4.3 Program Optimization on

PAC DSP

Computation intensive procedures, such as IT/IQ,

PPC, and DF, executed on the PAC DSP are opti-

mized by hand-coded assembly programs adhere to

fully utilized the characteristics of PAC DSP. The

programming techniques are summarized as follows.

 Data partitioning for two VLIW clusters

Actually PAC DSP is a 5-way issue VLIW DSP

processor, classifying into one AU plus one LSU per

cluster, and one Scalar Unit. Therefore, the cluster-

based VLIW datapath inherently towards data parti-

tioning, that makes fully parallelization for MB

processing. For example, all MBs (no matter luma or

chroma) can be decomposed into 4x4 sub-MBs, and

one 4x4 can be further divided into 4x2 or 2x4 data

blocks processed by each cluster. Especially, Cb and

Cr are processed on distinct cluster due to their data

independent property. Higher IPC (instruction per

cycle) can be reached naturally via this scheme on

PAC DSP.

 Data packing/unpacking with SIMD (single

instruction and multiple data)

PAC DSP provides efficient data packing and un-

packing instructions, which makes smoothly SIMD

utilization on each cluster. Ideally 8-bit data process-

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

314

ing can achieved double quad-speed with minor

overhead for packing/unpacking (from/to memory).

 Strength reduction for multiplication opera-

tions

Multiplications in the IQ/IT (matrix operations) and

PPC (6-tape filter operations) procedures of the

H.264/AVC decoder can be transformed into addi-

tion and subtraction operations. Furthermore, those

operations can be well organized into special MAC

(multiply-and-accumulate) and Butterfly operations

provided by the PAC DSP instructions.

 Loop unrolling and Software pipelining

Through these schemes, NOP operations in loop

kernels for each procedures executed on the PAC

DSP can be squeezed out to improve the perform-

ance. A lot of efforts have paid on this, since data

dependence is the critical issue in our MB level de-

coding flow between two cores (MPU and DSP)

where inter-loop unrolling and software pipelining

need to be carefully handled. Especially note that

slightly refinement in the deepest loop kernel still

can achieve a great improvement substantially due to

the enormous data proportional to the video resolu-

tion.

5 EXPERIMENTAL RESULTS

As shown in Figure 5-1, a development board of the

PAC SoC platform (STC’s Multimedia SoC, 2007)

to evaluate the implementation, where the MPU is

ARM922T running at 150MHz with 33MHz internal

frequency, the system bus is AMBA 2.0 lite running

at 22MHz frequency with multi-layer AHBs, and the

M-DMAC is a FPGA module running the same fre-

quency as AHB bus, and a PAC DSP (also imple-

mented by the FPGA module) running at 24MHz.

The following subparagraphs describe the compara-

ble results of each portion.

ED on MPU core－Table 5-1 shows the results of

devised two-phase pattern search algorithm for

CAVLC decoding in ED executed on the MPU core,

achieving around 10% improvement in average

comparing to standard ED with normal CAVLC

decoding scheme.

Data movement between two cores－Figure 5-2

displays the efficiency of proposed M-DMAC in

terms of inter prediction with various MB partitions

result in 2~4 times faster than DW-DMAC.

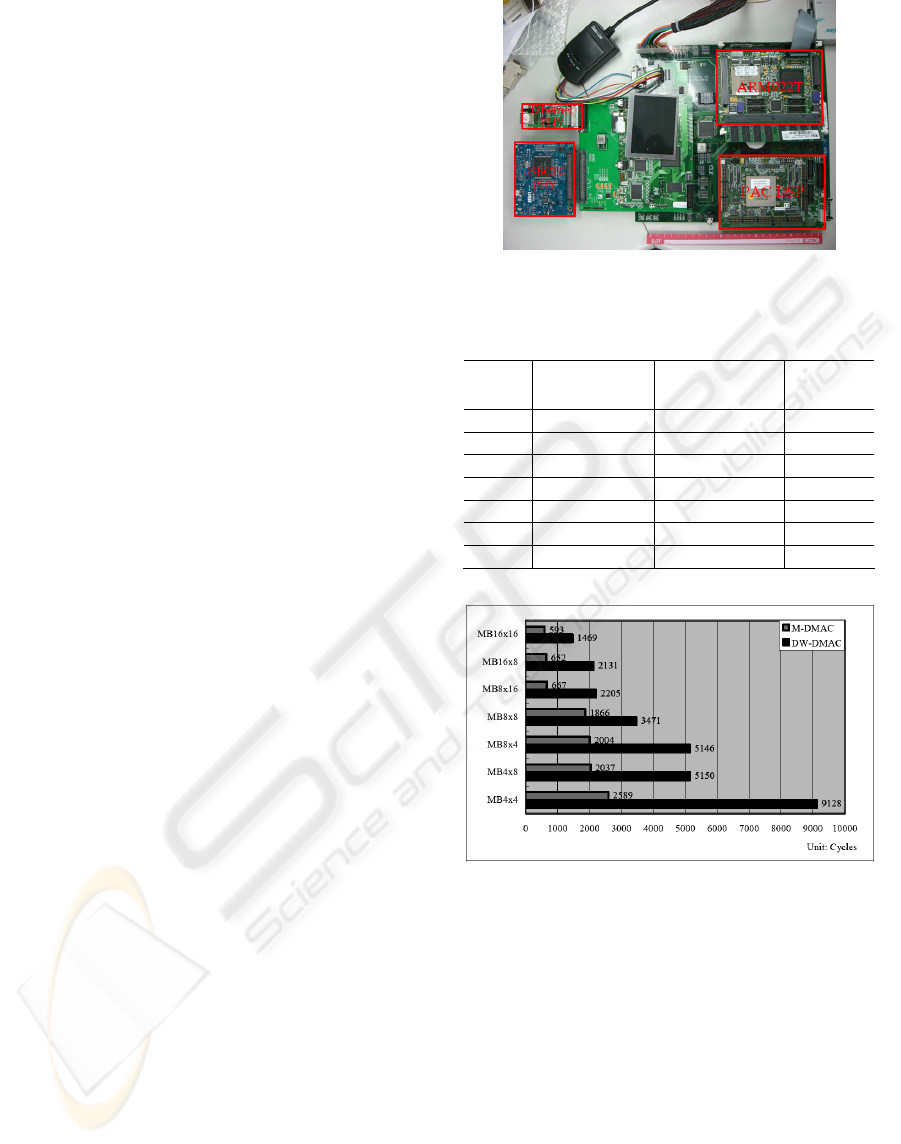

Figure 5-1: Development board of the PAC SoC.

Table 5-1: Performance improvement of two-phase pattern

search algorithm for typical video sequences.

Figure 5-2: Performance comparison between M-DMAC,

and DW-DMAC with various MB partitions.

Procedures on PAC DSP core－Table 5-2 shows

the results of procedures executed on the PAC DSP,

where intra prediction has the largest code size in-

curred by code unrolling for all different cases. The

best case of DF procedure produced 1000 cycle

counts when BS (boundary strength value) equals

zero. Statistically, the probability of BS equals to

zero is around 71% in average and 47.3% in worst

case. Thus evaluation results achieved around 2000

cycles in average. Due to a great amount of cycle

count wasting on the interpolation operation, the

inter prediction process has large cycle count around

(640~2800) + 200. Also, the evaluation displayed

Video

sequence

Entropy decoding

with normal

CAVLC decoding

Entropy decoding

with two-phase

pattern search method

Improvement

Claire 14,612,810 12,738,779 12.82%

Highway 20,639,203 19,572,458 14.86%

Carphone 29,777,102 25,990,674 12.72%

Silent 30,334,038 26,373,234 13.06%

News 30,725,393 28,079,039 8.61%

Foreman 34,192,569 29,959,594 12.38%

Mobile 89,094,039 83,645,173 6.12%

REALIZATION AND OPTIMIZATION OF H.264 DECODER FOR DUAL-CORE SOC

315

that the average cycle count of interpolation opera-

tion is 1500. For IQ/IT, the skip mode has probabil-

ity 45% in average and 6% in worst case, which re-

sults the best case cycle count 200. The average cy-

cle count spent in IT/IQ is around 1500 cycles.

Therefore, the implementation on the DSP core

spends around 5000 cycles per MB processing in

average, which is under the required cycle counts

per MB of decoding an H.264 video sequence with

D1 (720×480) resolution in real time (i.e., 6173 cy-

cles, derived from (250×10

) / (45×30) / 30 when the

DSP is running at 250 MHz), therefore achieving

real-time decoding in most cases.

Table 5-2: Execution cycles of the procedures on the PAC

DSP.

Functions Cycle counts Code size(kB)

DSP_main 150 1.5

IQ/IT 200~2600 6.4

Intra prediction (300~1900) + (200~400) 18.7

Inter prediction (640~2800) + 200 11.2

DF 1000~5000 8.9

TOTAL 1850~10600 46.7

Finally, the prototyping SoC platform with an

ARM core and FPGA module (for the PAC DSP)

reveals that, even in low profile specification, the

whole decoding system still can process up to 26 fps

at QCIF resolution, which can be expected at higher

specification with a real-chip dual-core SoC (e.g.,

PAC DSP@250MHz with higher bus frequency) for

decoding a video with D1 resolution in real-time.

6 CONCLUSIONS

In this paper, a software programming model for

H.264/AVC decoder on an asymmetric dual-core

SoC platform, equipped with a VLIW PAC DSP

coprocessor is presented. The decoding throughput

is achieved by well-organized software partitioning

flow between two cores, efficient data movement

from MPU to PAC DSP and vice versa, and program

optimization both on the MPU and PAC DSP. The

analysis shows that the implementation can achieve

real-time decoding at D1 resolution, which provides

a valuable experience for similar implementations.

REFERENCES

Chen, Y.-K. Li, E., Zhou, X., Ge, S., 2006. Implementa-

tion of H.264 Encoder and Decoder on Personal Com-

puters. In Journal of Visual Communications and Im-

age Representations, vol. 17, no. 2, pp. 509-532.

DaVinci™ technology from TI.(n.d.). Retrieved March 2,

2007,from:http://www.ti.com/corp/docs/landing/davin

ci/index.html

Horowitz, M., Joch, A., Kossentini, F., Hallapuro, A.,

2003. H.264/AVC baseline profile decoder complexity

analysis. IEEE Transactions on Circuits and Systems

for Video Technology, vol.13, issue 7, pp. 704-716.

ITU-T Rec.H.264, ISO/IEC 14496-10, 2003. Advanced

video coding, Final Draft International Standard, JVT-

G050r1, Geneva, Switzerland

Kalva, H., Furht, B., 2005. Complexity Estimation of the

H.264 Coded Video Bitstreams. Computer Journal,

vol. 48, issue 5, pp. 504-513.

Lin, H.-C., Wang, Y.-J., Cheng, K.-T., Yeh, S.-Y., Chen,

W.-N., Tsai, C.-Y., Chang, T.-S., Hang, H.-M., 2006.

Algorithm and DSP implementation of H.264/AVC. In

ASP-DAC’06, 11-th Asia and South Pacific Design

Automation Conference, Yokohama, Japan.

Ostermann, J., Bormans, J., List, P., Marpe, D., Narro-

schke, M., Pereira, F., Stockhammer, T., Wedi, T.,

2004. Video coding with H. 264/AVC: tools, perform-

ance, and complexity. Circuits and Systems Magazine,

IEEE, vol. 4, no. 1, pp. 728.

Raja, G., Mirza, M. J., 2004. Performance comparison of

advanced video coding H.264 standard with baseline

H.263 and H.263+ standards. In ISCIT’04, IEEE In-

ternational Symposium on Communications and In-

formation Technology, vol.2, pp. 743-746.

Schwarz, H., Marpe, D., Wiegand, T., 2006. Overview of

the Scalable H.264/MPEG4-AVC Extension. In

ICIP’06, IEEE International Conference on Image

Processing, pp. 161-164

STC’s Multimedia SoC. (n.d.). Retrieved March, 2, 2007,

from: http://int.stc.itri.org.tw/eng/research/multimedia-

soc.jsp?tree_idx=0200

Suh, H.-L., Jeong, H.-K., Ji, H.-P., Seon, W.-K., Suki, K.,

2006. Implementation of H.264/AVC Decoder for

Mobile Video Applications. In ISCAS’06, IEEE Inter-

national Symposium on Circuits and Systems .

Tseng, S.-Y., Hsieh, T.-W., 2006. A Pattern-Search

Method for H.264/AVC CAVLC Decoding. In

ICME’06, IEEE International Conference on Multi-

media & Expo, pp. 1073-1076.

Wang, S., Yang, Y., Li, C., Tung, Y., Wu, J., 2004. The

optimization of H.264/AVC baseline decoder on low-

cost TriMedia DSP processor. In proceedings of SPIE,

vol. 5558, p. 524.

Wiegand, T., Schwarz, H., Joch, A., Kossentini, F.,

Sullivan, G., 2003. Rate-constrained coder control and

comparison of video coding standards. IEEE Transac-

tions on Circuits and Systems for Video Technology,

vol. 13, pp. 688–703.

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

316
