A COMPARISON OF DIFFERENT

SIDE INFORMATION GENERATION METHODS

FOR MULTIVIEW DISTRIBUTED VIDEO CODING

Xavi Artigas, Francesc Tarrés and Luis Torres

Department of Signal Theory & Communications, Universitat Politècnica de Catalunya (UPC)

Campus Nord, D-5. Jordi Girona 1-3, 08034 Barcelona

Keywords: Distributed Video Coding, Multiview Side Information Generation.

Abstract: This paper presents a comparison of the performance of different side information generation methods for

multiview distributed video coding scenarios. Existing literature on this topic relies on pure temporal

interpolation (by means of motion compensation), pure inter-camera interpolation (by means of disparity

compensation) or a combination of both. In this work a different approach is used by calculating the motion

vectors on an available conventionally-encoded camera (one that is not encoded using distributed principles)

and then using the obtained motion vectors to generate the side information for the camera that requires it.

Variations of this technique are also presented, along with a mechanism to merge all of them together.

Finally, simulation results comparing with other techniques and conclusions are given.

1 INTRODUCTION

Video coding research and standardization have

been adopting until now a video coding paradigm

where it is the task of the encoder to explore the

source statistics, leading to a complexity balance

where complex encoders interact with simpler

decoders. Distributed Video Coding (a

particularization of Distributed Source Coding)

adopts a completely different coding paradigm by

giving the decoder the task to exploit the source

statistics to achieve efficient compression. This

coding paradigm is particularly adequate to

emerging applications such as wireless video

cameras and wireless low-power surveillance

networks, disposable video cameras, medical

applications, sensor networks, multi-view image

acquisition, networked camcorders, etc., where low

complexity encoders are a must because memory,

computation, and energy are scarce.

However, even though the theoretical bases for

Distributed Source Coding (DSC) were set thirty

years ago with the work by Slepian & Wolf

(Slepian, 1973) (for the lossless case) and Wyner &

Ziv (Wyner, 1976) (for the lossy case), it has been

only recently that research on the topic has taken a

new momentum. This research has been encouraged

by the rise of some new applications, and has been

leaded mainly by Ramchandran et al. (Puri, 2002)

and Girod et al. (Girod, 2005). A good review of

other works can be found in (Girod, 2005).

On the other hand, Multiview techniques have

been researched in the past, both for coding (Ohm,

1999) and for camera interpolation, since they allow

creating views from virtual (non-existent) cameras,

or what is called Free Viewpoint Navigation of

scenes given only recordings from a few cameras

(Shum, 2000).

The objective of Multiview DVC is to efficiently

encode different video streams, but exploiting the

possible redundancies at the decoder, thus obtaining

benefits inherent to DVC like lower encoding

complexity, embedded error resilience or the fact

that no connection is necessary between the different

cameras. This paper compares the performance of a

number of methods that particularize Distributed

Video Coding to the Multiview scenario.

Multiview DVC has only recently received

attention from the scientific community.

Ramchandran et al. (Toffetti, 2005) and Girod et al.

(Zhu, 2003) worked with static images. Guo et al.

(Guo, 2006) and Ouaret et al. (Ouaret, 2006) worked

with video sequences using a homography approach

to perform the inter-camera interpolation and fuse it

with conventional intra-camera interpolation. In

450

Artigas X., Tarrés F. and Torres L. (2007).

A COMPARISON OF DIFFERENT SIDE INFORMATION GENERATION METHODS FOR MULTIVIEW DISTRIBUTED VIDEO CODING.

In Proceedings of the Second International Conference on Signal Processing and Multimedia Applications, pages 440-445

DOI: 10.5220/0002142304400445

 SciTePress

(Artigas, 2006) additional depth information was

used in order to help the process.

Section 2 quickly describes the used DVC codec

and Section 3 depicts the selected multiview

scenario. Then, Section 4 details the different

techniques being compared and Section 5 gives the

results of the comparison. Section 6 finally extracts

some conclusions.

2 DISTRIBUTED VIDEO CODING

The process followed to turn Wyner and Ziv’s

theoretical principles (Wyner, 1976) into a practical

codec is summarized next. More details can be

found in (Girod, 2005) and the general scheme is

depicted in Figure 1.

Some of the input frames (the Intra frames) are

independently coded and decoded. Furthermore, the

receiver uses them to generate an estimate for the

rest of the frames (the WZ frames). This estimate is

called side information. Then, for the WZ frames,

the emitter only needs to transmit the necessary bits

to correct possible estimation errors. This is why the

better the side information (the more correlated it is

with the frame being estimated), the less bits will be

required to encode that image (there will be less

errors to correct).

The distributed encoder uses systematic turbo

codes to generate parity bits for the WZ frames. The

systematic part of the codes is discarded, since it

will be replaced by the side information at the

decoder, and only the parity bits are kept.

The parity bits are punctured out to achieve

compression and transmitted (this information is

called Main Signal in Figure 1). The receiver then

uses the popular MAP (or BCJR) algorithm (Bahl,

1974) to turbo decode the received parity bits using

its side information as systematic bits. If decoding is

not reliable enough after a given number of turbo

iterations, more parity bits are requested through the

return channel. Ideal error detection is used to assess

the reliability of the decoded bits. More details can

be found in (Girod, 2005).

The techniques presented later in Section 4 deal

only with the generation of the side information and

no more remarks will be made regarding the rest of

the distributed video codec.

3 PROBLEM STATEMENT

The setup depicted in Figure 2 is proposed. It can be

further augmented by adding more cameras or

changing their configuration, but this structure is

sufficient to describe the proposed techniques. Three

cameras are used, which do not communicate among

them. Two of them are called Intra Cameras and

work in a non-distributed fashion, i.e., their video

stream is encoded and decoded independently of the

other cameras (using H.264, for example). The third

camera, called Wyner-Ziv camera (or WZ camera),

independently encodes its video sequence but

requires the video streams from the other cameras to

decode it (Figure 2). This joint decoding allows the

WZ camera to transmit at a lower rate than if it was

decoded on its own, as stated by the Slepian-Wolf

theorem.

The Wyner-Ziv camera transmits some frames in

Intra mode, as in (Girod, 2005); this is, coded

independently of the other frames (for example

using JPEG or H.264 I-frames coding). The rest of

the frames are called Wyner-Ziv frames and are the

ones that will benefit from the joint decoding

performed at the receiver (Figure 3 depicts the three

kinds of frames and their relationship). In the

following explanations it will be assumed that only

one WZ frame is present between every two Intra

frames.

(K-1 frames

out of K)

frames

Emitter

Receiver

Intra

decoder

(1 frame

out of K)

Intra

frames

Intra

encoder

Side

information

generator

Side information

decoded

frames

Main signal

decoded

Intra

frames

Distributed

encoder

Distributed

decoder

Distributed

decoder

Return channel

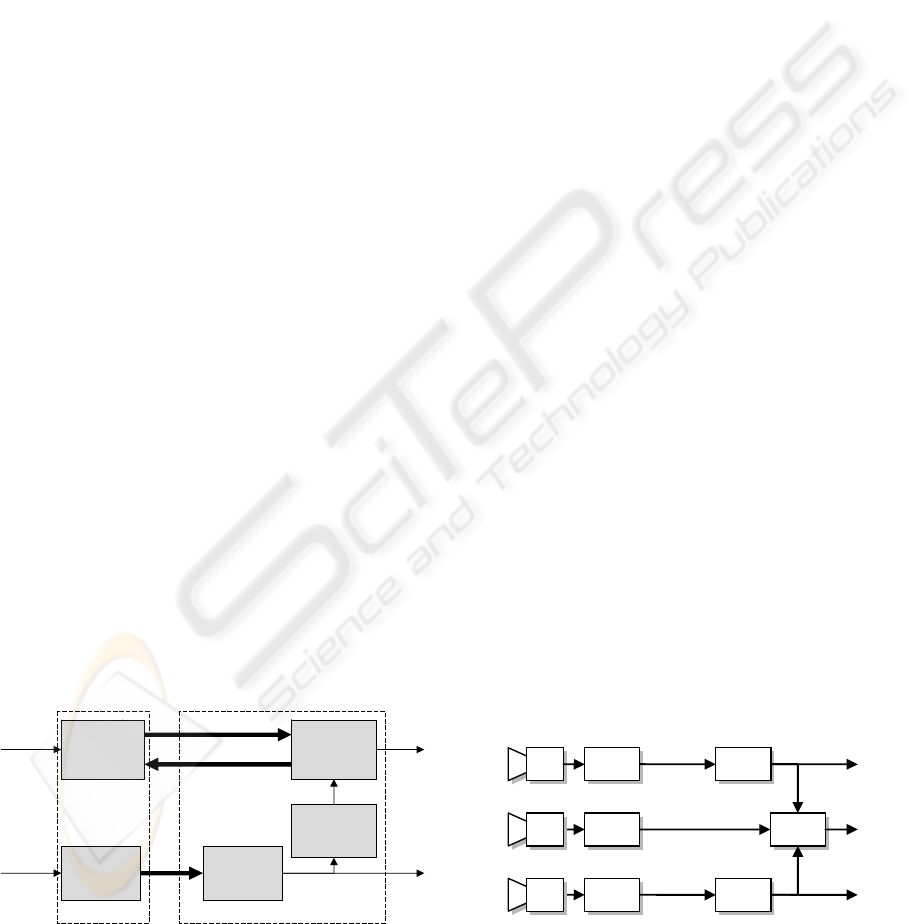

Figure 1: General scheme of the DVC-based system. 1 out

of each K input frames is intra encoded and decoded,

while the rest of the frames uses distributed principles.

Intra

Cam

Intra

encoder

Intra

decoder

Intra

encoder

Intra

decoder

encoder

decoder

Cam

Intra

Cam

Figure 2: General setup. Intra cameras operate in a

conventional fashion while the Wyner-Ziv camera requires

oint decoding.

A COMPARISON OF DIFFERENT SIDE INFORMATION GENERATION METHODS FOR MULTIVIEW

DISTRIBUTED VIDEO CODING

451

4 SIDE INFORMATION

GENERATION

As can be seen in Figure 3, a WZ frame has a

number of nearby frames that can be used to

generate its side information. There are a number of

methods which only use information from the WZ

camera (Intra-Camera methods) like Motion-

Compensated Temporal Interpolation (MCTI) (Lee,

2003), and also a number of methods which use

information from the Intra cameras but only at time

instant k (Inter-Camera methods) like Image-Based

Rendering methods (Shum, 2000) or Disparity-

Compensated View Prediction (DCVP, described

next).

These two classes of methods estimate correctly

some parts of the WZ frame, but fail in other parts:

the Intra-Camera class has problems with high

motion areas and the Inter-Camera class cannot

easily deal with scene occlusions and reflections.

To overcome these difficulties a number of

proposals have recently appeared (Guo, 2006),

(Ouaret, 2006), (Artigas, 2006) that merge the

correctly predicted parts of each estimation and

discard the rest. The approach followed in this work

is different in that it does not try to merge

independently-obtained intra-camera and inter-

camera estimates, but it directly uses all available

information, as described next.

4.1 Basic Side Information Generation

Techniques

Two of the simplest side information generation

techniques are MCTI and DCVP, shown in Figure 4.

MCTI obtains its motion vectors by means of block-

matching, and uses temporally adjacent frames from

the WZ camera as references. DCVP employs the

same method as MCTI, but uses frames from the

Intra cameras, at the same time instant, as

references. In order to avoid the limitations stated

above for these techniques, the following method

was researched.

4.2 Multiview Motion Estimation

The main idea behind Multiview Motion Estimation

(MVME) is depicted in Figure 5: the motion vectors

are first found on an Intra camera and then used on

the WZ camera to estimate the WZ frames.

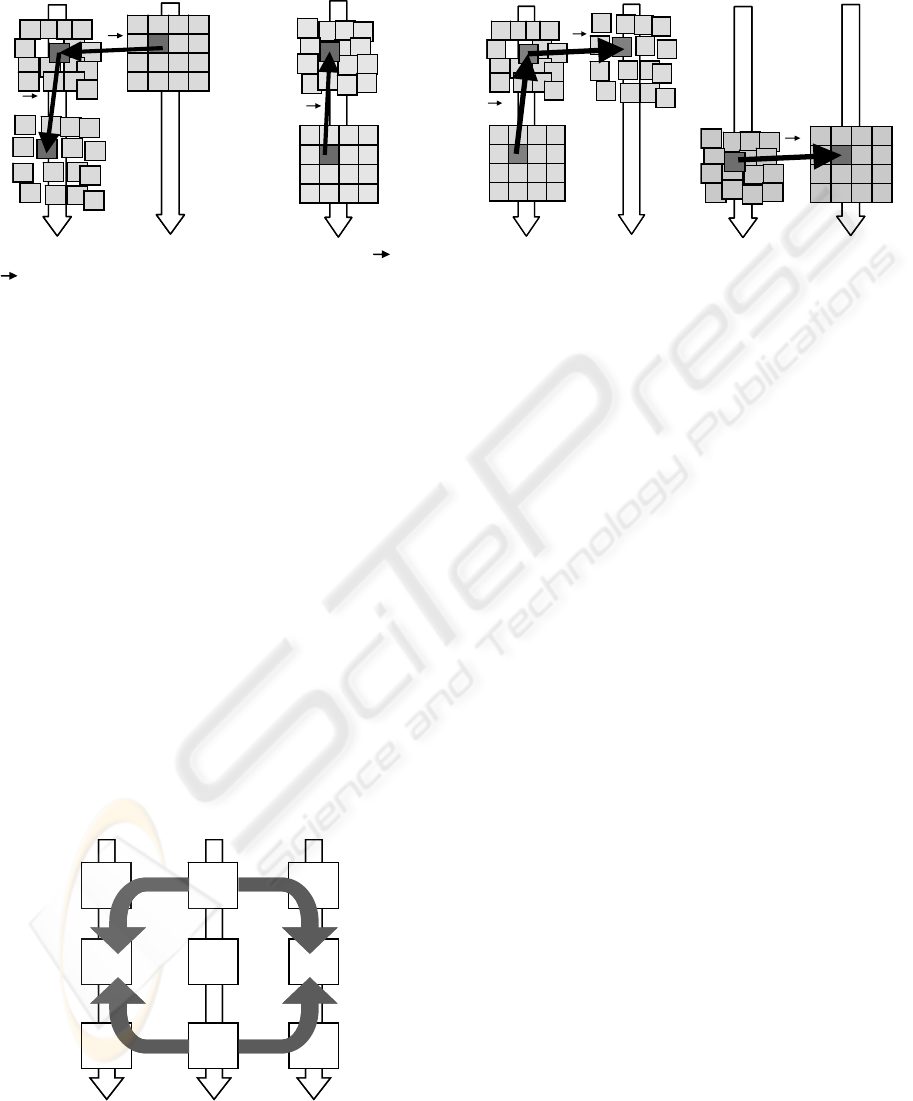

Details can be found in Figure 6. Firstly, the

relationship between the two cameras is examined

by finding the disparity vectors. These vectors play

the same role as the motion vectors: they relate each

block in the WZ camera with the most similar block

in the Intra camera. This is similar to what DCVP

presented before does.

Secondly, each matched block in the intra

camera is again searched for, but in a temporally

adjacent frame (as one would do in conventional

motion compensation). In this step, the motion

vectors are found.

Finally, the motion vectors obtained in the Intra

camera are applied to the WZ camera to generate the

estimation.

Frame

-1

Frame

Frame k+1

WZ Cam Intra Cam

Intra Cam

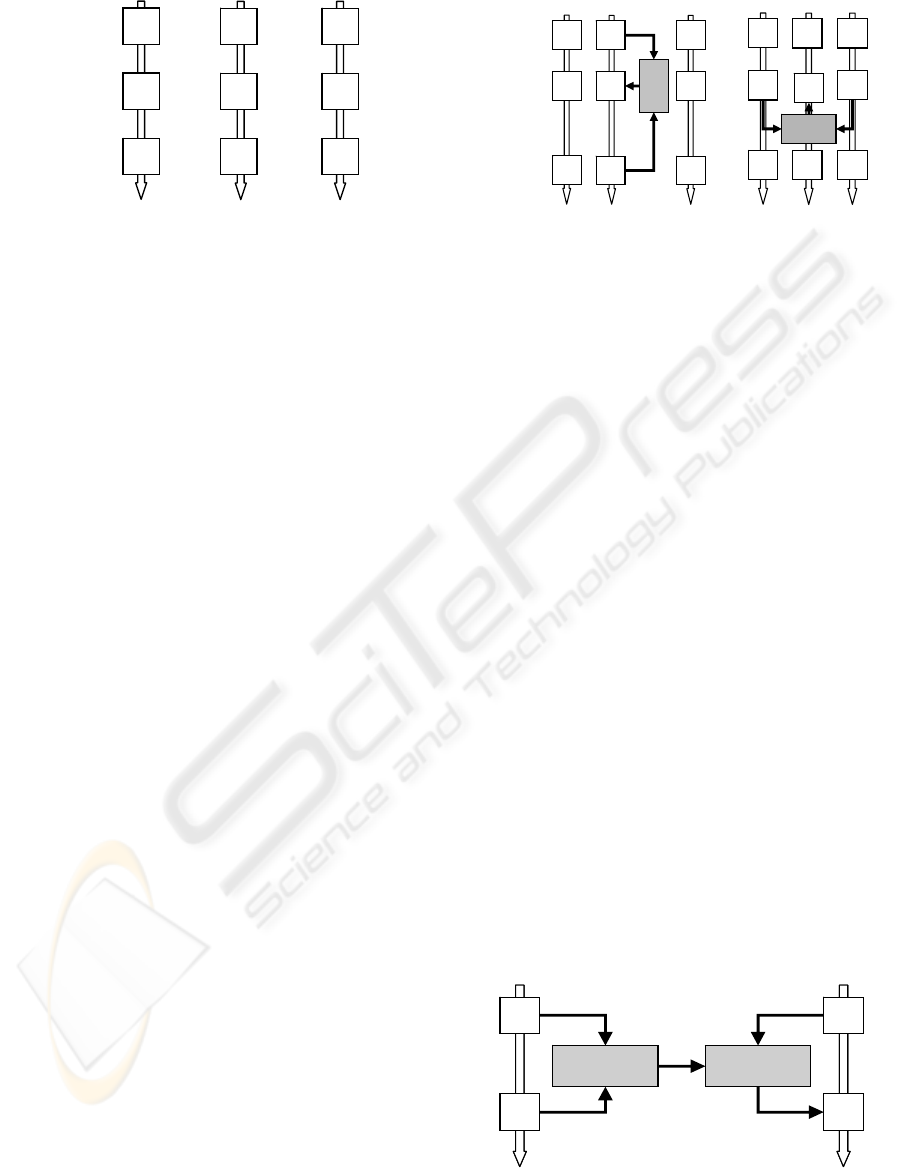

Figure 3: Spatiotemporal frame structure. “C” frames

elong to a conventionally encoded video sequence. “I”

frames are encoded as single images. “WZ” frames use the

distributed coding scheme.

Frame k-1

Frame k

Frame k+1

Cam

Intra

Cam

Intra

Cam

MCTI

Cam

Intra

Cam

Intra

Cam

DCVP

Figure 4: Basic techniques.

Intra

Cam

Motion

Estimation

Motion

Compensation

Motion

vectors

Cam

Frame

k-1

Frame

Figure 5: General scheme for the MVME technique.

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

452

This technique works as long as all the cameras lie

in the same plane and point in the same direction. If

this is not the case, then the motion vectors need to

be transformed before applying them to a different

camera, which requires that the calibration matrix of

each Intra and WZ camera is available.

The technique has been described so far for only

one intra camera (left or right) and one reference

frame (previous or next) in that intra camera. The

particular frames that have been used (and the order

in which they have been used) are called the path,

and with the technique described so far 4 different

paths are possible (depicted in Figure 7).

It is straightforward to increase the number of

paths by taking the “orthogonal” ones, this is, 4 new

estimates are generated by finding the disparity

vectors in the previous time instant and applying

them to the current time instant to estimate the WZ

frame. The new paths are the disparity paths, and are

obtained using the exact same process as the

previous 4 paths (the motion paths), but use the

reference frames in a different order (Figure 8).

This technique doubles the amount of motion

and disparity search that the decoder must carry out,

but also doubles the quantity of available estimates,

increasing the total performance as shown later.

The (different) estimates produced by each path

need now to be merged, and the simplest mechanism

is to average all of them. This is the technique called

MVME. A more evolved method could calculate, for

each block, a measure of the reliability of each path,

and then build the final estimate by weighting each

path by its reliability and adding all of them

together. This technique is called MVME with

Weighted Average (MVME-WA) and allows the

most reliable paths to have a higher contribution to

the final estimate.

The reliability measure used in this work to

weight the different paths is based on the local

variance of the motion (or disparity) field around

each block. I.e., it is a measure on how uniform the

field is. The rationale behind this choice is that real

fields are usually uniform, except at object’s

boundaries, while incorrectly calculated fields are

usually very noisy. Other reliability measures are

currently being researched.

The side information generation techniques

described in this section have been integrated in a

distributed video codec to verify their validity. The

outcome of the simulations is given next.

5 RESULTS

Results have been obtained by simulating a number

of side information generation techniques for the

three multiview test sequences listed in Table 1. The

tested techniques are listed in Table 2.

Motion Motion

Estimation Compensation

Intra

Cam

Figure 6: Detailed view of the MVME technique. mv an

dv are the motion and disparity vectors respectively.

Figure 7: The four different paths obtained with two Intra

cameras and two reference frames in each Intra camera.

Disparity Disparity

Estimation Compensation

Cam

Intra

Cam

Intra

Cam

Figure 8: One disparity path for MVME. Note that the

same frames are being used as the motion path in Figure 6,

but in different order.

A COMPARISON OF DIFFERENT SIDE INFORMATION GENERATION METHODS FOR MULTIVIEW

DISTRIBUTED VIDEO CODING

453

A complete DVC codec

has been used to assess the

performance of the methods presented. Results

for H.264 in intra mode have also been added so the

DVC results can be compared with a state-of-the-art

codec with no motion search at the encoder.

The results of all the conducted experiments can

be found in Figure 9. It can readily be seen that no

single technique works best for all test sequences;

For Breakdancers the best technique is H.264 Intra,

and for Exit it is DVC with MCTI-generated side

information. This is due to the different motion

content of the sequences: The motion in

Breakdancers is too high for the motion estimation

algorithm to track, so independent encoding of every

frame delivers the best performance.

This is also the reason why, for the Breakdancers

sequence, even when all MVME variants are worse

than H.264 Intra, they still outperform pure temporal

interpolation (MCTI), the most complex one

(MVME-WA-8) giving a gain of up to 1dB over

MCTI.

However, this is not the case for the other

sequence, where MCTI gave consistently better

results than MVME. These results indicate that the

MVME technique has yet to be improved to be

useful for every type of sequence.

Also, the disparity path usually brought the

worst results among the MVME-WA techniques.

This is expected since correlation is normally higher

between frames of the same camera than between

different cameras.

6 CONCLUSIONS

Comparisons among side information generation

approaches have been presented. In addition, a

technique has been introduced to generate side

information for multiview DVC scenarios, based on

finding motion (or disparity) vectors on a different

camera (or time instant) and apply them to the

present camera (or time instant). Research is still

ongoing, but it already presents promising results for

some test sequences.

Table 1: Simulated multiview test sequences and their characteristics.

Sequence

Frame size

(pixels)

Number of

frames

Frame rate

(Hz)

Content

Breakdancers 256 x 192 100 15 Extremely fast movement.

Exit 192 x 144 250 30 Slow movement and small disparities.

Table 2: List of examined techniques.

Name Description

MCTI Pure temporal interpolation

MVME-4m MVME using the 4 motion paths

MVME-WA-4m MVME-WA using the 4 motion paths

MVME-WA-4d MVME-WA using the 4 disparity paths

MVME-WA-8 MVME-WA using all 8 paths

H.264 Intra Intra coding of all frames (no DVC)

0 100 200 300 400 500 600 700 800

Total ra te (kbit/s)

PSNR (dB)

MCTI

MVME-4m

MVME-WA-4m

MVME-WA-4d

MVME-WA-8

H.264 Intra

Breakdancers

0 100 200 300 400 500 600 700 800

Total rate (kbit/s)

PSNR (dB)

MCTI

MVME-4m

MVME-WA-4m

MVME-WA-4d

MVME-WA-8

H.264 Intra

Exit

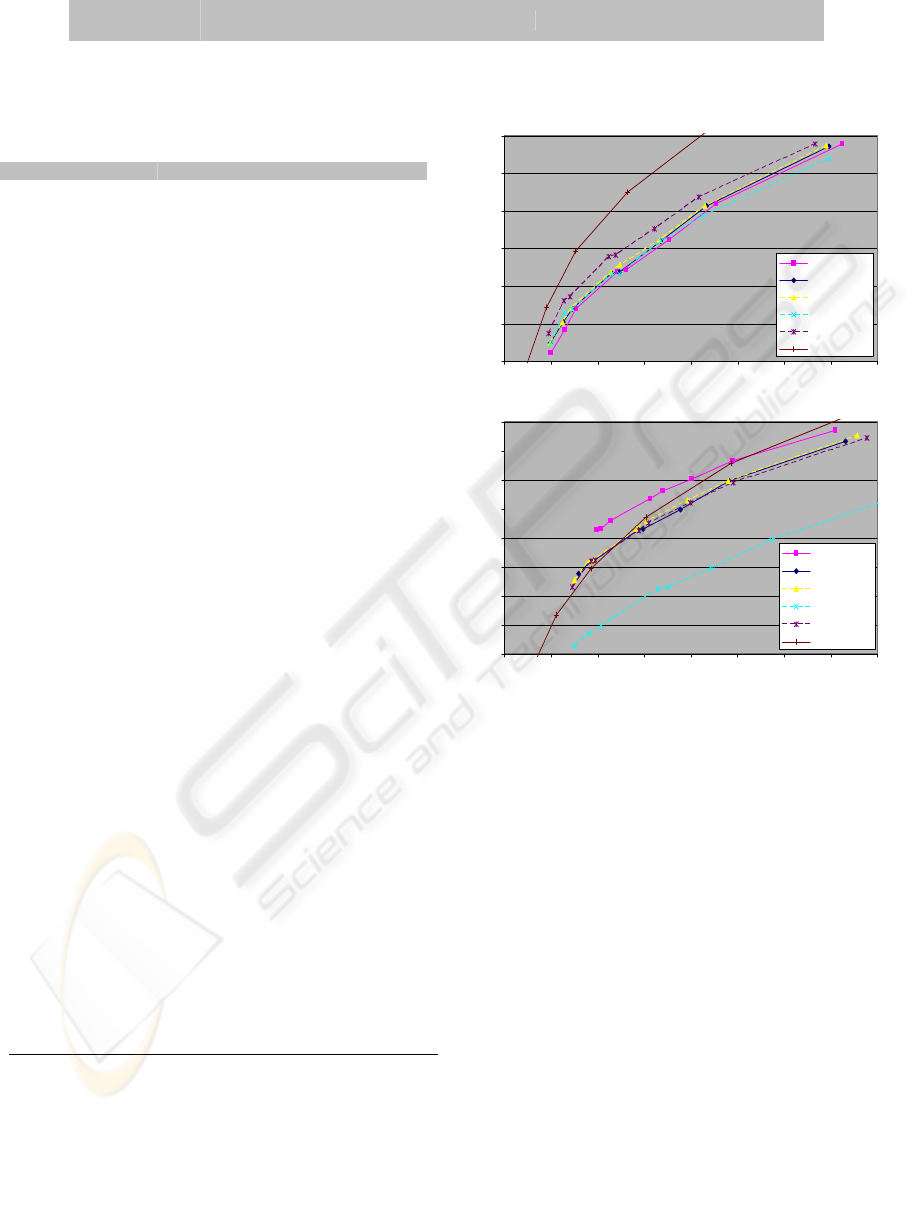

Figure 9: PSNR versus bit-rate for different side

information generation techniques. All curves using

weighted average are dashed for convenience.

This software is called DISCOVER-codec and is the copyrighted

work of the research project "Distributed coding for video services"

(DISCOVER), FP6-2002-IST-C contract no.: 015314 of the European

Commission. It cannot be copied, reproduced nor distributed without

the consent of the project consortium.

The DISCOVER software started from the so-called IST-WZ

software developed at the Image Group from Instituto Superior

Técnico (IST), Lisbon-Portugal (amalia.img.lx.it.pt), by Catarina

Brites, João Ascenso, and Fernando Pereira.

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

454

ACKNOWLEDGEMENTS

The work presented was developed within

DISCOVER (www.discoverdvc.org), a European

Project funded under the European Commission IST

FP6 programme, and by grant TEC2005-07751-

C02-02 of the Spanish Government.

REFERENCES

Artigas, X., Angeli, E. and Torres, L., 2006, “Side

Information Generation for Multiview Distributed

Video Coding Using a Fusion Approach”, 7th Nordic

Signal Processing Symposium, NORSIG’06,

Reykjavik, Iceland, June 7 - 9.

Bahl, L.R., Cocke, J., Jelinek, F., Raviv, J., 1974,

“Optimal Decoding of Linear Codes for minimising

Symbol Error Rate,” IEEE Transactions on

Information Theory, vol.20, pp.284-287, March.

Girod, B., Aaron, A., Rane, S. and D. Rebollo-Monedero,

2005, “Distributed video coding”, Proc. of the IEEE,

vol. 93, no. 1, January.

Guo, X., Lu, Y., Wu, F., Gao, W. and Li, S., 2006,

“Distributed multiview video coding”, Proceedings of

SPIE, January, San Jose, California, USA, Vol. #6077.

Lee, S.H., Kwon, O. and Park, R. H., 2003, “Weighted-

Adaptive Motion-Compensated Frame Rate Up-

Conversion”, IEEE Trans. on Consumer Electronics,

Vol. 49, No. 3.

Ohm, J.R., 1999, “Stereo/Multiview Video Encoding

Using the MPEG Family of Standards”, Invited Paper,

Electronic Imaging '99, San Diego, January.

Ouaret, M., Dufaux, F. and Ebrahimi, T., 2006, “Fusion-

based multiview distributed video coding”, ACM

International Workshop on Video Surveillance and

Sensor Networks, Santa Barbara, CA, USA October

27.

Puri, R. and Ramchandran, K., 2002, “PRISM: A new

robust video coding architecture based on distributed

compression principles”. Proc. of 40th Allerton Conf.

on Comm., Control, and Computing, Allerton, IL,

October.

Shum, H.Y. and Kang, S.B., 2000, "A Review of Image-

based Rendering Techniques", IEEE/SPIE Visual

Communications and Image Processing (VCIP) 2000,

pp. 2-13, Perth, June.

Slepian, D. and Wolf, J., 1973, “Noiseless coding of

correlated information sources”, IEEE Trans. Inform.

Theory, vol. 19 pp. 471-480, July.

Toffetti, G., Tagliasacchi, M., Marcon, M., Sarti, A.,

Tubaro, S. and Ramchandran, K., 2005, “Image

Compression in a Multi-camera System based on a

Distributed Source Coding Approach”. European

Signal Processing Conference, Antalya, September.

Wyner, A. and Ziv, J., 1976, “The rate-distortion function

for source coding with side information at the

decoder”, IEEE Trans. Inform. Theory, vol. 22, pp. 1-

10, January.

Zhu, X., Aaron, A. and Girod, B., 2003, “Distributed

compression for large camera arrays”, Proc. IEEE

Workshop on Statistical Signal Processing, SSP-2003,

St Louis, Missouri, September.

A COMPARISON OF DIFFERENT SIDE INFORMATION GENERATION METHODS FOR MULTIVIEW

DISTRIBUTED VIDEO CODING

455
