FACE DETECTION AND TRACKING IN DYNAMIC BACKGROUND

OF STREET

Jacek Naruniec, Władysław Skarbek

Faculty of Electronics and Information Technology, Warsaw University of Technology

Nowowiejska 15/19, 00-665 Warszawa, Poland

Antonio Rama

Dept. Teoria del Senyal i Comunicacions, Universitat Polit´ecnica de Catalunya (UPC), Barcelona, Spain

Keywords:

Face detection, face tracking, Gabor ﬁlter, Linear Discriminant Analysis, Dual Linear Discriminant Analysis,

reference graph.

Abstract:

The paper presents a novel face detection and tracking algorithm which could be part of human-machine in-

teraction in applications such as intelligent cash machine. The facial feature extraction algorithm is based

on discrete approximation of Gabor Transform, called Discrete Gabor Jets (DGJ), evaluated in edge points.

DGJ is computed using integral image for fast summations in arbitrary windows and by FFT operations on

short contrast signals. Contrasting is performed along radial directions while frequency analysis along angular

directions. Fourier coefﬁcients for a small number of rings create a feature vector which is next reduced to few

LDA components and then compared to the reference facial feature vector. Detected eyes and nose corners

are chosen to ﬁt reference face by spatial relationships. Tracking is based on the same rule, but the corners are

searched only within already detected facial features neighborhood. Optionally for face normalization eyes

centers are found as centers of outer and inner eye corners. Comparison of manual and automatic eye center

detection shows still signiﬁcant advantage of manual approach, measured in terms of accuracy in face recog-

nition by Linear Discriminant Analysis (LDA) and Dual Linear Discriminant Analysis (DLDA) algorithms.

1 INTRODUCTION

Face detection is important preprocessing task in bio-

metric systems based on facial images. The result

of detection gives the localization parameters and it

could be required in various forms, for instance:

• a rectangle covering the central part of face;

• a larger rectangle including forehead and chin;

• eyes centers (the choice of MPEG-7 (MPEG-7,

2004));

• numerous landmarks including eyes, nose and

mouths corners, eyebrows, nostrils;

• two eyes inner corners and two nose corners (the

choice of this paper).

While from human point of view the area param-

eters are more convincing (cf. Fig. 1), for face recog-

nition system ﬁducial points are more important since

they allow to perform facial image normalization –

the crucial task before facial features extraction and

face matching (Beumer et al., 2006).

Figure 1: Area versus ﬁducial points parameters for face

localization.

We may observe for each face detector the follow-

ing design scheme (Yang et al., 2002):

1. Deﬁne admissible pixels and their local neighbor-

hoods of analysis. Admissible pixels could cover

the whole image area or its sparse subset, for in-

stance edge or corner points. The neighborhoods

could consist of one pixel only or even thousands

of them forming rectangular windows of analysis

or for instance rings of small rectangles (cf. Fig.

414

Naruniec J., Skarbek W. and Rama A. (2007).

FACE DETECTION AND TRACKING IN DYNAMIC BACKGROUND OF STREET.

In Proceedings of the Second International Conference on Signal Processing and Multimedia Applications, pages 404-410

DOI: 10.5220/0002142404040410

 SciTePress

2).

2. Design a feature extractor which produces a col-

lection of features for each admissible local neigh-

borhood. It may be as simple as admissible pixel

color frequency or as complex as long vector of

100 Angular Radial Transformation (ART) coef-

ﬁcients.

3. Design a classiﬁer which decides whether the col-

lection of features extracted from the given neigh-

borhood of analysis could be face relevant. If so

the admissible pixel becomes face relevant point.

It could be a simple classiﬁer based on compari-

son of feature with a threshold or more complex

Support Vector Machine (SVM classiﬁer) using

Gaussian kernel.

4. Deﬁne a post-processing scheme which selects

representative face relevant points deﬁning face

locations. The representatives could be obtained

as centroids of connected components in the set of

all face relevant points or results of more complex

clustering scheme combined with graph matching

to reject inconsistent ensembles of face relevant

points.

On top of the above scheme each detector includes a

multi-resolution mechanism to deal with face size. It

is implemented either through analysis in image pyra-

mid or by scaling the local neighborhood of analysis

together with relevant parameters.

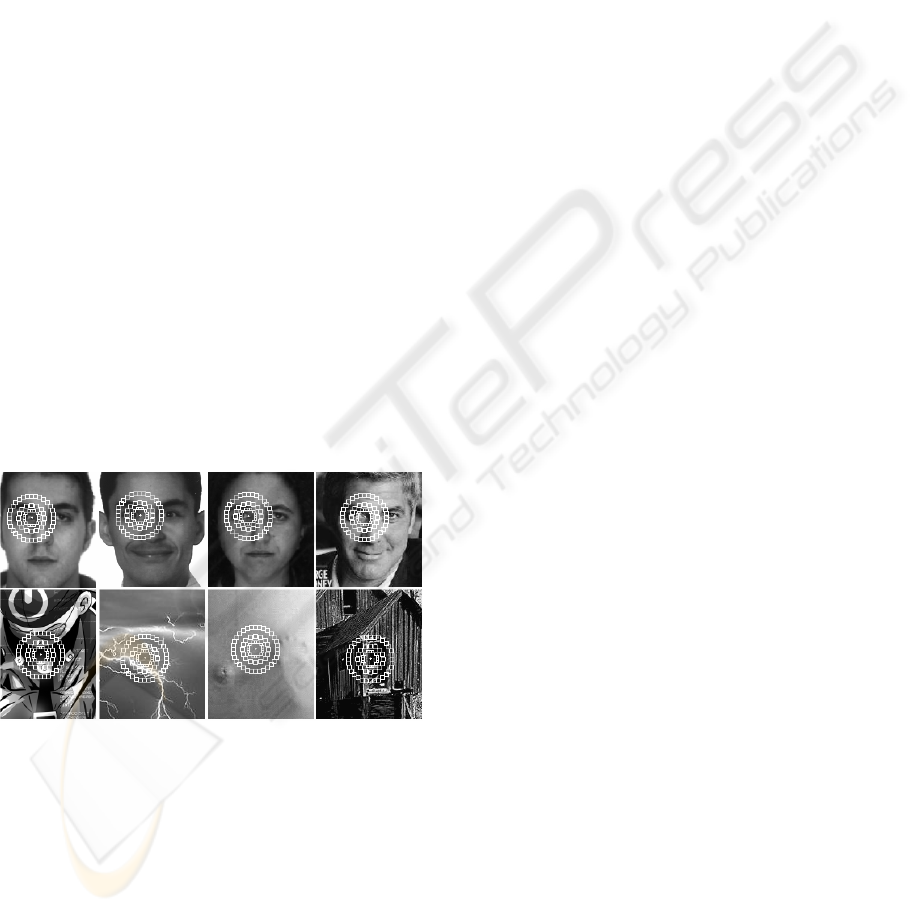

Figure 2: Rings of small squares as neighborhoods of anal-

ysis in our method.

One of the most known face detectors is based on

AdaBoost classiﬁer. It was introduced by Viola and

Jones in 2001 (Viola and Jones, 2001). Let us trace

the design scheme of this prominent method:

1. The local neighborhood of analysis is a small win-

dow of size 20×20 scaled up by 20%. The pixel is

admissible if and only if it is upper left corner of

the analysis window completely included in im-

age domain.

2. In analysis window at ﬁxed positions small con-

trasting ﬁlters are deﬁned of speciﬁc size and type.

The ﬁlter returns the contrast between white and

black region deﬁned as the difference between to-

tal intensities in the regions.

3. The regional contrast is compared with ﬁlter spe-

ciﬁc threshold giving a weak classiﬁer. The weak

decisions are linearly combined using cost coef-

ﬁcients elaborated according the AdaBoost ma-

chine learning scheme. The AdaBoost is a multi-

classiﬁer well known from the late 1980s which

due a special weighting scheme of training exam-

ples ensures the high performance of strong clas-

siﬁer providing that weak classiﬁers have the suc-

cess rate about 0.5. Authors of (Viola and Jones,

2001) applied an early and suboptimal heuristics

given for AdaBoost training algorithm in (Fre-

und and Schapire, 1997). However, their face

recognition system described in (Jones and Vi-

ola, 2003) which also used the AdaBoost concept,

contained the optimal training procedure which is

methodologically sound. The algorithm proposed

by them is a generalization of one described in

(Shapire, 2002).

4. In post-processing stage the centroid of enough

large connected components of face relevant win-

dow corners represents the detected face window.

While AdaBoost is satisfactory solution for fa-

cial window detection, its extensions to detect ﬁdu-

cial points, for instance eye centers, are not equally

effective. The normalization of facial image based on

AdaBoost is not accurate and it results in poor face

recognition and veriﬁcation. In this paper we develop

a novel method for detection of face ﬁducial points

which is based on very rough discrete approximation

of Gabor transform called here Discrete Gabor Jet

(DGJ). The method gives very good results for de-

tection of frontal face views with almost perfect false

acceptance rate.

In practice when we deal with a temporal se-

quence of images face detection cooperates with face

tracking. There are many techniques for object track-

ing in video. However, having robust face detector the

simple practical approach is its local use for each im-

age frame interleaved by global face detector called

with the frequency proportional to motion activity of

tracked objects.

2 DGJ FACE DETECTOR

The whole process of face detection consists of sev-

eral steps illustrated in Fig. 3. The ﬁducial points are

FACE DETECTION AND TRACKING IN DYNAMIC BACKGROUND OF STREET

415

searched only within edge points in the image. Canny

edge detector’s low and high thresholds must be set to

a very small value, that even with poor lighting con-

ditions, no feature’s edges could be discarded.

Edge

detector

Fiducial

points

detector

Graph matching

Merging

neighbours

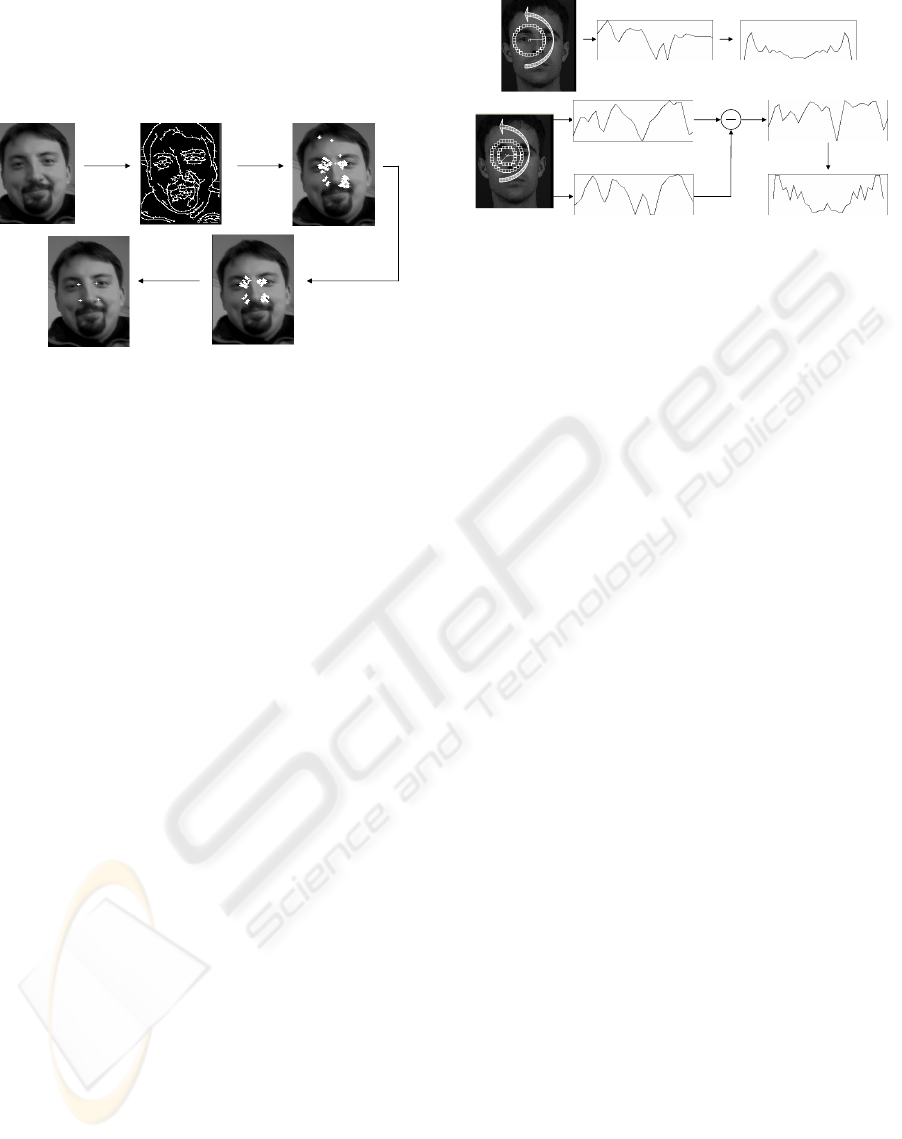

Figure 3: Illustration of all steps for our face detector.

The feature extraction in local neighborhood of

analysis is performed in two stages. Firstly the fre-

quency analysis is performed on selected rings (ﬁrst

type coefﬁcients) and on contrasts between pairs of

rings (second type coefﬁcients). In the second stage a

modiﬁed LDA analysis produces many-dimensional

features discriminating face and non-face ﬁducial

points. Each type of ﬁducial point has its speciﬁc

LDA matrix.

The classiﬁer for the particular ﬁducial point is

based on distance to the centroid of ﬁducial feature

vectors. The standard ROC is built up to tune the dis-

tance threshold to the required false acceptance rate.

2.1 Extractor I: Discrete Gabor Jet

The kernel of Gabor ﬁlter (Gabor, 1946) in spatial im-

age domain is a Gaussian modulated 2D sine wave

grating with parameters controlling wave front spatial

orientation, wave frequency and rate of attenuation.

While Gabor wavelet is accurate tool to represent lo-

cal forms with complex textures its computation ex-

cludes real time applications in pure software imple-

mentations.

Therefore we seek for the representation which

can describe changes of local image contrasts around

the given pixel in both angular and radial direction. To

this goal we design rings of small squares and evalu-

ate frequency of luminance changes on such rings (cf.

Fig. 2).

There are two types of Gabor jets. The ﬁrst type

detects angular frequency on selected rings while the

second type represents angular frequencies for radial

contrast between two selected rings.

(x, y)

Ring function (f) FFT (f)

Second jet mean squares values

First jet mean squares values

FFT

FFT result

Figure 4: First type jet (up) – frequency features on single

ring of squares, and second type jet – frequency features of

double ring of squares.

First type jets. The concept is illustrated in Fig. 4

in upper part.

Each jet of the ﬁrst type is characterized by radius

r of the ring, the number of squares n = 2

, the cen-

ter (anchoring) point (x,y). The sizes of all squares

on the ring are equal. The size is the maximum possi-

ble providing that squares do not intersect each other

(except of intersection perhaps by one pair).

The sum of pixel values in each square is com-

puted using the integral image like in AdaBoost detec-

tor (Viola and Jones, 2001). The sequence of n such

values is normalized to be included in the unit interval

[0,1]. Finally the obtained sequence f is transformed

by FFT. Only the ﬁrst n/2 of DFT complex coefﬁ-

cients are joined to the output feature vector.

Second type jets. The idea is shown in Fig. 4 in

bottom part.

Now the jet consists of two rings with radii r

< r

with the same center (x,y) and with the same number

n = 2

of equal size squares.

Like for the ﬁrst type jets the sum of pixel values

in each square is computed using the integral image,

but now the mean value of each square is computed.

Differences between mean values of each square in

the ﬁrst ring and the corresponding mean values in

second ring are taken. Next the obtained differen-

tial signal is normalized to the unit interval and then

transformed by FFT. Again only the ﬁrst n/2 of DFT

complex coefﬁcients are joined to the output feature

vector.

In the ﬁnal design of Gabor jets for base points

detection and tracking (two inner eye corners and two

nostril corners) we take four jets of the ﬁrst kind and

two jets of the second with parameters deﬁned in the

following table:

After the ﬁrst stage of feature extraction, the fea-

ture vector has 3∗ 16 + 3 ∗ 32 = 144 of real compo-

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

416

Table 1: Jets for base points detection.

type

1 1 1 1 2 2

n 16 16 32 32 16 32

16 24 12 19 16 12

– – – – 24 19

nents.

For outer eyes corners we cannot use whole rings,

which would cover also area outside the face. In this

case we use only right and left halves of the jets to

analyze only the desired face region. Because the in-

formation is now smaller, we have to use more rings

to achieve good detection results.

2.2 Extractor II: Modiﬁed Linear

Discriminant Analysis

Having DFT description over local rings as feature

vector of length 240 we discriminate them using a

Modiﬁed Linear Discriminant Analysis (MLDA).

In case of face detection when we deal with two

classes only, i.e. with facial descriptions and non-

facial descriptions, the classical LDA enables only

scalar discriminative feature. It makes harder separa-

tion of two classes by linear approach. More informa-

tion about classiﬁed region is required. Therefore we

modify the concepts of within and between-variances

and related scatter matrices, in order to get vectorial

discriminative features.

Namely, the classical LDA maximizes the Fisher

ratio of between-class variance over within-class vari-

ance deﬁned as follows ((Fisher, 1936),(Fukunaga,

1992)):

var

(X)

var

(X)

var

(X) :=

∑

i∈I

−

∑

i∈I

−

var

(X) := k

− xk

+ kx

− xk

(1)

where the training set X of feature vectors is divided

into the facial part indexed by I

and the non-facial

part with remaining indices I

It appears that we obtain better discrimination re-

sults with the following class separation measure:

mvar

(X)

mvar

(X)

mvar

(X) :=

∑

i∈I

−

mvar

(X) := k

− xk

∑

i∈I

−

(2)

Like in classical case, the optimization procedure

requires replacing variances by traces of scatter ma-

trices:

trace(S

(X))

trace(S

(X))

(X) :=

∑

i∈I

−

)(x

− x

)

(X) := (

− x)(x

− x)

∑

i∈I

−

)(x

− x

)

(3)

Since for the large number of positive training ex-

amples the scatter matrix S

is of full rank then

we can optimize m(W) := m

w.r.t. the training

set X by Cholesky factorization ((Golub and Loan,

1989)) of S

= C

and solving the following

EVD problem for the symmetric, semi-deﬁnite matrix

′

:= C

−1

−t

W = λS

W, S

= C

, W

′

= C

′

= W

′

Λ(W

′

)

W = C

−t

′

(4)

If columns of W

′

are sorted by decreasing eigenval-

ues λ

and we want to have n ≥ 2 LDA features then

we select from W the ﬁrst n columns as the optimal

solution.

2.3 Post-processing: Graph Matching

Let ﬁducial facial points be depicted according the no-

tation from the Fig. 5. All detected ﬁducial points

to be preserved must pass, for at least one scale,

through the graph matching procedure with the fol-

lowing pseudocode.

forall left eyes le do

forall right eyes re do

if distance(le.Y,re.Y)<15*scale

and 30*scale>(re.X-le.X)>20*scale

forall left nostrils ln do

if distance(le.X,ln.X)<30*scale

and 35*scale>(ln.Y-le.Y)>20*scale

forall right nostrils rn do

if distance(re.X,rn.X)<30*scale

and 35*scale>(rn.Y-re.Y)>20*scale

set distance(le,re):=norm;

normalize other distances:

distancen:=distance/norm;

get total_distance as the sum of distances

between actual graph and reference graph;

if total_distance<threshold

consider points as detected face;

endfor

This pseudocode could be shortly explained by the

statement, that we look for the left eye corner to the

left from the right eye corner, the nose corner at the

FACE DETECTION AND TRACKING IN DYNAMIC BACKGROUND OF STREET

417

bottom of eyes and so on. All the points that fulﬁll

these constraints are then normalized by the distance

of the eye corners, and then compared to the reference

graph. If the Euclidean distance of both graphs is be-

low speciﬁed threshold, points are considered as face

features.

edge

length

A 1.00

1.05

0.99

0.98

1.41

1.43

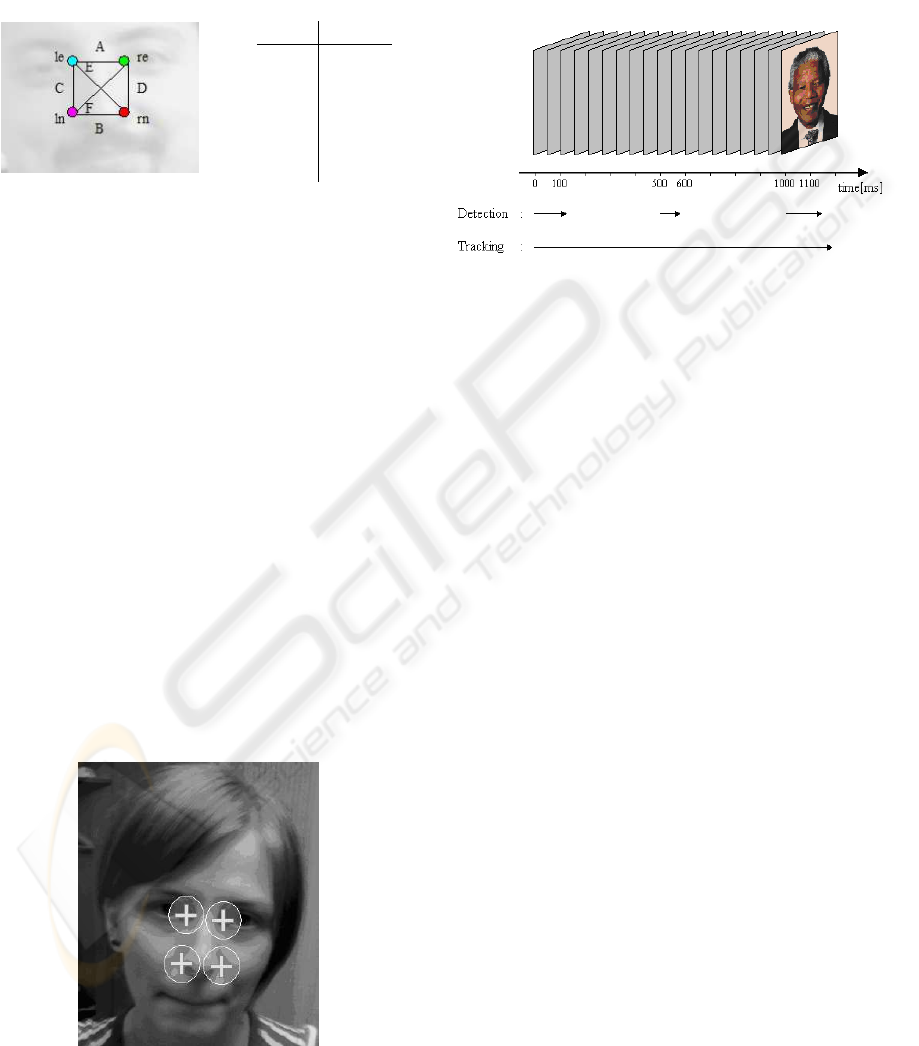

Figure 5: Fiducial points and their symbols used in graph

matching algorithm: le - left eye, re - right eye, ln - left

nostril, rn - right nostrils corners.

Reference graph is trained by averaging normal-

ized distances in the set of many faces. It is interesting

that these distances between ﬁducial points indicate

their displacement in the corners of a square.

2.4 Face Tracking

Because of face detection takes larger amount of time

(about 80 ms for CIF image, depending on number

of detected edges) it cannot be directly used in real

time applications. To achieve detection at about 25

frames per second a tracking algorithm has been pro-

posed. Instead of continuous detecting facial features,

we can run face detection once per larger period of

time (ie. one second), and in the meantime search

for facial features only in the closest neighborhood of

points already found, as shown in Fig. 6. Tracking

is identical as detection, but because of much smaller

search region and known face scale, it is much faster.

Figure 6: Search areas for tracking of two nose and two eyes

inner corners.

In our ﬁnal implementation there are two coex-

isting threads shown in Fig. 7. Detection thread is

responsible for detection of the new faces in the im-

age. Tracking algorithm can discard and modify pre-

viously found ﬁducial points. It also has an option to

ﬁnd eyes centers in the middle of both eye corners.

Figure 7: Detection and tracking threads.

3 EXPERIMENTAL RESULTS

All experiments have been performed in Visual C++

environment, running on 64bit Athlon 3500+ proces-

sor. ROC for individual base points (inner eyes cor-

ners and nose corners) have been made for Mpeg,

Banca and BioID database and presented in Fig. 8. As

we mentioned before these features are next applied

to reference graph and false acceptance and false re-

jection rates of the ﬁnal detector are much lower than

in separate facial points detectors.

We have tested detection algorithm for face recog-

nition by Linear Discriminant Analysis (Skarbek

et al., 2004) and Dual Linear Discriminant Analysis

(Kucharski, 2006). Database contained nearly frontal

pictures of three databases:

• Mpeg (3175 pictures, 635 people),

• AltKom (1200 pictures, 80 people),

• Yale (165 pictures, 15 people).

One test was performed on manually, and the sec-

ond on automatically selected eyes centers. Result of

such analysis is presented in Fig. 9. Image ROC was

created for face recognition based on single image. In

person ROC, for every recognition, a set of pictures

have been taken. Equal error rate pointed in ﬁgures

determines threshold at which false acceptance and

false rejection rate becomes equal.

We have also veriﬁed the algorithm in various en-

vironments that simulate real cash machine condi-

tions. It appears, that DGJ algorithm has almost per-

fect false acceptance rate while achieving very good

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

418

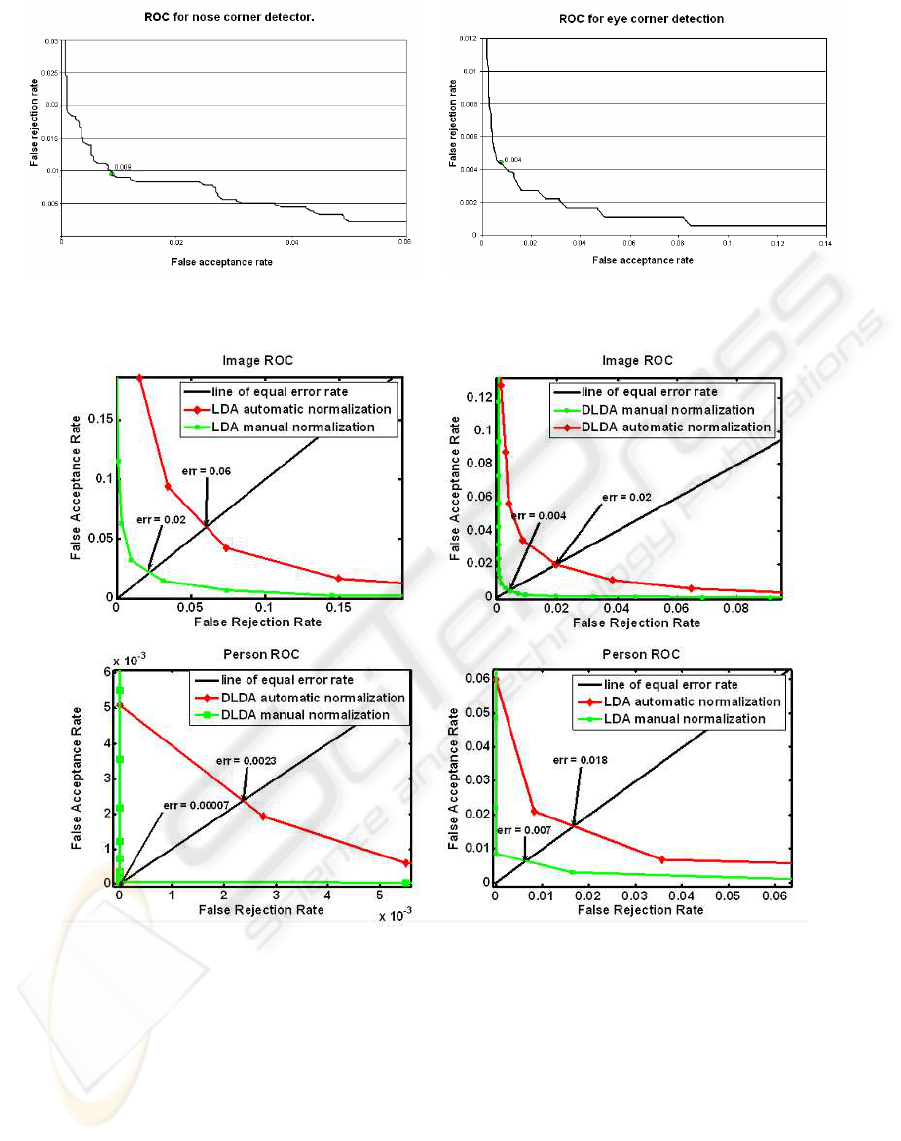

Figure 8: ROC for eye and nose corner detectors.

Figure 9: Recognition results for manual and automatic eye center detection.

detection results. However, usually faces that weren’t

frontal or near frontal have been missed. Also very

dark conditions sometimes caused errors. Some of the

results are shown in Fig. 10. Detector itself, for CIF

resolution, achieves up to 13 frames per second, but

in combination with tracking - 25 frames per second.

4 CONLUSIONS

The paper presents a novel face detection and track-

ing algorithm which could be part of human-machine

interaction in applications such as intelligent cash ma-

chine. The facial feature extraction algorithm is based

on discrete approximation of Gabor Transform, called

Discrete Gabor Jets (DGJ), evaluated in edge points.

DGJ is computed using integral image for fast sum-

mations in arbitrary windows and by FFT operations

FACE DETECTION AND TRACKING IN DYNAMIC BACKGROUND OF STREET

419

Figure 10: Detection results for manual (upper row) and

automatic eye center detection (lower row).

on short contrast signals. Contrasting is performed

along radial directions while frequency analysis along

angular directions. Fourier coefﬁcients for a small

number of rings create a feature vector which is next

reduced to few LDA components and then compared

to the reference facial feature vector. Detected eyes

and nose corners are chosen to ﬁt reference face by

spatial relationships. Tracking is based on the same

rule, but the corners are searched only within already

detected facial features neighborhood. Optionally for

face normalization eyes centers are found as centers

of outer and inner eye corners. Comparison of man-

ual and automatic eye center detection shows still sig-

niﬁcant advantage of manual approach, measured in

terms of accuracy in face recognition by Linear Dis-

criminant Analysis (LDA) and Dual Linear Discrimi-

nant Analysis (DLDA) algorithms.

ACKNOWLEDGEMENTS

The work presented was developed within VIS-

NET 2, a European Network of Excellence

(http://www.visnet-noe.org), funded under the

European Commission IST FP6 Programme.

REFERENCES

Beumer, G., Tao, Q., Bazen, A., and Veldhuis, R. N. J.

(2006). A landmark paper in face recognition. In FGR

’06: Proceedings of the 7th International Conference

on Automatic Face and Gesture Recognition (FGR06),

pages 73–78. IEEE Computer Society.

Fisher, R. A. (1936). The use of multiple measurements in

taxonomic problems. Annals of Eugenics, 7:179–188.

Freund, Y. and Schapire, R. E. (1997). A decision theoretic

generalization of on-line learning and an application

to boosting. Journal of Computer and Systems Sci-

ences, 55(1):119–139.

Fukunaga, K. (1992). Introduction to Statistical Pattern

Recognition. Academic Press.

Gabor, D. (1946). Theory of communication. Proc. of IEE,

93(26):429–441.

Golub, G. and Loan, C. (1989). Matrix Computations. The

Johns Hopkins University Press.

Jones, M. and Viola, P. (2003). Face recognition using

boosted local features. Technical Report TR20003-25,

Mitsubishi Electric Research Laboratories.

Kucharski, K. (2006). Face Indexing by Image Components

Method. PhD thesis, Warsaw University of Technol-

ogy.

MPEG-7, editor (2004). Multimedia content description in-

terface. Visual Descriptor Extensions., volume 15938-

3:2002/Amd.1:2004. ISO/IEC.

Shapire, R. E. (2002). The boosting approach to machine

learning – an overview. In MSRI Workshop on Non-

linear Estimation and Classiﬁcation.

Skarbek, W., Kucharski, K., and Bober, M. (2004). Dual

lda for face recognition. Fundamenta Informaticae,

61:303–334.

Viola, P. and Jones, M. (2001). Robust real-time object

detection. Second Int’l Workshop on Statistical and

Computational Theories of Vision – Modeling, Learn-

ing, Computing and Sampling.

Yang, M. H., Kriegman, D. J., and Ahuja, N. (2002). De-

tecting faces in images: A survey. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

24(1):34–58.

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

420
