A HUMAN ACTION CLASSIFIER FROM 4-D DATA (3-D+TIME)

Based on an Invariant Body Shape Descriptor and Hidden Markov Models

Massimiliano Pierobon, Marco Marcon, Augusto Sarti and Stefano Tubaro

Image and Sound Processing Group, Dipartimento di Elettronica e Informazione - Politecnico di Milano

Piazza Leonardo da Vinci 32, 20133 Milano, Italy

Keywords:

Action Recognition. Action Classiﬁcation. Gesture Recognition. Gesture Classiﬁcation. Human Motion

Analysis. Video Surveillance. Human Machine Interaction. Computer Vision. Multiple View Volumetric

Reconstruction. Voxel Based Representation of Human Body. 3D Shape Description. Principal Component

Analysis. Pattern Recognition. Context-Dependent Recognition. Hidden Markov Models.

Abstract:

Many human action deﬁnitions have been provided in the ﬁeld of human computer interaction studies. These

distinctions could be considered merely semantical as human actions are all carried out performing sequences

of body postures. In this paper we propose a human action classiﬁer based on volumetric reconstructed se-

quences (4-D data) acquired from a multi-viewpoint camera system. In order to design the most general action

classiﬁer possible, we concentrate our attention in extracting only posture-dependent information from volu-

metric frames and in performing action distinction only on the basis of the sequence of body postures carried

out in the scene. An Invariant Shape Descriptor (ISD) is used in order to properly describe the body shape

and its dynamic changes during an action execution. The ISD data is then analyzed in order to extract suitable

features able to meaningfully represent a human action independently from body position, orientation, size

and proportions. The action classiﬁcation is performed using a supervised recognizer based on the Hidden

Markov Models (HMM) theory. Experimental results, evaluated using an extensive action sequence dataset

and applying different training conditions to the HMM-based classiﬁer, conﬁrm the reliability of the proposed

approach.

1 INTRODUCTION

Gestures and actions are among the principal ways

through which a human being interacts with reality.

Many human action deﬁnitions have been provided in

the ﬁeld of human computer interaction studies. In

(Nespoulous and Perron, 1986), e.g., four different

dichotomies were deﬁned in order to provide a clas-

siﬁcation of different types of human action, namely

the act-symbol (with material purpose or communica-

tive), opacity-transparency (having cultural depen-

dent or universal meaning), semiotic-multisemiotic

(autonomous or supported by other communication

channels) and centrifugal-centripetal (intentional or

not). These distinctions could be considered merely

semantical if we provide a lower level deﬁnition of

human action, namely, a sequence of body posture.

Thus, a particular set of postures can form a time pat-

tern that conveys information about the action per-

formed.

When humans are involved in action classiﬁca-

tion the input data that they receive is merely visual:

the postures performed by the actor are recognized

on the basis of images. A group of action recogni-

tion researchers took this consideration as the start-

ing point to develop vision-based systems using input

from camera devices for their automatic classiﬁcation

purpose. E.g. in (Aggarwal and Cai, 1997) and in

(Gavrila, 1999) it is possible to ﬁnd exhaustive and

yet valid surveys of the possible directions that can be

followed in vision-based human motion studies and

human action recognition.

Despite the ability of the human brain to recog-

nize postures only on the basis of image data, infor-

mation on body joints conﬁguration is 3-D in nature.

The natural way of dealing with posture representa-

406

Pierobon M., Marcon M., Sarti A. and Tubaro S. (2007).

A HUMAN ACTION CLASSIFIER FROM 4-D DATA (3-D+TIME) - Based on an Invariant Body Shape Descriptor and Hidden Markov Models.

In Proceedings of the Second International Conference on Signal Processing and Multimedia Applications, pages 396-403

DOI: 10.5220/0002143303960403

 SciTePress

tion is, thus, in the 3-D environment (Miki

c et al.,

2001). In the work presented in this paper we use

a multi-camera input device and a 3-D Visual-Hull

reconstruction technique (Laurentini, 1994) in order

to provide volumetric information to the system (see

Subsect. 2.1). In this way, problems such as viewpoint

dependence, motion ambiguities and self-occlusions

are inherently solved before the body posture track-

ing stage.

Frame-by-frame 3-D representations of the scene

(4-D data) in terms of voxels (volumetric pixels) have

been the input data from which extracting posture-

dependent features (Cuzzolin et al., 2004). In the

SubSect. 2.3 we introduce a method for performing

the tracking of body postures throughout an action se-

quence, mainly based on the dynamic adaptation of

the technique used by Cohen and Li (Cohen and Li,

2003) for static posture estimation. Through exper-

imental sessions, we developed a technique able to

extract a posture-dependent signal, independent from

actor’s position, orientation, size and voxel-set reso-

lution.

The second stage of this research work has been

mainly dedicated to the implementation of a reliable

pattern recognition algorithm in the context of human

action classiﬁcation (see Subsect. 2.4). The similarity

with the speech recognition problem can be quite ob-

vious at this point: it is possible to consider postures

as the atoms of actions in the same way as phonemes

are often considered the bricks that form words. In

other words, the same well-studied approaches used

for speech recognition can be followed also in action

recognition projects. Therefore, during this work it

has been developed a context-based recognition al-

gorithm based on the Hidden Markov Models theory

(Rabiner, 1989), a technique already studied and ap-

plied in many speech recognition researches.

1.1 Possible Applications

Potential applications of this type of research projects

can be easily found in the ﬁelds of automatic video

surveillance systems (Collins et al., 2000) and (May-

bank and Tan, 2000), human-computer gestural inter-

action researches (Li et al., 1998), (Segen and Kumar,

1999), (Yang and Ahuja, 1999) and (Cui and Weng,

1996), motion based medical diagnosis (Lakany et al.,

1999), (K

ohle et al., 1997) and (Meyer et al., 1997),

robot skill learning. Automatic recognition and clas-

siﬁcation of suspicious movements (Ivanov et al.,

1998) and gaits (Little and Boyd, 1998), (Shutler

et al., 2000), (Huang et al., 1999) and (Cunado et al.,

1998) in sensitive areas is perhaps one of the most

important recent needs demanding for applications at

the cutting edge of human action recognition technol-

ogy. Furthermore the market of video games control

devices would beneﬁt from the development of ges-

tures and movements control systems (Freeman et al.,

1996) and some industrial products are yet in this di-

rection (Geer, 2004).

2 OVERVIEW OF THE SYSTEM

2.1 4-d Data From Multiple View

Acquisition

In order to perform a 3-D reconstruction procedure

using a multiple view of the scene, the system has to

distinguish the actor silhouette from the rest of the

image. A background subtraction technique is used

in order to provide this kind of segmentation. Once

the object silhouette is extracted for each view, the so

called Visual-Hull volumetric reconstruction of the

scene shot by cameras is computed frame-by-frame

before any tracking procedure. In this method, 3-D

reconstruction is performed using the volume inter-

section approach, which recovers the volumetric de-

scription of the object from multiple silhouettes by

back projecting from each viewpoint the correspond-

ing silhouette for perspective projections (Laurentini,

1994) (Fig. 1). The intersection volume is then sam-

pled regularly across the three dimensions in order to

generate a volume made of binary voxels (ON/OFF).

Body posture tracking is then computed directly on

volumetric action sequence frames (Fig. 2).

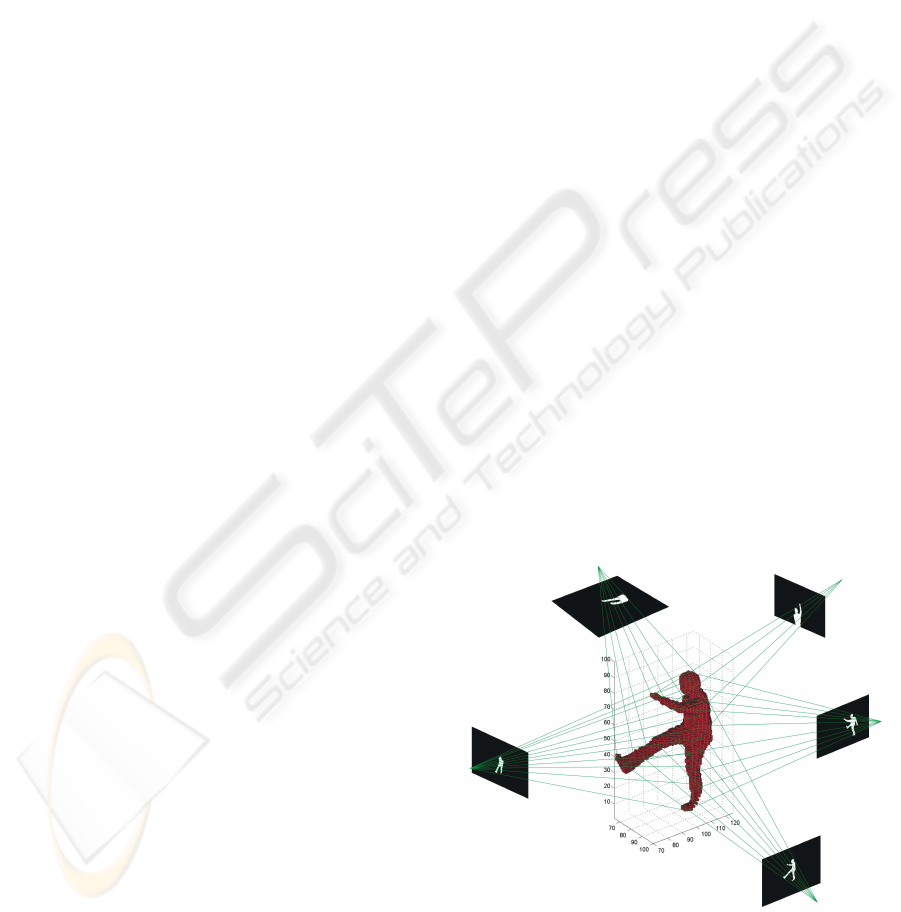

Figure 1: Volumetric intersection. Example of voxel-set

creation by 3-D intersection of visual hulls projected from

segmented edges.

A HUMAN ACTION CLASSIFIER FROM 4-D DATA (3-D+TIME) - Based on an Invariant Body Shape Descriptor and

Hidden Markov Models

407

2.2 Exploiting 4-d Data Information

The 4-D data used for our human action recogni-

tion purpose (see Fig. 2) contain multiple informa-

tion, both related to space and time. Taking into ac-

count only the spatial data (instantaneous body vol-

umetric reconstruction), it is possible to distinguish

various action-dependent and action-independent in-

formation. The body posture (body joints conﬁgura-

tion), body position and orientation (with respect to

the reference frame of the acquisition system) belong

to the ﬁrst category, whereas the particular body size

and proportions of the actor and the volumetric frame

resolution belong to the latter. On the other hand,

the time data related to the performed action can be

divided into posture sequence information, execution

time warping, action iterations (if the same action is

repeated several times during an action sequence ac-

quisition) and action concatenation (if different ac-

tions are executed consecutively during a sequence).

During the development of an action recognizer that

could be as general as possible, we considered the

spatial information related to postures and the time

information related to posture sequence as the low-

est level data on the basis of which it is possible to

classify a human action. All the other types of action-

dependent data contain higher semantical information

that can be exploited depending on the speciﬁc recog-

nition task. E.g. the body orientation can be used if

the actor is pointing at a particular direction, or the

body position can be important if there is an interac-

tion with the environment. Time information related

to execution time warping can be related to different

ways of performing a sequence of postures in differ-

ent action instances and, therefore, it could be poten-

tially used for gait analysis. Eventually, the recogni-

tion of the number of action iterations and the analysis

of action concatenation can be considered as a natu-

ral extension of the system proposed in this article, in

which we assume to have input sequences each one

containing the execution of only one type of action,

possibly repeated several times.

2.3 Posture-Dependent Features

2.3.1 Invariant Shape Descriptor

The core of our body posture tracking procedure is

based on the method proposed by Cohen and Li in

(Cohen and Li, 2003). They used the Shape De-

scriptor to compute features suitable for static pos-

ture recognition. Our purpose was slightly different

because we needed features to perform classiﬁcation

of human actions. Thus, our shape description had

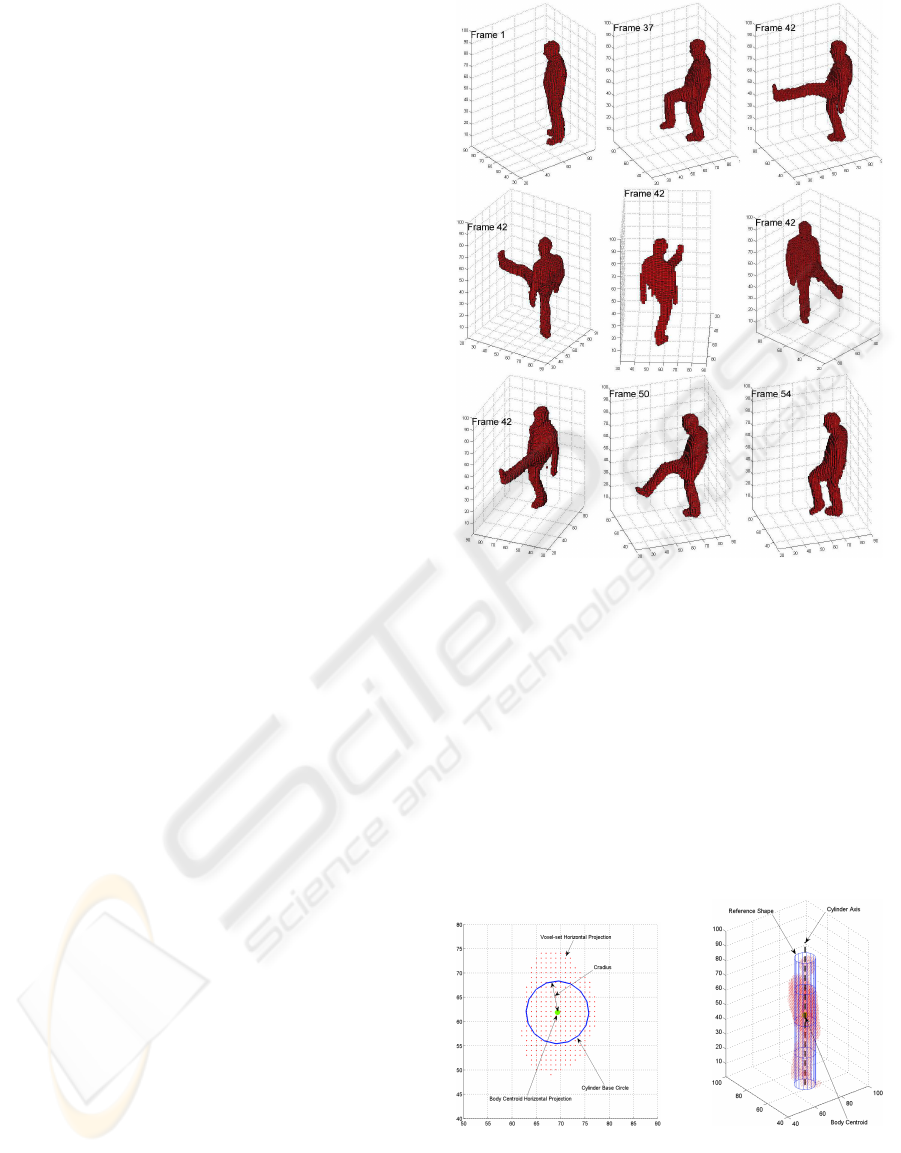

Figure 2: 4-D data. Example of 4-D data regarding a “kick”

action. The frame 42 is viewed from ﬁve different perspec-

tives.

to represent meaningfully not only body postures, but

also their frame-by-frame dynamic changes.

The procedure starts from the ﬁrst frame of a se-

quence (3-D frame from 4-D data) containing the hu-

man body volume (e.g. Frame 1 in Fig. 2 ). The al-

gorithm needs a deﬁnition of a reference shape con-

sisting of a vertically oriented cylinder. It is adapted

to the actor’s height and its axis passes through the

body 3-D centroid (Fig. 3 (b)).

(a) (b)

Figure 3: Example of Invariant Shape Descriptor reference

shape. In (a) the body horizontal projection silhouette is

used to adapt the base circle. In (b) it is shown the refer-

ence cylinder surface. Each voxel is represented only by its

central point.

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

408

The use of the cylinder allows the discrimination

between different orientations of the object (body)

with respect to the horizontal plane. The base of the

adopted cylinder is the major circle inscribed inside

the projection of the body ON-voxels on the horizon-

tal plane (Fig. 3 (a)). The main advantages of this

choice will be explained later.

Once the reference shape surface is gauged on the

current voxel-set, it is possible to apply the 3-D Shape

Descriptor algorithm: the reference cylinder surface

is sampled into a number S of control points (p

s ε {1, . . . , S}). S is a user-deﬁned parameter cho-

sen according to computational cost and representa-

tion accuracy criteria.

For each control point p

• Deﬁne a spherical coordinates system (ρ, θ, ϕ)

with origin ﬁxed in the p

location where: 0 ≤

ρ ≤ ρ

max

, 0 ≤ θ ≤ π rad and 0 ≤ ϕ ≤ 2π. θ = 0

corresponds to the vertical direction, ϕ = 0 is the

direction of the segment orthogonal to the cylin-

der axis passing through p

and ρ

max

is a value

higher than the maximum distance of voxels from

the control points.

• Sample uniformly the polar coordinates into parts,

respectively S

, S

and S

. This way we obtain a

set of coordinate values {(ρ

, θ

, ϕ

)}.

• Assign to p

a 3-D spherical histogram f

ini-

tially represented by a zero-valued matrix with

× S

dimensions.

• For each elementary volume in spherical coordi-

nates, deﬁned by a particular (ρ

, θ

, ϕ

), count

how many ON-voxels are contained and store this

number in the corresponding histogram location

(i, j, k).

The 3-D Shape Descriptor F(i, j, k) is a spheri-

cal histogram obtained summing up the correspond-

ing values taken from all the histograms of the control

points and normalizing these quantities to the maxi-

mum value obtained:

F(i, j, k) =

∑

s=1

(i, j, k)

max

i, j,k



∑

l=1



i, j, k



(1)

The Shape Descriptor F(i, j, k) is invariant (In-

variant Shape Descriptor) with respect to body posi-

tion in the voxel-set cartesian frame of reference. The

reference cylinder, in fact, follows the body centroid

movements. Furthermore, the use of control points ly-

ing on the cylindrical surface allows invariance with

respect to body orientation. The particular procedure

we used to adapt the reference cylinder to the human

body aims to make the system invariant with respect

to the body size and proportions of the actor who

is performing the posture. The ﬁnal normalization of

the Shape Descriptor values removes the proportional

relation to how many voxels the body volume is made

up (volumetric frame resolution) and possible effects

due to different sizes of volumes in spherical coor-

dinates, derived from the use of different reference

cylinders.

After having computed the cylindrical surface, the

cylinder follows the motion of the body centroid but

its size remains unchanged for the rest of the se-

quence. This way we obtain an harmonious varia-

tion of features throughout the motion. In our ex-

periments, as suggested in (Cohen and Li, 2003), we

sampled the spherical coordinates ten times each, ob-

taining a spherical histogram that contains 1000 bins

(see Fig. 4).

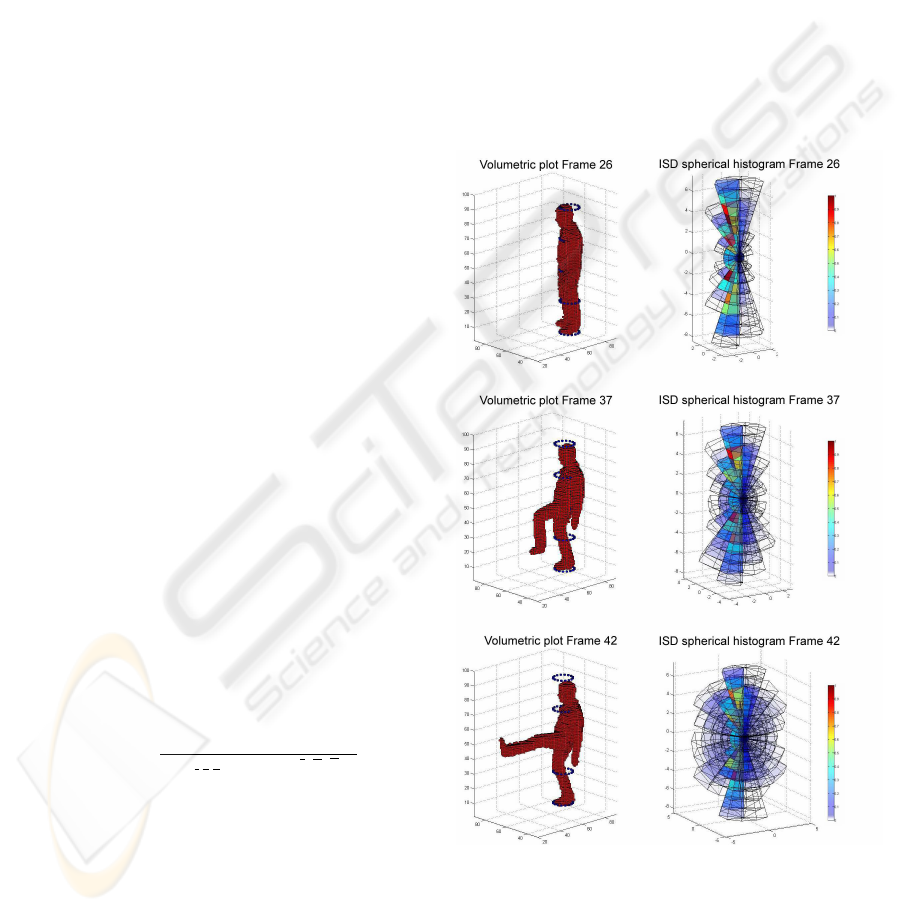

Figure 4: Invariant Shape Descriptor (ISD). Example of

ISD spherical histograms computed for 3 frames of a “kick”

action sequence. Control point locations (in blue) are shown

in the volumetric plots (left).

A HUMAN ACTION CLASSIFIER FROM 4-D DATA (3-D+TIME) - Based on an Invariant Body Shape Descriptor and

Hidden Markov Models

409

2.3.2 Feature Selection and Dimensionality

Reduction

Following the described method, an Invariant Shape

Descriptor F(i, j, k) is computed for each frame of

an action sequence. In order to reliably reduce the

dimensionality associated with the data contained in

the ISD spherical histogram (1000 bins), we applied

the Principal Component Analysis in the ISD data do-

main.

First, F(i, j, k) values (S

× S

values) are

collected in vectors (one for each volumetric frame),

that are again collected into matrices (one for each

action sequence) having a dimensionality of 1000 ×

number of frames.

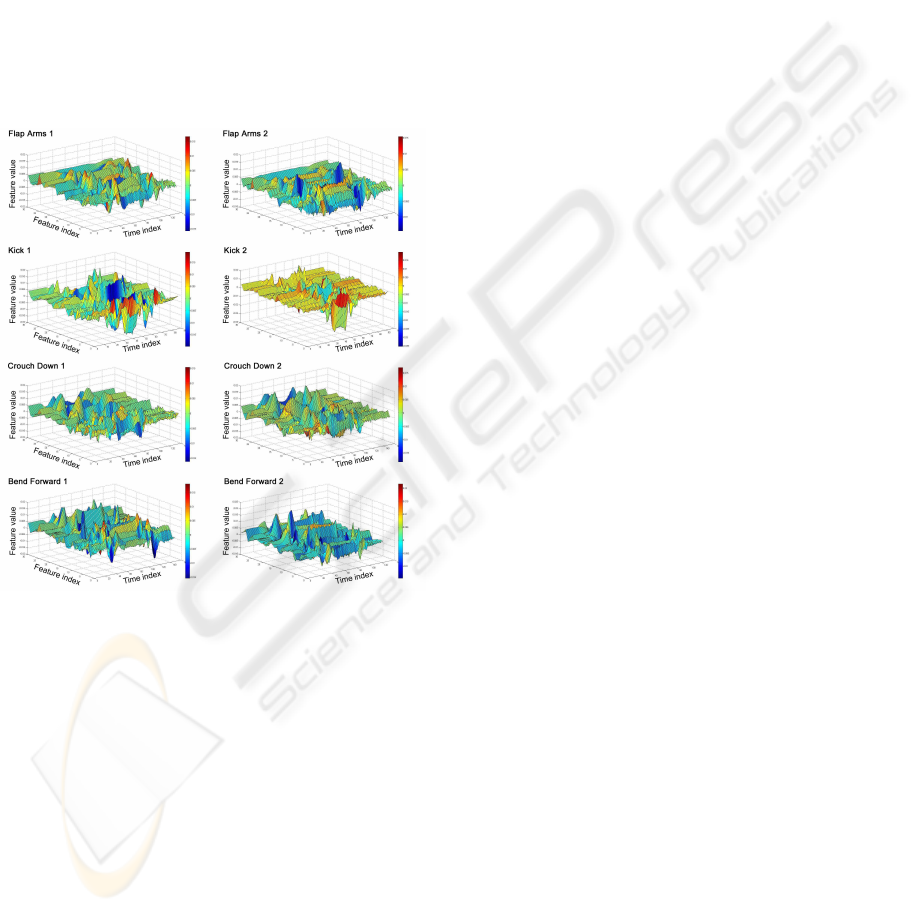

Figure 5: Action sequence feature matrices. Eight exam-

ples of action sequence feature matrices. It is possible to

notice the similarities between two instances of the same

actions and, on the other hand, the dissimilarities existing

among instances of different actions.

Eigenvalue analysis is performed directly on the

covariance of the matrices computed from the ac-

tion sequence data-set used for system training (the

ones used to train the HMM-based classiﬁer block).

Eventually, the Karhunen-Lo

eve transform is applied

projecting every computed ISD data matrix onto the

ﬁrst 30 principal directions (corresponding to the

ﬁrst 30 eigenvectors). Therefore, through a 30 ×

number of frames feature matrix we represent an ac-

tion sequence (eight examples are provided in Fig. 5,

where each action begins and ends with the same

standing up position, with arms hanging on the hips).

2.4 Posture Sequence Classiﬁcation

In order to design a human action classiﬁer able to

exploit the information contained in the extracted fea-

tures, it is necessary to:

• to provide a system able to classify a 30 ×

number of frames feature matrix into an action

category out of a predeﬁned set;

• to provide an action classiﬁer that aims to be in-

sensitive to slight differences in gesture execution

time warping, to the number of action repetitions

and to the initial posture of the sequence;

In the recognition engine design for this research

project we applied one of the most popular context-

dependent recognizers to the problem of human

actions classiﬁcation, namely, the Hidden Markov

Model classiﬁer. Hidden Markov Models have been

widely used for speech recognition applications and

their practical implementations for action recognition

purposes are still limited. Therefore, our references

are mainly based on speech recognition applications:

one of the most important for this work has been the

article published by L. Rabiner (Rabiner, 1989).

The main idea behind the HMM-based classiﬁer

design is to compute a model out of an action training

set (a set of sequences containing instances belong-

ing to the same action class) and store the model pa-

rameter in a database. Once a model is computed for

any available action class, these models are used as a

bank of Maximum Likelihood parallel receivers able

to classify new feature matrices (classiﬁcation of new

sequences).

2.4.1 The Application of Hidden Markov Models

Starting from HMM theory (Rabiner, 1989), we de-

ﬁned HMM parameters suitable for modeling a given

action sequence (see Fig 6):

• The states of an action model N are associated

semantically to the principal body postures that

form an action. In this ﬁrst implementation of the

system, we preferred to maintain a ﬁxed number

of states. After some experiments, we found that

5 is a suitable state number given the action class

considered so far.

• The type of the observation per state S

is rep-

resented by a shape descriptor feature vector that

ranges continuously in a 30-dimensional space.

= x













30 = features number

(2)

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

410

• The state transition probability matrix A =

i, j

}, that is the probability of having a particular

posture in the next time instant given the previous

one:

i, j

= P(q

= S

t−1

= S

) 1 ≤ i, j ≤ N (3)

• The observation probability density function of

having the feature vector x

in state S

p(x

)

1 ≤ j ≤ N

(4)

is parameterized through a Gaussian Mixture

Model (GMM):

p(x

) =

∑

m=1

N(x

, µ

, σ

) (5)

where the number of gaussian mixtures is chosen

empirically according to the multi-modality of the

p(x

) probability density function of the train-

ing data-set.

• The initial state probability vector Π = {π

We decided to keep the values π

ﬁxed during the

Baum-Welch procedure, an iterative procedure

based on the Expectation Maximization mecha-

nism, suitable for ﬁnding the HMM parameter

values such that the likelihood of the training se-

quences having the HMM model assigned to that

action class is locally maximized (Rabiner, 1989).

Moreover, we considered equal initial probabil-

ity for all the states:

= P(q

= S

) =

1 ≤ i ≤ N

In fact, in this work we consider a gesture as a

sequence of postures, but independently from the

point of the sequence the action performed by the

actor in the scene begins.

3 EXPERIMENTAL RESULTS

In order to perform a full evaluation of the classiﬁ-

cation system performance, we collected up to 500

4-D action sequences and for each one we extracted

the corresponding 30× number of frames feature ma-

trix by means of ISD spherical histogram computa-

tion and Karhunen-Lo

eve transformation for dimen-

sionality reduction. The entire data-set included the

combination of:

• 10 different action classes (see Tab. 1).

• 5 different actors

• 10 different instances performed by each actor for

any action class

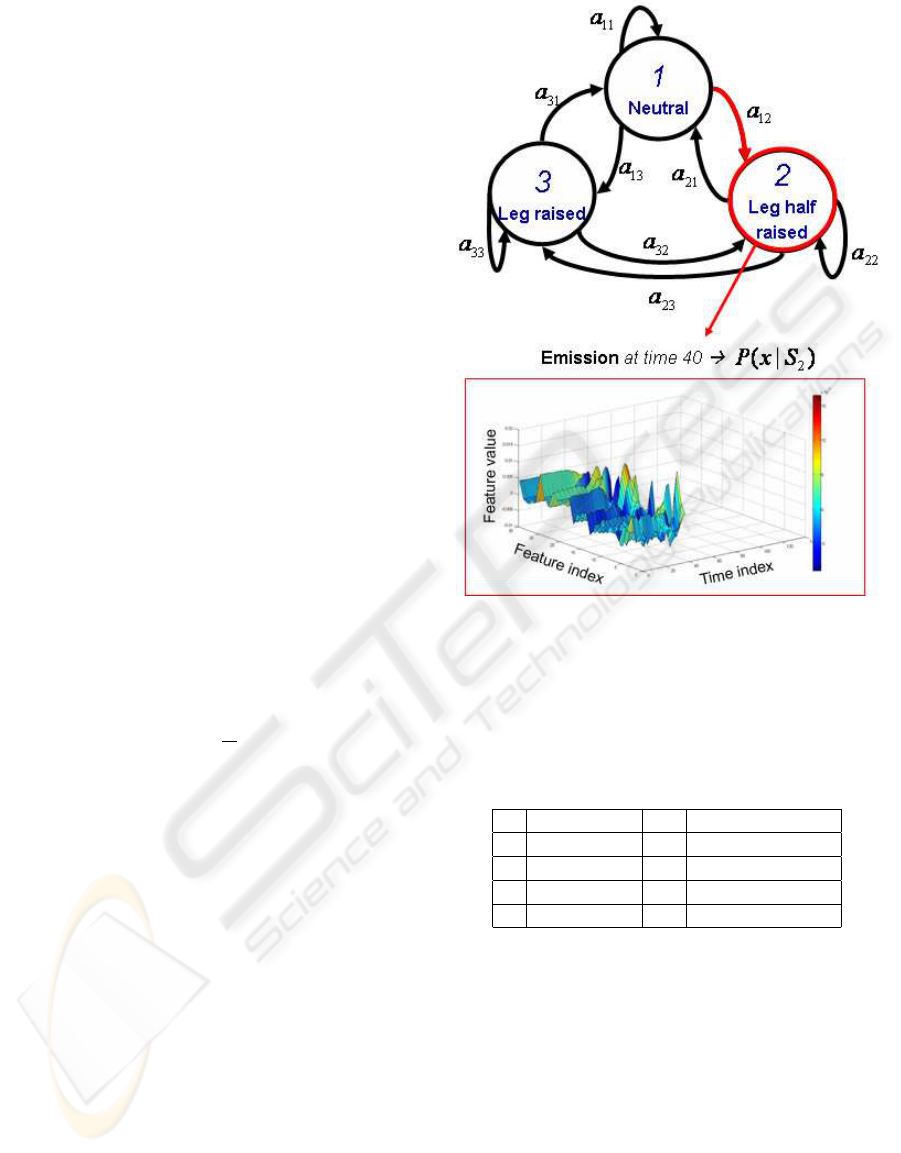

Figure 6: HMM graphical representation. This three-state

(N = 3) Hidden Markov Model is acting as a stochastic

source of an action sequence feature matrix. The tree state

model is having a transition from state 1 to state 2 at time

40, therefore the observation vector at time 40 is emitted

according to the pdf p(x|S

Table 1: Different action classes used for system evalu-

ation.

1 ﬂap arms 6 push with hands

2 kneel down 7 crouch down

3 kick 8 bend forward

4 raise arm 9 push with elbow

5 hide face 10 two-step walk

The entire data-set (500 action sequences) has

been divided into two disjoint subsets: the train data-

set, that is used to train the Hidden Markov Mod-

els for each action class and the test data-set, that

is used to test the system recognition ability and it is

the complementary of the train data-set with respect

to the entire data-set. Two subsequent phases have to

be performed in order to evaluate the action classiﬁer:

Training phase. the sequences included in the train

data-set are are divided into their corresponding

action class. For each action class a Hidden

Markov Model procedure is performed follow-

ing the Baum-Welch Expectation-Maximization

A HUMAN ACTION CLASSIFIER FROM 4-D DATA (3-D+TIME) - Based on an Invariant Body Shape Descriptor and

Hidden Markov Models

411

algorithm (Rabiner, 1989) and suitable model pa-

rameters are learned automatically from the given

training sequences. Once this phase is completed,

the system stores a set of model parameters for

each learned action class.

Test phase. each test sequence is assigned to an ac-

tion class on the basis of the maximum likeli-

hood with respect to the models. In other words,

each model computes the probability (likelihood)

of having generated the sequence under test act-

ing as a source (Fig 6). Then the test sequence

is assigned to the action class represented by the

model showing the highest likelihood.

System evaluation is then performed on the basis of

correct recognition rate both using the train data-set

and the test data-set during the training phase. When

the train data-set is used for testing, it is possible

to evaluate the Hidden Markov Models capability of

adapting to the sequences used for training and acting

as sources for those feature matrices. On the other

hand, when test data-set is used, we test the gener-

alization capability of the Hidden Markov Models of

representing meaningfully new feature matrices be-

longing to the learned action classes.

Moreover, the correct recognition rate of the clas-

siﬁer is computed taking into account different exper-

imental conditions:

• Using different percentages of train sequences

(out of the 50 available for each action class)

• Using different number of actors for training

• Using Monte-Carlo method in order to select

training sequences given an action class, an actor

and a training sequence percentage

Experimental results are reported in Fig. 7, where

different train data-set percentages (with respect to

the entire data-set) include always sequences per-

formed by all possible actors, whereas in Fig. 8 only

four actors (out of ﬁve) are used for training and

the correct recognition percentage is computed as the

mean of the values resulting from the test using the se-

quences of the actor excluded from training (over all

possible exclusions of one actor from the train data-

set).

4 CONCLUSION

In this paper we proposed a human action classiﬁer

based on volumetric 3-D data. Through the applica-

tion of a 3-D reconstruction technique viewpoint de-

pendence, motion ambiguities and self occlusions are

inherently solved before posture tracking by a simple

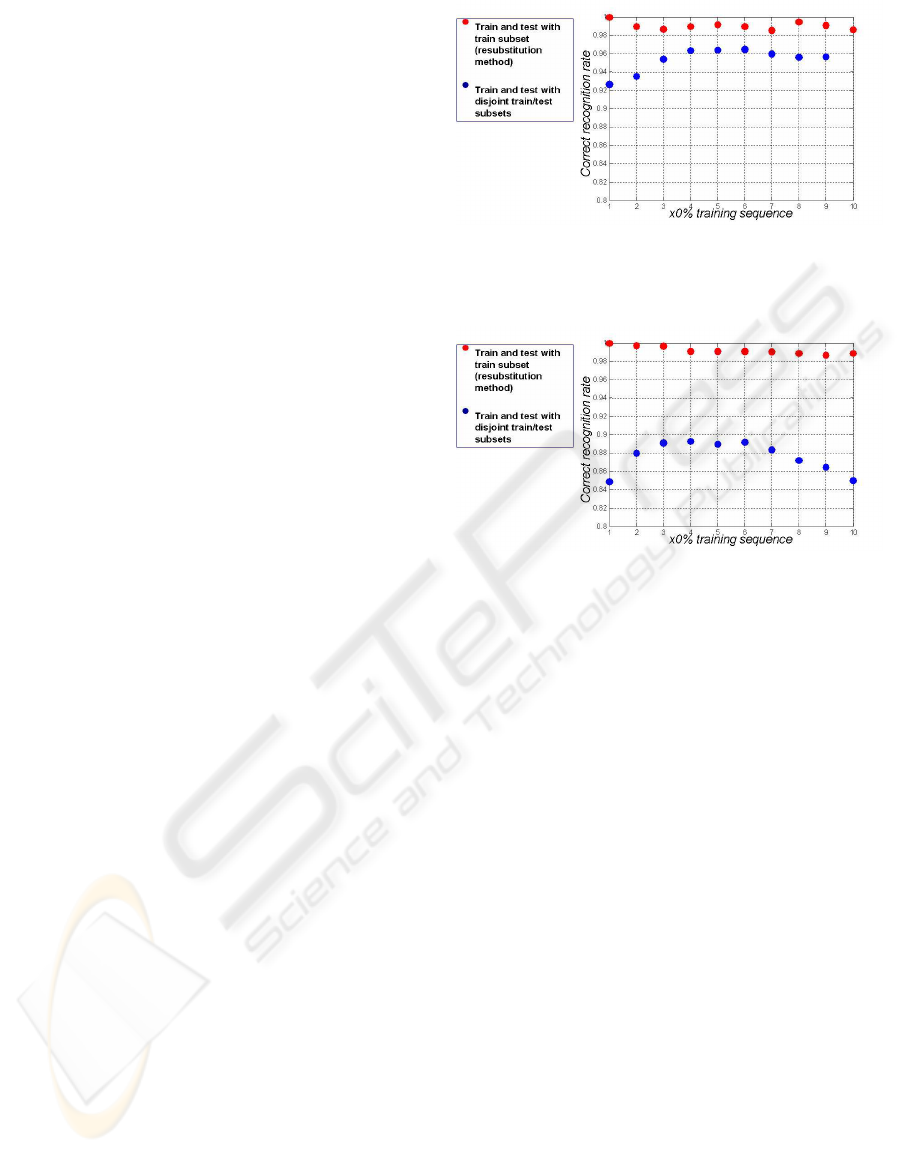

Figure 7: Correct recognition rate using all ﬁve actors for

model training. The correct recognition rate is tested against

different train subset percentages with respect to the entire

data-set including 500 action sequences.

Figure 8: Correct recognition rate using only four actors

(out of ﬁve) for model training. The correct recognition rate

is tested against different train subset percentages with re-

spect to the entire data-set including 500 action sequences.

computational process, that follows pre-determined

steps. The performance shown by the experiments

have highlighted the abilities of the used Shape De-

scriptor not only to represent postures, as shown in

(Cohen and Li, 2003), but also to be tuned up in a

dynamic context (Invariant Shape Descriptor), pro-

viding a simple but effective method to track posture

movements and slight changes in body shape during

an action. The simulations that have been carried

out using an Hidden Markov Model-based classiﬁer

demonstrate the ability of the Invariant Shape De-

scriptor histogram data to be properly used for repre-

senting action sequence features through the applica-

tion of a dimensionality reduction technique (Princi-

pal Component Analysis). Possible future directions

of this project could include a complete evaluation of

the system in comparison to other proposed solutions

in this research ﬁeld.

ACKNOWLEDGEMENTS

We wish to tank all the people that actively con-

tributed to this project, especially those who lent

themselves to the frustrating job of doing useless ac-

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

412

tions in front of eight cameras. Special tanks to

Francesco Finetto who patiently carried out all the

500 acquisitions at the I.S.P.G. lab. Thanks to all the

I.S.P.G. staff who made possible this research project

developing and enhancing the acquisition system and

the volumetric reconstruction software.

REFERENCES

Aggarwal, J. K. and Cai, Q. (1997). Human motion analy-

sis: A review. In IEEE Proceedings of Nonrigid and

Articulated Motion Workshop.

Cohen, I. and Li, H. (2003). Inference of human postures by

classiﬁcation of 3d human body shape. In IEEE Pro-

ceedings of International Workshop on Analysis and

Modeling of Faces and Gestures.

Collins, R., Lipton, A., and Kanade, T. (2000). Introduc-

tion to the special section on video surveillance. In

IEEE Transactions on Pattern Analysis and Machine

Intelligence.

Cui, Y. and Weng, J. (1996). Hand segmentation using

learning-based prediction and veriﬁcation for hand

sign recognition. In Proceedings of IEEE CS Con-

ference on Computer Vision and Pattern Recognition.

Cunado, D., Nixon, M., and Carter, J. (1998). Automatic

gait recognition via model-based evidence gathering.

In Proceedings of Workshop on Automatic Identiﬁca-

tion Advanced Technologies.

Cuzzolin, F., Sarti, A., and Tubaro, S. (2004). Invariant

action classiﬁcation with volumetric data. In IEEE

Proceedings of Workshop on Multimedia Signal Pro-

cessing.

Freeman, W., Tanaka, K., Ohta, J., and Kyuma, K. (1996).

Computer vision for computer games. In Proceedings

of International Conference on Automatic Face and

Gesture Recognition.

Gavrila, D. (1999). The visual analysis of human move-

ment: A survey. In Computer Vision and Image Un-

derstanding, vol.73, no.1. Academic Press.

Geer, D. (2004). Will gesture technology point the way? In

Computer.

Huang, P., Harris, C., and Nixon, M. (1999). Human gait

recognition in canonical space using temporal tem-

plates. In Proceedings of IEEE Vision Image Signal

Processing.

Ivanov, Y., Stauffer, C., Bobick, A., and Grimson, W.

E. L. (1998). Video surveillance of interactions. In

IEEE Proceedings of the CVPR’99 Workshop on Vi-

sual Surveillance.

ohle, M., Merkl, D., and Kastner, J. (1997). Clinical gait

analysis by neural networks: issues and experiences.

In Proceedings of IEEE Symposium on Computer-

Based Medical Systems.

Lakany, H., Haycs, G., Hazlewood, M., and Hillman, S.

(1999). Human walking: tracking and analysis. In

Proceedings of IEE Colloquium on Motion Analysis

and Tracking.

Laurentini, A. (1994). The visual hull concept for

silhouette-based image understanding. In IEEE Trans-

actions on Pattern Analysis and Machine Intelligence.

Li, Y., Ma, S., and Lu, H. (1998). Human posture recog-

nition using multi-scale morphological method and

kalman motion estimation. In Proceedings of IEEE

International Conference on Pattern Recognition.

Little, J. and Boyd, J. (1998). Recognizing people by their

gait: the shape of motion. In Journal of Computer

Vision Research.

Maybank, S. and Tan, T. (2000). Introduction to special sec-

tion on visual surveillance. In International Journal of

Computer Vision.

Meyer, D., Denzler, J., and Niemann, H. (1997). Model

based extraction of articulated objects in image se-

quences for gait analysis. In Proceedings of IEEE In-

ternational Conference on Image Processing.

Miki

c, I., Trivedi, M., Hunter, E., and Cosman, P.

(2001). Articulated body posture estimation from

multi-camera voxel data. In IEEE Proceedings of the

Conference on Computer Vision and Pattern Recogni-

tion.

Nespoulous, J.-L. and Perron, P. (1986). THE BIOLOG-

ICAL FOUNDATIONS OF GESTURES: Motor and

Semiotic Aspects. Lawrence Erlbaum Associates,

Hillsdale, New Jersey London.

Rabiner, L. (1989). A tutorial on hidden markov models and

selected applications in speech recognition. In Pro-

ceedings of the IEEE.

Segen, J. and Kumar, S. (1999). Shadow gestures: 3d hand

pose estimation using a single camera. In Proceed-

ings of IEEE CS Conference on Computer Vision and

Pattern Recognition.

Shutler, J., Nixon, M., and Harris, C. (2000). Statistical gait

recognition via velocity moments. In Proceedings of

IEEE Colloquium on Visual Biometrics.

Yang, M.-H. and Ahuja, N. (1999). Recognizing hand

gesture using motion trajectories. In Proceedings of

IEEE CS Conference on Computer Vision and Pattern

Recognition.

A HUMAN ACTION CLASSIFIER FROM 4-D DATA (3-D+TIME) - Based on an Invariant Body Shape Descriptor and

Hidden Markov Models

413
