A PERSONAL FILE SYSTEM OVER EMAIL STORAGES

Developing Towards a Persistent Internet Storage for Mobile Users

Chih-Yin Lin, Shih-Fang Chang and Chen-Hwa Song

Industrial Technology Research Institute,195 Sec. 4, Chung-Hsing Rd., Chutung, Hsinchu 310, Taiwan

Keywords: Email Quota, Internet Storage, Personal File System, Utility Computing.

Abstract: In 2004 Jones (Jones, 2004) developed a software tool called GmailFS that turns Google

Gmail into a

two-gigabyte file folder in the personal computer. Such virtual folder is not just an interesting innovation

but quite useful as a backup depot hosted remotely at Google. GmailFS is technically sound but relies

critically on the hypertext scripts of Gmail web pages. Thus, it can be easily averted by the mail server

administrator with minor changes of the html scripts or web topology. In this paper, we use another

approach to achieve the same goal of GmailFS and extend the capability to accommodate all email servers

rather than just Gmail. The proposed system is named ePFS that utilizes three primitive email protocols, i.e.

SMTP and POP3/IMAP, to respectively store and retrieve the data in and from the e-mail servers. In

addition, we enforce security features of user privacy, data confidentiality and error recovery in ePFS. The

proposed system is a work in progress heading toward a persistent Internet storage for mobile applications.

1 INTRODUCTION

For the past decade, the storage technology has

expanded the disk space of a standard computer hard

drive from several megabytes to hundreds of

gigabytes. Although the disk space is still an

important hardware resource, the average cost per

storage unit has significantly declined. Therefore,

the available space is now not as limited as it was

when provided to software programs in a personal

computer or to an individual user space in a

networked service. In the near future, it might be

possible for a server to allocate virtually unlimited

space for every user that, ideally, would facilitate the

development of all kinds of large scale Internet

services.

Email is the primary service that almost

everyone who has Internet access has at least one

email accounts, e.g. school email, company email,

Internet webmail, etc. A typical email service

provides one hundred megabytes space for each user,

if it is complimentary. Recently, there is a trend for

email service providers to give its users free of

charge a relatively large enough email quota. The

email quota is now, for instances, two gigabytes in

AIM mail (http://mail.aol.com), 2.7 gigabytes in

Gmail (http://mail.google.com), five gigabytes in

Inbox (http://www.inbox.com/), and unlimited in

Yahoo mail (http://mail.yahoo.com/), etc. The quota

of several gigabytes in practice allows an active user

to accommodate almost all her/his emails without

having to worry about exceeding the mail quota. On

the other hand, however, for most users a lot of

portion of this enormous space is simply left unused

and wasted.

Lately there is an idea to make a different use of

such large size email quota (Jones, 2004; Viksoe,

2005; Traeger et al., 2006), and some tools are being

developed. The most famous tool is GmailFS (Jones,

2004), developed by Richard Jones no longer after

Gmail’s beta released. In essence, GmailFS mounts

Gmail’s email space as a networked drive in a Linux

system. Although a two gigabyte space is not very

large nowadays, as a remote folder hosted by a

known service provider, it might be a good

alternative for the file backup purpose (Chervenak et

al., 1998). After all, such virtual folder is somehow

more crash-free than the file system within any

consumer level computers. The downside of the idea

is that files placed in a virtual folder might lose the

privacy and confidentiality since they are actually

stored remotely at somewhere else with no security

guarantee.

Inspired by GmailFS, in this paper we will

propose a new personal file system named ePFS to

employ email spaces as virtual file folders. ePFS

211

Lin C., Chang S. and Song C. (2007).

A PERSONAL FILE SYSTEM OVER EMAIL STORAGES - Developing Towards a Persistent Internet Storage for Mobile Users.

In Proceedings of the Second International Conference on Wireless Information Networks and Systems, pages 195-200

DOI: 10.5220/0002147801950200

 SciTePress

uses three primitive mail protocols, simple mail

transfer protocol - SMTP (Postel, 1982), post office

protocol version 3 - POP3 (Myers, 1996) and

Internet message access protocol - IMAP (Crispin,

2003), to respectively function as the operations of

file storing and retrieval. Moreover, we consider

several security features in ePFS, including

confidentiality, integrity, and availability. With these

features, ePFS can provide access to email space as

access to a local file folder, and in a more secure

manner. As a software application, ePFS supports

friendly user experiences of file storing and retrieval,

and outdoes GmailFS with a unified method and

interface to communicate with different email

servers.

The idea and implementation of using POP3/

SMTP to backup files was proposed in 2006 and the

system being developed is called MailBackup

(Traeger et al., 2006). Their prototype uses optional

encryption to provide data confidentiality. However,

it does not employ any fail recovery mechanism.

The file being processed is encrypted and sent as a

whole to an available email server, which is not loss

guarantee once the server fails.

In the long run we hope to improve ePFS to

support mobile devices like cellular phones with a

unified, effective and efficient virtual storage access

via Internet. ePFS is a work in progress that validate

the concept of using today’s large email quota as

virtual file folders. In this paper, we will show how

ePFS is designed and constructed. We consider

ePFS the first phase development of a persistent

Internet storage for mobile users. Eventually, the

system will provide mobile users and mobile

applications with virtually unlimited and secure

storage.

ePFS has the following advantages:

 Apply to all email servers that support SMTP

and POP3/IMAP protocols;

 Provide guaranteed retrieval of remotely

stored files with a tolerance ratio of server

failures;

 Dispatch sensitive files to email servers of

higher degree of trust;

 Dispatch frequently accessed files to email

servers of better availability;

 Assure the confidentiality of user data and

files stored at email servers;

 Assure the integrity regarding the data being

retrieved from the email servers;

 Support the integration of Windows™ file

manager user interface.

2 RELATED WORKS

We briefly review two related works, GmailFS and

Parchive (http://parchive.sourceforge.net/). GmailFS

is a Linux platform software that magically

transforms Gmail storage into a file folder. Parchive

is a data parity checking and archive tool using

Reed-Solomon codes (Plank, 1997; Plank & Ding,

2005). We employ Parchive in ePFS to against

server failure when retrieving files from the email

server.

2.1 GmailFS

Gmail is a free, search-based webmail service

provided by Google™. Like its Internet search

engine, there is no fancy user interface or

complicated functions, but simple control tabs and

large 2.7 gigabytes email storage. The free storage

space that a Gmail account provides is larger than

almost all free Internet storage services. It soon

becomes a trend igniting free emails to upgrade their

services for their users with mail quota in terms of

gigabytes. Some major free email services, e.g.

Microsoft, Yahoo, and AOL, are as depicted in

Table 1.

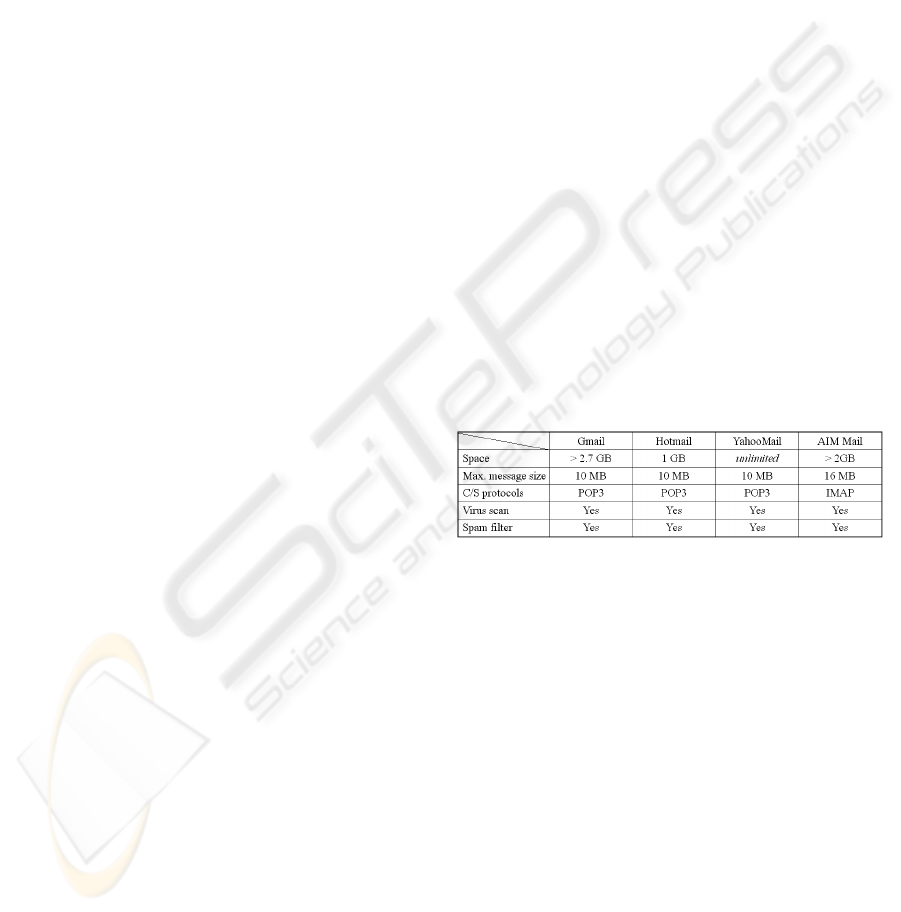

Table 1: Comparison of some free email services.

In August 2004, Richard Jones tried to utilize the

large space provided by Gmail in a different way

and released the first version of the famous software

tool called GmailFS (Jones, 2004). GmailFS

provides a mountable Linux file system that uses a

valid Gmail account as its storage space. Almost all

UNIX/Linux file manipulative instructions can be

used to access files stored in GmailFS. For GmailFS,

it uses the libGMail (http://libgmail.sourceforge.net/)

to access email through the Gmail web user interface,

and then translates email actions to file operations,

applies the file operations to a user space virtual file

system created by an application interface FUSE

(http://fuse.sourceforge.net/). LibGMail is a Python

binding to provide access to Google's Gmail web-

mail service, where FUSE is a Linux kernel module

bridges actual kernel to a user space file system. The

system architecture of GmailFS is shown in Figure 1.

There are some drawbacks in GmailFS. Firstly, it

does not provide confidentiality regarding the file

WINSYS 2007 - International Conference on Wireless Information Networks and Systems

212

when transferring over the network or storing into

the email server. Anyone with network sniffing

skills can easily listen and obtain the plaintext of the

file content. Like all email servers, the administrator

of Gmail can access all emails and files stored in

Gmail system. Secondly, The GmailFS does not

work once Gmail changes its web user interface.

This is the most critical disadvantage of GmailFS

and the reason why it has to update its version very

frequently to reflect the updates of Gmail. For the

purpose of consistent access, since GmailFS works

for Gmail only, its stability relies on the accessibility

and availability of Gmail. Moreover, if Gmail

crashes, or gets blocked behind the firewall, its user

has no way to acquire the files.

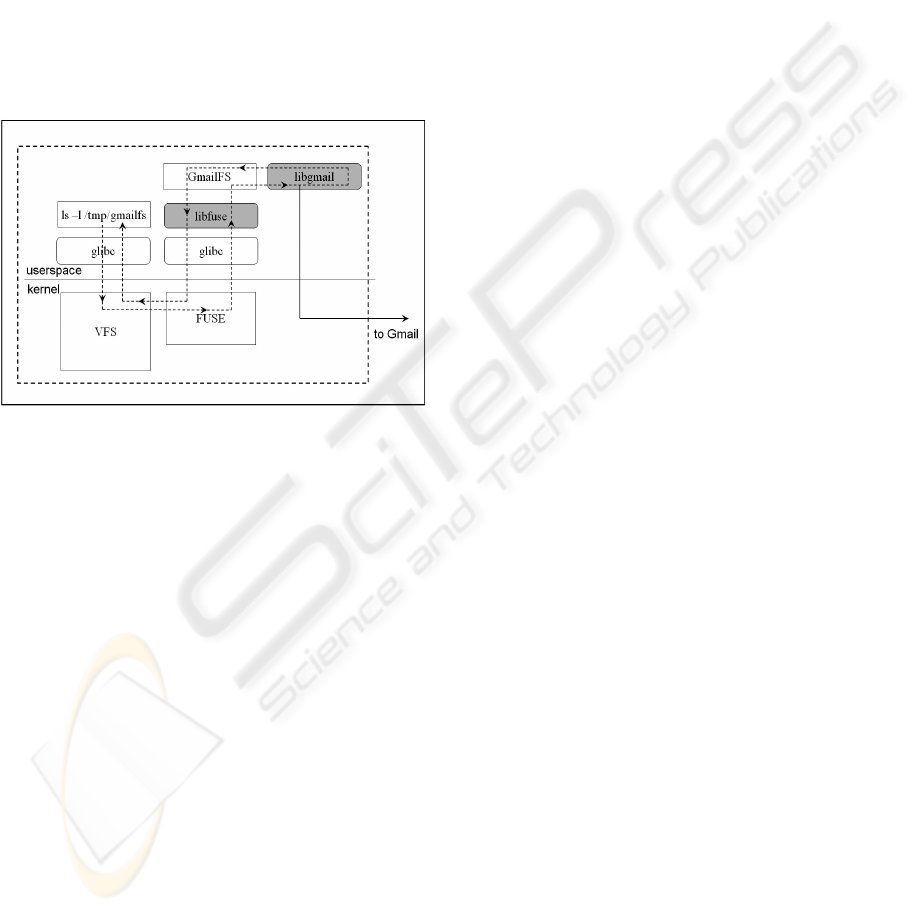

Figure 1: GmailFS system architecture.

GmailFS is not the only attempt that covets after

Gmail accounts for its 2.7 gigabyte storage. Firefox

GSpace (https://addons.mozilla.org/firefox/1593/) is

an add-on with the same purpose and functions,

which allows users to virtually transform their Gmail

space into personal file storages. Unlike GmailFS

works on Linux platform, similar tools include

GMail Drive (Viksoe, 2004) that works on Windows

platform, gDisk (http://gdisk.sourceforge.net/) that

works on Mac OS X, and GDrive (Kane, 2006)

developed by Google that will soon become one of

its new services. However, all of them are designed

in dedication to Gmail only, which is an unwelcome

constraint.

Furthermore, as a storage tool, or as a personal

file system, no user would like to count on single

email portal that is not controlled by his own for his

files’ stability and viability. In addition, the file

being stored at Gmail using GmailFS is not

confidentiality guaranteed. There is no recovery

mechanism if the files are damaged, and there is no

checksum mechanism if the files are compromised.

These drawbacks devalue GmailFS in practice.

2.2 Parchive

Parchive is a tool designed to collect a set of files

and allows recovery when one or more of the files

are lost. Parchive implements Reed-Solomon error

correction coding mechanisms (Plank, 1997; Plank

& Ding, 2005) with two different and format

incompatible versions, Par and Par2. These two

versions are optionally incorporated by the USENET

newsgroup to process files posted to it, which is a

well-known application of Parchive.

When backup a file, a straightforward technique

to against possible server failures or data loss is

simply storing more replicates at different servers.

The tradeoff here is the server resource, which is too

expensive to be a practical option. Therefore we use

Parchive to balance the resource and the recovery

requirement. Unlike USENET, we deal with one file

instead of a set of files. Thus, the recovery tool will

work on the blocks that are slices of a file. In

specific, blocks are defined as the proper divisions

of a file that all of them together can reconstruct the

original file.

Assume a data file f is going to be stored with the

recoverable feature against server failure. f is firstly

sliced into smaller equal-sized blocks

b ,

b , …,

b that all blocks form a set often called recovery

set. The input of Par2 is the recovery set and its

output is a set of redundant blocks

d ,

d , …,

d ,

called PAR set. The size of PAR set is determined by

the size of recovery set and an adjustable parameter

R called recovery ratio. R equals to n/(n+m) and is

defined by the file owner. When the file needs to be

reconstructed, the collection of any n out of the

(n+m) blocks can re-build all the blocks in the

recovery set and the PAR set, and consequently

reconstructs the file. Notice that in the paper we

denote P set as the joint of the recovery set and the

PAR set.

3 THE PROPOSED SYSTEM

The proposed ePFS is a personal file system over

email storages. All files in ePFS have two security

properties: sensitivity and frequency that, sensitivity

is the importance of the file and frequency is how

often the file might be used by the user. All email

servers in ePFS have two relative properties:

trustworthiness and availability, which respectively

imply how much the user trusts the email server and

how stable the server is. We consider these

properties for the current version of ePFS and will

A PERSONAL FILE SYSTEM OVER EMAIL STORAGES - Developing Towards a Persistent Internet Storage for Mobile

Users

213

include more necessary ones in the future

development. Note that how to evaluate these

parameters and how to update them are not within

the scope of this paper.

There are two basic operations in ePFS, the file

storing operation Proc_FileStore and the retrieval

operation Proc_FileRetrieve. Proc_FileStore takes

in a file, protects it by encryption, slices it into

blocks, generates redundant blocks with Par2,

distributes the blocks to appropriate email servers

according to their attributes, and updates the file

distribution table for where these blocks are stored.

Proc_FileRetrieve takes in the file identifier, checks

the file distribution table, contacts available email

servers to retrieve enough number of blocks,

rebuilds the encrypted file with Par2, and finally

decrypts it to reconstruct the file. Proc_FileStore

functions immediately when a file is placed into the

ePFS folder, and Proc_FileRetrieve functions when

a file in the ePFS folder is being moved out.

Notice that for servers supporting IMAP, ePFS

reads the title first and determines if the mail should

be downloaded; for severs supporting POP3 only,

ePFS reads the title while downloading the mail, and

discards those that doesn’t match the retrieval

condition. Moreover, ePFS provides a user interface

to configure individual account information of

different email servers, as shown in Figure 2. If the

email server requires SSL/TLS connection (Dierks,

1999) to receive the user identity and password, a

check box can be w ePFS.

Figure 2: Email server configurations in ePFS.

Throughout this paper f denotes the file and its

identity that will be processed by ePFS. All other

parameters and notations include:

n: the number of blocks f is sliced into;

m: the number of redundant blocks generated by

Par2;

: i-th block in the P set of file f, where

’s

are slices of encrypted f, for i = 1, 2, ..., n, and

’s are generated by Par2, for i = (n+1),

(n+2), …,m;

: sensitivity value of file f, 0 <

< 1;

: the value of frequency of use about f, 0 <

< 1;

S : email server with identity id;

T : trustworthiness value of

S , 0 <

T < 1;

:availability value of

S , 0 <

< 1;

:the email quota of

S ;

E( ): encryption operation with user key sk;

D( ): decryption operation with user key sk;

SP: the storage pool of all email servers with

entries (

S ,

);

:the distribution table of f that serially

contains (n+m)

S ’s indicating that

stored at

S .

In the followings, we describe Proc_FileStore

and Proc_FileRetrieve accordingly. Figure 3 and 4

present respectively the conceptual views of these

two procedures.

Figure 3: Store a file to email servers.

Proc_FileStore(f,

Step i

. Encrypt f with sk;

Step ii

. Slice E(f) into n blocks

1,f

b ,

2,f

b , …,

;

WINSYS 2007 - International Conference on Wireless Information Networks and Systems

214

Step iii

. Generate m redundant blocks

1, +nf

2, +nf

, …,

mnf

via Par2 with input

1,f

2,f

b , …,

, to constitute the P set of f;

Step iv

. Select (n+m)

S ’s from SP satisfying

and

;

Step v

. Align selected

S ’s in random order and

place them into

DT ;

Step vi

. Send an email

eml

with f-i-ddmmyyyy

the title and

the attachment to i-th

S in

using SMTP, for i= 1, 2, …, (n+m);

Step vii

. Update SP by deduce the block size from

for each selected

S .

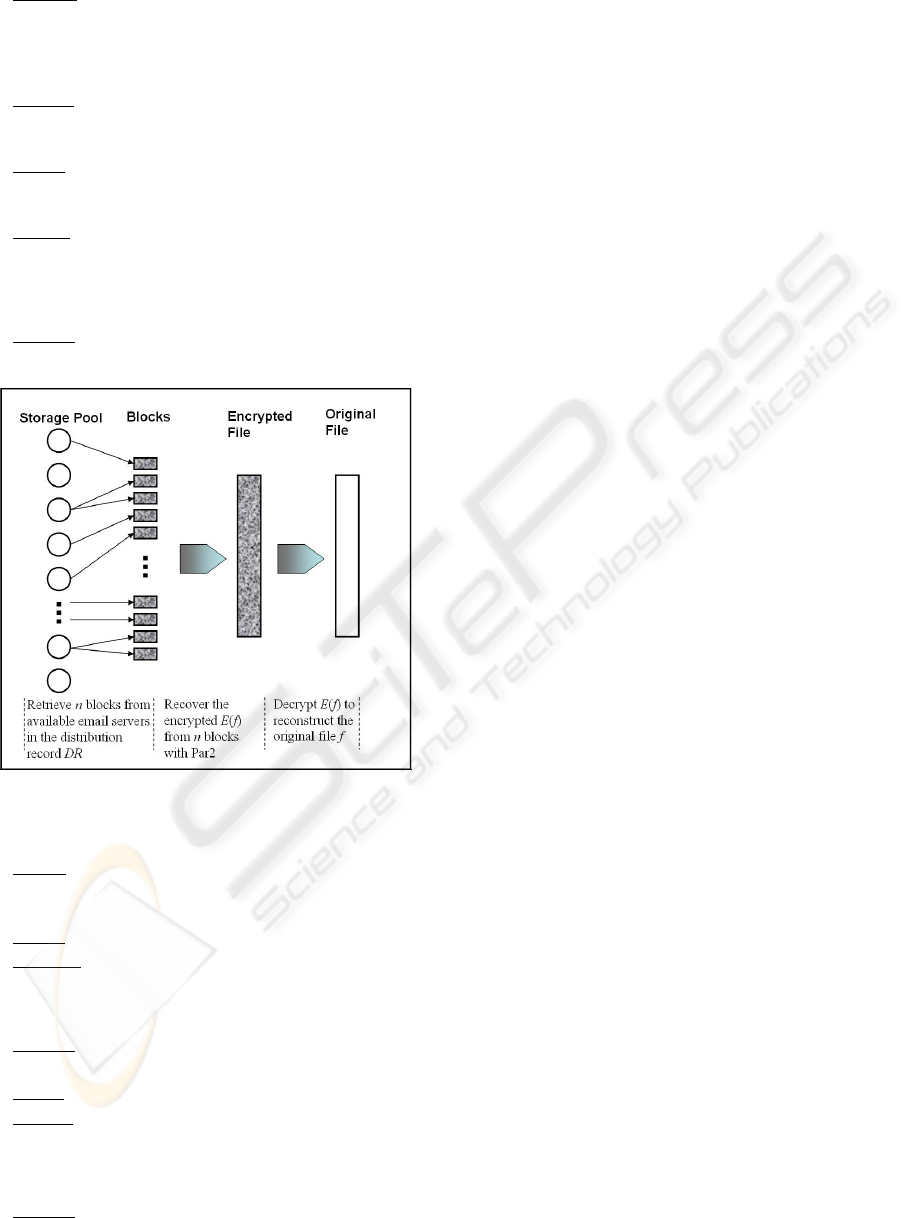

Figure 4: Retrieve a file from email servers.

Proc_FileRetrieve(f):

Step i

. Denote

S ’s in

serially as

′

, …,

)( mn

′

;

Step ii

. Let j = 0 and k = n;

Step iii

. Use POP3/IMAP to retrieve email

)(, ijf

eml

from

)( ij

′

with email titled

initiated with f, for i= 1, 2, …, k;

Step iv

. Update j = k and update k to be the

number of unsuccessful attempts in step iii;

Step v

. If k <>0, goto step iii;

Step vi

. Assume n collected emails be

eml

′

for i= 1, 2, …, n, and reconstruct E(f) by feeding

these

′

’s to Par2;

Step vii

. Decrypt E(f) by sk to recover f.

Note that if there is no enough number of

S ’s

in SP, or no enough number of

S ’s that satisfy the

conditions of step iv in Proc_FileStore, , the user

might have to adjust the values of n and m. If

necessary, values of

, and

also

have to be re-evaluated.

Moreover, when the email server

S fails to

provide the correct block

previous stored in it,

whether it be the connection failure or the damages

found in the block, ePFS will invalidate the entry in

the

and pop out a notice to the user.

4 DISCUSSIONS

The design of ePFS is simple and effective. As an

application level protocol, it integrates tools of state-

of-the-art email protocols, security algorithms and

error recovery mechanisms.

4.1 User Experience

The blocks sliced from E(f) inherit the sensitivity

and frequency attributes of the file f. During Step iv

of the Proc_FileStore, ePFS selects proper email

servers that satisfy the distribution conditions. Files

that are more important to the user are dispatched

and stored at places the user trusts more. The values

of these attributes are adjustable and can be updated

by the user.

When a file is pull into the ePFS folder to be

distributed, ePFS runs in background to encrypt the

file, connect to email servers and send out emails

attaching sliced blocks. The user experience is

consistent to the conventional file copy or move

operation.

When a user selects a file f to be retrieved, ePFS

takes about 2 to 10 seconds for the reconstruction,

for a file of size about 400 KB. The performance

varies due to the number of the blocks that directly

incurs a great number of file I/O, which is the

heaviest operation in ePFS. The current performance

of file retrieval and reconstruction is absolutely not

satisfactory to any user experience. In the future we

hope to find the optimized values of block size,

recovery ratio, etc, and to establish some kind of

proxy scheme to speed up the process.

In ePFS, we also provide the function to view all

blocks in a specific email server. This allows the

user to manually check and clean unused blocks in

the email server.

A PERSONAL FILE SYSTEM OVER EMAIL STORAGES - Developing Towards a Persistent Internet Storage for Mobile

Users

215

4.2 Security

In terms of security, ePFS assures the confidentiality

of files being stored at email servers with AES

symmetric encryption (Daemen & Rijmen, 2001).

All files processed with ePFS are in practice

confidential as long as the AES implementation is

sound and robust. On the other hand, although files

are not 100% guarantee retrievable in ePFS, the Par2

provides a very strong confidence of getting the files

back with adjustable server failure ratio. The

integrity of the files also relies on the Reed-Solomon

codes.

There is another security issue that concerns user

privacy when a user’ network behaviour is

maliciously monitored. In ePFS the file identity f is

not enciphered, so even if f itself is not indicative,

the occurrences of f are linkable to translate into

meaningful behaviours. The privacy of user

behaviours against the email server or any third

party can be enhanced by enforcing a scrambling

function to the file identity. That is, the file identifier

f can be transformed into plural unlinkable aliases

being applied to different email servers.

5 CONCLUSIONS

The storage of mobile devices is innate limited by

the flash ROMs and memory cards, in this paper

ePFS proposed a possible way to extend available

storage by trading bandwidth for it. Although

currently ePFS works on Windows PC only, it has

shown the feasibility of utilizing email space over

Internet. As the appearance of mobile devices

continuously gets tinier and tinier, we believe the

function that ePFS provides will soon be the need of

mobile applications.

In order to shape ePFS, we will re-examine

current file and server attributes to adopt more

proper parameters. Along with ePFS, we use a small

program to delete emails older than a specific date to

release unused email space. We will develop a new

garbage collection mechanism that takes file

attributes into consideration. Moreover, the

performance of block retrieval is a critical problem,

so we will target some specific applications that do

not require instant access to remote backups.

There are some future works based on ePFS that

require continuous efforts. The porting of ePFS to a

handset model is underway, i.e. we picked Windows

Mobile platform. Besides email services, we will

include more Internet storage resource like photo

albums, video blogs, free FTPs, etc., to be the

candidates of backup depots. In the long run we will

try to enhance ePFS to support a persistent storage

for mobile devices.

ACKNOWLEDGEMENTS

This research was sponsored by the Mobile Digital

Life core technology development projects 2006-

2009, monitored by the Ministry of Economic

Affairs, Taiwan.

REFERENCES

Chervenak, A., Vellanki, V., Kurmas. Z., 1998. Protecting

File Systems: A Survey of Backup Techniques. In

Proceedings of Joint IEEE and NASA Mass Storage

Conference.

Crispin. M., 2003. Internet Message Access Protocol

version 4 revision 1. In STD 1, RFC 3501, IETF.

Daemen. J., Rijmen. V., Rijndael Specification. In

Advanced Encryption Standard. NIST FIPS PUB 197.

Dierks, T., 1999. The TLS Protocol version 1.0. In STD 1,

RFC 2246, IETF.

Jones, R., 2004. GmailFS: A Gmail Based Linux

Filesystem. http://richard.jones.name/google-hacks

/gmail-filesystem/gmail-filesystem.html.

Kane, M., 2006. Going for a GDrive with google. In

CNET News, 7, March 2006. http://cnet.com/2061-

11199_3-6046686.html.

Klensin, J., 2001. Simple Mail Transfer Protocol. In STD

10, RFC 2821, IETF.

Plank, J.S., 1997. A Tutorial on Reed-Solomon Coding for

Fault-Tolerance in RAID-like Systems. In Software,

Practice & Experience, Vol. 27 (9).

Plank, J.S., Ding, Y., 2005. Note: Correction to the 1997

Tutorial on Reed-Solomon Coding. In Software,

Practice & Experience, Vol. 35 (2).

Traeger, A., Joukov, N., Sipek, J., Zadok, E., 2006. Using

Free Web Storages for Data Backup. In Proceedings

of the Second ACM Workshop on Storage Security and

Survivability, ACM Press.

Viksoe, B., 2004. GMail Drive Shell Extension.

http://www.viksoe.dk/code/gmail.htm.

Myers, J., 1996. Post Office Protocol version 3. In STD 53,

RFC1939, IETF.

WINSYS 2007 - International Conference on Wireless Information Networks and Systems

216
