stating that, for community A, 5Mb/sec are
available. However, for community C, only 2
Mb/sec are allowed. Therefore, only 2 Mb/sec can
be actually used between A and C using F to
forward. This is one example of negotiation and
access control; other examples can include the time
period of forwarding, the type of traffic, or any other
attributes or restrictions applied to this community
concept.

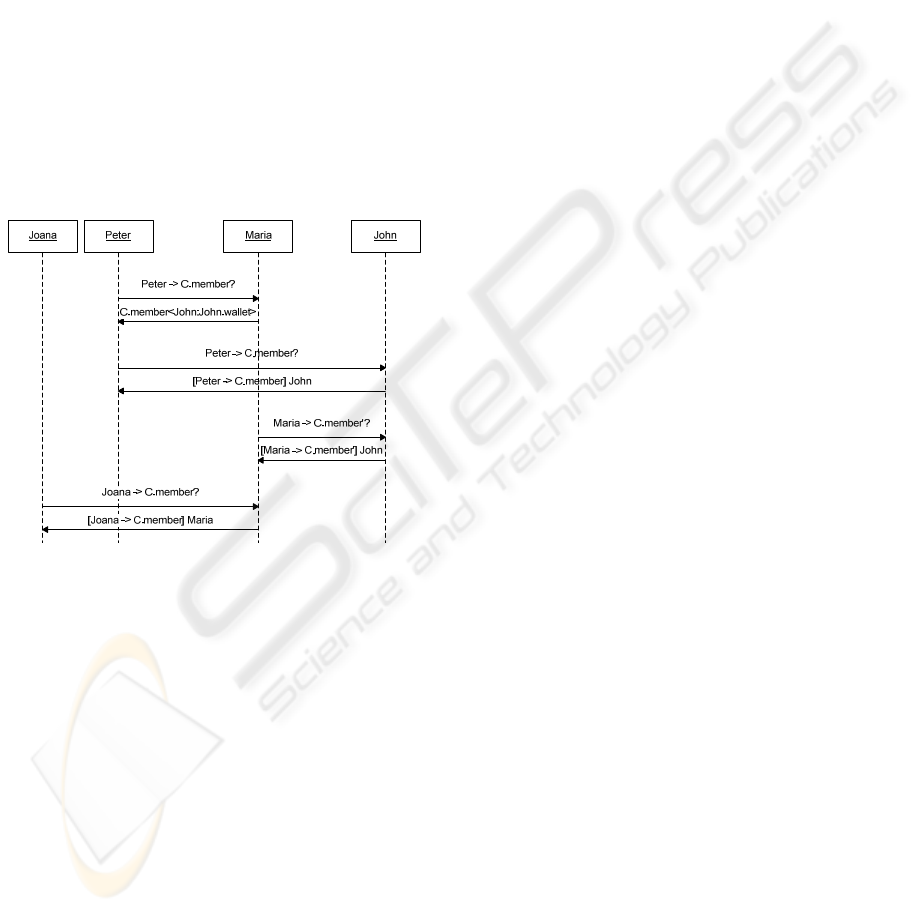

After all delegations are stored on Peter’s Wallet,
it forwards the packets. In this case, Joana, as the
community creator (this is a simplified community
with only one top node), could have limited to only
authorizing forwarding during a certain time period
or using a given bandwidth.
Again, notice that the names Joana, Peter, etc.,
may not be the user names, but names assigned to
specific nodes in the network or even unique random
identifiers.
6 BUSINESS OPORTUNITIES
Following the proposed communities’ management
mechanisms, new and novel business models can be
built on top of the communities’ concept.
First, the proposed mechanisms enable new
nodes/users to join the community automatically and
in a self-organized approach. This enables both the
support of access control for new nodes in the
network and for adaptable shared communication
contexts. This approach can then be used to build
micro operators, wireless and mesh based, with core
nodes fixed and already established in the
community, with possible network extensions
through new nodes. For this business model to be
possible, incentive mechanisms should be in place to
enforce cooperation of new nodes. Moreover,
through the communities’ management and access
control concepts proposed, only authorized users can
access the community (network) and the services
available, emulating the same behaviour of access to
the operator services. Moreover, access constrains
may take in consideration reputation or resources,
and be applied to any layer of the communication
stack. Finally, the inter-community management
following a cross-layer approach enables the
creation of a network operator through the support
of interaction between different layer communities.
The delegation concept described can also have a
large impact in the support of new business models.
As an example, one community can sell network
resources (e.g. bandwidth) to another community,
which contains specific delegation roles to enable
the reselling of these (or a set of) resources to
different communities. This can be applied, for
example, to federation agreements between inter-
domain operators, which define service level
agreements (SLAs) between each other (the selling
of resources for traffic traversing their inter-domain
connections), and even end-to-end agreements
which contain end-to-end resources available for a
specific set of services, through the reselling of the
resources to the several domains on the end-to-end
path. Another example is again the support of micro-
operators, whose resources can be achieved through
this delegation process.
7 CONCLUSIONS
This paper presents a community-based approach to
the definition of next generation user-centric
communications. Nodes and users are encouraged to
cooperate at all levels, sharing their resources both at
the application and communication layers. The
social relationships existing between users will
promote increased trust in local environments,
allowing wireless techniques based on individually
owned APs to become a trusted communication
environment. Mesh networking is particularly
adequate to this approach, allowing users to roam
freely, while their APs establish long-term
communication backbones.
These multi-level communities can define their
own policies and establish cooperation agreements
with other communities – both at the same and at
different levels of the communication stack.
Roles and delegations are of vital importance to
community management, with all the organization
being managed according to these concepts.
Furthermore, such methods allow the creation of
extended business models where, instead of the
service providers, users and their relations are the
driven forces for network operation.
Current work is focused on further refining the
community architecture and the integration of QoS
and mobility mechanisms. Results from prototype
implementations and real world deployments, on
metropolitan scenarios, will further contribute to the
evaluation of the solutions proposed.
