THUMBTRIBES: LOW BANDWIDTH, LOCATION-AWARE

COMMUNICATION

John P. T. Moore

Zedstar Dot Org Ltd

PO BOX 119, Pinner, HA5 2UR, United Kingdom

Keywords:

Mobile computing, location-aware communication, IRC, s-expressions, packedobjects.

Abstract:

Mobile application developers need to design their applications with the constraints of the network in mind.

In comparison to inexpensive home broadband networks, mobile networks often exhibit high levels of latency

and have limited bandwidth. Another signiﬁcant difference between these networks is the cost of transporting

data. Mobile network operators often apply usage tariffs, especially if the customer is on a prepaid service. In

such situations, mobile Internet use can prove costly. To help reduce costs, application developers should try

to minimise the amount of data their applications communicate. In this paper we present, thumbtribes, an open

source project which attempts to add location-awareness to Internet Relay Chat (IRC) in a network efﬁcient

manner.

1 INTRODUCTION

Developing applications for mobile devices is not

straightforward in comparison to desktop application

development (Moore, 2006a). A limited screen size

requires clever use of the viewable area. In addition,

battery life continues to be an issue for power hun-

gry 3G phones. Today’s smart phones are designed

to multi-task applications, however, a correlation ex-

ists between CPU cycles and battery life. Memory

is also in limited supply. Languages such as C are

well suited to designing applications within these con-

straints. Subsequently, C has become the language

of choice for embedded developers (Barr and Massa,

2006). However, developers with desktop experience

may be more familiar with languages which automate

low-level tasks such as memory allocation. Devel-

oping for a mobile platform requires knowledge of

cross-compilation and its associated tools. Testing

and debugging in this environment can also be a chal-

lenge.

Even after addressing these issues other stumbling

blocks remain. A factor which is often neglected

when porting a desktop application to a mobile de-

vice is the nature of the network that will be used.

Mobile manufacturers continue to release handsets

which only support 2.5G technologies such as Gen-

eral Packet Radio Service (GPRS). The limited band-

width available on these networks prevents the use of

certain types of application. The latency on such net-

works can be remarkably high compared to inexpen-

sive home broadband connections. Round trip times

which run into seconds are not uncommon. Signif-

icant levels of packet loss can be experienced caus-

ing and/or adding to the latency. Despite these limi-

tations, the overriding factor which could hinder mo-

bile Internet use is the cost of transporting data. Mo-

bile phone operators typically charge according to

the quantity of data sent across their networks, espe-

cially when prepaid services are used. Unless mo-

bile Internet use is made more affordable it is un-

likely there will be an explosion in application use.

Mobile application developers can help reduce costs

by designing their applications in a network efﬁcient

manner. The goal of the thumbtribes project is to in-

corporate location-awareness into Internet Relay Chat

(IRC) without incurring a signiﬁcant cost to a user on

a prepaid mobile service. In the thumbtribes system,

location-awareness refers to the ability for a user to

ﬁnd out the geographic distance of another user based

on some predeﬁned preferences. To help achieve the

the main goal of network efﬁciency, thumbtribes uses

packedobjects encoding (Moore, 2006b) .

197

P. T. Moore J. (2007).

THUMBTRIBES: LOW BANDWIDTH, LOCATION-AWARE COMMUNICATION.

In Proceedings of the Second International Conference on Wireless Information Networks and Systems, pages 181-186

DOI: 10.5220/0002151001810186

 SciTePress

2 PACKEDOBJECTS

packedobjects is an open source project (Moore,

2007) built with C and an implementation of Scheme

known as Chicken (Winkelmann, 2007). Scheme is

a multi-paradigm programming language, which due

to its small core, is an ideal language for embed-

ding into other languages such as C. A powerful lan-

guage feature which becomes available with this tech-

nique is the ability to use symbolic expressions (s-

expressions) (McCarthy, 1960). An s-expression is a

syntactic form which allows complex data structures

to be represented more concisely than XML. For ex-

ample, ﬁgure 1 represents a personnel record using an

s-expression. The same personnel record represented

(personnel

(name

(givenName "John")

(initial "P")

(familyName "Smith"))

(title "Director")

(number 51)

(dateOfHire "19710917")

(nameOfSpouse

(givenName "Mary")

(initial "T")

(familyName "Smith"))

(children

((name

(givenName "Ralph")

(initial "T")

(familyName "Smith"))

(dateOfBirth "19571111"))

((name

(givenName "Susan")

(initial "B")

(familyName "Jones"))

(dateOfBirth "19590717"))))

Figure 1: S-expression personnel record.

in XML may be up to 44% more verbose, in terms

of the number of bytes used. S-expressions are well

suited to representing network protocols and have

been used in the application domain of cryptography

(Rivest and Lampson, 1996) and within email proto-

cols such as IMAP (Crispin, 1988). Even though s-

expressions are concise, packedobjects goes one step

further and transforms the textual representation of an

s-expression into binary before transmitting it over a

network.

3 THE NEED FOR EFFICIENCY

Binary protocols have a speciﬁc role to play in mobile

networks which suffer from problems such as lack of

bandwidth, latency and cost of transporting data. To

illustrate this we can compare the amount of bytes

that would be generated if an s-expression was sent in

its textual form with its compressed form. A signiﬁ-

cant part of the thumbtribes protocol involves sending

small amounts of numeric data across the network.

The client continually informs the server of its geo-

graphic position and the server responds with the dis-

tances of other users. This exchange forms the bulk

of the trafﬁc in a thumbtribes session. Figure 2 pro-

vides an example s-expression request message that

might be sent to the server. Due to the size and na-

(pdu

(ping-request

(latitude 51518928)

(longitude -151668)))

Figure 2: Request message.

ture of the message, compression techniques such as

gzip (GNU zip) (Deutsch, 1996) are void. Applying

such compression actually increases the message size.

However, when packedobjects encoding is applied to

the s-expression it results in a message of 8 bytes in

comparison to 61 bytes in its original form. Before

discounting compression techniques such as gzip we

need to examine situations which offer more chance

of success, such as larger messages. Unless there is

signiﬁcant improvement, the increase of CPU time of

such techniques cannot be justiﬁed. To test this we

can examine the response from the location request

which may consist of a sequence of up to and includ-

ing 50 user names and distances. Figure 3 provides an

example of an s-expression response message. Figure

(pdu

(ping-response

((nick "sdgmokm2") (distance 16485828))

((nick "r9ubm7v") (distance 14708129))

((nick "z5gp950rb") (distance 12899883))

((nick "yci") (distance 10090589))

((nick "sr") (distance 18918800))))

Figure 3: Response message.

4 compares the bytes generated for gzip compres-

sion, packedobjects encoding and raw s-expressions

for response messages containing distances for 0 to

50 users. User names and distances have been gen-

erated randomly for convenience. In reality the user

names, although unique, would exhibit less random-

WINSYS 2007 - International Conference on Wireless Information Networks and Systems

198

0 10 20 30 40 50

users

200

400

600

800

1000

1200

1400

1600

1800

bytes

s-expression

gzip

packedobjects

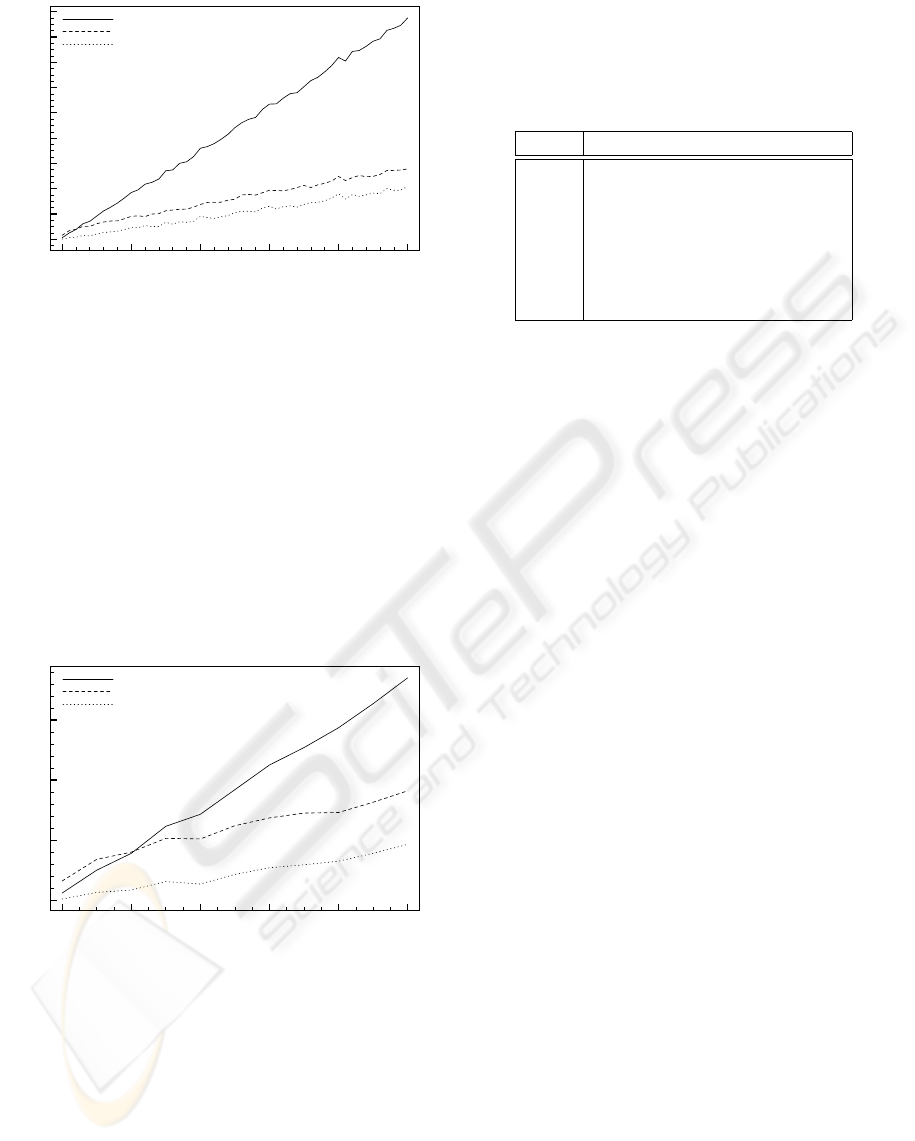

Figure 4: Complete range of location response messages.

ness and therefore may offer different levels of com-

pression. The results show that both gzip compression

and packedobjects encoding are able to signiﬁcantly

reduce the amount of bytes generated compared to

when using text-based s-expressions. However, on

average, packedobjects encoding is able to offer a

36% reduction in message size over gzip compres-

sion. Although the results depict the maximum range

of possible message sizes, in reality, typical message

sizes would be more accurately represented by ﬁgure

5 where message sizes range from 0 to 10 users. We

0 2 4 6 8 10

users

100

200

300

bytes

s-expression

gzip

packedobjects

Figure 5: Typical range of location response messages.

can now clearly see that it takes a response message of

at least 3 users for gzip compression to produce less

bytes than in its uncompressed form. packedobjects

now produces on average a 62% reduction in mes-

sage size over gzip. The signiﬁcance of these savings

depends on several factors, such as the frequency of

a request message, the period of time examined, the

size of a response message, and ultimately the cost

of sending data over the network. To highlight this

we can simulate a request/response cycle and then ap-

ply a cost metric to the data to show how cumulative

costs may vary between both methods of compres-

sion. Table 1 shows the cumulative costs, in terms of

Table 1: Cumulative costs in UKP.

hours s-expr gzip packedobjects

1 0.68 0.54 0.14

2 1.29 1.06 0.26

3 1.93 1.58 0.39

4 2.58 2.11 0.53

5 3.2 2.63 0.65

6 3.85 3.15 0.78

7 4.5 3.68 0.91

UK pounds (UKP), when a location request is made

every 10 seconds for a period of 7 hours. A response

is generated containing a random number of users and

their distances. As with ﬁgure 5, the number of users

is limited to 10 and names and distances were gener-

ated at random. A cost metric of 0.0075UKP per kilo-

byte of data has been applied. This reﬂects the current

tariff on a prepaid service from a leading mobile op-

erator in the UK. Typical use of thumbtribes would

involve leaving a client running in the background

while other applications run. The results show, af-

ter 7 hours, gzip compression would have incurred an

extra 2.77UKP over the cost of using packedobjects

encoding.

4 THE THUMBTRIBES

ARCHITECTURE

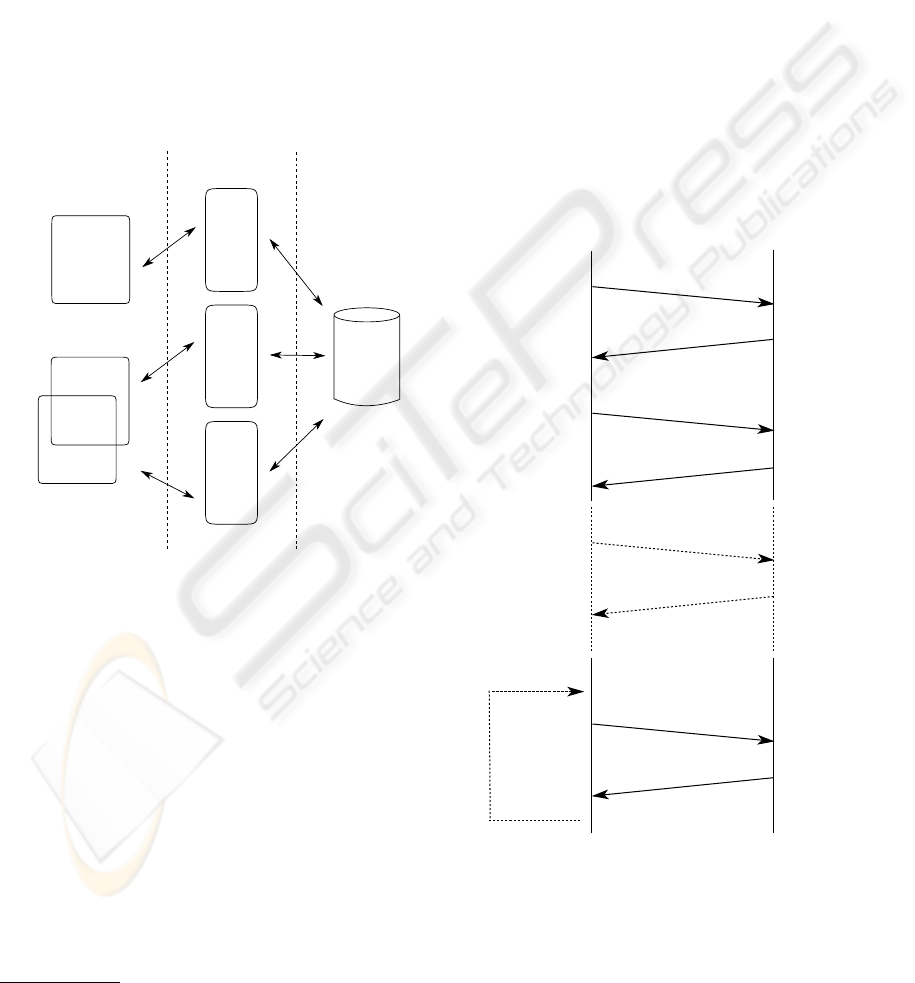

The thumbtribes architecture can be divided into three

sections: clients, servers and backend, as depicted in

ﬁgure 6. Three client/server protocols are employed:

HTTP (web), IRC and thumbtribes. A web interface

is provided to allow users to alter preferences in the

thumbtribes system in real time. Altering preferences

to restrict the amount of data the thumbtribes server

encodes is an important method of reducing usage

costs on a metered network. For example, the user

may wish to limit responses to users who are within

a certain proximity. Using a web client to make these

changes eliminates the need to enter data via a mobile

handset.

IRC is used to support all user-to-user communi-

cation as well as authenticate and create users and

nicknames. IRC is a lightweight and simple text

based protocol (Oikarinen and Reed, 1993) designed

mainly for group communication. The system has

been around since 1998 and is well supported in terms

of users, servers and choices of client software. The

THUMBTRIBES: LOW BANDWIDTH, LOCATION-AWARE COMMUNICATION

199

IRC server supports various server-sanctioned bots

for registering and controlling access to user names,

nicknames and various other features. This forms

the basis of authenticating the user via the web client

and the thumbtribes client. Using IRC services for

user authentication provides a simple pre-built way

to handle accounts across the entire thumbtribes sys-

tem. The data associated with these server-sanctioned

bots is provided by the backend. The backend con-

sists of a Relational Database Management System

(RDBMS). All communication between the backend

and the three servers takes place via SQL commands

over a TCP/IP connection. The separation of the

backend from the servers means that all 4 components

could reside on physically different machines.

CLIENTS

SERVERS

BACKEND

WEB

THUMBTRIBES

IRC

THUMBTRIBES

WEB

IRC

RDBMS

Figure 6: Thumbtribes architecture.

The thumbtribes client is responsible for all lo-

cation related communication and has been depicted

as a rectangle within a rectangle to highlight how

the software can be embedded into an existing IRC

client. The thumbtribes server calculates information

such as the distance of users and ﬁlters responses ac-

cording to preferences stored in the backend. The

main purpose of the thumbtribes client is to contin-

ually update, or ”ping”, the server with coordinates.

The way this location information is supplied is not

part of the thumbtribes architecture. One method, for

example, which is independent of any network opera-

tors is to obtain coordinates from a GPS (Global Posi-

tioning System) device. As GPS technology improves

and variants such as AGPS (Assisted GPS) (LaMance

A bot is an independent program which connects to

IRC as a client but appears as a normal IRC user.

et al., 2002) become more widespread, this solution

becomes more usable.

5 THE THUMBTRIBES

PROTOCOL

thumbtribes uses a simple client/server protocol over

a TCP connection. There is an exchange of Proto-

col Data Units (PDUs) as summarised by the timing

graph in ﬁgure 7. The sequential request/response na-

ture of the protocol means that the same area of allo-

cated memory can be used for both encoding and de-

coding of PDUs. This saving should be welcome on

an embedded device such as a mobile phone. Figure 8

provides the complete thumbtribes protocol speciﬁca-

tion. The protocol is described using an s-expression

client

server

TCP

init-request

init-response

ping-request

ping-response

nick-change-

request

nick-change-

response

Figure 7: Protocol timing graph.

and makes use of features of the Scheme program-

ming language such as comments and ”quasiquot-

ing”. All comments are represented by lines begin-

ning with a semicolon. A quasiquote is used to deﬁne

WINSYS 2007 - International Conference on Wireless Information Networks and Systems

200

(deﬁne protocol

;; user deﬁned type

(let ((nick '(nick string (size 1 9))))

;; start of PDU

`(pdu choice

;; inform server of version and machine type

(init-request sequence

(machine string (size 1 20))

(version integer (range 1 1000)))

;; returns true if ok

(init-response boolean)

;; identify user to server

(login-request sequence

(username string (size 1 10))

(password string (size 1 35))

,nick)

;; server responds with ping time or error code

;; 0 = password incorrect

;; -1 = no such username

;; -2 = no such nick

;; -3 = already logged in

(login-response integer (range -10 ,MAX-PING-TIME))

;; inform server of nick change

(nick-change-request sequence ,nick)

;; returns true if ok

(nick-change-response boolean)

;; send coordinates to server

(ping-request sequence

(latitude integer (range -90000000 90000000))

(longitude integer (range -180000000 180000000)))

;; server responds with distance of users

(ping-response sequence-of ; max 50

,nick

(distance integer (range 0 20000000))))))

Figure 8: Thumbtribes protocol speciﬁcation.

the type ”nick” which can then be used multiple times

throughout the protocol speciﬁcation. The ability to

represent the protocol as code means that no further

transformation is required to manipulate the data. If

we contrast this to XML, the protocol would need to

be transformed from its description into an abstract

data type, such as a tree, before it could be manipu-

lated.

The thumbtribes protocol is a choice of 8 PDUs

exchanged in 4 sequences: init, login, nick-change

and ping. The init sequence informs the server of the

client machine type and more importantly the version

of software being used. If the client is using a com-

patible version, the server will respond with a boolean

ﬂag set to true. On receiving this response the client

initiates a login sequence to the server. The server

then authenticates the user and will respond in one

of two ways. On successful authentication a value

will be retrieved which will represent the amount of

time the client will pause during a ping-request/ping-

response cycle. Failure to authenticate will return a

value less than 1 depending on the error. Comments

in the protocol speciﬁcation indicate the various er-

rors that might occur. Overloading a data type in this

way is not recommended in most protocol speciﬁca-

tions, however, in this situation it helps simplify the

response message. After the login stage completes,

the two remaining sequences may take place. The

nick-change sequence is represented as a dashed line

in ﬁgure 7 to indicate it is optional. In the thumb-

tribes system a user may have multiple nicknames.

If the user changes nickname during a session the

server needs to be informed. This requires sending

the new nickname to the server and the server will re-

spond with a boolean ﬂag to indicate success or fail-

ure depending on whether the nickname is registered

to the user. The remaining sequence to describe is

the most fundamental, the ping. As indicated in ﬁg-

ure 7 this sequence may repeat. The client sends a

ping-request to the server containing latitude and lon-

gitude coordinates. Each coordinate is expressed in

integer form with its decimal equivalent represented

as coordinate × 10

−6

. Therefore, coordinates can be

expressed to an accuracy of 6 decimal places. On re-

ceiving the coordinates the server is able to calculate

the distances of other users in the thumbtribes system.

The ping-response contains a sequence of nicknames

and corresponding distances expressed in meters. The

ping sequence will then repeat until the user decides

to terminate the thumbtribes session. Termination is

initiated when the user quits the client and is detected

by closure of the TCP connection.

6 FUTURE WORK

One of the beneﬁts of working with s-expressions in

Scheme is they are a native data structure. In compar-

ison, XML requires a library or toolkit to transfer the

textual representation into an abstract data type sup-

ported by the high level language being used. Sev-

eral such toolkits exist depending on the high level

language. An interesting study would be to measure

the amount of processor time and memory required to

process XML compared to s-expressions. Both met-

rics are important for embedded devices such as mo-

bile phones. However, trying to obtain ”apples vs ap-

ples” metrics for such studies is not straightforward.

In section 3, we indicated the savings that could be

made using packedobjects encoding instead of gzip

compression of s-expressions. Many protocols, in-

cluding popular instant messaging protocols such as

Jabber (Saint-Andre, 2004), are still being sent over

mobile networks as uncompressed XML. A cost com-

parison could be made against a packedobjects en-

coded equivalent protocol.

THUMBTRIBES: LOW BANDWIDTH, LOCATION-AWARE COMMUNICATION

201

In terms of application enhancements, thumb-

tribes could beneﬁt from numerous additions. One

such addition could be a location-oriented event sys-

tem. The user would be able to enter details of an

event and supply coordinates. Other users would then

be able to pick up these events when in a deﬁned

proximity. Tagged locations could be another useful

thumbtribes addition. Here users could walk around

an area and tag locations with a short description.

This information could also then be available to other

local users. Many similar location-aware features

could be implemented, all of which beneﬁt from the

low-bandwidth protocol employed in the thumbtribes

system. The current development version of thumb-

tribes is being built as a plugin to an open source IRC

client. Rather than embed thumbtribes functionality,

a special purpose client could be created. The ideal

client would mask the fact IRC is being used as the

underlying communication protocol. This would al-

low a more simplistic and user-friendly interface for

mobile phones to be built.

7 CONCLUSION

Users have become accustomed to a certain level of

quality of service from the broadband connections

they use at home. In contrast to a typical broadband

connection, a mobile network is likely to have less

bandwidth as well as exhibit higher packet loss in

conjunction with increased round trip times. The mo-

bile network operator might also apply a usage tar-

iff. Often when applications are ported from a desk-

top environment to mobile environment they will lack

consideration for these issues. In addition, it is of-

ten more straightforward for mobile application de-

velopers to design network protocols based on popu-

lar standards such as XML. Unfortunately such stan-

dards can be verbose, even after applying well known

compression techniques. The thumbtribes project

demonstrated this by comparing gzip compression

with packedobjects encoding. The bulk of the trafﬁc

generated during a thumbtribes session occurs during

its location request/response cycle. Here the client pe-

riodically sends a small message to the server contain-

ing geographic coordinates. Tests showed that while

packedobjects encoding was able to offer signiﬁcant

levels of compression, gzip compression actually in-

creased the size of the original message. When larger

message sizes were examined, packedobjects was

able to reduce typical message sizes on average by

62% compared to when gzip was used. The signif-

icance of these savings depends on usage. However,

with today’s multi-tasking phones, it is not an uncom-

mon requirement to be able to leave an application

running in the background. In such circumstances, it

is easy to show why reducing costs on a metered net-

work is important.

REFERENCES

Barr, M. and Massa, A. (2006). Programming Embedded

Systems. O’Reilly.

Crispin, M. (1988). Interactive Mail Access Proto-

col: Version 2, Request for Comments: 1064.

http://www.ietf.org/rfc/rfc1064.txt.

Deutsch, P. (1996). GZIP ﬁle format speciﬁca-

tion version 4.3, Request for Comments: 1952.

http://www.ietf.org/rfc/rfc1952.txt.

LaMance, J., DeSalas, J., and Jarvinen, J. (2002).

Assisted GPS: A Low-Infrastructure Approach.

http://www.gpsworld.com/gpsworld/article/articleDe

tail.jsp?id=12287.

McCarthy, J. (1960). Recursive Functions of Symbolic Ex-

pressions and Their Computation by Machine, Part I.

Communications of the ACM, 3(4):184–195.

Moore, J. (2006a). Developing on hand-

helds, University of Birmingham.

http://www.cs.bham.ac.uk/internal/courses/comm-

prog/slides/moore.pdf.

Moore, J. (2006b). packedobjects. In WINSYS 2006 In-

ternational Conference on Wireless Information Net-

works and Systems.

Moore, J. (2007). packedobjects. http://packedobjects.com.

Oikarinen, J. and Reed, D. (1993). Internet Re-

lay Chat Protocol, Request for Comments: 1459.

http://www.ietf.org/rfc/rfc1459.txt.

Rivest, R. and Lampson, B. (1996). SDSI - A

Simple Distributed Security Infrastructure.

http://theory.lcs.mit.edu/ rivest/sdsi10.html.

Saint-Andre, P. (2004). Extensible Messaging and

Presence Protocol (XMPP): Instant Messaging

and Presence, Request for Comments: 3921.

http://www.ietf.org/rfc/rfc3921.txt.

Winkelmann, F. (2007). Chicken Scheme. http://www.call-

with-current-continuation.org/.

WINSYS 2007 - International Conference on Wireless Information Networks and Systems

202
