A SCALABLE AND BUSINESS-ORIENTED FRAMEWORK FOR

INTER-DOMAIN QUALITY-OF-SERVICE

Vítor Jesus, Susana Sargento and Rui L. Aguiar

Instituto de Telecomunicações, Universidade de Aveiro, Aveiro, Portugal

Keywords: Quality-of-Service, interdomain, 4G networks, federation.

Abstract: This paper presents and discusses a framework for end-to-end Quality-of-Service in a network operator

environment. We focus on the inter-operator segment. Contrary to usual approaches, we consider that, in the

current state-of-the-art, the interdomain QoS problem complexity resides on the business relations between

administrative domains. Therefore, we attempt to decouple the technical problem of providing end-to-end

traffic assurances from the business problem of setting up partnerships. We combine the two aspects to

build a framework that allows a smooth integration of the inter-domain, the intra-domain and the access

segments. We also provide an IntServ-over-DiffServ architecture that is able to cope with mobility

scenarios.

1 INTRODUCTION

Quality-of-Service (QoS) remains an open problem

despite all research so far. Although many

techniques and architectures have been proposed,

current commercial Internet lacks basic building

blocks such as general support for traffic

discrimination

. This can be explained over two

dimensions: the need for QoS and the "all-or-

nothing" implementation issue.

The actual need for QoS is still somewhat

debatable, considering that networks today still

didn't reach enough convergence to force the need

for traffic differentiation. We still have two types of

networks: legacy networks built around well-known

services such as voice, and the general-purpose

Internet that, in theory, can carry all types of traffic.

While typically the Internet is used for applications

that run over a "best-effort" network, applications

that need QoS use legacy networks such as ISDN,

ATM or GSM. It is, however, a weakening argument

since the desired convergence is quickly

approaching. A notable example is the maturing

specifications of IP Multimedia System (IMS, from

3GPP) over which TISPAN (from ETSI) will build,

We distinguish the particular problem of traffic differentiation

from the overall problem of traffic discrimination, that, in this

context, includes all actions needed to setup and carry a flow that

needs QoS assurances.

considered the core of next-generation commercial

networks.

On another perspective, "killer applications" that

demand for QoS only recently have gained the

attention of mass-market players. This is the case of

VoIP, already a prevalent technology in the business

environment. Others, such as Video-on-Demand or

IPTV will be pushing the need for QoS.

The second set of arguments concern the "all-or-

nothing" characteristic of QoS: QoS makes only

sense if deployed e2e. The problem adds in

deployability complexity if we note that a typical

user will not tolerate domain discrimination. This

means that users expect to have the same service for

every possible destination. Therefore, following this

rationale, this is a two-fold problem: a QoS-enable

Internet must have the collaboration of all domains

composing it and it must comprise all trenches

between user equipments.

However, this all-or-nothing argument is

currently not so dramatic for one main reason. On

one hand, we still have a large installed capacity in

core networks (hundreds of Gbps); on the other

hand, access networks have limited capacity (on the

order of the Mbps). The combination of these two

factors limits the expectations of users so that one

can still speak of generalized overprovisioning.

However, either by caution or by forecast, it is

expected that overprovisioning won't last. A quite

strong example is the recent trend to carry TV over

298

Jesus V., Sargento S. and L. Aguiar R. (2007).

A SCALABLE AND BUSINESS-ORIENTED FRAMEWORK FOR INTER-DOMAIN QUALITY-OF-SERVICE.

In Proceedings of the Second International Conference on Wireless Information Networks and Systems, pages 282-288

DOI: 10.5220/0002151502820288

 SciTePress

the Internet. This will push broadband (tens of

Mbps) everywhere and we will assist to real and

effective traffic discrimination.

This work will discuss the scenario where

overprovisioned domains won't be possible and e2e

QoS will be required by end customers. The main

problem we tackle is how to support interdomain

QoS in a mesh of many different domains in a

scalable and business-friendly way. In section 2 we

show that the complexity of the problem has

important roots in the business environment of the

Internet. We also discuss related work. In section 3

we outline our architecture and in section 4 we detail

the most important building blocks. In section 5 we

give our concluding remarks and leave some open

questions that will be subject of future work.

2 PROBLEM STATEMENT

In we show the two generic topologies of a WAN:

one hierarchical and the other meshed.

Even though the Internet is architecturally a

mesh of domains, current topology shows some

hierarchy (Meireles, 2004). On the bottom layer,

access networks, to which users are directly

connected, are connected to core networks, most

likely, under the same administration. The next level

could be fitted to national backbones (for Portugal,

the GigaPIX (fccn.pt) is a good example) and the

higher layers are tier-2 or tier-1 domains that,

typically, are only transit domains, aggregating

traffic from many core networks and typically

spanning over the globe. However, the exact

domains that each small domain is connected to may

vary so that a mesh of domains comes up. Perhaps

the best way to capture the Internet topology is to

classify each domain according to its nature (see

Figure

2):

 access domains, connecting directly end users.

 core domains, aggregating end-user traffic

from a set of access networks under the same

administration;

 transit domains, connecting core domains.

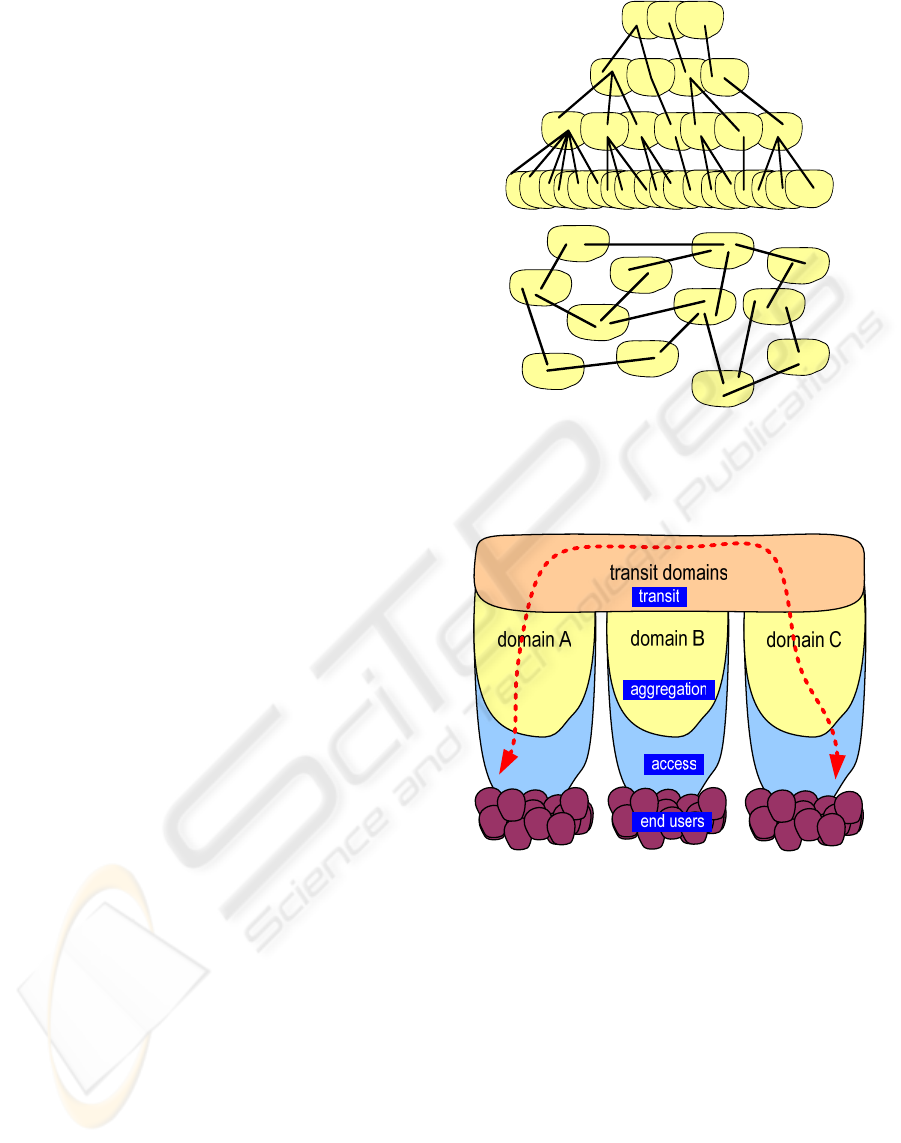

Figure 1: Generic topologies of the Internet. On the top, a

hierarchical topology; on the bottom, a mesh of domains is

shown.

Figure 2: Segment decomposition of domains. The dotted

line shows a connection between two end users.

2.1 Related Work

Technically, e2e QoS in a packet-switched network

has two main components: per-node packet handling

and session setup. Both components have several

solutions that span from mimicking circuit-switched

networks (e.g., ATM, IntServ/RSVP (Braden et al.,

1994), MPLS (ietf.org)) to loose assurances (e.g.,

DiffServ (Blake et al., 1998), probing-based). Each

solution has its own problems and is typically

suitable in a certain context of scope. For example,

IntServ/RSVP framework is well-known to have

scalability problems but is flexible enough to handle

QoS at a finer level; on the other hand, DiffServ is

A SCALABLE AND BUSINESS-ORIENTED FRAMEWORK FOR INTER-DOMAIN QUALITY-OF-SERVICE

299

far more scalable than IntServ but at the cost of not

being able to handle well per-flow QoS.

A clear trend is to consider an IntServ-over-

DiffServ framework (see, e.g., (Sargento et al.,

2006)) which is also the approach taken by next-

generation networks such as IMS or TISPAN. In

such approach, the stored state incurred in each QoS

reservation is progressively diluted as we enter the

core network. At the access network (including the

user equipment), per-flow management is realized

by a combination of the way the access technology

works (e.g., channels of WCDMA, time-slots in

IEEE 802.11e) and per-flow state storage in the

interface between the access network and the core

network. On the core network, typically managed by

a Bandwidth Broker, a flow can be mapped to a

certain DiffServ code point (DSCP) and packets are

handled in a per-aggregate basis. As packets move

up in the hierarchy, aggregation of aggregates is

supposed to happen (e.g., using MPLS paths) in

order to avoid prohibitive scalability problems: a

single link of a tier-1 transit domain may carry flows

of hundreds of millions of users. Efficient

techniques for aggregating flow bundles (including

setup signalling) in the interdomain segment have

been proposed (Pan et al., 2000). The main

conclusion to be taken is that, from a technical

point-of-view, interdomain QoS inherits from intra-

domain QoS solutions and, from an architecture

point-of-view, there is a clear vision of how a

solution will be.

However, the problem is still open from the

point-of-view of signalling. It is clear that the same

solutions for intradomain could be applied (e.g,

RSVP (Braden et al., 1997) or NSIS (ietf.org.../nsis-

charter.html)) or similar such as the proposal of the

QBone project that provides a specific signalling

protocol (SIBBS (qbone.internet2.edu)) for

interdomain QoS session setup. The IETF WG NSIS

is already addressing such problem and some

proposals already exist (Cordeiro et al., 2006). One

key feature of NSIS, as of today (work in progress),

is to allow independence for the QoS model the

signalling traverses. As we'll see, we consider this

aspect to be of utmost importance. However, we

won't use real-time interdomain signalling.

2.2 A Model for Interdomain QoS

We argue that a key piece is still missing: a widely

accepted model for interdomain QoS. One should

note that an interdomain model for legacy networks

exists for several decades: in PSTN, two network

providers would agree on respecting ITU-T

guidelines. There is, however, a major difference

between the Internet and PSTN: PSTN has a single,

well-known and well-regulated service (voice). This

is in sharp contrast with the Internet where not only

there may be several possible services, but also no

well-known service is currently universally accepted

(except, possibly, services similar to voice).

Yet another important difference is related to the

exact notion of interdomain "services". While a

"service" may be defined in terms of end-user (e.g.,

the 4 3GPP classes), "service" is a much different

concept between domains, for the reasons expressed

above: while a "voice call" may have a clear

meaning in the access network, a bundle of

aggregates of "voice calls" in a interdomain link

represents a much different concept. There are

reasons to believe that well-known interdomain

services won't be defined in the short-term:

 the Internet is a worldwide mesh of domains

whose technologies may be very different and

the same service will be implemented in much

different ways. Although the concept of service

should be independent of the supporting

technology, for transit domains, the technology

set the available services.

 the set of services that can be provided by a

general-purpose data network such as the

Internet is expected to be extremely large.

 while end-user services may be changed

frequently (following market trends), transit

services will be much slower to create and

discontinue.

 while transit domains will define its services in

term of packet bundles, access domains will

primarily define services in terms of end users.

There must be, then, some mapping between one

and another. This will cause a fast dynamic

system that typically cannot be tracked by

standardization bodies.

3 PROPOSED ARCHITECTURE

The set of previous considerations set the grounds

over which our architecture is laid off. We

distinguish three dimensions in a QoS-enabled

network: the user, the business and the technicalities.

These dimensions are unified by the concept of

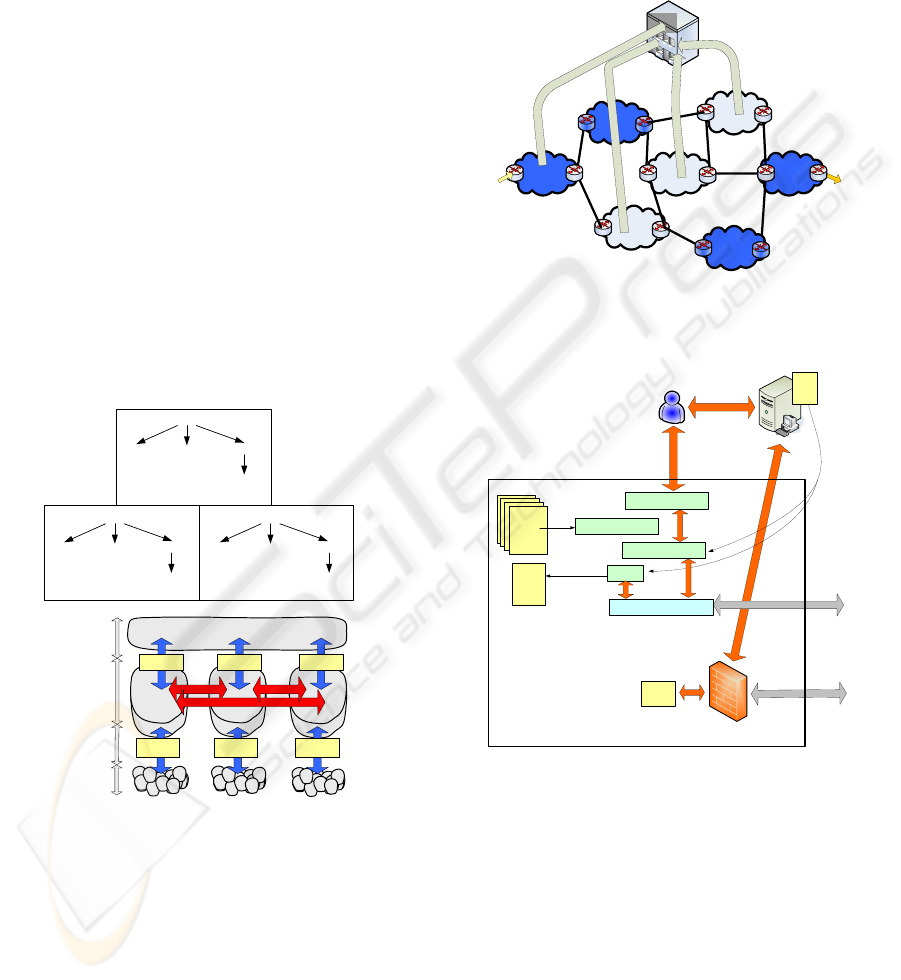

Service-Level Agreement (SLA) – see Figure 3. Each

type of SLA has three main components:

 a legal component, consisting of a contract

whereby a party states the conditions under

which the service is provided

WINSYS 2007 - International Conference on Wireless Information Networks and Systems

300

 a control component, consisting of 5 generic

functions: the typical A4C functions

(Authentication, Authorization, Accounting,

Auditing and Charging) added and a fifth

function providing means to check for service

compliance (e.g., remote measurements for

transit services).

 and the service level specification that

depends on the type of SLA.

The envisioned types of service are the following:

 transit-SLA (tSLA): in QoS terms, this has

the common meaning of an agreement between

two domains concerning the transport services

with the SLS also having the common

understanding [14]

 user-SLA (uSLA): this is a formalization of

the agreement between the user and service

provider

 peering-SLA (pSLA): On one hand, this is the

general SLA from where other SLAs derive

since it specifies a peering relationship between

two parties. It is here used as a peering

relationship between two service providers.

uSLA

legal A4CM SLS

tSLA

legal A4CM SLS

pSLA

legal A4CM SLS

user

services

transit

services

service-

specific

pSLA

uSLA uSLA uSLA

tSLA tSLA tSLA

pSLA

transit

aggregation

access

end users

Figure 3: The SLA as the unifying concept for QoS.

An example is the way in which VoIP will be

deployed. There will be, most likely, pair-wise

agreements between all VoIP operators, worldwide.

It is yet unclear how these agreements will be settled

but probably there will be a mix between direct

peering (pair-wise) and using intermediary such as

clearing houses (Figure 4). One fact is that VoIP

termination is clearly just one possible service out of

many possible.

In this context, a Clearing House (CL) would

settle agreements with other domains and represent

them for other domains. For several reasons, a

domain may chose to be represented by an external

party. It would then delegate SLA handling to that

party.

clearing house

Figure 4: Two types of settlements between domains:

direct, pair-wise (darker domains) and by means of a

hierarchy of clearing houses (one shown).

IdF

SLA

events (notif/trigg)

validation

discovery

offer

untrusted or uncertified

domains proxy

Policy Manager

domain’s

profile

MUX

rules

parsing & negotiation

Figure 5: The Inter-domain Function responsible for

automatic settlement of agreements.

3.1 The Interdomain Function

The mentioned possibility of on-demand peering

plays an essential role in our architecture. In order to

automate discovery and offer of transit and

termination services, we define a special function:

the Inter-Domain Function (IdF) – Figure 5.

There are three main functions of IdF:

A SCALABLE AND BUSINESS-ORIENTED FRAMEWORK FOR INTER-DOMAIN QUALITY-OF-SERVICE

301

 the crawling function

find domains with

which there are no SLAs and that may be, in

the future, transit or termination domains;

 the negotiation function, used to settle a

new SLA or a new service;

 the offer function that advertises the

domain's own profile to the outside.

These functions will be used to build e2e QoS

services as we'll explain in the next section.

3.2 End-to-End QoS

Following our strategy, there are three main steps to

setup a QoS session:

1. since QoS is a packet transportation

service, establish peering agreements

with all domains between source and

destination

2. contract resources enough to carry the

expected volume of services

3. setup in real-time QoS sessions

Hence, before two domains are able to setup a QoS

session, they must acquaint with one another and

negotiate a pSLA (or a tSLA if a transit domain is

involved). The crawling function serves this

purpose: it is to do the following generic actions (see

Figure 6 and Figure 7):

 search the routing database (from the

interdomain routing protocol, e.g., BGP) for

destinations and/or Autonomous Systems. It will

find transit-only domains, terminating-only

domains, domains that are both.

 for relevant destinations, the seeking IdF (sIdF)

will find the IP address to the offering IdF (o-IdF)

(perhaps through a BGP extension or a DNS well-

known name).

 upon contacting the domain's IdF (or its

representative such as a mandated clearing house),

o-IdF will trigger its offer function.

 s-IdF will download the offering domain's profile

from o-IdF and eventually build services from it.

The domain's IdF can be simply a server holding

the domain's profile listening on a well-known port

(the Extensible Provisioning Protocol [15] may be

here a good solution).

 these services will be the subject of a SLA

exchange between the two domains.

During negotiation, additional information may be

needed such as they may exchange trust-related

information (e.g., references). If references, they

This name was coined after the algorithms that scan

websites for content indexing.

may be checked to verify the assertions of the o-

IdF.

- s-IdF will then buy a certain amount of

resources. This amount is related to the users it

supports.

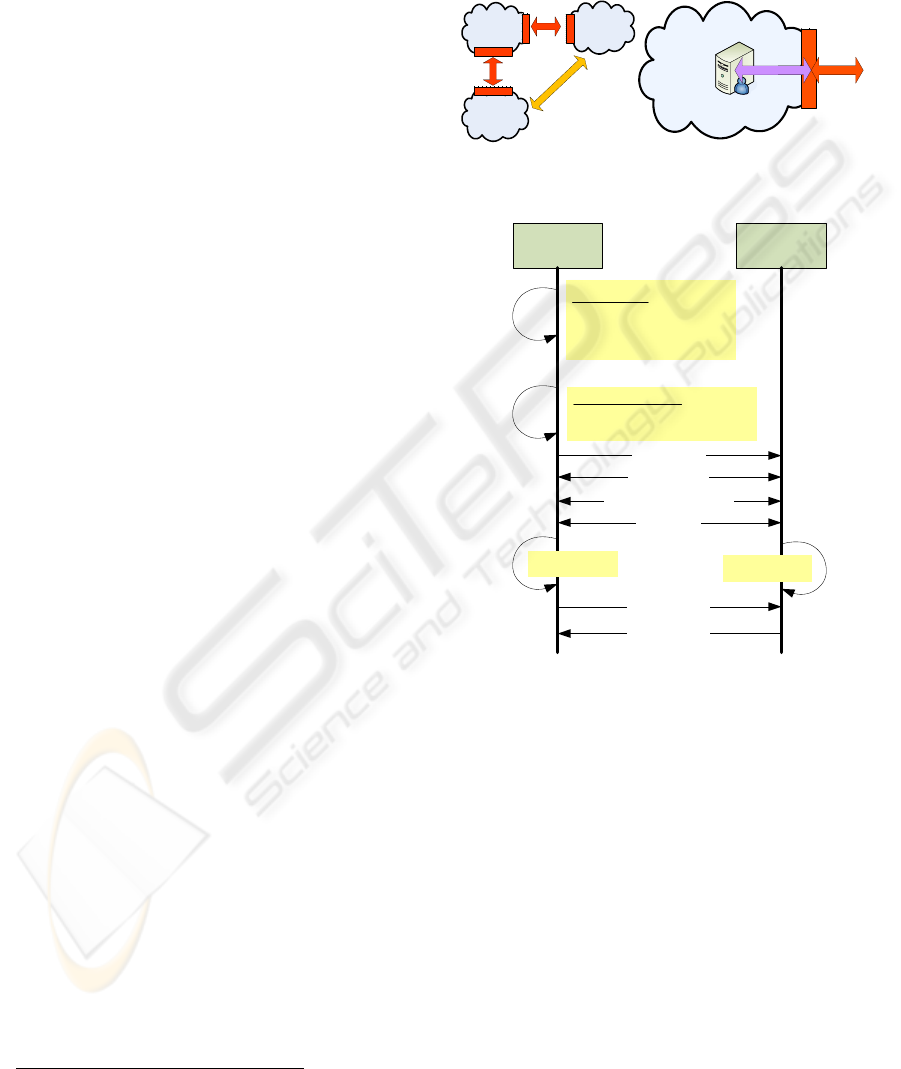

Figure 6: Use of IdF for peering. Shown three domains,

each implementing an IdF that interfaces other domains.

s-IdF o-IdF

possible triggers

- new destination found

- new service offered to end-users

-etc.

find IP address of o-IdF

- pointer carried by BGP

- well-known DNS name or database

peering initiative

exchange profiles

build services

buy service chunk

request aditional information

negotiate SLA

Figure 7: Peering setup.

3.3 Real-Time Operations

Our QoS architecture will follow an IntServ-over-

DiffServ strategy for the following reasons:

 it is able to provide flow-granularity at UNI

(user-network interface)

 DiffServ in the core network provides

scalability while allowing for advanced services

at the cost of expensive and complex traffic

engineering operations (e.g., aggregating

different PHBs)

 since DiffServ does not require specific

signalling along the path (in theory, just packet

marking) it is much easier to interface different

technologies (e.g., SDH on one side and point-to-

point ethernet on the other)

IdF

WINSYS 2007 - International Conference on Wireless Information Networks and Systems

302

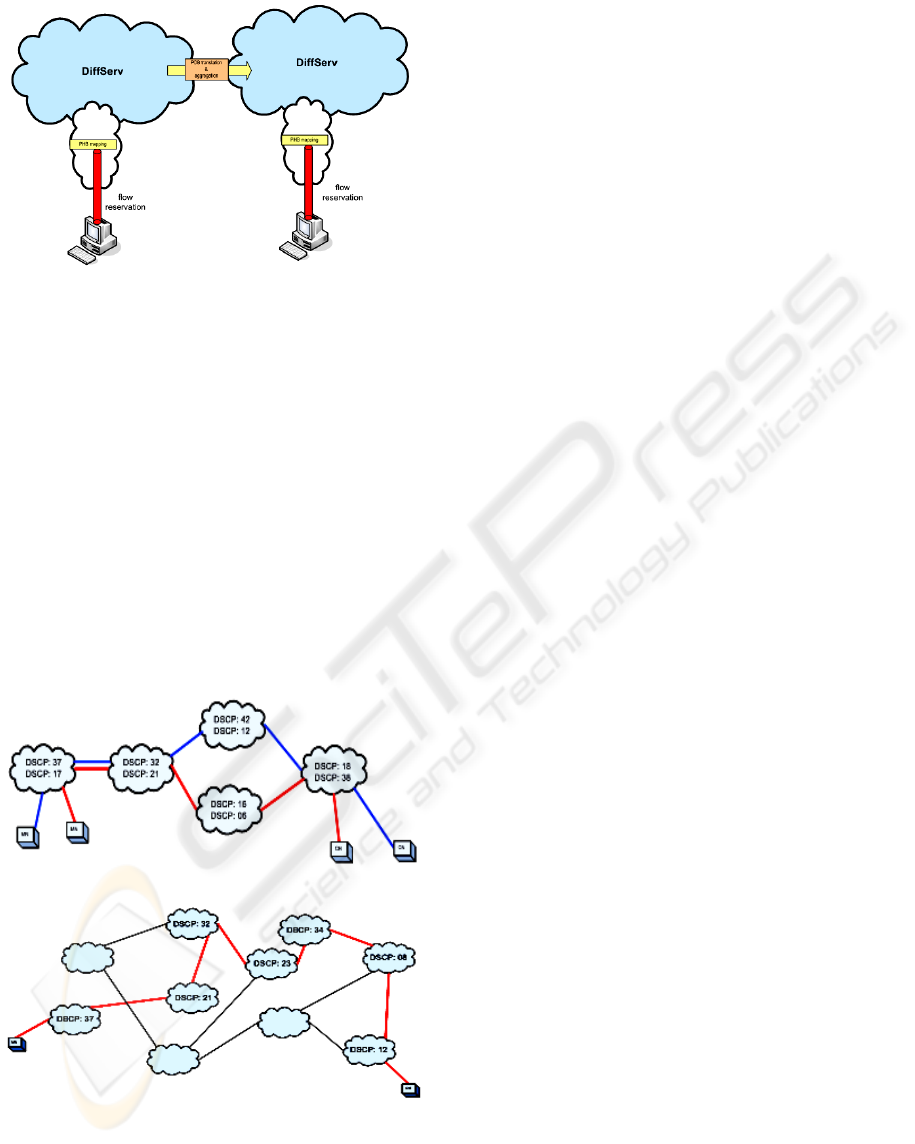

Figure 8: Top-level view of our QoS architecture.

Show in Figure 8 is a top-level view of our

proposed architecture. A user requests QoS for a

certain flow through specific signalling (an example

will be provided). The network will map that flow

on to a suitable PDB (packet marking). Upon

leaving the domain, packet will be remarked at the

interdomain interface in order for the next domain to

know how to handle the packet. Packer remarking

will continue until it reaches the destination. The

previous discovery and negotiation process comes

into play now and set the rules by which a specific

packet gets a pre-specified treatment. Hence, no

need for any kind of interdomain real-time signalling

which is the main source of scalability problems.

Figure 9 shows an example of packet remarking.

Figure 9: DCSP concatenation and re-marking. top: a

single flow; bottom: two flows with different QoS

requirements going through different transit domains.

Although not mentioned, DiffServ architectures

are enhanced if resources are managed by a

Bandwidth Broker (BB). A BB will be the main

authoritative entity for flow admission.

Shown in Error! Reference source not found.

is a possible signalling diagram for requesting QoS

for a specific flow using NSIS. The user uses it User

Equipment (UE) to send a request to the network.

This message is intercepted by an Access Router

(AR, in IMS, e.g., it would be a P-CSCF) that

contacts a Bandwidth Broker (here called Core

Network QoS Broker – CNQoSB) in case it detects

the flow won't be terminated inside the domain. The

CNQoSB, if authorizing it, will run an SLA routing

algorithm.

This SLA-routing algorithm is responsible for

determining whether it has any peering agreement

with the terminating domain and – in case yes – the

best path for the packets according to its SLA

database. The best path for the flow is the one that

will cross domains which the source domains has a

tSLA. Out of the possibilities the best one will be

chosen (criteria such as capacity utilization, price,

resilience, etc.)

It will then deliver an authorization message to

the requesting AR and will include a DSCP to mark

the packets with. AR will then forward the NSIS

request to the terminating domain (assuming that the

pSLA with the terminating domain demands the use

of NSIS). The destination user will then (upon

authorization) proceed to reserve the needed

resources and signal its serving domain that will

provide the actions needed to reserve resources. An

answer will then come back where resources will be

committed.

It is important to notice that the diagram shows

that no interdomain reservation is actually made.

The reservation signalling is needed only to reserve

resources on the source and destination access

networks (per-flow reservations). In between

segments use DiffServ and interdomain segments

use pre-negotiated traffic pipes. It is up to the

sourcing domain to control its available contracted

resources even in remote domains that belong to the

e2e path.

4 CONCLUSIONS AND FUTURE

WORK

We have presented a framework for e2e QoS with

special focus on interdomain QoS. As discussed, this

is still an open problem since it involves a business

component that engineering can't solve on its own.

A SCALABLE AND BUSINESS-ORIENTED FRAMEWORK FOR INTER-DOMAIN QUALITY-OF-SERVICE

303

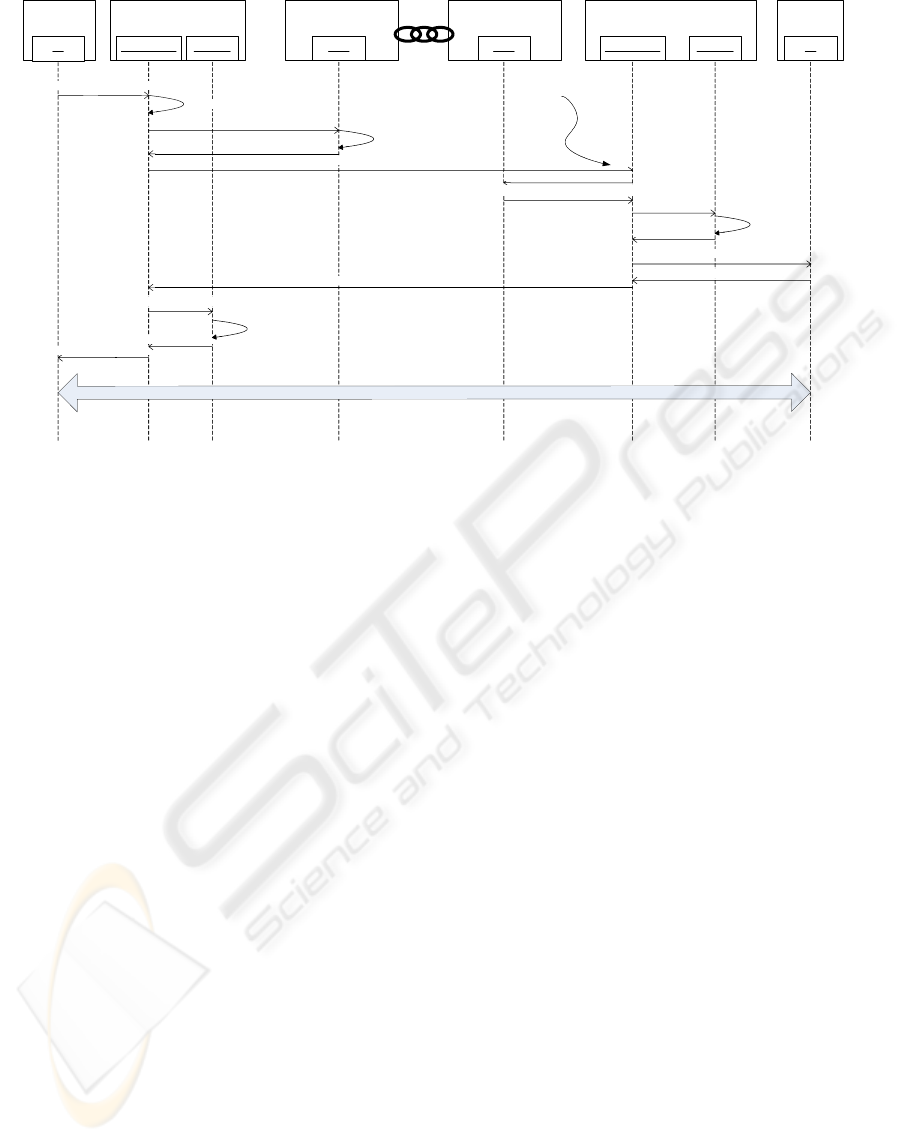

Figure 10: End-to-end QoS session setup signaling diagram.

We have attempted to decouple such business

component from the technical component. Further,

we showed an architecture that is scalable and fast

while using common intradomain techniques and

protocols.

There is, however, many open issues. The exact

definition of QoS service was not discussed and this

is tightly coupled with what is a domain profile.

Besides the complex issue of negotiating a complex

object such as a SLA, this will lead us to traffic

engineering complexities such as guaranteeing that a

transport service can be flexible enough to

accommodate end user services and per-flow

management. Another complex and open issue is

billing and monitoring. On one hand, there must be

means for a domain to check if an SLA is being

fulfilled. On the other hand, a domain must be able

to charge another domain for its traffic. This means

that each packet will have to carry some kind of

signature in order to prove its precedence. Overall,

security issues will also be involved.

ACKNOWLEDGEMENTS

This work was partially funded by IST-FP6

Integrated Project Daidalos II. The authors wish to

thank their partners of WP32 and WP33 for their

collaborative work.

REFERENCES

Meireles, T.H.: "Interconnection Agreements Between

Internet Service Providers", MSc dissertation,

University of Aveiro, November 2004

http://www.fccn.pt

Braden, R., Clark, D. and S. Shenker, "Integrated Services

in the Internet Architecture: an Overview", RFC 1633,

June 1994.

http://www.ietf.org/html.charters/mpls-charter.html

Blake, S., Black, D., Carlson, M., Davies, E., Wang, Z.

and W. Weiss, "An Architecture for Differentiated

Services", RFC 2475, December 1998.

S. Sargento et al., “Mobility through Heterogeneous

Networks in a 4G Environment”, Wireless World

Research Forum Meeting 17, Nov 06.

P. Pan, E. Hahne, and H. Schulzrinne, “BGRP: Sink-Tree-

Based Aggregation for Interdomain Reservations,”

KICS 2000.

R. Bless, “Dynamic Aggregation of Reservations for

Internet Services”, ICTSM 10, Oct. 2002

R. Sofia, R. Guerin, and P. Veiga. "SICAP, a Shared-

segment Interdomain Control Aggregation Protocol.

High Performance Switching and Routing", HPSR

2003, Turin, Italy, June 2003.

Braden, R., Zhang, L., Berson, S., Herzog, S. and S.

Jamin, "Resource Reservation Protocol (RSVP)

Version 1 Functional Specification", RFC 2205,

September 1997.

http://www.ietf.org/html.charters/nsis-charter.html

http://qbone.internet2.edu/

Cordeiro, L, et al, "Hybrid on-path off-path approach for

end-to end signalling across NSIS domains (HyPath)",

Internet-draft, February 2006.

user

dARsrc_CNQoSB

cAR

user

L3QoSManager QoSB

NSIS RESERVE (QSPEC, FlowID)

idomain_resv ( flow_spec )

L2QoSCtrl

resv ( DSCP )_OK

NSIS RESERVE (QSPEC, FlowID)

NSIS RESPONSE (QSPEC, FlowID)

SLA-routing

L2QoSCtrl L3QoSManager

NSIS RESERVE (QSPEC, FlowID)

NSIS RESPONSE (QSPEC, FlowID)

L2 Reserve Request

L2 Reserve Response

is interdomain?

dst_CNQoSB

QoSB

federated

L2 reservation

NSIS RESPONSE (QSPEC, FlowID)

L2 Reserve Request

L2 Reserve Response

L2 reservation

QoS session

resv_arrived( flowID, QSPEC, owner)

resv_arrived( flowID, QSPEC, owner)_ok

WINSYS 2007 - International Conference on Wireless Information Networks and Systems

304
