AN ADAPTIVE P2P WORKFLOW MANAGEMENT SYSTEM

Flexibility and Exception Handling Support in P2P Based Workflow

A. Aldeeb, K. Crockett and M. J. Stanton

Department of Computing and Mathmatics,

Manchester Metropolitan Univer

sity, Chester Street, Manchester, M1 5GD, UK

Keywords: Workflow management system, i

nstance level adaptation, workflow flexibility, P2P, exception handling.

Abstract: Workflow processes are moving from long-lasting, well-defined, centralised business processes to

dynamically changing, distributed business processes with many variants. Existing research concentrates on

decentralisation and on adaptability but there is more to be done on adaptability in decentralised workflow

systems. The aim of this research is to overcome the limitation of current workflow management systems

by moving from a centralised workflow to a flexible decentralised peer-to-peer (P2P) workflow system. A

P2P workflow management architecture is proposed which offers flexibility, exception handling and

dynamic changes to both the workflow process definition and process instance level by applying a range of

Artificial Intelligence (AI) techniques. An Exception Handling Peer (EHP) captures exceptions, from the

workflow peers, characterises the exceptions and applies a recovery policy. Initial prototyping of the

system has been carried out using JBoss jBPM whilst the P2P network environment of this prototype is

based on Sun MicroSystem’s JXTA.

1 INTRODUCTION

Workflow is the automation of a business process, in

which documents, information or tasks are passed

from one participant to another for action, according

to a set of procedural rules (Fischer, 2002). A

workflow management system (WFMS) is a

software tool for defining, instantiating, executing

and monitoring workflows.

In the literature, most workflow systems are

base

d on centralised client/server architecture

(Bauer, Reichert and Dadam, 2003). This requires a

centralised database to store the workflow process

definition and a centralised workflow engine to

manage activities such as coordination and

monitoring process execution (Yan, 2004). The main

disadvantages of any such architecture are the

potential bottleneck that can arise during process

execution, and that the central database can become

single point of failure. Workflow processes are

moving from long-lasting, well-defined, centralised

business processes to dynamically changing,

distributed business processes with many variants

(Aalst and Basten, 2002; Sadiq and Orlowska, 2005;

Bauer, Reichert and Dadam, 2003). Workflow

applications are inherently distributed. They involve

people, resources and tools that may be distributed

over a wide geographic area (Aalst and Basten,

2002; Aalst and Hee, 2002). In a peer-to-peer (P2P)

architecture each workstation has equivalent

capabilities and responsibilities. Recent research has

shown an increased interest in P2P based workflow

(Fakas and Karakostas, 2004; Yan, 2004). However,

research on implementing workflow in a peer-to-

peer environment is still at the conceptual stage. In

addition, the research in P2P has tended to focus on

tasks coordination rather than on flexibility and

exception handling in workflow systems.

The aim of this research is to overcome the

mitation of the current workflow management

systems by moving from a centralised workflow to a

flexible decentralised P2P workflow system. It

proposes a P2P workflow management system

which offers flexibility, exception handling and

dynamic changes to both the workflow process

definition and process instance level by applying a

range of AI techniques. The rest of the paper is

organised as follows. A brief description of the

literature and related work in decentralised

workflow and flexibility concepts is presented in

Section 2. In Section 3, an adaptive P2P workflow

is introduced with high level architecture diagrams

428

Aldeeb A., Crockett K. and J. Stanton M. (2007).

AN ADAPTIVE P2P WORKFLOW MANAGEMENT SYSTEM - Flexibility and Exception Handling Support in P2P Based Workﬂow.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 428-433

 SciTePress

describing its different components. In Section 4, an

example is presented to help illustrate the build-time

and run-time functions of the system and the current

state of implementation. Finally, conclusion and

future work are discussed in Section 5.

2 LITERATURE REVIEW

2.1 The Workflow Reference Model

A workflow reference model was released by the

Workflow Management Coalition in October 1994

(http://www.wfmc.org/standards/referencemodel.ht

m). This reference model consists of central

workflow enactment services and five components:

process definition tools, administration and

monitoring, workflow client applications, invoked

applications and other workflow enactment services.

In addition, the reference model defines five

interfaces connecting these components with the

central enactment services (Plesums, 2005). The

majority of deployable workflow systems are based

on, and compatible with, this reference model (Yan,

2004; Buhler and Vidal, 2005).

2.2 Decentralised Workflow Systems

Exotica/FMQM (Alonso et al 1995) is a novel,

distributed workflow architecture, which does not

build on a centralized database. Instead, persistent

messages are used to store and exchange the

information between autonomous nodes in order to

enact a workflow process. Each node works

independently, and interacts with other nodes

through the persistent messages notifying them that

a step of the process has been completed.

Once a process has been defined, its definition is

compiled to determine the information relevant to

each node, binding activities to the nodes where they

will be performed. Since there is no centralized

server, the problems of centralisation are removed.

Node failures will stop the execution of process

instances that use that node, but will not prevent

other process instances from being executed at other

nodes.

This was one of the earliest decentralised

workflow systems, which concentrated on data

management rather than exception handling or

dynamic changes in workflows.

Another decentralised workflow architecture,

SwinDew (Yan, 2004), applies P2P concepts to

workflow scenarios and decentralises both data and

control. In this approach, each system node acts as a

client application and performs both data repository

and workflow engine functions. SwinDew focus’s

on workflow administration and management issues

without detailed investigation of exceptions handling

or of dynamic changes to process instances or

schema.

Fakas and Karakostas (2004) designed a P2P

workflow management system facilitating the

distributed definition, execution and management of

workflows. The architecture of this system is based

on the concepts of the Web Workflow Peer (WWP).

A WWP is a proposed processing entity that

facilitates users to participate, administrate and

manage workflow process. A peer user may

participate as an administrator or participating Peer

in a particular workflow instance. P2P and the

centralised approaches have been compared in terms

of message exchanges and sizes. It was found that,

whilst there is a requirement for additional

notification messages in this architecture, the P2P

has a significant advantage when activities are

associated with large messages.

2.3 Workflow Flexibility and

Adaptation

Exceptions that occur during workflow execution

have been divided into: basic failures, application

failures, expected exceptions and unexpected

exceptions (Casati, 1998). Basic failure is related to

failures at system level (e.g., DBMS, operating

systems, or network failure). Application failure

corresponds to failures of any applications invoked

by the WFMS. Expected exceptions correspond to

predictable deviations from the normal behaviour of

a process. Unexpected exceptions occur when there

are inconsistencies between the workflow and its

corresponding real world business process.

Flexibility in workflows may be achieved by

either selection or by adaptation (Halliday, 2001).

Flexibility by selection will only handle exceptions

where they can be predicted before system

development. Time, cost and knowledge limitations

will prevent successful development of systems that

rely on flexibility by selection alone. Flexibility by

adaptation involves altering the workflow process to

include one or more new execution paths and can be

subdivided into evolutionary adaptation and instance

adaptation. Evolutionary adaptation is a result of

evolutionary change initiated by business managers

to improve efficiency or responsiveness, or is forced

by legislature or changing market demands (Aalst

and Basten, 2002). Evolutionary adaptation affects

AN ADAPTIVE P2P WORKFLOW MANAGEMENT SYSTEM - Flexibility and Exception Handling Support in P2P

Based Workflow

429

new instances but it may also influence old

instances.

Instance adaptation is related to ad-hoc change

which may occur at only a specific instance as a

result of an error, a rare event, or special demands of

the user. This type of change will create a variant of

workflow process. Instance adaptation involves

altering one or more running instances of a given

schema (Halliday, 2001). Inheritance concepts can

offer some support for ad-hoc change (Aalst and

Basten, 2002) where the predefined workflow

process definition is the parent class and the

modified workflow process definition (variant)

resulting from an ad-hoc change would be a child

class.

Workflow

Definition

Peer

Workflow Designer

Peer Services

Group Service

Pipe Service

Discovery Service

Advertisement service

Workflow Administrator

Exception

Handling

Peer

Administration

and Monitoring

Peer

WF Peer 1

Associated Workflow

Participant

WF Peer 2

Associated Workflow

Participant

WF Peer N

Associated Workflow

Participant

Current

workflow management systems lack

support for runtime adaptability (Rinderle, Reichert

and Dadam, 2004a; Muller and Greiner and Rahm,

2004; Kammar, 2000; Chung, 2003; Divitini and

Simne, 2000; Rinderle, Reichert and Dadam,

2004b). Flexibility and exception handling

approaches are based on the centralised WFMS.

Much work has been done on decentralisation, and

on flexibility and adaptability but these need to be

considered for decentralised workflow systems.

The research presented in this paper applies the

flexibility, adaptability and exception handling

concepts to a decentralised P2P based WFMS. An

adaptive decentralised P2P WFMS architecture is

proposed, which will allow for flexibility by

selection at design time, and provide both

evolutionary and instance adaptation at run-time.

Additionally, due to its modular structure, the

architecture will support experimentation and

analysis of various techniques for the detection of

exceptions at instance level. It will then be possible

to use information about past exceptions to

determine whether there is a need for the process to

evolve.

3 AN ADAPTIVE P2P WFMS

An adaptive P2P WFMS that can handle exceptions

at both schema and instance level in a dynamic

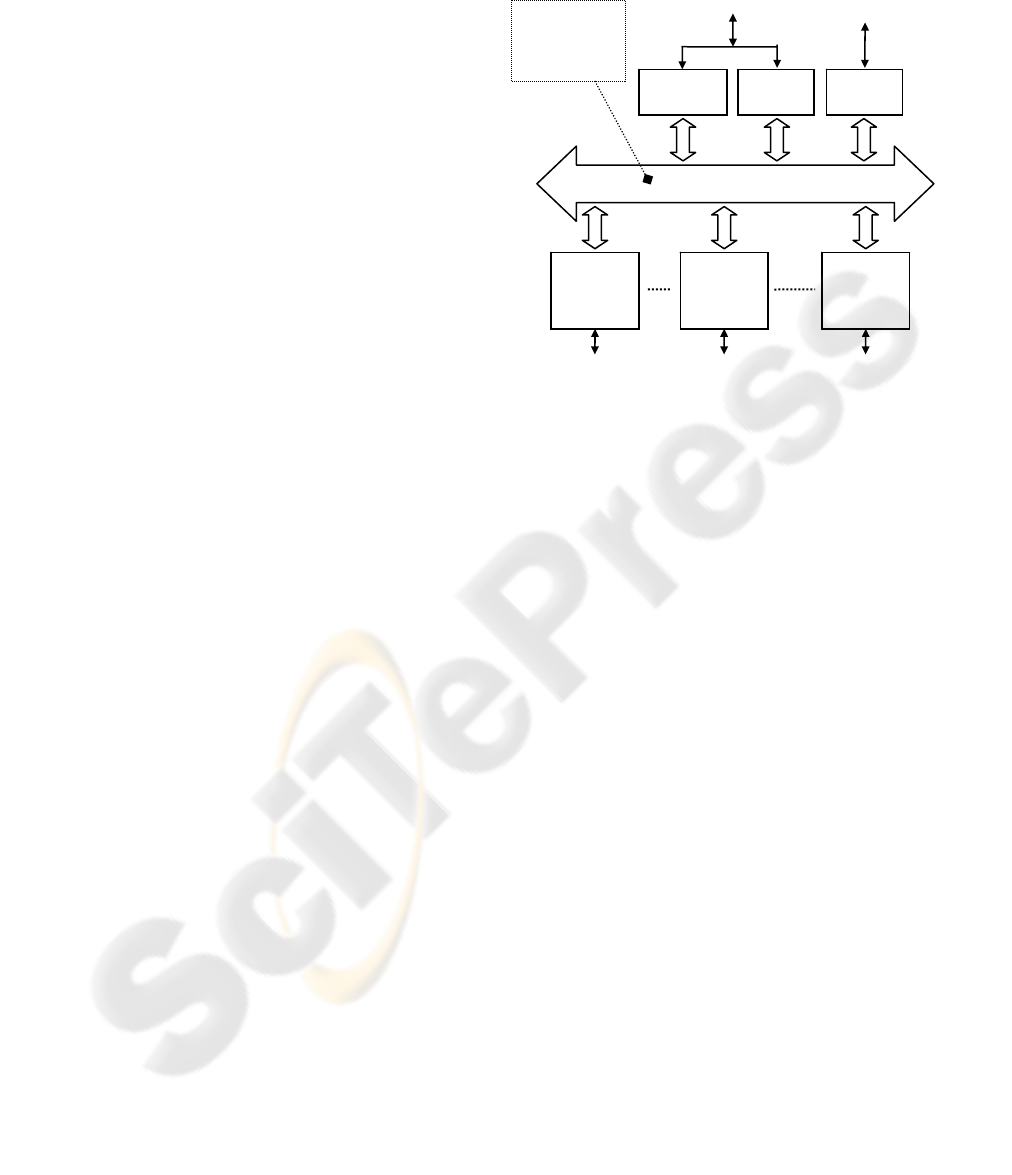

environment is described in Figure 1. The proposed

Adaptive P2P WFMS is inspired by current research

on the administration and management of P2P based

workflow systems (Yan, 2004; Fakas, 2004; Coon,

2002). Peers join “virtual communities” according

to their capabilities and discover each other using

the services provided by an open P2P network. The

coordination is performed by notification messages

exchanged between peers. In addition to this, in the

architecture proposed here, exceptions are handled

by a dedicated exception handling peer.

Figure 1: The adaptive P2P workflow system.

Two functions are conducted by this adaptive

P2P WFMS: A Build-time function, which includes

workflow process modelling, storing process

definitions and distributing the process to workflow

peers, and a Run-time function, which includes

process instance creation, task coordination and

exception handling procedures.

As shown in figure 1, the P2P network provides

services that include advertisement services, group

services, peer services, pipe services, and discovery

services. The main components of the architecture

are described in the following sections.

3.1 Workflow Peer (WFP)

The WFP can reside on any machine on the P2P

network enabling direct communication with other

workflow peers to enact the workflow process. The

internal structure of the WFP used here is the same

as that described in (Yan, 2004), consisting of user,

task, and flow components. It also maintains four

data repositories – a peer repository, a resource and

tools repository, a task repository and a process

repository. Each WFP is associated with a workflow

participant and each performs a part of the

workflow. Once the task is completed, the WFP

informs its successor and the next task of the process

may be executed.

Process co-ordination is achieved by the

exchange of messages between peers. Each message

will be one of three types: information, control, or

ICEIS 2007 - International Conference on Enterprise Information Systems

430

exception. Information and control messages are

used for data and control transfer between peers.

The exception message is used in case of an

exception appearance. Each peer is provided with

expected-exception handling facilities. However, if

a peer faces unexpected exception, this will require

the intervention of the exception handling peer to

initiate an exception handling routine.

3.2 Workflow Definition Peer (WFDP)

Exception Handling User Interface

Exceptions

Data

Workflow Administrato

Exception handling

response

Case retrieval

Case

Ada

tation

Case Anal

sis

Exception

characterisation

Event Handler

CBR Unit

The function of this node is the design and the

storage of the whole workflow schema at build-time.

The workflow process is partitioned to separate tasks

according to the workflow participants and the

organisational structure. These tasks are then

distributed to the corresponding workflow peers.

Figure 2 shows the internal structure of the WFDP.

Definition Tool

Process

Partitioning

Mechanism

Variant

Tracke

Version

tracker

Variants

Versions

Process

Definition

Partition Distribution

Component

Ad-hoc changes capturing

(From exception handling peer)

Workflow Designer WFD

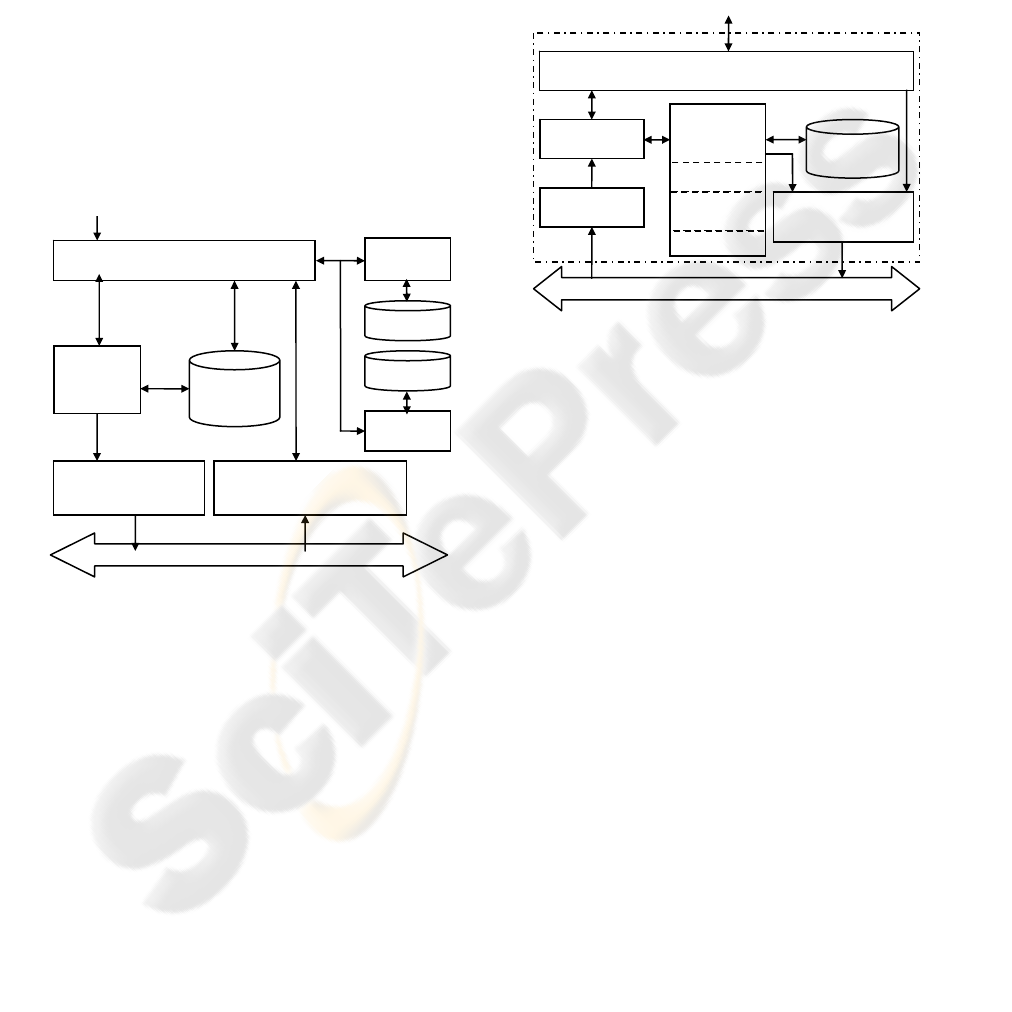

Figure 2: The workflow definition peer structure.

A workflow process definition resulting from an

evolutionary change is called a “version” of the

workflow process. New cases are handled according

to the most recent version of a process. The current

version of the process is that determined as the most

likely to fit the incoming case. A workflow process

definition resulting from an ad-hoc change which

affects the running workflow instances is called

variant of the workflow process (Aalst and Basten,

2002). Repeated similar variants may lead to

evolutionary change of the workflow process. The

WFDP holds all versions and variants of the

workflow process. To reduce storage costs and

simplify process management it may be necessary to

keep the number of active versions to minimum.

Evolutionary and ad-hoc changes may affect only

particular tasks in the workflow process and their

associated WF peers.

3.3 Exception Handling Peer (EHP)

The Exception Handling Peer captures exceptions

from the workflow peers, characterises the

exceptions and applies a recovery policy. The

structure of the EHP is shown in figure 3. It will

handle exceptions at the instance level.

Figure 3: The workflow exception handling peer.

Once the EHP receives an exception message

from a workflow peer, a direct connection between

both will be established. The exception will be

resolved by proper exception handler candidates,

such as retry, recovery, compensation etc. At

instance level, exceptions can be single task

exception or multi task exception. Also, at instance

level, if the exception cannot be resolved by the

EHP, a new variant for the exception raising case

may be created. This can be achieved by

collaboration between the EHP and the workflow

definition peer where the new variant will be stored.

In case of process evolution, the current running

cases will be tackled either with a proceeding

approach or with a transferring approach. In the

proceeding approach, each case is referred to a

specific version of workflow process. Newer

versions do not affect old cases and the number of

versions should be kept to minimum. In the

transferring approach, existing cases are transferred

to the new process so they can directly benefit from

evolutionary changes. The EHP can acquire some

knowledge from previous exceptions, which may be

achieved by applying AI techniques. Initially Case

Based reasoning will be applied to this problem.

The EHP is provided with a Case Based

Reasoning (CBR) unit to handle exceptions which

need to be managed in similar way, but may occur in

AN ADAPTIVE P2P WORKFLOW MANAGEMENT SYSTEM - Flexibility and Exception Handling Support in P2P

Based Workflow

431

different instances. This consideration suggests that

previous experience in exception handling can be

reused for different workflows. This can be

achieved by using CBR in exceptional problem

solving. CBR is an artificial intelligent technique

which can be defined as the process of solving new

problems based on the solutions of similar past

problems.

Luo, et al. (2003) describe a workflow system

which uses CBR scheme to derive patterns from

exception handling. Then, the similarity is

determined to identify the nearest pattern in the

knowledge base to the current exception and

applying the appropriate action for this case. User

intervention is allowed to handle new cases or

defining a new action for a specific case. CBR

added great value to the exception handling in

workflow as the CBR system collects more cases;

the WFMS becomes more resistant because it has a

large set of knowledge to handle future exceptions

(Cardoso et al., 2001). Luo et al. (2003) use CBR for

exception handling in cross-organisational workflow

where the coordination is among different workflow

management systems in different organisations.

However, in P2P based workflow the coordination is

among nodes within the same organisation. One

goal of this research is to apply CBR in a P2P based

workflow management system at instance level

using an exception handling peer. The use of CBR

includes: case retrieval, case adaptation, case

analysis and verification and case reuse.

4 A CASE STUDY

To better illustrate how the proposed adaptive P2P

workflow management system described in the

previous section works, an example of a motor

insurance claim process is presented. The process

consists of 8 tasks as shown in Figure 4. The tasks

will be distributed over the workflow peers and their

workflow participants, based on the roles of the

participants themselves and structure of the

organisation. To examine the system, both build-

time and run-time functions are implemented.

Build-time function implementation includes:

(1) Modelling the process using a graphical notation

using the Workflow Definition Peer (Figure 4).

(2) Partitioning the process into tasks according to

the roles of the workflow participants and the

organisational structure of the insurance

company.

(3) Creation of Workflow Peers corresponding to the

model of task distribution.

(4) Distribution and initialisation of tasks to the

relevant Workflow Peers using the P2P network.

Check

Policy

Check

Premium

Assess

Claim

Arrange

Viewing

Make

Payment

Claim

Rejected

File

Reassess

Claim

Get

Claim

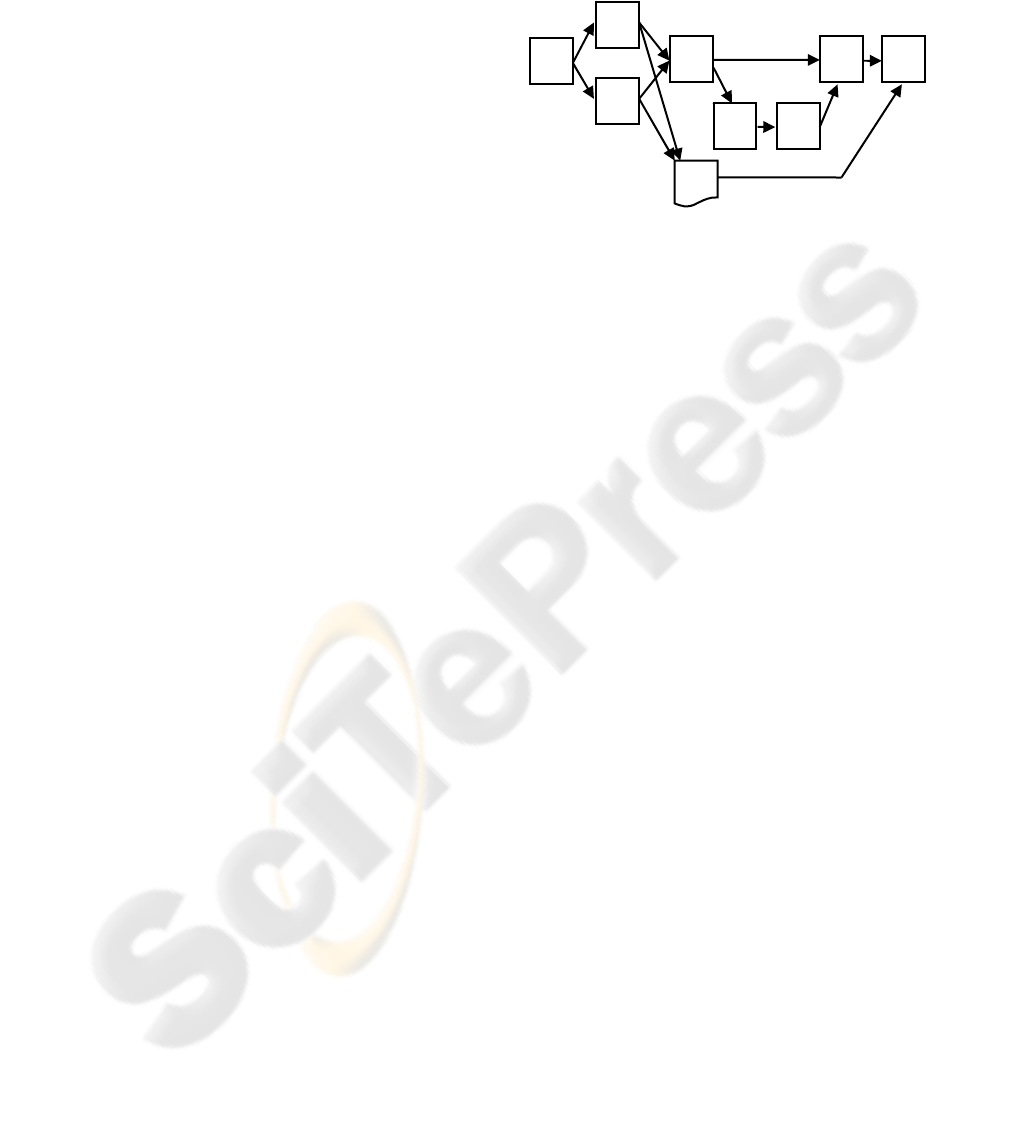

Figure 4: Example insurance claim process.

After the Build-Time functions are completed,

the system can carry out its Run-time functions.

These will include:

(1) Instantiating a workflow instance and

coordination of tasks by message exchange

between peers.

(2) Making ad-hoc changes to the running instances

and examining the exception handling

procedures.

(3) Handling the exception raising instance, and

generating a process variant.

(4) Evolving the workflow process and establishing

a versioning mechanism for the current and old

instances.

Initial prototyping of the system has been carried

out using JBoss jBPM. XPDL (XML Process

Definition Languages) is currently being used for

process definition as it offers portability between

different Process Design tools. The P2P network

environment of this prototype is based on Sun

MicroSystem’s JXTA (http://www.jxta.org/).

5 CONCLUSIONS

This paper presented an adaptive P2P workflow

management system. The main components of the

architecture of this system are: workflow definition

peer, workflow peers, administration peer, exception

handling peer and a P2P networking infrastructure.

The proposed system will, at run-time, work in two

modes; Normal mode and Exception handling mode.

In normal mode the process enactment is performed

by the direct communication and collaboration

amongst peers. However, in the exception handling

mode, the exception handling peer will control and

ICEIS 2007 - International Conference on Enterprise Information Systems

432

synchronise between the workflow peers affected by

the exception in order to resolve the problem. The

latter case makes the system work in Hybrid

Centralised/P2P environment with some level of

control from a single node.

This adaptive P2P approach provides more

flexibility in dealing with exceptions at instance

level using an intelligent exception handling peer.

The exception handling peer can acquire knowledge

from previous experience to deal with new

exceptions using case based reasoning. This peer

interacts with the workflow peers individually, so

only the peer which is affected by the current

exception or ad-hoc change will be suspended.

Currently work has been carried out developing a

single Workflow Peer, using JBoss jBPM. JXTA

has been identified as a good candidate for the P2P

network protocol and work will now concentrate on

distributing the tasks among the Workflow Peers.

Further evaluation of the architecture, consisting of

both research and experimental analysis, will

include: completion of the underlying P2P

workflow architecture and its application to a

number of workflow problems; development and

evaluation of a framework for handling various

exceptions at instance level; developing a CBR

module for the Exception Handling Peer.

REFERENCES

Aalst, W. and Basten, T. (2002) Inheritance of Workflows:

an Approach to Tackling Problems Related to Change.

Theoretical Computer Science, 270, 125-203.

Aalst, W. and Hee, K. (2002) Workflow Management:

Models, Methods, and Systems. London: MIT Press.

Alonso, G. et al. (1995). Exotica/FMQM: A Persistent

Message-Based Architecture for Distributed Workflow

Management. In International Federation for

Information Processing (1995) Proceedings: Working

Conference on Information Systems for Decentralised

Organizations, Trondheim.

Bauer, T., Reichert, M. and Dadam, P. (2003) Intra-subnet

Load Balancing in Distributed Workflow Management

Systems. International Journal of Cooperative

Information Systems, 12(3), 295-323.

Buhler, P. and Vidal, J. (2005) Towards Adaptive

Workflow Enactment Using Multiagent Systems.

Information Technology and Management, 6, 61-87.

Cardoso, J. et al. (2001) Survivability Architecture for

Workflow Management Systems. Technical Report,

University of Georgia, USA.

Casati, F. (1998) Models, Semantics, and Formal Methods

for the Design of Workflows and Their Exceptions.

PhD Thesis, Milan. Italy.

Chung, P. et al. (2003) Knowledge-based Process

Management- an Approach to Handling Adaptive

Workflow. Knowledge-Based Systems, 16, 149-160.

Coon, M. (2002) Peer-to-Peer Workflow collaboration:

White paper, viewed: 5/11/06

http://www.proteus-

technologies.com/cmm/docs/P2P_Workflow_Whitepa

per.doc.

Divitini, M. and Simone, C. (2000) Supporting Different

Dimensions of Adaptability in Workflow Modelling.

Computer Supported Cooperative Work, 9, 365-397.

Fakas, G. and Karakostas, B. (2004) A peer to peer (P2P)

Architecture for Dynamic Workflow Management.

Information and Software Technology, 46, 423-431.

Fischer, L. (ed.) (2002) Workflow Handbook 2002.

Florida: Future Strategies.

Halliday, J. and Shrivastava, S. and Wheate, S. (2001)

Flexible Workflow Management in the OPENflow

system. In Fifth IEEE International Enterprise

Distributed Object Computing Conference, Seattle,

Washington, USA.

JBoss jBPM, open source Middleware software, viewed

10/11/2006 <

http://www.jboss.com/products/jbpm>.

JXTA™ technology website, viewed 10/11/2006

http://www.jxta.org/>.

Kammar, P. et al.(2000) Techniques For Support Dynamic

and Adaptive Workflow. Computer Supported

Cooperative Work, 9, 269-292.

Luo Z. et al. (2003) Exception Handling for Conflict

Resolution in Cross-Organizational Workflows.

Distributed and Parallel Databases, 13, 271-306.

Muller, R., Greiner, U. and Rahm, E. (2004) Agent Work:

a Workflow System Supporting Rule-based Workflow

Adaptation. Data & Knowledge Engineering, 51, 233-

256.

Plesums, C. (2005) Workflow in the World of BPM, Are

They the Same? In Fischer, L. (ed.) Workflow

Handbook 2005. Florida: Future Strategies, p. 20.

Rinderle, S., Reichert, M. and Dadam, P. (2004) Flexible

Support of Team Processes by Adaptive Workflow

Systems. Distributed and Parallel Database, 16, 91-

116.

Rinderle, S., Reichert, M. and Dadam, P. (2004)

Correctness Criteria for Dynamic Changes in

Workflow Systems – a Survey. Data & Knowledge

Engineering, 50, 9-34.

Sadiq, S. Orlowska, M. and Sadiq, W. (2005)

Specification and Validation of Process Constraints

for Flexible Workflows. Information Systems, 30, 349-

378.

The Workflow Management Coalition Website, viewed

10/11/2006 <

http://www.wfmc.org/>.

Yan, J. (2004). A Framework and Coordination

Technologies for Peer-to-peer based Decentralised

Workflow System. PhD Thesis, Swinburne University

of Technology, Australia.

AN ADAPTIVE P2P WORKFLOW MANAGEMENT SYSTEM - Flexibility and Exception Handling Support in P2P

Based Workflow

433
