SPECIFICATION AND VERIFICATION OF VIEWS

OVER COMPOSITE WEB SERVICES

USING HIGH LEVEL PETRI-NETS

Khouloud Boukadi

, Chirine Ghedira

, Zakaria Maamar

and Djamal Benslimane

Division for Industrial Engineering and Computer Sciences, ENSM, Saint-Etienne, France

LIRIS Laboratory, Claude Bernard Lyon 1 University, Lyon, France

College of Information Technology, Zayed University, Dubai, U.A.E

Keywords: Web service, Composition, Context-aware, high level Petri-Net, Views.

Abstract: This paper presents a high level Petri-Net approach for specifying and verifying views over

composite Web

service. High level Petri-Nets have the capacity of formally modelling and verifying

complex systems. A view is mainly used for tracking purposes as it permits representing a contextual

snapshot of a composite Web service specification. The use of the proposed high level Petri-Net approach is

illustrated with a running example that shows how Web services composition satisfies users’ needs. A

proof-of-concept of this approach is also presented in the paper.

1 INTRODUCTION

Web services (WS) have given Web applications a

new shape, from content display to service supplier.

The capacity of defining composite Web services is

an advantage that currently backs the widespread use

of Web services. Businesses and academia have

shown a significant interest in WS composition

(Daniel 2005). Despite the large body of research on

Web services, much work still needs to be done to

tie informal methods, e.g., Petri-Nets, with

specification languages for composite Web services.

Few initiatives have looked into the use of Petri-

Nets in WS including (Yang 2005). Indeed, there is

no guarantee that the specification of a composite

Web service is error-free. Conflicts like concurrent

accept or reject and deadlocks may occur during the

specification execution. Fixing errors at run-time is

time-consuming and requires another round of low-

level programming, which could be expensive, and

error-prone. An attractive solution would consist of

allowing developers to detect and fix issues prior to

WS deployment and to formally verify the business

processes underlying composite WS against some

desired properties.

Composition does not only make WS bind to

each other, but emphasizes the cornerstone of

handling users’ preferences and constraints as part of

the process of meeting personalization requirements.

Personalization is tightly related to the features of

the environment in which WS will operate after

triggering. These features can be related to users

(e.g., state, location), computing resources (e.g.,

fixed device, mobile device), time periods (e.g., in

the afternoon, in the morning), physical places (e.g.,

mall, cafeteria), etc. Sensing, gathering, and refining

the features and changes in an environment

contribute towards the definition of what is known

as context. Context is the information that

characterizes the interactions between humans,

applications, and the surrounding environment

(Medjahed 2003). Embedding WS with context-

awareness mechanisms has several advantages. To

be aware of which part of the specification of the

composite Web service has to be adjusted because of

changes in the user environment, an assessment of

what-was-previously-expected and what-is-

effectively-happening is deemed appropriate. This

specific part of the composite Web service

specification is referred to as view. A view is a

dynamic snapshot over the specification of a

composite Web service according to a certain

context (Benslimane et al. 2005).

In this paper, we aim at discussing the value-

added of Petri-Nets to the specification of firstly, the

composite WS and secondly, the views that run over

those ones. We emphasize the use of high level

Petri-Nets, particularly Colored-Petri-Nets (CPN)

107

Boukadi K., Ghedira C., Maamar Z. and Benslimane D. (2007).

SPECIFICATION AND VERIFICATION OF VIEWS OVER COMPOSITE WEB SERVICES USING HIGH LEVEL PETRI-NETS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - SAIC, pages 107-112

DOI: 10.5220/0002349501070112

 SciTePress

and Hierarchical-Colored-Petri-Nets (HCPN)

(Jensen 1997). CPN and HCPN have the capacity to

specify and analyze concurrent systems (Petri 1962).

Our contributions in this paper are as follows: a

definition of a composite Web service using high

level Petri-Nets, an approach for checking the

correctness of a composite Web service, a

specification of a view based on high level Petri-

Nets, and finally, automatic mechanisms for

extracting and showing up views over composite

WS.

The rest of this paper is organized as follows.

Section 2 presents a scenario, lists some Petri-Nets’

advantages, and suggests a list of related projects.

Section 3 discusses the use of Petri-Nets in

modelling WS and composite WS. Section 4

describes the concept of view as a means for

tracking the execution of a composite Web service

specification. Section 5 presents the prototype that

was developed as a proof-of-concept of our use of

Petri-Nets in WS. Concluding remarks are drawn in

Section 6.

2 BACKGROUND

2.1 Motivating Scenario

Our motivation scenario concerns Anatole, a 60-

years old patient who has a Portable ECG Monitor

(PEM), which is used to detect and manage any

cardiac event. An electrocardiogram (ECG) is a test

that records the heart’s electrical activity. When

Anatole feels a chest pain, he turns on the PEM so

his ECG is recorded. The PEM starts with a serial

analysis of this record and compares it with the

referenced ECG. The PEM can suspect any cardiac

problems and send an alert to a call center, if

needed. The alert triggers a Web service whose role

is to find a first-aid medical-center close from

Anatole’s current location. Processing both the

recorded and referenced ECG, the selected medical

center identifies two types of alarm: severe or minor.

In case of a minor alarm, LookforDoctor and

TreatmentTransmission WS are triggered. When a

doctor is assigned to Anatole, he gets access to his

medical records and checks the referenced and

recorded ECG. Afterwards, he diagnoses the case

and prescribes an adequate treatment for Anatole.

TreatmentTransmission WS takes care of

notifying the treatment, as an SMS message, to

Anatole’s mobile phone. The language of the

message is set according to Anatole’s preferred-

language. In case of a severe alarm,

LookforEmergency WS is concurrently triggered

with other separate WS that upload Anatole’s

medical records and identify Anatole’s location,

respectively. Finally, ContactMobileCare WS is

activated in case an ambulance is needed. This

motivating scenario will illustrate our approach, and

makes clear the use of CPN for contextual WS

composition.

2.2 Rationale of Views

In the three-level ANSI-SPARC architecture, a view

corresponds to the organization of the database as it

appears to a particular user. In the relational model,

a view is defined as a virtual relation that is

dynamically derived from one or more other base

relations. The concept of view is also used in the

workflow community. Workflow view was

suggested as a support mechanism for the

interoperability of workflows across multiple

businesses (Chiu et al., 2004).

The use of the view concept is backed by our

previous work and is motivated by several reasons.

First, the view mechanism grants a powerful and

flexible approach by hiding the whole specification

of a composite service from users and the process

responsible for adjusting this specification. Only the

significant parts of a specification are presented.

Second, multiple views over a specification can be

obtained at different levels of granularity ranging

from the dependency between WS and the execution

preferences coupled with WS to the corrective

measures that WS use. In (Benslimane et al. 2005),

we proposed a formal specification of the view

concept based on state-chart diagrams, and a set of

colored graph procedures to manage the transition

according to the context and the dynamic nature of

the view. This proposal motivated the study of the

correlation and the value-added of the colored Petri-

Nets.

2.3 Rationale of Colored Petri-Nets

Jensen formulates CPN as a formally founded

graphically-oriented modeling language (Jensen

1997). CPN have got their name because they use

different colors to be associated with tokens, which

carry data values. This is in contrast to low level

Petri-Nets’ tokens, which by default are black. On

the one hand, Petri-Nets provide the necessary

mechanisms for specifying synchronization of

concurrent processes. On the other hand, any

programming language provides the primitives that

are needed for defining and manipulating data types.

ICEIS 2007 - International Conference on Enterprise Information Systems

108

Compared to CPN, HCPN includes additional

features such as substitution transitions.

Mapping CPN and HCPN concepts into WS and

composite WS is to a certain extent straightforward.

First, a WS’s behavior is basically a partially

ordered set of operations. Therefore, it is possible to

represent it with a Petri-Net. WS’s operations are

modeled by transitions and the states of the WS are

modeled by places (Benatallah 2003). In addition,

the use of colored tokens permits modeling contexts

of WS and users by specifying places used to model

these contexts. Moreover, the hierarchy concept of

the HCPN shows the components of a composite

WS at a higher level with no mention to their

internal details. This is really useful for running

contextual views over composite WS.

2.4 Related Work

Benatallah et al. propose a Petri-Net-based algebra

for composing WS (Benatallah 2003). In this study,

context is just ignored, which does not permit

capturing the changes in a WS composition process.

Yang et al. concentrate in verifying and analyzing

composition specification of WS once these

specifications get translated into a CPN (Yang

2005). Yang suggests also to model BPEL processes

as CPN. However, the transformation process is

ambiguous and no formal definition of how to

translate a BPEL specification into a CPN is given.

Xiaochuan et al. propose a model of a simplified

Travel Reservation system using WS (Xiaochuan

2004). In (Bing 2006), the author addresses the

shortfalls of Xiaochuan et al.’s work like incomplete

conversation between WS, removal of some major

interactions within WS, and modeling of

unnecessary components that make the graphical

representation complex.

All these proposals mainly focus on WS

composition modeling with no-emphasis on contexts

of WS and users. The transformation process for

example from a BPEL specification towards a CPN

is still ambiguous and a formal definition would be

highly appreciated. In order to react in a proper way

to the detected changes in user and WS environment,

context needs to be handled during the development

of specifications of WS.

3 MODELING WEB SERVICES

COMPOSITION USING HIGH

LEVEL PETRI-NETS

In this section, we define a WS and a composite WS

using CPN and HCPN, respectively. To this

purpose, we comply with Jensen’s work (Jensen

1997). A composite WS is defined by an HCPN to

be called as Composition Net (CN). Moreover, each

component WS in the CN has a page modeled by a

CPN to be called as Service Colored Net (SCN).

3.1 Service Colored-net Definition

As aforementioned, we define a WS as a

SCN=<Σ,P,T,L,A,N,C,E,G> where:

Σ is a finite set of types also called color sets.

P is a finite set of places that model the state of a

system. A WS’s states consist of distributing a data

value, i.e., token, on the SCN’s places. Two types of

places exist:

 Message Places (MP) contain messages

exchanged between component WS.

 Context Places (CP) containing the execution

context of WS.

T is a finite set of transitions. Each operation in a

WS is captured by a CPN transition. We can

distinguish two types of transitions: T

is a finite set

of transitions with guard condition and T

is a

finite set of transitions without guard condition.

A is a set of directed arcs. An arc connects a place to

a transition and vice-versa. In fact, an arc represents

a causality relation between places and transitions.

L is a labeling function for each operation in a WS.

N is function that links each arc going from a place

to a transition and vice-versa.

C is a color function that assigns a unique color to

each place p. The color of a place is denoted as C(p).

Therefore, each token in a place p must have a color,

i.e., data value, from C(p).

E is a function that describes arcs using a set of

variables. These variables determine the token’s

variables (i.e., a token has a set of variables) that are

either consumed or produced during operation.

G is a guard function that checks the logical

conditions in a transition.

Hence, the SCN is defined, we can focus on how

we get over transitions inside a SCN of a composite

WS. Indeed, the evolution of a SCN consists in

crossing its transitions, this task is based on two

types of rules:

SPECIFICATION AND VERIFICATION OF VIEWS OVER COMPOSITE WEB SERVICES USING HIGH LEVEL

PETRI-NETS

109

1. Firing rule for a transition with guard

condition: In order to get over a transition with

guard condition, we must consider the types of

places, whether message or context, and thus the

conditions of these places. In case of a message

place, four conditions should be verified before a

transition can be passed. The first condition deals

with the color of the place. The second condition

verifies that the variable set of the arc has the same

type as the place connected with this arc. In addition,

the values of the variables on an arc must match the

expected data types such as integer. The last

condition checks if the guard condition returns true

assuming that every type of variables of a guard

belong to the color sets of the service colored net.

We use Is-enabled (T

) as the function that checks

the four conditions for each message place that is

connected to transition T

. In case of a context

place, only the three first conditions must be

verified.

2. Firing rule for a transition without guard

condition: this transition is independent of the type

of its connected places. Is-enabled (T

) function

verifies only the first three conditions. Once each

SCN of the WS participating in a composite WS

defined, we can elaborate its Composition Net.

3.2 Definition of the Composition Net

A composite WS is a HCPN that is defined as

follows: CN=<S, ST, SA, PP, PT, PA, FP> where:

S is a set of pages that represent the atomic WS.

Each page s∈S is a :

SCN=<∑s,Ps,Ts,As,Ns,Cs,Es,Gs>

ST is a set of substitution transitions. A substitution

transition identifies a WS without any internal

details on how it is performed.

SA is a function that assigns a WS to a composite

WS. Indeed, each ST corresponds to SCN (SA:

→

SCN). We assume that firing a substitution

transition depends on the firing of all the transitions

that are present in the SCN.

PP ⊆ P is the set of port places. Each SCN contains

places that are tagged with either in, out, or i/o.

These places are named port places and permit the

communication of a SCN with its peers. As

mentioned before, each substitution transition is

related to a SCN. This is achieved by providing a

port assignment, which describes how the port

places of the SCN are related to the socket places of

the substitution transition.

PT defines the type of the port, PT: PP → {in, out,

i/o}.

PA is a port assignment function that describes how

the port places of the SCN related to the socket

places of the substitution transition.

FP is the first page of the CN, i.e., it represents the

composite WS. For each substitution transition in

the first page, a SCN is obtained.

3.3 Verifying a Composite Web Service

The use of high level Petri-Nets permits increasing

the reliability level of composite WS. The associated

CN could be subject to analysis using different

techniques and computer tools for CPN. The most

important one known as a state space method

consists of designing a graph that has a node for

each reachable marking, as well as an arc for each

occurring binding element. We suggest the

definitions of four properties that can be checked

using CPN: Reachability that determines whether it

is possible for a composition to achieve the desired

results; Boundness that determines the minimal and

the maximal number of tokens in the different

places; Dead transition that determines the number

of transitions which will never be enabled and Dead

marking which is a marking with no enabled

transitions.

3.4 Illustration with Anatole Scenario

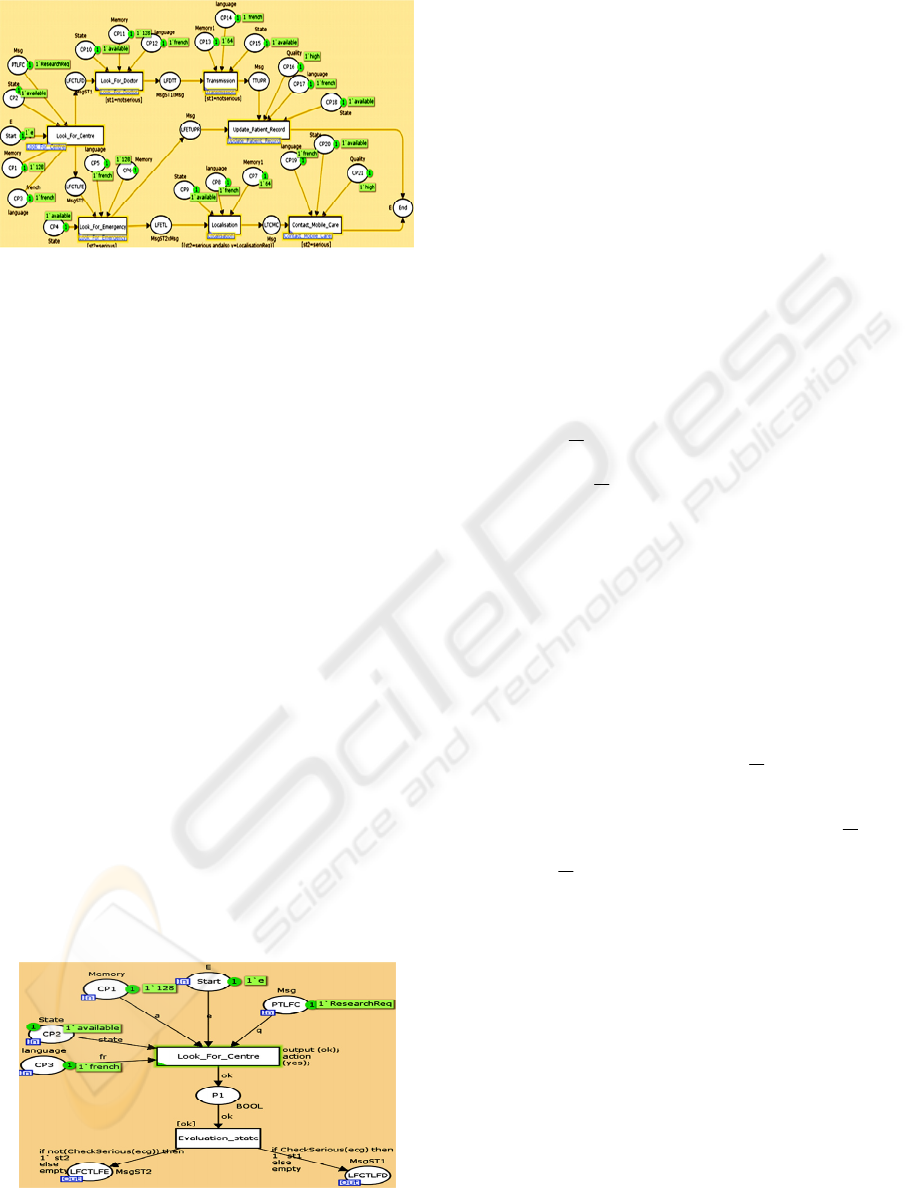

The composition net of Anatole scenario is shown in

Fig.1. It consists of seven WS designed as

substitution transitions. The substitutions transitions

are: {

LookforCenter, LookforDoctor,

LookforEmergency, TreatmentTransmission,

UpdatePatientRecord, Localization, and

ContactMobileCare

The boxes that are next to each substitution

transition specify the SCN that contains the detailed

description of the activity represented by the

corresponding substitution transition. For example,

the page modelling LookforCenter WS is modeled

by the substitution transition named LookforCenter.

The substitution transition for LookforCenter WS is

broken up into three context places (CP1, CP2,

CP3), as an input and a single message place

(PTLFC). These places are the input socket places

for this substitution transition. For illustration

purposes, the following assumptions are made

regarding the context and message places: CP1

contains the required memory, e.g., 1’128 in

Megabits, for the execution. CP2 contains the time-

slot availabilities of the WS for execution. CP3

contains French language using 1’french.

ICEIS 2007 - International Conference on Enterprise Information Systems

110

Figure 1: The CN for Anatole scenario.

PTLFC models the message between the PEM and

LookforCenter WS. The two output socket places

for this substitution transition are: LFCTLFD

models the message between LookforCenter and

LookforDoctor WS; LFCTLFE models the message

between LookforCenter and LookforEmergency

WS.

Now we will focus on a component WS of this

scenario: the LookForCenter WS. Let us consider

the sub-page of Fig. 2, which is about the detailed

description of the activity that LookforCenter WS

carries out. The sub-page shows two operations

captured by two transitions. We also consider

EvaluationState transition in order to observe how

the firing rules get initiated. EvaluationState

transition is fired iff the following conditions are

satisfied: (1) The color set of each place connected

to EvaluationState transition is included in the color

set of this transition; (2) The arc’s variables type

matches the color of P1; (3) Having a Boolean color,

the ok variable can only receive true or false.

Besides, this variable must have a type already

defined in the color set of SCN

LFC

and (4)

EvaluationState transition is enabled if the ok

variable in the guard condition evaluates to true. In

our case, the last condition depends on the value that

is randomly assigned to the ok variable since all

others conditions are satisfied.

Figure 2: SCN for LookforCenter Web Service.

To apply HCPN modelling to a WS composition

according to a specific context, we introduce in the

next section, the formal specification of the view

concept.

4 THE CONCEPT OF VIEW

4.1 Formal Definition

We recall that a view is a dynamic snapshot over the

specification of a composite WS according to a

certain context. We suggest below that a view is

extracted out of the specification of a composite WS

using high level Petri-Nets. We provide the

definitions belows.

Initial composition net definition. An ICN is

defined as the following triplet:

ICN=<S,ST

> where: S is the set of pages

that are included in the CN where

∀ s∈S, s is an

SCN, and ST

and ST

are like previously

defined.

Context template definition. CT is the formal

model of the corresponding context during view

extraction. The CT includes two types of context:

user (U-context) and WS (W-context), CT= {U-

context

∪ W-context} detailed in (Ghedira 2006).

Derived composition net definition. The extraction

of a view according to a certain context over an

initial or derived composition specification permits

obtaining a DCN. DCN is defined with the

following triplet: a DCN=<S’,S’T

S’T

> where:

S’: is the derived specification that does not accept

any additional WS through their pages; S’T

= {

st’|∃st∈ST

∧

Is-enabled (st)=true} is the new set

of substitution transitions without guard conditions;

and ST

= {st’|∃st∈ST

∧

Is-enabled (st)=true} is

the new set of substitution transitions with guard

conditions.

4.2 Application to Anatole Scenario

Let us assume that Anatole’s contexts returns details

on his physical state and localization.

SU-context={Identity=“Anatole”, Age=“60”,

Gender=“Male”};

DU-context={PsychologicalState=“stressed”,

PhysicalState=“serious”, Localization=“Fourvière

Cathedral”}

SPECIFICATION AND VERIFICATION OF VIEWS OVER COMPOSITE WEB SERVICES USING HIGH LEVEL

PETRI-NETS

111

An example of WS context is the context of

ContactMobileCare WS: W-context={

SW-

context

∪

DW-context};

SW-context={Name=“ContactMobileCare”, Memory=

“128”, language= “French”};

DW-context={availability=“no”}

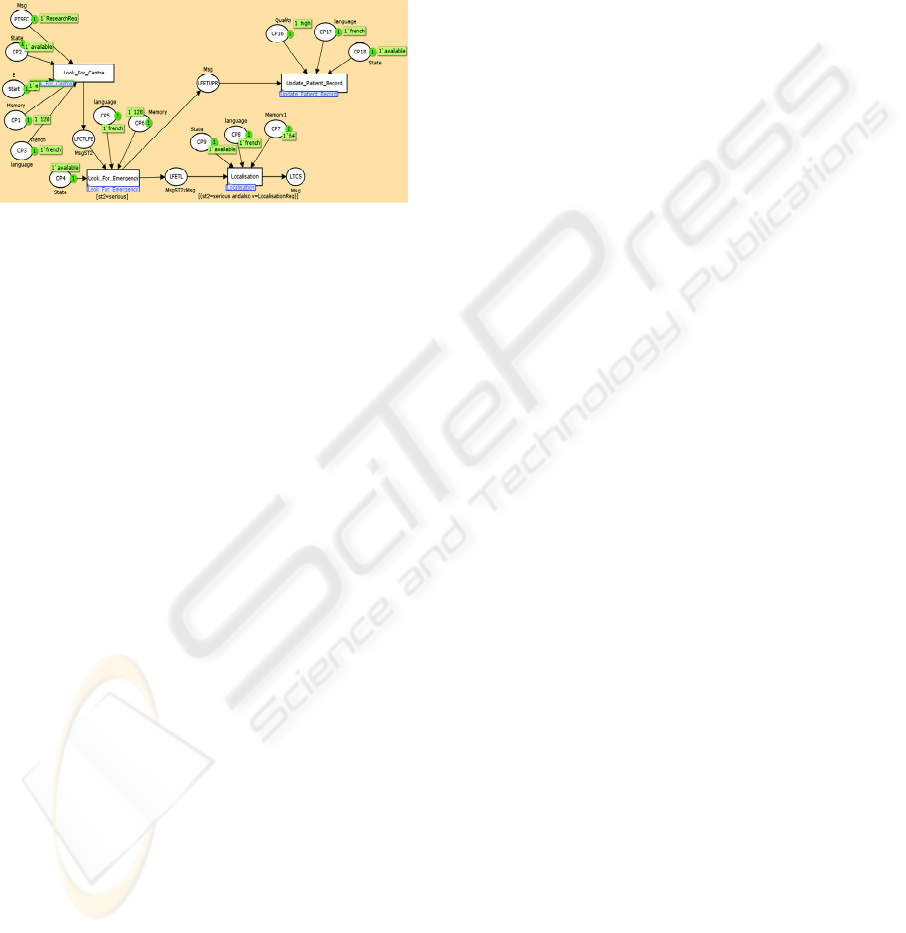

Fig. 3 shows the derived composition net that is

extracted out of the composition net of Fig. 1

according to the defined context template.

Figure 3: DCN for Anatole scenario.

Prototype: A prototype is fully operational. We used Java

to implement the needed functionalities for context

collection and generation as well as for view extraction.

The architecture of the prototype comprises two modules

that a Java program orchestrates. The first module is about

the context generator and the second is the view extractor.

The context generator provides, upon request, several

contextual details related to users and WS. To this

purpose, two XML files are delivered by the context

generator. Both files are then submitted to the view

extraction module. We used CPN Tools, which is a tool

for editing, simulating and analyzing CPN. The extraction

of a view consists of comparing the expected contextual

elements that are associated with this specification to the

current contextual details that are obtained out of the

context generator. The result of the comparison is an XML

file that corresponds to the view that can now be

visualized as a Petri-Net using the CPN Tools and verified

using the various properties we listed in Section 3.4.

5 CONCLUSION

In this paper, we presented a high level Petri-Net

approach for the specification and verification of

composite WS. Our literature review has shown that

building reliable composite WS calls for formal

verification. Our literature review has also shown

that no much has been done to cater for context in

composite services. Therefore, we proposed a high

level Petri-Net approach that integrates context

during specification, maps this specification onto a

Petri-Net. Furthermore, we discussed in this paper

how the execution of a composite WS is tracked

using view. We illustrated and prototyped the dual

use of Petri-Nets and views with a patient-related

scenario. Although this scenario was simple, it

revealed the challenges that need to be taken up

when deploying WS in critical domains such as

healthcare. Our next work aims at proposing

extensions for BPEL with user and WS contexts

included. In addition, we aim at developing a tool

that converts an extended BPEL specification into a

CPN for automatic verification purposes.

REFERENCES

Benatallah, B. and Rachid, H., 2003. A Petri net-based

model for web service composition, in Proceedings of

the Fourteenth Australasian database conference on

Database technologies. Adelaide, Australia.

Benslimane et al, 2005. A View-based approach for

tracking composite Web services. In Proceedings of

the European Conference on Web Services, IEEE

Computer Society. Växjö, Sweden.

Bing, H., 2006. Choreography Modeling and Analysis of a

Travel Reservation Web Service, in Proceedings of

The Fifth International Joint Conference on

Autonomous Agents & Multi-Agent Systems.

Hakodate, Japan.

Chiu, D. K. W., S. C. Cheung, S. Till, K. Karlapalem, Q.

Li, and E. Kafeza, 2004. Workflow View Driven

Cross-Organizational Interoperability in a Web

Service Environment. Information Technology and

Management Journal, Vol. 5, No. 3/4:221-250.

Daniel, F. and Pernici, B. , 2005. Insights into Web

Service Orchestration and Choreography,

International Journal of E-Business Research, The

Idea Group Inc., vol. 1, pp. 58 - 77.

Ghedira, C. and Mezni, H., 2006. Through Personalized

Web Service Composition Specification: From BPEL

to C-BPEL, Electronic Notes in Theoretical Computer

Science, vol. 146, pp. 117-132.

Jensen, K., 1997. Colored Petri Nets: Basic Concepts,

Analysis Methods, and Practical Use, 2nd ed. Berlin;

New York: Springer.

Medjahed, B. et al., 2003. Composing Web services on the

Semantic Web, International Journal on Very Large

Data Bases, vol. 12(4), pp. 333-351.

Petri, C., 1962. Kommunikation mit Automaten. Schriften

des IIM Nr. 2, Institut fur Instrumentelle Mathematik.

Germany: University of Bonn.

Xiaochuan, Y. and Krys JK., 2004. Process Composition

of Web Services with Complex Conversation

Protocols: a colored Petri Nets Based Approach, in

Proceedings of The Design, Analysis and Simulation

of Distributed Systems Conference.

Yang, Y. et al., 2005. Transformation BPEL to CP-nets for

verifying Web services composition, in Proceedings of

The International Conference on Next Generation

Web Services Practices (NWeSP'05). Seoul, Korea.

ICEIS 2007 - International Conference on Enterprise Information Systems

112
