ENTERPRISE INFORMATION SEARCH SYSTEMS FOR

HETEROGENEOUS CONTENT REPOSITORIES

Trieu C. Chieu, Shyh-Kwei Chen and Shiwa S. Fu

IBM T. J. Watson Research Center, 19 Skyline Drive, Hawthorne, NY 10532, USA

Keywords: Integration, Federation, Search, Service-Oriented Architecture, Database.

Abstract: In larger enterprises, business documents are typically stored in disparate, autonomous content repositories

with various formats. Efficient search and retrieval mechanisms are needed to deal with the

heterogeneousness and complexity of this environment. This paper presents a general architecture and two

industrial implementations of a service-based information system to perform search in Lotus Notes

databases and data sources with Web service interfaces. The first implementation is based on a federated

database system that maps the various schemas of the sources into a common interface and aggregates

information from their native locations. This implementation offers the advantages of scalability and

accessibility to real-time information. The second one is based on a one-index enterprise-scale search engine

that crawls, parses and indexes the document contents from the sources. This latter implementation offers

the ability of scoring the relevance ranking of documents and eliminating duplications in search results. The

relative merits and limitations of both implementations will be presented.

1 INTRODUCTION

Today’s business environment is getting more

information-driven and data-centric. With the

explosive growth of information, enterprises are

looking for architectural solutions to information

access problems. The projected size of information

generated in the next few years will be more than all

of the recorded history (Lyman, 2003), and the

information will be stored in different autonomous

content repositories. The result is a decentralized

environment with different specialized content

management systems made of various techniques

and data models, and operated by different

organizations. In order to find and access a stored

document, each client program must understand the

different semantics of the local schemata. To address

this problem, enterprises often use data warehousing

solutions, wherein data from multiple sources is

collected in a centralized database. While this

approach simplifies the access and analysis of the

data stored in different repositories, it increases the

storage-related hardware and software costs, and

may require re-implementing specialized searches in

the data warehouses for data retrieval. Inconsistency

can arise due to a lag in synchronization between

sources and data warehouse.

One alternative to data warehousing is data

federation (Haas, 2002), wherein the data can

continue to be stored in its native locations and

retrieved via a middleware component. A number of

federated search engines (Dogpile site, n.d.,

Metacrawler site, n.d., Myriad Search site, n.d.) have

come to market to meet the demand. Federated

search is a technology that allows simultaneous

search from different databases. It has been

promoted as a method of providing “one stop

shopping” for searchers. A user enters search terms

using one search interface. The search is then

executed in all the associated databases, and the

results are returned in a single result list. This

technology is now being used for journal citation

databases, electronic journals, and other library

resources. However, keeping the data in its original

location and treating the data sources as “black

boxes” in the data federation architecture imposes

some challenging problems. There are issues such as

what is an effective way of communicating with the

heterogeneous data sources, what is an efficient way

to perform query generation and result integration,

and how can one easily eliminate duplicate

information from search results.

365

C. Chieu T., Chen S. and S. Fu S. (2007).

ENTERPRISE INFORMATION SEARCH SYSTEMS FOR HETEROGENEOUS CONTENT REPOSITORIES.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - DISI, pages 365-371

DOI: 10.5220/0002349603650371

 SciTePress

Recently, Service-Oriented Architecture (SOA)

has materialized as a preferred solution for

integrating distributed applications (Mahmoud,

2005, Weerawaran, 2005, Web Services

Architecture, n.d.). In SOA, an application that

needs to be accessed by another application can be

done by exposing a service interface. A service

consumer can discover a service from a service

directory and invoke the service remotely. SOA has

great promises to make the integration of

heterogeneous content repositories much simpler.

In this paper, we present a general architecture

and two different implementations of a service-

based information search system that integrates data

from various, heterogeneous data sources. The first

implementation is based on a federated database

management system, while the second one is based

on a one-index enterprise-scale search engine. To

illustrate the complexity and heterogeneity of the

environment, we choose two different data sources.

The first one is a powerful class of document

centric, collaborative groupware system known as

Lotus Notes/Domino document database (IBM

Lotus Notes/Domino site, n.d.). The second one is a

content repository server exposing Web services as

search interfaces. We will depict in details the

approaches of how to connect, map, search and

integrate information from these sources. Finally,

the relative merits and limitations of both

implementations will be presented and discussed.

2 ARCHITECTURE OF

INFORMATION SEARCH

SYSTEM

Figure 1 illustrates the conceptual architecture of an

information search system that connects to a number

of disparate, heterogeneous content repositories.

The system is designed based on a service-oriented

architecture with service components that interact

with external systems through service calls. The

front end of the system is a query generator. The

back end is an integration layer that consists of a

model transformation engine and a number of

service adaptors used to integrate the various,

heterogeneous data sources. The system also accepts

client search request through a service interface.

When a search request is received, the query

generator customizes the user query into valid

queries for the data sources. The transformation

algorithm of the query generator relies on the

semantic information about the data sources (Chen,

2005). Based on the transformation result, the query

generator creates an executable query for all the

related data sources and triggers the integration layer

with the query.

To serve the integration needs, the integration

layer is architected with a pluggable framework to

allow multiple adaptors to be plugged in. Adaptors

(Fu, 2005) are software modules made up of data

source driver and software routines to interact with

data sources. Adaptor may have the capability to

transform and map the data representation of a

remote data source into a common format to

facilitate integration. Different adaptors are used for

different types of data sources such as file-system

adaptor, relational database adaptor, XML Web

Services adaptor, etc.

IBM TJ W atson Research Center

Information Search System

Client Request

Integration Layer

Query Generator

…

Content

Repository 1

Service

Interface 1

Content

Repository 2

Service

Interface 2

Content

Repository N

Service

Interface N

Service

Adaptor N

Service

Adaptor 2

Service

Adaptor 1

Service Call

Service Call Service Call

Service Call

Model Transformation Engine

Figure 1: Conceptual architecture of an Information

Search System.

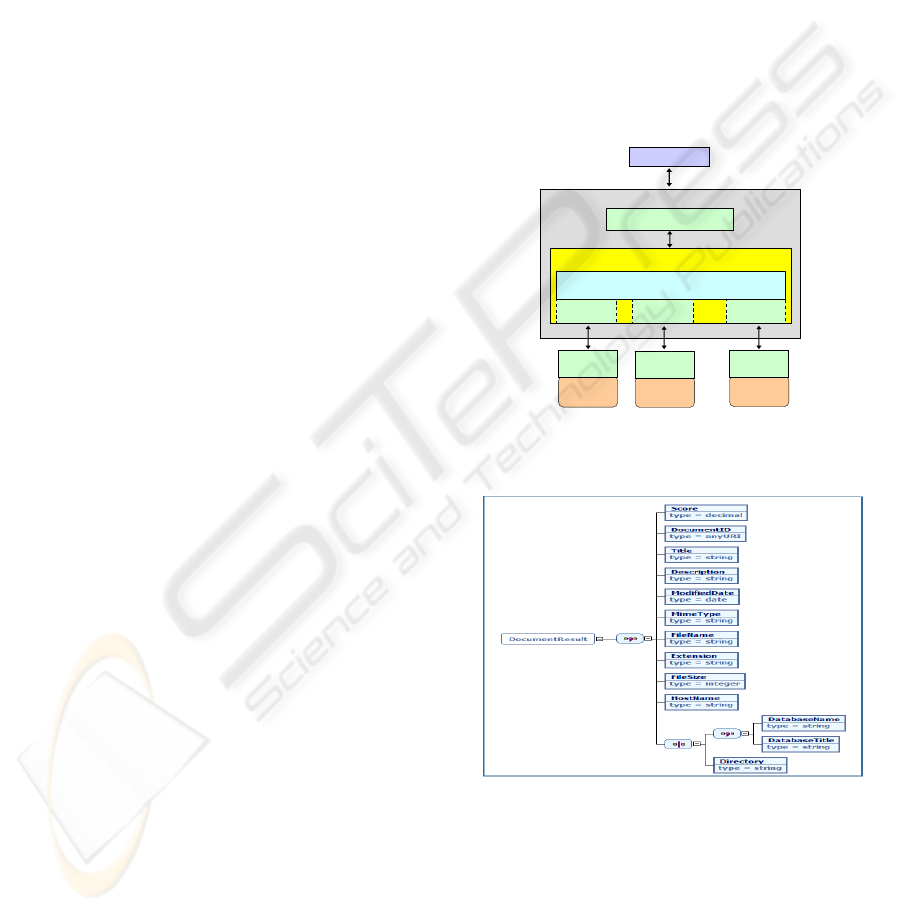

Figure 2: Schema of the common data model used to

represent a search result.

The search results from various data sources are

combined into a common data structure by the

model transformation engine before returning to the

search client. Translating and mapping various

schemas into a common data representation is

essential in the service based architecture

(Madhavan, 2003). This approach basically abstracts

ICEIS 2007 - International Conference on Enterprise Information Systems

366

the heterogeneity of the various source schemas into

a common one, and thus reduces the complexity of

the system implementation by separating it into data-

source independent and dependent implementations.

The “DocumentResult” schema of the data model

used for a document search result is given in Figure

2. The data structure contains a number of elements

to specify the common meta-data information about

the resulting document, These elements include the

relevance ranking (Score) of the document within

the search results, its original URI location

(DocumentID), server name (HostName), title

(Title), description (Description), file update date

(ModifiedDate), file name (FileName), file type

(MimeType) and other characteristics of the

document file.

3 IMPLEMENTATION OF

INFORMATION SEARCH

SYSTEM

In this study, two different implementations of the

information search systems are presented. The first

implementation is based on a federated database

management system (DBMS). It uses an IBM DB2

Information Integrator (DB2 II) as the back end

integration layer for hosting information from

various content sources and generating optimized

queries for the sources. The heterogeneous data

sources include a file system, a Lotus Notes database

(IBM Lotus Notes/Domino site) and an IBM DB2

Content Manager server (IBM DB2 Content

Manager site, n.d.). The second implementation is

based on one-index enterprise-scale search engine to

crawl, parse and index the aggregated contents of the

information sources. Basically, this latter one uses

IBM WebSphere Information Integrator, OmniFind

Edition (IBM WebSphere Information Integrator,

n.d.), which provides different crawlers to crawl and

aggregate the information of various content

sources. The details of these two implementations

are given in the following Sections.

3.1 Federated Search Server with

Federated Database Management

System

Federated database management system (DBMS)

provides a flexible and effective means for

transparent access to heterogeneous data sources

(Hass and Lin, 2002, Tork Roth, 2001). It offers a

unified interface for accessing data, thus relieving

component developers of much of the burden

associated with connecting, combining, filtering and

transforming data from the sources.

Figure 3 shows an implementation of a federated

search server with a federated DBMS, namely the

IBM DB2 Information Integrator (DB2 II). This

server exposes its search interfaces through Web

services. It consists of a front-end SQL generator as

the query generator, and a back-end DB2 II system

as integration layer. As data sources, three content

repositories consisting of a flat file system, a Lotus

Notes database, and an IBM DB2 Content Manager

server are used. To communicate with the data

sources, three types of wrappers from DB2 II are

used. Wrappers are adaptors by which DB2 II

interacts with data sources. DB2 II uses routines

stored in a library module to implement a wrapper.

Each wrapper supports various operations,

depending on the capabilities of the data sources that

the wrapper is supposed to access. DB2 II provides

a set of default wrappers for some common sources.

There are the DB2 wrapper, ODBC wrapper, table-

structured files wrapper, XML wrapper, and Web

Services wrapper. Wrapper is also responsible for

mapping the data representation of remote query

results into a table format as required by the

federated database.

IBM TJ Watson Research Center

DB2 Information Integrator

Web Services

Wrapper

IBM Content

Manager

Server

ODBC NotesSQL

Wrapper

Notes

Database

SQL Generator

Web Services

DB2 Views (Common Data Model)

XML File

Wrapper

File

System

Client

Application

Federated Search Server

Nickname

Tables

Nickname

Tables

Nickname

Tables

ODBC Calls

NFS

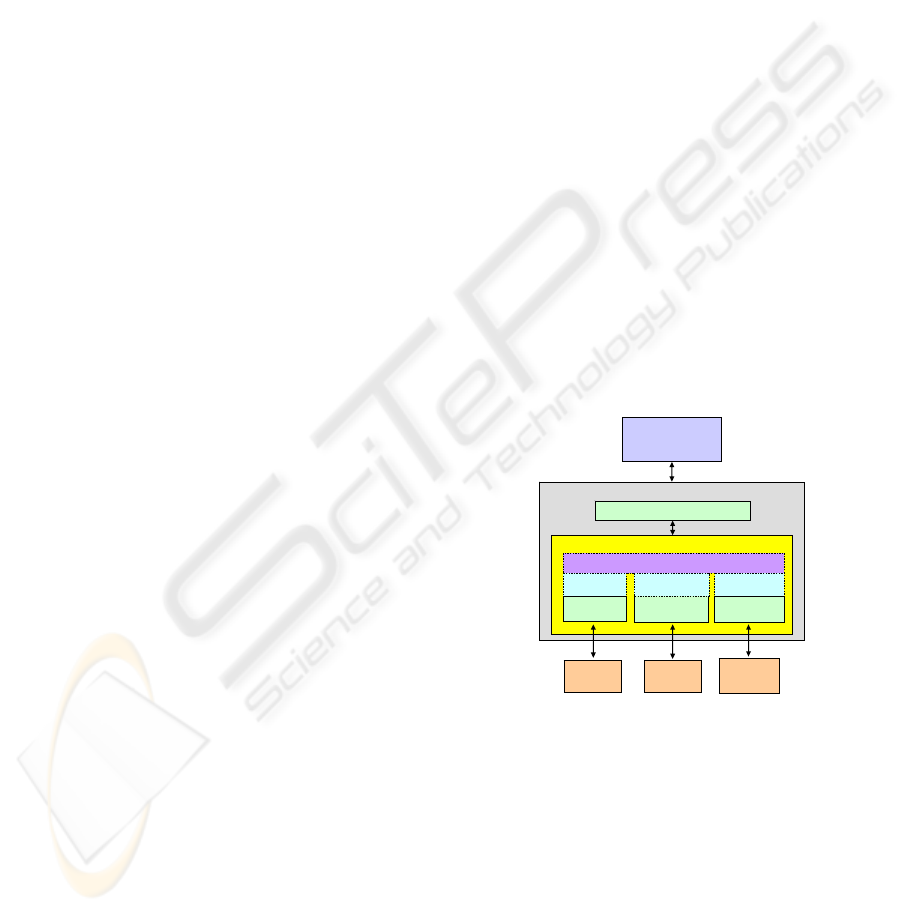

Figure 3: Implementation of a federated search server

based on IBM DB2 Information Integrator and wrapper

technologies.

As mentioned earlier, Lotus Notes database is a

document-based database management system. It

has become a mainstay at many enterprises for

applications such as workgroup collaborations and

complex sales tracking and monitoring. Because

Notes organizes data into documents, Notes internal

database structure is not relational in design and is

far from tabular. Particularly, Notes allows users to

create and update documents using forms, and uses

views to define and display lists of documents. Its

ENTERPRISE INFORMATION SEARCH SYSTEMS FOR HETEROGENEOUS CONTENT REPOSITORIES

367

compound document data structure is designed for

maximum flexibility to support the rich object

collections in Notes text documents. Since Notes

users still have traditional analysis and reporting

requirements and need access to Notes information

from a variety of tools that rely on SQL data access,

a Lotus NotesSQL ODBC driver (Lotus NotesSQL

site, n.d.) has been made available for this purpose.

Thus, to connect to the Lotus Notes database in our

implementation, a NotesSQL driver incorporated

with a DB2 II ODBC wrapper is used. Once

connected, standard DB2 SQL statements can be

used to query the ODBC connection to the Notes

database. The wrapper then maps all the Folders,

Views and Forms within the Notes database to

simple relational database tables as nickname tables.

An example illustrating the mapping of the

Notes database views into DB2 II nickname tables

using the ODBC NotesSQL wrapper is shown in

Figure 4. Basically, all the Notes folders, views and

forms in the Notes database are mapped to DB2 II

nickname tables, and the Notes form fields and view

columns describing the Notes documents are

mapped to the columns in a nickname table. Since

Notes is more flexible about names than SQL, it

allows many special characters and sequences of

characters that are not part of the standard SQL

syntax when naming a form or view. Thus, certain

characters in Notes names such as periods, spaces,

backslash and forward slashes are mapped to the

“underscore” character in SQL names.

For the DB2 Content Manager repository that

exposes its service interfaces as Web services, DB2

II maps the service calls into nickname tables using

a Web service wrapper. Both input parameters and

output parameters of the Web service calls are

represented as columns within the corresponding

nickname tables. The tables and columns are

discovered and created by a DB2 II utility using the

WSDL and XSD files as inputs. The application that

accesses the Web services can then use a regular

SQL statement for that nickname. The SQL query

includes parameters for the columns representing the

input parameters. When a Web service call returns

complex and nested results, DB2 II uses multiple

nickname tables to hold data that are related via

primary and foreign key relationships.

Upon receiving a search request, the SQL

generator first composes and parses the user query

into valid DB2 II queries to be forwarded to the

integration layer. The wrappers in the integration

layer are responsible in executing the query on

individual data sources and retrieve the remote query

results back into table format. The final search

results are then combined and transformed into a

common data representation to be returned to the

search client. To simplify the implementation of the

model transformation, a DB2 view based on the

common schema of “DocumentResult” as given in

Section 2 is created to hold the intermediate results.

The DB2 view is generated using SQL statements by

selecting and joining the equivalent column names

in the nickname tables using concept mapping and

instance mapping (Chen, 2005) based on the

semantic relationships about the data source models.

Briefly, concept mapping is a renaming method that

translates the different names of the same concept in

different data sources, and instance mapping is an

interpretation method that correlates the equivalent

instances from different data models. In the current

implementation, the model transformation and

mappings are carried out manually by analyzing the

semantic concepts in the original data source

models.

IBM TJ Watson Research Center

Notes Database Views

DB2 II Nickname Tables

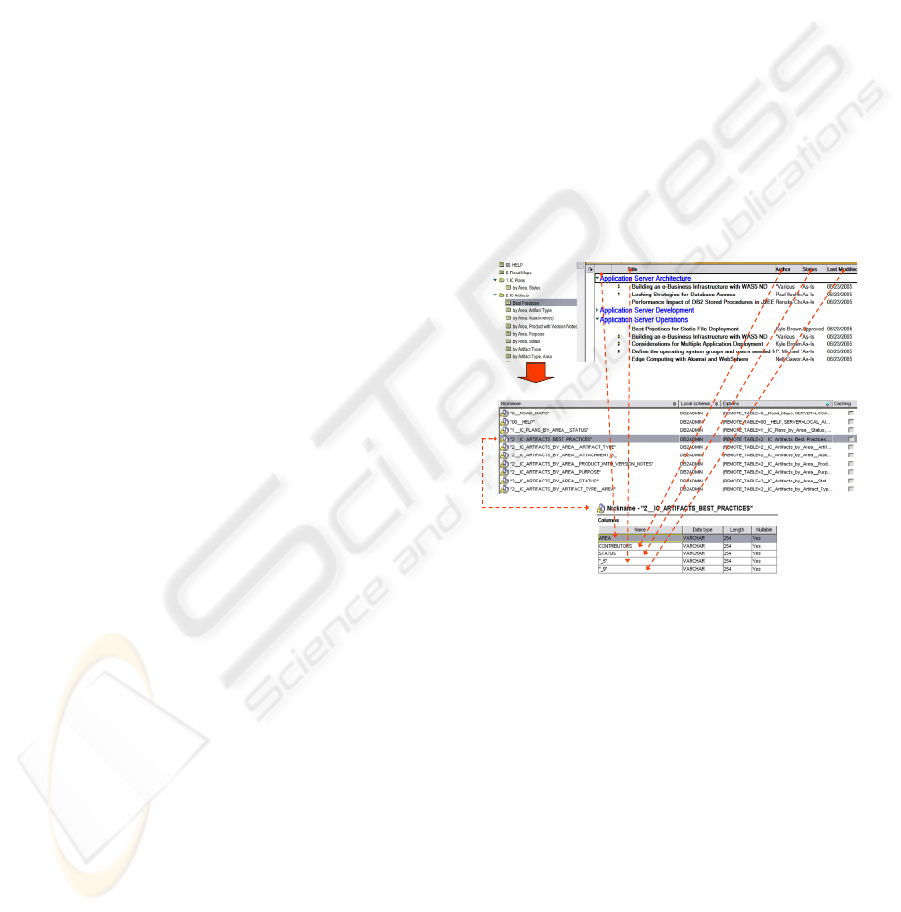

Figure 4: Example illustrating the mapping of Notes

database views into DB2 II nickname tables.

3.2 Integrated Search Server with

Enterprise Search Engine

Figure 5 illustrates the implementation of an

integrated search server with an enterprise search

engine. Similar to the federated search server, this

server also exposes its search interfaces through

Web services. It consists of a front end query

generator and a back-end enterprise search engine,

namely the IBM WebSphere Information Integrator

OmniFind Edition. The query generator interacts

with OmniFind through a Java search API. In this

implementation, the model transformation and

mapping functions of the integration layer are

incorporated in the Omnifind search engine. As data

ICEIS 2007 - International Conference on Enterprise Information Systems

368

sources, a similar set of content repositories

consisting of a flat file system, a Lotus Notes

database, and an IBM DB2 Content Manager server

are used. To connect to these data sources, three

different crawlers, namely a file system crawler, a

Notes crawler and a Content Manager crawler

provided by the OmniFind engine are used. The

crawling, parsing and indexing tasks for these

content repositories are performed based on a

sequence of scheduled processes in an internal

scheduler. The indexing results are combined in a

single collection of searchable index made available

for search.

In general, the OmniFind search engine is an

enterprise-scale search engine to allow searching of

items from databases, e-mail archives, Web sites and

more. The engine consists of a crawler, a parser-

indexer, and a run time that provides client interface

services. The crawler is used to spider through

online assets within the enterprise. Results are

parsed into individual words and links, which are

then assembled into an index. This index supports

search queries. Particularly, the Notes crawler can

find and parse attached documents in Notes forms of

Notes database. Data parsed and extracted from the

crawler is fed into the indexing engine. After

parsing, categorizing, and weighting the data from

the crawler, the engine generates an index that

becomes the searchable information to answer

search queries.

IBM TJ Watson Research Center

Client

Application

Parser & Indexer

File System

Crawler

File

System

Content Manager

Crawler

Web Services

DB2 Raw Data Store

Notes

Crawler

Notes

Database

Integrated Search Server

WebSphere Information Integrator

OmniFind Search Engine

Query Generator

Search API

IBM Content

Manager

Server

NFS Notes Driver CM Driver

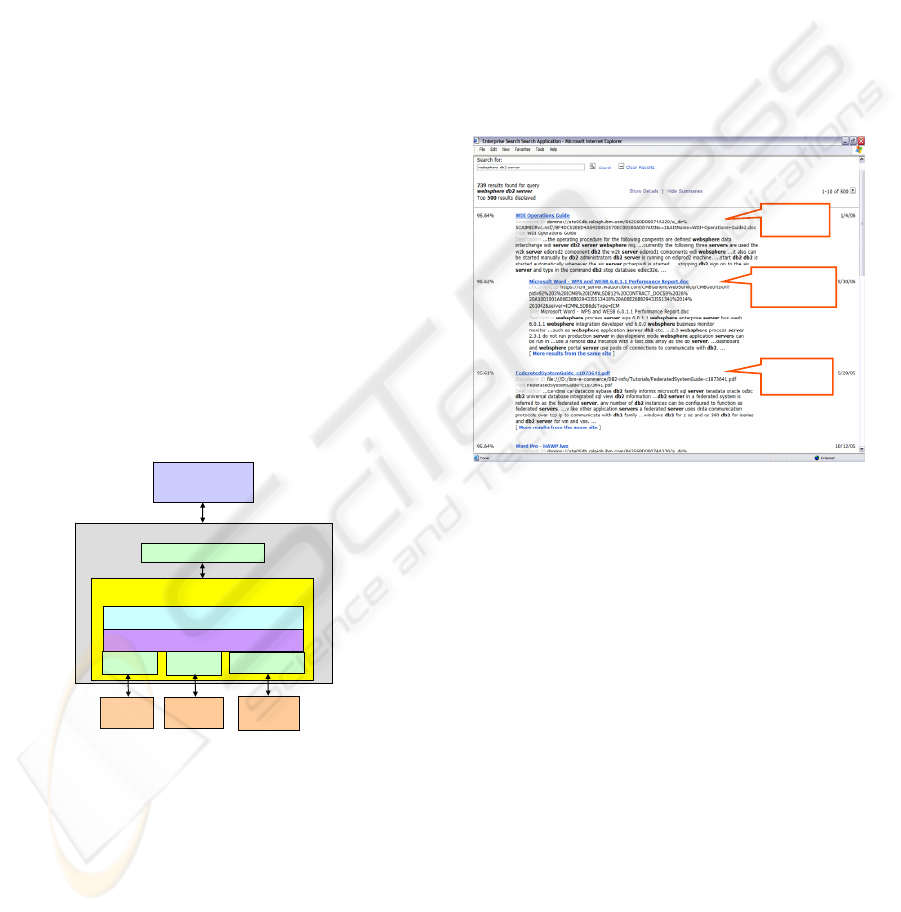

Figure 5: Implementation of an integrated search server

based on IBM WebSphere Information Integrator

OmniFind search engine.

Upon receiving a search request, the query

generator first composes and parses the user query

into search queries in XML fragment syntax

(Carmel, 2003) to be accepted by OmniFind. Using

the OmniFind search API, document search is then

carried out by the search engine on the combined

search index representing the multiple content

repositories. The final search results are organized

into a common data representation, and returned to

the search client. An example of search results with

the search keywords of “websphere DB2 server” is

shown in Figure 6. The results illustrate a mixture of

search items from all three data sources. Each item

in the result list consists of a collection of meta-data

based on the common schema “DocumentResult”

that specifies the corresponding DocumentID,

relative ranking Score, Title, Description,

ModifiedDate, and other characteristics of the

documents. The items are displayed in an order

according to their ranking score that indicates the

relative keyword match rate among all documents.

The DocumentID is an URI that links to the native

location of the document, and is used to retrieve the

original content from its content repository.

IBM TJ Watson Research Center

from Notes

Database

from DB2

Content Manager

Web Services

from File

System

Figure 6: Example of search results from the integrated

search server.

4 DISCUSSIONS

Federated search, also known as meta-search, has

been promoted as a method of providing “one stop

shopping” for searchers. Users exercise a single

search interface and find items that they may

overlook otherwise. There are a number of Internet

federated search sites (Dogpile site, n.d.,

Metacrawler site, n.d., Myriad Search site, n.d.) that

provide the ability to search across multiple search

engines. However, the results obtained from these

federated engines are not as good as the “one-index”

integrated search engines (Google site, n.d., Yahoo!

Site, n.d.), because they do not actually crawl and

index the documents, hence without enough

knowledge to perform analysis to refine the search

results. Particularly, they lack the capability to

remove duplicate documents from the search results

from multiple sources. In contrast, integrated search

ENTERPRISE INFORMATION SEARCH SYSTEMS FOR HETEROGENEOUS CONTENT REPOSITORIES

369

engines usually include intelligent algorithms to

avoid storing multiple copies of the same documents

in the index. Ranking of the relevance of documents

is also an issue in federated search. Federated search

engines can not perform relevance ranking of

documents effectively. They can only predict which

document is a better match by examining the titles,

snippets, and URIs from the results. In contrast,

integrated search engines can rank documents based

on contents in the documents, number of links to the

documents, and other factors.

Our federated search system also suffers the

same limitation as mentioned above for federated

search. Particularly, the NotesSQL driver used to

connect to the Notes database lacks the capability of

discovering document attachments in Notes forms,

thus is incapable of providing search results on

attached documents.

Although federated search system is subject to

lower-quality than integrated search, it possesses

other advantages. It is highly scalable because it

links directly to data sources and can compose the

search results in real-time. Thus, the information

obtained is more up to date than the integrated

search system. In contrast, the integrated search

engine has to produce a local index containing all

documents that it finds, and may eventually run out

of capacity due to the rapidly growing number of

documents to index. Moreover, there is always a

time lag between when a document is changed and

when the one-index search engine updates its index.

Resource requirement may be another advantage

of the federated search server. Federated search

system leverages distributed engines, thus may not

require much resources to support the runtime

performance. On the contrary, integrated search

system needs to frequently produce and store a local

index, thus may require excessive resources to

realize acceptable performance.

5 CONCLUDING REMARKS

In this paper, we present a general architecture and

compare two implementations of a service-based

information search system to search on multiple

content repositories. To illustrate the heterogeneity

of the complex environment, we select as data

sources a combination of a Notes database, an IBM

DB2 Content Manager server that uses Web services

for search interfaces, and a Windows file system.

First implementation is a federated search system

that integrates and maps the various schemas of the

sources into a common interface. This system

leverages data search capabilities in native source

locations, thus offering the advantages of scalability

and accessibility to real-time information. It is

simple to implement, and does not require much

resources to support the runtime. However, it suffers

the limitations of incapable to perform relative

ranking of search results, ineffective in eliminating

duplications, and unable to find document

attachments in Notes forms from Notes databases.

Second implementation is an integrated search

system. This system uses crawlers and indexers to

collect and analyze information from different

sources into a single index. It offers the ability to

perform relative ranking of documents, and

eliminates duplications in search results. However,

it undergoes the limitation of scalability, and may

require excessive resources for acceptable

performance in frequently refreshing the forever

growing index of information.

REFERENCES

Lyman et. al., 2003. How Much Information 2003?. From

http://www.sims.berkeley.edu/research/projects/how-

much-info-2003/

Haas et. al., 2002. Data Integration through Database

Federation. IBM Systems Journal, Vol. 41, No. 4, 578-

596.

Dogpile site. From http://www.dogpile.com/.

Metacrawler site. From http://www.metacrawler.com/.

Myriad Search site. From http://www.myriadsearch.com/.

IBM Lotus Notes/Domino site. From http://www-

142.ibm.com/software/sw-

lotus/products/product4.nsf/wdocs/noteshomepage.

Mahmoud, Q. H., 2005. Service-Oriented Architecture

(SOA) and Web Services: The Road to Enterprise

Application Integration (EAI). Sun Developer

Network Web site:

http://java.sun.com/developer/technicalArticles/WebS

ervices/soa/.

Weerawarana et. al., 2005. Web Services Platform

Architecture : SOAP, WSDL, WS-Policy, WS-

Addressing, WS-BPEL, WS-Reliable Messaging, and

More. Prentice Hall.

Web Services Architecture. From

http://www.w3.org/TR/2004/NOTE-ws-arch-

20040211/.

Chen et. al., 2005. Semantic Query Transformation for

Integrating Web Information Sources. In Proc. 7th

Int’l Conference on Enterprise Information Systems,

176-181.

Fu et. al., 2005. An Intelligent Event Adaptation

Mechanism for Business Performance Monitoring. In

ICEBE 2005, 2005 IEEE Int’l Conference on e-

Business Engineering, 558-563.

ICEIS 2007 - International Conference on Enterprise Information Systems

370

Madhavan, J., and Halevy, A., 2003. Composing

Mappings among Data Sources. In VLDB, 572-583.

IBM DB2 Content Manager site. From http://www-

306.ibm.com/software/data/cm/cmgr/.

Hass, L., and Lin, E., 2002. IBM Federated Database

Technology. IBM DeveloperWorks Web site:

http://www-

128.ibm.com/developerworks/db2/library/techarticle/0

203haas/0203haas.html.

Tork Roth et. al., 2001. An Architecture for Transparent

Access to Diverse Data Sources. Component Database

Systems, 175-206.

Lotus NotesSQL site. From http://www-

12.lotus.com/ldd/doc/notessql/3.0.1/notes_sql.nsf/662

08c256b4136a2852563c000646f8c?OpenView.

IBM WebSphere Information Integrator. From

http://www-

306.ibm.com/software/data/integration/db2ii/editions_

womnifind.html.

Carmel et. al., 2003. Searching XML Documents via XML

Fragments. In Proc. 26th Annual International ACM

SIGIR Conference on Research and Development in

Information Retrieval.

Google site. From http://www.google.com/.

Yahoo! site. From http://www.yahoo.com/.

ENTERPRISE INFORMATION SEARCH SYSTEMS FOR HETEROGENEOUS CONTENT REPOSITORIES

371
