A REFERENCE MODEL FOR ENTERPRISE SECURITY
High Assurance Enterprise Security
David W. Enström, D’Arcy Walsh
Communications Security Establishment, 719 Heron Road, Ottawa, Canada
Siavosh Hossendoust
Enterprise Security Architect, IBM, 2220 Walkely Road, Ottawa, Canada
Keywords: High Assurance Enterprise Security Architecture.
Abstract: This paper defines an enterprise security model that provides a cohesive structure for the definition and
implementation of security services. The complete framework is described, but with a focus on subjects, and
protected objects and how access is controlled. Multiple layers of security are defined, building upon the
“defence in depth” concept, augmented with “domain” and “zone” concepts and associated protections. The
dynamic use of roles is described, a concept that along with user self–service provides a practical approach
for the management and use of roles for access control. This model may also be used as a reference
architecture for the definition and integration of a set of security services that permit multiple vendor
implementations to work together, and to establish the level of compliance of specific systems.
1 INTRODUCTION
Enterprise security architecture has been a
patchwork of isolated and tactical solutions that
solve specific security problems. However, many
security problems have been neglected due to the
complexity and diversity of these security problems
and solutions, resulting in the inability to build
overarching enterprise security architecture.
This paper describes an enterprise security
reference model that unifies different aspects of
security. It was formulated because no one reference
provides a clear comprehensive framework for
enterprise IT security. The model provides clear
divisions of responsibility for the implementation
and integration of security services that provide the
appropriate level of protection in accordance with
defined policies. The model is applicable to a
specific part of a company, across the corporation or
across a multinational corporation as desired.
This reference model is in general based upon
RBAC, Role Based Access Controls (Ferraiolo and
Kuhn 1995; Kendall 1999; Yoder and Barcalow
1997). The base objective is to provide access to
services and information to those that need it, and
mitigate access to those that don’t. A unique feature
of this reference model is its dynamic aspect. The
dynamic sessions that a user establishes with
services are included in the model, providing great
flexibility and manageability of user permissions.
This model is also based upon the “defence in
depth” concept whereby users must pass through
multiple hurdles or checkpoints before gaining
access to information (CSE, n.d.). The level of
protection provided at each layer may be tailored to
match the situation, sensitivities, policies and risks
that need to be mitigated.
This model may also be used as a reference
architecture for the definition and integration of a set
of security services that permit multiple vendor
implementations to work together, and to establish
the level of compliance of specific systems.
2 THE REFERENCE MODEL
2.1 Protected Objects
At the heart of the security model is a Protected
355
W. Enström D., Walsh D. and Hossendoust S. (2007).
A REFERENCE MODEL FOR ENTERPRISE SECURITY - High Assurance Enterprise Security.
In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 355-364
DOI: 10.5220/0002351903550364
Copyright
c
 SciTePress

Object, which represents all of the sensitive items
that need to be protected. They need to be protected
due to their inherent sensitivity (i.e. their
classification label), or because they are important
components within the environment.
Component
Service
1..*
1..*
Data ItemZone
1..*1..*
1..*
1..*
Domain
1..*
1
1
*
Protected Object
1..*
1..*
Authority
11..*
Manages
Security Policy Security Label
Governs usage of
1
1
1..*
1..*
Issues

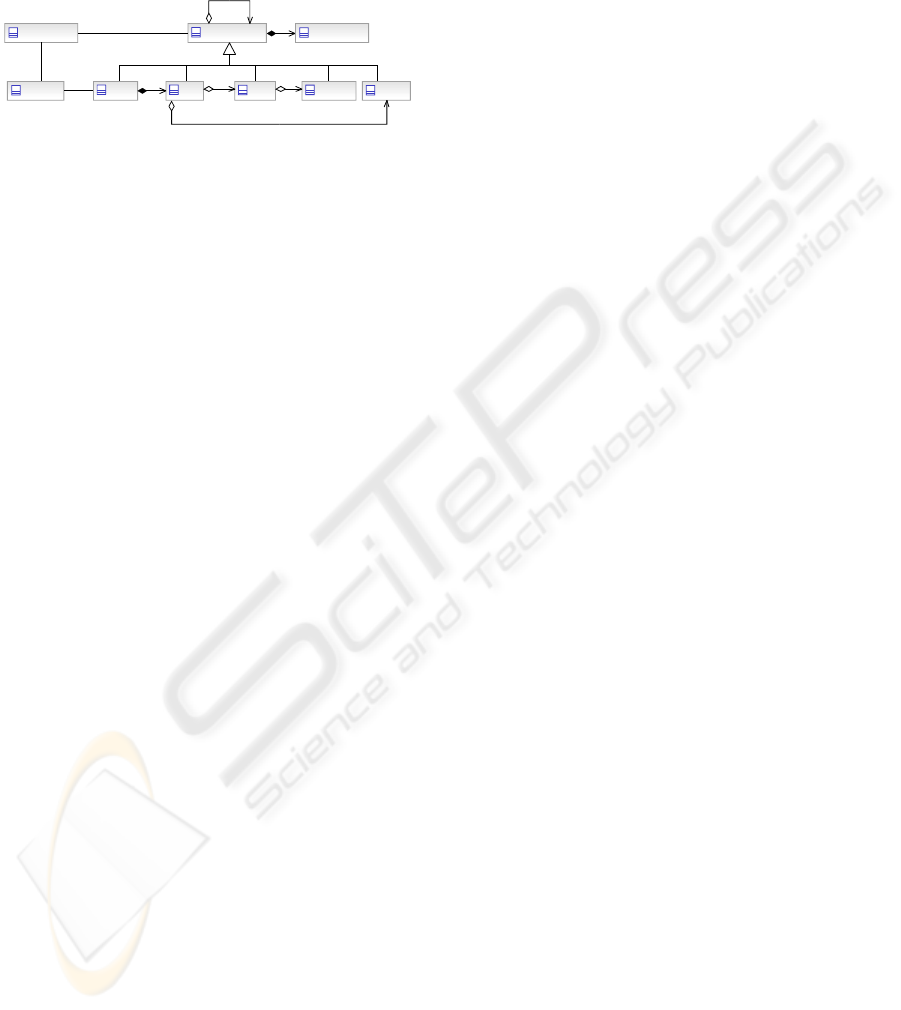

Figure 1: Protected Object Model.
Protected objects must exist within a context
defined by the authority and the policies that the
authority issues. Without this context the sensitivity
of the protected objects and therefore the protections
required would be unclear. The model must provide
protections for all objects, namely domains, zones,
the services, components and data items.
The relationship between security policy and a
protected object is a key aspect of the model. It
defines how domains, zones, services, components
and data items must behave to meet policy. It also
provides the context under which domains and zones
(and sub–domain and sub–zones) are defined. A
domain is defined to ensure that rules defined by the
authority are understood and enforced within the
required scope (e.g. corporate intranet policy, or
corporate extranet policy). Zones and sub–zones are
defined to ease the management and enforcement of
a sub–set of the policy.
2.1.1 Domains
A domain is a higher–level construct, concerned
with security policies, security models, and security
architecture, including a set of resources and system
entities that are authorized to access the resources. In
other words, domains define “like” security
environments, such as an organization’s intranet or
its extranet. Policy is a key concept for the definition
of a domain. Domains may be extended to allow for
policy extensions. A domain (e.g. A corporate
extranet) may also contain sub–domains (e.g. A
portion of the extranet used by a particular business
line) to permit policy refinements.
Through the provision of a layer of access
control at domain boundaries, the security required
within the domain is simplified. This is equivalent to
providing tight physical access control to a building,
which simplifies the security implementation within
the building.
A domain is used for very coarse–grained access
control based upon the policy issued by the
authority. Access control between domains
(e.g. between corporations) is usually enforced at the
network layer, through various mechanisms,
including Firewalls and other network (and perhaps
applications) level protections. A demilitarized zone
(or DMZ) implements these protections in a well–
defined and standard manner. This reference model
includes this in its approach, through the definition
of a Domain Policy Enforcement Point.
2.1.2 Zones
A second important concept is that of a zone. Zones
are used to partition a domain, making it easier to
implement security controls that enforce policies
within and between them. Again, this is equivalent
to providing strong physical access to a room, which
simplifies security practices within the room. Unlike
a Domain, the concept for zone is not based upon an
authority and the policy that it defines, but upon
enforcement of specific aspects or instances of
policies within the domain (e.g. security services).
A zone is used for coarse–grained access control
for specific policies, enforced by “Zone Policy
Enforcement Points”. Service level controls (i.e.
User accounts) may also be used to control access to
the services and information within zones. See 2.3.2.
Zones may be sub–divided into smaller zones.
The objective is to group like–services and systems
together — “like” in this context, just as in the high–
level zones, means services, components and data
items at the same level of sensitivity and policy.
A zone is also defined to control access from
zone to zone. They define a logical separation that is
normally implemented at the network layer or
above, through various mechanisms, providing the
coarse–grained access control required.
A description of the concepts/classes in Figure 1:
Authority – Person (e.g. corporate head of
policy) who issues and manages the security policies
that applies to a domain, as well as operates and
manages the domain itself (i.e. they have complete
control over the domain and its associated policy).
An authority may manage multiple policy sets (e.g.
extranet policy and the intranet policy) and
associated domains (e.g. Extranet and Intranet).
Security Policy – The rules defining needed
levels of information security to achieve the desired
confidentiality and integrity goals. A policy is a
statement of information values, protection
ICEIS 2007 - International Conference on Enterprise Information Systems
356

responsibilities, and organization commitment for a
system (e.g. The Corporate Extranet Policy).
Protected Object – An object within a domain
that, from a security perspective, needs protection.
This protection is required either because of the
intrinsic sensitivity of the object (e.g. highly
classified information) or due to its position within
the infrastructure (e.g. a directory or firewall).
Security Label – The security classification of a
protected object. It defines the mandatory access
control information, and the sensitivity of the
labelled object, i.e. the classification plus other
restrictions on the handling of the information
(e.g. Confidential//Management Eyes Only).
Domain – An environment or context that is
defined by security policies, security models, and
security architecture, including a set of resources
and system entities that are authorized to access the
resources. A domain is managed by a single
authority, and may contain one or more sub–
domains. Domains are created when security models
or policies and architecture are significantly
different from one domain to another, or are
conflicting. Separate domains provide clearer
separation of concerns and ease policy enforcement
and management. The traits defining a given domain
typically evolve over time (ISO 2002).
Zone – A zone is a subdivision of a domain with
a well–defined boundary that has a common level of
protection for all objects within its boundary. Zones
may be logical or physical and may be defined at
any layer within the domain architecture, from
physical zones (e.g. building / room), to application–
level zones (e.g. application–level access controls
and protections). Typically, zones are defined at the
physical, network and application layers. A zone can
have multiple sub–zones, but can have only one
super–zone. Sub–zones inherit their parents’
properties (i.e. Policies that apply to the super–zone
apply to the sub–zone). Zones cannot span domain
boundaries.
Service – A function that is well defined, self–
contained, and does not depend on the context or
state of other services (e.g. Directory). It is a
function packaged as a re–usable component within
business processes.
Component – An assembly or part thereof, that
is essential to the operation of some larger assembly
and is an immediate subdivision of the assembly to
which it belongs (e.g. DBMS). In the software
context, this may in turn be composed of
components. There are also hardware components
(e.g. router, switch, PC, etc.).
Data Item – A semantically meaningful unit of
information exchanged between two parties to a
transaction (e.g. An Invoice).
2.2 User Identity
In the IT security context, identity refers to the
creation of an electronic equivalent to a person, a
user account for example. Within the system a
“picture” of a user is defined that includes required
characteristics or attributes; in our model this is
called a “subject”. It includes characteristics that
may be used to relate this electronic representation
of the person with the real person (i.e. name,
employer, phone number, photo, fingerprint, etc.).
Security related metadata is also included, such as
login ID and password for example, which in our
model is represented as a “credential”. A credential
is used in establishing the association between the
physical person and their electronic representation as
a subject (that has credentials).
Within any IT environment a key security feature
that needs to be addressed is user identity, which is
important in providing or prohibiting access. User
identity has two main aspects: One, establishing, at
login with an appropriate level of assurance, that the
person logging in is associated with the proper
subject (i.e. the electronic representation of the
person/user), otherwise called authentication (See
3.1.1); Two, defining and managing the various
credentials that a user may have within the domain
(i.e. Identity Management).

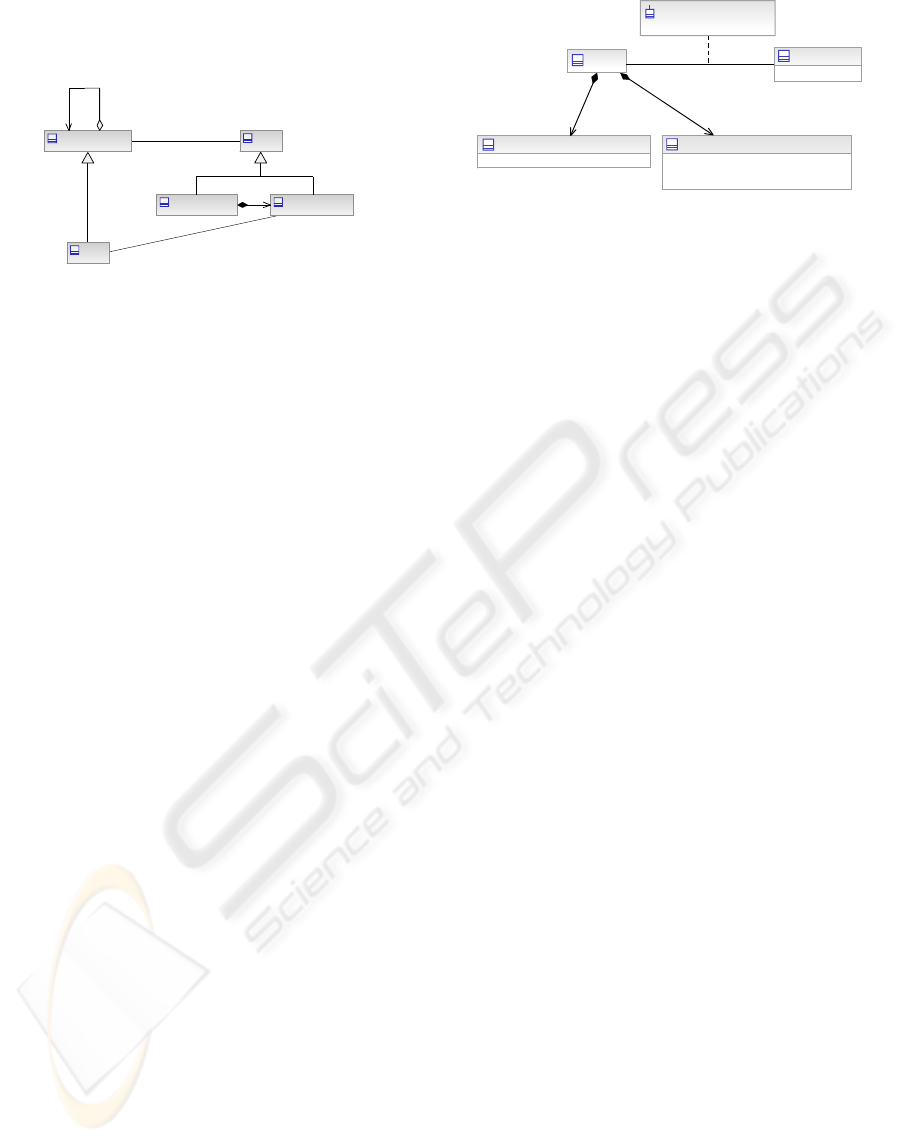

2.2.1 Roles Model
Roles are categories that collect together users who
share the same levels of security privilege.
Two types of role are defined, as shown in
Figure 2. The new classes are defined as follows:
Role – object that represents a collection of
permissions (e.g. IT roles) or a collection of users
(e.g. user roles), and that generally relates to a class
of business functions. They collect together users
who share the same levels of security privilege;
subjects are granted roles in order to obtain
particular access permissions. Roles are defined
based upon the business functions to be performed
(e.g. Financial Officer), or upon general actions (e.g.
Administering, Authoring, etc.). There are two types
of roles: functional roles and contextual roles.
Functional Role – Role tied to a subject’s
primary job function within the organization, but not
necessarily reported in the human resources system.
A REFERENCE MODEL FOR ENTERPRISE SECURITY - High Assurance Enterprise Security
357

Therefore, all organizational roles are functional
roles, but not all functional roles are organizational
roles (E.g. “Financial Analyst”).
Functional Role
Contextual Role
*1..*
Zone
<- context defined by
Role
Protected Object
1..*
1..*
**
Figure 2: Roles & Zone Model.
Contextual Role – Role defining permissions in
the context of a zone, and particular object within
the zone. For a given business object, a contextual
role can be granted directly to a user or associated
with one of its functional roles. The contextual roles
currently defined are Administering, Auditing,
Authoring, Collaborating, and Monitoring.
In order to avoid confusion between functional
roles and contextual roles the following conventions
have been adopted: Functional and organizational
roles will always be expressed as nouns (e.g.
TigerTeam); Contextual roles will always be
expressed as verbs (e.g. collaborating). This rule
reflects the core differences between the role types:
functional (and organizational) roles really do refer
to persons, places, or things; contextual roles are
actions performed by a subject on an object.
Roles are used as the fundamental method for
defining access permissions to protected objects.
2.2.2 Static Model of Identity
A standard model is used for “identity”, where
notions of a subject (user), credentials and roles are
utilized. The relationships between these aspects of
identity (and RBAC) are illustrated in Figure 3. This
is the static view of identity, that is, it describes a
user’s identity as statically defined within the
domain (i.e. before the subject establishes sessions).
The new classes in Figure 3 are:
Subject – An entity that is represented within a
security domain by one or more identities from
trusted authorities (e.g. driver’s license and a health
card). A subject has associated security information
such as security clearances. Subjects may have many
roles, which in turn may have associated identity and
credential information (e.g. passwords). Note that a
subject does not necessarily equate to a human
being, it may define a service within the domain.
Role
role[1] : roleEnum
Subject Attributes
Type[1] : userTypeEnum
Organization[1] : userOrganizationEnum
Nationality[1] : nationalityEnum
Subject
*
1
1
1
Security Label
classification[1] : classificationEnum
*
1
Static Role Assignment and
Delegation Policy
Figure 3: Static Identity Model.
Static Role Assignment & Delegation Policy –
the policy that governs the allocation of roles to
subjects at the time of their enrolment within a
domain (e.g. all employees get HRInfoUpdate role).
Subject Attributes – Defines additional static
characteristics of subjects, such as the type of user
(i.e. Full–time, term, contractor, etc.), their
affiliation (i.e. IBM, CSE, etc.) and nationality (i.e.
CAN, USA, etc.).

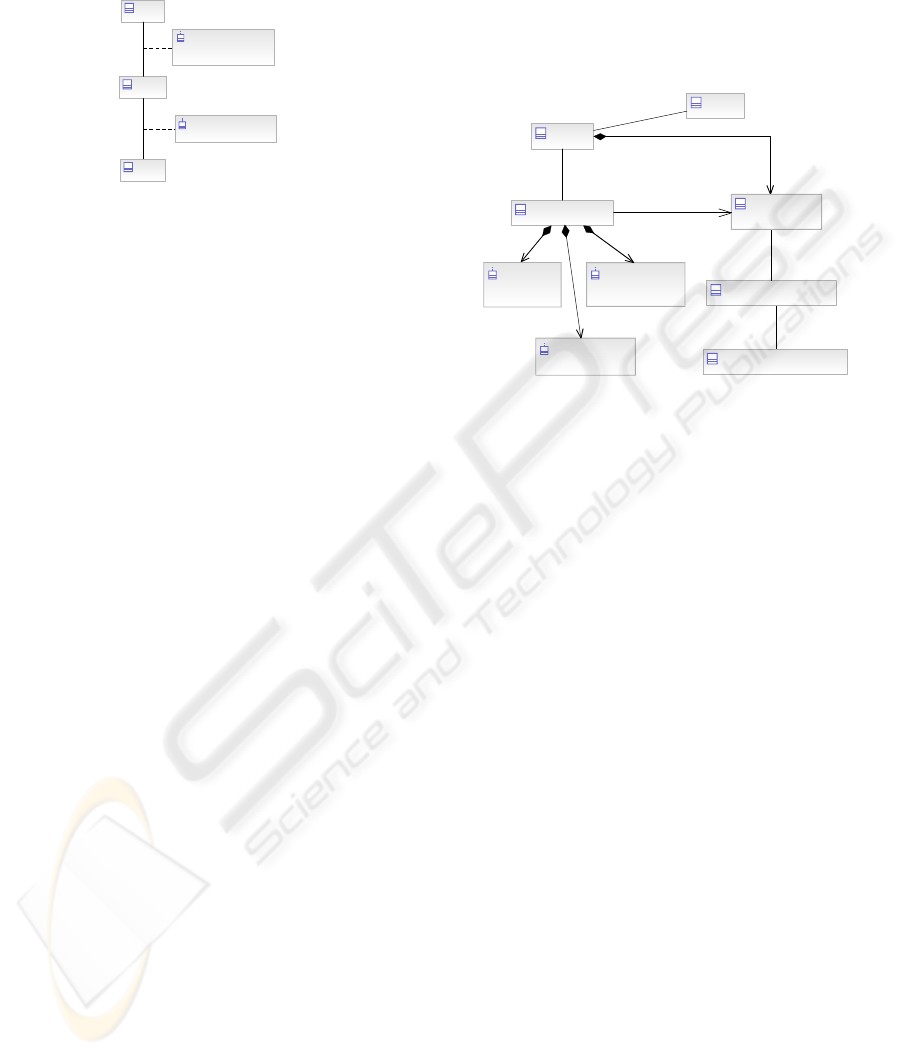

2.2.3 Dynamic Model of Identity
Specific access rights are provided to a subject
through the granting of one or more roles, either
when a user is defined within the domain, or
dynamically as sessions are established with
services. Note that roles define access rights within a
single domain, zones in the domain, and provide
fine–grained access rights to services and data items.
In order to support the principle of “least
privilege” (a subject possesses just enough rights to
do their job), roles and thus access rights may be
assigned when subjects establish, through secure
mechanisms, sessions with services, normally within
a domain; however sessions with services in external
domains are also supported. This dynamic aspect of
roles is shown in the model in Figure 4.
A description of the new classes in Figure 4:
Session – A lasting connection, using a network
protocol, between a user (or service) and a peer,
typically a service, usually involving the exchange
of many packets of information (e.g. an HR
application). Session may be stateless or stateful.
Dynamic Role Assignment and Delegation
Policy – the policy that governs the allocation of
roles to subjects when sessions are established with
services within a domain (e.g. Users with the
Analyst role get the Update role when establishing a
session with the Financial Analysis application).
Session Establishment Policy – the policy that
governs the establishment of a session with services
within a domain. Subject attributes and credentials
ICEIS 2007 - International Conference on Enterprise Information Systems
358

are used in determining if a session is allowed or not
(e.g. Users with the Analyst role may establish a
session with the Financial Analysts application).
Role
Subject
Session
*
*
11
*
Dynamic Role
Assignment and
Delegation Policy
Session
Establishment Policy
Figure 4: Dynamic Identity Model.
2.3 Authority & Policy Enforcement
2.3.1 Authority and Policy

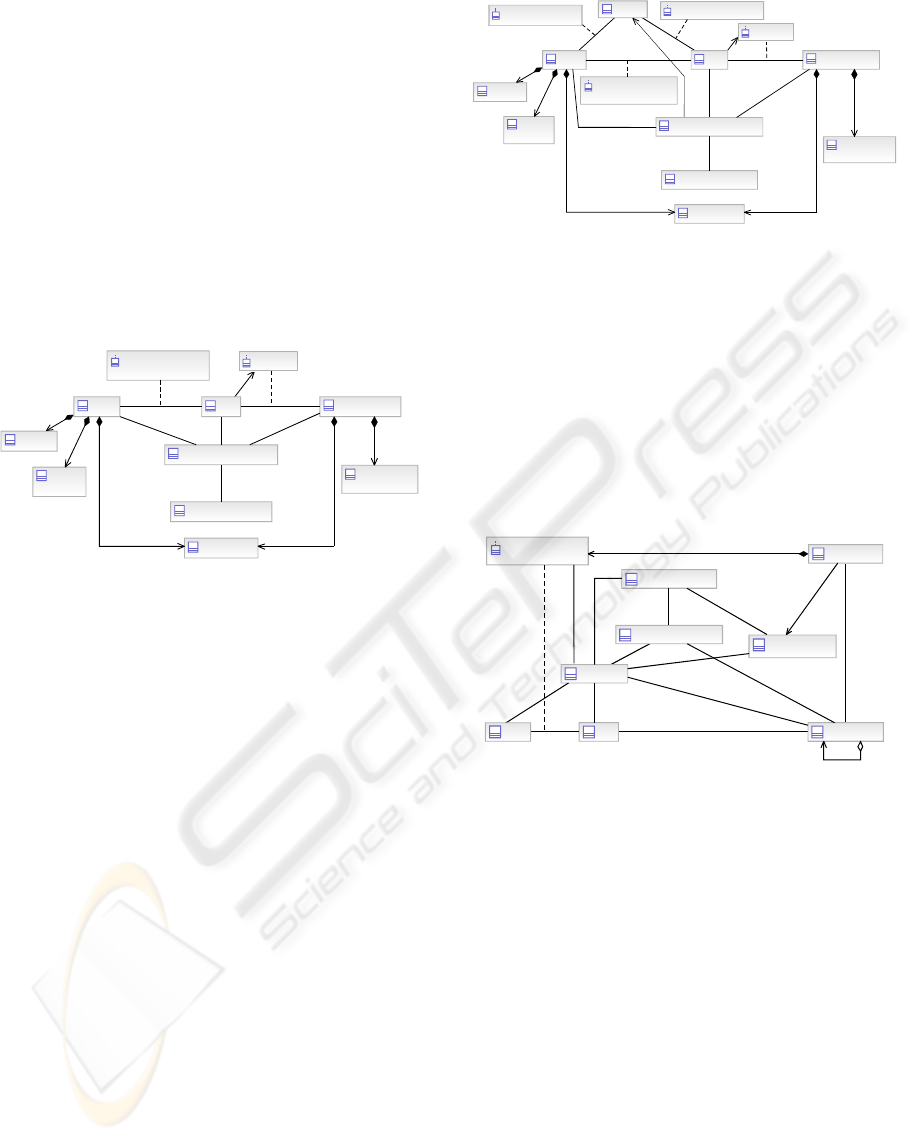

Figure 5 illustrates the generic model of authority,
policy and policy enforcement. The new classes in
Figure 5 are:
Policy Administration Point – An entity that
manages and issues policies to a policy decision
point (e.g. the policy administrator for the domain).
Also see authority.
Policy Decision Point – An entity that evaluates
an access request against one or more policies to
produce an access decision. Access decisions are
based upon attributes of subjects (including from
their sessions/roles) and attributes of the protected
object (its security classification, etc.) plus the rules
governing the comparison/usage of these attributes.
Policy Enforcement Point (PEP) – An entity
that enforces access control for one or more
resources (protected objects). When attempting to
access a protected object, a PEP sends an access
request describing the attempted access to a policy
decision point (PDP). The PDP returns an access
decision that the PEP then enforces.

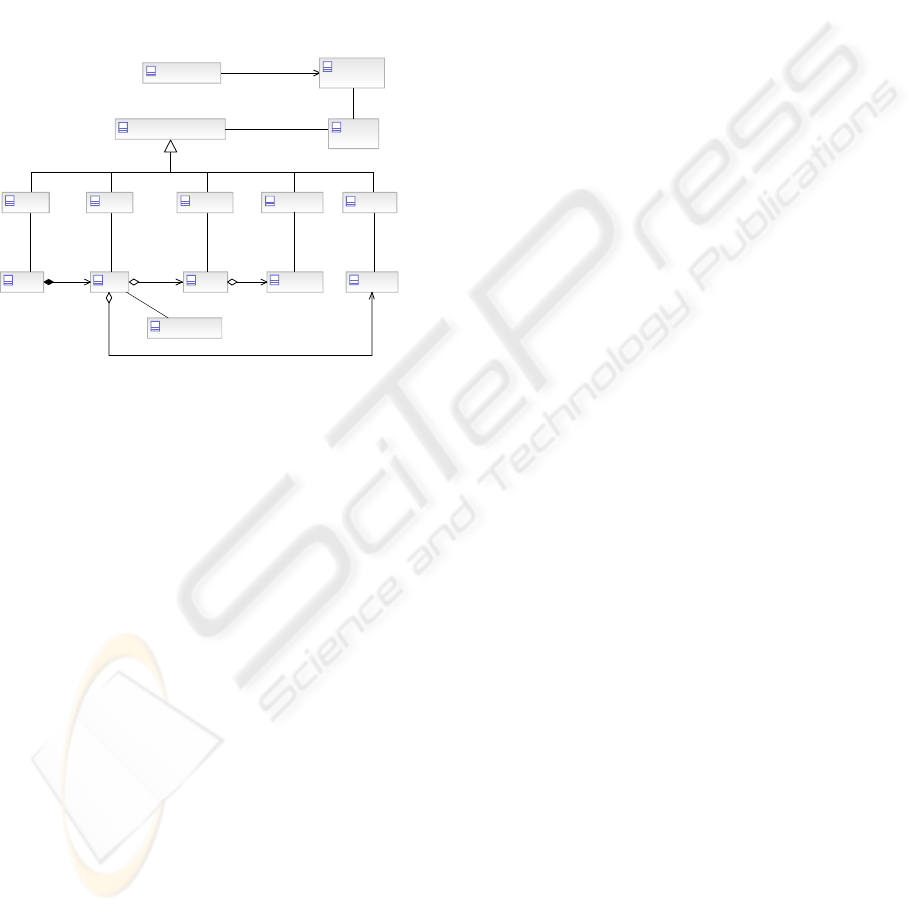

2.3.2 Policy Enforcement Points
All protected objects need protection, and therefore
there are protection services, or Policy Enforcement
Points (PEP), defined that provide this protection.
They are in effect the layers of the security onion
(i.e. Defence in depth). Figure 6 shows the types of
PEPs required and how they relate to other objects in
the model. There is a one–to–one correspondence
between protected object types and the types of
PEPs required and defined.
Simply knowing that a subject has the clearances
to access an object is not sufficient for our purposes,
the type of permissions granted to the subject needs
to be understood. Also, permissions may be different
depending upon the way in which the information or
service is accessed. A local user may have complete
access to resources, but the same user accessing
services remotely (e.g. Telework) will have reduced
capabilities. A dynamic model is required.
Policy Decision Point
1
1..*
Access decisions
made by
Domain
1
1
Issues policy to
Authority
1..*
1
1
1..*
Manages
Session
Establishment
Policy
Static Role
Assignment and
Delegation Policy
Dynamic Role
Assignment and
Delegation Policy
Security Policy
Managed and issued by
1
1..*
Issues
1
1..*
1
1..*
1
1..*
Policy
Administration
Point
Policy Enforcement Point
Figure 5: Authority and Policy Model.
Roles provide fine–grained access control, and
may be defined to mitigate access to specific
services, functions or information. Other attributes
such as the users “locale” must also be used to
determine access permissions. The rules used to
make access decisions based upon roles and other
attributes may get fairly complex. They also need to
be consistent across the domain. One way to ensure
this consistency is though definition of a single
logical “authorization” service (PDP), which uses
subject attributes plus the protected objects’
attributes to make access control decisions for PEPs.
The new classes in Figure 6 are:
Domain PEP – The interface point that provides
secure access and interoperability between different
domains (e.g. A DMZ with proxies, IP filtering and
Firewalls). A domain may have more than one PEP,
permitting different levels of access (based upon
policy) and for non–functional reasons.
Zone PEP – The interface point that provides
secure access and interoperability to protected
objects within a zone (e.g. intelligent proxy). A zone
may have more than one zone PEP, for different
levels of access and for non–functional reasons.
Service PEP – The interface point that provides
secure access to a service and its methods (e.g. a
Proxy). A service may have more than one PEP,
permitting different levels of access (based upon
policy) and for non–functional reasons.
A REFERENCE MODEL FOR ENTERPRISE SECURITY - High Assurance Enterprise Security
359

Component PEP – The interface point that
provides secure access to a component and its
methods (e.g. an authorization step when accessing
the component). A component may have more than
one PEP, permitting different levels of access (based
upon policy) and for non–functional reasons.
Data Item PEP – The interface point that
provides secure access to a data item (e.g. an
authorization step when accessing the data). A data
item may have more than one PEP, permitting
different levels of access (based upon policy) and for
non–functional reasons.
Component
PEP
Component
Mitigates access to
Data Item
PEP
Service
Mitigates access to
1..*
1..*
Data Item
Mitigates access to
Contextual Role
Policy Enforcement Point
Policy
Decision
Point
1..*
1
Access decisions made by
Zone
1..*
1..*
1..*
1..*
Mitigates access to
<-context defined by
1..*
Security Policy
Policy
A
dministration
Point
1
1
Issues policy to
Managed and issued by
Service
PEP
Zone
PEP
Domain
0..*
1..* 1..* 1..* 1..*
1..*
1
1
1
1
Mitigates access to
1
Domain
PEP
Figure 6: Types of Policy Enforcement Points.
2.4 Access Control
Access restrictions ensure that only authorized
Subjects are granted access to a Protected Object
within the Domain. Many mechanisms are used to
control access for security purposes. Access controls
are defined at the physical (i.e. buildings/rooms),
network and application layers.
Physical level access controls are beyond the
scope of this model, however the physical access
controls to buildings and offices need to be
considered when defining the IT security model
(i.e. deciding on security approaches and technology
given the level of physical access controls).
Network level access controls are included in
this model through the definition of domain and
zone boundaries, which enforce coarse–grained
access controls. Access to services and information
within a domain or zone from other domains or
zones is controlled through various protections at
these boundaries (e.g. firewalls, IP address filtering,
proxy services, etc.) and protections provided at the
service, component and data item layers. The
specifics of implementation are beyond the scope of
this logical model. The IT Security Zones Baseline
Security Requirements was used to help formulate
the solution defined here (CSE, 2003).
Application level access controls are included
through the definition of a single authority (i.e. a
Policy Decision Point), policy enforcement points,
authorization services and other mechanisms, which
define fine–grained access control. Access decisions
are made based upon a set of rules that use
attributes, roles, and other information about
subjects, zones and protected objects (OASIS
2005a). In some cases, access decisions may be pre–
computed, resulting in a permission set for the
subject, which is used to control access.
2.4.1 Basic Access Control
Some policies need to be enforced in all systems
within the domain; they are hard givens. This
includes a standard set of labels used to indicate the
sensitivity of the object. Labels on objects are
typically subdivided into a classification, community
of interest (COI) and national dissemination. The
classification is used for mandatory access control,
and COIs, & national dissemination used for
discretionary access control.
Both users and protected objects are labelled:
object labels indicate their sensitivity; user labels
indicate the clearances they possess. In order for
access to be granted the security properties of the
subject must minimally match the security properties
placed upon the entity accessed. All users within a
domain may be permitted to handle “Company
Confidential” material, but the need–to–know
principle must still be enforced, through the use of
roles, COIs and other attributes.
2.4.2 Static Model of Access Control
Subjects are assigned basic attributes when they are
enrolled within the domain. These include their
security clearances and other information contained
in their credentials such as public and private keys.
Roles may also be given to users at this time. This
static view of a Subject in the context of access
control is shown in the model in Figure 7.
The new classes in Figure 7 are:
Credential – A token (e.g. biometric data) or a
shared secret provided by a subject that imparts
confidence in the claimed identity of the subject
within a domain. A trustworthy authority issues
credentials. Credentials are created as a result of a
successful authentication, and are a set of one or
more access tokens that will allow a principal to
ICEIS 2007 - International Conference on Enterprise Information Systems
360

connect to a domain or other object. E.g. user
ID/password combination, PKI certificate, Kerberos
ticket, etc.
Protected Object Attributes – Defines
additional characteristics of protected objects such
as the “Author” and “Owner”.
Permission – The authority–based right that
allows a subject to perform an action (such as read,
write, delete, execute, or create) on a protected
object. Access is granted (provided mandatory
access controls are met) only by associating a
permission with a role. Permissions do not override
mandatory access controls. The usage of permissions
is well covered in OASIS (2005a).
Static Role Assignment
and Delegation Policy
Credential
Subject
Attributes
Security Label
Protected Object
Attributes
Role
Subject
1
1..*
*
1
*
1
1
Protected Object
*
*
*
11
Policy Enforcement Point
Policy Decision Point
1..*
1
A
ccess decisions made by
Permission
Figure 7: Static Access Control Model.
The rules governing access may get quite
complex, every effort should be made to simplify
models and the rule set. This in part is accomplished
through the definition and implementation of
“zones”, but also the intelligent use of roles, as in
Basin and Doser (2005).
2.4.3 Dynamic Model of Access Control
Determining whether or not a user has access to a
particular protected object based upon static
identities and credentials (i.e. Domain login–time)
does not address all requirements. Users, during the
course of their day, need to perform various
activities with many different zones and services,
and perhaps other domains as well. This dynamic
aspect, and the concept of “least privilege”, requires
a dynamic solution. The solution is to associate roles
with sessions, so that a user may be assigned more
privileges when a session with a particular service is
established. This demands proper controls over the
establishment of sessions. This dynamic model of
access control is shown in Figure 8.
Additional privileges are acquired as needed
through contextual role(s) that are assigned when
sessions are established. Each role has associated
permissions.
Dynamic Role Assignment
and Delegation Policy
Session
1
*
*
*
Static Role Assignment
and Delegation Policy
Credential
Subject
Attributes
Security Label
Protected Object
Attributes
Role
Subject
1
1..*
*
1
*
1
1
Protected Object
*
*
*
11
Policy Enforcement Point
Policy Decision Point
1..*
1
A
ccess decisions made by
Permission
Session
Establishment Policy
Figure 8: Dynamic Model of Access Control.
2.5 Audit and Logging
Auditing is the collection of event information about
PEP, service, component and data item activities that
affect security. Services, components, PEPs and data
items may utilize the audit service to capture audit
events. These events may be informational (e.g.
User x logged in) or they may represent security
exceptions (e.g. Unauthorized user attempted to
access resource y).
Role
*
1
Policy Enforcement Point
Protected Object
*
1..*
1
Static Role Assignment
and Delegation Policy
Security Audit
0..*
1
1
1
0..*
1
1
0..*
1
1
Policy Decision Point
1
1
1
1..*
1
1..*
1
Security Policy
1
1..*
1..*
1
Policy Administration
Point
1
11
1
1
1
1
Policy Issued
by
Managed and
issued by
Subject
Access decisions
made by
*
Governs
usage of
Figure 9: Static Model of Audit.
The audit and logging model provides a
framework for the capture of security event
information in logs. For performance reasons, the
security framework needs to be circumspect in what
events need to be logged. At the same time it must
be recognized that the requirements for audit and
logging will vary depending upon the sensitivity
(i.e. contents of the security label) of the information
being processed. As a result, the audit and logging
model is a flexible one, allowing the specification of
audit assertions that are applied within the context of
subjects, roles, policy and protected objects.
As with the other aspects of the security model
there is both a static view and a dynamic view of
audit. The static view is shown in Figure 9. The new
classes in Figure 9 are:
Security Audit – implements the logging of
security events and information for and about the
A REFERENCE MODEL FOR ENTERPRISE SECURITY - High Assurance Enterprise Security
361

protected objects and other sensitive information
within a domain. Audit information is always
traceable to the subject involved in the activity.
Logging of events may be turned on and off as
directed by security personnel.
Audit administrators (i.e. a subject with this role)
can configure the set of events to be audited. These
events are based upon commands (behaviours)
defined within PEPs, services, components and data
items and their utilization of the audit service. Audit
events may be turned on and off in a coarse or fine–
grained manner; they can be controlled at the zone,
PEPs, service, component and data item levels.
Session
1
*
*
*
11
Role
*
1
Policy Enforcement Point
Protected Object
*
1..*
1
Dynamic Role Assignment
and Delegation Policy
Security Audit
0..*
1
1
1
0..*
1
1
0..*
1
1
Policy Decision Point
1
1
1
1..*
1
1..*
1
Access decisions
made by
Security Policy
1
1..*
Governs
usage of
1..*
1
Policy Administration
Point
1
11
1
1
1
1
Policy Issued
by
Managed and
issued by
Subject
*
Figure 10: Dynamic Model of Audit.
The dynamic view of audit is shown in Figure
10. The only changes to this model of audit
(compared to Figure 9) are the addition of the
“Dynamic Role Assignment and Delegation Policy”,
and the removal of the “Static Role Assignment and
Delegation Policy” (for clarity purposes).
Many details regarding audit need to be
addressed at implementation, such as the required
information to be captured in the logs. This model
defines the relationships that need to be supported
and the audit controls that are needed so that
correlations and other analysis may be performed.
The audit process needs to support domain policy
and verification of its application within the domain.
3 SUMMARY RELATED/FUTURE
WORK AND CONCLUSION
3.1 Summary
The scope for roles is the domain, but cross–domain
interoperability is required (i.e. Enterprises
interoperate with suppliers, partners and clients).
This is accomplished through the establishment of
“trust” between domains, and through the
standardization of credentials. The extension of trust
is done through a Public Key Infrastructure (PKI)
being cross–certified with the other parties (i.e.
supplier and partner) or via a third party. The
standardization of credentials is also needed (i.e.
Subject/object attributes), along with the ability to
share them as in OASIS (2005b).
There is a trade–off at implementation regarding
the level of protection provided at each of the
various security layers (i.e. PEPs). For example, one
may provide very strong zone protection (e.g. A
Firewall implementation of a zone PEP), which may
negate protection of the data at rest within the zone.
The model wouldn’t be complete without some
clarification of the authentication, confidentiality,
availability and integrity aspects of IT security and
how they relate to this model.
3.1.1 Authentication
Authentication is the process of verification of a
subject’s identity, along with the provision of basic
access to the domain with which the authentication
is done (i.e. Static subject attributes and roles are
provided). Authentication therefore is a domain PEP
providing verification of the identity of the subject,
to some desired level of assurance, and providing the
subject’s basic access permissions.
Authentication is a necessity at the domain level,
but other levels may require authentication, namely
at the zone, service, component and data item (PEP)
levels. Similar mechanisms may be implemented,
however practicalities may restrict what can be done
at these other levels. Ideally once the subject has
authenticated to the domain, the rest is transparent or
not required.
3.1.2 Confidentiality
Confidentiality, in its broadest definition, is the
protection of information from unauthorized access.
This definition can encompass the need for all types
of PEPs; however it commonly is limited to the
protection of data in transit or of data at rest. Given
this more specific definition, the need for
confidentiality services is very much policy driven.
Protection of data in transit and at rest are typically
done through the application of encryption, but
specific solutions like this are beyond the scope of
this logical model. A summary follows, but note that
combinations of these solutions may be required.
For data in transit, confidentiality for the
following areas needs to be addressed:
¾ Physical WAN communications
ICEIS 2007 - International Conference on Enterprise Information Systems
362

¾ Virtual circuits (e.g. Sessions, etc.)
¾ Application layer communications (e.g. Email and
attachments, FTP, Web, and other data exchanges)
For data at rest, confidentiality for the following
areas needs to be addressed:
¾ Temporary storage
¾ Permanent storage
3.1.3 Availability
At the logical level one can only indicate the
importance of the various services and components
within the architecture. Availability requirements,
specified as non–functional requirements, can only
be met through application of good design
implementation, through provision of redundant
hardware or software services and components,
which is beyond the scope of this model.
3.1.4 Integrity
The need for integrity spans all aspects of
architecture. Integrity may be summarized as the
protection of protected objects from malicious or
inadvertent modification or misuse. The integrity of
the following aspects must be addressed at
implementation:
¾ Data integrity (accuracy & completeness of data)
¾ Service and component integrity
¾ PEP integrity
¾ Network integrity
Many options and approaches to addressing
integrity exist, such as digital signatures, encryption,
etc. Again, choices need to be made at
implementation to address integrity requirements.
3.2 Related Work
The reference model reflects current offerings and
practices within the industry (Tulloch 2003; Entrust
2003; IBM 2003, 2005; Bücker et al. 2004; Blakely
et al. 2004; Buecker et al. 2004). Concepts and
definitions are also aligned with the XACML
standards, which are complimentary to the concepts
defined here (OASIS, 2005a; OASIS 2005b).
No comprehensive model for enterprise security
could be found, which motivated the creation of this
reference model. Portions of it are covered in some
works, such as Basin, Doser and Lodderstedt (2004)
and Miller, Yee and Shapiro (2003) and Indrakshi et
al. (2004), which validate respective areas of this
comprehensive model. Another important distinction
is that the reference model attempts to clearly
separate concerns, providing a more flexible and
manageable solution.
3.3 Future Work
A complete implementation of this model would
provide verification of many aspects. This may
result in some re–factoring based upon this
experience and permit the identification and
elaborations of the roles portion of the model, and
protection requirements. Specifically allowing for a
more computable transform to implementation based
upon the context and requirements (e.g. When to use
a firewall vs. network address filtering etc.).
The audit and logging portion of this model will
be refined over time. Audit and logging information
needs to be well–defined to allow the correlation of
events across the enterprise.
Much work has been done on the inclusion of
non–functional requirements within UML models,
and also ontologically precise UML. Integration of
this work within this reference model is desirable.
3.4 Conclusion
CSE has implemented a portion of this model within
its core systems. Specifically aspects of protected
objects, and zone, service, component & data item
PEPs, and the static and dynamic access control
mechanisms.
The functional and contextual roles concepts
defined in this model are used to attain the fine–
grained access controls required. Flexibility is an
important benefit of the reference model and its
implementation, permitting the dynamic application
of changes to access control, as required by the
business and users.
The zone model provides many benefits. Having
policies inherited from parent zones greatly reduces
the level of maintenance of rules. The zone model
also permits optimizations, for example service–to–
service calls within a highly trusted zone (e.g. a
security zone) may be optimized for performance.
Security behaviour is tailored for each zone
permitting the same code to run unaltered in
different zones but with required security policies
for each zone applied appropriately.
As threats and vulnerabilities increase, mitigation
of the associated risks needs to be done in a more
architected (i.e. Structured and cohesive) manner.
This model provides this structure, which also
enables heterogeneous interoperable implementation
A REFERENCE MODEL FOR ENTERPRISE SECURITY - High Assurance Enterprise Security
363

of security services. The roles and relationships
between security components provide defence in
depth, to any strength and depth required for a given
situation. The concept and usage of roles in a
dynamic manner provides a practical and flexible
way to implement fine–grained access controls.
ACKNOWLEDGEMENTS
The authors would like to thank Scott Cluett for his
valuable insight. Scott’s implementation of many
aspects of this model provided the grounding
required to make the model practical, and provided
useful validation of its concepts and structures.
REFERENCES
Buecker, Axel, Filip, Werner, Becke, Richard, Cowan,
Tony, Godbole, Subodh, Hinton, Heather,
Kariyawasam, Sampath, Stranden, Harri, 2004,
‘Federated Identity Management with IBM Tivoli
Security Solutions’, IBM Redbooks, First Edition.
Basin, David, Doser, Jürgen, Lodderstedt, Torsten, 2004,
‘Model Driven Security: From UML Models to
Access Control Infrastructures’, ACM Transactions on
Software Engineering and Methodology, Vol. 15, No.
1, pp. 39–91.
Blakely, Bob, Heath, Craig & members of The Open
group Security Forum, 2004, Technical Guide –
Security Design Patterns, viewed January 2005,
<http://www.opengroup.org/bookstore/catalog/g031.ht
m>.
Bücker, Axel, Gontarczyk, Andrew, Heiser, Mari,
Karekar, Santosh, Saunders, Patricia, Taglioni,
Matteo, 2004, ‘Enterprise Security Architecture Using
IBM Tivoli Security Solutions’ IBM Redbooks,
Second Edition.
Clarke, Siobhán, Harrison, William, Ossher, Harold, Tarr,
Peri, 1999, ‘Subject–Oriented Design: Towards
Improved Alignment of Requirements, Design and
Code’, OOPSLA ’99 Proceedings, pp. 325–339.
CSE, 2003, IT Security Zones Baseline Security
Requirements, Sue Greaves, Communications Security
Establishment, Ottawa.
CSE, n.d., Introduction to Information Technology
Security, viewed January 2006, <http://www.cse-
cst.gc.ca/tutorials/english/section1/m1/index_e.htm>.
Entrust, 2003, Privilege Management Infrastructure Using
Getaccess Version 7 – Detailed Architecture Report,
from Contract: W2213-2-6111, CSE, Ottawa.
Ferraiolo, David, Kuhn, Rick, 1995, An Introduction to
Role–Based Access Control, NIST/ITL Bulletin,
viewed January 2006, <http://csrc.nist.gov/rbac/NIST-
ITL-RBAC-bulletin.html>.
IBM Microsoft, 2003, Federation of Identities in a Web
Services World, viewed February 2005, <http://www-
128.ibm.com/developerworks/library/specification/ws-
fedworld/>.
IBM, 2005, ‘Federated Identity Management and Web
Services Security with IBM Tivoli Security Solutions’,
IBM Redbooks, Second Edition.
Indrakshi, Ray, Li, Na, France, Robert, Dae–Kyoo, Kim,
2004, ‘Using UML to Visualize Role–Based Access
Control Constraints’, Proceedings of SACMAT ’04,
pp. 115–124.
International Organization for Standardization, 1989,
Information Processing Systems – Open Systems
Interconnection – Basic Reference Model – Part 2:
Security architecture, ISO 7498-2:1989, International
Organization for Standardization, Geneva.
International Organization for Standardization, 2002,
Security techniques — Security information objects for
access control, ISO/IEC 15816:2002, International
Organization for Standardization, Geneva.
Jürgens, Jan, 2002, ‘UMLSec: Extending UML for Secure
Systems Development’, UML 2002 - The Unified
Modeling Language Proceedings, pp. 412–425.
Kendall, Elizabeth, 1999, ‘Role Model Designs and
Implementations with Aspect–oriented Programming’,
OOPSLA ’99 Proceedings, pp. 353–369.
Lodderstedt, Torsten, Basin, David, Doser, Jürgen, 2002,
‘SecureUML: A UML-Based Modeling Language for
Model-Driven Security’, UML 2002 - The Unified
Modeling Language Proceedings, pp. 426–441
Miller, Mark, Yee, Ka–Ping, Shapiro, Jonathan, 2003,
Capability Myths Demolished, Technical Report
SRL2003-02, Johns Hopkins University Systems
Research Laboratory, Baltimore.
Organization for the Advancement of Structured
Information Standards, 2005a, eXtensible Access
Control Markup Language, XACML Version 2.0,
OASIS, Billerica.
Organization for the Advancement of Structured
Information Standards, 2005b, Assertions and
Protocols for the OASIS Security Assertion Markup
Language (SAML) V2.0, OASIS, Billerica.
Tulloch, Mitch, 2003, Microsoft Encyclopedia of Security.
Microsoft Press, Redmond.
Yoder, Joseph, Barcalow, Jeffrey, 1997, ‘Architectural
Patterns for Enabling Application Security, PloP ’97
Proceedings.
© Her Majesty the Queen in Right of Canada, 2007
ICEIS 2007 - International Conference on Enterprise Information Systems
364
