Research on Counter Http DDoS Attacks based on

Weighted Queue Random Early Drop

Guo Rui

, Chang Guiran

, Hou Ruidong

, Baojing Sun

, Liu An

and Bencheng Zhang

College of information science and engineering, Northeastern University, Shenyang China

Electronic scouting and commanding department, College of Shenyang artillery

Shenyang, China

Abstract. This paper proposes a new approach, called Weighted Queue

Random Early Drop admission control, which protects small and medium

online business Web sites against HTTP DDoS attacks. Weighted Queue

Random Early Drop is used to compute dropping probability to avoid bursty

traffic. Weighted Queue scheduler is adopted to implement access rate limit.

The feasibility and effectiveness of our approach is validated by measuring the

performance of an experimental prototype against a series of attacks. The

advantages of the scheme are discussed and further research directions are

given.

1 Introduction

Denial-of-Service (DoS[1]) attacks use legitimate requests to overload the server and

make it hang, crash, reboot, or do useless work. The target application, machine, or

network spends all of its critical resources on handling the attack traffic and cannot

attend to its legitimate clients. Both DoS and DDoS are a huge threat to the operation

of Internet sites, but the DDoS[2,3] problem is more complex and harder to solve.

There are mainly three defense approaches: traceback[4]—with the increase of

zombies this approach will be invalidated rapidly. Filtrate[5]—because this method

requires the communication company and lots of routers to participate, the filter must

be open at all times, and the approach is too costly. Throttle[6]—legitimate data

stream will be limited because too many data streams converge at a central point.

Thus, based on these three methods, three distinct defense approaches emerge:

gateway defense, router defense and computer defense. However, with the developing

of the DDoS technology, there is increasing room for malicious attackers, such as

HTTP DDoS, which appear like normal users and thus nefariously competes for

limited critical resources, which crash the server.

Though DDoS defense approaches are inclined to be based on routers and gateway,

especially for some international websites, this method is cost ineffective for mini

websites. How, then, should mini websites be protected from roboticized attacks? We

propose an innovate new method: combining the Turing test with Weighted Queue

Rui G., Guiran C., Ruidong H., Sun B., An L. and Zhang B. (2007).

Research on Counter Http DDoS Attacks based on Weighted Queue Random Early Drop.

In Proceedings of the 5th International Workshop on Security in Information Systems, pages 73-81

DOI: 10.5220/0002355000730081

 SciTePress

management while filtering connection attempts that do not successfully pass our test

and examination.

2 Admission Control Strategy

2.1 Turing Test

In our test, we consulted the English mathematician Turing and referenced the Turing

test [7]

(figure 1). As we all know, a similar Turing test validation code is widely

applied in BBS and e-mail registration in order to effectively differentiate the host

computer between people and zombies. Although computerized recognition

technology is not as reliable as a live human operator, we can predict that the Turing

test mechanism will perform well in the defense of DDoS.

When the IP address fails to pass our Turing test, we will restrict the user within

10mins and immediately place the IP on our running blacklist. This solves the

problem of IP address substitution by worms or other automatic attacking gadgets that

put actual users out of service from the internet.

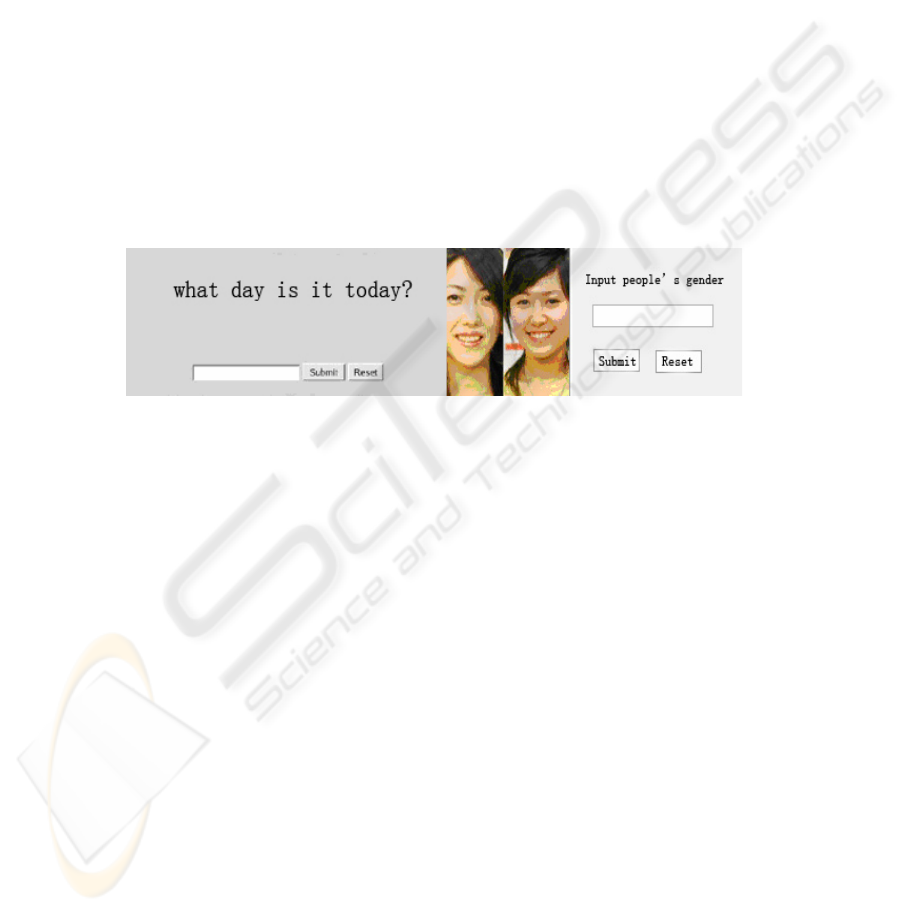

Fig. 1. Turning test.

2.2 The Basic Ideas for the Testing and Restricting Mechanism

Under most circumstances, we do not apply the Turing test except for any IP

addresses that are on the blacklist. When an unknown request comes, we simply

check the IP address with against our blacklist. If there is a match, we drop the

request and cut off the response within 10 minutes. If the IP address is not on the

blacklist, we allow the user to proceed on to the admission control phase. Additionally,

we set threshold parameters for the server under certain categories, such as CPU,

EMS memory, hard disk, interface utilization rate, etc. Once any of these bottleneck

resources reaches the threshold, the server will be set into the admission control state,

and the Turing test will be started up to ensure authentication. The client will be

ordered to correctly pass the Turing test for establishing connection. The number of

failed attempts will also be recorded to check for zombies.

The authentication will mainly be ordered when the server parameters overload

the default threshold value. Legitimate users will either answer the questions

accurately on the first try or manually apply for another Turing test, while worms and

zombies cannot answer the questions appropriately, but will continually send requests.

From differentiating between these two distinct behaviors, the server will accurately

distinguish live people from zombies sending linking requests.

We intend to apply the Turing test into the HTTP connection with a certain

probability (for instance, once the CPU usage rate exceeds 70%) when the web server

is running under the “admission control state.” Under such circumstances, only if the

Turing test question is correctly answered will the service be continued. Otherwise,

the IP address will be put back on the blacklist. (Our implementation limits users to

only ten attempts at authentication through the Turing test).

2.3 The Server Accessing Strategy under Admission Control Mode

Under admission control mode, we apply a Turing test to inspect all incoming

HTTP requests. By amending the TCP/IP Protocol stack

[8,9,10]

(Figure 2), we

guarantee that no resources are allocated before the clients respond correctly. As

the picture shows, two packages will be sent, including one SYN ACK and an

HTTP request data package. Instead of setting up a socket to finish the TCP 3

time-handshakes, the server will ignore the request and combine a Turing test

with one FIN, waiting for the client to respond. The Turing test will be sent again

if the response does not contain the exact answer. On the other hand, once the

question is accurately answered, the TCP connection will be established shortly

after. A cookie will be given only when the following three conditions are met: (1)

the user correctly solves the Turing test (2) the user returns the answer to the

requested server (3) the server checks out the responder information and ensures

that it was engendered within three minutes. The client can use the authorized

cookie to visit resources in the server, and the server will validate both the hash

and the limited time of each cookie. The server side also controls the number of

HTTP request connections from the cookie under a preset maximum amount (in

our implementation, we have set this number at 10). It would be inconvenient to

inspect each HTTP request from legitimate users once the connection has been

established, so an authorized cookie will be delivered that allows a legitimate user

to visit the server without any authentication check. (We set it to 20 minutes in the

implementation)

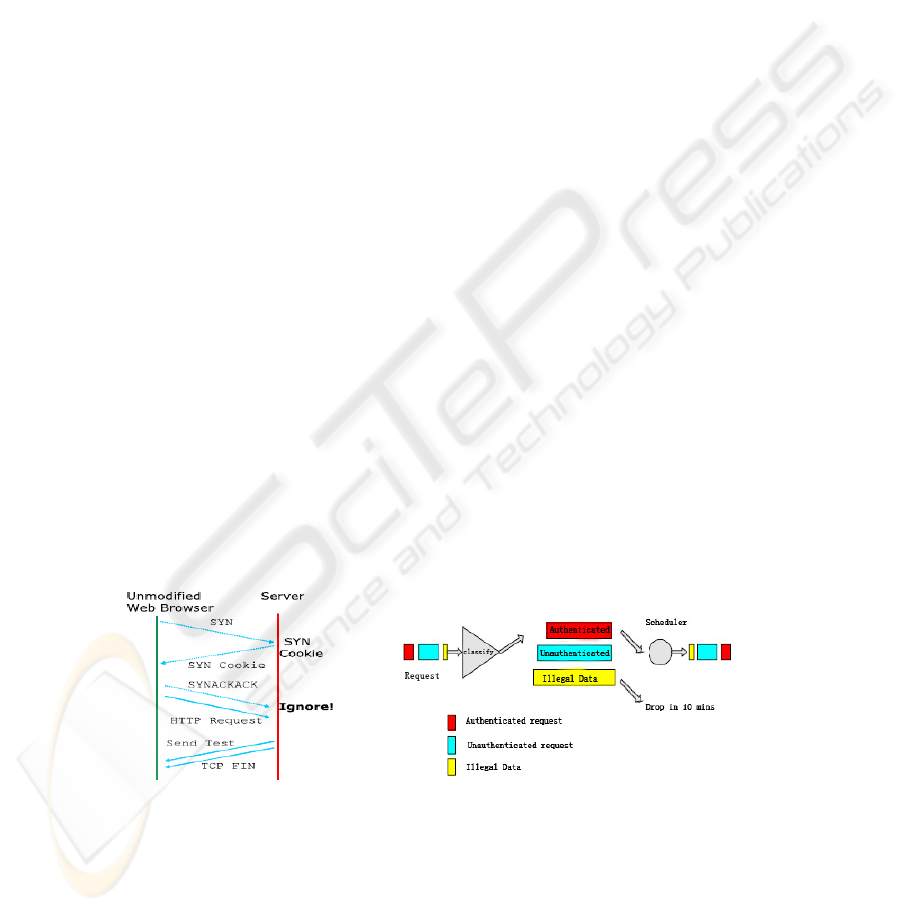

Fig. 2. Modified TCP protocol stack. Fig. 3. Testing and restricting mechanism.

3 The Implementation of Admission Control

Admission control is the core of DDoS defense. Primarily, we hypothesize that the

attacker would overload all of the resources, ultimately leading to a denial of service.

We improved the Weighted Queue management Algorithm method based on the

former algorithm. We used Weighted Queue Random Early Drop (WQRED), which

enhanced throughput noticeably. In the former disposal, we dropped legitimated

connections and suspect requests with the same drop rate. This indiscriminate method

places subjects all users—legitimate and illegitimate—to the same limitation of

resources. Weighted Queue Random Early Drop (WQRED) effectively resolves this

irrationality (Figure 3).

3.1 Weighted Queue Random Early Drop Management Algorithm

The fundamental idea is this: the server makes use of a connection recorder to

differentiate different data streams. Requests that cannot provide a correct answer to a

Turing test after ten attempts are dropped. Within the ten validation attempts, the

placement within the queue will be lowered. If a request passes the authentication,

then the connection requests will be placed in another queue. The position will be

higher in this authenticated queue. The server then sustains two queues to restrict data

stream and resource utilization rates with different weights.

We set a recorder for every connection. When a new request is received, we

handle it in three different ways:

1) If the IP is on the blacklist, we drop the requests that do not correctly solve the

puzzle, cutting off their service within 10 minutes.

2）If the connector can answer correctly, we use a random dropping algorithm.

We setup a queue for legal data stream and make use of a weighted moving

average algorithm to figure out the length of the average queue (L). Once a

segment receives and calculates the length of the average queue, it is compared

with the two thresholds: the maximum length and minimum lengths of the

average queue. When the recalculated average length is smaller than the minimal

parameter, the arrived data packages will be inserted at the tail of the list, and the

discarding-package probability p will become 0. When it is bigger than the

maximum parameter, the package will be discarded, and the probability p will be

set to 1. The received packages will also be discarded with a certain probability p

whenever the average list length is between the Min and Max (p is the linear

function of the average list length). Figure 4 shows the relationship between the

authenticated package drop rate p and the two thresholds.

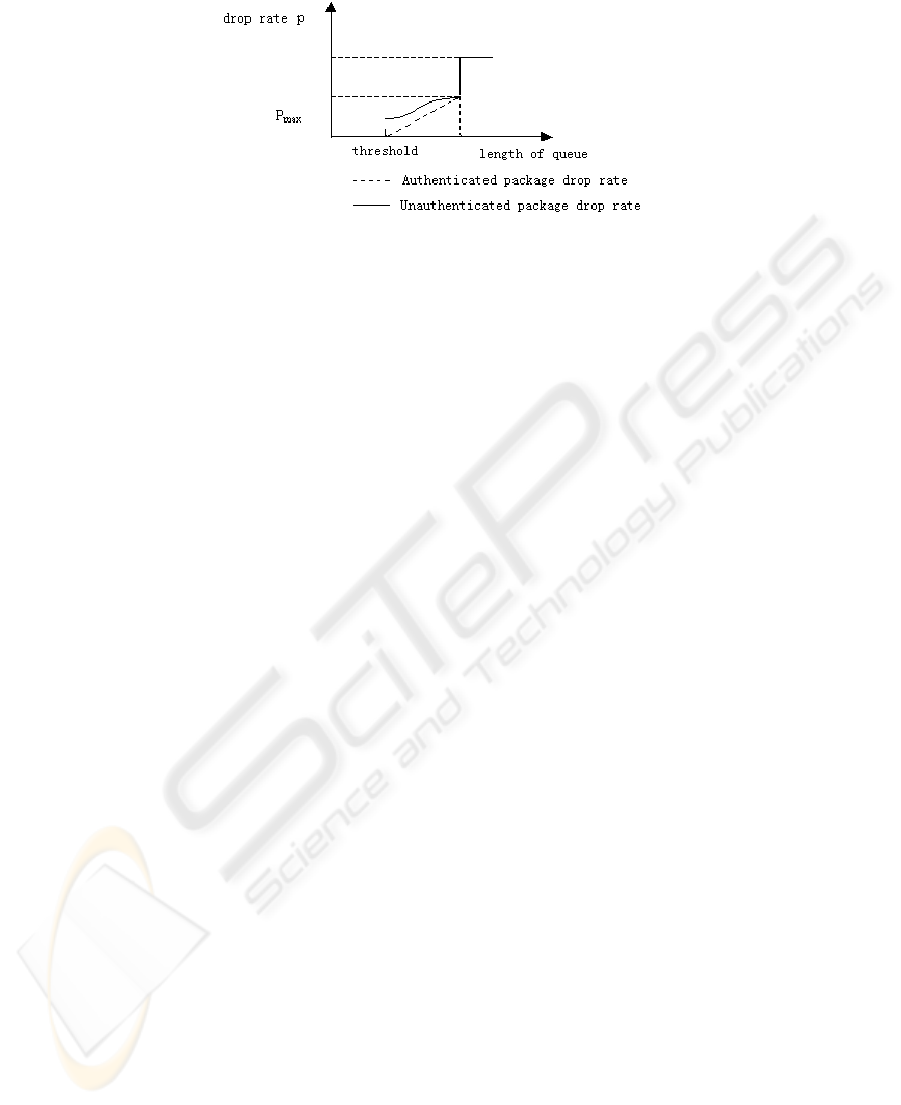

Fig. 4. Request package drop rate under admission control state.

We use a weighted moving average algorithm to calculate the average list length L

and the package dropping probability p, and the maximum dropping rate is p

max

. The

following shows the computing method of L:

L= (1-δ）*（old L）+δ*（current queue） (1)

δ is a number between 0 and 1. Once δ becomes small enough, instead of being

impacted by the short time burst data, L will depend on the permanently changing

tendency of the length of the queue.

There are some improvements for the calculation of dropping probability p

in order to homogenize the package dropping alteration to a higher degree. This

is achieved by computing the transitional dropping probability temp with the

previously introduced algorithm in the first place:

temp＝p

max

×（L－Min）/（Max－Min）

The dropping probability is then computed based on the following equation:

p＝temp/（1-count×temp） (2)

Count is a variable representing the number of data packages that enter into the list.

Generalizing from this equation, we can conclude not only that the dropping

probability p relates to the average queue length, but that it also increases with the

enlargement of preserved data packages (count) in that queue. Doing so effectively

avoids the congregation of data abandonment and precludes the possibility of DoS

when the attack packages accumulate to a certain degree. The algorithm for the

dropping probability is as follows:

for each packet arrival calculate the average queue size L

if min < =L < =max

calculate probability p base on (2)

with probability p drop the arriving packet

else if max< =L

drop t h e arriving packet

The avoidance of data abandonment (including by authorized requests) once the

server is burdened with a huge number of attacks is the essential goal for our

algorithm. The algorithm drops packet at fairly evenly spaced intervals. It effectively

dismisses the global synchronization of legal users and enhances efficiency as well as

resource availability, even without DDoS attacks.

3）For any suspicious data requests that do not fit under the previously mentioned

categories, the initial step is to find the legal dropping probability p. Based on p,

calculate suspicious data dropping probability p by the server’s load with the

following formula:

p=p

max

/2（sin(x-∏/2)+1） (3)

The basic idea of this formula is that when the average queue size is close to the

minimum threshold (meaning the server doesn’t load too much) p is lowered to boost

throughput. When the average queue size is close to the maximum threshold (meaning

the server nearly overload) p is raised to boost throughput, avoiding overloading.

Following this method provides different PRI for legal and illegal requests. We can

thus get steady performance and lower drop rates.

The following shows the computing algorithm:

If Min<=avg<=Max

If pass turingtest

calculate probability p base on 2)with probability p

drop the arriving packet

Elseif during turingtest

calculate probability ps base on 2)3)with

probability ps drop the arriving packet

Else turingtest>10 times

drop t h e arriving packet without puzzle

turning test in 10 mins

Else avg>= Max

drop t h e arriving packet；

In any case, the drop rate of unauthenticated packages is much higher than that

of authenticated packages. At least, it doubles the drop rate of authenticated packages.

This avoids biases and assigns authenticated and unauthenticated packages with

different PRI.

The admission control strategy of DDoS attack is supposed to be consisted of

three independent algorithms: 1. An algorithm calculating the average length of the

queue. 2. An algorithm for computing the drop probability of those packages. 3. An

algorithm for adjusting the drop probability of those unauthenticated packages.

The first algorithm determines the degree of burstiness that will be allowed in the

server. The second algorithm allows for packets to be dropped at fairly evenly spaced

intervals in order to avoid biases and global synchronization. It also allows for

packets to be dropped with sufficient frequency to control the average queue size.

The third algorithm causes the server to assign resources accordingly based on

suspicious request validation, thus enhancing performance.

4 Performance Evaluation and Comparison

The web server is a standard Pentium IV 3 GHz Linux machine with 1GB of memory

and 100Mbps local Ethernet running on top of a modified Linux 2.4.10 kernel. We

modified the kernel code, mostly in the TCP/IP protocol stack, which accomplished

the DDoS protector. For evaluating our system, we launch attacks from 100 different

zombie machines using different port ranges to simulate multiple attackers per zombie.

Each node simulates up to 1000 zombies, which results in a total of 100,000 attack

clients. At the same time, we use Webbench, published by Lionbridge, to test server

performance under attack. Webbench can test the performance of different services

under controlled hardware conditions, as well as of the same service running on

different hardware. Therefore, it is easy to tell the difference in performance between

a base server and a WQRED server. We use WebBench static standard test suites to

test throughput and response time (Figure 5), and we use dynamic standard test suites

to test CPU utilization rate.

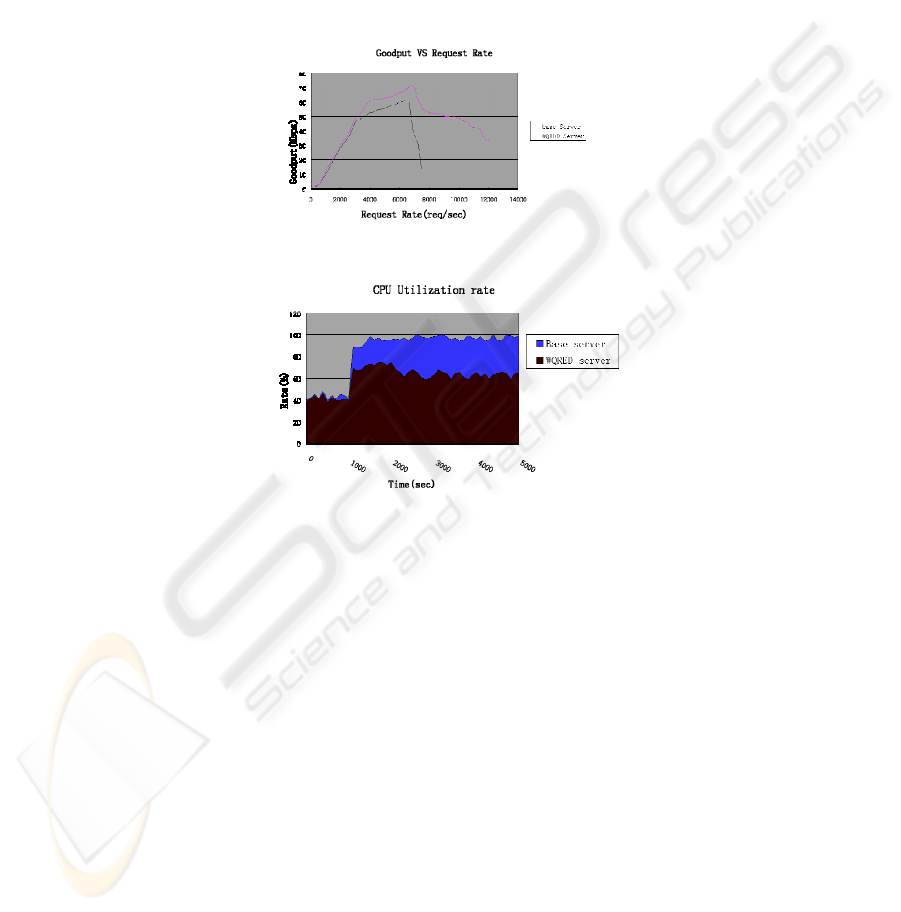

Fig. 5. Throughput VS Request Rate.

Fig. 6. CPU utilization rate and Time.

Figure 6 shows two servers running for both normal requests and attackers. It displays

the throughput of legitimate users at different attack rates for both a base server and

WQRED version. For the base server, when the throughput is very small, throughput

and request rate have a linear relationship. The delay increases very slowly, but after

the Knee is crossed, the throughput increases slowly, and the delay increases quickly.

After the cross cliff, throughput decreases dramatically, the average response time

experienced by legitimate users increases dramatically, and the server is overloaded

and crashes. By contrast, the average response time of users accessing DDoS

protector server is unaffected by the ongoing attacks. Only at the beginning do both of

the servers have the same curve character. After crossing the cliff, the DDoS protector

server won’t crash, but it will begin to filter attack requests while continuing to serve

the authenticated client.

Usually, the CPU can dispose of much faster than request submissions, but the

CPU has to authenticate the client, so the CPU is a bottleneck.

The CPU utilization rate = throughput*service time

so our DDoS protector keeps the CPU utilization rate below 75% under attack. We

can keep the CPU utilization rate below 60% after starting up the authentication

mechanism.

5 Conclusions

The defense mechanism of DDoS attacks, particularly the multi-based,

multi-approached and diversified flow method of offensive artifice, simulating the

competition of legal users, inhabits a keystone and difficulty in the internet security

arena, especially for the mini websites. This dissertation discusses and implements the

Counter HTTP DDoS Attacks based on Weighted Queue Random Early Drop.

Our mechanism is characteristically distinct from current methods:

(1) Utilizes few resources and does not require participation from other routers. In

general, requires nothing from the internet or the management services of ISP.

(2) Allows for simple and convenient updating of the Turing test. A few shares of

restriction codes as well as the amendment of protocol stacks are the only renovations

needed for withstanding DDoS without any negative impact on the clients.

(3) Optimize the web flow. Enhance the server’s efficiency by precluding and

dismissing the overall current abruptness of ordinary flow,

All in all, allocating the server’s resources to both the validation and service

components with more efficiency, and applying the Turing test to larger websites for

DDoS defense are voids we are seeking to fill in this sector of internet security.

References

1. Jelena Mirkovic, Sven Dietrich, Internet Denial of Service: Attack and Defense

Mechanisms, Prentice Hall PTR, December 30, 2004,1－400

2. Siris VA, Application of anomaly detection algorithms for detecting SYN flooding attacks

In: Regency H, ed. Global Telecommunications Conf. (GLOBECOM 2004). Dallas: IEEE,

2004. 2050-2054.

3. Li W, Wu LF, Hu GY. Design and implementation of distributed intrusion detection system

NetNumen. Journal of Software, 2002,13(8):1723-1728

4. Sung M, Xu J. IP traceback-based intelligent packet filtering: A novel technique for

defending against Internet DDoS attacks. IEEE Trans. on Parallel and Distributed Systems,

2003, 14(9):861-872.

5. A. Chandra and P. Shenoy. Effectiveness of dynamic resource allocation for handling

Internet, University of Massachussets, TR03-37, 2003.

6. Liang F, Yau D. Using adaptive router throttles against distributed denial-of-service attacks.

Journal of Software, 2002,13(7): 1120-1127

7. Morein, W.G., Stavrou, A., Cook, D.L., Keromytis, A.D., Misra, V., Rubenstein, D.: Using

Graphic Turing Tests to Counter Automated DDoS Attacks Against Web Servers. In:

Proceedings of the 10th ACM International Conference on Computer and Communications

Security (CCS). (2003) 8-19.

8. S. Kandula, D. Katabi, M. Jacob, and A. Berger. Botz-4-sale:Surviving organized DDoS

attacks that mimic flash crowds. In USENIX NSDI, May 2005.

9. Thomas R, Mark B, Johnson T, Croall J. NetBouncer: Client-Legitimacy-Based

high-performance DDoS filtering. In: Wermer B, ed. DARPA Information Survivability

Conf. and Exposition 2003. Washington: Institute of Electrical and Electronics Engineers,

Inc., 2003. 14-25.

10. 10 Yu Chen, Kai Hwang, Yu-Kwong Kwok, "Filtering of Shrew DDoS Attacks in

Frequency Domain," lcn, pp. 786-793, The IEEE Conference on Local Computer

Networks 30th Anniversary (LCN'05)l, 2005
