AN EVALUATION OF CASE HANDLING SYSTEMS FOR

PRODUCT BASED WORKFLOW DESIGN

Irene Vanderfeesten, Hajo A. Reijers and Wil M. P. van der Aalst

Department of Technology Management, Technische Universiteit Eindhoven

PO Box 513, 5600 MB Eindhoven, The Netherlands

Keywords: Product Based Workflow Design, Case handling systems, Business Process Redesign, Business Process

Management.

Abstract: Case handling systems offer a solution to the lack of flexibility and adaptability in workflow management

systems. Because they are data driven they potentially provide good support for Product Based Workflow

Design (PBWD). In this paper we investigate to which degree current case handling systems (FLOWer and

Activity Manager) are able to support PBWD. This is done by elaborating the design process of a case from

industry in both systems. From this evaluation we concluded that current case handling systems are not yet

completely ready for supporting PBWD. Therefore, we recognize that better tool support is needed to make

PBWD more suitable for practical use.

1 INTRODUCTION

In the past decades, process-orientation has gained a

strong foothold in various fields, notably in the

business management and information systems

disciplines. This is illustrated by the emergence of

process-oriented transformation approaches, like

Business Process Redesign (BPR) (Davenport, 1993;

Hammer & Champy, 1993), on the one hand and

process-aware information systems, like workflow

technology (van der Aalst & van Hee, 2002), on the

other. With this rise, the historic focus on the data

that is being processed within businesses settings -

and by information systems in particular - has

blurred. It should be remembered that during the 70s

and 80s the majority of information systems

development projects would start with a thorough

data analysis, leading to conceptual data models,

while nowadays similar projects typically start with

mapping the business to be supported in the form of

process models.

Recently, nothing short of a data revival has set

in in the Business Process Management (BPM)

community, bringing back attention for data aspects.

This phenomenon can be distinguished in at least

two places. Firstly, various problematic issues with

workflow and BPM systems are being countered

with the introduction of systems that put much more

emphasis on the data that is being handled (e.g. case

handling systems (van der Aalst & Berens, 2001;

van der Aalst, Weske & Grünbauer, 2005)), in this

way moving away from a purely control-flow centric

perspective. Secondly, innovative BPR approaches

are emerging that, rather counter-intuitively, take

business data processing requirements as starting

point for generating a new business process design

(e.g. Reijers, Limam, & van der Aalst, 2003; Sun &

Zhao, 2004).

In this paper, we will investigate to what extent

synchronous movements towards a higher data

awareness in the fields of (i) workflow management

and (ii) business process design can mutually

reenforce each other. In the recent past, we have

worked on the development and application of the

method of Product-Based Workflow Design

(PBWD). This method takes a static description of

an (information) product as a starting point to derive

an improved process design. The idea to focus on

the product instead of on an existing process when

redesigning a process was introduced by (van der

Aalst, 1999) and is based on a similar approach in

manufacturing processes. Since its conception, this

method has been worked out in some detail (Reijers,

2003; Reijers, Limam & van der Aalst, 2003; Reijers

& Vanderfeesten, 2004) and has been successfully

applied in industry in over a dozen of occasions. At

the same time, the manual application of PBWD in

Vanderfeesten I., A. Reijers H. and M. P. van der Aalst W. (2007).

AN EVALUATION OF CASE HANDLING SYSTEMS FOR PRODUCT BASED WORKFLOW DESIGN.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 39-46

DOI: 10.5220/0002356600390046

 SciTePress

practice proves to be a time-consuming and error-

prone affair. It is likely that the absence of

automated tools to support the application of PBWD

hinders the wider adoption of the method, despite its

successes in bringing back cycle time and service

times of actual business processes with 30% or more

(Reijers, 2003). On the road to the development of

PBWD support tools, it seems wise to consider some

of the existing tools that could already deliver

(partial) support for the application of PBWD. A

notable candidate for such support would be current

case handling technology. After all, just like

traditional workflow management systems, case

handling systems operate on the basis of a pre-

defined process model. In contrast to workflow

technology, however, case handling systems

implement various data management features (van

der Aalst, Weske & Grünbauer, 2005).

The objectives of the paper can now be

formulated as follows: (i) to determine whether the

concepts of PBWD can be translated to the concepts

of current case handling systems, (ii) to establish to

what extent build-time features of case handling

systems support the design of workflow models

based on PBWD, and (iii) to find out how current

case handling tools could be enhanced to support

PBWD. Fulfilling these objectives could also be

useful to determine the desirable features of a

specifically tailored support tool for PBWD, i.e.

without using current case handling systems.

The structure of this paper is as follows. In the

next two sections, we will shortly review case

handling systems and the PBWD method

respectively, forming the fundaments of this paper.

In Section 4, we will present our assessment of two

existing case handling technologies, i.e. Pallas

Athena's FLOWer and BPI's Activity Manager. To

conclude the paper, we present the major

implications from our assessment and directions for

further research.

2 CASE HANDLING SYSTEMS

Traditional workflow and BPM systems are

characterized by well-known limitations in terms of

flexibility and adaptability (van der Aalst &

Jablonski, 2000). These limitations can be associated

with the dominant paradigm for process modelling

found in these systems, which is almost exclusively

activity-centric (Dumas, van der Aalst & ter

Hofstede, 2005). The lack of flexibility and

adaptability leads to many problems and inhibits a

broader use of workflow technology. In recent years

many authors have discussed the problem (van der

Aalst & Jablonski, 2000; Agostini & De Michelis,

2000; Casati et al, 1996; Ellis & Keddara, 2000;

Herrmann et al, 2000, Klein, Dellaroca & Bernstein,

1998 and 2000) and different solution strategies

have been proposed. Basically, there are three ways

to provide more flexibility:

• Dynamic change (Ellis & Keddara, 2000;

Reichert & Dadam, 1998; Rinderle, Reichert &

Dadam, 2004).

• Worklets (Adams et al, 2005; Staffware, 2003;

Weske, 2001), and

• Case handling (van der Aalst & Berens, 2001;

van der Aalst, Weske & Grünbauer, 2005).

The basic idea of dynamic change is to allow

changes at run-time, i.e., while work is being

performed processes may be adapted (van der Aalst

& Jablonski, 2000; Ellis & Keddara, 2000; Reichert

& Dadam, 1998; Rinderle, Reichert & Dadam,

2004). Clearly, dynamic change mechanisms can be

used to support flexibility and adaptability.

A dynamic change may refer to a single case

(i.e., process instance) or multiple cases (e.g., all

running instances of a process). Both changes at the

instance level and the type level may introduce

inconsistencies, e.g., data may be missing or

activities are unintentionally skipped or executed

multiple times. A well-known problem is the

"dynamic change bug'' which occurs when the

ordering of activities changes or the process is made

more sequential (Ellis & Keddara, 2000). These

issues have been addressed by systems such as

ADEPT (Reichert & Dadam, 1998; Rinderle,

Reichert & Dadam, 2004). Such a system can

safeguard the consistency of a process. However, an

additional complication is that the people changing

the processes should be able to modify process

models and truly understand the effects of a change

on the whole process. In real-life applications, with

hundreds of tasks, few people are qualified to make

such changes.

Worklets (Adams et al, 2005) allow for flexibility

and adaptability by the late binding of process

fragments. Activities in a process are not bound to a

concrete application or subprocess and only when

they need to be executed a concrete application or

subprocess is selected. YAWL (van der Aalst & ter

Hofstede, 2005) is an example of a system that

implements this idea. In YAWL activities may be

handled by a worklet handler, this handler uses an

extensible set of ripple-down rules to select the right

worklet (i.e., a concrete application or subprocess).

Similar ideas have been proposed by other authors

ICEIS 2007 - International Conference on Enterprise Information Systems

(e.g., Weske, 2001) and even implemented in

commercial systems (cf. the Staffware extension that

allows for process fragments (Staffware, 2003)).

Although the worklets mechanism is easier to be

used by end-users than most dynamic change

mechanisms, the scope is limited and only particular

forms of flexibility and adaptability can be

supported.

Case handling is another paradigm for

supporting flexible and knowledge intensive

business processes. The concept of case handling

offers a solution to the lack of flexibility in

traditional workflow systems (van der Aalst, Weske

& Grünbauer, 2005). Case handling is supporting

knowledge intensive business processes and focuses

on what can be done instead of on what should be

done. To support this, a case handling system is

much more data driven than a workflow system. The

central concept for case handling is the case and not

the routing of work or the activities. The case is the

product that is manufactured in the process based on

the data that is processed. The core features of case

handling are (van der Aalst & Berens, 2001; van der

Aalst, Weske & Grünbauer, 2005):

• to avoid context tunneling by providing all

information available (i.e., present the case as a

whole rather than showing just bits and pieces),

• to decide which activities are enabled on the

basis of the information available rather than the

activities already executed,

• to separate work distribution from authorization

and allow for additional types of roles, not just

the execute role,

• to allow workers to view and add/modify data

before or after the corresponding activities have

been executed (e.g., information can be

registered the moment it becomes available).

These core features of case handling are supported

by systems such as FLOWer (Pallas Athena, 2006).

Other systems such as BPi's Activity Manager

(GYATA BPi, 2006) only support some of these

features. Unlike dynamic change and worklets, case

handling provides implicit flexibility, i.e., there is no

need to change a process model or to select a

particular worklet. Moreover, as the list of core

features suggests, case handling takes a broader

perspective by also incorporating aspects as work

distribution and information collection.

3 PBWD

Product Based Workflow Design, or in short PBWD,

(van der Aalst, 1999; Reijers, 2003; Reijers, Limam

& van der Aalst, 2003; Reijers & Vanderfeesten,

2004) is a revolutionary approach to workflow

process design. It is revolutionary because a clean-

sheet of paper is taken to design the complete

process from scratch. Rather than the activities and

the workflow process itself, it takes the processing

of data and the workflow end product as the central

concepts. This approach has several advantages that

are described in (Reijers, 2003; Vanderfeesten, van

der Aalst & Reijers, 2005). The most important

advantage is that PBWD is rational. In the first

place because the product specification is taken as

the basis for a workflow design, each recognized

information element and each production rule can be

justified and verified with this specification. As a

consequence there are no unnecessary tasks in the

resulting workflow. Secondly, the ordering of (tasks

with) production rules themselves is completely

driven by the performance targets of the design

effort.

The workflow product is represented by a Product

Data Model (PDM), i.e. a network structure of the

components of the product. The approach of PBWD

is very similar to the way in which manufacturing

processes are structured. This will be explained in

more detail in the remainder of this section.

Section 3.1 shortly describes the similar concepts in

manufacturing, while Section 3.2 subsequently

elaborates on the important concepts of PBWD.

Finally, Section 3.3 introduces an industry case as an

example of PBWD, which is used throughout the

assessment of the two concrete systems, as

summarized in Section 4.

3.1 Bill-Of-Material (BOM)

In manufacturing, often a static representation of the

product is used to organise the assembly lines.

Figure 1 shows such a representation for the

assembly of a car. A car is made of 4 wheels, a

chassis, and an engine. The structure of the assembly

line can be derived from the picture as follows: first,

the four wheels and the chassis are put together,

resulting in a subassembly product. Next, the final

assembly takes place by putting the subassembly

product and the engine together. The result is a car.

The representation of the product and its parts is

referred to as the Bill-Of-Material (BOM) (Orlicky,

1972) and is also used in information systems, e.g.

AN EVALUATION OF CASE HANDLING SYSTEMS FOR PRODUCT BASED WORKFLOW DESIGN

MRP- and ERP-systems for production planning and

control.

Manufacturing and service-oriented processes have a

lot in common (Platier, 1996), e.g. process

management in both domains focuses on the routing

of work and the allocation of work to resources.

Because of these similarities it was considered

worthwhile to explore the applicability of some

concepts from the field of manufacturing to

administrative and information intensive processes

(referred to as workflow processes). The PBWD

method derives a process model from the structure

of an (administrative) product. This product

structure is represented with a PDM, as explained in

the next section.

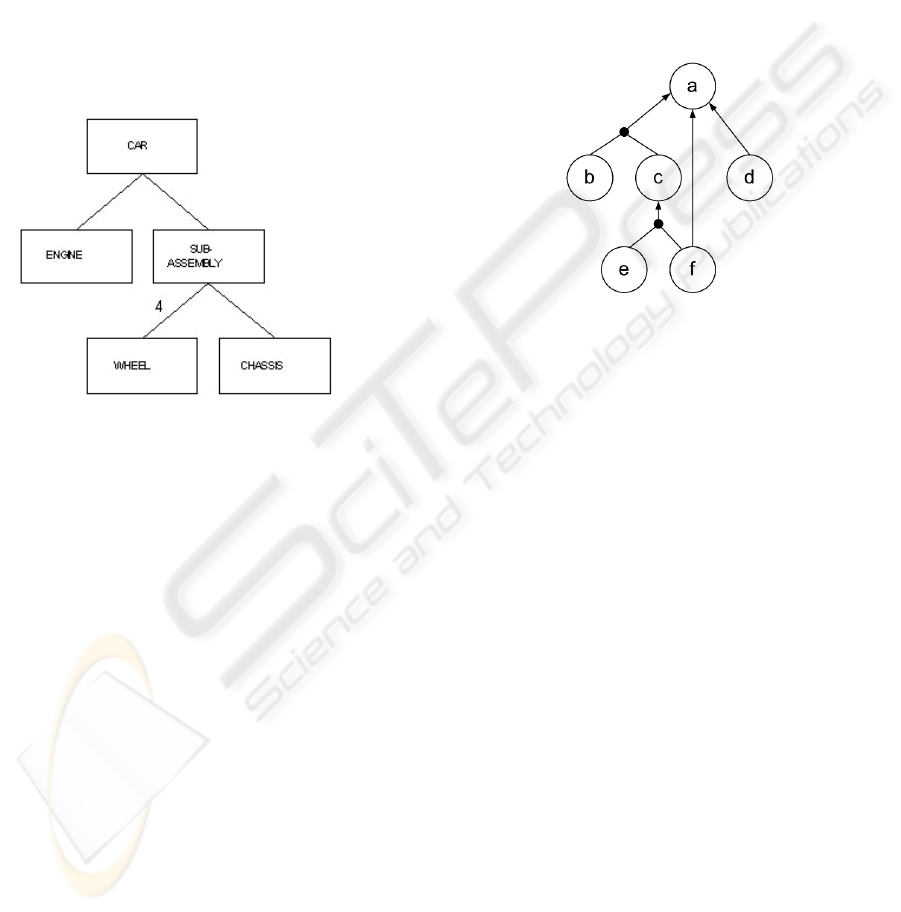

Figure 1: The Bill of Material (BOM) of a car.

3.2 Product Data Model (PDM)

The product of a workflow process can be an

insurance claim, a mortgage request, a social

benefits grant, etc. Similar to a BOM, a PDM of this

product can be made. However, the building blocks

are not the physical parts that have to be assembled,

but the data elements (e.g. name, birth date, amount

of salary, type of insurance and register of holidays)

that have to be processed to achieve new data.

Figure

2 contains a small and simple example,

comparable to the simple BOM of the car in Figure

1. It describes the decision whether an applicant is

allowed for a training to become a helicopter pilot

(see also Reijers, 2003). Persons that want to

become a helicopter pilot should meet some

requirements: they should be healthy, their eye-sight

should be excellent, they should pass a

psychological assessment, and they should not have

been rejected in the previous two years. The figure

shows that the final decision whether a person can

become a helicopter pilot (data element a) is

dependent either on the data elements (b) and (c), or

on (f), or on (d). In reality, these different

combinations reflect the different conditions under

which certain operations can be executed. In case

there is a result of a recent suitability test (d), this

information directly determines the outcome (a).

Also, in case the value for the quality of eye-sight of

the applicant is bad (f) this directly leads to a

rejection (a). In the other cases, the results of both a

psychological (b) and a physical test (c) are needed.

One level lower, the physical test (c) consists of the

results for the quality of reflexes (e) and for the

quality of eye-sight (f).

Figure 2: The product data model which represents the

decision on the suitability to become a helicopter pilot.

The meaning of the elements is as follows: (a) decision for

suitability to become a helicopter pilot, (b) psychological

fitness, (c) physical fitness, (d) latest result of suitability

test in the previous two years, (e) quality of reflexes, (f)

quality of eye-sight.

The data elements of the PDM are depicted as

circles. The operations on these data elements are

represented by arcs. The arcs are 'knotted' together

when the data elements are all needed to execute the

particular operation. Compare, for instance, the arcs

from (b) and (c) leading to (a) on the one hand, to

the arc from (d) leading to (a) on the other in

Figure

2. In the latter case only one data element is

needed to determine the outcome of (a), while in the

case of (b) and (c) both elements are needed to

produce (a).

The helicopter pilot example, which we discussed

here, is very small. Typically, in industry the PDMs

are much larger; possibly containing hundreds of

data elements. Based on such a PDM, a workflow

process model can be obtained by grouping data

elements and operations into activities (see also

Reijers, 2003; Reijers & Vanderfeesten, 2004), as

will be illustrated in the next section.

ICEIS 2007 - International Conference on Enterprise Information Systems

3.3 The GAK Case

In this section we introduce a case from industry as a

motivating example. This example is used in the

assessment of the two contemporary case handling

systems, as described in Section 4. The subject of

the case study is the GAK agency (currently known

as UWV) which is responsible for awarding

unemployment benefits in the Netherlands. The

process in question deals with the decision that the

GAK has to make on whether or not to grant such

benefits once a request has been received. The

typical factors that should be taken into account are

the reason for the applicant to have become

unemployed, the length of the period that the

previous job was held, and the coverage regulations.

The PDM for the GAK case is shown in Figure 3. A

detailed description of the case and of the data

elements can be found in (Reijers, 2003). The next

section describes how we have assessed the process

of design in two contemporary case handling

systems based on the GAK PDM. For this

assessment we have used the process model as it was

manually derived from the PDM in earlier work.

Because of space limitations we can not show the

resulting process model here. However, it can be

found in (Reijers, 2003).

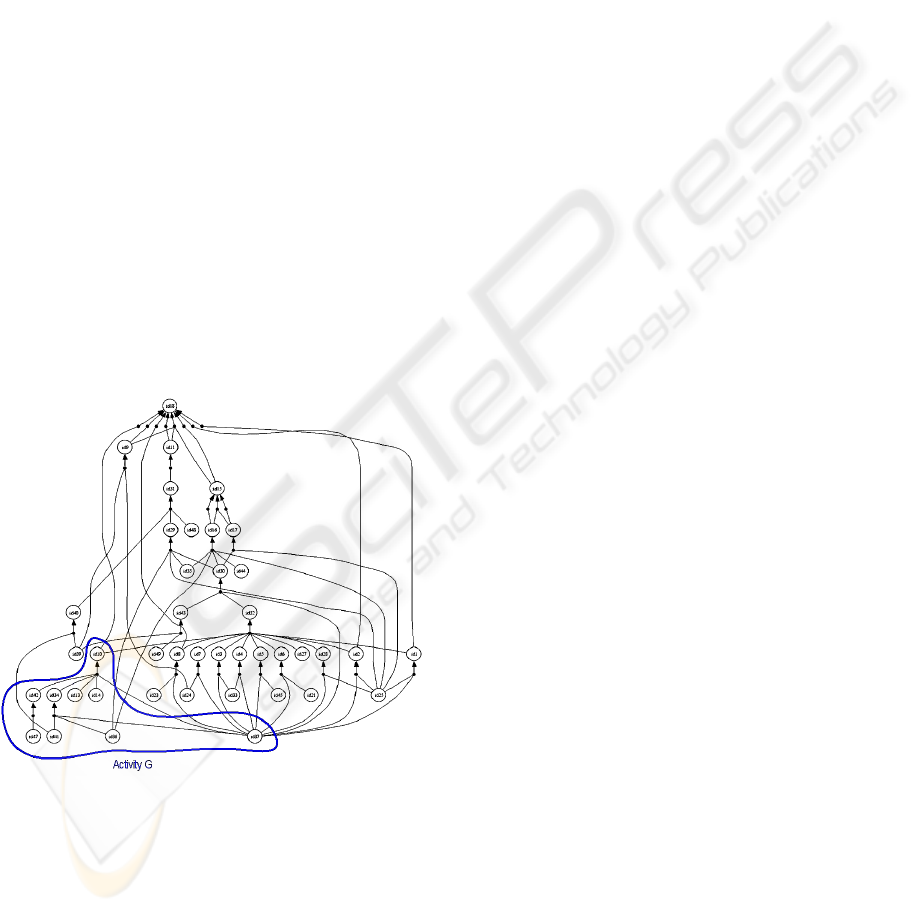

Figure 3: The PDM for the GAK case.

Designing a process model from a PDM mainly

comes down to grouping data elements and

operations in a smart way, considering several

context constraints and requirements on the structure

(e.g. the processing order should be determined such

that the expected number of additional work at any

point in the process is minimized for the average

case). As an illustration, we have indicitated in

Figure 3 the part of the GAK PDM that corresponds

to activity G in the resulting process model (i.e. G

contains the data elements id10, id13, id14, id34,

id36, id37, id41, id42, and id47 and their

corresponding operations.)

4 ASSESSMENT

As was explained in the introduction, workflow

management systems focus on the control-flow

perspective, while case handling systems are more

data-driven. Because of their focus on data, case

handling systems may provide support for PBWD.

In order to investigate their possibilities and

potential support for PBWD, we have selected two

case handling systems:

• FLOWer is a case handling system developed

by Pallas Athena (Pallas Athena, 2006). It

consists of a number of components, of which

FLOWer Studio is the graphical design

environment. FLOWer Studio is used at build-

time to define case definitions consisting of

activities, precedences, data objects, roles and

forms.

• Activity Manager by BPi is an "add-on" that can

be used in combination with a workflow

management system, such as COSA and

Staffware (Kaan, Reijers & van der Molen,

2006). For demonstration purposes also a stand-

alone version can be used. In this research we

used this stand-alone version because it is easier

to manage. Activity Manager combines the

structure and control of a workflow

management system with the flexibility of case

handling. It imports the process model from the

workflow management system via a database

and provides the means to further define the

activities in this model by elaborating the

operations.

When considering the PBWD method in detail, we

think a system that supports this method in a proper

way should at least provide for the following:

• a means to define and view the product

structure.

• a way to define and view the content of each

activity (in terms of data elements and their

relationships).

• proper support for the process of designing a

process model based on the PDM (for example,

it should give the designer some freedom to

AN EVALUATION OF CASE HANDLING SYSTEMS FOR PRODUCT BASED WORKFLOW DESIGN

play around with different designs and

groupings of operations and data elements).

In (Vanderfeesten, van der Aalst & Reijers, 2006)

we have elaborated in detail on the way in which

PBWD can be used to design a process model in

FLOWer and Activity Manager, describing all steps

taken to translate the PDM into the process model. It

is illustrated with a series of screenshots for both

systems (Vanderfeesten, van der Aalst & Reijers,

2006). The focus in both assessments is on the

process of designing and defining the process model

based on the PDM

. In general, the following steps

should be taken and supported by the system to get

from a PDM to a process model:

1. The PDM must be translated to the specific

system. This means that either the data elements

or the operations (or both) must be mapped on

concepts in the system and subsequently be

specified.

2. The activities must be defined as groups of data

elements and/or operations. There must be an

easy way to transfer an operation or data

element from one activity to another, as a way

of exploring various designs. Also, the correct

order of activities must be defined, because

precedence relationships should be respected.

3. The process model must be finalized with for

instance information on resources, conditions,

or activity duration.

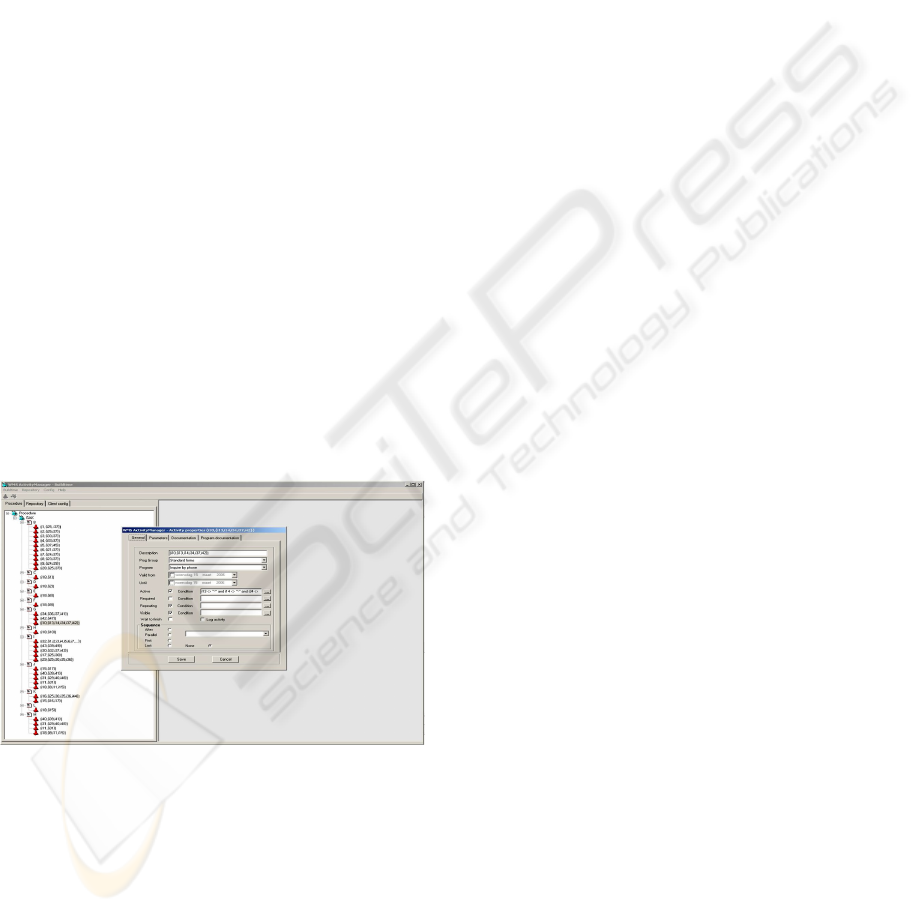

Figure 4: Screenshot of the design environment of Activity

Manager. Note that on the left-hand side all activities are

summarized and their content is shown. For example, the

content of activity G corresponds to the data elements and

operations indicated in Figure 2. The data elements are

represented by their identifiers (e.g. "id29") and operations

are represented by tuples (e.g. (id1,{id25, id37})) with one

output element and a set of one or more input elements.

For a more elaborate explanation we refer to

(Vanderfeesten, van der Aalst & Reijers, 2006).

From our evaluation we can conclude that it was not

at all straightforward to follow these general steps in

both systems

. Therefore, we feel the systems do not

match all requirements that were stated above. For

example, they both did not provide a way to

represent the product structure. In both systems it is

possible to somehow define data elements (in

FLOWer this was easier than in Activity Manager),

but the concept of operations and their dependencies

is less clear to capture with these systems. Since

operations are the main building blocks for

activities, the lack of a clear notion of operations in

the tool might hamper the design process.

Moreover, Activity Manager does not provide the

means to start with defining the data elements. First,

the order of activities has to be established in this

system. This means that there is less freedom in

grouping operations to activities. On the other hand,

it was possible to map all concepts from the standard

workflow terminology (i.e. process, activity,

operation, and data element) to concepts in Activity

Manager. In principle, this mapping should allow for

a smoother embedding of PBWD within the Activity

Manager.

In comparison, FLOWer could not map all workflow

concepts (there was no equivalent for an operation),

but it was possible to easily define, view and change

the content of an activity. A more extensive

discussion on these two tools can be found in

(Vanderfeesten, van der Aalst & Reijers, 2006).

5 CONCLUSION

In this paper we have investigated to what extent

current case handling systems are able to support

PBWD by evaluating FLOWer and Activity

Manager. Both systems still put some emphasis on

the control-flow of the process, despite of their

innovative focus on data. However, in FLOWer we

really can start reasoning from the PDM (i.e. by

starting with the definition of data elements and their

dependencies). This provides the opportunity to

really focus on the grouping of data elements instead

of on the definition of activities directly. By putting

groups of data elements on one form and playing

around with these combinations it is possible to

compose activities based on the data and operations

of the PDM instead of first defining the activities

and afterwards determining what should be done in

these activities.

By contrast, BPi's Activity Manager is

considerably more process driven than data driven,

as it starts from the definition of a process model. Of

ICEIS 2007 - International Conference on Enterprise Information Systems

course, this follows from the fact that Activity

Manager is "added on" to a workflow system, which

only allows Activity Manager to further specify the

process structure already given. Because of this, it is

not possible to directly design a process model

which is purely based on a PDM. The user needs to

have a good understanding of how the activities are

organized and what the content of each activity

should be. This means that the process of designing

a process model based on the PDM should then be

done outside the tool, in such a way that the result

(i.e. the activities including their operations) can be

implemented in the system. This violates our third

requirement, i.e. that the tool itself should provide

some support in the design process. Taking this

design perspective we can remark that FLOWer

offered the best assistance in creating a process

model based on the product structure.

Looking at the evaluation from a conceptual

viewpoint, we can conclude that both systems do not

(yet) provide a facility to display the PDM as a

hierarchical structure. Therefore, this would be a

nice extension in order to use these systems as

PBWD support tools. However, all concepts of the

PDM and PBWD could be mapped to concepts in

Activity Manager, while FLOWer is able to

represent all concepts except for the operations.

This evaluation shows that current case handling

systems, and thus current workflow technology in

general, are not yet completely ready for PBWD.

The research challenge now is to develop good

support for applying this method in practice. The

first contribution of this assessment is an overview

of how existing systems can be improved to support

PBWD. In close cooperation with suppliers of case

handling systems we will further investigate the

opportunities of using their systems. Secondly, we

have learned some lessons for the development of

specific tools for PBWD support. It seems to be

important to (i) display and edit the PDM in the tool,

and (ii) to somehow circumvent direct relations from

activities to data elements. Finally, future work will

focus on the discovery and collection of data

elements and their relationships (i.e. the derivation

of a PDM). At this point in time, the ProM import

framework for process mining (van der Aalst et al,

2003) already supports mining based on data

elements (Guenther & van der Aalst, 2006). On a

general level, this research shows that current

workflow technology is not neutral towards the kind

of process design. Even data-focused technology,

such as case handling systems, still needs some

control-flow information right from the start of the

design process.

ACKNOWLEDGEMENTS

This research is supported by the Technology

Foundation STW, applied science division of NWO

and the technology programme of the Dutch

Ministry of Economic Affairs. We gratefully

acknowledge the technical assistance from Pallas

Athena and Gyata BPI.

REFERENCES

Aalst, W.M.P. van der, 1999. On the automatic generation

of workflow processes based on product structures.

Computers in Industry, 39, pp. 97-111.

Aalst, W.M.P. van der, Berens, P.J.S., 2001. Beyond

workflow management: product-driven case handling.

In Ellis, S., Rodden, T., and Zigurs, I., editors,

International ACM SIGGROUP Conference on

Supporting Group Work (GROUP 2001), pp. 42-51,

ACM Press, New York.

Aalst, W.M.P. van der, Hee, K.M. van, 2002. Workflow

management: models, methods, and systems. MIT

press, Cambridge, MA.

Aalst, W.M.P. van der, Hofstede, A.H.M. ter, 2005.

YAWL: Yet Another Workflow Language.

Information Systems, 30 (4), pp. 245-275.

Aalst, W.M.P. van der, Jablonski, S., 2000. Dealing with

workflow change: identification of issues and

solutions. International Journal of Computer Systems,

Science, and Engineering, 15 (5), pp. 267-276.

Aalst, W.M.P. van der, Dongen, B.F. van, Herbst, J.,

Maruster, L., Schimm, G., and Weijters, A.J.J.M.,

2003. Workflow mining: a survey of issues and

approaches. Data and Knowledge Engineering, 47 (2),

pp. 237-267.

Aalst, W.M.P. van der, Weske, M., Grünbauer, D., 2005.

Case handling: a new paradigm for business process

support. Data and Knowledge Engineering, 53 (2), pp.

129- 162.

Adams, M., Hofstede, A.H.M. ter, Edmond, D., and Aalst,

W.M.P. van der, 2005. Facilitating flexibility and

dynamic exception handling in workflows. In: Belo,

O., Eder, J., Pastor, O., and Falcao e Cunha, J., editors,

Proceedings of the CAiSE'05 Forum, pp. 45-50,

FEUP, Porto, Portugal.

Agostini, A., De Michelis, G., 2000. Improving flexibility

of workflow managment systems. In: Aalst, W.M.P.

van der, Desel, J., and Oberweis, A., editors, Business

Process Management: models, techniques and

empirical studies, volume 1806 of Lecture Notes in

Computer Science, pp. 218-234, Springer-Verlag,

Berlin.

Casati, F., Ceri, S., Pernici, B., and Pozzi, G., 1996.

Workflow Evolution. In: Proceedings of ER '96, pp.

438-455, Cottubus, Germany.

AN EVALUATION OF CASE HANDLING SYSTEMS FOR PRODUCT BASED WORKFLOW DESIGN

Davenport, T.H., 1993. Process innovation: reengineering

work through information technology. Harvard

Business School Press, Boston.

Dumas, M., Aalst, W.M.P. van der, Hofstede, A.H.M. ter,

2005. Process-aware information systems: bridging

people and software through process technology.

Wiley & Sons.

Ellis, C.A., Keddara, K., 2000. A workflow change is a

worklfow. In: Aalst, W.M.P. van der, Desel, J., and

Oberweis, A., editors, Business Process Management:

models, techniques and empirical studies, volume

1806 of Lecture Noted in Computer Science, pp. 201-

217, Springer-Verlag, Berlin.

Guenther, C.W., Aalst, W.M.P. van der, 2006. Mining

activity clusters from low-level event logs. BPM

report, http://is.tm.tue.nl/staff/wvdaalst/BPMcenter/-

reports.htm .

GYATA BPi, 2006. GYATA BPi website. http://www.-

gyatabpi.com, retrieved on November 15, 2006.

Hammer, M., Champy, J., 1993. Reengineering the

corporation. Nicolas Brealey Publishing, London.

Herrmann, T., Hoffmann, M., Loser, K.U., and Moysich,

K., 2000. Semistructured models are surprisingly

useful for user-centered design. In: De Michelis, G.,

Giboin, A. Karsenty, L., and Dieng, R., editors,

Designing Cooperative Systems (Coop 2000), pp. 159-

174, IOS Press, Amsterdam.

Kaan, K., Reijers, H.A., and Molen, P. van der, 2006.

Introducing case mangagement: opening workflow

management's black box. In S. Dustdar, J.L. Fiadeiro,

and A. Sheth, editors, Proceedings of the 4th

International Conference Business Process

Management (BPM 2006), volume 4102 of Lecture

Notes in Computer Science, pp. 358-367, Springer

Verlag, Berlin, 2006.

Klein, M., Dellarocas, C., and Bernstein, A., editors, 1998.

Proceedings of the CSCW-98 Workshop Towards

Adaptive Workflow Systems, Seattle, Washington.

Klein, M., Dellarocas, C., and Bernstein, A., editors, 2000.

Adaptive Workflow Systems, volume 9 of Special

issue of the journal of Computer Supported

Cooperative Work.

Orlicky, J.A., 1972. Structuring the bill of materials for

MRP. Production and Inventory Management, pp. 19-

42.

Pallas Athena, 2006. Pallas Athena website.

http://www.pallas-athena.com, retrieved on November

15, 2006.

Platier, E.A.H., 1996. A logistical view on business

processes: BPR and WFM concepts (in Dutch). PhD

thesis, Eindhoven University of Technology,

Eindhoven, the Netherlands.

Reichert, M., Dadam, P., 1998. ADEPTflex: supporting

dynamic changes of workflow without loosing control.

Journal of Intelligent Information Systems, 10 (2), pp.

93-129.

Reijers, H.A., 2003. Design and control of workflow

processes: business process managment for the

service industry, volume 2617 of Lecture Notes in

Computers Science, Springer-Verlag, Berlin.

Reijers, H.A., Limam, S., and Aalst, W.M.P. van der,

2003. Product-based workflow design. Journal of

Management Information Systems, 20 (1), pp. 229-

262.

Reijers, H.A., Vanderfeesten, I.T.P., 2004. Cohesion and

coupling metrics for workflow process design. In:

Desel, J., Pernici, B., and Weske, M., editors,

International Conference on Business Process

management (BPM 2004), volume 3080 of Lecture

Notes in Computer Science, pp. 290-305, Springer-

Verlag, Berlin.

Rinderle, S., Reichert, M., and Dadam, P., 2004.

Correctness criteria for dynamic changes in workflow

systems: a survey. Data and Knowledge Engineering,

50 (1), pp. 9-34.

Staffware, 2003. Staffware Process Suite Version 2 –

White Paper. Staffware PLC, Maidenhead, UK.

Sun, S.X., Zhao, J.L., 2004. A data flow approach to

workflow design. In: Proceedings of the 14

Workshop on Information Technology and Systems

(WITS'04), pp. 80-85.

Vanderfeesten, I., Aalst, W.M.P. van der, and Reijers,

H.A., 2005. Modelling a product based workflow

System in CPN Tools. In: Jensen, K., editor,

Proceedings of the 6

workshop on the practical use of

coloured Petri Nets and CPN Tools (CPN 2005),

volume 576 of DAIMI, pp. 99-118, Aarhus, Denmark.

Vanderfeesten, I., Reijers, H.A., and Aalst, W.M.P. van

der, 2006. Product Based Workflow Design with Case

Handling Systems. Beta Working Paper, no. 189,

Technische Universiteit Eindhoven, Eindhoven.

Available from http://www.tm.tue.nl/beta/ .

Weske, M., 2001. Formal foundation and conceptual

design of dynamic adaptations in a workflow

management system. In: Sprague, R., editor,

Proceedings of the thirty-fourth annual Hawaii

International Conference on Systems Science (HICSS-

34). IEEE Computer Society Press, Los Alamitos,

California.

Note that the process of designing and defining a process model

based on a PDM is different from the common way in practice to

design a process model. Instead of using a subjective workshop

setting (i.e. interviews, observations, etc.) to discover the process

model, a more objective approach is used starting from the

product structure.

A detailed description of the translation of the PDM to a process

model in both systems can be found in (Vanderfeesten, van der

Aalst & Reijers, 2006), including two series of screenshots for the

two systems.

ICEIS 2007 - International Conference on Enterprise Information Systems
