AUTOMATIC ORCHESTRATION OF WEB SERVICES

THROUGH SEMANTIC ANNOTATIONS

Philippe Larvet

Alcatel CIT, Research and Innovation, Route de Nozay, 91461 Marcoussis, France

Keywords: Web service, business process, orchestration, service composition, semantic web service, semantic

annotation.

Abstract: A new service can be developed as an orchestrated composition of existing web services. This paper describes

an original process to automate the composition of semantic web services, by processing their "semantic tags".

These tags can be extracted from the WSDL descriptions of the services and inserted into a light semantic

description attached to the operations of the considered web services. A specific mechanism can examine these

tags and determine automatically the possible "connectivity" of two given web services: the output of WS1, for

example, semantically fits with the input of WS2. Then, the two web services are semantically connectable. This

process can be used within the context of a service creation environment, in which the developer often wishes to

assemble different services corresponding to an initial request. By using the semantic tags, a specific

composition mechanism is able to connect automatically the chosen services and to assemble them to produce

the final service that fits with the original request.

1 PROBLEMATIC OF WEB

SERVICES DEVELOPMENT

Web services, as they are often stateless and

contextless pieces of software, accessible from any

point of Internet, are more and more suitable and

convenient to build light and reusable applications.

Globally, from the point of view of their internal

complexity, web services (WS) can be divided in two

families : elementary WS and composite WS.

The elementary ones provide a basic service,

comparable to mathematical libraries, and contain a

low level of data transformation, embedded in few

algorithms; for example, translation services are

elementary WS.

On the contrary, the composite WS are able to provide

a high level service and contain several levels of data

accesses and transformations, given by the cooperation

of several elementary services. For example,

reservation services or secured-payment services are

samples of composite WS.

If elementary Web Services can be built and relatively

easily deployed with standard environments like Java

with Apache/Axis or C# with .NET platforms, it could

be interesting to have at one's disposal a powerful

mechanism to compose WS as aggregations of existing

services.

The main problem addressed by this desired

mechanism is to express the aggregation of the legacy

services, their interaction and the way they have to run

in order to reach their objective and to provide the

final service.

Several composition techniques exist today, and even

if the industry is not yet agree on a common language,

there are two languages that are considered as

complementary:

• WSBPEL (Web Services Business Process

Execution Language) or BPEL (BPEL,

2005), (Kavantzas, 2003): it describes the

interactions between web services, including

business logic and order of the interactions

• WS-CDL (Web Services Choreography

Description Language) (Kavantzas, 2004): it

describes the messages exchanged between

web services, including order and constraints

on these exchanges.

Like BPEL, we focuse in this paper on the description

of the orchestration (Peltz, 2003). But BPEL is not the

only way to describe a business logic: Java or C# can

also be used.

269

Larvet P. (2007).

AUTOMATIC ORCHESTRATION OF WEB SERVICES THROUGH SEMANTIC ANNOTATIONS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - SAIC, pages 269-274

DOI: 10.5220/0002357402690274

 SciTePress

With SAMPAN, a multi-actor and agnostic Simple &

Agile Method and Platform for service AggregatioN

and deployment (Larvet, Bonnin, Ferres, Fontaine,

2005), we have proposed in 2005 an original way to

solve this problem: an orchestration is derived from a

constrained natural language description of the

requested service.

All these solutions are based upon a formal (in BPEL

or CDL) or pseudo-formal (in SAMPAN) description

of the requested composite service. But, if we add a

suitable description to the services to be composed,

would they not become able to make themselves their

composition? This is the challenge we propose to

solve in this paper.

2 SEMANTIC WEB SERVICES

COMPOSITION

A service contains several operations, and when we

say service composition, in fact we mean composition

of the operations that belong to their respective

services.

The main idea to allow an automatic composition is to

complete the description of the operations of the

potentially composable services by adding to them

some metadata that give useful and semantic

information concerning the operations.

If these semantic informations are suitably chosen and

set, the connectivity of the services becomes possible.

For example, if the output of WS1.operation_A()

semantically fits with the input of

WS2.operation_B(), then WS1 can be

composed with WS2, through the link "output of A" to

"input of B", and we are authorized to write something

like:

out_A=WS1.operation_A(A_parameters);

out_B = WS2.operation_B(out_A);

or, more directly:

out_B=WS2.operation_B(WS1.operation_A(

A_parameters));

Figure 1: Connectivity of two services through a semantic

equivalence between inputs and outputs.

In this schematic example (see Fig.1) we consider

WS1 is connectable to WS2 through the operations

WS1.operation_A() and WS2.opration_B()

because the output of WS1.operation_A() is

semantically equivalent to the input of

WS1.operation_B(). Then, we can imagine an

orchestration of WS1 and WS2 in which

WS2.operation_B() is called just after

WS1.operation_A() and consumes as an input

the data provided by WS1.operation_A() as an

output.

This connection is possible because of the semantic

equivalence between the output of a given operation of

the first service and another operation of the second

one. What does that mean? It means that the two data

have the same semantic "dimension", i.e. they

semantically fit together - they are process-compatible.

In other terms, they have not only the same data type,

but the same "nature" of data.

For example, let us suppose WS1.operation_A()

provides a text, and WS2.operation_B() is the

Translate operation of a service Translator: it makes

sense to translate a text, then the output of

WS1.operation_A() has to fit with the input of

Translator.Translate. But suppose now that

WS1.operation_A() provides the stock value for

a given company. This value and the text taken as

input by Translator.Translate can have the same data

type (String), they are not semantically equivalent,

because it doesn't make sense to try to translate a stock

value. Then, the semantic information attached to

these two data must be different, and consequently the

two operations are not connectable.

To make possible the semantic connectivity between

two web services, we propose to attach to each

parameter of each operation a semantic information

that we call a semantic tag. This tag can be seen as a

"tagged value", as defined in UML (Rumbaugh,

Booch, Jacobson, 2004) and is intended to extend the

semantics of the tagged parameter.

The semantic tags are set in a formal XML description

of the web service, derived from its WSDL, and that

we consider as a light "semantic WSDL", but without

the complexity of SAWSDL (W3C, 2006).

For example, the Fig. 2 below shows the "Semantic

Light WS Description" (SLWD) for the service

Translator, in which the semantic tags have been

mentioned.

WS1

eration

WS2

eration

out_A

output

aramete

input

aramete

semantic equivalence

ICEIS 2007 - International Conference on Enterprise Information Systems

270

<URL>http://xxx.xx.xx.xx/services/Tra

nslationService.asmx</URL>

<input name="src_lang"

typ="string" semtag="language" />

<input name="dest_lang"

typ="string" semtag="language" />

<input name="text_to_ translate"

typ="string" semtag="text" />

<output name="translated_ text"

typ="string" semtag="text" />

</operation>

</service>

Figure 2: Semantic Light WS Description (SLWD) of

Translator service, with semantic tags.

Nota: within the context of our Alcatel projects, we

use some other semantic constructs in SLWD, for

example <goal> in order to describe semantically the

goal of an operation. But intentionally we don't show

here these details, because they are not used to help the

automatic services composition.

3 SETTING SEMANTIC TAGS IN

WEB SERVICES

DESCRIPTIONS

The web service description written in SLWD, as

shown in Fig.2 above, can be generated from the

WSDL. But how to set automatically the semantic

tags? In the scope of our projects, we use a specific

Semantic Module to do it.

This Semantic Module analyzes the names and types

of the operations' parameters, as described in WSDL,

and searches semantic correspondances in a specific

ontology.

This ontology contains the links between the

semantics of the current names and types of input and

output data, as they are usually used by programmers,

and the corresponding semantic tags.

For example, a data named "text" or "content" or

"translated_page" or "description", with the type

"string", will have the semantic tag "text" – because

the data has the "dimension" of a text. A data named

"date" or "current_date", with a type "Date" or

"String" will have the semantic tag "date", etc.

This ontology can be expressed as a simple

correspondence table, as shown in Fig. 3 below.

Data name Type Semantic Tag

text, content, page,

description, …

String text

date, current_date,

…

String |

Date

date

phone_number,

mobile_phone, …

String telephone_number

lang, language,

dest_lang, srce_

lang, …

String language

postal_code,

zip_code,

city_code, …

String zip_code

…

Figure 3: Ontology for automatic setting of semantic tags in

WS light descriptions.

Such an ontology is easy to build and to improve little

by little, by analyzing the contents of published

WSDL that show the practice of programmers and

then, by summarizing their "good usages".

4 AUTOMATIC SEMANTIC WEB

SERVICES COMPOSITION

Let us take an example to describe the process that

takes into account the semantic tags in order to build

an automatic orchestration of web services.

We want to compose a new service, from a user's

request: "I want a french version of the latest news

from Reuters". This request could be expressed into a

formal language or directly in natural language – this

is outside the scope of the present paper.

The analysis of the request determines the needs of

services able to cover the query and a specific

Discovery mechanism has to search – and to find – the

available services.

Within the context of our example, let us suppose that

two main services have been discovered: a RSS

service and a Translation service. The RSS service

aims to gather informations from RSS feeds accessible

on Internet, and contains two operations:

GetRSSTitles allows to get the main titles of the feed

for a given URL, and GetDescriptionOfTitle allows to

get the text of the news that details this title. The Fig. 4

below shows the SLWD for this service.

AUTOMATIC ORCHESTRATION OF WEB SERVICES THROUGH SEMANTIC ANNOTATIONS

271

<url>http://xxx.xx.xx.xx/services/RS

S_Service/RSS_Service.asmx</url>

<input name="adr_site"

typ="string" semtag="URL" />

<output name="list_of_titles"

typ="string[]" semtag="title" />

</operation>

<operation

name="GetDescriptionOfTitle">

<input name="site_address"

typ="string" semtag="URL" />

<input name="title" typ="string"

semtag="title" />

<output name="description"

typ="string" semtag="text" />

</operation>

</service>

Figure 4: Semantic Light Description for the RSS Service.

The Translation service is a classical one, that

transforms a text (given as an input parameter) written

in a given source language (input) into a translated text

(output) written in a destination language (input). The

SLWD of this service is shown in Fig.5 below:

<url>http://172.25.75.xx/services/Trans

lationService/Translation.asmx</url>

<input name="src_lang"

type="string" semtag="language" />

<input name="dest_lang"

type="string" semtag="language" />

<input name="text_to_translate"

type="string" semtag="text" />

<output name="translated_text"

type="string" semtag="text" />

</operation>

</service>

Figure 5: Semantic Light Description for the Translation

Service.

Now, the problem is to compose automatically these

two services – these three operations (see Fig.6) – in

order to cover the original request: provide a french

version of the latest CNN news.

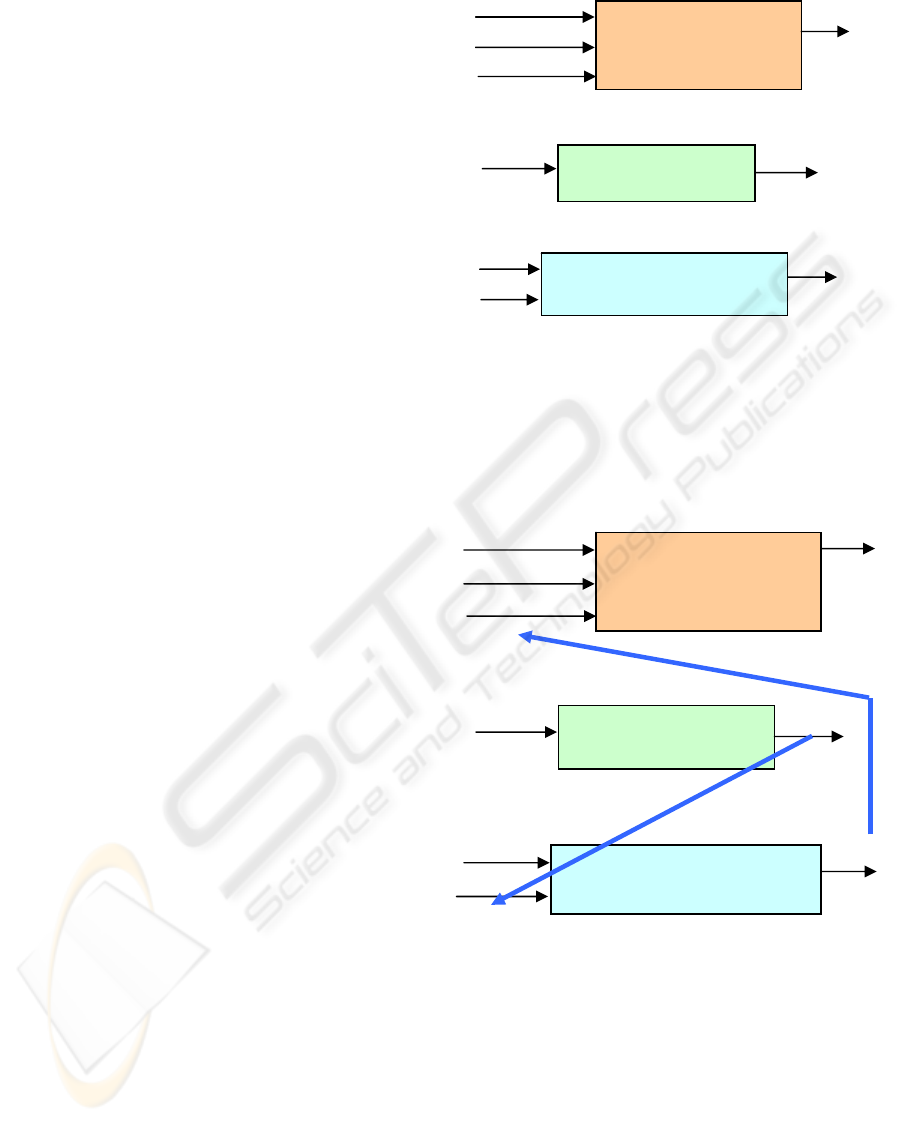

Figure 6: How to compose automatically these 3 operations?

For an automatic orchestration, the first key is to see

the semantic tags as inputs and outputs of the

operations. Then, some possible connectivities appear

(see Fig.7), but not precise enough to make a full-

consistent composition.

Figure 7: Some possible connections (in blue) appear thanks

to the semantic tags.

The second key – the real bootstrap of the process – is

to consider the main output of the targeted composed

service, to search which operation(s) can provide its

inputs, and to iterate the same process for this(ese)

operation(s): search which other operation(s) can

provide its(their) inputs. Then, progressively we go

back from the main output to the input data necessary

to produce it, and doing this, we assemble

automatically the different operations by linking their

title

RSS.GetRSSTitles

adr_site

list of titles

RSS.GetDescriptionOfTitle

site_address

description

text to translate

Translation.Translate

src lan

dest_lang

translated_text

title

RSS.GetRSSTitles

title

RSS.GetDescriptionOfTitle

URL

text

Translation.Translate

text

language

URL

ICEIS 2007 - International Conference on Enterprise Information Systems

272

outputs and inputs. In the same time, we can write

these links in a FILO stack (first in, last out) under the

form of a pseudo-code expressing the calls of

operations. At the end of this process, the content of

the stack represents the orchestration of the new

targeted service.

The main output of the targeted service is given by the

expression of the original request. For our example,

one wants a translated version: the main output is a

translated text, i.e. the output of the operation

Translation.Translate. We can write in the

stack this main output, expressed as the "return" of the

function represented by the targeted orchestration:

translated_text =

Translation.Translate(src_lang,

dest_lang, text_to_ translate);

return translated_text;

Then, we go back now to the inputs of this operation,

whose the semantic tags are "language", "language"

and "text". A data with a semantic tag "text" is

provided by RSS.GetDescriptionOfTitle,

then we can connect this operation to

Translation.Translate: it means that we can

add in the stack the call of operation

RSS.GetDescriptionOfTitle, making the link

with Translation.Translate through the name

of the exchanged parameter:

text_to_translate =

RSS.GetDescriptionOfTitle(site_addr

ess, title);

translated_text =

Translation.Translate(src_lang,

dest_lang, text_to_ translate);

return translated_text;

Now, we go back to the inputs of

RSS.GetDescriptionOfTitle, whose the

semantic tags are "URL" and "title". A data with a

semantic tag "title" is provided by the operation

RSS.GetRSSTitles, and then we can connect also

these two operations, by pushing a new operation call

in the stack:

title = RSS.GetRSSTitles(adr_site);

text_to_translate =

RSS.GetDescriptionOfTitle(site_addres

s, title);

translated_text =

Translation.Translate(src_lang,

dest_lang, text_to_ translate);

return translated_text;

All the "discovered" services being used and

connected together, the stack contains now the general

texture of the orchestration. However, this texture

must be refined before to be executed:

- the data types must be taken into account; for

example, RSS.GetRSSTitles returns an

array of String and not a single String;

- some parameters can be solved with some useful

informations contained in the original request;

for example, one wants a french translation, then

the parameter "dest_lang" of the operation

Translation.Translate can be set to

"french";

- some other services can be used to solve other

parameters; for example, the parameter

"src_lang" can be set by using a utility service, a

"Language Finder", to determine automatically

the source language of a given text.

A specific module, whose the detailed description is

outside the scope of this paper, makes these

refinements in order to complete the pseudo-code:

String[] Orchestration(String

site_address) {

String[] result;

titles =

RSS.GetRSSTitles(site_address);

foreach title in titles {

text_to_translate =

RSS.GetDescriptionOfTitle(site_addr

ess, title);

source_lang =

LanguageFinder.GetLanguage(text_to_

translate);

translated_text =

Translation.Translate(source_lang,

"french", text_to_translate);

add to result title +

translated_text;

}

return result;

}

This pseudo-code can be finally transformed into an

executable BPEL file, for example, and transferred to

a BPEL engine, or it can be translated into C# or Java

and deployed as a new web service in Microsoft IIS or

Apache/Axis environments.

5 PERSPECTIVES AND WORK IN

PROGRESS

Today, the building of the correspondence table used

to add the semantic tags to the light web services

semantic descriptions (see Fig.3) is still partially

AUTOMATIC ORCHESTRATION OF WEB SERVICES THROUGH SEMANTIC ANNOTATIONS

273

manual. This table comes from the analysis of the

WSDL content of our published web services.

We are currently working on a semantic module able

to expand the names of the operation parameters found

in WSDL and to search these expansions in external

ontologies, in order to discover their semantics. For

example, "lang" could be expanded into "language",

"src" could become "source", etc. and this clarification

allows a better search of the meaning of the term in

appropriate ontologies.

Another effort is made on the composition process

itself. In some cases where more than three operations

have to be composed together, some unexpected loops

or dead ends can occur; in other cases, a mediation

between data is necessary, for example to connect an

operation using a date expressed by three parameters

"day", "month", "year" with another operation where

"date" is only one parameter "dd/mm/yyyy". These

kinds of cases demand a more effective composition

module, on which we are currently working today.

6 CONCLUSION

We have tried to show in this paper a new strategy to

compose automatically web services by using simple

semantic annotations.

This strategy has several advantages:

- it is simple to implement: an adapted pre-

processing can easily build a light description of

a web service from its WSDL, and a post-

processing, using a simple correspondence table,

can complete this description by setting semantic

tags;

- it allows the processing of formal requests (or

even natural language requests), where the user

expresses the final service he wants; the

processing of a formal request allows to

determine (to discover) the pertinent services to

be composed;

- it allows the automatic composition of a set of

services that are given in any order; the logical

order of the composition – the order of the

operations calls – is determined with the help of

the semantic tags, and with the logic of the

original request;

- it can give the possibility to compose on-the-fly

some on-demand services, then it allows to

respond dynamically to the user's requests.

Inserted in a more general process – request analysis,

service discovery, automatic composition, final service

deployment and delivery – this strategy helps to build

a consistent orchestration, ready to be generated into

BPEL, C# or Java to become the new service wished

by the user.

REFERENCES

BPEL, 2005. BPEL Editorial Team, BPEL Learning Guide,

February 2005,

http://searchwebservices.techtarget.com/originalContent/0,2

89142,sid26_gci880731,00.html

BPMI, 2002. BPMI, Business Process Management

Initiative, BPML, Business Process Modeling Language

Specifications, BPMI.org, 2002, http://www.bpmi.org/

specifications.htm

Kavantzas Nickolaos & al., November 2004. Process-

centric realization of SOA: BPEL moves into the

limelight, Web Services Journal,

http://www.findarticles.com/p/articles/mi_m0MLV/is_1

1_4/ai_n7071401

Kavantzas Nickolaos, Dec. 2004. WS-CDL, Web Service

Choreography Description Language,

http://www.ebpml.org/ws_-_cdl.htm and

http://www.w3.org/TR/ws-cdl-10/

Larvet Philippe, Bonnin Bruno, Ferres Lamia, Fontaine

Patrick, 2005. A Multi-Actor Agnostic Platform for Web

Services Agile Development and Deployment, ICSSEA

2005, Vol.2, Sessions 9-16

Rumbaugh J., Booch G., Jacobson I, June 2004. UML

Reference Manual, Second Edition, Addison-Wesley.

W3C, January 2007. SAWSDL, Semantic Annotations for

Web Service Description Language,

http://www.w3.org/TR/sawsdl/

Dubray Jean-Jacques, June 2004. BPML for Web services,

in http://www.ebpml.org/bpel4ws.htm

Nanda Mangala & al., Nov. 2004. Decentralized

Orchestration of Composite Web Services, IBM

Research Computer Science, Innovation Matters,

http://www.research.ibm.com/compsci/project_spotlight/dis

tributed/

Peltz Chris, Jan. 2003. Web services orchestration, a review

of emerging technologies, tools, and standards,

Hewlett-Packard Co,

http://devresource.hp.com/drc/technical_white_papers/WSO

rch/WSOrchestration.pdf

Smith Howard, July 2003. BPM and MDA, Competitors,

Alternatives or Complementary, Business Process

Trends, White Paper,

http://www.bptrends.com/publicationfiles/07-

03%20WP%20BPM%20and%20MDA%20Reply%20-

%20Smith.pdf

ICEIS 2007 - International Conference on Enterprise Information Systems

274
