DYNAFLOW: AGENT-BASED DYNAMIC WORKFLOW

MANAGEMENT FOR P2P ENVIRONMENTS

Adriana S. Vivacqua

, Wallace A. Pinheiro

, Ricardo Barros

, Amanda S. de Mattos

Nathalia M. Cianni

, Pedro C. L. Monteiro Jr.

, Rafael N. De Martino

, Vinícius Marques

Geraldo Xexéo

1,2

, Jano M. de Souza

1,2

and Daniel Schneider

COPPE/UFRJ, Graduate School of Engineering

DCC-IM Dept. of Computer Science, Institute of Mathematics

Federal University of Rio de Janeiro, Brazil

Keywords: Dynamic Workflows, CSCW, Agents.

Abstract: Many projects are characterized by their flexibility and high number of changes before a definitive solution

is implemented. In these scenarios, the people involved may change, as may deadlines, assignments and

roles. Traditional workflow systems don’t handle dynamic scenarios well, as they are centralized and pre-

defined at the start of the project. To address these problems, we propose an agent-based approach to

dynamic workflow management, where participants may join or leave and roles may change depending on

the situation.

1 INTRODUCTION

With the evolution of computing and networking

technology and the growth of services and

information available in the Internet, it has become

possible to create mechanisms that enable users to

collaborate and share information through their

computers, regardless of their location.

Workflow Systems are popular tools for

corporate collaboration, as they allow diverse task

structure representation, organization, scheduling

and distribution throughout the organization. Users

can execute processes as a group, and keep business

process knowledge inside the organization (Ellis,

1999).

The majority of existing Workflow Management

Systems is limited, because they are based on

client/server architectures and are fairly inflexible,

not offering appropriate support to the dynamism

found in real world situations, such as role or task

changes when unexpected events happen (Weske,

1999).

With the technological advances and the

adoption of distributed environments, more

flexibility has also become necessary. In these

environments, problems such as unexpected

participant changes have to be managed on the fly.

Furthermore, lengthy processes may be executed in

this kind of environment, which also demands

flexibility, as any changes during workflow

execution need to be handled so as not to lose work

already done.

Given this context, the goal of our research is to

analyze the main problems inherent to the definition

and execution of dynamic workflows, in

environments characterized by flexibility and

distribution, and formulate solutions to the problems

found in these environments. The focus of our

analysis is on decentralized, heterogeneous, dynamic

agents that enable spontaneous group formation by

physically dispersed participants. The goal is to add

flexibility to workflows, making its structure more

dynamic regarding the definition and execution as

well as data and control distribution.

This paper is organized as follows: section 2

presents the DynaFlow architecture and section 3 a

scenario. We finish with a discussion in section 4.

275

S. Vivacqua A., A. Pinheiro W., Barros R., S. de Mattos A., M. Cianni N., C. L. Monteiro Jr. P., N. De Martino R., Marques V., Xexéo G., M. de Souza J.

and Schneider D. (2007).

DYNAFLOW: AGENT-BASED DYNAMIC WORKFLOW MANAGEMENT FOR P2P ENVIRONMENTS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - SAIC, pages 275-278

DOI: 10.5220/0002361102750278

 SciTePress

2 DYNAFLOW

The proposed approach is a WFM that allows

flexible definition, execution and management of

workflows in distributed environment. Throughout

this paper, a process should be understood as a set of

sequential activities, where each activity has an

associated competence (or skill).

DynaFlow includes both phases of the workflow

management: definition, where the process activities

and their execution order are described; and

execution, where all activities are executed in the

proper order. In this fashion, each member of a

group can assume the role of workflow publisher or

executor. The publisher will be responsible for the

definition and publication of activities to the

neighboring peers. Executors are those members that

choose at least one of the available activities to

execute.

As the publisher can receive more than one

proposal (from different executor) to execute the

same activity, it’s necessary that each executor send

a contract to the publisher, describing its proposal to

execute each activity. Thus, the publisher will be

able to analyze all contracts and choose the more

appropriate one, selecting the best ones. The

contract will be negotiated among publisher and

executors, and must contain the activity to be

performed, its price, execution time, current state,

etc. The next sessions describe the system’s regular

flow of operation and the agents used to execute

these operations.

2.1 System Architecture and Agent

Description

DynaFlow defines two applications, one Publisher

and one Executor. The publisher user defines

manually the activities, their structure and flow and

publishes them. From there on, all remaining actions

will be executed autonomously by agents: contract

receipt and analysis, activity republication, task

result receipt, activity execution order definition,

and so on. At the executor side, agents receive

available activities, approved contracts and

execution orders. There are also agents to send

notifications to the publisher. These notifications

can propose, confirm or finalize a contract (that is

initialized manually).

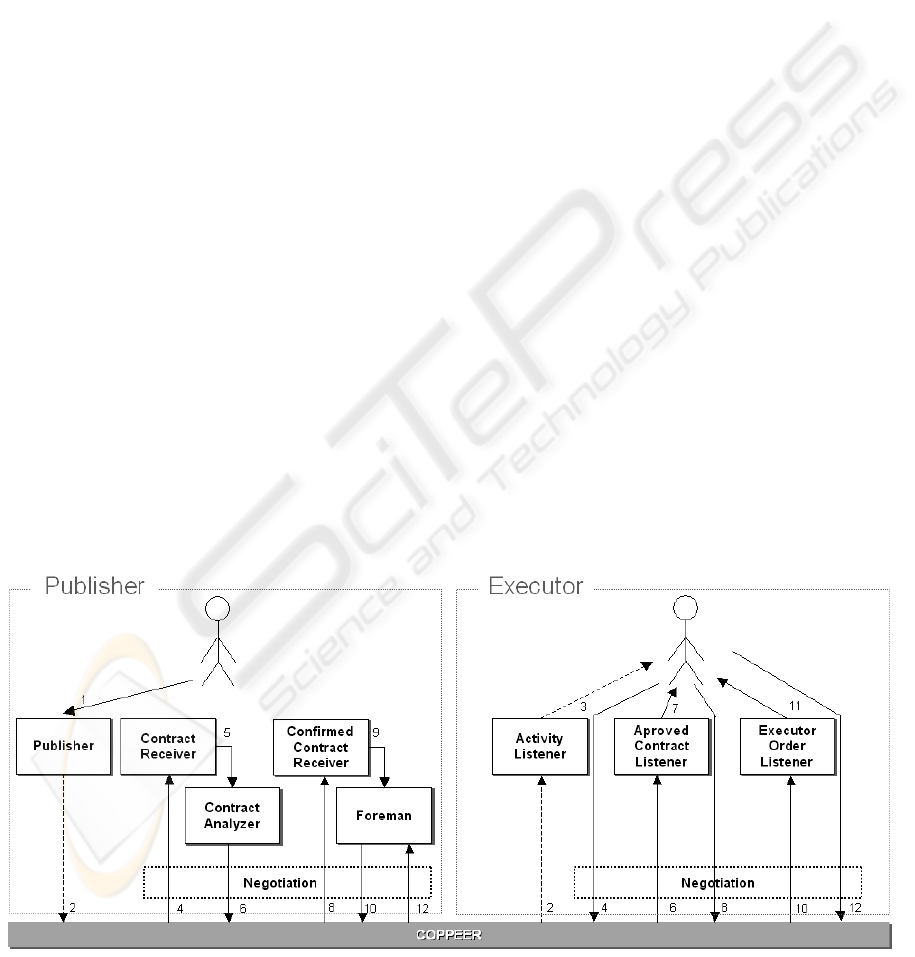

Figure 1 shows the system architecture and inter-

agent message flow. Dotted lines represents the

activity flow, while the full line represents the

contract flow (each contract with a status: proposed,

approved, disapproved, confirmed, finished, or an

execution order). It is important to mention that

contract flow is not a broadcast, but direct

communication, as both sender and receiver are

known (unlike the activity flow, represented by the

first and second steps).

The system was built on top of the COPPEER

framework (Miranda and Xexeo, 2006). All

communication relies on the COPPEER framework,

using the Negotiator agent, which is responsible for

taking the contract between publisher and executor.

Figure 1: DynaFlow Architecture.

ICEIS 2007 - International Conference on Enterprise Information Systems

276

In Figure 1, the flow starts when a user uses the

Publisher application to build a workflow (1). The

Publisher agent broadcasts activities to other peers

(2). When an activity is filtered by a peer’s

ActivityListener agent, the Executor application

alerts its user about the incoming activity offer (3).

If the user desires to execute some of the activities,

he must create and send a contract proposal for each

desired activity to the Publisher (4). A

ContractReceiver agent waits for incoming

proposals sent by executor peers (5). The

ContractAnalyzer agent processes all contracts and

sends each one back to its related executor, with the

status (approved or disapproved) (6). An

AprovedContractListener agent receives the

approved contracts and delivers them to the user (7).

The user confirms his interest at some of those

contracts, sending them back to the Publisher, as

confirmed (8). A ConfirmedContractReceiver agent

waits for contract confirmations and sends these to

the Foreman agent, which coordinates activity

execution (9). The Foreman agent sends each

contract to the associated executor (10). The

ExecutorOrderListener agent waits for execution

orders sent by the publisher. Each order is passed on

to the user (11). On the executor side, when a user

finishes an activity, he must signal its contract

completion (12). On the publisher side, the Foreman

agent receives that signal and sends the next contract

to the related executor peer, if this activity depends

on the previous one(12). Independent activities can

be executed simultaneously. Steps 10, 11 and 12 are

repeated for all activities.

3 TECHNICAL DETAILS

In this section we present the agent architecture and

exception handling behavior used in DynaFlow. The

initial version of DynaFlow has been implemented

using COPPEER (Miranda and Xexeo, 2006), an

agent based platform for the construction of

distributed applications.

All agents introduced in the section 3.1 have

been implemented, as well as the basic

communication protocol. Agents are specialized,

simple reflex agents, with basic rules that govern

their behavior. Each agent has a specific task, as

described in the previous section.

Publishers can inform others of a workflow

description and activities needed, and executors can

bid for contracts. At the moment, simple price-based

selection is used, but implementation of more

complex contract selection methods will be done.

Exception handling is being implemented

incrementally, to test each situation and not

compromise already implemented steps. Thus far,

we have implemented activity republishing, for

those cases where no contracts were received, or

when no confirmation was sent.

3.1 System Walkthrough

System operation begins when a user defines the

activities of a workflow with the necessary

competencies for their accomplishment. These are

broadcast to other users.

To be notified about activities, users must define

their competencies. Thus, when the competence of a

published activity matches a user’s competencies,

that activity will show up as an executable activity.

Once it has been notified about an available activity,

the user can manifest its desire of executing that

activity by sending a contract to its publisher. This

contract defines the time and cost associated with

activity execution. While these steps involve user

action, the following are completely automated,

being executed solely by the agents.

After the publisher analyzes the different

contracts received and identifies the best ones, users

are notified about the acceptance or rejection of their

contracts. When a notification of approval is

received, this reception is acknowledged and the

agents stand by for the publisher’s activity request,

so that execution can be initiated. After receiving

confirmations from the activity executors, the

publisher sends out an execution order, so that the

executor user for the first activity in the workflow

may initiate execution. Upon receipt of an execution

order, the executor initiates the activity and notifies

the publisher when it is done. When the publisher

receives a finalization notification, it sends out an

execution order for the next activity in the sequence

of the workflow. Non-dependent activities can be

executed simultaneously. When all activities have

been completed, the workflow is considered

concluded.

4 DISCUSSION

One of the main problems with the first generation

of the WFMs is that they had a predefined,

immutable structure, which made it hard to adapt

dynamic changes. It is not so easy for workflow

administrators and users to foresee all situations

DYNAFLOW: AGENT-BASED DYNAMIC WORKFLOW MANAGEMENT FOR P2P ENVIRONMENTS

277

which should compose the workflow specification.

In these cases, a feature to allow rapid changes in

workflow structure when a change happens is

needed (Weske, 1999). Environmental changes and

technological advances are the main factors that lead

to a need for dynamic workflow management (Han

et al., 1998).

Dynamic workflow tools should enable

operations on running workflow instances (Weske,

1999). Suspend and resume are needed to allow

adaptation to changes. When a workflow is

suspended, the system has to save the current state

of that workflow so that it can be retrieved later

through a resume operation. Another important

feature is to provide resources to undo actions when

a workflow instance doesn’t work properly, in order

to allow workflow users to return to a successful

point of workflow execution.

WFMs are usually developed based in well

defined processes, and that leads to inflexibility in

current tools (Joeris, 1999). In order to support

dynamic workflows, tools should deal with two

types of flexibility: a priori and a posteriori. The

former focuses on flexible behavior specification in

order to achieve a behavior more precise and less

restrictive in terms of flow advance. The latter

focuses in flexibility for dynamic changes which

should allow changes in the specification due to

changes in the real world. In this case, it must be

defined when and in what states these changes

should be permitted to guarantee process

consistency.

There are two types of changes in process flow:

ad-hoc changes caused by an error, a rare event or a

customer specific demand; and evolutionary changes

that are the result of new strategic businesses, re-

engineering efforts and permanent changes in

external conditions (Aalst, et al, 1999). Workflow

changes are not only changes in the process flow,

and can also include participant and role changes,

timing changes (e.g. activity start time), etc.

The possibility of negotiating task assignments

and deadlines, and publishing revised workflows

after execution has begun, coupled with the P2P

architecture and scalability leads to new

opportunities in for dynamic workflow control,

breaking away from the strict structures normally

found in traditional workflow systems.

More efficient strategies for contract negotiation,

workflow definition and execution in P2P work

environments can be studied, providing more

flexibility and dynamicity to the process, without

losing the control and coordination provided by

workflow systems.

The current prototype restricts workflow creation

to only one peer, which means that only one peer

can be the publisher of a workflow. One possibility

would be to allow peers to suggest alterations or

improvements to the workflow, or even the group

definition of a workflow. This would lead to extra

research questions, such as how to identify peers

that might share a workflow; how to define criteria

for the selection of executors for a workflow; or the

execution order of the workflow.

REFERENCES

Aalst, W.M.P. van der; Basten, T.; Verbeek, H.M.W.;

Verkoulen,P.A.C.; Voorhoevoe, M., 1999. Adaptive

Workflow On the Interplay Between Flexibility and

Support. Proc. of the 1

Int. Conf. Ent. Information

Systems, Vol 2, pages 353–360, Setubal, Portugal.

Ellis, C., 1999. Workflow Technology. In Beaudouin-

Lafon, M. (ed.) Computer Supported Co-operative

Work, England: John Wiley and Sons.

Georgakopoulos, D., 1995. An Overview of Workflow

Management: From Process Modeling to Workflow

Automation. Distributed and Parallel Databases, n.3,

p. 119-153.

Han, Y.; Sheth, A; Bussler,C. A., 1998. Taxanomy of

Adaptive Workflow Management Proceedings of the

CSCW-98 Workshop Towards Adaptive Workflow

Systems, Seattle, USA.

Jablonski, S., Bussler, C.,1996. Workflow Management.

Modeling Concepts, Architecture and Implementation.

London, Thomsom Computer Press.

Joeris, G., 1999. Defining Flexible Workflow Execution

Behaviors in P. Dadam, M. Reicher (ed.) Enterprise-

wide and Cross-enterprise Workflow Management -

Concepts, Systems, Applications, GI Workshop

Proceedings - Informatik' 99, Ulmer Informatik

Berichte Nr. 99-07, University of Ulm.

Miranda, M.; Xexeo, G. B.; Souza, J. M, 2006. Building

Tools for Emergent Design with COPPER.

Proceedings of 10th Int. Conf. CSCWD, Nanjing, v. I.

p. 550-555.

Weske, M., 1999. State-Based Modeling of Flexible

Workflow Executions in Distributed Environments.

Society for Design and Process Science Printed in the

United States of America, Vol. 3, n. 2, p. 49-62.

Yan, J.; Yang, Y.; Raikundalia, K.G, 2006. SwinDeW ─

A p2p-based Decentralised Workflow Management

System. In ASWEC’06, Proceedings of Australian

Software Engineering Conference, pp.61-69.

ICEIS 2007 - International Conference on Enterprise Information Systems

278
