MODELING OF AN ANALYTICAL DATABASE SYSTEM

Alex Sandro Romeu de Souza Poletto and Jorge Rady Almeida Junior

Fundação Educacional do Município de Assis (FEMA) – Av..Getúlio Vargas, 1200. cep:19807-634 – Assis - SP - Brazil

Escola Politécnica-Universidade de São Paulo – Av. Prof. Luciano Gualberto, 158. cep:05508-900 - São Paulo - Brazil

Keywords: Analytical database, trigger, procedure, operational database, decision taking, SQL.

Abstract: This paper describes a modeling for constructing an analytical database, with the objective to store historical

values and also the most recent values starting from operational databases. The first function of this

modeling is to map operational database into analytical database, using their E-R diagrams. For that, we

created ten steps, which will support the mapping. The second function is to make available mechanisms

for generation, transport and storage of these historic data. For that, we specified triggers and procedures for

each step.

1 INTRODUCTION

This work proposes a new modeling form for the

Analytical Databases. The importance attributed to

the data modelling techniques, considering the

several data transformation and transference phases

between the diverse system types.

In recent years, the need for storing and

recovering historical data has presented great

growth. The main reason for this is because

operational databases have not been designed to

attend to such necessities, nowadays so important

for the most of applications. Usually, the purpose of

operational databases is to store only the most recent

value. The need to have previous data is taking the

organizations to look for resources that provide an

efficient model and storage of historical data.

For a good administration of an organization, it

is important that database system supplies all the

data evolution states that is, all the values assumed

by the data since its creation. Such evolution can be

of great importance for a future process of decision

taking.

Usually, to prevent from the excessive growth of

the operational databases, many of the past referring

values are discarded, that is, they do not become

permanent.

For many organizations, the storage of historical

data is becoming, a great problem, because there

exist few adapted tools for such process.

So, this work has the purpose to make possible

the development of mechanisms and techniques that

assist in the mapping, storage and use of analytical

data, resulting in the Analytical Databases, having as

basis the Operational Databases available in the

organizations.

Section 2 describes triggers and procedures that

are the practical resources that will be used for the

generation of the analytical data. Section 3 describes

the proposal of an analytical database and on section

4 we make our conclusions about this work.

2 TRIGGERS AND PROCEDURES

Triggers and procedures can also cooperate to the

end users application development tools, adding

processing resources. Moreover, they also make

possible to declare variables based on database

attributes, making the code independent from

physical changes in the attributes.

Using these resources it is possible to reduce the

number of code lines needed by tools used in the

development of end users applications. So, many

business rules, constraints and integrity rules can be

programmed directly in the database, and so, the end

application may contain only basic instructions,

without the need to guarantee the integrity every

time a routine is programmed. It becomes the end

applications more agile, with a simpler code, and

consequently a better total performance of the

application.

477

Sandro Romeu de Souza Poletto A. and Rady Almeida Junior J. (2007).

MODELING OF AN ANALYTICAL DATABASE SYSTEM.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - DISI, pages 477-481

DOI: 10.5220/0002362804770481

 SciTePress

3 ANALYTICAL DATABASE

MODELING

The analytical database has a more complete and

rich storage, comparing to the operational

environment, and has the specific objective to help

the administrators in the medium and long time

decision taking process.

It is necessary that the analytical database be

more specialized than an operational database,

offering historic data for analysis.

When we talk about a more specialized database,

we mean a system with different objectives from

operational databases, about data storage states. In

this case, the specialization has the main objective to

supply data for decision taking based on business

planning.

The main objective of this work is to propose

and describe a modeling and implementation

approach for an analytical database, as shown on

Figure 1.

Analytical

Database

Mapping Steps Application

Operational Entity-Relationship Models

Analytical Entity-Relationship Models

Data

Transportation

Operational

Database 1

...

Operational

Database 2

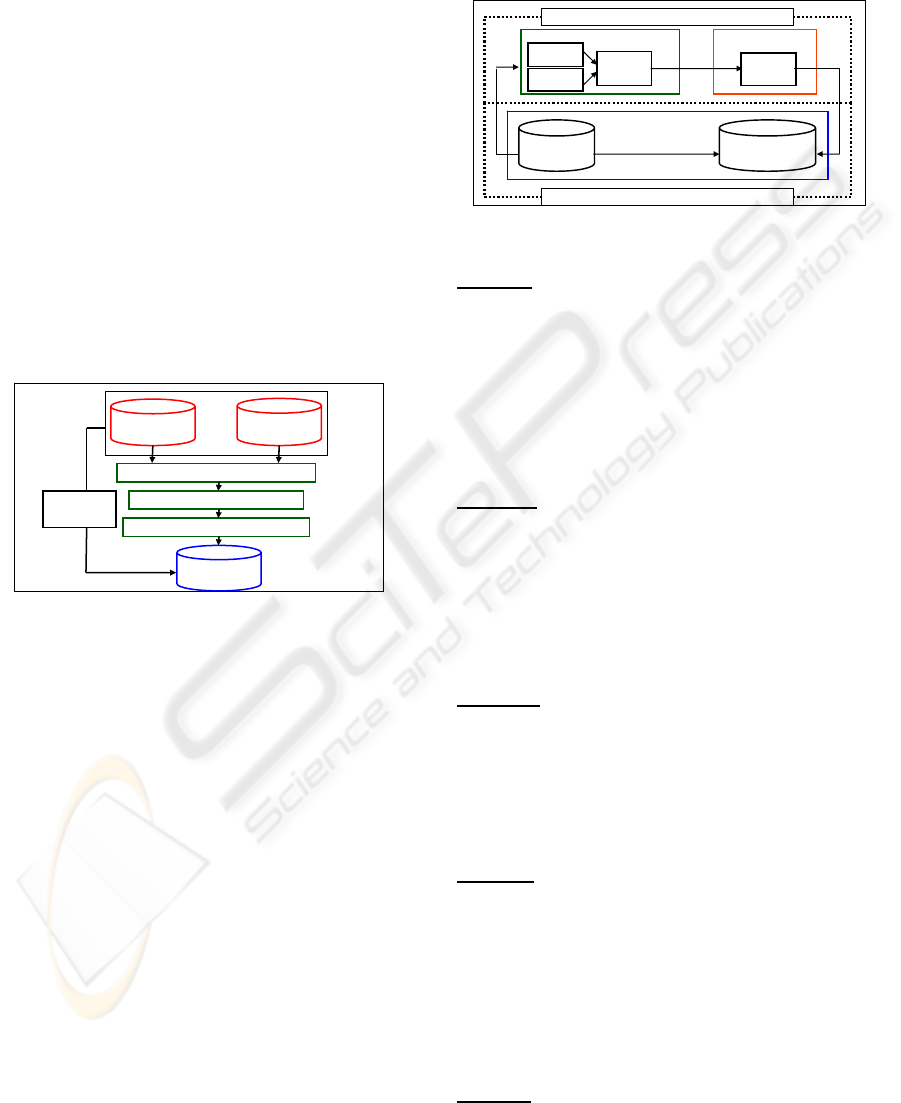

Figure 1: General diagram of the work proposal.

The adopted way of storage is using only one

repository, that is, all the operational databases must

originate only one analytical database, which will

receive from the operational database all the data

necessary for the decision taking process.

Such task is divided into three stages, as shown

in Figure 2 and discussed below. It is important to

say that the three Stages proposed here must be

based on the business planning for the organization.

This way, it is essential the participation of business

analysts, as well as the system analysts in this

proposal.

3.1 Stage A: Mapping E-R Diagrams

into Unified E-R Diagram

This stage intends to map the several E-R diagrams

used for the operational database modeling into only

one unified E-R diagram, with the objective to join,

distinguish and standardize all the entities sets.

With this stage, we intend to reduce some

problems, like: same data with different names,

different data with same name, different

measurement unities, null values, duplicate keys,

and so on. These problems may occur especially

because it is possible to work with more than one

operational database.

Diagram

E-R

Diagram

E-

Unified

Diagram

E-R

Analytical

Diagram

E-

Operational

Database

Analytical

Database

Stage A Stage B

Stage C

ANALYTICAL DATA MAPING PHASE

ANALYTICAL DATA GENERATION PHASE

Figure 2: Detailed diagram of the work proposal.

Step A1: Identification of entities sets, which store

distinct data with equal names.

There can be several operational databases,

which will compose the analytical database. In such

databases, there can be sets of entities which have

same names, but storing distinct data types. As it is

not possible to work this way, it is necessary to

identify such entities sets and give them different

denominations.

Step A2:

Identification of entities sets that store

common data with distinct names.

There can be several operational databases,

which will compose the analytical database. In such

databases, there can be entities sets which have

different names, but storing common data types. So,

it is necessary to identify such entities sets and,

eventually, give them the same denominations.

Step A3:

Identification of attributes that store

common data with distinct names.

There can be several operational databases,

which will compose the analytical database. In such

databases, there can be, in the several entities sets

identified in the Step A2, attributes with different

names, but storing common data.

Step A4:

Identification of primary key attributes –

value duplication

It is possible the occurrence of duplication of

attribute values at the moment of the analytical data

generation, because it is made the unification of

entities sets, as described in the Steps A2 and A3.

Such duplication can occur even with attributes used

as primary keys, what is not admissible. So, this step

seeks to solve this kind of problem.

Step A5:

Identification of foreign key attributes.

The main reason of this step is due to primary

key values change, as suggested at Step A4, and as

ICEIS 2007 - International Conference on Enterprise Information Systems

478

these values could be used as foreign key by other

entities sets, allowing the integrity lost. Then, these

new values must be propagated to every entities sets,

to avoiding the integrity lost among data.

3.2 Stage B: Mapping the Unified E-R

Diagram into Analytical E-R

Diagram

This stage has as its objective to map the unified E-

R diagram, obtained at the end of Stage A, into an

analytical E-R diagram, supporting the analytical

database with a structure that allows the storage of

historical data.

The main objectives of this stage are: reduction

of the operational entities and attributes data

structures; inclusion of time attributes; addition of

derived attributes; modification of data relationship

into entities sets and the accommodation of different

granularity levels.

Step B1:

Selection of entities and attributes sets,

which will be stored in the analytical database.

It is essential to select all the entities and

attributes sets, which will really be in the process of

the analytical database generation. At this step it will

also be possible to check which entities sets are

purely operational, because this kind of data is not

included in the analytical database generation

process.

Step B2

: Inclusion of time element in the structure

of entities sets.

It is very important, at several cases, the

inclusion of attributes that will control the period of

time when the entities values will be valid. That is,

at a certain time, such value was considered the most

recent, or valid. For this reason, it is necessary the

inclusion of time attributes.

At some cases, it may be necessary to add a new

set of entities to store all the occurrences of value

changes. This step is one of the most important of

this proposal.

Step B3

: Inclusion of derived attributes.

At some cases, it may be necessary to take

decisions at a short space of time. It may be

necessary to make very complex queries, which

need to access a great volume of tuples, and also to

make many calculations.

So, in this step it is made the addition of

attributes derived from other ones as, for example,

the amount of a selling, the age of a person, etc.

Step B4

: Creation of entities sets

In some cases, it may be necessary to store

multivalued attributes, that is, attributes that need to

store many values for the same tuple.

Step B5

: Application of the different granularity

levels

This step is important when we consider the

performance factor. If we have a great level of data

summarization, we will have also a lower volume of

data storage

There are many ways to increase the granularity:

by summary, by average, by limit values, or by and

weekly or monthly values (Kimball, 2002).

3.3 Stage C: Generation of the

Analytical Data

This stage has the objective to generate, transport

and store the analytical data, originated from the

operational databases to the analytical database,

using triggers and procedures.

All this generation, transport and storing process

must be started based on the diagrams generated by

Stage B. Figure 3 shows how this stage must occur.

scripts

SUBPROGRAMS

Operational

Database

TRIGGERS

PROCEDURES

Analytical

Database

PROCEDURES

. . . . . . . . . . . . . . . . .

Operational

Database

TRIGGERS

PROCEDURES

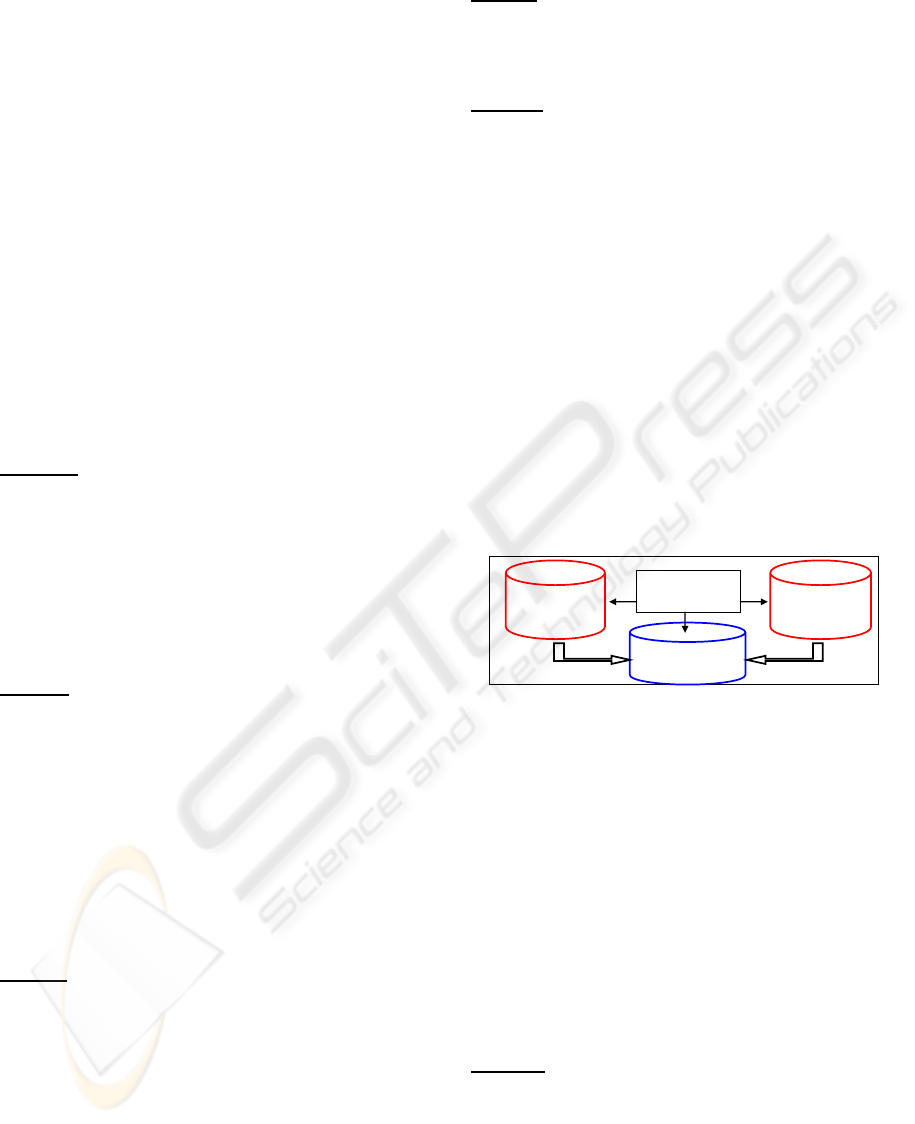

Figure 3: General Schema of Stage C.

The structures that will compose the analytical

database are based on analytical E-R diagrams.

Using the operations made by the end users,

which will automatically call the triggers and

procedures programmed directly at operational

database, data from operational databases will be

immediately and remotely transported to the

analytical database every time that occurs some

transactions, which affects the tuples and/or the

attributes selected for the analytical data generation.

The next items describe the subprograms, that

are, the generic triggers and procedures necessary to

complement this proposal.

Step C1:

Generation of Trigger for Step B1.

The objective of this step is the creation of a

trigger to implement Step B1. The generic trigger

proposed for this step is specified at Figure 4.

MODELING OF AN ANALYTICAL DATABASE SYSTEM

479

CREATE OR REPLACE TRIGGER T_STEP_C1

BEFORE/AFTER INSERT OR UPDATE ON BDO_Table

FOR EACH ROW

BEGIN

IF INSERTING THEN

INSERT INTO BDA_Table (BDA_Key_1, BDA_key_2, . . . ., BDA_Attribute_1, BDA_Attribute_2, . . . .)

VALUES(:NEW.BDO_Key_1, NEW.BDO_Key_2, . . . .,

:NEW.BDO_Attribute_1, :NEW.BDO_Attribute_2 . . . . .);

ELSE

IF :NEW.BDO_Attribute_1 <> :OLD.BDO_Attribute_1 OR

NEW.BDO_Attribute_2 <> :OLD.BDO_Attribute_2 OR . . . .

INSERT INTO BDA_Table (BDA_Key_1, BDA_Key_2, . . . ., BDA_Attribute_1, BDA_Attribute_2, . . . .)

VALUES(:OLD.BDO_Key_1, :OLD.BDO_Key_2, . . . . ,

:NEW/OLD.BDO_Attribute_1, :NEW/OLD.BDO_Attribute_2, . . . .);

END IF;

Figure 4: Specification of Step C1.

Step C2:

Generation of Trigger for Step B2.

This step complements Step C1 and has the

objective to include dates in the tuples that have

changes in attributes values. The generic trigger

proposed for this step is specified at Figure 5.

CREATE OR REPLACE TRIGGER T_STEP_C2_1

BEFORE/AFTER INSERT OR UPDATE OF BDO_Attribute_X ON BDO_Table

FOR EACH ROW

BEGIN

IF INSERTING THEN

INSERT INTO BDA_Table (BDA_Key_1, BDA_Key_2, . . . . .,

BDA_Attribute_1, BDA_Attribute_2, . . . ., BDA_Attribute_Time_1)

VALUES(:NEW.BDO_Key_1, NEW.BDO_Key_2, . . . .,

:NEW.BDO_Attribute_1, :NEW.BDO_Attribute_2 . . . . ., Date_Day);

ELSE

UPDATE BDA_Table SET BDA_Attribute_Time_2=Date_Day

WHERE BDA_Table.BDA_Attribute_X=:OLD. BDA_Attribute_X AND

BDA_Table.BDA_Key_1=:OLD.BDO_Key_1 AND BDA_Table.BDA_Key_2=:OLD.BDO_Key_2 AND . . ..

AND BDA_Table.BDA_Attribute_Time_2 is NULL;

INSERT INTO BDA_Table (BDA_Key_1, BDA_Key_2, . . . . .,

BDA_Attribute_1, BDA_Attribute_2, . . . ., BDA_Attribute_Time_1)

VALUES(:NEW.BDO_Key_1, NEW.BDO_Key_2, . . . .,

:NEW.BDO_Attribute_1, :NEW.BDO_Attribute_2 . . . . .,Date_Day);

END IF;

END;

Figure 5: Specification of Step C2.

Step C3: Generation of Trigger for Step B3

The objective of this step is the creation of a

trigger to implement Step B3. The generic trigger

proposed for this step is specified at Figure 6.

CREATE OR REPLACE TRIGGER T_STEP_C3

BEFORE/AFTER INSERT ON BDO_Table

FOR EACH ROW

BEGIN

INSERT INTO BDA_Table (BDA_Key_1, BDA_Key_2, . . . . ,

BDA_Attribute_1, BDA_Attribute_2, . . . ., BDA_Attribute_Total_1, . . . . ,

VALUES(:NEW.BDO_Key_1, NEW.BDO_Key_2, . . . ., :NEW.BDO_Attribute_1, :NEW.BDO_Attribute_2, . .

. . ., :NEW.BDO_Attribute_Calc_1*:NEW.BDO_Attribute_Calc_2, . . . .,);

END.

Figure 6: Specification of Step C3.

Step C4: Generation of Trigger for the Step B4

The objective of this step is the creation of a

trigger to implement Step B4. The generic trigger

proposed for this step is specified at Figure 7.

CREATE OR REPLACE TRIGGER T_STEP_C4

BEFORE/AFTER INSERT OR UPDATE OF BDO_Attribute_1, BDO_Attribute_2, BDO_Attribute_3, . . . . ON

BDO_Table

FOR EACH ROW

BEGIN

IF INSERTING THEN

INSERT INTO BDA_Table(BDA_Key_1, BDA_Key_2, . . . . ,

BDA_Attribute_1, BDA_Attribute_2, BDA_Attribute_3, . . . . , BDA_Attribute_Time_1)

VALUES(:NEW.BDO_Key_1, :NEW.BDO_Key_2, . . . .,

:NEW.BDO_Attribute_1, :NEW.BDO_Attribute_2, :NEW.BDO_Attribute_3, . . . . ,Date_Day);

ELSE

UPDATE BDA_Table SET BDA_Attribute_Time_2=Date_Day

WHERE BDA_Table.BDA_Key_1=:OLD.BDO_Key_1 AND

BDA_Table.BDA_Key_2=:OLD.BDO_Key_2, . . . . , AND BDA_Table.BDA_Attribute_Time_2 is NULL;

INSERT INTO BDA_Table(BDA_Key_1, BDA_Key_2, . . . . ,

BDA_Attribute_1, BDA_Attribute_2, BDA_Attribute_3, . . . . , BDA_Attribute_Time_1)

VALUES(:NEW.BDO_Key_1, :NEW.BDO_Key_2, . . . .,

:NEW.BDO_Attribute_1, :NEW.BDO_Attribute_2, :NEW.BDO_Attribute_3, . . . . ,Date_Day);

END IF;

END

;

Figure 7: Specification of Step C4.

Step C5:

Generation of Trigger for the Step B5

The objective of this step is the creation of a

procedure to implement Step B5. The generic

procedure proposed for this step is specified at

Figure 8.

4 CONCLUSIONS

This work described the creation of a historic

database, which can be very useful for decision

taking process. Besides, there will not be necessary

the acquisition of expensive tools to make the

generation of the analytical database, because the

entire process can be implemented using triggers and

procedures.

It must be emphasized the implementation

facility and the low cost of the solution proposed in

this work, especially when compared to data

warehouse technology, which is much more

complex and expensive.

For future work, we intend to study a real case,

to show the applicability of this solution.

CREATE OR REPLACE PROCEDURE P_STEP_C5

(Variable_Filter_1 IN BDA_Table.BDA_Attribute_1%TYPE,

Variable_Filter_2 IN BDA_Table.BDA_Attribute_2%TYPE, . . . . )

Variable_1 BDO_Table.BDO_Attribute_1%TYPE; Variable_2 BDO_Table.BDO_Attribute_2%TYPE; . . . . .;

CURSOR BDO_Table_CURSOR IS

SELECT BDO_Key_1, BDO_Key_2, . . . . , BDO_Attribute_1, BDO_Attribute_2, . . . . ,

Sum(BDO_Attribute_Calc_1* BDO_Attribute_Calc_2), Sum(BDO_Attribute_Calc_3, . . . .)

INTO Variable_1,Variable_2, . . . . FROM BDO_Table

WHERE BDO_Key_1=Variable_Filter_1 OR/AND . . . .

OR BDO_Attribute_1=Variable_Filter_2 OR/AND . . . .

GROUP BY BDO_Key_1, BDO_Key_2, . . . . , BDO_Attribute_1, BDO_Attribute_2, . . . ;

BEGIN

OPEN BDO_Table_CURSOR;

LOOP

FETCH BDO_Table_CURSOR INTO Variable_1, Variable_2, . . . . ;

EXIT WHEN BDO_Table_CURSOR%NOTFOUND;

DELETE FROM BDA_Table WHERE BDA_Key_1=Variable_Filter_1 OR/AND . . . .

OR BDA_Attribute_1=Variable_Filter_2 OR/AND . . . . ;

INSERT INTO BDA_Table (BDA_Key_1, BDA_Key_2, BDA_Attribute_1,

BDA_Attribute_2, BDA_Attribute_3, . . . . ) VALUES(Variable_1,Variable_2, . . . . );

END LOOP;

COMMIT;

END;

Figure 8: Specification of Step C5.

ACKNOLEDGEMENTS

The authors thank the support of FEMA (Fundação

Educacional do Município de Assis) and FUSP

(Fundação da Universidade de São Paulo), in the

development of this work.

REFERENCES

Corey, Michael; Abbey, Michael; Abramson, Ian; Taub,

Ben. Oracle 8i Data Warehouse. Editora Campus,

2001.

Date, C J.; Introdução a Sistemas de Banco de Dados. 8ª

edição – Rio de Janeiro: Elsevier, 2003.

ICEIS 2007 - International Conference on Enterprise Information Systems

480

Gonçalves, Márcio. Extração de Dados para Data

Warehouse. Editora: Axcel Bookes do Brasil, 2003.

Inmon, W. H.; Terdeman R. H.; Imhoff, Claudia. Data

Warehousing – Como transformar informações em

oportunidades de negócios.São Paulo: Berkeley, 2001.

Kimball, Ralph. Data Warehouse Toolkit; o guia completo

para modelagem dimensional. Editora: Campus, 2002.

Kochhar, Neena; Gravina, Ellen; Nathan, Priya.

Introdução ao Oracle: SQL e PL/SQL. Volume 1 e 2.

Editora: Oracle Education, 2000.

Silberschatz, Abraham; Korth, Henry F.; Sudarschan, S.

Sistemas de Bancos de Dados. 3ª edição - São Paulo.

Editora: Makron Books, 1999.

Vassiliadis, Panos; Simitsis, Alkis; Skiadopoulos, Spiros.

Conceptual Modeling for ETL Processes. National

Technical University of Athens. McLean, Virginia,

USA, 2002.

MODELING OF AN ANALYTICAL DATABASE SYSTEM

481
