INDUCTION OF DATA QUALITY PROTOCOLS

INTO BUSINESS PROCESS MANAGEMENT

Shazia Sadiq

, Maria Orlowska

and Wasim Sadiq

School of Information Technology and Electrical Engineering

The University of Queensland, St Lucia, QLD 4072, Brisbane, Australia

SAP Research Centre, 133 Mary Street, QLD 4000, Brisbane, Australia

Keywords: Business Process Management, Enterprise Application Integration, Data Quality, Master Data Management.

Abstract: Success of large projects may be compromised due to lack of governance and control of data quality. The

criticality of this problem has increased manifold in the current business environment heavily dependent on

external data, where such data may pollute enterprise databases. At the same time, it is well recognized that

an organization’s business processes provide the backbone for business operations through constituent

enterprise applications and services. As such business process management systems are often the first point

of contact for dirty data. It is on the basis of this role that we propose that BPM technologies can and should

be viewed as a vehicle for data quality enforcement. In this paper, we target a specific data quality problem,

namely data mismatch. We propose to address this problem by explicitly inducting requisite data quality

protocols in to the business process management system.

1 INTRODUCTION

The issue of data quality is as old as data itself.

However it is now exposed at a much more strategic

level e.g. through data warehouses (DW) and

business intelligence (BI) systems (Butler Group,

2006), increasing manifold the stakes involved.

Corporations routinely operate and make strategic

decisions based on remarkably inaccurate or

incomplete data.

Reliance on inconsistent, incorrect or incomplete

data exposes organizations to unacceptable business

risk. Poor quality data jeopardizes the performance

and efficiency of the most sophisticated operational

systems, and undermines the value of DW and BI

systems on which organizations rely to make key

decisions.

The problem of data quality continues to be

widely recognized. Literature provides evidence of

the uptake of these recommendations at a

management level. (Redman, 1996). However, for

the digital era it is critical that these governance

protocols have a translation into the technology

frameworks. Research works, as well as product

developments, endeavour to provide reliable data

quality control methods, see e.g. DataFlux, SAP

MDM, Trillium Software.

The last decade is marked with unprecedented

progress and advances in business process

automation. Underpinning business process

management (BPM) technologies is the ability to

control and streamline the flow of data across

disparate applications. BPM has provided significant

advances through unification of data flow and

formats at the process level, and thereby eliminated

many standard errors.

Although BPM provides the ability to improve

data quality by controlling data flow of process

relevant data, this implicit advantage only covers the

quality issue to a limited extent. We argue that

business process management should explicitly

undertake the inclusion of data quality protocols,

particularly in the presence of external data sources

where semantic differences are the norm. Business

processes (with their constituent applications and

services) are the creators of data within the

enterprise. By interjecting explicit steps for data

quality management, we not only catch the issue at

the source, but also enable organizations to

capitalize on BPM technology infrastructure to meet

their data quality requirements.

In this paper, we advocate an approach that

explicitly includes data quality protocols within the

realm of business process management. Following

473

Sadiq S., Orlowska M. and Sadiq W. (2007).

INDUCTION OF DATA QUALITY PROTOCOLS INTO BUSINESS PROCESS MANAGEMENT.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - DISI, pages 473-476

DOI: 10.5220/0002363504730476

 SciTePress

sections respectively provide necessary background

on data quality methods and process data, followed

by a discussion on the proposed approach.

2 RELATED WORK ON DATA

QUALITY METHODS

Data Quality has been studied from several aspects.

In this paper we are targeting specifically the data

mismatch problem, where incomplete or inconsistent

data enters enterprise databases and subsequently

leads to serious consequences for business reporting.

This data may be created internally (e.g. errors in

data entry) or may arrive from external sources (e.g.

through message exchange).

Data mismatch (compared data is semantically

equivalent but native representation of values is

different), by contrast to schemata mismatch (Rahm

& Bernstein, 2001), is frequently observed in

practice; such as different abbreviation conventions,

different standards for data representation, different

units and coding, etc., Significant work has been

done on string matching and similarity detection e.g.

(Gravano et al, 2003), (Koudas et al., 2004).

However, the problem goes beyond textual

comparisons, and without data cleaning,

representational consistency and redundancy

removal, applications may be generating

syntactically correct computation on data, but not

reflecting reality.

Most BPM engines provide a message gateway

for interaction with external applications and/or

API’s to invoke internal applications, hence making

them the first point of contact for dirty or

mismatched data. It is on the basis of this role that

we propose that BPM technologies can and should

be viewed as a vehicle for data quality enforcement.

3 UNDERSTANDING PROCESS

DATA

Essentially, data requirements include anything that

an activity requires to initiate, continue or be

completed. The practical approach is that process

designers and associated domain experts provide

activity specific data requirements, and to some

extent the flow of data in an activity’s immediate

neighbourhood. Accordingly, data requirements are

captured in terms of individual activities.

The process model (P) is defined through a

directed graph consisting of Nodes (N) and Flows

(F). Nodes are classified into tasks (T) and

coordinators (C), where C ∪ T, C ∩ T = φ. We

define Process Data (P-Data) as a set of data items

, v

, … v

} for a process P, where.

∀ n ∈ N, V

is a set of data items that n consumes,

∀ n ∈ T, V

is a set of data items that n produces,

where V

, V

⊆ P-Data

Only nodes of type T (task) have an associated

output set of variables, this is because nodes of type

C (coordinator) require only to read data and make

control flow decision based on that data.

In order to enrich the understanding of a process

data model, we discuss briefly a number of

properties of process data (Sadiq et al., 2004).

Typical types of data used by process activities

includes: R

:Reference. data that is used for the

identification of the instance or case

etc,.O

:Operational. such as customer address,

student visa status, size of dwelling etc.,D

:Decision.

needed by choice coordinators, and C

:Contextual.

Contextual data is typically of a complex structure,

and may or may not be pre-defined. Example of

contextual data is quotation for a fax machine,

student transcript, building covenants etc.

In any activity based data model, there will be

flow of data between activities of the process.

However, not all data is available through internal

process activities. There is a need to at least

distinguish between the internal and external

sources of data.

An Internal source or destination implies a

read/write from the Process Data Store. Process

data store is a complex data structure which contains

values assigned to process data items as well as a

history of read/write transactions performed on the

data items. Use of process data store is widely

adopted in business process execution systems.

3.1 Process Data Errors

Process data (flow) may encounter a number of

problems during process execution:

Redundant Data: Occurs when a designer

specifies data item/s v

in the output schema

Output(n) of an activity, but this data is not required

in the input schema Input(n) of any succeeding

activity..

Lost Data: Occurs when the same data item v

has been specified as the output of two (or more)

activities that may be executed in parallel .

Missing Data: Occurs when a data item v

has

been specified in the input schema Input(n) for an

activity but the source of the data item is

unknown/unspecified.

ICEIS 2007 - International Conference on Enterprise Information Systems

474

Misdirected Data: Occurs when data flow

direction conflicts with control flow in the same

process model.

Redundant, lost, missing and misdirected data

are relatively easy to identify and verification

algorithms at design time can help remove these

errors.

Insufficient Data: Occurs if the data specified is

sufficient to successfully complete an activity. There

is a range of contextual and semantic issues with

regard to data completeness which are beyond the

scope of this paper.

Incompatible Data: The case of structural

mismatch may arise when the structure of the data

produced by the source is incompatible with the

structure required by the activity, or more precisely

by the application(s) invoked by the activity.

Stale Data: An activity retrieves a data item v

from an application or human participant and stores

that item and its value in the process data store,

which may be utilised later in the process by another

activity. The problem is if during that idle time (after

the item has been retrieved and before being read)

the data item value is updated externally to the

process.

Inconsistent Data: An activity retrieves a data

item v

during application invocation (or from an

external sources through a message gateway).

However the value retrieved is not consistent with

some established value set. For example country

value retrieved is “America” however representation

in the value set is “USA”.

The last two problems of Stale Data and

Inconsistent Data fall under the scope of the data

mismatch problem discussed in section 2. Both

problems can compromise the quality of enterprise

data through entry and/or processing of “dirty”

(stale/inconsistent) data. The strategy to address

these data quality problems using BPM

infrastructure is presented in the next section.

4 PROCESS DATA

MANAGEMENT

Our approach is based on the widely used notion of

process data store. Basically the process data store

maintains process relevant application data (i.e. all

input and output data which are identified as having

an internal source/destination).

In order to tackle the problems of stale and

inconsistent data, we propose to extend the basic

process data management model of the BPMS. Our

basic assumption in this undertaking is that problems

related to formatting differences.

The problem of stale data identifies a need for a

refresh strategy to be established so that stale data is

not routed to associated applications which may

pollute enterprise databases further. The problem of

inconsistent data identifies a need for a semantic

lookup. Thus any data from external sources must be

made consistent with established value sets within

the organization, before it is utilized by other

process activities and consequently enterprise

applications.

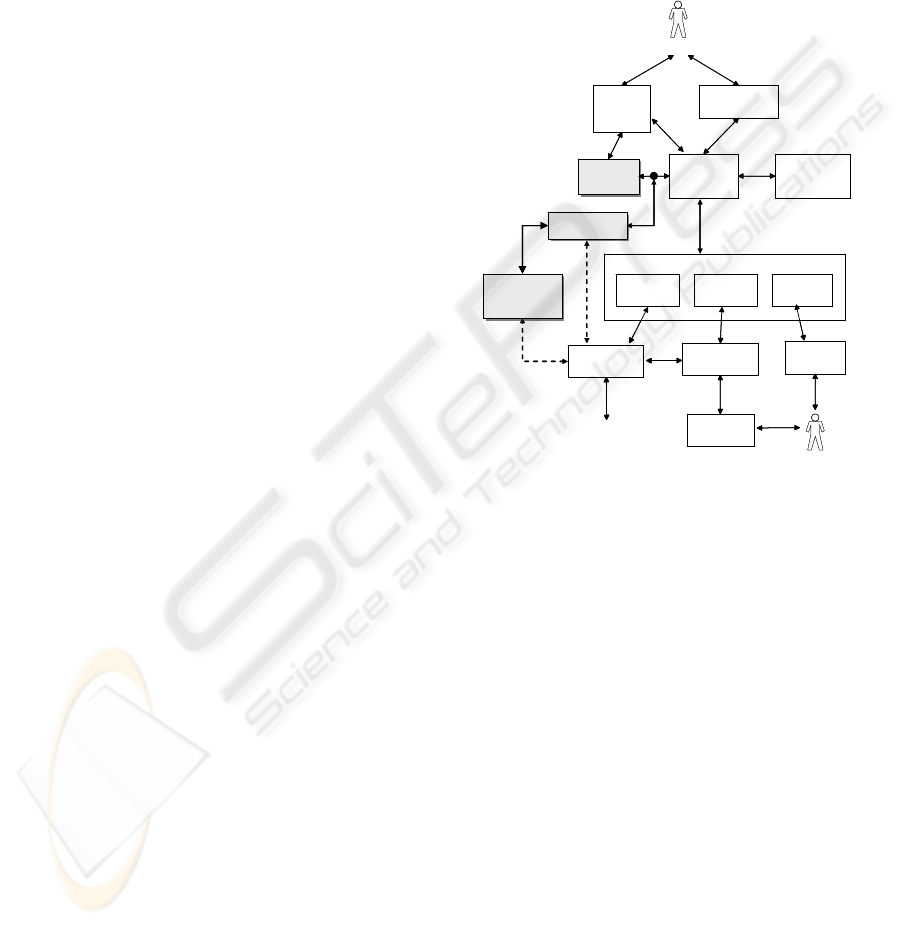

Figure 1: Extended BPMS Reference Architecture.

Both problems indicate an evident need for a

trusted corporate master data resource that must be

consulted before external data is internalized by the

BPMS. Master data is available in various forms and

functionalities in enterprise software solutions (see

e.g. SAP Netweaver MDM). We believe that the

explicit interconnect of master data with the BPMS

will provide significant benefits in terms of (process)

data control and quality.

Figure 1 shows a generic BPMS reference

architecture, extended by a new component, namely

the Business Process/Data Quality Monitor

(BP/DQM). We assume that BP/DQM provides a

gateway to corporate master data.

4.1 Data Quality Protocol

In terms of the functionality of BP/DQM, it is

basically intended to implement a tailored data

quality protocol:

1 - Data Profiling - Process Data (P-Data)

which is a union of all inputs and outputs from

Process

Modeling

Tool

Process

Data Store

Process

Enactment

Engine

Administration

Tools

Viewing,

Monitoring,

and Analysis

Participant Manager

Worklist

Handler

Event

Handler

Application

Handler

User

Worklist

Application

Components

Process User

Business Analyst

User

Dialogs

Collaboration

Partners

Messaging

Infrastructure

External

Data

Internal

Data

BP/DQM

Corporate

Master

Data

Validation

of Stale and

Inconsistent

Data

Process

Modeling

Tool

Process

Modeling

Tool

Process

Data Store

Process

Data Store

Process

Enactment

Engine

Process

Enactment

Engine

Administration

Tools

Administration

Tools

Viewing,

Monitoring,

and Analysis

Viewing,

Monitoring,

and Analysis

Participant ManagerParticipant Manager

Worklist

Handler

Worklist

Handler

Event

Handler

Event

Handler

Application

Handler

Application

Handler

User

Worklist

User

Worklist

Application

Components

Application

Components

Process UserProcess User

Business AnalystBusiness Analyst

User

Dialogs

User

Dialogs

Collaboration

Partners

Collaboration

Partners

Messaging

Infrastructure

Messaging

Infrastructure

External

Data

Internal

Data

BP/DQM

Corporate

Master

Data

Validation

of Stale and

Inconsistent

Data

INDUCTION OF DATA QUALITY PROTOCOLS INTO BUSINESS PROCESS MANAGEMENT

475

process activities, i.e. P-Data = V

∪ V

may not

be maintained in the process data store in its

entirety, since only process data items v ∈ P-Data,

for which either Source(v) = {Internal} or

Destination(v) = {Internal} will be maintained.

Ideally, each data item belonging to this subset of

internal data, but especially for data items also

belonging to reference and operational data sets (i.e.

∪ O

∪ R

∪ O

), there is a need to profile

them against the corporate master data. We refer to

this subclass of data as Quality Sensitive Data

(QSD).

Profiling basically entails a mapping of all items

of QSD to corporate master data items. Thus

profiling will not only enable the organization to

identify quality sensitive data relevant to the

process, but also assist in ensuring that corporate

master data repositories are not negligent of such

process critical data. The task of profiling identifies

a need for tool support within the BP/DQM

component that enables the mapping to be

undertaken.

2 - Data Linking - Establishing the link between

the master data and various enterprise data sources is

a critical step in the overall data quality protocol.

Ability to prepare master data from disparate

systems within the enterprise, into a centralized

repository is already available to some extent, see

e.g. SAP NetWeaver Master Data Management .

3 - Data Refresh - Potentially, any data item

read from the process data store may be stale.

Although serious impact of reading stale data may

be limited to QSD. Thus the read operation of the

process data store initiated by the process enactment

system (see Figure 1), must trigger a refresh from

the corporate master data through BP/DQM.

Profiling and linking of QSD will reduce the

problem to a simple search, read and upload. In the

absence of profiling/linking steps, the difficulty to

find the latest version of the QSD within enterprise

application databases is rather evident.

4 - Data Unification - Unification is arguably

the most difficult part of this protocol. Potentially

write/update of any item in QSD can introduce

inconsistency. As a result, the BP/DQM must trigger

a semantic lookup in the corporate master data in

order to provide a unified view of process data.

However, such a lookup must determine if a

particular data value is being represented differently

in the corporate master data, and if so, what is the

preferred value. For example, “High Density WP

‘33”, “Wide Panel 33’ HD”, “HDWP33” may all

represent the same entity. Research results on text

similarity (Gravano et al, 2003), may be used in this

regard to a limited extent. Building synonym listings

(Koudas et al., 2004) as part of corporate master data

may assist further, but in most cases human

intervention may be required to determine semantic

equivalence of two data values.

5 CONCLUSIONS

The induction of data quality protocols should take

place within business process management systems,

as business processes typically provide the first point

of contact for enterprise applications through which

enterprise data is created and maintained. We have

undertaken a detailed analysis of process relevant

data, outlining its properties as well as typical errors.

The enhanced understanding of process data through

this analysis has led to the development of an

extended BPMS reference architecture that proposes

an additional component, namely the BP/Data

Quality Monitor (BP/DQM).

The scope of this paper covers a basic discussion

on BP/DQM functionality. The proposed protocol

needs to be developed at a finer level in order to

fully demonstrate the capability (and limitations) of

the proposed BP/DQM. In particular, the semantic

lookup required for data unification (addressing the

problem of inconsistent data), holds many

challenges. This aspect of the problem is the current

focus of our work.

REFERENCES

Butler Group. 2006. Data Quality and Integrity –

Ensuring Compliance and Best use for organizational

data assets. Feb 2006.

L. Gravano, P. G. Ipeirotis, N. Koudas, D. Srivastava.

2003. Text joins for data cleansing and integration in

an rdbms., in: Proceedings of the 19th International

Conference on Data Engineering, IEEE Computer

Society, 2003

N. Koudas, A. Marathe, D. Srivastava. 2004. Flexible

string matching against large databases in practice., in:

Proceedings of the Thirtieth International Conference

on Very Large Data Bases, Morgan Kaufmann, 2004.

Frank Leymann, D. Roller. 2000. Production Workflow:

Concepts and Techniques. Sydney, Prentice-Hall of

Australia Pty. Limited.

E. Rahm, P. A. Bernstein. 2001. A survey of approaches to

automatic schema matching, The VLDB Journal 10 (4)

(2001) 334–350.

Thomas Redman. 1996. Data Quality for the Information

Age.Artech House 1996.

Shazia Sadiq, Maria Orlowska, Wasim Sadiq, Cameron

Foulger. 2004. Data Flow and Validation in Workflow

Modelling. The Fifteenth Australasian Database

Conference Dunedin, New Zealand, January 18 -- 22,

2004.

ICEIS 2007 - International Conference on Enterprise Information Systems

476
