IMPROVING CONTENT-ORIENTED XML RETRIEVAL

BY APPLYING STRUCTURAL PATTERNS

Philipp Dopichaj

University of Kaiserslautern

Gottlieb-Daimler-Str.

67663 Kaiserslautern, Germany

Keywords:

XML retrieval, knowledge management, fuzzy logic.

Abstract:

XML is the perfect format for storing (mostly) textual documents in a knowledge management system; its

ﬂexibility enables users to store both highly structured data and free text in the same document. For knowl-

edge management, it is important to be able to search the free-text parts effectively; users need to ﬁnd the

information that helps them solve their problem without having to wade through much information that is not

relevant for their problem. Content-oriented XML retrieval addresses this challenge: In contrast to traditional

information retrieval, documents are not considered atomic units, that is, elements such as sections or para-

graphs can be returned. One implication of this is that results can overlap (for example a paragraph and the

surrounding section). Although overlapping results are undesirable in the ﬁnal retrieval result as presented to

the user, they can help to improve the quality of the ﬁnal result: We take advantage of overlaps by applying

patterns to small subtrees of the retrieval result (result contexts); matching patterns adjust the retrieval status

values of the involved node in order to promote the best results. We demonstrate on the INEX 2005 test

collection that this postprocessing can lead to a signiﬁcant improvement in retrieval quality.

1 INTRODUCTION

XML is the perfect format for storing (mostly) textual

documents in a knowledge management system; its

ﬂexibility enables users to store both highly structured

data (like database records) and free text in the same

document. The data-centric parts can be searched us-

ing query languages like XPath and XQuery, where

exact conditions on the structure can be imposed. For

knowledge management, however, it is important to

be able to search the free-text parts effectively; users

need to ﬁnd the information that helps them solve

their problem without having to wade through much

information that is not relevant for their problem.

To this end, content-oriented XML retrieval can

help: In content-oriented XML retrieval, documents

are not considered atomic entities as they are in tra-

ditional text-based information retrieval: A retrieval

result can not only contain complete documents, but

also elements such as chapters or paragraphs. This

is convenient for the user, who does not have to

examine large chunks of irrelevant context informa-

tion to ﬁnd the possibly small units of information

he seeks, but it gives rise to the new issue of han-

dling overlap (Kazai et al., 2004). XML documents

are hierarchical (like document–chapters–sections–

paragraphs), so one matching result may be embed-

ded in another one. For example, if a section contains

the keywords from the user’s query, the enclosing

chapter and document also contain these keywords,

so they also match the query (possibly to a lower de-

gree).

To provide good results to the searcher, we aim

at making sure that the results are as diverse as rea-

sonably possible. In this paper, we discuss how this

problem can be approached by examining small sub-

trees from the retrieval result for adjusting the scores

to better match the searcher’s intentions. The method

makes no assumptions about the schemas of the doc-

uments, as long as the logical structure of the text cor-

responds to the tagged structure of the XML ﬁles. Be-

cause of this, it should be possible to use it on hetero-

geneous collections of textual documents that fulﬁll

this basic requirement; we do not expect the method

Dopichaj P. (2007).

IMPROVING CONTENT-ORIENTED XML RETRIEVAL BY APPLYING STRUCTURAL PATTERNS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - AIDSS, pages 5-13

DOI: 10.5220/0002364700050013

 SciTePress

to be useful for data-centric XML.

In addition to presenting the general framework,

we establish several example patterns and evaluate

their performance on the INEX 2005 data set, show-

ing signiﬁcant improvements over the baseline.

2 RELATED WORK

Overlapping results are natural in the context of semi-

structured retrieval, so XML retrieval engines have to

deal with this.

On the one hand, overlapping results can be an-

noying for the user, so the retrieval engine should

strive to deliver as little redundant content as pos-

sible; Kazai et al. (2004) discuss the overlap prob-

lem in detail. In practice, however, this was not al-

ways enforced by the evaluation metrics: Kek

ainen

et al. (2005) submitted retrieval runs with varying de-

grees of overlap to the workshop of the Initiative for

the Evaluation of XML Retrieval, INEX 2004, and

found that returning overlapping elements appears to

improve the score.

To address this, INEX 2005 features a new task

that explicitly disallows the submission of overlap-

ping documents, CO.Focused (Malik et al., 2006).

Our paper aims at improving results for this task by

deciding which of parent or children to prefer.

Although it is not desirable to present overlapping

results to the user, they can be used to improve the

quality of the retrieval results. Several researchers

make use of the context of an element in order to im-

prove retrieval quality.

Before the advent of XML, Salton et al. (1993)

use textual context for improving results for passage

retrieval; this includes considering titles and section

headings. Ogilvie and Callan (2005) use the context

of an element by incorporating the parent’s language

model. Arvola et al. (2005) use the context of re-

trieval nodes by incorporating evidence from other

nodes in the same document into the retrieval status

value (RSV) of a node. Their approach differs from

ours in that they use the scores of the enclosing ele-

ments to alter the score of a node; only the score of

these nodes is taken into account, and only the ances-

tors are considered. Ram

ırez et al. (2006) use small

elements with high RSVs to adapt the RSV of the en-

closing element, for example, a match in the section

title will increase the corresponding section’s RSV.

This requires preparation and knowledge of the doc-

uments’ schema, because all these relationships must

be modeled explicitly. The approach we present in the

remainder of this paper is schema-independent.

3 CONTEXT-BASED SCORE

ADJUSTMENT

For our approach, we assume that we get as input the

results from a traditional information retrieval engine,

where the textual contents of each XML element is

considered a document. The implication is that each

XML document is represented by a multitude of frag-

ments corresponding to XML elements in the index.

Like the original document, the retrieval results

are a set of trees, where each tree contains the result

fragments from one XML document. Results from

distinct documents cannot overlap, so we only con-

sider the result tree from a single document in the fol-

lowing discussion. In a real search engine, the result

documents can be processed separately (even concur-

rently), and the elements that form the tree nodes are

later re-arranged in a list and sorted according to the

updated retrieval status values (RSVs).

In order to keep the amount of processing reason-

able, we examine small sub-trees (called result con-

texts) of each document tree and use the data con-

tained therein to adjust the RSVs.

3.1 Result Context

For each non-leaf node, the result context consists of

this node and the children that contain at least one

hit, that is, children with a non-zero RSV. For each

node, we consider the following information for de-

ciding how to change the nodes’ scores: The RSV, the

length, and the position inside the parent node (this is

zero if the parent and the child start with the same to-

ken). Both length and position are measured in tokens

roughly corresponding to words (as determined by au-

tomatic analysis); they do not vary from retrieval run

to retrieval run, so they can be stored in the index.

This information can be visualized in two dimen-

sions, one for the lengths and positions of the text

contents of the elements and the other for the RSV.

Figure 1 shows an example XML fragment and how

it can be visualized. The horizontal position of the

left-hand side of each rectangle denotes the starting

position in the text of the parent element, and its width

corresponds to the length of the text it contains (this

implies that the parent element occupies the width of

the diagram). The parent element (in Figure 1, the

root element /sec[1]) is the reference for the scale of

the horizontal axis.

3.2 Context Patterns

While examining the result contexts of test retrieval

runs, we found several distinctive patterns that war-

ICEIS 2007 - International Conference on Enterprise Information Systems

<sec>

Hello, <b>world!</b>

How <i>are</i> you?

</sec>

position

0 1 2 3 4 5

score

0.2

0.4

0.6

0.8

/sec[1]

//b[1]

//i[1]

Figure 1: XML text and corresponding context diagram.

The horizontal axis denotes the positions and lengths of the

text fragments, and the vertical axis shows the RSV (in this

case random numbers).

rant closer examination.

3.2.1 Title Hits

Longer texts are usually broken into smaller units, for

example, sections, and these units often have a title.

The titles contain a very brief summary of the text

in the section, so a match in a title should promote

the score of the corresponding section. Early web

search engines (for HTML) made use of this by in-

creasing the weighting of the terms occurring in ti-

tle tags; this was later abandoned due to spamming.

Spamming is not an issue for retrieval in digital li-

braries of XML documents—we assume that the doc-

uments come from trusted sources, for example, in-

ternal documents of an organization—, so in this con-

text, making use of titles is still useful.

In order to make use of titles, we ﬁrst need to rec-

ognize them. One approach would be to use the tag

names (probably similar to title), but this would only

work for a speciﬁc schema, and even if we ﬁx the

schema, it may not be totally accurate: For example,

we found that authors occasionally use unstructured

tags for something that would semantically be con-

sidered a title (for example, bold text at the beginning

of a paragraph).

Instead, we propose to identify a title by its con-

text; we assume that a title has the following proper-

ties (see Figure 2a for an illustration):

• Titles are short.

• Titles occur at the start of the parent element.

• Titles are followed by long text.

It should be noted that the RSVs of the involved

hits do not play a role, which implies that the degree

to which a node is a title in its enclosing node could

be precomputed. (But this has a negative impact on

the index size and ﬂexibility.)

This need not be the case, like in HTML, but in that

case, there is no section element to be returned, anyway.

position

0 50 100 150 200 250 300

score

0.5

1.5

2.5

3.5

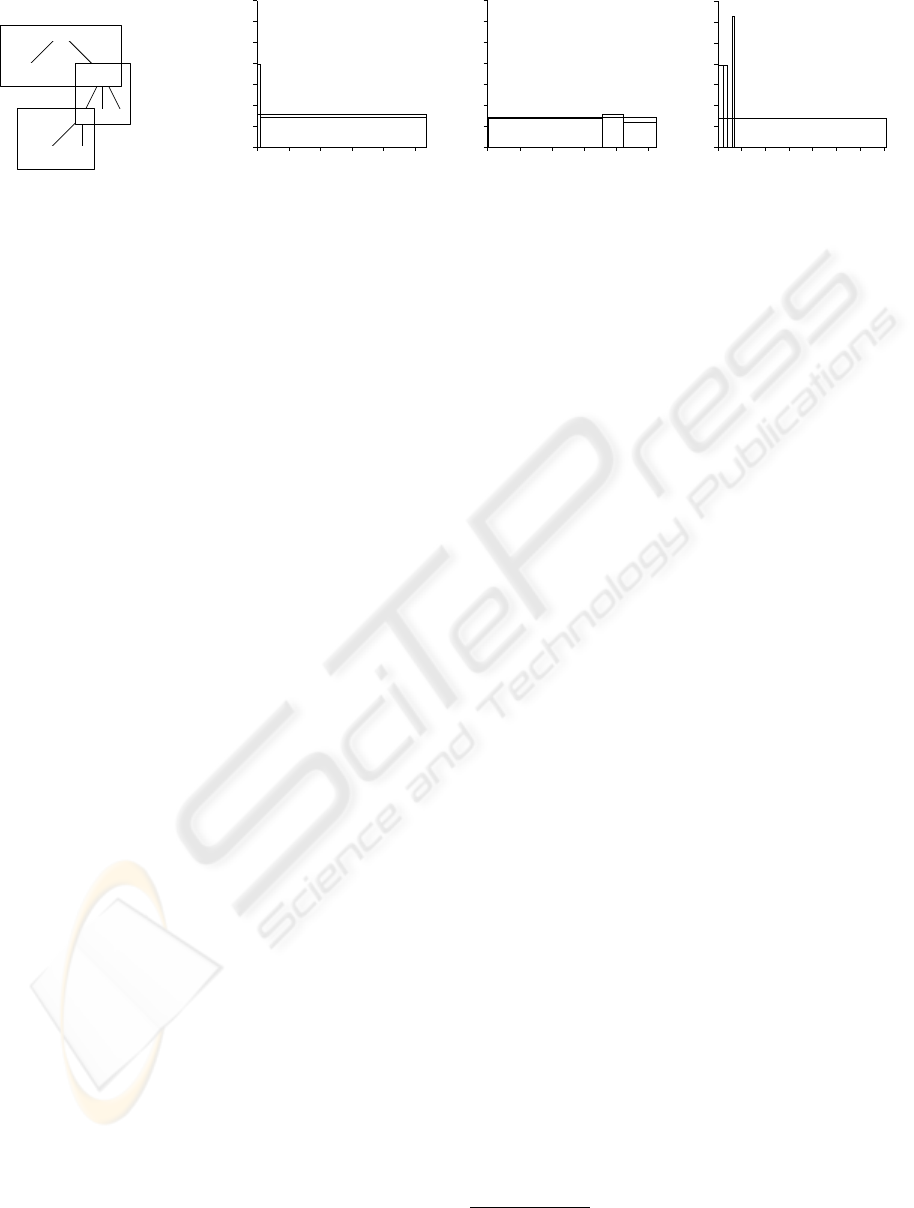

(a) Title pattern: The

short peak at the very

left is this subsection’s

title (an st element).

position

0 20 40 60 80 100 120

score

0.5

1.5

2.5

3.5

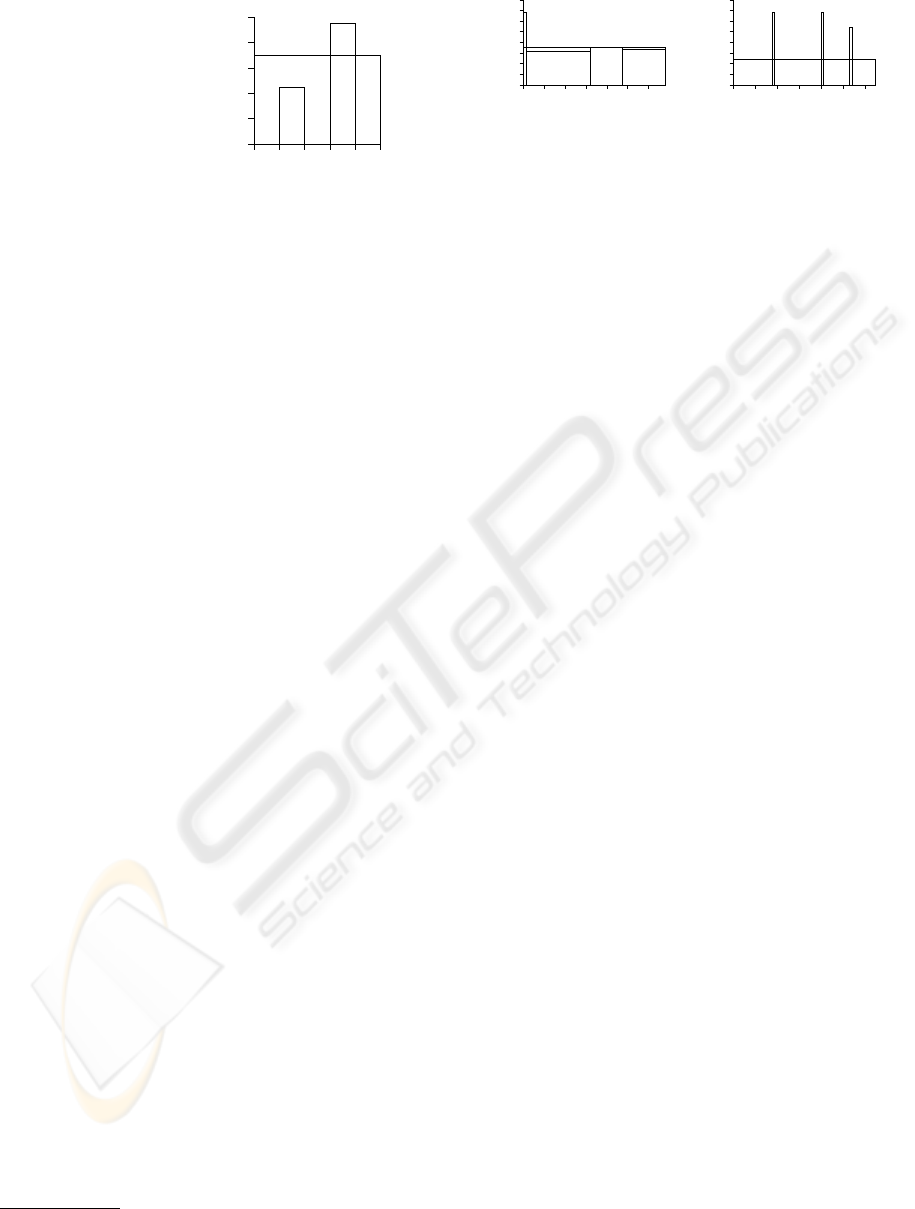

(b) Inline pattern: The

peaks are italicized

phrases two or three

words long; the whole

paragraph is 129 words

long.

Figure 2: Title and inline pattern examples.

3.2.2 Inline Children

Although very short elements, that is, elements that

only contain a few words, are not useful retrieval re-

sults (Kamps et al., 2005), they can still provide valu-

able hints about their ancestor elements (although the

short elements themselves are never returned). In

document-centric XML, elements containing only a

few words are likely to represent some form of em-

phasis (like printing a single word in bold or italic

typeface), which in turn implies that the surrounding

element is particularly relevant. Thus, a high-scoring

match in a short child element should increase the par-

ent’s score. Figure 2b shows an example of a situation

where the inline pattern matches. Again we do not

rely on speciﬁc pre-deﬁned tag names in order to be

independent of the document’s schema.

3.2.3 Good Neighborhood

If an element is surrounded by lower-scoring elements

that are relevant to the query (their RSV is greater

than zero), this may be an indication that the element

is even more relevant than expected by the search en-

gine (this is similar to the parent contextualization de-

scribed by Arvola et al. (2005)).

4 STRUCTURAL PATTERNS

Now that we have established several structural pat-

terns that occur frequently in retrieval results, we need

to ﬁnd a way to express these ﬁndings algorithmically.

In the following sections, we will ﬁrst discuss how

patterns operating on a single result context can be

implemented and then go on to describe in what way

the complete list of preliminary results is processed.

IMPROVING CONTENT-ORIENTED XML RETRIEVAL BY APPLYING STRUCTURAL PATTERNS

4.1 Implementing Patterns using Fuzzy

Logic

The pattern descriptions contain vague terms: What

exactly makes an element “short”, when is a score

“signiﬁcantly higher” than another score? It is obvi-

ous that there can be no clear-cut limits like “elements

containing less than ﬁve tokens are short”, instead,

we should have degrees of shortness. This is a per-

fect ﬁt for fuzzy logic, which extends Boolean algebra

to cope with fuzzy sets. In the following sections, we

will brieﬂy describe the basics of fuzzy logic and then

discuss how it can be applied to the problem at hand.

The central notion of fuzzy logic is the fuzzy set: In

traditional set theory, membership is binary (either a

given item is in a set or it is not); with fuzzy sets,

membership is given in degrees. Membership val-

ues of zero and one correspond to the binary notion

of membership, but in addition, any real number be-

tween these extremes can be used, depending on the

degree of membership.

Fuzzy logic also deﬁnes equivalents of Boolean

operators like and, or, and not, which enables us to

formulate rules like “if the element is very short and

its score is higher than its parent’s, then lower its

score”. The output of the condition is the degree to

which this rule matches. This value is then used to

determine to what degree the speciﬁed action should

be executed (see below for details). For a more in-

depth treatment of fuzzy logic, see Michalewicz and

Fogel (2004).

For element e in the results, we specify the func-

tions len(e), rsv(e), and pos(e) denoting length, RSV,

and position (see Section 3.1).

In our context, the following sets of membership

functions are useful:

• Length of an element in tokens: (very) short,

medium length, (very) long.

• Comparison of a score x in relation to a score y:

(much) greater/less than, equal.

The output of each pattern is a proposed change

for applicable elements’ scores (a factor >= 0) along

with a degree to which the pattern supports this score

change (in the range [0, 1]).

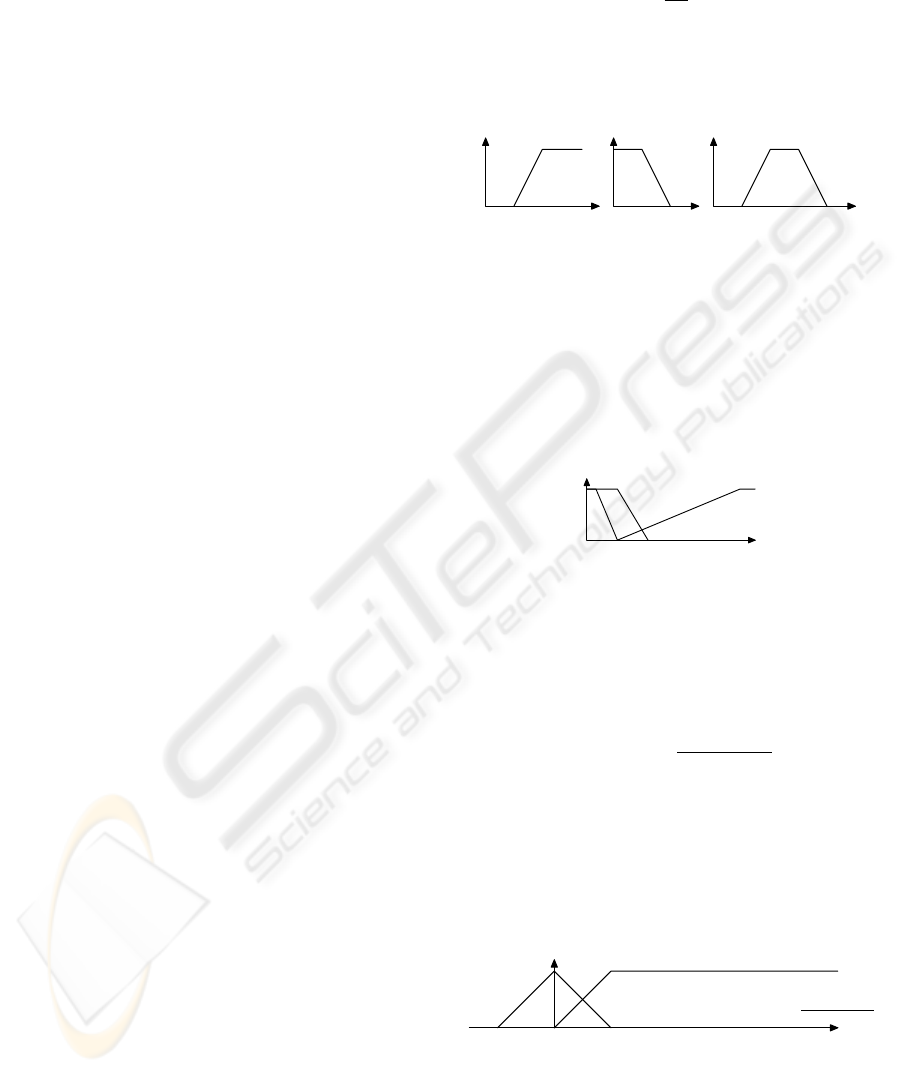

We use the following functions to deﬁne the

membership functions; l, u, a, b, c, and d denote the

bounds as indicated by the graphs:

l,u

(x) =







0 if x < l

x−l

u−l

if l ≤ x ≤ u

1 if u < x

down

l,u

(x) = 1 −up

l,u

(x)

trap

c,d

a,b

(x) = min{up

a,b

(x), down

c,d

(x)}

l u

down

a b c d

trap

Using these functions, we can specify support

membership functions operating on the context pa-

rameters. The following functions express properties

of the lengths t of context elements:

tiny(t) = down

3,10

(t)

short(t) = down

10,20

(t)

long(t) = up

10,50

(t)

length

10 20

It is also important to be able to compare the RSVs

of to context nodes in order to decide which of two

nodes has a higher score. In order to be independent

of the magnitude of the RSVs, we divide the differ-

ence by the greater value (we assume that the scores

are positive).

d =

− s

max{s

, s

}

equalRSV(s

, s

) =







1 if s

= s

= 0

trap

0,+0.1

−0.1,0

(d)

otherwise

greaterRSV(s

, s

) =







0 if s

= s

= 0

0,0.1

(d)

otherwise

−s

max{s

}

−0.1

0.1

equalRSV

greaterRSV

For some of the patterns, we need to determine

whether a count of n elements is “several” elements:

several(n) = up

0,5

(n)

In addition to the membership functions, which

are used to specify the membership value F(y) of the

ICEIS 2007 - International Conference on Enterprise Information Systems

patterns, we need a means of adjusting the score by

setting the output value y. For this purpose, we de-

ﬁne degrade(e) and promote(e) to reduce respectively

increase the score of an element e. These functions

should set y to values different from 1 (“no change”);

we set y = 0 for degrade and y = 2 for promote.

With these functions, we can now deﬁne the con-

ditions and actions for each pattern, where the input is

the data we have given (see Section 3.1), and the out-

put are rules to adapt the RSVs of any of the elements

in the current context.

4.1.1 Title Hits

The conditions and actions for the title pattern are

as follows: Let p be the parent, f the ﬁrst child

(that is, the child with the lowest position), and

isZeroPos(e) = 1 if pos(e) = 0 and 0 otherwise.

if isZeroPos(pos( f ))

∧ short(len( f )) ∧ ¬short(len(p))

∧ greaterRSV(rsv( f ), rsv(p))

⇒ promote(p), degrade( f )

4.1.2 Inline Children

The inline pattern does not use the same degree of

membership for all nodes; instead, it ﬁrst determines

the degree of “inlineness” for each child separately:

if tiny(len(c))

∧ greaterRSV(rsv(c), rsv(p))

⇒ degrade(c)

These degrees are then aggregated to a count of

high-scoring inline children. This is implemented

in fuzzy logic as the sum of the children’s degrees,

which ensures that many children that more or less

fulﬁll the requirements can replace a few children that

are 100 % members. This fuzzy count n of inline chil-

dren is then used to determine whether the parent p

should be promoted:

if several(n)

⇒ promote(p)

4.1.3 Good Neighborhood

Given n the count of children in this context, b the

element with the highest score among the children, S

the set of its siblings, and a the average score of all

children, the good neighborhood pattern is deﬁned as

follows:

if several(n)

∧ greaterRSV(a, 0.25b)

∧ greaterRSV(b, 0.75a)

⇒ promote(b),

degrade(s) ∀s ∈ S

4.2 Processing the Retrieval Results

The overall retrieval process for our method consists

of three basic steps:

1. We perform our searches on an index containing

an entry for each element on the original XML

documents, which is then searched using tradi-

tional information retrieval techniques. Currently,

Apache Lucene is used for this step.

2. We apply the structural patterns and perform the

RSV updates.

3. We remove overlapping results by repeatedly

choosing the result with the highest RSV in a tree

and removing all overlapping nodes.

4. We re-rank the results according to the new RSVs

and return them to the user.

The core part of our retrieval method occurs in

step two. Apart from the result list obtained in step

one, which gives us an RSV for each element, we

also take the static features length and position into

account for each element. Furthermore, we need the

list of structural patterns p

(i ≥ 1). The algorithm for

pattern-based score updates goes as follows:

1. (Build a result tree from the input list.)

The XPaths of the results are used to reconstruct

the nesting of the elements.

2. (Process each context with each pattern.)

For each element f that is not a leaf node:

(a) Get the set C of children c from the results.

(b) Apply each pattern to the context ( f ,C). The

output values y

and degrees F(y

) are recorded;

the RSV is not updated yet.

3. (Compute the ﬁnal RSVs of the results.)

For each element e from the results, set

rsv(e) ← rsv(e)

∑

F(y

∑

F(y

)

The separation of the pattern applications and the

actual RSV updates ensures that the order in which

the patterns applied as well as the order in which the

result tree is traversed is irrelevant.

A question that arises at this point is whether only

the scores in the examined context should be adjusted,

or if the adjustments should be propagated. If a para-

graph contains many inline elements with matching

IMPROVING CONTENT-ORIENTED XML RETRIEVAL BY APPLYING STRUCTURAL PATTERNS

keywords, its score should be increased. But what

about the enclosing elements, like sections or the

whole article? Obviously, these elements also contain

the inlined keywords as descendants, so their scores

should be increased, too, but the pattern only matches

for parent and children.

One solution would be to simply apply patterns

not only to a node and its children, but to include a

node and its descendants on a given level in the re-

sult context. This is, however, not a viable solution:

It increases the number of contexts that need to be

examined, and it also gets harder to understand the

meaning of the patterns. It is more feasible to sim-

ply propagate the RSV changes up from the parents

and down from the children. We currently do not do

this (so the changes are only applied to the nodes in

the context), because it is unclear whether the propa-

gation is sensible for all patterns (the good neighbor-

hood pattern, for example, should be applied to a local

context only) and if so, whether the degree should be

reduced for propagated scores.

Preliminary tests with applying the promote of the

title pattern to all ancestors instead of just the parent

appear to indicate that this does not improve retrieval

quality, but we will need to investigate this more thor-

oughly.

4.3 Example

We will illustrate the application of context patterns

by looking at a concrete example: We’re searching

for “bash proﬁle”, and among the results of the ﬁrst

pass is the document fragment shown in Figure 3. By

deﬁnition, each result context spans two levels in the

document tree, so this fragment contains three con-

texts, one rooted at /article, the second one rooted

at /article/body, and the third one rooted at /arti-

cle/body/p[1].

When we apply the inline pattern to the result

context /article/body/p[1], we get the degree of

membership F(y) = 1 for the children emph3[1],

emph3[2], and collectionlink[1] because all of them

are tiny, and each score is greater than the parent’s

score. This yields a count of inline children n =

3, so the parent’s degree of membership is F(y) =

several(3) = 0.6.

Similarly, if we apply all patterns to all contexts,

we get the result in Table 1.

In order to get the new RSV of each element, we

need to apply center-of-area averaging of the factors

assigned by the different patterns. For the root el-

ement and all leaf elements, we only have one out-

put/degree pair per pattern, the inner nodes may have

two such pairs because they can occur as either the

harticlei

hnameiIodised salth/namei

l=2

s=0.79

hbodyi

hpi hemph3iIodised salth/emph3i

l=2

s=0.79

(hemph3iiodized salth/emph3i

l=2

s=0.79

) is table

hcollectionlinkisalth/collectionlinki

l=1

s=1.26

mixed

with a minute amount of

hcollectionlinkiiodineh/collectionlinki

l=1

s=0

salts to

help reduce the chance of iodine deﬁciency which

can lead to disease of the

hcollectionlinkithyroidh/collectionlinki

l=1

s=0

gland. Only tiny quantities of iodine are required in

the hunknownlinkidieth/unknownlinki

l=1

s=0

to prevent

this disease, but there are many places around the

world where natural levels of iodine in

hcollectionlinkisoilh/collectionlinki

l=1

s=0

are low and the iodine is not taken up by vegetables.

h/pi

l=71

s=0.28

hpiIodised salt is a cheap and effective way of

distributing the necessary iodine.h/pi

l=13

s=0.32

hpiIodised salt is more common in the United States

than Britain, as Britons generally drink iodised milk,

while Americans do not.h/pi

l=21

s=0.24

h/bodyi

l=105

s=0.29

h/articlei

l=107

s=0.31

Figure 3: Example document fragment from the Wikipedia

page on Iodized salt (adapted from the INEX 2006 docu-

ment collection (Denoyer and Gallinari, 2006)). Appended

to each closing tag is the RSV s and the length in tokens l.

The matching keywords are italicized, and the RSV for an

element is appended to the closing tag in superscript.

parent or the child in a result context. The new RSV

for the /article/body/p[1] element is calculated as

follows:

new

= s

old

∑

F(y

∑

F(y

)

= s

old

0 · 0 + 0 · 0 + 1 · 2 + 0.6 · 2

0 + 0 + 2 + 0.6

= s

old

· 2 ≈ 0.55

We can see that the RSV of the sect2 element has

increased because of the hits in the title; the inline

pattern did not have much effect because of the low

degree. The net effect, however, is that this element

now has a higher score than the descendant program-

listing element, which is helpful because it contains

more explanatory text.

ICEIS 2007 - International Conference on Enterprise Information Systems

article

name body

p p p

emph3 . . .

context 1

context 2

context 3

(a) Overview of the result

contexts

position

0 20 40 60 80 100

score

0.2

0.4

0.6

0.8

1.2

1.4

(b) Context graph for con-

text 1

position

0 20 40 60 80 100

score

0.2

0.4

0.6

0.8

1.2

1.4

text 2

position

0 10 20 30 40 50 60 70

score

0.2

0.4

0.6

0.8

1.2

1.4

(d) Context graph for con-

text 3

Figure 4: Result tree processing for the query “salt”.

5 EVALUATION

To determine whether our new method can improve

result quality, we participated in the INEX 2005

workshop Dopichaj (2006). The INEX (Initiative for

the Evaluation of XML Retrieval) workshop (Fuhr

et al., 2005) is a yearly event for evaluating the ef-

fectiveness of XML retrieval systems. It is compara-

ble to TREC in traditional information retrieval. The

test collection consists of more than 15 000 articles

from the IEEE Computer Society’s journals and trans-

actions.

5.1 Setup

Every year, the INEX participants submit topics and

assess the pooled retrieval results submitted by all par-

ticipants. In INEX, there are two dimensions to rel-

evance, speciﬁcity and exhaustivity. Speciﬁcity de-

notes what fraction of a retrieval result is relevant to

the topic at hand (this is done by highlighting the rel-

evant parts), and exhaustivity measures to what de-

gree the information need is fulﬁlled (on a scale from

0 meaning “not exhaustive” to 2 for “highly exhaus-

tive”).

The evaluation of retrieval quality is performed

using the extended cumulative gain (xCG) metric in-

troduced in INEX 2005 (Kazai et al., 2004; Kazai and

Lalmas, 2005), an extension of the cumulative gain

(CG) metric by J

arvelin and Kek

ainen (2002). The

basic idea of CG is to obtain a graded relevance as-

sessment for each retrieval result, and then to deter-

mine the quality of a given ranked list of retrieval re-

sults up to a speciﬁc rank by summation of the rele-

vance assessment. For example, if the ﬁrst three re-

sults had the relevance scores 3, 0, and 1, the CG

values would be 3, 3 + 0 = 3, and 3 + 0 + 1 = 4 for

the ﬁrst three cut-off points. The normalized version

nCG simply divides the CG values for a given sys-

tem by the values of an ideal run constructed from the

relevance assessments.

The CG metric requires a single relevance value,

so xCG introduces quantization functions for calcu-

lating a combined value from the exhaustivity and the

speciﬁcity: A strict version that only accepts the best

results (e = 2, s = 1), and a generalized version that

gives partial credit to less than perfect results by mul-

tiplying e and s.

Our method does not directly support queries with

structural hints, so we only evaluate content-only

(CO) topics whose queries consist of queries and

phrases. We are interested in ﬁnding the best results

without overlap, so we only present the outcome for

the CO.Focused sub-task.

As a baseline, we used the Lucene retrieval en-

gine

in version 1.4.3 with standard stemming and

indexed each element as a separate document Eger

(2005). Lucene performs ranking like method 2 in

Lee et al. (1997), using tf.idf and normalization based

on document length alone. Our index also contains

inline elements only a few words long, which fre-

quently get high RSVs in this baseline implementa-

tion, although they are generally of little interest to

the user (Kamps et al., 2005). Because of this, both

our baseline and our improved runs omit short results

(less than 50 words long) from the results.

For the evaluation, we used the INEX 2005 CO

topics with the corresponding relevance assessments

and the EvalJ evaluation package

5.2 Results and Discussion

For the statistical evaluation, we used the mean av-

erage nxCG (MAnxCG) for each topic and run. The

MAnxCG value is calculating by averaging the nxCG

values at all cut-off points from 1 to 1 500. The fol-

lowing runs are included in the evaluation: the base-

line, each pattern applied in isolation, and all patterns

applied at the same time.

see http://lucene.apache.org

see http://evalj.sourceforge.net/

IMPROVING CONTENT-ORIENTED XML RETRIEVAL BY APPLYING STRUCTURAL PATTERNS

Table 1: Results of applying the patterns to the result contexts from Figure 4; y stands for the output value (i. e. the value to multiply with) and F(y) for the corresponding

degree. Omitted elements have an RSV of 0. The //title/para. element is the only element that occurs in both contexts, so it has entries in both parts of the table. Due to

rounding, the result of s

new

may be slightly different than expected.

Context 1 Context 2 Context 3

Title Inline Title Inline Title Inline

Element s

old

y F(y) y F(y) y F(y) y F(y) y F(y) y F(y) s

new

/article 0.31 2 1 2 1 0.63

/article/name 0.79 0 1 0 0.2 0

/article/body 0.29 – – 0 0 2 0 2 0 0.29

/article/body/p[1] 0.28 0 0 0 0 2 1 2 0.6 0.55

/article/body/p[2] 0.32 – – 0 0 0.32

/article/body/p[3] 0.24 – – 0 0 0.24

/article/body/p[1]/emph3[1] 0.79 0 1 0 1 0

/article/body/p[1]/emph3[2] 0.79 – – 0 1 0

/article/body/p[1]/collectionlink[1] 1.26 – – 0 1 0

Table 2: MAnxCG values averaged over all topics for the

different runs. A * indicates that the Wilcoxon signed rank

test gave p ≤ 0.05 (one-sided).

Compared

Run MAnxCG to baseline

Baseline 0.2100

All patterns 0.2289 +9%

Title and inline 0.2386 +13%*

Title 0.2356 +12%*

Inline 0.2378 +13%*

Neighborhood 0.1948 −7 %

0.14

0.16

0.18

0.2

0.22

0.24

0.26

0.01 0.1 1

nxCG

rank%

Title

Inline

Title,inline

neighborhood

All patterns

Baseline

Figure 5: Evaluation (nxCG), focused, quantization gener-

alized. We use a logarithmic scale for the x axis.

For signiﬁcance testing, we determined the nxCG

value for each topic separately and performed statis-

tical tests for correlated values. A Friedman test on

the nxCG values indicated that there may be a signif-

icant difference in at least one pair of runs. We deter-

mined the signiﬁcance of the baseline versus each of

the other runs. Table 2 shows the nxCG value over all

topics and an indication whether the difference in the

result is statistically signiﬁcant, applying the paired

Wilcoxon test. Note that although the neighborhood

pattern actually decreases the MAnxCG value, it pro-

vides a gain for low cut-off-points.

Figure 5 shows a plot of the nxCG values at all

cut-off points. We can see that the title and inline pat-

terns yield a signiﬁcant improvement over the base-

line, both in isolation and combined, whereas the

neighborhood pattern actually decreases result qual-

ity. For early precision, we see that the title pattern

yields the most pronounced improvement compared

to the baseline run, but combining it with the inline

pattern does not lead to improvements. Several other

patterns we tested failed to have a positive impact on

the result quality, so we omitted them from the pre-

vious description. Overall, applying more than one

pattern at the same time does not improve the score

as much as we would have hoped; we will need to

examine the cause for this.

ICEIS 2007 - International Conference on Enterprise Information Systems

Comparing the results presented here to our INEX

2005 results (Dopichaj, 2006), note that the imple-

mentation used for the runs we submitted to INEX

differs from the version described in this paper: The

scores are not updated independently, so the patterns

applied later receive the scores already updated by

earlier patterns, which may lead to unintended inter-

actions.

Our INEX submissions for both the CO.Thorough

and the CO.Focused sub-tasks outperform the other

organizations’ submissions at high precision (cut-off

10 and 25) with generalized quantization (but the re-

sults are not statistically signiﬁcant). The relative per-

formance drops dramatically after 50 results, indicat-

ing a problem with recall; as our baseline has the same

problems, we assume that this is not caused by the

patterns.

6 CONCLUSIONS

We have presented a framework that facilitates the

use of overlapping results to our advantage in a post-

processing step that can be applied to (almost) arbi-

trary retrieval results. We do this by way of structural

patterns, a generic means of exploiting simple context

information. We have seen in our evaluation that sev-

eral patterns can lead to signiﬁcant improvements of

result quality.

We need to analyze further what the reasons are

for the current shortcomings of our approach, in par-

ticular, the lack of improvement when applying sev-

eral patterns simultaneously. We plan to investigate

more patterns, and whether propagating the score

changes further up or down the result tree can lead to

improvements. As far as improvements of the method

are concerned, we plan to incorporate additional in-

formation such as which query terms were matched

by the context nodes.

All the patterns we described in this paper were

created from manual inspection of context graphs, but

of course it would be useful to have tools that analyze

a document collection and some example queries to

ﬁnd candidate patterns.

REFERENCES

Arvola, P., Junkkari, M., and Kek

ainen, J. (2005). Gen-

eralized contextualization method for XML information

retrieval. In Proc. CIKM 2005.

Denoyer, L. and Gallinari, P. (2006). The Wikipedia XML

Corpus. SIGIR Forum, 40(1).

Dopichaj, P. (2006). The University of Kaiserslautern at

INEX 2005. In Fuhr et al. (2006).

Eger, B. (2005). Entwurf und Implementierung einer XML-

Volltext-Suchmaschine. Master’s thesis, University of

Kaiserslautern.

Fuhr, N., Lalmas, M., Malik, S., and Kazai, G., editors

(2006). Proc. INEX 2005. Springer.

Fuhr, N., Lalmas, M., Malik, S., and Szl

avik, Z., editors

(2005). Proc. INEX 2004. Springer.

arvelin, K. and Kek

ainen, J. (2002). Cumulated gain-

based evaluation of IR techniques. ACM Transactions on

Information Systems, 20(4):422–446.

Kamps, J., de Rijke, M., and Sigurbj

ornsson, B. (2005). The

importance of length normalization for XML retrieval.

Information Retrieval, 8(4):631–654.

Kazai, G. and Lalmas, M. (2005). Notes on what to mea-

sure in INEX. In Proc. of the INEX 2005 Workshop on

Element Retrieval Methodology.

Kazai, G., Lalmas, M., and de Vries, A. P. (2004). The

overlap problem in content-oriented XML retrieval eval-

uation. In Sanderson, M., J

arvelin, K., Allan, J., and

Bruza, P., editors, Proc. SIGIR 2004, pages 72–79. ACM.

Kek

ainen, J., Junkkari, M., and Arvola, P. (2005). TRIX

2004 – struggling with the overlap. In Fuhr et al. (2005),

pages 127–139.

Lee, D. L., Chuang, H., and Seamons, K. (1997). Docu-

ment ranking and the vector-space model. IEEE Soft-

ware, 14(2):67–75.

Malik, S., Kazai, G., Lalmas, M., and Fuhr, N. (2006).

Overview of INEX 2005. In Fuhr et al. (2006).

Michalewicz, Z. and Fogel, D. B. (2004). How to Solve

It: Modern Heuristics, chapter 13, pages 367–388.

Springer, 2nd edition.

Ogilvie, P. and Callan, J. (2005). Hierarchical language

models for XML component retrieval. In Fuhr et al.

(2005), pages 224–237.

Ram

ırez, G., Westerveld, T., and de Vries, A. P. (2006).

Using small XML elements to support relevance. In

Efthimiadis, E. N., Dumais, S. T., Hawking, D., and

arvelin, K., editors, Proc. SIGIR 2006. ACM.

Salton, G., Allan, J., and Buckley, C. (1993). Approaches

to passage retrieval in full text information systems. In

Proc. SIGIR 1993, pages 49–58.

IMPROVING CONTENT-ORIENTED XML RETRIEVAL BY APPLYING STRUCTURAL PATTERNS
