SILENT BILINGUAL VOWEL RECOGNITION

Using fSEMG for HCI based Speech Commands

Sridhar Poosapadi Arjunan

School of Electrical and Computer Engineering, RMIT University,GPO Box 2476V, Melbourne, VIC 3001, Australia

Hans Weghorn

Information technology, BA-University of Cooperative Education, Rotebuehlplatz 41, 70178 Stuttgart, Germany

Dinesh Kant Kumar, Wai Chee Yau

School of Electrical and Computer Engineering, RMIT University,GPO Box 2476V, Melbourne, VIC 3001, Australia

Keywords: HCI, Speech Command, Facial Surface Electromyogram, Artificial Neural Network, Bilingual variation.

Abstract: This research examines the use of fSEMG (facial Surface Electromyogram) to recognise speech commands

in English and German language without evaluating any voice signals. The system is designed for

applications based on speech commands for Human Computer Interaction (HCI). An effective technique is

presented, which uses the facial muscle activity of the articulatory muscles and human factors for silent

vowel recognition. The difference in the speed and style of speaking varies between experiments, and this

variation appears to be more pronounced when people are speaking a different language other than their

native language. This investigation reports measuring the relative activity of the articulatory muscles for

recognition of silent vowels of German (native) and English (foreign) languages. In this analysis, three

English vowels and three German vowels were used as recognition variables. The moving root mean square

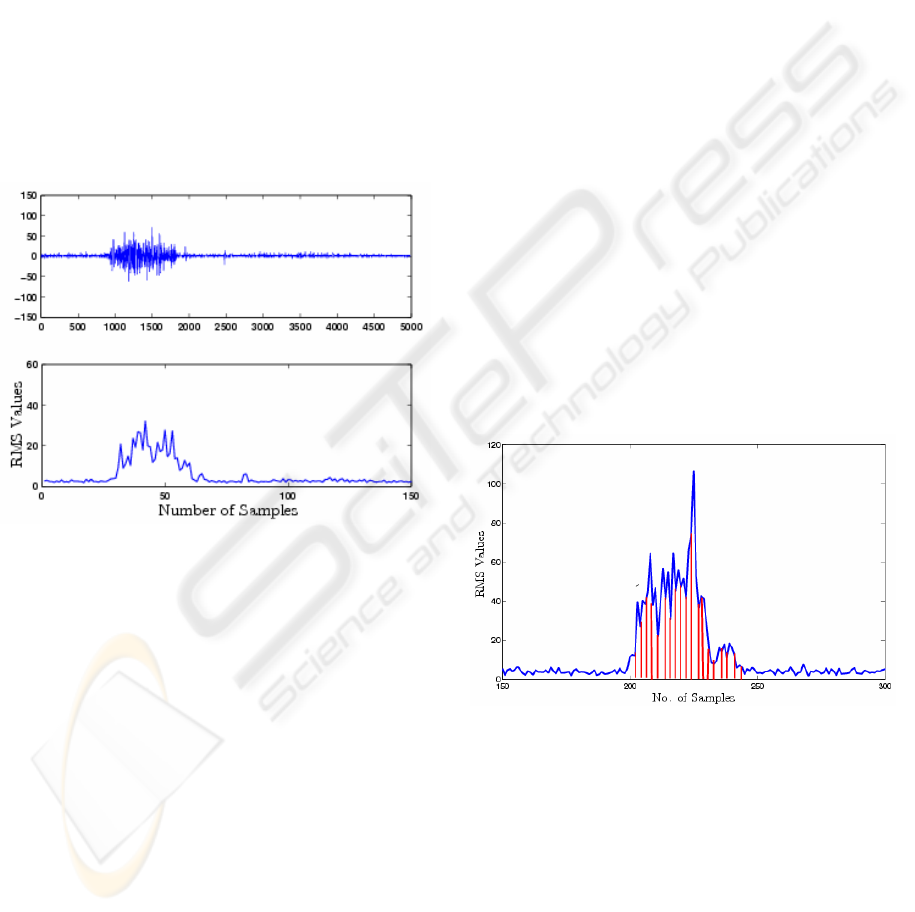

(RMS) of surface electromyogram (SEMG) of four facial muscles is used to segment the signal and to

identify the start and end of a silently spoken utterance. The relative muscle activity is computed by

integrating and normalising the RMS values of the signals between the detected start and end markers. The

output vector of this is classified using a back propagation neural network to identify the voiceless speech.

The cross-validation was performed to test the reliability of the classification. The data is also tested using

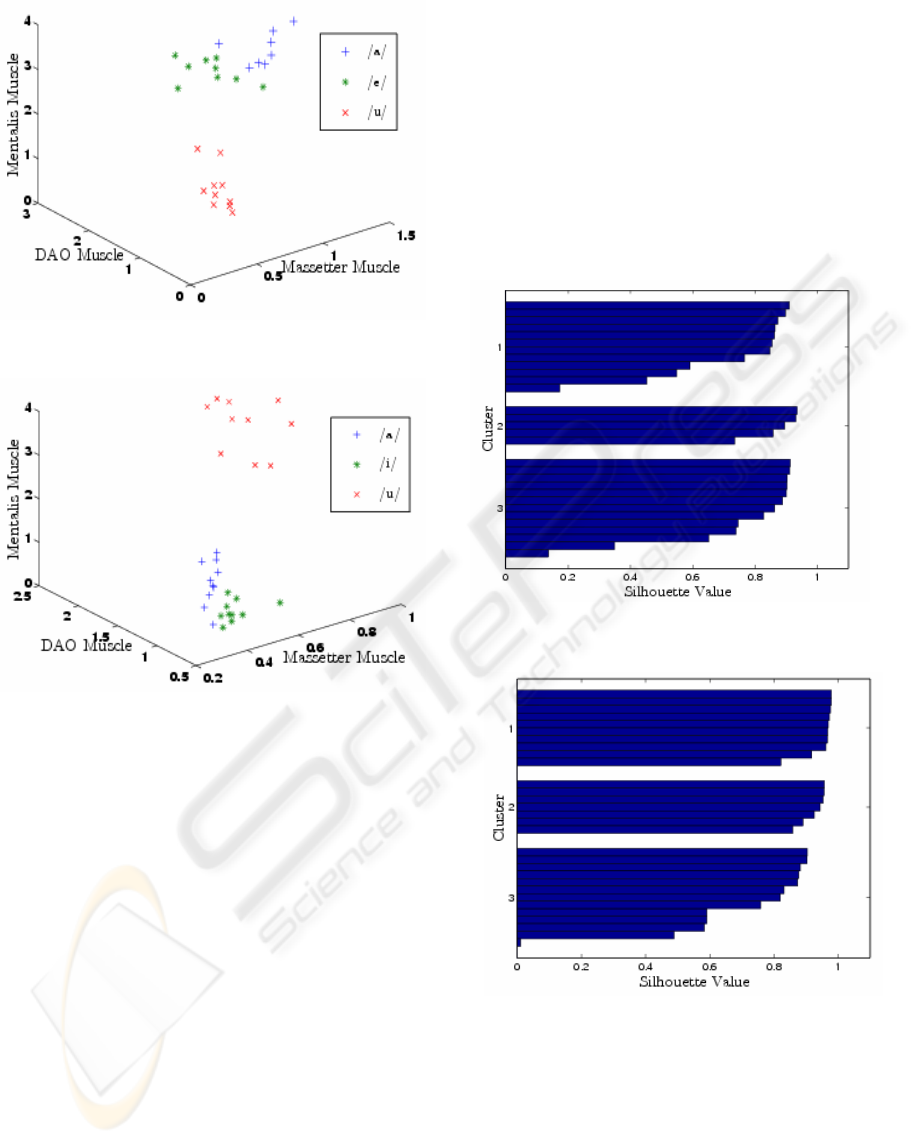

K-means clustering technique to determine the linearity of separation of the data. The experimental results

show that this technique yields high recognition rate when used for all participants in both languages. The

results also show that the system is easy to train for a new user and suggest that such a system works

reliably for simple vowel based commands for human computer interface when it is trained for a user, who

can speak one or more languages and for people who have speech disability.

1 INTRODUCTION

In this advancing world of technology, there are

many developments being made in the field of

computing. Research and development of new

human computer interaction (HCI) techniques that

enhance the flexibility and reliability for the user are

important. The most fundamental applications of

affective computing would be human-computer

interaction, in which the computer is able to detect

and track commands coming from human users, and

to handle communication based on this knowledge.

Research on new methods of computer control has

focused on various types of body functions like

speech, emotions, bioelectrical activity, facial

expressions, etc. The expression of emotions plays

an important part in human interaction. Most of the

facial movements result from either speech or the

display of emotions; each of these has its own

complexity (Ursula and Pierre, 1998).

Speech operated systems have the advantage

that these provide flexibility, and can be considered

Poosapadi Arjunan S., Weghorn H., Kant Kumar D. and Chee Yau W. (2007).

SILENT BILINGUAL VOWEL RECOGNITION - Using fSEMG for HCI based Speech Commands.

In Proceedings of the Ninth International Conference on Enterpr ise Information Systems - HCI, pages 68-75

DOI: 10.5220/0002365400680075

 SciTePress

for any applications where natural language may be

used. Such systems utilise a natural ability of the

human user, and therefore have the potential for

making computer control effortless and natural.

Furthermore, due to the very dense information that

can be coded in speech, speech based human

computer interaction (HCI) can provide richness

comparable to human-to-human interaction.

In recent years, significant progress has been

made in speech recognition technology, making

speech an effective modality in both telephony and

multimodal human-machine interaction. Speech

recognition systems have been built and deployed

for numerous applications. The technology is not

only improving at a steady pace, but is also

becoming increasingly usable and useful. However,

speech recognition technology using voice signals

has three major shortcomings - it is not suitable in

noisy environments such as vehicles or factories, not

applicable for people with speech impairment

disability such as people after a stroke attack, and it

is not applicable for giving discrete commands when

there may be other people talking in vicinity.

This research reports how to overcome these

shortcomings with a voice recognition approach,

which identifies silent vowel-based verbal

commands without the need to sense the voice sound

output of the speaker. Possible users of such a

system would be people with disability, workers in

noisy environments, and members of the defence

forces. When we speak in noisy environments, or

with people with hearing deficiencies, the lip and

facial movements often compensate the lack of

audio quality.

The identification of speech by evaluating lip

movements can be achieved using visual sensing, or

tracking the movement and shape using mechanical

sensors (Manabe et al., 2003), or by relating the

movement and shape to facial muscle activity (Chan

et al., 2002; Kumar et al., 2004). Each of these

techniques has strengths and limitations. The video

based technique is computationally expensive,

requires a camera monitoring the lips that is fixed to

a view of the speaker’s head, and it is sensitive to

lighting conditions. The sensor based technique has

the obvious disadvantage that it requires the user to

have sensors fixed to the face, making the system

not user friendly. The muscle monitoring systems

have limitations in terms of low reliability. In the

following sections, the approach is reported of

recording activity of the facial muscles (fEMG) for

determining silently commands from a human

speaker.

Earlier work reported by the authors have

demonstrated the use of multi-channel surface

electromyogram (SEMG) to identify the unspoken

vowel based on the normalized integral values of

facial EMG during the utterance, and this

construction had been tested with native Australian

English speakers. The main concern with such

systems is the difficulty to work across people of

different backgrounds, and the main challenge is the

ability of such a system to work for people of

different languages – native ones as well as foreign

ones. Consequently, in this particular work the error

in classification of the unvoiced English and German

vowels by a group of German native speakers are

compared. Hence, this investigation covers the

application case of two different languages used by

native speakers, and the case of speakers talking and

commanding in a foreign language.

2 THEORY

This research aims to recognize the multi-channel

surface electromyogram of the facial muscle with

speech and identify the variation in the accuracy of

classification for two different languages, German

and English. Articulatory phonetics considers the

anatomical detail of the utterance of sounds. This

requires the description of speech sounds in terms of

the position of the vocal organs, and it is convenient

to divide the speech sounds into vowels and

consonants. The consonants are relatively easy to

define in terms of shape and position of the vocal

organs, but the vowels are less well defined and this

may be explained because the tongue typically never

touches another organ when making a vowel

(Parsons, 1986). When considering speech

articulation, the shapes of the mouth during speaking

vowels remain constant while during consonants the

shape of the mouth changes.

2.1 Face Movement and Muscles

Related to Speech

The human face can communicate a variety of

information including subjective emotion,

communitive intent, and cognitive appraisal. The

facial musculature is a three dimensional assembly

of small, pseudo-independently controlled muscular

lips performing a variety of complex orfacial

functions such as speech, mastication, swallowing

and mediation of motion (Lapatki et al., 2003).

When using facial SEMG to determine the shape of

lips and mouth, there is the issue of the proper

SILENT BILINGUAL VOWEL RECOGNITION - Using fSEMG for HCI based Speech Commands

choice of muscles and the corresponding location of

the electrodes, and also the difficulty of cross talk

due to the overlap between the different muscles.

(Chan et al., 2002) demonstrated the presence of

speech information in facial myoelectric signals

using an SEMG based system. (Kumar et al., 2004)

have demonstrated the use of SEMG to identify

unspoken sounds under controlled conditions. More

algorithmic details for dedicatedly classifying facial

muscle activity during vowel-based speech

previously were reported in (Arjunan et al., 2006).

Applying integral RMS of SEMG is useful in

overcoming the issues of cross talk and the temporal

difference between the activation of the different

muscles that may be close to one set of electrodes. It

is impractical to consider the entire facial muscles

and record their electrical activity.

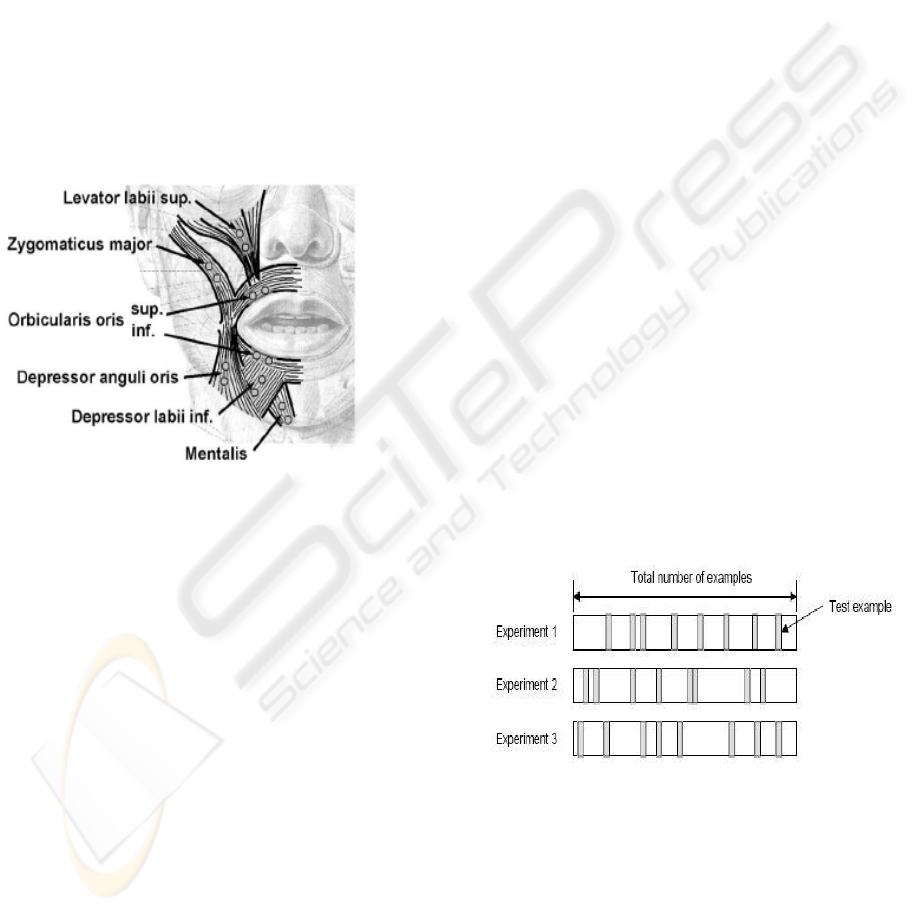

Figure 1: Topographical location of facial muscles

[Source: (Lapatki et al., 2003)].

In this study, only the following four facial

muscles have been selected: Zygomaticus Major,

Depressor anguli oris, Masseter and Mentalis

(Fridlund and Cacioppo, 1986). The placement of

electrodes and location of these muscles are shown

in Figure 1. With the variation in speed and

pronunciation of speaking, and the length of each

sound in different languages, it is difficult to

determine an appropriate window in time domain for

best signal analysis. When the properties of the

signal are time varying, identifying suitable features

for classification will be less robust.

2.2 Features of SEMG

Surface electromyogram (SEMG) is a gross

indicator of the muscle activity and is used to

identify force of muscle contraction, associated

movement and posture. SEMG is a complex non-

stationary signal. The strength of SEMG is a good

measure of the strength of contraction of the muscle,

and it can be related to the movement and posture of

the corresponding part of the body (Basmajian and

Deluca, 1985). Root Mean Square (RMS) of SEMG

is related to the number of active muscle fibers and

the rate of activation, and is a good measure of the

strength of the muscle activation, and thus the

strength of the force of muscle contraction. The

issue regarding the use of SEMG to identify speech

is the large variability of SEMG activity pattern

associated with a phoneme of speech (Basmajian

and Deluca, 1985). While it is relatively simple to

identify the start and the end of the muscle activity

related to the vowel, the muscle activity at the start

and the end may often be much larger than the

activity during the section, when the mouth cavity

shape is being kept constant, corresponding to the

vowel. To overcome the issue of variation in speed

and pronunciation of vowels, this research

recommends the use of the integration of the RMS

of SEMG from the start till the end of the utterance

of the vowel. This paper reports the use of

normalised values of the integral of RMS of SEMG

from the different muscles to reduce the large inter-

experimental variation.

2.3 Statistical Analysis using

Cross-validation

Cross-validation is the statistical practice of

partitioning a sample of data into subsets such that

the analysis is initially performed on a single subset,

while the other subset(s) are retained for subsequent

use in confirming and validating the initial analysis.

Figure 2: Random sub-sampling cross validation. [Source:

(Gutierrez-Osuna, 2001)].

The initial subset of data is called the training

set; the other subset(s) are called validation or

testing sets. The holdout method is the simplest kind

of cross validation. The data set is separated into two

sets, called the training set and the testing set. The

function approximator fits a function using the

training set only. Then the function approximator is

ICEIS 2007 - International Conference on Enterprise Information Systems

asked to predict the output values for the data in the

testing set (it has never seen these output values

before). The obtained errors are accumulated as

before to determine the mean absolute test set error,

which is used to evaluate the model. For having a

random selection of training and testing data sets,

Random Sub sampling Cross-validation method was

used. Random Sub sampling performs k data splits

of the dataset as shown in Figure 2. Each split

randomly selects a (fixed) number of examples

without replacement. For each data split we retrain

the classifier from scratch with the training examples

and estimate with the test examples. The true

classification accuracy is obtained as the average of

the separate estimates (Gutierrez- Osuna, 2001). The

training and testing was done using Artificial Neural

Network architecture with back propagation

algorithm.

Figure 3: Recorded raw EMG signal and its RMS plot.

3 METHODOLOGY

Experiments were conducted to evaluate the

performance of the proposed speech recognition

from facial SEMG for two different languages,

German and English. The experiments were

approved by the Human Experiments Ethics

Committee of the University. In controlled

experiments, participants were asked to speak while

their SEMGs were recorded. The SEMG recordings

were visually observed, and all recordings with any

artefacts – typically due to loose electrodes or

movement – were discarded. During these

recordings, the participants spoke three selected

English vowels (/a/,/e/,/u/) and three selected

German vowels (/a/,/i/,/u/). Each vowel was spoken

separately such that there was a clear start and end

of its utterance. The experiment was repeated ten

times for each language. A suitable resting time was

granted to the speakers between each experiment.

The participants were asked to vary their speaking

speed and style to obtain a wide training set.

3.1 EMG Recording and Processing

In an earlier reference investigation, three male

volunteers participated who are English native

speakers, while in the present investigation, one

female plus two male volunteers participated in the

experiments. All the participants in this second

experimental run were native speakers of German

with English as their second language.

Four channel facial SEMG was recorded using

the recommended recording guidelines (Fridlund

and Cacioppo, 1986). A four channel, portable,

continuous recording MEGAWIN instrument (Mega

Electronics, Finland) was used for this purpose. Raw

signal was recorded at a rate of 2000 samples per

second. Ag/AgCl electrodes (AMBU Blue sensors

from MEDICOTEST, Denmark) were mounted on

appropriate locations close to the selected facial

muscles. The recordings were visually observed, and

all recordings with any artefacts were discarded.

Figure 3 shows the raw EMG signal recording, and

its RMS values plotted as a function of time domain

denoted by the corresponding sample number.

Figure 4: Example RMS integration of SEMG.

3.2 Data Analysis

The first step in the analysis of the data was to

identify the temporal location of the muscle activity.

Moving root mean square (MRMS) of the recorded

signal with a threshold of 1 sigma of the signal was

applied for windowing and identifying the start and

the end of the active period (Freedman et al., 1997).

A Window size of 20 samples corresponding to

10 ms was used for computing the MRMS.

SILENT BILINGUAL VOWEL RECOGNITION - Using fSEMG for HCI based Speech Commands

(a)

(b)

Figure 5: 3-D plot of the normalised IRMS values for (a)

English Vowels, and for (b) German Vowels.

The start and the end of the muscle activity were

also confirmed visually. The next step was to

parameterise the SEMG for classification of the

data. MRMS values of SEMG between the start and

the end of the muscle activity was integrated for

each of the channels. This provided a four long

vector corresponding to the overall activity of the

four channels for each vowel utterance. This data

was normalised by computing a ratio of integrated

MRMS of each channel with respect to channel

number one. This ratio is indicative for the relative

strength of contraction of the different muscles and

reduces the impact of inter-experimental variations.

The outcome of this step was a vector of length three

corresponding to each utterance. Figure 4 is an

example of the computation of the integral of RMS

of SEMG. For computing the integral of RMS of

SEMG, Durand’s rule (Beyer, 1987) was used,

because it produces approximations that are more

accurate, since these represent a straightforward

family of numerical integration techniques.

3.3 Classifying of Normalised Features

of Facial SEMG

For classification, parameterised SEMG data

resulting in a vector with three measures for each

utterance was used. The first step was to determine,

if this data is separable.

(a)

(b)

Figure 6: Silhouette plot of the normalised IRMS values

for (a) English Vowels, and (b) German Vowels.

After confirming this, the next step was to

determine whether the data is linearly separable. A

supervised neural network approach was used for the

separation step. The advantage of using a neural

network is that such networks can be applied

ICEIS 2007 - International Conference on Enterprise Information Systems

without the assumption for a possible linear

separation of the data. For this purpose, the data

from the ten experiments for each vowel uttered by

one individual participant was divided into two

groups - training and test data.

This was repeated for English and German

language separately. The ANN consisted of two

hidden layers with 20 nodes in both layers. Sigmoid

function was used as the threshold decision. ANN

was trained with gradient descent algorithm using a

momentum with a learning rate of 0.05 to reduce the

likelihood of local minima. Finally, the trained ANN

was used to classify the test data. This entire process

was repeated for each of the participants. The

performance of these integral RMS values was

evaluated by comparing the accuracy in the

classification during testing. The accuracy was

calculated as ratio of the percentage of correctly

classified data points and the total number of data

points in the class.

The next step in the classification of this data

was to test, whether the data was linearly separable.

Taking advantage of the three dimension in the data,

three axis plot was produced. In this, data points

representing each vowel were given a specific colour

and distinct symbol for visual inspection. Figure 5

shows example of such a plot, for each of the

investigated languages. The K-means clustering

technique was performed to test the data for linear

separability. To get an idea of how well-separated

the resulting clusters are, a silhouette plot was made

using the cluster indices output from k-means. The

silhouette plot in Figure 6 displays a measure of

closeness of each point in one cluster to points in the

neighbouring clusters.

3.4 Statistical Analysis of Classification

Accuracy

Random Sub sampling cross-validation method was

used to determine the mean classification accuracy

of the normalised features of facial SEMG. The

training and testing of different random sub samples

using ANN was repeated for different times. The

final classification accuracy is the average of

individual estimates as in Eqn.1.

∑

×=

ncKA

)/(/1 (1)

where c = number of correctly classified utterances

n = total number of utterances

K = total repetition count of training and testing

4 RESULTS AND OBSERVATIONS

The linear separation of normalised IRMS values of

different vowels was tested using three dimensional

plot and silhouette plot. It is observable from the 3-

D plots in Figure 5, that there appears distinct

clustering of the data based on the vowel uttered for

both languages.

Table 1: Mean classification accuracy for English vowels.

Mean Classification accuracy

Vowels

Participant 1 Participant 2

Participant 3

/a/ 73.3% 83.3% 80.0%

/e/ 76.7% 76.7% 83.3%

/u/ 100.0% 100.0% 100.0%

Table 2: Mean classification accuracy for German vowels.

Mean Classification accuracy Vowels

Participant 1 Participant 2

Participant 3

/a/ 86.7% 83.3% 83.3%

/i/ 96.7% 80.0% 76.7%

/u/ 100.0% 100.0% 100.0%

This is also verified using k-means Silhouette

plot (Figure 6): it is clear that most points have a

large silhouette value, indicating that the clusters are

separated from each other and this suggests that

there exists a linear separation of the data. The

average silhouette values for English vowels and

German vowels are 0.7634 and 0.8441 respectively.

This shows that the linear separation of data is

stronger in German vowels (native language of the

speaker) than English vowels (foreign language).

Table 1 shows the ANN classification results on the

test data using weight matrix generated during

training for English vowels, and Table 2 lists these

values for German vowels. These results indicate

that the mean classification accuracy of the integral

RMS values of the EMG signal yields better

recognition rate of vowels for 3 different

participants, when it is trained individually. The

results indicate that this technique can be used for

the classification of vowels for the native and

foreign language – in this case – English and

German. This suggests that the system is able to

identify the differences between the styles of

speaking of different people at different times for

different languages.

SILENT BILINGUAL VOWEL RECOGNITION - Using fSEMG for HCI based Speech Commands

4.1 Variation in Classification Error

for Native and Foreign Language

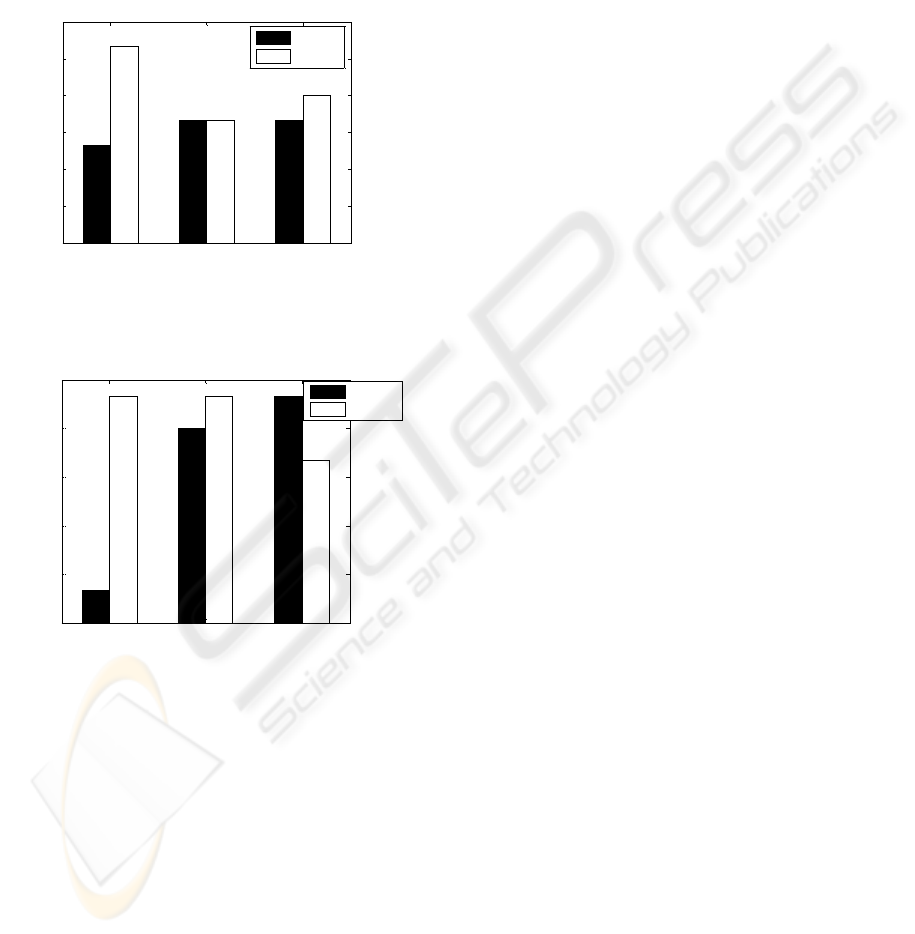

Figure 7 shows the variation in error rate for German

and English vowels. The error rate in classification

accuracy for a foreign language (English) is

marginally high when compared with the native

language (German). This is due to the muscle pattern

remaining same during the utterance of the native

1 2 3

Partici

ants

Error Rate

German

English

Figure 7: Error bar plots for classification of English and

German Vowel - /a/.

1 2 3

Participants

Error rate

German

English

Figure 8: Error bar plots for classification rates of the

German vowel - /i/ and the English Vowel - /e/.

language and changes during the utterance of the

foreign language. The variation is high for German

vowels /a/, /i/ and English vowels /a/, /e/ and there is

no variation for the vowel /u/ in both German and

English language. This can also be seen from the

data pattern for both the languages (3-D Plot) in

Figure 5.

5 DISCUSSION

The results indicate that the proposed method using

activities of facial muscles for identifying silently

spoken vowels is technically feasible from the view

point of error in identification. The investigation

reveals the suitability of the system for English and

German, and this suggests that the system is feasible

when used for people speaking their own native

language as well as a foreign language.

The results also indicate that the system is not

disturbed by the variation in the speed of utterance.

The recognition accuracy is high, when it is trained

and tested for a dedicate user. Hence, such a system

could be used by any individual user as a reliable

human computer interface (HCI). Up to now, this

method has only been tested for limited vowels.

Vowels were considered at first, because the muscle

contraction during the utterance of vowels remains

stationary.

The promising results obtained in the experiment

indicate that this approach based on the facial

muscles movement represents a suitable and reliable

method for classifying vowels of single user without

regard to speaking speed and style in different times

for different languages. It should be pointed out that

this method at this stage is not being designed to

provide the flexibility of regular conversation

language, but for a limited dictionary only, which is

appropriate for simple voice control systems. The

results furthermore suggest that such a system is

suitable and reliable for simple commands for

human computer interface when it is trained for the

user. This method has to be enhanced for large set of

data with many subjects in future.

6 CONCLUSIONS

This work describes a silent vowel based speech

recognition approach that works with measuring the

facial muscle contraction using non-invasive SEMG.

Application of this includes, e.g., removal of any

disambiguity caused by the acoustic noise for human

computer interface or computer based speech

analysis. The presented investigation focused on

classifying English and German vowels, because

pronunciation of vowels results in stationary muscle

contraction as compared to consonants.

The system has been tested with a very small set

of phonemes, where the system has been successful.

The recognition accuracy is high, when it is trained

and tested for a dedicate user. It should be pointed

out that this method at this stage is not yet designed

to provide the flexibility of regular conversation

language, but for a limited dictionary only, which is

appropriate for simple voice control systems. This

ICEIS 2007 - International Conference on Enterprise Information Systems

method has to be enhanced for large set of data with

many subjects in future.

One basic application for such a system is for

disabled user to give simple commands to a

machine, which would be a helpful and typical

application of HCI. Future applications of such a

system, e.g., cover Internet access for people on the

move while using their mobile devices, or when they

are in public places. Further possibilities especially

include applications for telephony, defence

problems, and improvement of speech-based

computer control in general in any noisy

environment.

REFERENCES

Arjunan, S.P., Kumar, D.K., Yau, W.C., Weghorn, H.

(2006). Unvoiced speech control based on vowels

detected by facial surface electromyogram. In

Proceedings of IADIS international conference e-

Society 2006, Dublin, Ireland, Vol. I, pp. 381-388.

Basmajian, J. V. and Deluca, C. J. (1985). Muscles Alive:

Their Functions Revealed by Electromyography.

Williams and Wilkins, Baltimore, fifth edition.

Beyer, W. H. (Ed.) (1987). CRC Stndard Mathematical

Tables. CRC press, Boca Raton, 28

edition. p. 127

Chan, A., Englehart, K., Hudgins, B., and Lovely, D.

(2002). A multi-expert speech recognition system

using acoustic and myoelectric signals. In Proceedings

of 24th Annual Conference and the Annual Fall

Meeting of the Biomedical Engineering Society,

Ottawa, Canada, Vol. 1, pp. 72-73. IEEE.

Freedman, D., Pisani, R., and Purves, R. (1997). Statistics.

Norton College Books, New York, third edition.

Fridlund, A. and Cacioppo, J. (1986). Guidelines for

human electromyographic research. In Journal of

Psychophysiology, Vol. 23, No. 4, pp. 567-589. The

Society for Psychophysiologial Research.

Gutierrez-Osuna, R. (2001). Lecture 13: Validation. In

http://research.cs.tamu.edu/prism/lectures/iss

Last access: October 2006. Wright State University.

Kumar, S., Kumar, D., Alemu, M., and Burry, M. (2004).

EMG based voice recognition. In Proceedings of

Intelligent Sensors, Sensor Networks and Information

Processing Conference, Melbourne, Australia. IEEE.

Lapatki, B. G., Stegeman, D. F., and Jonas, I. E. (2003). A

surface EMG electrode for the simultaneous

observation of multiple facial muscles. In Journal of

Neuroscience Methods, Vol. 123, No. 2, pp. 117-128.

Manabe, H., Hiraiwa, A., and Sugimura, T. (2003).

Unvoiced speech recognition using SEMG- mime

speech recognition. In ACM Conference on Human

Factors in Computing Systems, Ft.Lauderdaler,

Florida, USA, pp. 794-795.

Parsons, T. W. (1986). Voice and speech processing.

McGraw-Hill Book Company, New York, first

edition. Ursula, H. and Pierre, P. (1998). Facial

reactions to emotional facial expressions: affect or

cognition? In Cognition and Emotion, Vol. 12 No.4.

SILENT BILINGUAL VOWEL RECOGNITION - Using fSEMG for HCI based Speech Commands
