XML INDEX COMPRESSION BY DTD SUBTRACTION

Stefan Böttcher, Rita Steinmetz

Computer Science, University of Paderborn, Fürstenallee 11, 33102 Paderborn, Germany

Niklas Klein

ComTec, University of Kassel, Wilhelmshöher Allee 73, 34121 Kassel, Germany

Keywords: XML, Compression, Index, Data Streams.

Abstract: Whenever XML is used as format to exchange large amounts of data or even for data streams, the verbose

behaviour of XML is one of the bottlenecks. While compression of XML data seems to be a way out, it is

essential for a variety of applications that the compression result can be queried efficiently. Furthermore, for

efficient path query evaluation, an index is desired, which usually generates an additional data structure. For

this purpose, we have developed a compression technique that uses structure information found in the DTD

to perform a structure-preserving compression of XML data and provides a compression of an index that

allows for efficient search in the compressed data. Our evaluation shows that compression factors which are

close to gzip are possible, whereas the structural part of XML files can be compressed even better.

1 INTRODUCTION

1.1 Motivation

XML is widely used as a data exchange standard and

DTDs are one of the key concepts to ensure

correctness of XML data. While the structural

information contained in XML trees is considered

being one of the strengths of XML, it has the

following disadvantages: structure makes XML files

rather verbose compared to the text values enclosed

in the structures of an XML file.

Whenever the structure of an XML document is

defined by a DTD, we can take advantage of the fact

that the DTD defines some structure patterns that

occur repeatedly in the XML document. The key

idea of our structure preserving compression is to

compress the verbose structural parts of XML

documents that are redundant when regarding the

structure of a given DTD. In order to be able to

construct an index for path queries, our structure

preserving data format separates a compressed

structure index, called kleene size tree (KST) from

the compressed data values of the XML document.

Our paper has the following contributions:

1. From the DTD, we derive a set of grammar

rules that can be used for the following: to compress

the structural part of the XML data to a structure

preserving kleene size tree (KST) and a data format

called constant XML stream (CXML) to store the

text constants and attribute values of XML

documents.

2. The same grammar rules can be used to

decompress the generated data structures KST and

CXML back to the XML data given before.

3. The kleene size tree (KST) can be used for

transforming path-oriented search operations on an

XML document to equivalent queries on the con-

stant XML (CXML) stream.

4. We have evaluated our approach and show that

significant compression of the XML structure is

possible. Our experiments have shown that the size

of the KST is on average only 3.6% of the size of the

structure of the original XML file.

Our approach – which we call DTD subtraction -

is especially useful, when the structure of the XML

document is the bottleneck of the data exchange.

Finally, our approach can be used for extremely

large XML documents and it supports streaming of

XML documents.

DTD subtraction can be summarized as follows.

We represent each element declaration of a given

DTD as both a syntax tree and a set of grammar

rules (Section 2). The set of grammar rules is then

augmented to an attribute grammar for either

compression of an XML document to a KST and a

CXML stream, for decompression of a KST and a

Böttcher S., Steinmetz R. and Klein N. (2007).

XML INDEX COMPRESSION BY DTD SUBTRACTION.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - DISI, pages 86-94

DOI: 10.5220/0002365900860094

 SciTePress

CXML stream or for transforming path queries on

the XML data into queries on CXML data and an

index generated from the KST (Section 3). Section 4

outlines how our approach can be extended to

arbitrary DTDs and to XML streams. Section 5

summarizes our experimental results, whereas

Section 6 discusses related works and Section 7

outlines the summary and conclusions.

2 TRANSFORMING A DTD INTO

A SET OF GRAMMAR RULES

2.1 Element Declarations

For simplicity of the presentation, we consider

DTDs containing only element declarations. For

example, the element declaration

< !ELEMENT E1 ( E2 , ( E3|E4 ) )* >

defines each element E1 to enclose an arbitrary

number of sequences each of which consists of the

element E2 followed by either an element E3 or an

element E4. We call (E2, (E3|E4))* the right hand

side of the element declaration. This right hand side

applies the kleene operator (*) to the sequence

operator (,) which itself is applied to the child

element E2 of E1 and the choice operator (|) that

itself is applied to the child elements E3 and E4 of

E1.

In comparison, an element declaration

< !ELEMENT E2 ( #PCDATA ) >

defines the element E2 to contain only PCDATA. In

this case, the right-hand side of the element

declaration contains only the expression #PCDATA.

In general, each right hand of an element

declaration can be regarded as a regular expression

which combines zero or more child elements or the

#PCDATA entry or the EMPTY entry by using the

operators sequence (,), choice (|) or kleene(*). Note

that the (+) operator found in element declarations

can always be expressed by using the sequence and

kleene operators, i.e., we replace (E) + with (E,

(E*)). Similarly, the option operator (?) can be

expressed by using choice and EMPTY, i.e., we

replace (E?) with (E|EMPTY). Furthermore, an

extension of our approach to attributes is straight

forward, i.e., a list of attributes defined in an

ATTLIST declaration for an element E can be

treated similar to a sequence of child elements of E

where optional attributes are treated like optional

elements. In order to keep the following discussion

simple, we only talk about elements and do not

explicitly mention attributes.

We exclude however the ANY operator from

DTD element declarations because the ANY

operator does not allow us to infer the type

information that we need.

2.2 Representing Element Declarations

as Syntax Trees

Grammar rules for compression and XML path

query translation are generated from the element

declarations of the DTD. For this purpose, each

element declaration is parsed and transformed into a

binary syntax tree consisting of 7 types of element

declaration nodes. Some node types have a

parameter. For example, the element declarations

given in the previous section are represented by the

syntax trees given in Figure 1:

element_decl( E1 ) element_decl( E2 )

| |

kleene (N0) pcdata

sequence (N1)

/ \

child_element( E2 ) choice (N2)

/ \

child_element( E3 ) child_element( E4 )

Figure 1: Syntax trees of the element declarations given in

Section 2.1. Unique node IDs (N0, N1, N2) are generated

for inner nodes.

In general, there are the following 7 element

declaration node types which are used in syntax

trees:

1. element_decl( Element name ). A node of this

type is generated for each element defined in an

element declaration. The name of the defined

element is passed as a parameter. Each element_decl

node has exactly one successor node which is the

root of the sub-tree representing the right hand side

of the element declaration.

2. child_element( Element name ). A node of this

type is generated for each occurrence of an element

in the right hand side of an element declaration. The

name of this element is passed as a parameter. Each

child element definition has no successor nodes in

the syntax tree.

3. pcdata. The pcdata node is used whenever the

right-hand side of an element declaration contains

the string ‘#PCDATA’. The pcdata node does not

have a parameter, and it does not have a successor

node in the syntax tree.

4. sequence. A node of type sequence is generated

for each sequence operator (,) occurring in the right

hand side of an element declaration. A sequence

node does not have a parameter. Each sequence node

has two successor nodes representing the two

arguments of this sequence operator (,) in the

element declaration.

XML INDEX COMPRESSION BY DTD SUBTRACTION

5. choice. A node of type choice is generated for

each choice operator (|) occurring in the right hand

side of an element declaration. A choice node does

not have a parameter. Each choice node has two

successor nodes representing the two arguments of

this choice operator (|) in the element declaration.

6. kleene. A node of type kleene is generated for

each kleene operator (*) occurring in the right hand

side of an element declaration. A kleene node does

not have a parameter. Each kleene node has one

successor node representing the argument of this

kleene operator (*) in the element declaration.

7. empty. A node of type empty is generated for

each string ‘EMPTY’ occurring in an element

declaration. Nodes of type empty do neither have a

parameter nor a successor node in the syntax tree.

Each element declaration is parsed and translated

into a syntax tree, each node of which has exactly

one of the 7 node types described above.

2.3 Determining a Set of Starting

Terminal Symbols

As a final step of parsing an element declaration, we

collect the set of starting terminal symbols for each

node except the root node of the element declaration

syntax tree. These sets of starting terminal symbols

allow the parser to decide during parsing, which

grammar rule has to be applied. The set of starting

terminal symbols (STS) can be computed by the

following rules:

STS(child_element(name)) := { name }

STS(pcdata) := { pcdata }

STS(empty) := { empty }

STS(sequence(a,b)):=STS(a), if empty ∉ STS(a)

STS(sequence(a,b)):=STS(a)∪STS(b),

if empty ∈ STS(a)

STS(choice(a,b)) := STS(a) ∪ STS(b)

STS(kleene(a)) := { empty } ∪ STS(a)

For the following presentation in Section 2 and

Section 3, we assume that the sets of starting

terminal symbols of two sibling nodes that follow a

choice node are always disjoint, such that the current

context node found in the input XML document

uniquely determines which choice has to be taken.

This is a legitimate assumption, as the determinism

of XML content models is a non-normative

constraint of the XML specification ((XML, 2000),

Appendix E).

2.4 Rewriting Element Declaration

Syntax Trees into Grammar Rules

For each inner node i occurring in an element

declaration syntax tree, we generate a unique node

ID, Ni, and for each node type, we generate its own

grammar rule set. As there are 7 types of nodes

occurring in an element declaration syntax tree, we

get 7 different types of grammar rule sets, i.e., one

set of grammar rules for each element declaration

node type. In order to distinguish the rules generated

for different nodes of the same type, we

parameterize the rules with node IDs, Ni, associated

with each node in the element declaration syntax

tree. A further parameter occurring in the rules

generated for nodes of the types sequence, choice, or

kleene is the set of starting terminal symbols

computed for that node. Finally, the rules for

element_decl nodes contain the element to be de-

fined as a parameter, and whenever child_element

nodes occur in the syntax tree as a node referenced

by a parent node P, the grammar rule defined for P

contains a ‘child_element’ call with the child

element found in the element declaration syntax tree

as a parameter.

For example, the grammar rule sets generated for

the syntax trees of Figure 1 are:

element_decl( E1 ) Æ kleene( N0, {E2} ) .

kleene( N0, {E2} ) Æ sequence( N1, {E2} ).

sequence( N1, {E2} ) Æ child_element( E2 ) ,

choice( N2, {E3,E4} ) .

choice( N2, {E3,E4} ) Æ child_element( E3 ) .

choice( N2, {E3,E4} ) Æ child_element( E4 ) .

element_decl( E2 ) Æ pcdata.

pcdata Æ .

3 USING THE GRAMMAR RULE

SET FOR COMPRESSION AND

INDEX CREATION

3.1 Using the Grammar Rule Set for

Compression

The goal of our compression algorithm is to generate

the kleene size tree (KST), i.e., a tree that contains

only that part of the XML document which is not

pre-defined by the DTD. The KST can be regarded

as a compression of the structure of the XML

document. However, it can also be used to generate

an index for efficient access to the XML document.

Each node in the KST stores a value representing a

concrete XML fragment where the DTD allows for

several options, i.e., which choice is taken at a

certain node of the XML document for which a

choice operator (|) in the DTD allows different

options, and how many times a child node or a group

of child nodes is repeated in a certain fragment of

ICEIS 2007 - International Conference on Enterprise Information Systems

the XML document where the DTD uses the kleene

operator (*) to allow an arbitrary number.

The grammar rule set can be used for

compression by augmenting it to an attribute

grammar, i.e., by adding attributes that perform

compression as follows. We use the Definite Clause

Grammar (DCG) rule notation of Prolog (Closkin,

1997) to describe the implementation of the attribute

grammar rules, and we use the notation

“[Input]/[OutputKst]” in order to describe that Input

has to be read or consumed from the XML input file

or XML input data stream, and OutputKst has to be

written to the KST. Furthermore, parenthesis, {.},

are used in DCG rules to describe side-effects or

conditions that have to be true if a DCG rule is

applied. How each grammar rule is augmented

depends on the rule head, i.e., on the node type

represented by the rule.

Before we describe the general augmentation of

grammar rules, we start with an example. The rule

element_decl(E1) Æ sequence( N1, {E2} ).

is augmented to

element_decl(E1)Æ [E1]/[], sequence(N1,{E2} ).

The empty pair of brackets, [ ], indicates that

nothing is written to the KST. Therefore, the

augmented grammar rule can be read as follows:

consume an opening E1 element tag from the input,

output nothing to the KST file and continue with

applying the sequence grammar rule that matches

the node ID N1.

The augmentation technique is the same in the

general case, i.e., each grammar rule

element_decl( E ) Æ right hand side .

is augmented to

element_decl( E ) Æ [E] / [ ] , right hand side.

Grammar rules for sequence node types are not

augmented, i.e., they remain as they are, e.g.

sequence( N1, {E2} ) Æ child_element( E2 ) ,

choice( N2, {E3,E4} ).

or in general they remain:

sequence( Ni, S ) Æ right hand side.

Grammar rules for choice node types occur

whenever the DTD allows two different options.

Therefore, grammar rules for choice node types are

augmented with checking which input element is the

next on the input stream, and they write the choice

taken, i.e., whether it is the first or the second choice

that is allowed by the DTD, to the KST. Within the

example, the grammar rules

choice( N2, {E3, E4} ) Æ child_element( E3 ) .

choice( N2, {E3, E4} ) Æ child_element( E4 ) .

are augmented to the following grammar rules

choice( N2, {E3, E4 } ) Æ {next tag ∈ {E3}} ,

[ ] / [1] , child_element( E3 ) .

choice( N2, {E4, E4} ) Æ {next tag ∉ {E3}} ,

[ ] / [2] , child_element( E4 ) .

Within these augmented rules, the output [1] (or

[2]) written on the KST expresses that the first (or

second) choice described by the DTD has been

taken. We write this information to the KST in order

to be able to reconstruct the original XML data from

the KST and the CXML file.

In general, the choice operator may not only

combine elements, but may combine two

expressions. Then, each pair of grammar rules for a

choice operator taking a node ID Ni and two sets

STS1 and STS2 of starting terminal symbols as

parameters

choice(Ni, (STS1∪STS2) )

Æ right hand side 1.

choice(Ni, (STS1∪STS2) ) Æ right hand side 2.

is replaced with the following pair of grammar rules:

choice(Ni, (STS1∪STS2))Æ{next tag ∈ STS1 }

[ ] / [ 1 ], right hand side 1.

choice(Ni, (STS1∪STS2))Æ{next tag ∉ STS1 }

[ ] / [ 2 ], right hand side 2.

child_element calls in a grammar rule simply call

the element grammar rule for the element given as

the parameter.

child_element( E ) Æ element_decl( E ).

Finally, grammar rules for kleene node types are

replaced with a set of augmented grammar rules that

count the arguments taken by a kleene operator

within the CXML stream. Within the example, the

grammar rule

kleene( N0, {E2} ) Æ sequence( N1, {E2} ).

is replaced with the following grammar rules

kleene( N0, {E2} ) Æ [ ] / [ Count ] ,

repeat( N0, {E2} , Count ) .

repeat( N0, {E2}, Count ) Æ {next tag∈{E2}},

sequence(N1,{E2}), repeat(N0,{E2},

Count1 ) , { Count is Count1+1 }.

repeat( N0, {E2}, 0 ) Æ { next tag∉{E2} } .

Here, the repeat rules count how often the argument

of the kleene operator (*) occurs and the kleene rule

writes the Count value into the KST

In general, each given grammar rule for a kleene

operator taking a node ID Ni and a set S of starting

terminals as parameters

kleene( Ni, S ) Æ right hand side .

is replaced with the following new grammar rules

kleene(Ni, S) Æ[]/[Count], repeat(Ni, S, Count).

repeat(Ni, S, Count) Æ {next tag ∈ S},

right hand side , repeat( Ni, S, Count1 ) ,

{ Count is Count1+1 } .

repeat( Ni, S, 0 ) Æ { next tag ∉ S } .

The variable Count in the new grammar rules counts

how often the first repeat grammar rule is executed,

i.e., how often the sub-tree described by the right

hand side of the given kleene grammar rule is

repeated. This number of repetitions will be used in

XML INDEX COMPRESSION BY DTD SUBTRACTION

indexing, i.e., translating XML path queries to index

positions for certain data.

3.2 The Constants’ Data Stream

Furthermore, we hash text values in a compressed

data storage model, which allows us to transfer each

constant only once.

pcdata calls simply store the position of each

constant in the CXML stream. A function

positionOf(…) is used to store new constants in the

data storage model, i.e., each constant is stored only

once, and to attach the current position to the

constant. Altogether, the data storage model stores

constants together with a set of positions.

Given the function positionOf(…), the pcdata

grammar rule is implemented as follows:

pcdata()Æ[Constant]/[], {positionOf(Constant)}.

An empty operator can be seen as a text constant

of length 0, and it is treated in a similar way as a

special kind of pcdata, i.e., the function call

positionOf( ) is used for collecting positions of

empty nodes. The only difference is that the empty

operator does not consume or read any input.

empty() Æ { positionOf( ) } .

3.3 The Kleene Size Tree (KST)

Besides compressing the constants in an XML

stream, our goal is to compress a structure-oriented

index, i.e., an index supporting efficient access to

structural information without decompressing all of

the compressed data. The key idea of our index

compressing technique is to use the structure

information provided by element declarations of the

DTD in order to compute the position of certain

elements or text values, such that the compressed

index is much smaller than the structure of the XML

document.

For the DTD rule operators sequence, pcdata,

empty, and child element, a relative position of the

searched data in the data stream can be uniquely

determined by the DTD alone. However, for each

kleene operator (*), the number of repetitions may

vary, and therefore the size of the data elements “in

the scope of” a kleene operator may vary.

Furthermore, for each choice operator (|), the size of

the sub-tree may depend on the choice taken. We

have to store this information somewhere in order to

support loss-less decompression. We write this

information into an index called the kleene size tree

(KST).

The kleene size tree (KST) is organized as

follows: It contains a choice node for each choice

operator (|), and a counter for each kleene operator

(*) that is applied in a DTD rule when parsing the

XML document with the DTD grammar rules. The

hierarchy of the KST nodes corresponds to the

calling hierarchy of DTD element declaration syntax

rules. That is, whenever a rule for a kleene operator

or a choice operator O1 directly or indirectly calls a

rule for a kleene operator or a choice operator O2,

then the KST node K1 representing O1 is an

ancestor of the KST node K2 representing O2.

Note that the KST does not contain any node for

other operators than kleene (*) and choice(|) as all

other operators have a fixed size, i.e., their size can

be computed from the DTD. As the KST contains

only numbers, the KST is a very small data

structure.

Note that the KST is significantly smaller than the

index, i.e., transferring the KST from a sender to a

receiver may be advantageous compared to

transferring an index when bandwidth is a

bottleneck. Furthermore, the KST and CXML file

are not only much smaller than the XML file, but

also allow for a direct access to XML nodes, i.e.,

using the KST for index computations and direct

access to the CXML stream may be advantageous in

scenarios where we can profit from skipping some

XML data.

In order to reconstruct the index, i.e., the structure

of the XML document, from the DTD syntax trees

and the KST, we have to traverse the DTD syntax

trees starting from the root node. Whenever a kleene

node or a choice node is reached, we consume the

next number from the KST and generate the number

of nodes (for kleene nodes) or the node with the

chosen element name of the alternative (for choice

nodes). Note however, that the index does not have

to be reconstructed physically in case of XML path

query evaluation or partial decompression, but it

only needs to be reconstructed ‘virtually’, i.e., only

the positions of the required elements are computed

from DTD and KST, but the index is not

reconstructed physically in order to count the

position. Only in case of a complete decompression,

the index is reconstructed completely, as it is the

major part of the decompressed document.

3.4 Using the Grammar Rules for Path

Queries on Compressed Data

When searching data that matches a certain path of

an XPath expression, we use the KST stream to

identify the position of the information we look for.

Let us extend the previous example and assume

that a given XML input document D has been

compressed to a KST document KD and a CXML

document CD. Furthermore, let us consider that an

ICEIS 2007 - International Conference on Enterprise Information Systems

XPath query /E1[2]# asks for the sub-tree enclosed

in the second E1 element contained in the input

stream. Finally, we assume that the first E1 element

has 10 sequences, whereas 3 of them contain an E3

element and 7 of them contain an E4 element and

the second E1 element has 5 sequences, whereas 4

of them contain E3 and one contains E4. This

information is read from KD. Therefore, we can

compute the size of the subtrees for the first E1

element to be E11size =10*size(E2) + 3*size(E3) +

7*size(E4) and for the second E1 Element to be

E12size=5*size(E2) + 4*size(E3) + 1*size(E4). As

E2 only contains pcdata, we know that size(E2)=1.

We assume furthermore that E3 is a sequence of

three elements with pcdata and E4 contains pcdata

directly, i.e., size(E3)=3 and size(E4)=1. Given

these sizes, the sizes of the compressed

representations of the first two E1 elements are

E11size= 10*1+3*3+7*1=26 and E12size

=5*1+4*3+1*1=18. Altogether, when we query for

/E1[2], we can skip the first E11size bytes from CD

and then read and decompress the next E12size

bytes from CD. Because we know that the fragment

searched for matches the DTD for E1, we know

which decompression grammar rule has to be used,

in this case, the decompression grammar rule for E1.

We explain decompression in the next section.

The general computation of sub-tree sizes extends

the KST with constant size information that can be

derived from the element declaration rules.

However, this computation is only done for paths to

accessed CXML elements.

3.5 Using the Grammar Rule Set for

Decompression

Similarly as for compression, the grammar rule set

can be used for decompression. In our Prolog

implementation this is simply done by switching the

roles of the input stream and the output stream.

More precisely, within a Prolog call

element_decl(Input, OutputKST), the first

parameter, Input, which is the input stream for

compression, will be the output stream for

decompression. Similarly, the second parameter

OutputKST which is the KST output stream for

compression will be an input parameter for

decompression. Within a first prototype, we have

implemented the augmented DCG rule system in

Prolog in such a way that it can be used for both

directions compression and decompression, by either

providing an XML document Inputstream or

providing a CXML document Outputstream and the

KST document Outputstream. For the performance

evaluation, we have re-implemented the grammar

rule system in a different language, i.e., Java using a

SAX parser and the attribute grammar of JavaCC,

and there we had one augmented rule set for

compression, and an additional reverse

implementation for decompression.

4 EXTENDING THE APPROACH

TO XML STREAMS

4.1 Processing XML Streams and

Recursive DTDs

We are not limited to compressing only XML

documents of a fixed size. Instead, we are also able

to compress XML streaming data because we do not

have to read the whole document, before we can

start data compression, i.e., the augmented grammar

rules can be used to compress on the fly.

Furthermore, we did not limit our approach to

non-recursive DTDs, i.e., all the same ideas can be

applied, when the element declaration defining E1 is

changed to a recursive element declaration

< !ELEMENT E1 ( E2, ( E1|E4 ) )* >

Therefore, our approach (including index

computation and path evaluation) is also applicable

to recursive DTDs.

4.2 Evaluation of XPath Queries on

Compressed XML Streams

We assume that the XPath expression that is

evaluated does not contain any backward-axes, but

may contain any forward axes, predicate filters and

node name tests (either an element name or the

wildcard ‘*’). If an XPath expression contains

backward-axes, the algorithm presented in (Olteanu,

2002) can be used to rewrite the XPath expression

into an equivalent XPath expression containing no

backward-axes.

For the evaluation of XPath queries, we propose

an adaptation of an approach presented in (Su,

2005). This approach optimizes XPath query

evaluation on XML documents and especially on

data streams, where the whole data has to be read at

most once. The buffer size needed to store elements

temporarily depends on the evaluation of XPath

filters. Furthermore, schema information in the DTD

reduces the computational time needed for deciding

satisfiability of filters and determines parts of the

Due to space limitations, we skip some technical details here,

e.g., providing space for very large counters in an index and the

treatment of very large kleene size trees and of very large text

constants.

XML INDEX COMPRESSION BY DTD SUBTRACTION

data that can be skipped, as they do not contain any

information needed to determine the answer to the

query. This ‘skipping’ of parts of the data

corresponds to directly addressing the known

position of the next element as proposed in our

approach. The difference however is that we have to

process compressed XML data, i.e., in order to use

the approach presented in (Su, 2005), we have to

translate location steps into position offsets in the

CXML stream.

Which part of the data can be skipped, i.e., the

concrete position-offset from a current position

within the data, can be computed by combining the

size information stored in the KST with offset

information that is computed from the element

declaration syntax trees.

4.3 Multiplexing Stream Data

When considering an XML stream, we have two

kinds of output stream, the CXML data stream and

the KST stream. In a practical implementation

compressing XML streams, we multiplex these two

data streams at the sender’s side, and de-multiplex

the multiplexed stream back into the two streams at

the receiver’s side.

5 EXPERIMENTAL RESULTS

We have implemented our approach using Java 1.5

and a SAXParser for parsing XML data. As

compressed storage model for constant data, we

have chosen a trie (Fredkin, 1960) the inner nodes of

which are compressed using Deflate (LZ77(Ziv,

1977) + Huffmann encoding (Huffmann, 1952)).

Note that the compressed storage model for constant

data can be replaced by any other model that allows

to store and evaluate pairs of positions and values.

We have evaluated our compression approach on

the following datasets:

1. XMark(XM) – an XML document that models

auctions (Schmidt, 2002)

2. hamlet(H) – an XML version of the famous

Shakespeare play

3. catalog-01(C1), catalog-02(C2), dictionary-

01(D1), dictionary-02(D2) – XML documents

generated by the XBench benchmark (Yao, 2002)

4. dblp(DB) – a collection of publications

As it can be seen in Table 1, the sizes of the

documents reach from a few hundred kilobytes to

more than 300 Megabytes.

Table 1: Sizes of documents of our datasets.

document XM H C1 C2 DB D1 D2

Uncompressed

size in MB

5.3 0.3 10.6 105.3 308.2 10.8 106.4

We have compared our approach with 3 other

approaches:

- XGrind (Tolani, 2002) – a queryable XML

compressor

- XMill (Liefke, 2000) – an XML compressor

- gzip

– a widely used text compressor

The results can be seen in Figure 2.

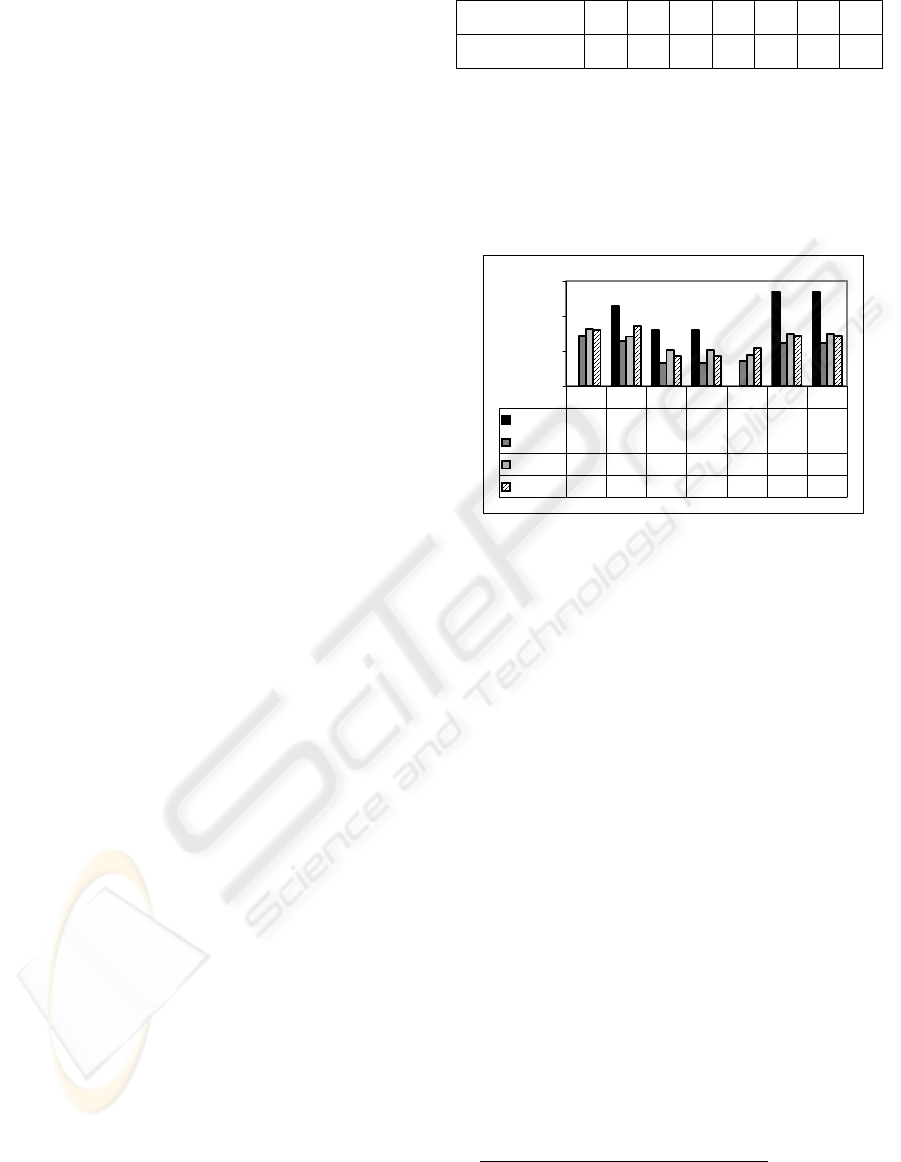

Figure 2: Compression ratio (size of the compressed data

divided by size of the original data).

Using these datasets, XMill performs better

achieving compression ratios that are 3-8% lower

than the compressions ratios reached by our

approach. However, in contrast to XMill, our

approach allows to evaluate queries on the

compressed data and to partially decompress data.

Compared to gzip, our approach achieves similar

compression ratios, although gzip – as well as XMill

– does not allow for evaluating queries on the

compressed data. The difference of the compression

ratios (gzip minus DTD subtraction) ranges from 6%

(the gzip compression ratio is 6% smaller) to -3%

(the gzip compression ratio is 3% bigger).

XGrind is the only compression approach in our

tests that is capable to evaluate queries on the

compressed data like our approach. Our results have

shown that our approach significantly outperforms

XGrind. In our dataset, our approach performs better

achieving compression ratios that are 12-25% lower

than the compression ratios achieved by XGrind

In a second series of measurements, we have

compared the size of the structural part of the

original XML document with the size of the KST.

This means that we have compared the structure to

http://www.gzip.org/

Note that on our test computer, we got access violations

when running XGrind on XM and DB and therefore the

compression ratios for these two documents are missing.

20%

40%

60%

XGrind

46% 32% 32% 54% 54%

XMill

29% 26% 13% 13% 14% 25% 25%

gzip

33% 28% 21% 21% 18% 30% 30%

DTDSub

32% 34% 17% 17% 22% 29% 29%

XM H C1 C2 DB D1 D2

ICEIS 2007 - International Conference on Enterprise Information Systems

be parsed in order to evaluate XML path queries.

Our measurements have shown, that the size of the

KST ranges in average around 3.6% of the size of

the structural parts of the XML document. The

concrete results of our experiments can be seen in

Figure 3. |str|/|doc| means the size of the structural

part of the document divided by the document size

and |KST|/|str| means the size of the KST divided by

the size of the structural part of the document.

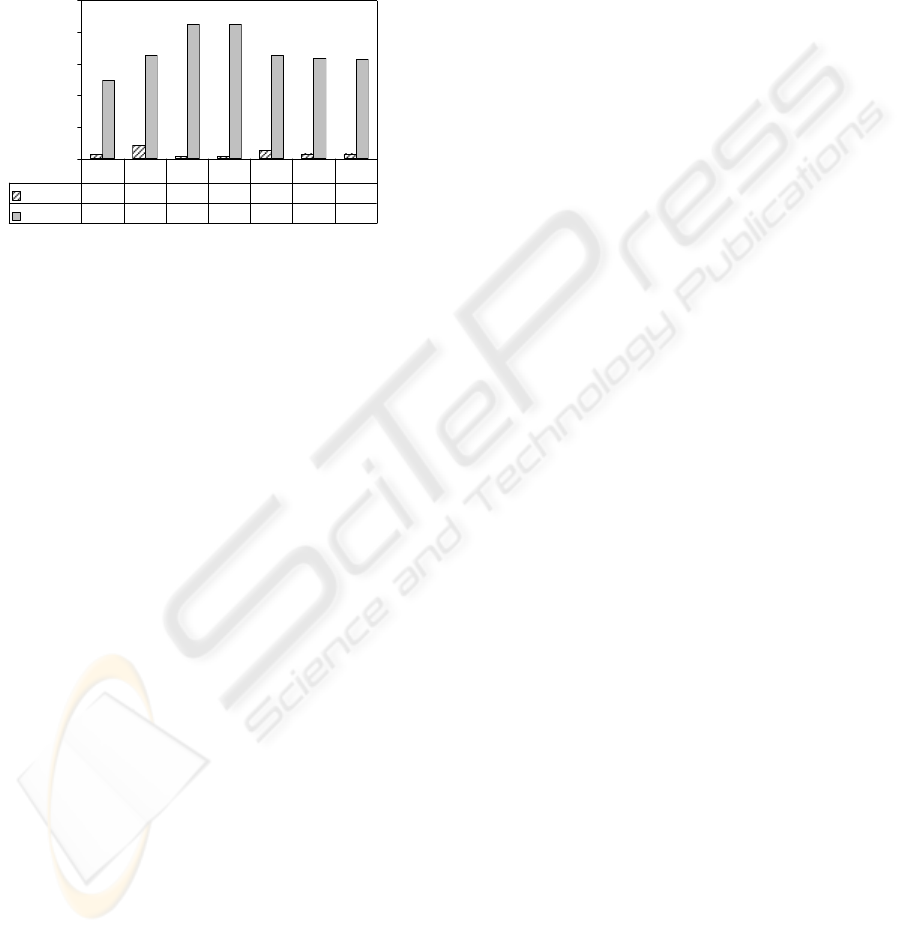

Figure 3: Relative size of the KST in comparison to the

uncompressed structure and relative size of uncompressed

structure in comparison to uncompressed document.

6 RELATION TO OTHER

WORKS

There exist several algorithms for XML

compression, which can be divided into categories

by their features: some compressed XML documents

can only be used to answer queries, if they are

decompressed, other algorithms allow querying the

compressed data. Another feature is whether XML

compression algorithms can be applied to data

streams or whether they can only be applied to static

XML documents.

The first approach to XML compression was the

XMill algorithm presented in (Liefke, 2000). It

compresses the structural information separately

from the data. The data is – according to the

enclosing tag – collected into several containers, and

the whole container is compressed afterwards. The

structure is compressed, by assigning each tag name

a unique and short ID. After the compression, the

compressed structure consists of the tag IDs which

represent a start tag, the container IDs which

represent a text value, and ‘/’-symbols which

represent an end tag. An appropriate compressing

algorithm is chosen for each container, depending on

the data type it contains. This approach does not

allow querying the compressed data and is not

applicable to data streams.

The approaches XGrind (Tolani, 2002), XPRESS

(Min, 2003) and XQueC (Arion, 2003) form

extensions of the XMill-approach. Each of these

approaches compresses the tag information using

dictionaries and Huffman-encoding (Huffmann,

1952) and replaces the end tags by either a ‘/’-

symbol or by parentheses. All three approaches

allow querying the compressed data, and, although

not explicitly mentioned, they all seem to be

applicable to data streams. A disadvantage of

XGrind is, that it does not support range queries

(e.g., //a[@b<50]), but only match queries (e.g.,

//a[@b=50]) or prefix queries. Instead, it allows a

validity test on compressed data using a DTD. In

contrast, XQuec supports range queries as well, as

XQuec uses an order-preserving compression

approach for the compression of the data.

XQzip (Cheng, 2004) and the approach presented

in (Buneman, 2003) compress the data structure of

an XML document bottom-up by combining

identical sub-trees. Afterwards, the data nodes are

attached to the leaf nodes, i.e., one leaf node may

point to several data nodes. The data is compressed

by an arbitrary compression approach. These

approaches allow querying compressed data, but

they are not applicable to data streams. In addition,

an approach to evaluate XQuery on the results of

(Buneman, 2003) is presented in (Buneman, 2005).

An extension of (Buneman, 2003) and (Cheng,

2004) is the BPLEX algorithm presented in

(Busatto, 2005). This approach does not only

combine identical sub-trees, but recognizes patterns

within the XML tree that may span several levels,

and therefore allows a higher degree of compression.

As its predecessors, it allows querying the

compressed data, but it is not applicable to data

streams.

In contrast to all these approaches, our algorithm

allows querying (including match, prefix and range

queries) and is applicable to data streams. It achieves

an even higher level of compression, as it only

contains compressed data plus some sparse

information added for each choice operator and each

kleene operator contained in the DTD. As our

compressed XML data contains nearly no structural

information, only valid documents can be

decompressed, i.e., our approach does not allow for

checking validity.

The approach presented in (Sundaresan, 2001)

follows the same basic ideas as our approach: omit

all information that is redundant because of the

DTD. But the idea to realise this idea is completely

different from our approach. In (Sundaresan, 2001) a

DOM-tree is built and traversed simultaneously for

the DTD and the XML document. Whenever the

document contains information not found in the

DTD, this information is written to the compressed

document. So the resulting compressed document is

20%

40%

60%

80%

100%

|KST | / |str|

2,8% 8,3% 1,3% 1,3% 5,3% 3,1% 3,1%

str

doc

50% 66% 85% 85% 66% 63% 63%

XM H C1 C2 DB D1 D2

XML INDEX COMPRESSION BY DTD SUBTRACTION

nearly the same as in our case (e.g., text values are

encoded differently), but whereas our approach is

capable to sequentially compress infinite data

streams (and to perform path queries on the

compressed data) the approach presented in

(Sundaresan, 2001) is limited by the size of main

memory (According to (Sundaresan, 2001) they had

problems with a file of 281 kB (the smallest test file

in our data set), as it exceeded their time threshold,

whereas we were able to compress a document of

more than 300 MB in decent time).

Another approach (Ng, 2006) also follows the

idea to omit information that is redundant because of

the DTD. It is also using a SAX-parser, i.e., this

approach is capable to compress infinite data

streams. However, this approach uses the paths

allowed by a non-recursive DTD to define a set of

buffers and stores constants found in the XML

document in the buffer defined for their path before

compressing the whole buffer. As the number of

buffers must be finite, this approach does not

support recursive DTDs. Furthermore, (Ng, 2006)

leaves it open how to treat constants other than

numbers. In comparison, our approach can store text

constants and can handle recursive DTDs.

7 SUMMARY AND

CONCLUSIONS

Structure preserving compression of XML data

based on DTD subtraction reduces the verbose

structural parts of XML documents that are

redundant when regarding the structure of a given

DTD, but preserves enough information to search

for certain paths in the compressed XML data. Our

approach uses given DTD element declarations to

generate a set of grammar rules, which is then

augmented to an attribute grammar for either

compression of an XML document to a KST and a

CXML document, for decompression of a KST and

a CXML document or for translating XPath queries

into index positions on CXML data. Our approach

can be extended to arbitrary DTDs as well as to

other schema languages that allow to derive a set of

grammar rules (e.g., XML Schema and RelaxNG)

and to XML streams.

Of course, our structure preserving compression

technique can be combined with an ordinary

compression and decompression, i.e., a normal

compression and decompression technique could be

applied to the data generated by our structure

preserving compression, in order to send an even

less amount of data from a sender to a recipient.

Note however that our overall goal is not only to get

a low compression size, but the main focus of our

contribution is to enable path query processing on

compressed data.

As XPath forms the major part of other query

languages like XQuery and XSLT, we are optimistic

that our approach could also be applied to XQuery

and XSLT.

REFERENCES

Arion, A., Bonifati, A., Costa, G., D’Aguanno S.,

Manolescu, I., Pugliese, A., 2003. XQueC: Pushing

queries to compressed XML data. In Proc. VLDB.

Buneman, P., Choi, B., Fan, W., Hutchison, R., Mann, R.,

Viglas. S., 2005. Vectorizing and Querying Large

XML Repositories. In ICDE 2005.

Buneman P., Grohe, M., Koch, C., 2003. Path Queries on

Compressed XML. In VLDB 2003.

Busatto, G., Lohrey, M., Maneth, S., 2005. Efficient

Memory Representation of XML Documents. In

DBPL 2005.

Cheng, J., Ng, W., 2004. XQzip: Querying Compressed

XML Using Structural Indexing. In EDBT 2004.

Cloksin W.F., Mellish, C.S., 1997. Programming in

Prolog, Springer. Berlin, 4

Edition.

Fredkin, E., 1960. Trie Memory. In Communications of

the ACM.

Huffman, D., 1952. A Method for Construction of

Minimum-Redundancy Codes. In Proc. of IRE.

Liefke, H., Suciu, D., 2000. XMill: An Efficient

Compressor for XML Data. In Proc. of ACM

SIGMOD.

Min, J.K., Park, M.J., Chung, C.W., 2003. XPRESS: A

Queriable Compression for XML Data. In

Proceedings of SIGMOD.

Ng, W., Lam, W.-Y., Wood, P.T., Levene, M., 2006 XCQ:

A Queriable XML Compression System. In

Knowledge and Information Systems, Springer-Verlag.

Olteanu, D., Meuss, H., Furche, T., Bry, F., 2002. XPath:

Looking Forward. In EDBT Workshops 2002.

Schmidt, A., Waas, F., Kersten, M., Carey, M., Manolescu

I., Busse, R., 2002. XMark: A benchmark for XML

data management. In VLDB 2002.

Su, H., Rundensteiner, E.A., Mani, M., 2005. Semantic

Query Optimization for XQuery over XML Streams.

In VLDB 2005.

Sundaresan N., Moussa, R., 2001. Algorithms and

programming models for efficient representation of

XML for Internet applications. In WWW 2001.

Tolani, P.M., Hartisa, J.R., 2002. XGRIND: A query-

friendly XML compressor. In Proc. ICDE 2002.

Yao, B.B., Ozsu, M.T., Kennleyside, J., 2002. XBench - A

family of benchmarks for XML DBMSs. In

Proceedings of EEXTT.

Extensible Markup Language (XML) 1.0, 2000.

http://www.w3.org/TR/2000/REC-xml-20001006

Ziv, J., Lempel, A., 1977. A Universal Algorithm for

Sequential Data Compression. In IEEE Transactions

on Information Theory.

ICEIS 2007 - International Conference on Enterprise Information Systems
