ENTERPRISE SYSTEMS CONFIGURATION AS AN

INFORMATION LOGISTICS PROCESS

A Study

Mats Apelkrans and Anne Håkansson

Jönköping International Business School, Dept of Informatics, Jönköping, Sweden

Dept of Information Science, Computer Science, Kyrkogårdsgatan 10, Uppsala, Sweden

Keywords: Visualisation, Knowledge modelling, Information Logistics, Enterprise Systems, Configuration, Unified

Modeling Language, Verification and Validation

Abstract: In this paper, we suggest using rule-based descriptions of customer’s requirements for Enterprise Systems

implementing Information Logistics. The rules are developed from the users’ requirements and inserted as

schedules to the Enterprise System. The output, from testing these rules, is a list of modules and parameter

settings to configure the system. By using rules, we can, at least partly, automate the configuration process

by traversing the several modules and thousands parameters that are in an Enterprise System. From the list,

we can select the modules and the parameters that meet the customer’s requirements. Then these selected

modules and parameters are visually presented through a kind of Unified Modeling Language diagrams, to

support the user investigation and then to configure the system either manually or automatically. Every

attempt to match a customer’s requirement to the contents of the knowledge base within the Enterprise

system can be thought of as an Information Logistics Process. The output from such a process must be

examined by the user, which can give rise to a new call to the Information Logistics process. In other words

the configuration work is done through a dialogue between the customer and the knowledge base of the

Enterprise system.

1 INTRODUCTION

One of the largest problems in Business Informatics

is to configure chosen Enterprise System (ES)

software to meet a customer’s specific requirements.

This can be seen as a kind of customization of the

ES software. However, following Summer (2005)

and Hedman and Kalling (2002) we will call it

configuration. According to Hedman and Kalling

(2002) “the actual process of implementing an ERP

system is complex. Every ERP system has to be

configured. Configuration involves adapting the

generic functionality of the package to meet the

needs of a particular organization (usually by

setting parameters in tables), such as what calendar

should be applied for a firm with locations in several

countries. All in all, the configuration might affect

thousands of configuration tables and can take years

to complete.” Methods and discussions of

configuring enterprise systems are also found in

(Keller and Teufel 1998; Olson 2003). Summer

(2005) talks about Configuration Management.

Configuration Management provides product

specific configuration support for companies that

must build products for their customers. Technology

vendors, appliance vendors, and computer vendors

are examples of companies, which need to create

product configurations, and make price quotes. A

software package can contain a number of modules

each with a great number of parameters needing to

be set for optimal values. The problems are how to

find them and how to give them the best possible

values. The configuration cannot 100% meet the

requirements, because some modules can be

cancelled and there can be functionalities missing in

the package. In that case, one may have to add extra

software. This will give rise to another problem:

integration of this added software to the original ES

package.

The configuration efforts are both time-

consuming and costly (Adam and Sammon, 2004).

There is also a lack of human competence. People

working with ES configuration usually have only a

212

Apelkrans M. and Håkansson A. (2007).

ENTERPRISE SYSTEMS CONFIGURATION AS AN INFORMATION LOGISTICS PROCESS - A Study.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 212-220

DOI: 10.5220/0002370602120220

 SciTePress

partial knowledge of an ES packages’ many

parameters.

In this paper, we concentrate on how to find the

modules and the parameters from the customers’

requirements on the enterprise system. We present a

study on how to partly automate the configuration

process using rule-based descriptions of customer’s

requirements and the modules of the ES package.

These rule-based descriptions are stored in a

Knowledge Base.

The use of production rules on top of the content

of the ES is necessary to keep track of the order of

the tasks performed by the system. The rules handle

all the modules and the parameters used in systems.

With rules, for example, it can be assured that the

calculation of total price in not performed before

having the information about both the price per

product and the quantity of that product. The rules in

the system’s knowledge base already have the order

needed for different tasks but the customers’

requirements may not meet these. Therefore, we

match the rules of the knowledge base with the rules

developed from the customers’ requirements. The

matching between requirements and ES package will

be performed as an Information Logistic Process

(ILP). Hence, there will be a number of ILP calls.

This is the outer loop. The user, through a dialogue,

controls the operation of this loop.

In section 2 and 3 we define the information

logistics process including three phases of the

process. In section 4, we show the common modules

and parameters and in section 5 we present rules

from users’ requirments. The last section includes

matching the users’ requirements to the system’s

rule description, the result of applying rules and

verification of the knowledge base.

2 INFORMATION LOGISTICS

PROCESS

In this paper, we discuss Information Logistics from

an information logistics process perspective: An

information logistics process transforms a given

input into some form of output. The input is some

kind of fragmented information or knowledge

description, which derives from a so-called

information supplier. This input information can be

handled either manually or automatically by the

system. The process output is an information

product that will be made accessible and delivered to

the information receiver who will use the

information. This workflow is called the Information

Logistics Process (ILP). Input to the ILP in our

study is the customer requirements. From these the

ILP communicates with the knowledge base to

produce a list of modules and parameters but also

marking failures, see Figure 1.

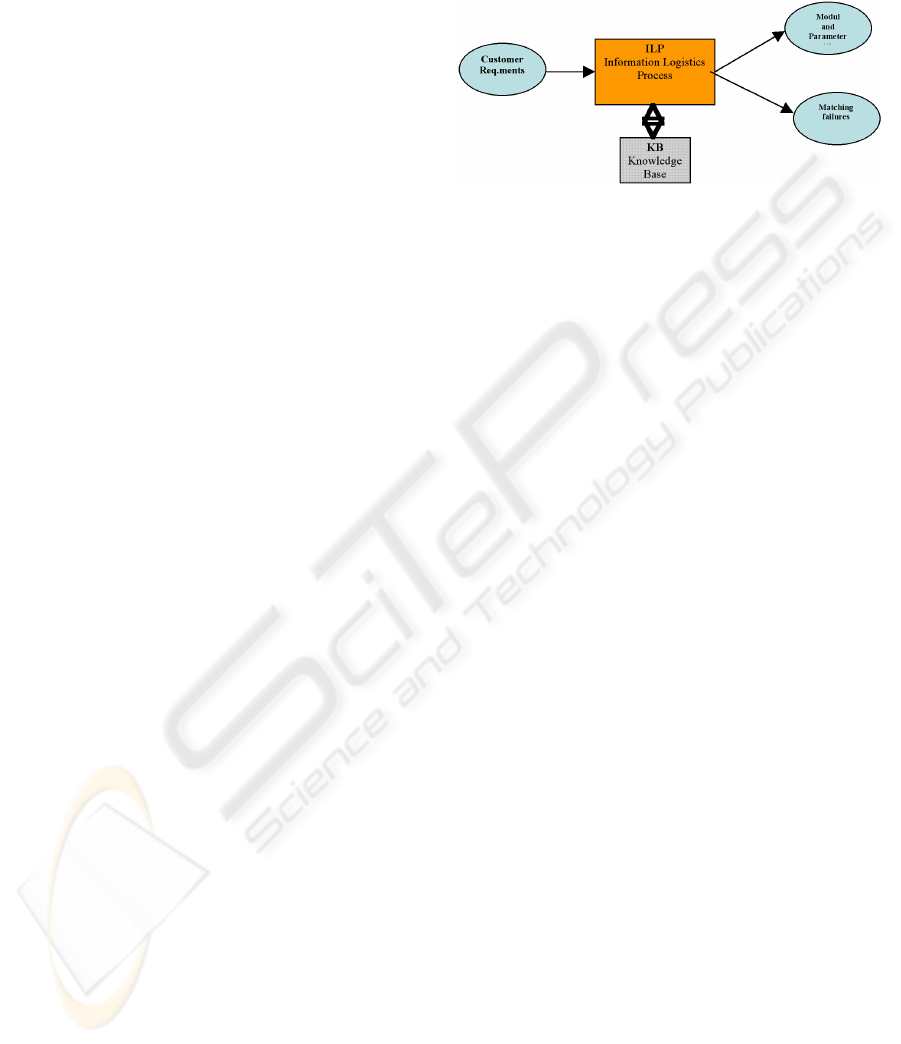

Figure 1: The Information Logistics Process (ILP)

The ILP processes are implemented with

different methods found in the computer science

area. Simple ILP processes are just straightforward

database solutions; other need real-time machinery

in order to deliver the information product at right

time to the right place. Real-time components can

handle time management and communication details

to facilitate the distribution of information to right

place in right time. (Frauenhofer Institute, 2006).

Still others need knowledge management. A

question is what can possibly be automated and what

will still be contained in the dialogue between users

of ILP and the ILP process. The ILP processes have

to handle knowledge, or more properly, expressions

of knowledge descriptions. This paper focuses on

the possible use of a knowledge base to partly

automate a process.

3 THE THREE PHASES OF THE

INFORMATION LOGISTICS

PROCESS

In Apelkrans and Håkansson (2005) we provided

rules for e-invoicing between enterprise systems as

an ILP process. In that case a company handled the

process as a third part Information Logistics

Provider (3ILP). A closer look at the ILP process

points out three different phases:

 The first phase is for information supply (IS),

the information needed to trigger the next

information production phase. As an example

a customer sends invoice data to 3ILP and in

our study the input to ILP will be a customer’s

requirements presented with data and rules.

 The second phase handles information

production (IP). In the 3ILP example IP will produce

correct information for the receiver’s ES and in the

ENTERPRISE SYSTEMS CONFIGURATION AS AN INFORMATION LOGISTICS PROCESS - A Study

213

study of this paper IP is searching for the correct ES

modules and the parameters that are affected. The

results are handed over to the last phase for

distribution.

The third phase is for information distribution (ID).

In the 3ILP case the desired receiving ES are

connected and information is delivered. In our work

the desired output is put together from the ILP

process, i.e. suggested modules and parameters are

presented to the user. These three phases are

presented in Figure 2.

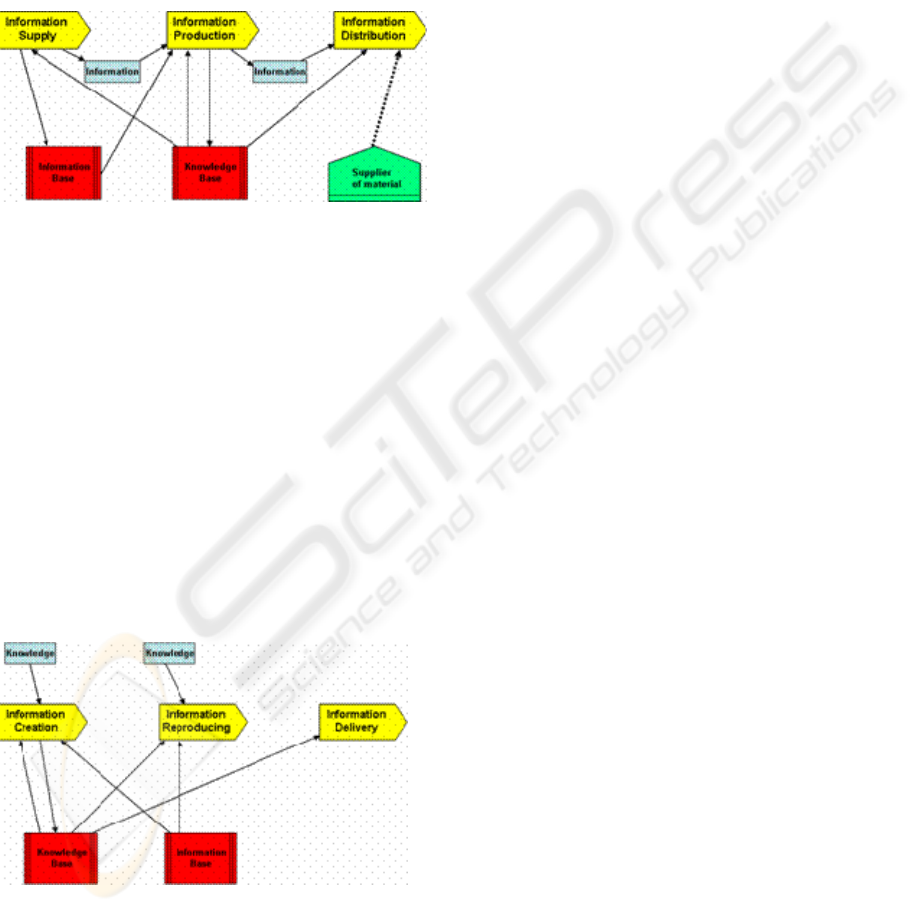

Figure 2: The Information Logistics Process three phases.

The reason why ID is completed with a

possibility to use hard material can be illustrated in

the 3ILP case with the fact that some receivers of

invoice can’t take it electronic so we must produce a

paper variant and send by ordinary mail.

As mentioned earlier, all phases in ILP need to

handle knowledge descriptions in some way. Such

knowledge descriptions need to be specified from

case to case. A general question is: how should this

knowledge be elicited, stored and maintained?

Another question is: is it possible to automate

knowledge management in some way?

The IP phase is of course the main one of those

three and can be further divided into three phases.

Figure 3: A proposal for an IP architecture

One phase for creating information, another for

reproducing already created information, and finally

a phase leveraging the produced information to the

Information Distribution (ID) sub-process. Figure 3

below gives a suggestion of the architecture of the

Information Production (IP) sub-process.

A simple example of the IP sub phases is

handling a CD request containing a number of

tracks. The request needs be produced once and if

another customer wants the same CD, the request

simply has to be reproduced with little or no cost

and completed with information to be sent to the

right receiver.

In order to handle both information and

predefined rules for managing the information, i.e., a

kind of normative knowledge descriptions, the

architecture contains an Information Base (i.e.,

database) and a knowledge base. In the Information

Base one will find actual and/or stored information

and the knowledge base contains rules for their use.

In our study, most work (which is a matching rule

system) is done in the Information Creation sub-

process.

Our method contains an outer loop, which means

that ILP is called several times in order to refine the

module and parameter selections. The method also

contains an inner loop for comparing the customer’s

requirements with the contents of the system.

4 COMMON MODULES AND

PARAMETERS

An ES is a standard software package usually

packaged in a number of modules fitting different

application areas. As an example we present the

following list of modules:

General Ledger

Fixed Assets

Sales & Receivables

Relationship Management

Service Management

Purchase & Payables

Inventory

Manufacturing

Capital Requirements Planning

Human resources

These modules are possible to configure, i.e., set

certain parameters, to omit certain parts of a module

and possibly adding some extra software. The

behaviour of an ES module depends on the values

permitted to those parameters, which are decided by

the user. As an example of parameters, we give the

following list for the invoice function, see Table1:

ICEIS 2007 - International Conference on Enterprise Information Systems

214

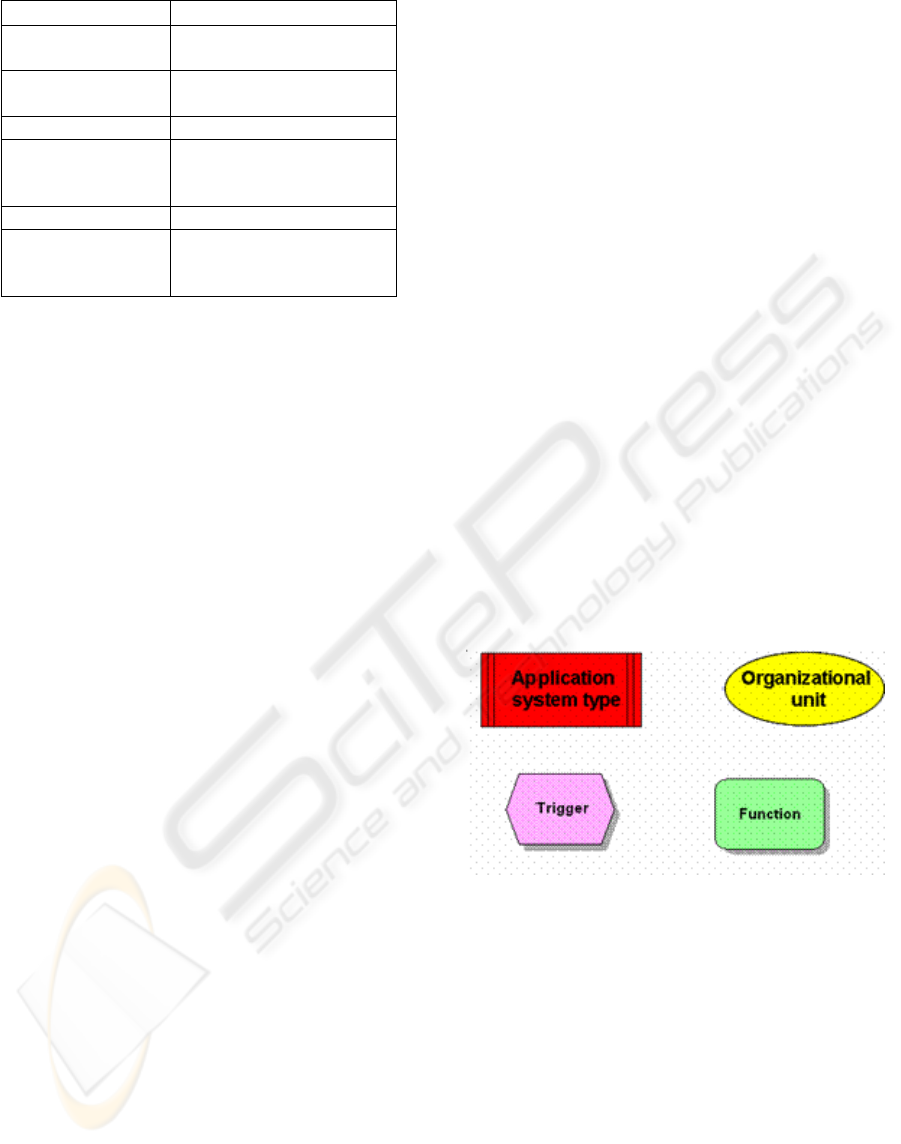

Parameter Possible values

Costing Method Standard, FIFO LIFO

Specific Average

Price/Profit

Calculation

Profit = Price-cost, Price

= cost + profit

Sales Units: piece, 10, dozen, 100

Unit cost:

Number of

decimals

0,1,2,3

VAT calculations: %-age groups

Product type Material, part, complete

product

Table 1: Parameter types with possible values

As mentioned above, our proposed method has

an outer loop, a dialog between the user and the ILP

knowledge base. From user requirements, written in

rule form, this loop describes in more detail the

modules needed, the appropriate parameter list and

its parameter values. Finally the loop will come up

with a suggestion for software in the ES modules.

This software might be redundant since it is difficult

to find unused code in the system. Moreover, this

unused code might be needed later on. An open

question is still how to present the outcome to a

given ES.

The knowledge base in our ILP process contains

rule descriptions of every module there is in an ES.

In many cases a function in a module needs to be

detailed into sub-functions. These sub-functions are

also expressed by rules.

The inner loop of our method compares a

customer’s requirements rule description with those

in the knowledge base in order to find matching and

mismatching between them.

The ES modules are graphically described by

ARIS diagrams (Scheer et al, 2002) like the one

shown in Figure 5. Those descriptions are fairly

complicated and need to be structured in graphs with

sub-graphs. We call them functions with sub-

functions or processes with sub-processes. How to

handle them in a rule-based system is covered in

Section 5.

5 BUILDING RULES FROM

REQUIREMENTS

Customers have requirements on the Enterprise

Systems to adjust it to the organization. To meet a

customer’s specific requirement, the ES has to be

configured. Configuration aims at choosing

appropriate modules, refining the modules but also

setting their parameters to optimal values.

As mentioned before, the customer’s

requirements are originally presented in graphical

forms (using the ARIS diagrams suggested by

Scheer et al, 2002), which are designed as schedules.

In the schedules, the customers are specifying the

parts they need in a module that best suits their

business by developing, changing and extending the

schedules in the ES. We use these graphical

specifications to develop rules for the module.

Since these software packages can contain many

modules with thousands of parameters we have to

handle the requirements in an efficient way. Firstly,

a user has to study the ES Basic Terminology List

(for the list see e.g. Navision Attain 2002) in order

to avoid mismatches caused by the wrong

terminology. This is needed since the current system

does not detect the use of wrong terminology.

Secondly, the user must insert the parts of the

schedules of the processes used by the system and

make these as complete as possible. The parts used

in the system are triggers, functions, application

system types and organizational units. Each part has

its form and colour to distinguish them from one

another. The different parts are presented in the

figure below, Figure 4.

Figure 4: Different parts used in a schedule

The triggers are the events (e.g. “Start price

calculation”) handled by the system, which either

are inputs to functions or outcomes (“Result from

price calculation”) from functions. The functions, on

the other hand, are the actions provided by the

system (e.g. the actions needed to calculate the

correct price). These functions are some tasks to be

performed by the system. As mentioned above, some

of the functions have to be detailed in a sub-

function. The application system types can

symbolize different things but in our case they

describe a temporary storing of information. The

information is stored in a database to be used later

on in the graph. The organization units point out the

ENTERPRISE SYSTEMS CONFIGURATION AS AN INFORMATION LOGISTICS PROCESS - A Study

215

responsibilities of a certain action. Some of the

actions require some job to be carried out within the

company.

For expressing the parts in the software system,

we have chosen antecedent-consequent rules, i.e.,

production rules to represent the requirements. The

rules allow us to automate the configuration process

by using rule-based descriptions directly onto

customer’s requirement. The rules can be applied on

customer’s requirements because of the nature of the

requirements. These requirements use parts that can

be expressed as rules, like the logic operations,

triggers and actions (also called functions). The

logic operation, with “and” and “or”, can be applied

in rules by letting the “and“ be captured within the

rules and the “or” be captured by using several

different rules. Moreover, the triggers are applied as

facts and actions as rules.

The logic interpretation of the requirements is

the execution order of the rules. The order is the

relationships between the different rules. For

example, if one rule comprises another rule, both

have to be interpreted and completed before both are

usable in the conclusion. Moreover, if the rule

comprises two different rules, R2 and R3 in that

order, the rule R2 will be tested before rule R3. The

order those rules are applied in the rule becomes the

order of the execution.

The output from these rules, so called

conclusions, is a list of modules and parameters.

This list is used for configuration of the enterprise

system by comparing the list with the contents of the

system also expressed in rules. This list is checked

for correctness of the modules and parameters,

manually, and then for configuration the system’s

modules and parameters, automatically.

5.1 Example of Rules Built from Users’

Requirements

The customer’s requirements for the Enterprise

System are drawn as a schedule. This schedule

contains the triggers, functions, application system

types, organization units, logic operators and

parameters needed by the module to accomplish a

task. However, for the rules some of these parts are

omitted. The rules handle the triggers, functions,

logic operators and parameters. The organization

units are the units that take care of the product at the

company and do not need to be expressed in the

rules. Neither does the application system types need

to be expressed because it is fetches and sends data

to and from the database.

An example of building rules from the

customer’s requirements is using the schedule for

the invoice and production process, see Figure 5.

This process can be described with a couple of rules.

For example, applying rules on top of this schedule

can be done by the use of only one rule, but for the

quality of the knowledge base and following the

schedule, we use several rules.

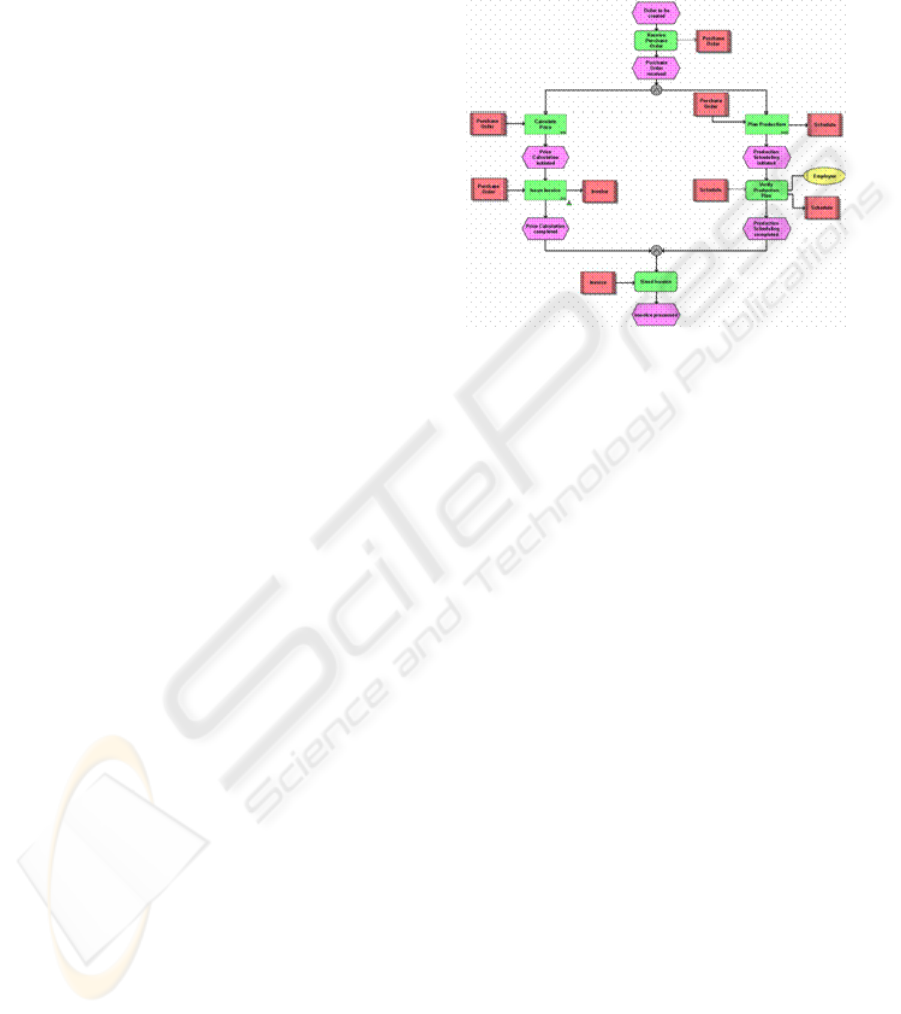

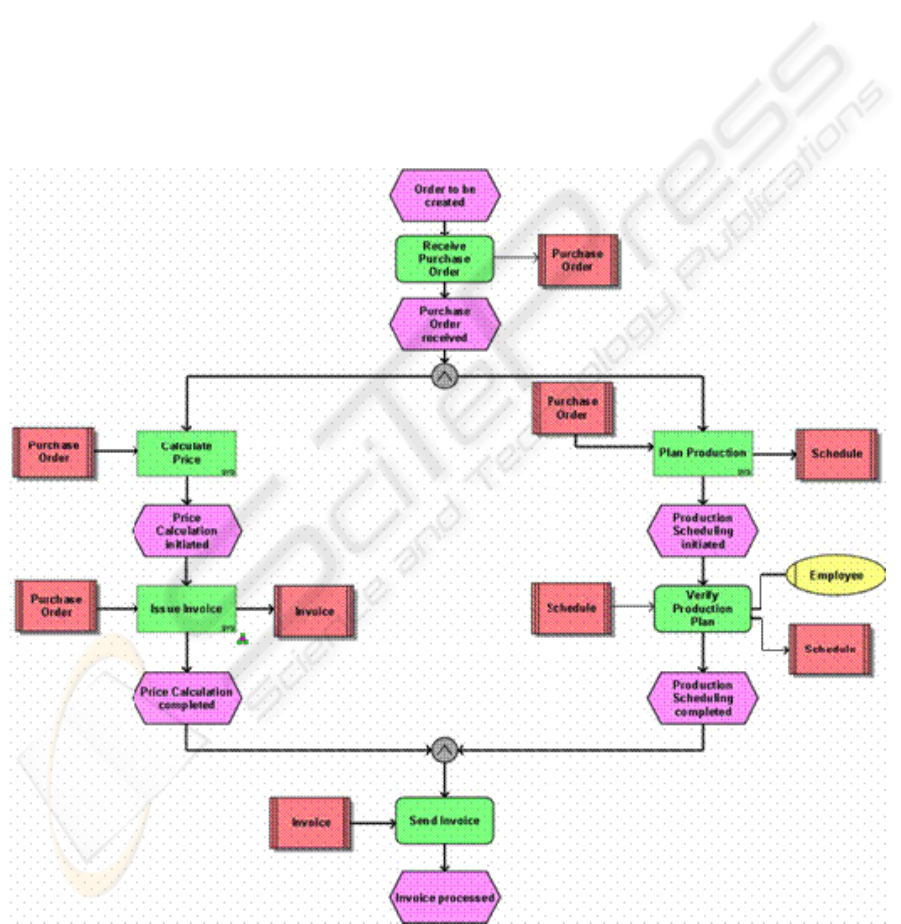

Figure 5: An example of invoice and production process

(For details see appendix.)

There will be an overall rule that works as an all-

embracing rule, which invokes the facts and the

rules needed to reach a conclusion. In this example,

the overall rule starts by invoking the rule

“

Purchased order” and then calls for several

rules, i.e., “

Price calculation”, “Production

scheduling” and “Send invoice” to reach the

conclusion “

Invoice processed”. The

conclusion to the rule “

Purchased order” is

“

Purchased order received” and to the rule

“

Price calculation” “Price calculation

completed

”. We also have the conclusions

“

Production scheduling completed” and

“

Invoice Sent”.

The system uses both pre-stored facts, i.e., stored

in the database, and user-given facts, i.e., facts

inserted by the users during consultation with the

system. Hence, the facts, which correspond to the

triggers, are found by searching in the database. If

these facts are not found, the system asks the user. In

this example, the system is launched by the rule

“Process Invoice” which calls the rule

“Purchased order”. Then the latter rule invokes

the question “

Order to be created” which

answer or answers (if several answer alternatives)

became the user-given fact. Thus, the answer

becomes a fact that is initiating the consultation. The

fact “

Price calculation initiated”, on the

other hand, may be a pre-stored fact because the data

can be stored in the database of the system. Then,

this trigger only checks whether or not the session

ICEIS 2007 - International Conference on Enterprise Information Systems

216

has all data to be able to continue the consultation of

the system.

Besides invoking the fact “

Order to be

created”, the rule “Purchased order” call rule

“

Receive purchase order”, which can have a

schedule of its own that is the sub-functions

mentioned above. Thus, every function may use a

schedule like the one presented in Figure 5. This

schedule also needs to be executed before continuing

in the consultation.

Following the schedule in Figure 5, the rule

“

Price calculation” invokes the rule

“

Calculate price”, the fact “Price

calculation initiated

” and the rule “Issue

invoice

”. The rule “Production scheduling”

invokes the rule “

Plan production”, fact

“

Production scheduling initiated” and the

rule”

Verify production plan”. Finally, the

rule “

Send invoice” is checked. All the rules in

this example are not specified, e.g., the last rule,

which either use a fact or a schedule. Even though it

is not pointed out in this paper, it illustrates the

complexity of rules that are produced even by small

examples.

The corresponding knowledge base, to the rules

presented above, is expressed in a kind of logic

syntax:

Rule “Process Invoice”->

Rule “Purchased order” and

Rule “Price calculation” and

Rule “Production scheduling” and

Rule “Send invoice”.

Rule “Purchased order”->

Fact “Order to be created” and

Rule “Receive purchase order”.

Rule “Price calculation”->

Rule “Calculate price” and

Fact “Price calculation initiated” and

Rule “Issue invoice”.

Rule “Production scheduling” ->

Rule “Plan production” and

Fact “Production scheduling initiated”

and

Rule “Verify production plan”.

Rule “Send invoice”.

Once these rules have been developed and

established into the system, they will become the

customer’s requirement rules.

5.1.1 Visualising the Developed Rules

Expressed in the syntax of a programming language

these rules together with the

relationships can be difficult to handle. To support

the users in understanding the rules, the rules and

relationships can be illustrated visually. As visual

tool, we use diagrams similar to the ones in UML

(Booch et al., 1999; Jacobsson et al., 1999). Some of

these diagrams have proved to be useful for rules

modeling the Information Logistic, as shown in

Apelkrans, and Håkansson, 2005, and modelling for

acquiring knowledge in Håkansson, 2001.

One might argue to use the schedules as presented in

Figure 5 but this does not illustrate the execution

order of the rules. Therefore, we will use a UML-

alike sequence diagram to present the rules

described above, see Figure 6.

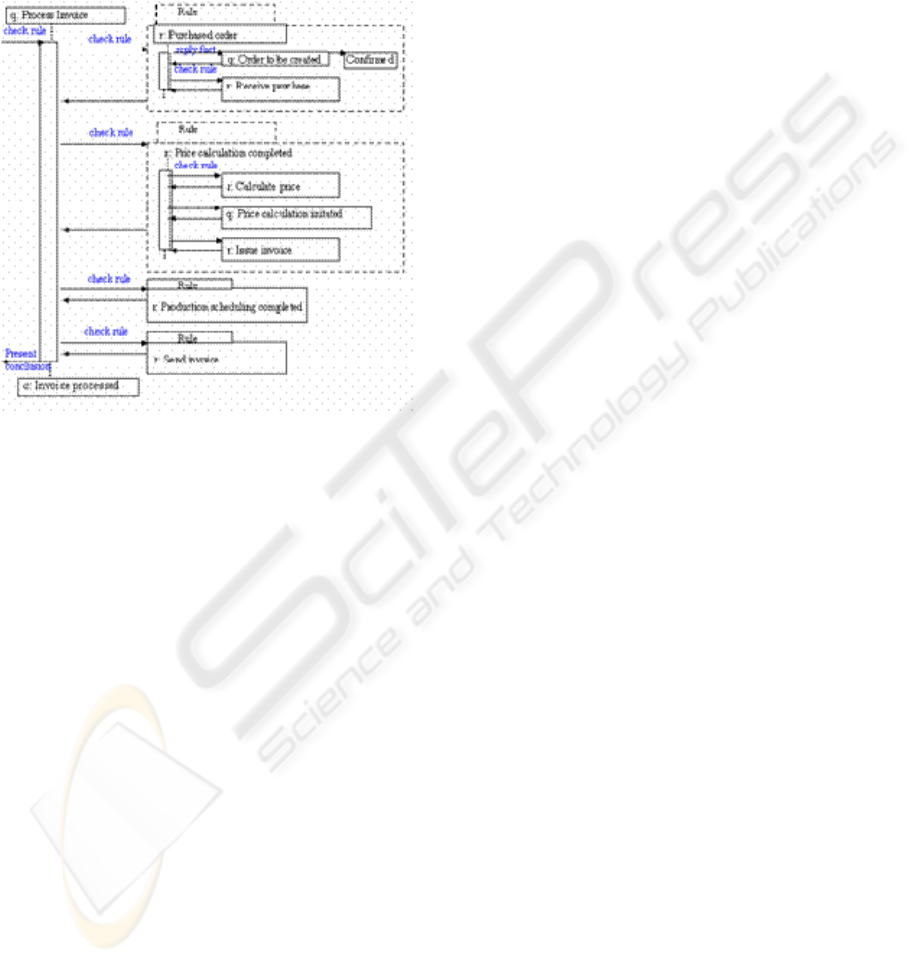

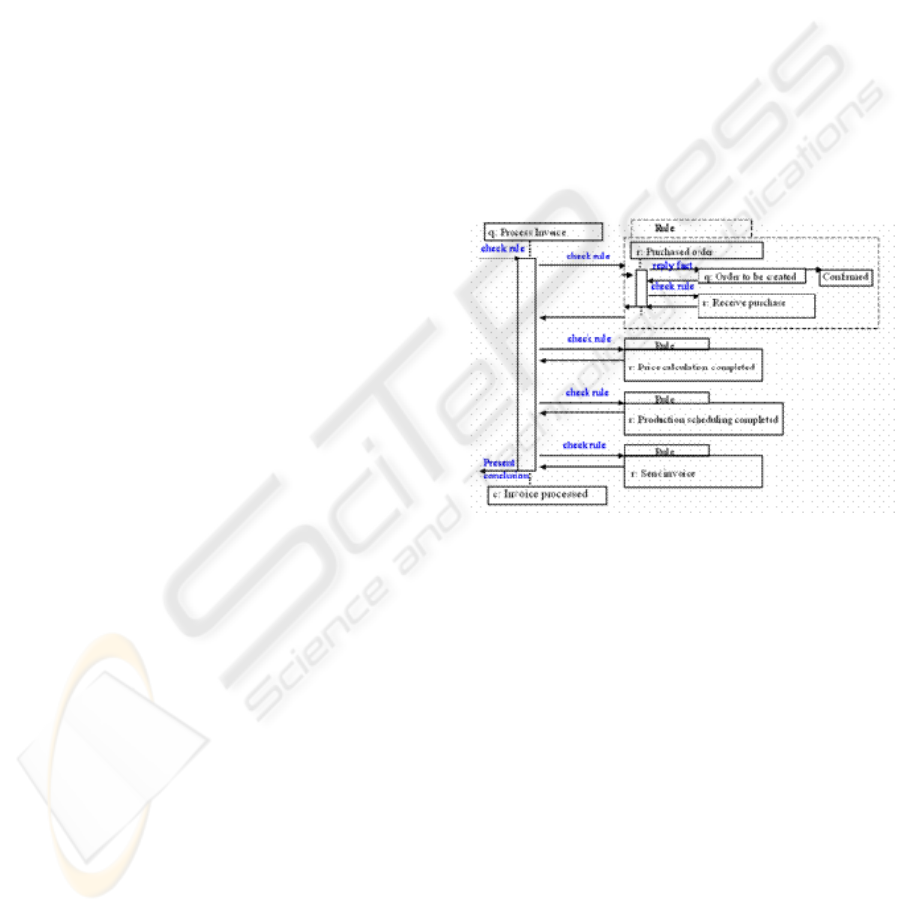

Figure 6: A visual presentation of the rules in the

example of invoice and production process

In the figure the overall rule “

Process

Invoice

” is presented. It begins with following the

lifeline by invoking the related rules. In this case, the

execution is starting with “

Purchased order”

illustrated as a square with broken lines. This rule

explores the fact “

Order to be created” and the

rule “

Receive purchase order”. After checking

these rules, the overall rule continues with the rule

“

Price calculation“ presented in a so-called

package. In this diagram, the package icon is used to

denote that there are contents in the rule and to see

it, the package has to be unfolded.

There are also two other rules in packages, the ”

Production scheduling“ rule and the “Send

invoice

” rule. At the end of the lifeline, the

conclusion is presented, i.e., for this schedule it is

“

Invoice processed”.

ENTERPRISE SYSTEMS CONFIGURATION AS AN INFORMATION LOGISTICS PROCESS - A Study

217

The functions, or actions, sometime have to be

detailed in a sub-function. These sub-functions are

also rules, which are hidden in the package. To

examine the package contents, the package is

unfolded. Unfolding the rule “

Price

calculation“ is to display the contents of that

rule, see Figure 7.

Figure 7: A visual presentation of the content of a package

Unfolding the rule package supports the

customer checking the contents. In this example, it is

found that one rule consists of two other rules

“Calculate price” and “Issue invoice”

and a fact Fact “Price calculation

initiated”. This folding/ unfolding feature is

necessary to make the rules comprehensible for the

customer. Too much information makes it hard to

get an overview of the rule-base whereas packages

hide important information.

6 MATCHING REQUIREMENT

RULES TO THE KNOWLEDGE

BASE RULES

The users build the schedules through drawing and it

is not certain that they will remember all the parts

that have to be in the schedule. For instance, in the

example presented above, Figure 5, the users may

have omitted some important parts, for instance, the

parameters.

The rules developed on the requirement schedule

have to be tested for viability and usability in the

system. The system must have a full collection of

full-fledge modules that contain all the parts and

parameters used in the system. These modules are

implemented as rules stored in the knowledge base.

These rules are used as templates to which the

developed rules, also called requirement rules, are

tested. For each part that is omitted in the

requirement rules, the system needs to ask whether

the users purposely omitted the parts or accidentally.

There might be another mismatch between the

rules in the knowledge base and requirement rules

do to the use of terminology used by the ES and

implemented in the rules in the knowledge base. The

system must find these mismatches, both from

checking the rules in the knowledge base as

presented above, but also from the requirement

rules. If parameters are omitted, the system asks for

answers on these. In the invoice case, it is to ask for

the costing method, price, profit calculation, sales

unit, unit costs, VAT and product type. Each of

these become facts in the rules. If a rule is wrong,

the user is asked to check it. The user either needs to

change the rule or reduce it. Moreover, if the rules

are in the wrong order, the user is asked to change

the order of the rules. It should be a possibility to

override these as well but then that enterprise system

may not be guaranteed to work properly.

If there are parts in the requirement rules that are

not present in the rules of the knowledge base, the

system asks the intension of these parts the users

have specified. The users are asked to check the rule

and its content but also check the terminology.

6.1 The Result of Applying Rules

The result of matching all the knowledge base rules

against the requirement rules is a list with the

modules and parameters (with chosen parameter

values) the users have requested. This list is

presented to the customer or user. The user should

carefully study the behaviour of the ES to be able to

suggest the right content of the modules. The user

might not be satisfied with the list and the modules

and/or the parameters need to be changed to undergo

the matching process again. This will be iterated

until the user is satisfied with the list. However, if

the user agrees to the list there are two options.

Either the list is directly applied to the ES or printed

as a report of what should be manually adjusted in

the system.

6.2 Verifying the Knowledge Base

The Enterprise system’s ability to expand the rule

base with the requirement rules for modules and

parameters depends on the ability to assure

correctness and completeness of the knowledge.

ICEIS 2007 - International Conference on Enterprise Information Systems

218

Therefore, the system should handle verification of

the knowledge base. Verification is the

demonstration of software consistency,

completeness and correctness at each stage.

However, in this work we only work with the

consistency.

Developing and updating the rule base involves,

among other things, checking the consistency. In

rule-based systems the rule base is consistent if for

each interpretation all facts are true (Beauvieux,

1990). Consistency checking includes testing

whether the system produces similar answers to

similar questions (Polat and Guvenir, 1993).

Consistency problems that can occur are conflicting,

redundant, subsumed and circular rules (Polat and

Guvenir, 1993). A conflicting rule is when it

contains a fact that is both true and false at the same

time. Redundancy occurs when several premises,

that are identical, are included in a rule. A subsumed

rule means that two rules produce the same result

but one is more restrictive than the other. Circular

rules is when a rule has dependencies to other rules

that prevent the rules to reach any conclusions.

Those rules have premises that use each other.

Depending on the schedules of the user, the system

must check so it will not run into verification

problem. This is an automatic test and should be run

for every schedule. If there is a cross-reference

between several schedules, these are tested together.

7 CONCLUSIONS

In this paper, we have presented a rule-based

description of the customer’s requirements on an

Enterprise System. Input to the system is the form of

requirement schedules and output is the modules and

parameters to be used by the Enterprise system. The

rules built from the requirements are matched to the

rules in the knowledge base. The missing data

between these rules will be asked for.

This study is restricted to a few examples of

handling an ILP process configuration of a customer

chosen ES. Therefore, there are a number of rules

and situations for several different ES that need to be

examined further. This might require adjustments of

the rule structures or the modules used in the

specific ES.

Future research will focus on managing the outer

loop, automating the process of transferring user

requirements given in graphical form to rule

systems. We will also build in the terminology for

the system. In the current version, the user has to

study the ES Basic Terminology List in order to

avoid mismatching by wrong terminology. In the

coming version, the system will present a list with

terminology used by the system from which the user

can use the right word. Since the number of terms is

vast, this list will be long so the user will either

choose from the list or write the words directly in

the interface of the system. If the user misspells the

word or uses wrong terminology, the system will

suggest the words that are commonly used in the

context for the modules.

Configuration costs a lot of money today, and

sometimes does not give a satisfying solution. On

the other hand, our proposal will also cost a lot of

money to fully implement the time-consuming effort

to build up the Enterprise systems Knowledge Base.

Each specific ES needs its own Knowledge Base

completed with rules for modules, actions and

parameters. Furthermore, a drawback with our

suggestion can be that graphical descriptions may

not familiar to ES users and therefore difficult to

use.

REFERENCES

Adam, F. and Sammon, D., 2004. The Enterprise Resource

Planning Decade: Lessons Learned and Issues for the

Future. • Idea Group Publishing.

Apelkrans, A. and Håkansson, A., 2005. Visual

knowledge modeling of an Information Logistics

Process - A case study. ICICKM-2005, 2nd

International Conference on Intellectual Capital,

Knowledge Management and Organisational Learning

Dubai, Förenta Arab Emiraten.

Beauvieux D. 1990. A general consistency (checking and

restoring) engine for Knowledge base. Proceedings

from ECAI-90. Pitman Publishing, p. 77-82.

Booch, G. Rumbaugh, J., and Jaconson, I. 1999. The

Unified Modeling Language User Guide. Addison

Wesley Longman, Inc.

Buck-Emden, R., 2000. The SAP/R3 Systems: An

introduction to ERP and business software technology.

Addison-Wesley

Frauenhofer Institute 2006

www.isst.fhg.de/englisch/download/34868_I-Log-4-

Seiter-engl-2.pdf, 10 december 2006.

Hedman, J. and Kalling, T., 2002. IT and Business

Models. Liber

Håkansson A., 2001. UML as an approach to Modelling

Knowledge in Rule-based Systems. ES2001 The

Twenty-first SGES International Conference on

Knowledge Based Systems and Applied Artificial

Intelligence. Peterhouse College, Cambridge, UK;

December 10th-12th, 2001.

Jacobson, I. Booch, G. and Rumbaugh, J. 1999. The

Unified Software Development Process. Addision

Wesley, USA.

Keller, G. & Teufel, T., 1998. SAP R/3. Process Oriented

Implementation, Addison-Wesley.

ENTERPRISE SYSTEMS CONFIGURATION AS AN INFORMATION LOGISTICS PROCESS - A Study

219

Navision Attain Terminology handbook, 2002

Olson, D. L, 2003. Manegerial issues of ERP

Systems.,McGraw-Hill

Polat F. and Guvenir H.A 1993. UVT: A Unification-

Based tool for Knowledge Base Verification. IEEE

Expert , June, No. 3.

Scheer, A-W., Abolhassan, F., Jost, W. and Kirchmer, M.

[eds] 2002. Business Process Excellence. ARIS in

Practice. Berlin: Springer Verlag.

Summer, M., 2005. Enterprise Resource Planning.

Prentice Hall.

APPENDIX

Figure 5 in full scale

ICEIS 2007 - International Conference on Enterprise Information Systems

220
