MODELLING DATA TRANSFORMATION PROCESSES USING

HIGH-LEVEL PETRI NETS

Li Peng

Software School, Hunan University, Changsha, Hunan, China

Keywords: Data heterogeneity, data transformation, process model, coloured Petri net, higher-order Petri net.

Abstract: Data heterogeneity is one of the key problems in integrating multiple data sources, data warehousing, legacy

data migration, etc. For integrating databases or information systems, the data need to be transformed from a

source representation into a target representation. The foundation for developing efficient data

transformation tools and automating data transformation processes is a data transformation process model.

In this paper, I propose a CPN based data transformation process model. This model provides rich

constructs to represent various data structures, transformation functions and rules; allows parallelization,

composition and decomposition of data transformations. Furthermore, as the extension of the model, the

CPNs are combined with higher-order Petri nets. The components of the CPNs can be reused. This

improves the efficiency of data transformations.

1 INTRODUCTION

Data heterogeneity is one of the key problems in

integrating multiple data sources, data warehousing,

legacy data migration, etc. This kind of

heterogeneities refers to different representations of

the same data. For instance, different units of

measurement, different abstraction levels, distinct

representations of the same data domain, or different

data formats would cause data heterogeneities. In

order to integrate databases or information systems,

we often need to transform data from a source

representation into a target representation.

A data transformation process potentially

involves a considerable number of transformation

functions or operations，which apply to input data

and generate output data. This kind of operations

appears implicitly in most languages. For instance,

we can perform data transformations by executing a

sequence of SQL queries against source data.

However, query languages were not developed to

represent complex transformations for solving data

heterogeneities. Many data transformations cannot

be expressed by SQL queries.

In many languages and data transformation tools

(for example, Data Fusion tool (Carreira and

Galhardas, 2004 (a)), data mapper operators are

developed for implementing data transformations. In

(Carreira and Galhardas, 2004 (b)), the data mapper

operators as an extension to the relational algebra

are proposed for increasing its expressive power.

The mapper operators are based on a tuple semantics,

can not specify many useful data transformations.

The foundation for developing efficient data

transformation tools and automating data

transformation processes is a data transformation

process model, which integrates input data, output

data, required transformation functions and

transformation rules. This model should be a visual

notation, describe progressive transformations, and

can be optimized.

This paper is organized as follows. Section 2

gives an overview of data structures and

transformation functions in data transformation

processes. Section 3 presents the data transformation

model. Section 4 concludes the paper with a

summary of the contributions of this research.

2 DATA AND FUNCTIONS IN

DATA TRANSFORMATION

PROCESSES

Data transformations deal with large amounts of data

and potentially involve a considerable number of

transformation functions or operations. The

533

Peng L. (2007).

MODELLING DATA TRANSFORMATION PROCESSES USING HIGH-LEVEL PETRI NETS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 533-536

DOI: 10.5220/0002372405330536

 SciTePress

execution of some functions is controlled by rules.

Therefore, data, transformation functions and rules

are basic elements in data transformation processes.

2.1 Data Structures

The inputs of data transformations are attributes in

relational databases, data warehouses, etc. The

attributes can have complex data structures and be

represented by using constructors. A composite

attribute corresponds to utilization of the tuple

constructor, whereas a multivalued attribute may be

of a list, set, or bag data type, and corresponds to the

list, set, or bag constructs. Complex data structures

can be created by the nesting of type constructors

(tuple, set, list, bag, array, etc.).

2.2 Transformation Functions

Data transformations may involve a number of

transformation functions or operations.

Transformations can be composed or decomposed.

Composition of transformations allows functions to

be composed together and executed as a single

function, whereas the decomposition of a

transformation allows a function to be partitioned

into composeable functions. According to this

criterion, data transformations can be classified into

simple transformations and complex

transformations.

A simple transformation involves only a single

function, which is not decomposable, whereas a

complex transformation can be decomposed into a

number of functions. The functions applied in

simple transformations can be relational operations,

such as join(), selection(), and projection();

aggregate functions, such as sum(), avg(), count(),

max() and min(); etc. A complex transformation is

composed of a number of functions and allows

sequential and parallel execution of functions.

On the other hand, transformation functions can

be classified according to the following criteria:

 One-to-one map: a function receives an input

and generates an output.

 One-to-many map: a function receives a single

input and generates multiple outputs.

 Many-to-one map: a function receives

multiple inputs and generates a single output.

 Many-to-many map: a function receives

multiple inputs and generates multiple

outputs.

 Algorithmic map: a function is performed

according to an algorithm, e.g. iteration.

In order to simulate data transformation

processes, the data transformation model should be a

visual notation, provide constructs to represent

various data structures, transformation functions and

rules. Moreover, the composition, decomposition

and parallelization of data transformations can be

expressed in this model.

3 MODELLING DATA

TRANSFORMATION

PROCESSES

In graphical notations, UML is one of the most

popular graphical specification tools. However, it is

not suitable to express progressive data

transformation processes. Coloured Petri Net (CPN)

is an alternative to UML for modelling data

transformations.

3.1 Modelling Data Transformation

Processes Using CPN

CPNs are one of the enhancements of Petri nets,

which are especially suitable for modelling

transformation processes of complex data types and

expressing progressive transformation processes.

3.1.1 The CPN Model

CPNs are formally defined as follows (Jensen, 1992):

CPN=(S, P, T, A, N, C, G, E, M

, I), where

S: a finite set of non-empty types, called color sets;

P: a finite set of places;

T: a finite set of transitions;

A: a finite set of arcs P ∩ T = P ∩ A = T ∩ A = ∅ ;

N: a node function A → P × T  T × P;

C: a color function P → S;

G: transition inscriptions T →expression;

E: arc inscriptions A → expression;

: initial tokens;

I: an initialization function P → M

CPNs provide the following graphical notations:

circles for places, boxes for transitions, arcs for data

flow between them, and dots for tokens.

In a CPN based data transformation process

model, a color set represents a data type, which may

be the input or the output of a transformation

function. Various data types occurring in data

transformation processes can be represented using

different color sets. For example, a composite

ICEIS 2007 - International Conference on Enterprise Information Systems

534

attribute “Date” can be represented by a color set

defined as follow:

color Date = record (year, month, day).

A textual inscription can be assigned to each

graphical symbol. Arc inscriptions restrict the arc’s

data flow, which is described with variables.

Transition inscriptions define guard conditions and

actions. Guard conditions restrict the firing of the

transitions. Actions correspond to transformation

functions or operations and are executed when the

transitions fire.

Simulation is based on the following firing rules:

When data tokens (represented by color sets) are

available in each input place of a transition, the arc

conditions and the guard conditions are evaluated

and the output places are checked for space for

tokens. When all these conditions are fulfilled (the

preconditions of a data transformation are fulfilled),

the transition may fire. When the transition fires, all

input data tokens are consumed and output tokens

are delivered to all output places according to the

action. With the moving of tokens in CPN, data

transformations are performed step by step.

3.1.2 Execution of Data Transformations in

CPNs

CPNs allow sequential and parallel execution of data

transformations. Composition and decomposition of

data transformations can be also expressed in CPNs.

The data of an input place can be delivered to

different transformation functions; the functions can

execute in parallel and yield different output results.

If the data type of an input place is a composite type,

the input data can be partitioned and delivered to

different transformation functions. For example, if

the data type of an input place is a tuple, the tuple

can be partitioned into single attributes, and the

attributes would be delivered to different

transformation functions; finally, the results of

different functions would be merged into a tuple in

the output place.

The concept of hierarchy and composition for

CPN allows transitions to be replaced by subnets. A

hierarchical CPN (HCPN) model can be developed

either top-down or bottom-up. Subnets (sub-pages)

can be used to describe decomposition of complex

transformations. Each subnet provides a detailed

description of a complex transformation.

Data transformation rules can be expressed as

guard conditions in transition inscriptions. The

transformation rules control the execution of

transformation functions, e.g. iteration.

3.2 An Extension for Data

Transformation Process Model

CPNs are a powerful modelling notation for data

transformation processes. They provide rich

constructs for representing various data types,

transformation functions and rules. The

parallelization, composition and decomposition of

data transformations can be expressed in CPNs.

However, a data transformation process potentially

involves some special procedures or algorithms.

Sometimes, the procedures or algorithms involved in

CPNs need to be reused. For example, in a data

transformation process, more than one hierarchical

structures need to be restructured. Obviously, we

would not like to rewrite procedures for each

hierarchical structure. This problem can be solved

by applying higher-order Petri nets (Janneck and

Esser, 2002). We can use the higher-order facilities

to construct a model for the procedure that, when

parameterized with a specific hierarchical structure,

automatically instantiates the corresponding

procedure. The higher-order Petri nets can be

combined with CPNs.

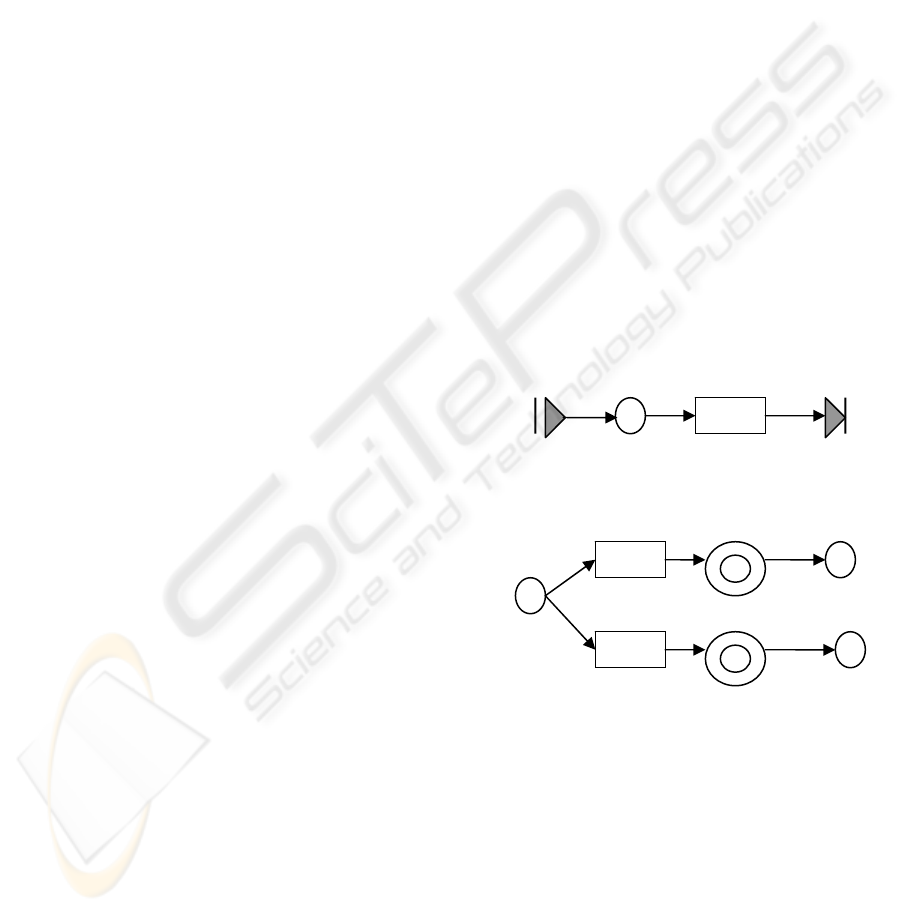

Figure 1: A higher-order Petri net

Figure 1(a) shows a parameterized Petri net

which represents the procedure for restructuring

hierarchical structures. The parameters are the

attributes existing in a hierarchical structure. The net

contains an input port and an output port. This

model is called a component model. Figure 1(b) is a

CPN which describes a data transformation process.

The CPN contains two double-rimmed places, called

container places. Each container place contains input

In Ou

(a)

(b)

MODELLING DATA TRANSFORMATION PROCESSES USING HIGH-LEVEL PETRI NETS

535

ports and output ports. The procedure (component)

resides as a token on the container places. When a

transition that is connected to an input container port

produces a token, the token is sent to the input port

of the component. Similarly, when the component

produces a token at its output port, the token appears

at the corresponding output container ports of the

container place. By using component models and

container places, procedures or algorithms can be

reused. This reduces the model size and complexity,

and improves the efficiency of data transformations.

4 CONCLUSIONS

In this paper, I proposed a data transformation model

for developing efficient data transformation tools

and automating data transformation processes in

integrating multiple data sources, data warehousing,

legacy data migration, etc. The model is based on

CPNs (Coloured Petri nets) and provides rich

constructs to represent various data structures,

transformation functions and rules. The

parallelization, composition and decomposition of

data transformations can be expressed in this model.

As an extension of the model, higher-order Petri nets

are combined with CPNs. In this extended model,

the components of CPNs can be reused. This

improves the efficiency of data transformations.

REFERENCES

Carreira, P., Galhardas, H., 2004(a). Execution of Data

Mappers. In IQIS. pp.2-9. ACM.

Carreira, P., Galhardas, H., 2004(b). Efficient

development of data migration transformations. Demo

Paper. In ACM SIGMOD International Conference on

the Managment of Data. Paris, France.

Esser, R., Janneck, J.W., 2000. Exploratory Performance

Evaluation using Dynamic and Parametric Petri Nets.

In Proceedings of the HPC 2000. pp.357-364, Society

for Computer Simulation.

Galhardas, H., Florescu, D., Shasha, D., Simon, E., Saita,

C.A., 2001. Declarative data cleaning: Language,

model, and algorithms. In Proceedings of the

International Conference o Very Large Data Bases

(VLDB’01). Rome, Italy.

Hoffmann, K., Mossakowski, T., 2003. Algebraic Higher

Order Nets: Graphs and Petri Nets as Tokens. In

Recent Trends in Algebraic Development Techniques,

16th International Workshop, WADT 2002.

Frauenchiemsee, Germany, Revised Selected Papers,

LNCS Vol. 2755, pp. 253-267, Springer-Verlag.

Huber, P., Jensen, K., Shapiro, R.M., 1989. Hierarchies in

Colored Petri Nets. In 10th International Conference

on Application and Theory of Petri Nets. Bonn.

Janneck, J.W., Esser, R., 2002. High-order Petri net

Modeling – techniques and applications. In

Conferences in Research and Practice in Information

Technology. Vol. 12. C., pp.17-25.

Jensen, K., 1992. Coloured Petri Nets - Basic Concepts,

Analysis Methods and Practical Use, Vol.1, Springer-

Verlag.

Lakos, C.A., 1997. On the Abstraction of Coloured Petri

Nets. In Proceedings of the 18

International

Conference on the Application and Theory of Petri

Nets. Vol. 1248, pp. 42-61, Lecture Notes in Computer

Science, Springer-Verlag.

Lakshmanan, L.V.S., Sadri, F., Subramanian, I. N., 1996.

SchemaSQL - a Language for Querying and

Restructuring Database Systems. In Proc.

International Conference on Very Large Databases

(VLDB’96). pp. 239–250, Bombay, India.

Miller, R.J., Haas, L.M., Hernand′ez, M., 2000. Schema

Mapping as Query Discovery. In Proceedings of the

International Conference on Very Large Data Bases

(VLDB’00). pp. 77–78, Cairo, Egypt.

Oswald, H., Esser, R., Mattmann, R., 1990. An

Environment for Specifying and Executing

Hierarchical Petri Nets. In Proceedings of the 12th

International Conference on Software Engineering.

pp. 164-172.

Raman, V., Hellerstein, J., 2001. Potter’s Wheel: An

Interactive Data Cleaning System. In Proceedings of

the International Conference on Very Large Data

Bases (VLDB’01). Roma, Italy.

Schallehn, E., Sattler, K., Saake, G., 2001. Advanced

grouping and aggregation for data integration. In

Proceedings 10th International Conference on

Information and Knowledge Management, CIKM’01.

Atlanta, GA, USA.

Xu, J., Kuusela, J., 1998. Modeling Execution

Architecture of Software System Using Colored Petri

Nets. In WOSP98. pp. 70-75.

ICEIS 2007 - International Conference on Enterprise Information Systems

536
