META MODEL FOR TRACING IMPACT OF CONTEXTUAL

INFORMATION EVOLUTION IN WEB-BASED WORKFLOWS

Jeewani Anupama Ginige and Athula Ginige

AeIMS Research Group, University of Western Sydney, Locked Bag 179, Penrith South DC NSW 1797, Australia

Keywords: Business process, process evolution, contextual information, web-based workflows, process modelling.

Abstract: Environment that shapes a business process consists of regulations, policies, guidelines, goals, etc. referred

to as Contextual Information (CI) both external and internal to the organisation. In today’s global and

competitive business world evolution and changes in CI, forces business processes to change. When

processes are supported with web-based workflows, CI evolutions are required to be reflected in already

automated systems, via process models. Due to limitations of current modelling tools, process related

models fail to encapsulate CI that associates process elements to its environment. This creates

inconsistencies and errors when trying to change implemented systems to reflect high-level CI changes. To

address this, we propose a model, which allows tracing high-level CI changes down to the implementation

level artefacts. Such a model needs to map the complex correlation between CI, all process elements

(object, participants, actions and process flow rules), various web-based workflow artefacts (data, code and

UIs) to a types of changes (modify, add and delete). This holistic view of the proposed model makes this

research standout among other research work in process evolution area.

1 INTRODUCTION

Organizations have processes to manage their

business, which could be automated with the help

of ICT. The paradox of automating business

processes is their desire to change (Narendra,

2000). In today’s global world, process

environment that consists of Contextual

Information – CI (policies, rules, goals etc),

changes frequently. When processes are

automated, it is required to alter implementation

level artefacts to reflect high-level CI changes

(Han, Sheth, & Bussler, 1998). At present this is

done (largely) by humans in two phases. First,

high-level CI changes are reflected into models.

Then these models introduce changes into

implemented systems. The ability to do this

flawlessly rest with; human’s capability to reflect

CI changes in models cohesively and automated

system’s ability to adapt to changes.

When processes are relatively large and

complex, the task of reflecting high-level CI

changes in models and implemented systems,

could lead to errors and inconsistencies. While

some previous workflow evolution researches

address the issue of making automated systems

adaptable, the problem of reflecting high-level CI

changes in implemented systems is not researched

adequately. Thus, work here is focused on addressing

the gap of linking CI with implementation artefacts,

via process models.

In order to understand the specific research

question and to define the scope of this research, first

the ‘big picture’ of process automation is discussed

below.

1.1 Paradigm of Process Automation

The ‘big picture’ of paradigm of business process

automation consists of four levels; pragmatics,

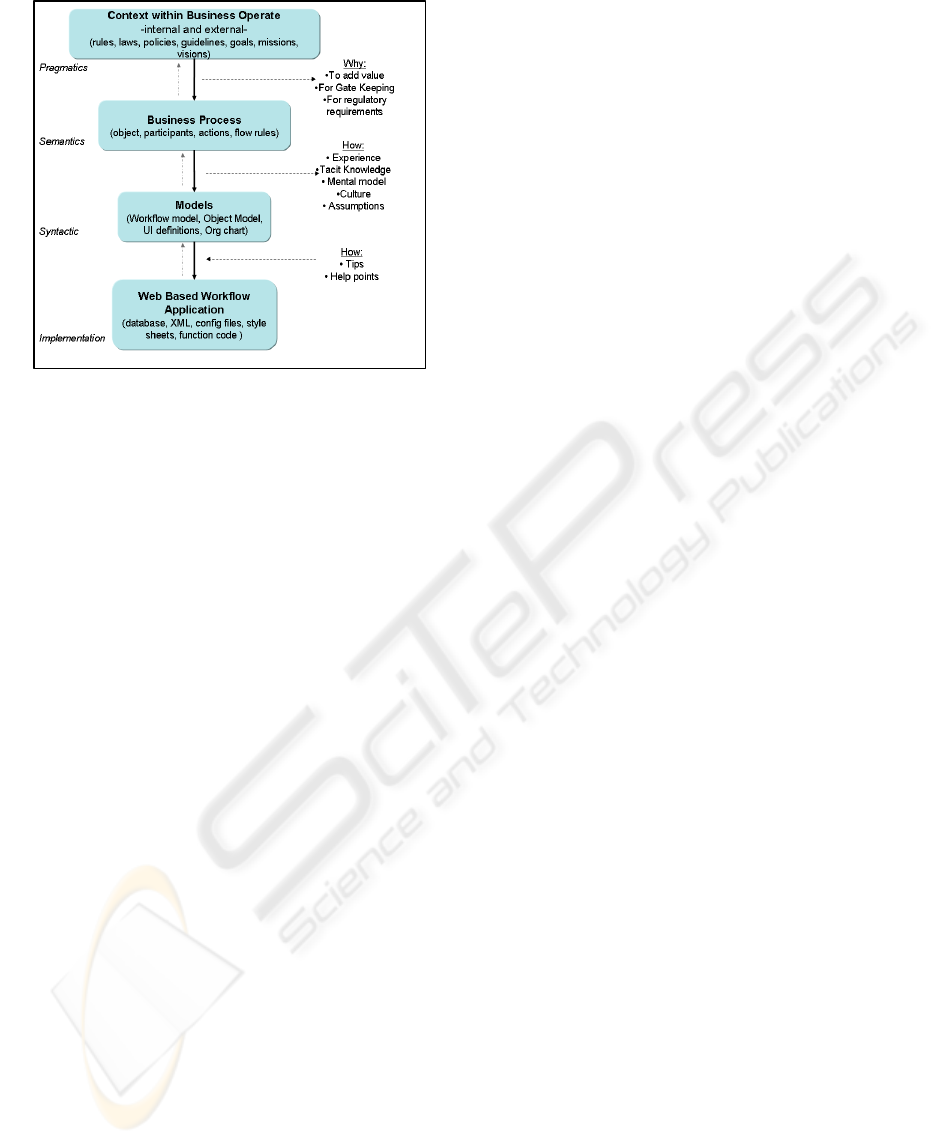

semantics, syntactic and implementation (figure 1).

This model extends the ‘workflow life cycle’

introduced by (Zur Muehlen, 2004). The extensions

are; i) new level named pragmatic to record CI which

shapes a business process and ii) identification of

certain information that gets ‘leaked-out’ or ‘injected-

in’ at the transformation from one layer to another.

In figure 1, each box indicates a step towards

process automation. The downward arrows represent

the flow of information from one level to another that

helps to construct the component parts at the target

level. The dotted outward arrows represent the

410

Anupama Ginige J. and Ginige A. (2007).

META MODEL FOR TRACING IMPACT OF CONTEXTUAL INFORMATION EVOLUTION IN WEB-BASED WORKFLOWS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 410-415

DOI: 10.5220/0002377104100415

 SciTePress

‘leakage’ of information. The inward arrows

illustrate the artificial ‘injection’ of information,

which does not flow from the main channel. The

upward dotted arrows from one level to another

represent the influence and certain information

flow that lower levels may have on re-shaping the

upper levels (Maus, 2001). This concept of re-

shaping upper levels as a result of lower level

changes is outside the scope of this paper.

Let us breifly explore each of these levels.

Pragmatic Level - CI is the environment that sets

the scene and need for a business process

(Ramesh, Jain, Nissen, & Xu, 2005). CI usually

contains policies, goals, strategic planes etc.; both

external and internal to the organisation.

Semantic Level – Presentes actual business

process. Here processes are not necessarily

visualised into formal models. However there is a

general understanding among participants on how

things are done in these ‘invisible processes’

(Senge, 1994). The visualisation of processes takes

place when processes are re-engineered or

automated (McCormac & Rauseo, 2005).

Syntactic Level – Presents processes getting

visualised into models such as workflow models,

object model, organisational chart, etc. Most tools

available for process element modelling are

focused on capturing information required for

implementation only. Thus result in leaking tacit

knowledge; such as experience, mental models,

culture, etc.

Implementation Level- Presents the implemented

system, web-based workflow. There are three

types of artefacts; i) to store persistence

information (database, XML, documents, etc.), ii)

to record logic (code, configuration files, etc.) and

iii) for humans to interact - user interfaces, defined

using (stylesheets, templates, etc.). To assist the use of

implemented system certain tacit knowledge may get

fed back, in the form of help points, tips for use,

FAQs, etc.

In the ‘paradigm of process automation’, we

discuss issue of reflecting changes in high-level CI to

the implementation level. To solve this problem we

propose a meta-model. This model links the complex

correlation between the following; references to CI, all

process elements (object, participants, actions, flow

rules), various web-based workflow artefacts (data

repositories, function code, UIs) and different types of

changes (modification, add, delete) that may take

place.

A detail discussion on the meta-model is presented

in the section 3. Section 4, validates this meta-model

is by applying through an emperical strudy. Next, we

will discuss some previous work, which are closely

related to this research.

2 PREVIOUS RELATED WORK

There are numerous researches that discuss handling

of process evolution through workflow evolution.

Some of the notable contributions come from

(Bachmendo & Unland, 2001; Casati, Ceri, Pernici, &

Pozzi, 1998; Chiu, Li, & Karlapalem, 2001; Ellis,

Keddara, & Rozenberg, 1995; Governatori, Rotolo, &

Sadiq, 2004). This is not an exhaustive list due to

space limitations. Most of these previous work is

concentrated at the syntactic and implementation

levels in relation to figure 1.

Though not directly related to process evolution,

there is some workflow research that attempts to link

CI with process definition such as (Dong, Chen, Yin,

& Dong, 2002; Maus, 2001; van der Aalst, Kumar, &

Verbeek, 2003).

Ramesh’s (Ramesh et al., 2005) work bares a close

resemblance to the goals that we plan to achieve in our

work, in terms of linking CI evolution as a way of

guiding changes to business processes. Their work

particularly focuses on identifying the re-design needs

of business processes according to CI changes. While

the knowledge management approach used in this

work is acknowledged, their work differs from ours

due to following reasons. Firstly it only maps CI to

the business process in the semantic level (see figure

1), where our aim is to have a mechanism to link this

information up to the lower level implementation

artefacts. Secondly the knowledge reasoning based

automated approach may give recommendations for

re-design that are not particularly practical in a certain

Figure 1: Paradigm of Business Process Automation.

META MODEL FOR TRACING IMPACT OF CONTEXT INFORMATION EVOLUTION IN WEB-BASED

WORKFLOWS

411

organisation, for example due to budgetary

constraints. Hence it gives the need for human

intervention for process changes with all the

relevant information provided to them.

Most of the above work concentrates on

evolution of flow control aspect only. Works of

(Reichert & Dadam, 1997; Zhang & Wang, 2005)

identifies the importance of linking object data

with workflow models, but in a different

perspective to our work presented here.

According to the literature we have reviewed, it

is apparent that there is a gap in linking the CI to

workflow level artefacts, with a holistic approach.

Therefore we in the next section, present a meta-

model to address this gap.

3 EVOLUTION META-MODEL

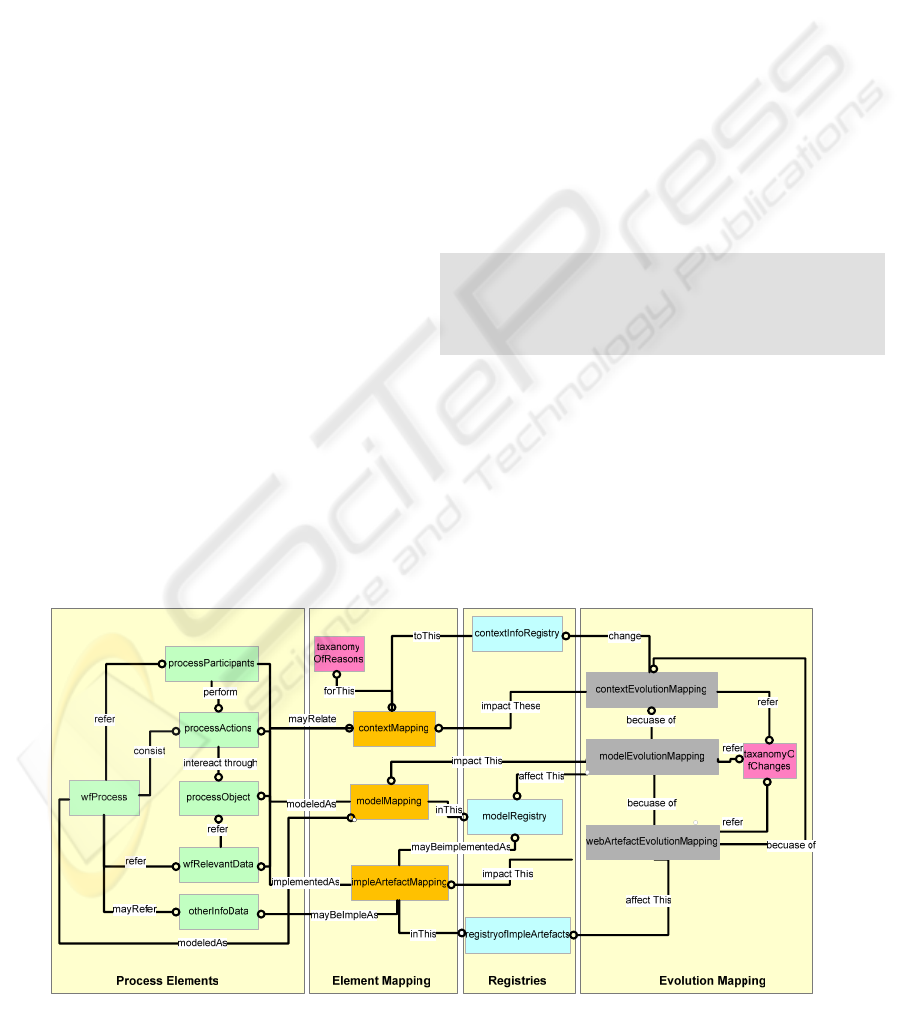

The meta-model (figure2) consists of four parts; a)

process, b) set of registries, c) mapping of

elements and d) an evolution mapping.

a) Process Elements –

The representation of the process elements is based

on the (WfMC, 1999)’s meta-model that defines

the top level entities of a workflow. As depicted

(figure 2) the processParticipants and

processActions refer to various roles that perform

workflow actions to reach the end goal of the

process. wfRelevantData refer to various instance

level rules that the workflow should refer to in the

enactment of the process. In addition it includes

the process object (processObject) and a

mechanism to refer to other information (in the

entity otherSupportInfo), as help files, FAQ’s, etc..

b) Registries –

Our work is not aimed at automating the evolution

process by synthesising CI changes as proposed in

(Ramesh et al., 2005). This is due two reasons; firstly,

we believe that when provided with all the necessary

information human business analysts are much more

capable of making appropriate decisions according to

the domain requirements, which may not be captured

in any of the CI. Secondly, there are inherent

difficulties in modelling and capturing CI into a

formal representation, as those come from variety of

sources and formats; such as external or internal

policy statements, guidelines, goal statements, laws,

regulations, etc. Therefore, we propose only to refer to

the CI in a registry. In the proposed model there are

three types of registries to keep record of; i) CI

(contextRegistry), ii) different kinds of models used

for process automation (modelRegistry) and iii)

various web based artefacts used to implement the

process (registryOfImpleArtefefacts). The CI registry

will record references to the particular CI in the

following format;

scope (internal | external), type (law |

regulation | policy | ..), section,

location (URL | document | ..),

effectFrom, expiryDate, overidingContext

The overridingContext is a self-reference that

denotes any CI, which is likely to override that

particular entry.

Similarly, the registries that keep record of various

models and web-based workflow artefacts gives

relevant reference to these components.

c) Element Mapping –

Element mappings indicate the relationship between

process elements and registry elements identified in b)

above. The contextMapping entries are similar to the

format (The underline word denotes a foreign key

Figure 2: Meta-Model to Support CI Evolution.

ICEIS 2007 - International Conference on Enterprise Information Systems

412

relationship with another entity in this models.);

this process element is introduced for

this reason in this context

The reasons for introducing various types of

process elements are three fold; for value adding to

the end goal of the process and/or as a gate

keeping function and/or for any legislative

obligations.

The modelMapping denote the link between

various models created for the process automation

with various process elements. An entry in the

modelMapper reads as;

this process element may be

represented in this model

Some process related additional information

such as help files or some static pages would

usually be directly implemented without being

modelled. However, the other process related

elements such as process object elements may be

modelled in a class diagram. These models are

used to create the implementation artefacts such as

DBMS, XML files, text files, etc. Therefore, to

capture both possibilities an entry to

impleArtefactMapping reads as;

this process element OR model is

implemented in this workflow artefact

d) Evolution Mapping –

Evolution mapping is one of the outcomes of this

meta-model which was inspired by the work of

(Felici, 2003). There authors introduces a model to

keep track of requirement changes in software

applications. Similar to that the evolution mapping

not only allows the business analyst to trace the

components requires changes according to the CI

changes, but also to keep record of each change

over a period of time.

Basically there are three types of changes in, i)

CI (contextEvolutionMapping), ii) models

(modelEvolutionMapping) and iii) implementation

artefacts (webArtefactEvolutionMapping).

Entries in contextEvolutionMapping would

read as;

as a result of modify|add|delete of

this context these process elements

need to modify|add|delete

Entries in modelEvolutionMapping would read

as;

as a result of process-element-

evolution these affected models need

to modify|add|delete

The webArtefactEvolutionMapping records the

following mapping;

As a result of model-evolution OR

process element-evolution these

affected web workflow artefacts need

to modify|add|delete

The referential information used

(taxonomyOfReasons and taxonomyOfchanges)

are not considered to be an integral part of the meta-

model. The taxonomyOfReasons capture the three

types of reasons identified in the paradigm of process

automation; for value adding purposes, for gate

keeping purposes and for legislative reasons, and link

them with appropriate process element for informing

the business analysts the reason for process elements

existence. The taxonomyOfChanges identify the three

type of schema changes that can take place; modify,

add and delete, which was inspired by the early works

of (Banerjee, Kim, & Korth, 1987) in database

evolution and requirement evolution work of (Felici,

2003).

In the next section, a practical use of this model is

presented using a process modelling automation task

carried out for a tertiary education institute in

Australia.

4 EMPIRICAL VALIDATION

The courses approval process in University of Western

Sydney (UWS), Australia is shaped according several

CIs. At the highest level it is affected by the Higher

Education Act 2003 of Australia. Then there are

organisational (university) and departmental (college

and school) level guidelines, goals and values, which

shapes the courses approval process.

The use of the proposed model will be

demonstrated using the following example related to

the course approval process of UWS;

Example - As indicated in the UWS mission

statement one of the values is ‘collegiality and

participatory decision-making’. To support this clause

the courses approval process elements have the

following; Process object has the facility to attach an

‘internal consultation report’. There is a process

action to ‘upload the consultation report’ by the actor

‘project manager’ and endorsement action by the

‘associate dean academic’ to ensure the ideas raised

are adequately incorporated to the course under

development by the project manager.

For the above scenario let us consider a variety of

entries that would be made in the meta-model in figure

CI registry entries

• contex18, Internal, value statement,

item4

http://www.uws.edu.au/about/university/mission,

2004, 2008, Australian Higher Education

Act 2003

Model registry entries

• model67, objectmodel, classdiagram,

http://portal.cbeads.org/ocasstage/main.pl model

documents, version4

META MODEL FOR TRACING IMPACT OF CONTEXT INFORMATION EVOLUTION IN WEB-BASED

WORKFLOWS

413

• model68, UImodel,

dataUIMappingSheet,

http://portal.cbeads.org/ocasstage/mian.pl

model documents, version3

Implementation artefacts registries entries

• artefact5, database.ocasMaster,

table.courseInstance,

http://portal.cbeads.org/ocasstage/main.pl

• artefact6,

UI.uploadInternalForumnReport,

http://portal.cbeads.org/ocasstage/main.pl

• artefact7,

UI.EndorseInternalForumnReport,

http://portal.cbeads.org/ocasstage/main.pl

contextMapping entries

• cm100,

courseObject.internalForumConsultation

Report is introduced for value adding

purposes in the context18

• cm101

processActions.uploadInternalConsultai

tonReport is introduced for value

adding purposes in the context18

• cm102

processActions.EndorseInternalConsulta

tionReport is introduced for gate

keeping purposes in the context18

Model mapping entries

• mm10,

courseObject.internalForumConsultation

Report is represented in model67

• mm11,

processActions.uploadInternalConsultai

tonReport is represented in model68

• mm12,

processActions.EndorseInternalConsulta

itonReport is represented in model68

Implementation artefact mapping entries

• am11, mm10 is implemented in this

web-workflow artefact5

• am12, mm11 is implemented in this

web-workflow artefact6

• am13, mm12 is implemented in this

web-workflow artefact7

Let us assume aforesaid value statement

(

contex18)get removed from CI. Once this is

notified to the business analyst, he would query the

meta-model using a query similar to;

SELECT process elements FROM

contextMapping WHERE context=Context18

The results would inform him that the course

object attribute named

‘internalForumConsultationReport’ and the two-

process actions uploadInternalConsultationReport

& EndorseInternalConsultationReport are the

affected process items. Business analyst would

then make a decision (in consultation with process

owners), changes that need to happen in elements

and records them in the evolutionMapping tables

as follows;

• conevo97, as a result of delete of

this context18 these

courseObject.internalForumConsultationRe

port need to delete

• conevo98, as a result of delete of

this context18 these

processActions.uploadInternalConsultaito

nReport need to delete

• conevo99, as a result of delete of

this context18 these

processActions.EndorseInternalConsultati

onReport need to delete

Using the following query, the models that are

affected due to above changes can be identified.

SELECT models FROM modelMapping WHERE

element=”identified process elements”

Results would indicate that the two models

model67 and model68 are affected. Hence, the

business analyst would record the changes in the

modelEvolutionMapping as follows;

• modevo87, As a result of conevo97

model67 need to modify

• modevo88, As a result of conevo98

model68 need to modify

• modevo89, As a result of conevo98

model68 need to modify

Then the programmers would query the meta-

model as follows;

SELECT artefacts FROM

impleArtefactMapping WHERE

element=”identified process elements” or

model=”identified models”

The results would indicate that the artefact5,

artefact6 and artefact7 require changes. Hence, the

programmer would either use changed models to

generate the new artefacts or do the changes manually.

These changes are recorded in

webArtefactEvolutionMapping as follows;

• artevo77, As a result of modevo87

artefact5 need to modify

• Artevo78, As a result of modevo88

artefact6 need to delete

• Artevo79, As a result of modevo89

artefact7 need to delete

Based on above responses ‘consultation report’

attribute of the course object can be removed and the

UIs to perform the two tasks ‘upload internal forum

consultation report’ and ‘endorse internal forum

consultation report’ can be deleted. Most importantly,

when programmers are making these changes it can be

assured that errors and inconsistencies are minimal.

5 CONCLUSION

This paper attempts to solve the problem of reflecting

high-level CI changes and evolutions in web-based

workflow artefacts, with minimal errors and

ICEIS 2007 - International Conference on Enterprise Information Systems

414

inconsistencies. The approach used here is the use

of a meta-model, which reference to all-important

component parts of each level in automation

framework; from pragmatic level down to

implementation. With an empirically validation it

was demonstrated how this meta model could be

used for the purpose of tracking impact of a high-

level CI change down to the implementation level.

Various future researches could begin based on

this work. For example, first it requires identifying

appropriate data structures to represent all types of

registries, particularly process elements and

various dependencies among them. Then an

implementation of the proposed meta-model is

required, for practical use.

REFERENCES

Bachmendo, B., & Unland, R. (2001). Aspect-Based

Workflow Evolution. Workshop on Aspect-Oriented

Programming and Separation of Concerns

(Lancaster).(2001).

Banerjee, J., Kim, H. J., & Korth, H. F. (1987).

Semantics and implementation of schema evolution

in object-oriented databases. ACM SIGMOD

Record, 16(3), 311-322.

Birnbaum, R. (2000). The Life Cycle of Academic

Management Fads. The Journal of Higher

Education, 71(1), 1-16.

Casati, F., Ceri, S., Pernici, B., & Pozzi, G. (1998).

Workflow Evolution. DKE, 24(3), 211-238.

Chiu, D. K. W., Li, Q., & Karlapalem, K. (2001). Web-

Based Workflow Evolution in ADOME-WFMS.

Proceedings of the Second International Conference

on Advances in Web-Age Information Management,

377-389.

Dong, X., Chen, G., Yin, J., & Dong, J. (2002). Petrinet-

based Context-related Access Control in Workflow

Environment. Paper presented at the The 7th

International Conference on Computer Supported

Cooperative Work in Design.

Ellis, C., Keddara, K., & Rozenberg, G. (1995).

Dynamic change within workflow systems,

Proceedings of conference on Organizational

computing systems (pp. 10-21).

Felici, M. (2003). A Formal Framework for

Requirements Evolution. Edinburgh, United

Kingdom: LFCS, School of Informatics, The

University of Edinburgh.

Governatori, G., Rotolo, A., & Sadiq, S. (2004). A

model of dynamic resource allocation in workflow

systems. Paper presented at the Proceedings of the

fifteenth conference on Australasian database-

Volume 27.

Han, Y., Sheth, A., & Bussler, C. (1998). A Taxonomy

of Adaptive Workflow Management. Paper

presented at the 1998 ACM Conference on

Computer Supported Cooperative Work (CSCW-98),

Workshop Proceedings - Towards Adaptive Workflow

Systems Seattle, WA, November 1998.

Maus, H. (2001). Workflow Context as a Means for

Intelligent Information Support. Paper presented at the

Third International and Interdisciplinary

Conference, Dundee, UK.

McCormac, K., & Rauseo, N. (2005). Building an enterprise

process view using cognitive mapping. Business Process

Management Journal, 11(1), 63.

Narendra, N. C. (2000). Adaptive workflow management—

an integrated approach and system architecture.

Proceedings of the 2000 ACM symposium on Applied

computing, 858-865.

Ramesh, B., Jain, R., Nissen, M., & Xu, P. (2005).

Managing context in business process management

systems. Requirements Engineering, 10(3), 223-237.

Reichert, M., & Dadam, P. (1997). A Framework for

Dynamic Changes in Workflow Management Systems.

Paper presented at the DEXA Workshop.

Senge, P. (1994). The fifth discipline: The art and practice of

learning organizations. NY: Doubleday.

van der Aalst, W. M. P., Kumar, A., & Verbeek, H. M. W.

(2003). Organizational modeling in UML and XML in

the context of workflow systems. Paper presented at the

Proceedings of the 2003 ACM symposium on Applied

computing.

WfMC. (1999). Workflow Management Coalition Interface

1: Process Definition Interchange Process Model

(Specification): Workflow Management Coalition.

Zhang, S., & Wang, B. (2005). The Research on Decision

Approach of Data Dependence in Dynamic Workflow

System, Parallel and Distributed Computing,

Applications and Technologies, 2005. PDCAT 2005.

Sixth International Conference on (pp. 1027-1029).

Zur Muehlen, M. (2004). Workflow-based Process

Controlling: Logos-Verl.

META MODEL FOR TRACING IMPACT OF CONTEXT INFORMATION EVOLUTION IN WEB-BASED

WORKFLOWS

415
