EXTENDING BUSINESS PROCESS MODELING TOOLS WITH

WORKFLOW PATTERN REUSE

Lucinéia Heloisa Thom

, Jean Michel Lau

, Cirano Iochpe

1,2

and Jan Mendling

Institute of Informatics, Federal University of Rio Grande do Sul, Av. Bento Gonçalves, 9500, Porto Alegre, RS, Brazil

Information and Communication Technology Company of Porto Alegre, Av. Ipiranga, 1200, Porto Alegre, RS, Brazil

Institute of Information Systems and New Media, Vienna University of Economics, 1090 Vienna, Austria

Keywords: Business process modeling, workflow patterns, event driven process chains, reuse.

Abstract: For their reuse advantages, workflow patterns are increasingly attracting the interest of both researchers and

vendors. However, actual workflow modeling tools do not provide functionalities that enable users to de-

fine, query, and reuse workflow patterns properly. In this paper we gather a set of requirements for process

modeling tools that aim to support pattern reuse in a direct way. In order to demonstrate the feasibility of

these requirements we present a respective implementation project that extends the process modeling tool

EPC Tools with pattern reuse functionality.

1 INTRODUCTION

Business Processes and respective workflow models

frequently include a variety of fragments (or recur-

rent business functions) which can be understood as

self-contained activity blocks with a specific and

well-defined semantics (Thom, 2006). As an exam-

ple consider the evaluation process for price adjust-

ment as depicted in Figure 1. This process includes

activities with the following partial order: (a) is a

shopping order or not; (b) evaluate request of price

adjustment; (c) notify managers about conclusion of

evaluation; (d) notify managers about automatic

approval. Altogether this process comprises frag-

ments having generic semantics that can be de-

scribed as a pattern such as decision (activity a),

notification (activities c and d), and task execution

request (activities b). In this paper, we are dealing

with the question of how the modeling of processes

that include recurrent business functions like notifi-

cation in Figure 1 can be supported appropriately by

a tool.

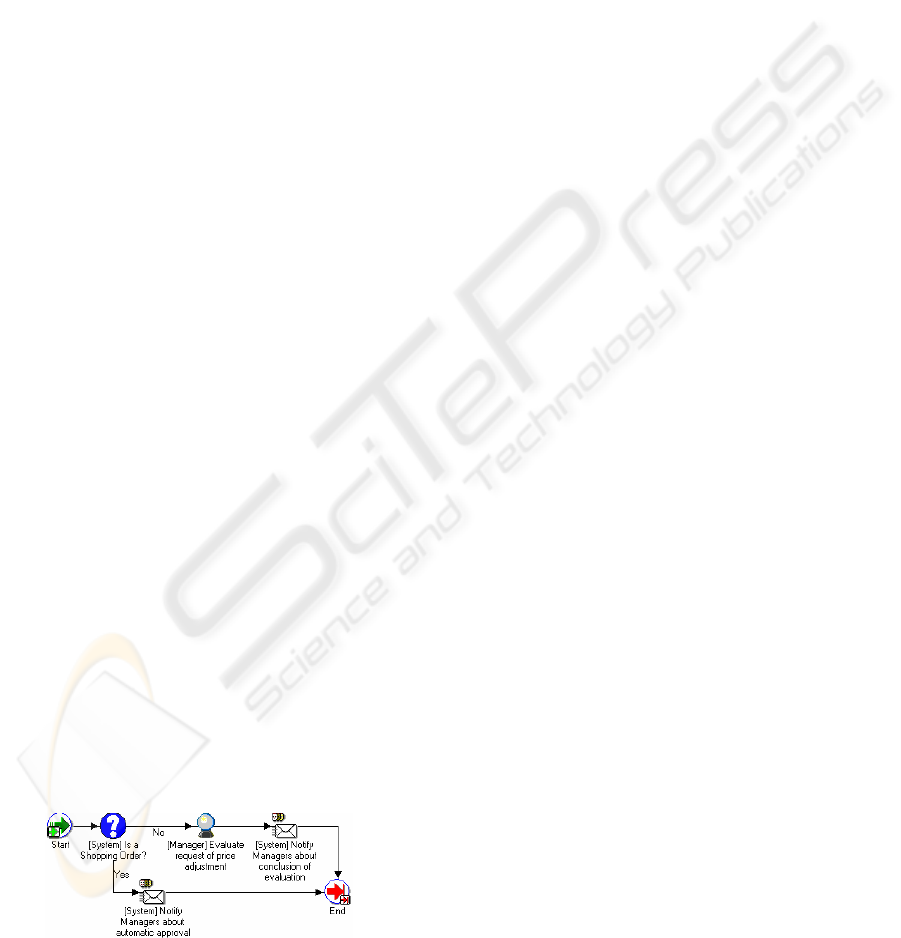

Figure 1: Evaluation process for price adjustment.

So far, several workflow patterns have been sug-

gested for representing control flow (Aalst, 2002),

data (Russell, 2005), resources (Russell, 2004), in-

teraction (Bradshaw, 2005) and exception handling

(Russell, 2006). Yet, these pattern sets have in

common that they are relevant for the implementa-

tion of a workflow system and the definition of

process modeling languages, but they provide only a

partial answer to the question of what business func-

tions a modeler has to consider repeatedly in various

process models. Usually, such process fragments

(Flores, 1988), (Medina-Mora, 1992), (Malone,

2004), (Muehlen, 2002), (Bradshaw, 2005) are re-

designed for practically every workflow application.

Such a procedure can be considered as inefficient,

and thus undesirable from a maintenance perspec-

tive. While there is some research reported on how

metadata can be organized to manage large-scale

modeling project (see Thomas and Scheer 2006), we

are not aware of any work evidencing the existence

of recurrent patterns in real workflow applications as

well as their necessity and completeness for the

business and workflow process modeling. Beyond

that, contemporary workflow modeling tools do not

provide functionalities that enable users to define,

query, and reuse such patterns in a proper way.

Related to these problems we proposed a set of

nine workflow patterns in an early work (Thom,

2006). Each pattern represents a recurrent business

function (such as the ones showed in Figure 1) fre-

quently found in business processes. In this paper we

present a set of requirements related to reuse of these

patterns in business process and workflow modeling

447

Heloisa Thom L., Michel Lau J., Iochpe C. and Mendling J. (2007).

EXTENDING BUSINESS PROCESS MODELING TOOLS WITH WORKFLOW PATTERN REUSE.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 447-452

DOI: 10.5220/0002378804470452

 SciTePress

tools. Furthermore, we illustrate the feasibility of

such support for pattern reuse by an implementation

on top of the business process modeling tool EPC

Tools (Cuntz and Kindler 2005). EPC Tools is an

open source tool for Event-driven Process Chains

(EPCs) (Keller, Nüttgens, and Scheer 1992) provid-

ing sophisticated simulation and verification facili-

ties. Since EPCs offer similar elements as other

business process and workflow modeling languages,

the pattern reuse concepts can directly adapted to

other process modeling tools.

Against this background, the outline of this pa-

per is organized as follows: Section 2 gives an over-

view of the workflow patterns that we identified in

prior research. In particular, we discuss the unidirec-

tional performative and the notification pattern as

two examples. Section 3 gathers a set of require-

ments for a modeling tool that aims to support reuse

of these patterns. We present use cases and sequence

diagrams for specifying the interaction with the

modeler. Section 4 then gives an overview of EPCs

and EPC Tools as a background to the implementa-

tion project. Section 5, in turn, addresses the re-

quirements of Section 3 in the extension of EPC

Tools. Finally, Section 6 concludes the paper and

gives an outlook on future research.

2 WORKFLOW PATTERNS

In the context of this paper we use the term work-

flow pattern to refer to the description of a recurrent

business function frequently found in business proc-

esses (e.g., notification, decision, approval). We

derived a set of 9 patterns from an extensive study

based on the literature. Examples of patterns are

document approval, question-answering, financial,

logistic, unidirectional and bi-directional performa-

tive, information, notification and decision patterns.

Details on these patterns as well as a classification of

them are reported in Thom (2006).

It is out of the scope of this paper to detail the

semantics of all these patterns. It is important to note

that through the mining of 190 workflow processes

we measured the occurrence frequency of each of

the workflow patterns in the set of workflow proc-

esses analyzed. In general words, the main results of

the mining can be summarized as follows:

– There is a high probability that the workflow

patterns exist in real workflow processes, i.e.,

60% of the analyzed workflow processes include

organization-based patterns; 8% include some

domain application–based patterns; and 75% in-

clude patterns related to such business functions;

– The set of patterns appears to be both necessary

and sufficient to model all 190 workflow proc-

esses analyzed.

– We identified a set of rules that not only define

specific workflow patterns but also show how

they are combined with existent control flow pat-

terns (e.g., sequence, XOR-Split).

We illustrate the unidirectional performative and the

notification pattern as examples.

2.1 Examples of Workflow Patterns

A block activity is suitable to represent each pattern

according to WfMC (2005). The block activity con-

cept is particularly suited because it allows to encap-

sulate the well-defined semantics and to represent

their atomic characteristics. This means that all ac-

tivities defined inside a block activity pattern must

be completed before the superordinated workflow

can continue its execution.

Since the patterns representation may require in-

put/output parameters and the block activity concept

does not support parameters, the transaction perspec-

tive of serialization theory was applied to overcome

this limitation (Bernstein, 1987). Accordingly, an

input parameter is represented as a database read

operation of one-time-only readable information.

Similarly, an output parameter is represented in the

block as a database write operation of one-time-only

writable information.

We describe the two example patterns as an

UML Activity Diagram (using the UML 2.0 nota-

tion). The Visual Paradigm for the UML Commu-

nity Edition based on UML 2.0 was used as an edit-

ing tool to design the patterns.

2.1.1 Unidirectional Performative Pattern

A sender uses unidirectional performative messages

to request the execution of an activity from a re-

ceiver. Figure 2 shows the pattern: an activity execu-

tion request results in a work item being assigned to

a receiver (i.e., a specific workflow participant re-

sponsible for activity execution). After that, the

process may continue execution without waiting for

a response. Note that the unidirectional performative

message does not require a response.

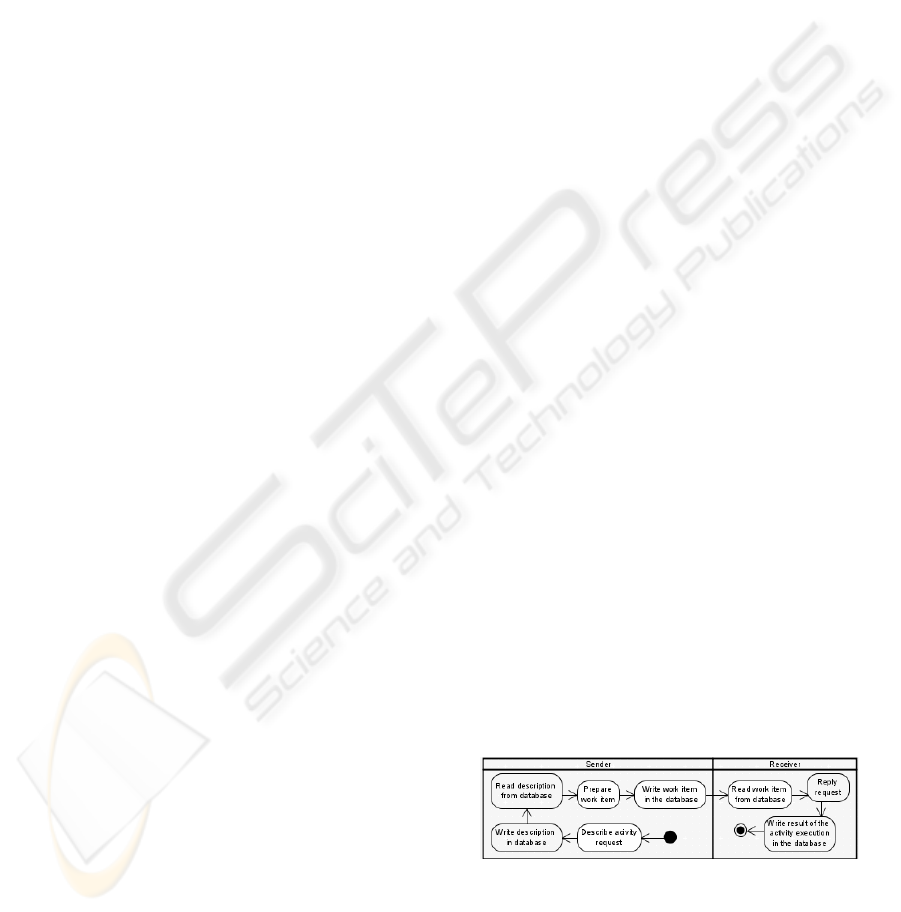

Figure 2: Unidirectional Performative pattern.

ICEIS 2007 - International Conference on Enterprise Information Systems

448

2.1.2 Notification Pattern

This pattern comprises a notification activity that

either informs about the completion of an activity

execution or posts news inherent to the respective

workflow application (e.g., a notification about the

result of an approval process) (cf. Figure 3). In the

present approach it is assumed that a notification

activity status may eventually be sent if requested.

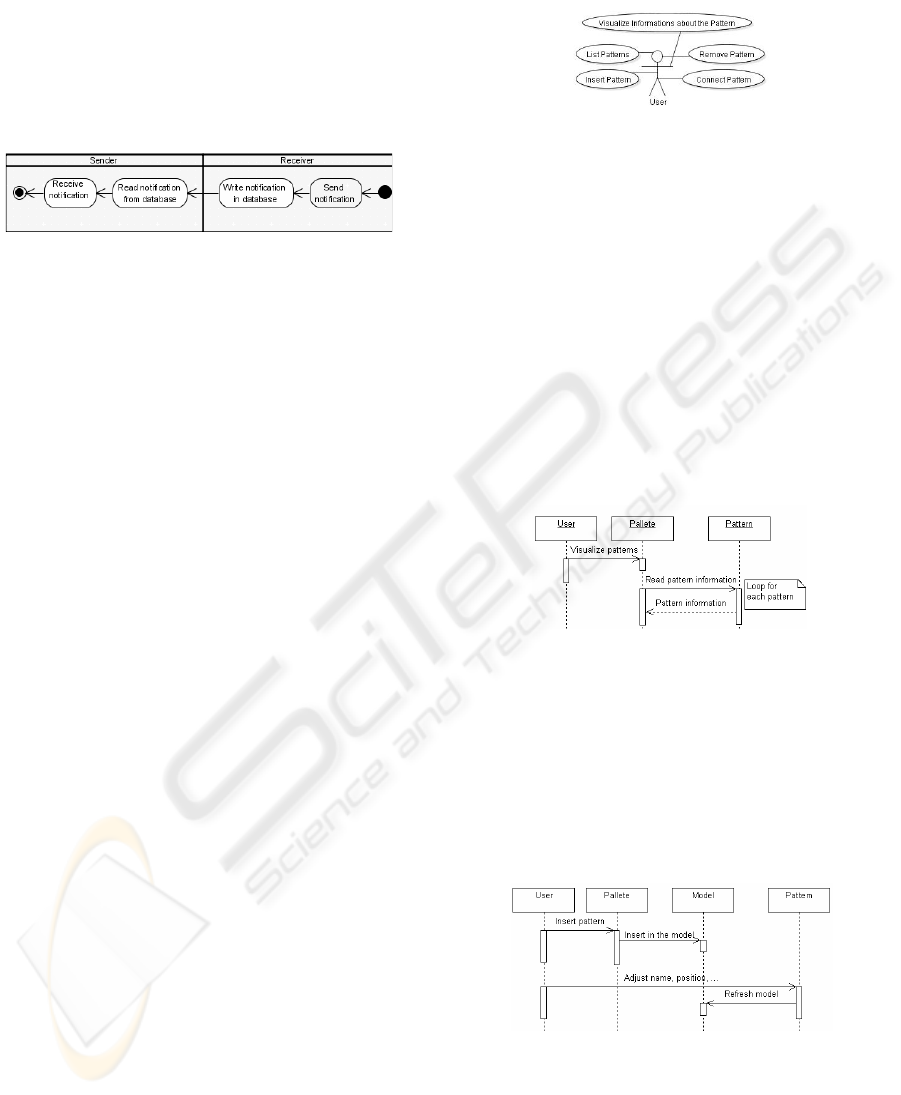

Figure 3: Notification pattern.

3 REQUIREMENTS FOR

PATTERN REUSE IN TOOLS

This section introduces the requirements for extend-

ing a generic business process modeling tool with

the workflow patterns introduced in Section 2.

Note that the requirements focus on the design

phase of the workflow model assuming that execu-

tion issues are handled by a workflow management

systems (WfMS). The requirements are specified as

use case diagrams and descriptions, and as sequence

diagrams illustrating the interactions between ob-

jects of some business process modeling tool.

The use cases diagram represents the functional-

ity that is expected by users while working with a

process modeling tool based on the reuse of work-

flow patterns. Each use case illustrates a possible

interaction between the user and the tool respec-

tively. Such interactions give the behavioral notion

of the application. The corresponding use cases de-

scriptions are the base for the subsequent specifica-

tion of the sequence diagrams. Each use case de-

scribes possible responses expected by a process

design tool to user actions. Finally, the sequence

diagram map the classes involved in a workflow

pattern reuse, as well as their interactions and corre-

sponding methods.

Beyond a pattern repository we need a mecha-

nism to exhibit patterns for selection to the user. At

the present, our approach supports manual selection.

However, we aim to improve this selection towards

a semi-automatical mode by the help of rules that

specify patterns interactions and combinations.

Regarding the subsequent UML diagrams the

high level of abstraction serves the applicability for

different kinds of modeling tools. Specific interface

aspects are neglected. The sequence diagrams also

present the objects and methods in a way that does

not refer to some specific tool (e.g., we do not spec-

ify parameters), giving more flexibility for the im-

plementation phase. These aspects are application

dependant and must be defined in implementation

time.

Figure 4: Use cases diagram.

Figure 4 shows the actor (user) as well as his

possible interactions with the system. It also shows

that the tool must provide the patterns stored in an

application dependant data structure, in order to be

able to respond to the specified use cases. Accord-

ingly, the UML patterns (cf. Section 3) have to be

mapped to a corresponding representation in the

notation of the tool being extended. Thus, they can

be stored as a composition of basic structures of

modeling language that is supported by the tool. For

each use case a sequence diagram was developed

(e.g., list pattern, view pattern, insert patter, connect

pattern and remove pattern). Figures 5 and 6, respec-

tively, show sequence diagrams for the two patterns

that we use to illustrate the approach.

Figure 5: List patterns sequence diagram.

Figure 5 presents the sequence diagram for the

use case List Patterns. The method Visualize Pat-

terns is a request made by the User to the Pallete in

order to visualize the workflow patterns stored in the

tool. After receiving this message, the Pallete lists

all stored patterns. For each one, it reads the pattern

information and displays a description of the Pattern

to the user.

Figure 6: Insert pattern sequence diagram.

Figure 6 illustrates the sequence diagram for the

use case Insert Pattern. It represents the use of the

workflow patterns in the modeling of a business

process. The User selects in the Pallete the structure

which he wants to add to the Model. After the Pat-

tern is included in the model, it must be changed

EXTENDING BUSINESS PROCESS MODELING TOOLS WITH WORKFLOW PATTERN REUSE

449

according to User commands (e.g., pattern name and

position adjustment). Each modification in the Pat-

tern is informed to the Model.

From these sample diagrams as well as the oth-

ers developed we can obtain the classes and respec-

tive methods involved in the implementation of this

project. The derived classes are pallete, pattern,

model and element for connection.

The Pallete represents a menu to the user for

choosing the pattern he wants to add to the model.

This might be a graphic, a button, or a drop down

list. The class Model represents the business process

that the user designs. It contains all modeling struc-

tures and their connections and displays it on the

screen. The class Pattern represents the pattern

stored in the format that the tool assumes.. The Ele-

ment for connection identified in the sequence dia-

gram of the use case Connect Pattern (used to de-

scribe how workflow patterns are connect to each

other as well as with other existent structures) repre-

sents an modeling element of the tool.

As these requirements refer to the extension of

an existing workflow design tool, probably some of

the identified classes will already exist, requiring

only a mapping between the classes of the project

and the classes of the implemented in the design

tool. In the subsequent sections, we focus on EPCs

as an example of a business process modeling lan-

guage and EPC Tools as a modeling tool.

4 EPCS AND EPC TOOLS

The Event-driven Process Chain (EPC) is a business

process modeling language that captures the tempo-

ral and logical dependencies between activities of a

business process (Keller, Nüttgens, and Scheer,

1992) and later formalized by different authors (see

Mendling and Aalst, 2006). EPCs offer three ele-

ment types: functions, events, and connectors. Func-

tion type elements to represent activities of a busi-

ness process while event type elements describe the

pre- and post-conditions of the functions. Connec-

tors specify complex routing constraints. They must

be either a split or a join and define a connector type

of either AND, XOR, or OR.

The different connectors behave as follows. The

AND-split activates all subsequent branches in con-

currency. The XOR-split represents a choice be-

tween one of alternative branches. The OR-split

triggers one, two, or up to all subsequent branches.

The AND-join waits for all incoming branches to

complete, then it forwards control to the subsequent

EPC element. The XOR-join merges alternative

branches. The OR-join synchronizes all active in-

coming branches. This feature is called non-locality

since the state of all transitive predecessor nodes has

to be considered.

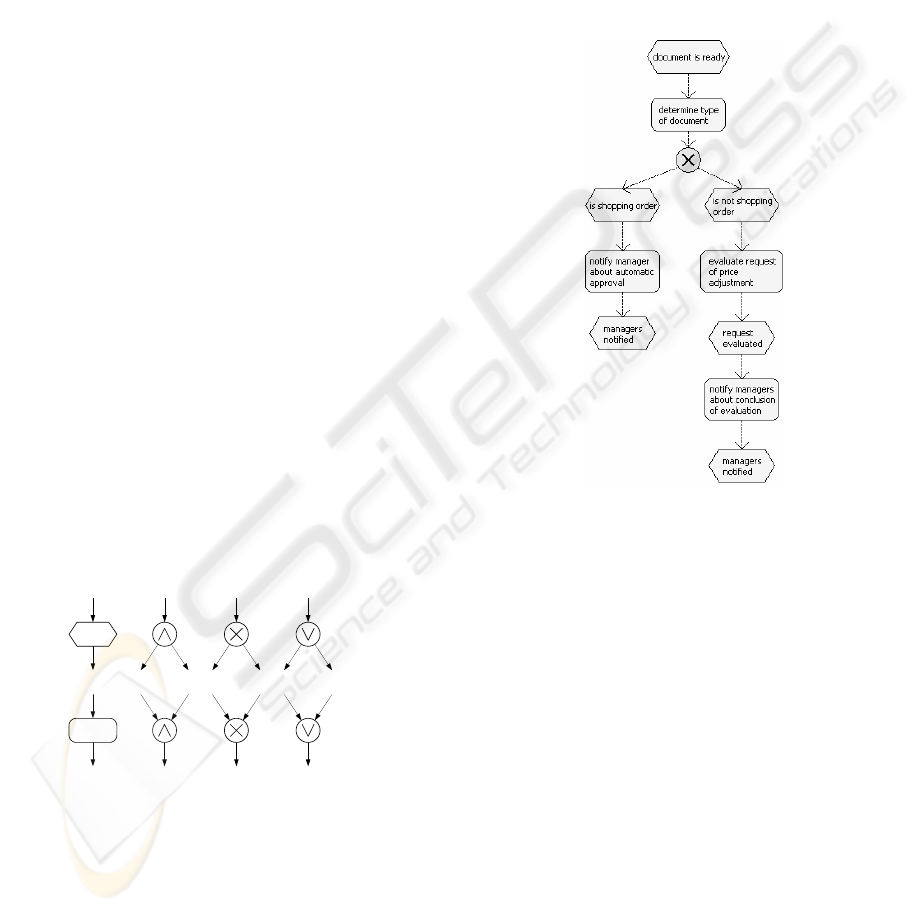

Figure 8: Example of an EPC.

Figure 8 gives the example of an EPC process

model for the workflow process of Figure 1. After

the document is read, its type is determined. If it is a

shopping order, the manager is notified of automatic

approval and a request is sent. If not, the price is

adjusted manually and the managers are notified.

The importance of EPCs for business process

modeling stems from two facts. First, EPCs are

heavily used in practice due to extensive support,

e.g. by ARIS toolset of IDS Scheer AG, and because

it was used as a language for a redocumentation of

SAP’s enterprise software; see Keller and Teufel

(1998). Second, EPCs include OR-joins that pose

theoretical challenges due to its non-locality, i.e. it

synchronizes only those branches that are active.

This feature has in particular stimulated research by

Kindler (2006) which resulted in an implementation

called EPC tools (Cuntz and Kindler 2005).

EPC tools is among the few tools for business

process modeling that are both open source and pro-

vide sophisticated simulation and verification fea-

tures. The simulation facility offers the modeler an

Event AND-Split XOR-Split OR-Split

Function AND-Join XOR-Join OR-Join

Figure 7: EPC Notation and informal semantics.

ICEIS 2007 - International Conference on Enterprise Information Systems

450

interface to propagate cases through the process in

order to check whether the behave is described ap-

propriately. Moreover, the verification facility ana-

lyzes whether the process is sound (i.e. live and

bound) and contact free. EPC Tools is available as a

plug-in for the eclipse platform that can easily

adapted and extended. Furthermore, it supports the

open exchange format EPC Markup Language

(EPML), see Mendling and Nüttgens (2006).

5 EXTENDING EPC TOOLS

WITH PATTERN REUSE

In this section we describe the extension of EPC

Tools with some of the workflow patterns intro-

duced in Section 2. The extension was based on the

requirements introduced above. In order to support

the patterns we extended the code of the tool.

The new features added follow the general inter-

face design of the tool (e.g., font type, buttons style

and labels size). This provides an integration that is

almost imperceptible for the user which simplifies

the use of the workflow patterns through the tool.

The implementation started with the interface

definition. First we defined the position of the pat-

terns in the designer. After that, for each workflow

patterns we created a button. To identify that these

buttons are related with patterns, it was also added a

label Patterns in the tool interface.

This implementation covers the use case Insert

Pattern. As discussed in Section 2 the number of

workflow patterns needed for the definition of a

process is small (no more than 7 or 9). Thus, the use

case List Patterns is implemented by the patterns

buttons that present to the user the available patterns

stored in the tool. As the patterns buttons are visible

as soon as the tool is started, the use case List Pat-

terns is executed only once when the tool is up-

loaded. The use case Visualize information about

patterns is implemented through the patterns buttons

too. When the user rolls the mouse over a specific

pattern button a tooltip is presented.

To implement the other use cases (Insert Pat-

tern, Connect Pattern and Remove Pattern) the

classes identified in the sequence diagram were

mapped to corresponding entities that are already

available in EPC Tools. First, the class pallete had to

be added. Second, we mapped the class workflow

pattern to macros. Each implemented pattern was

translated from UML notation to EPCs (see Figure

9). When the user clicks the pattern button the corre-

sponding structure is inserted in the model. This

way, it was possible to reuse most of the code for the

basic EPC elements. Specific actions that manipulate

a pattern when it is inserted in a model are sent to

the EPC basic structures (e.g., functions, events,

connectors) that compose it.

There are two ways to store a pattern. First, they

are hardcoded in the application which is kind of

rigid. The second approach stores the macros repre-

senting the patterns as EPML external files. This

way, the implementation is much more flexible since

the external file can be changed without touching the

source code. Another advantage of the external

EPML files is that the patterns mapping can be im-

plemented with EPC Tools, as it is based on EPML.

With this alternative, we can use EPC Tools to

model the representation of the pattern in EPC and

stores it in an EPML file.

Third, the model class was mapped to the respec-

tive EPC Tools class. Fourth, the element for con-

nection class is captured by basic EPC structures.

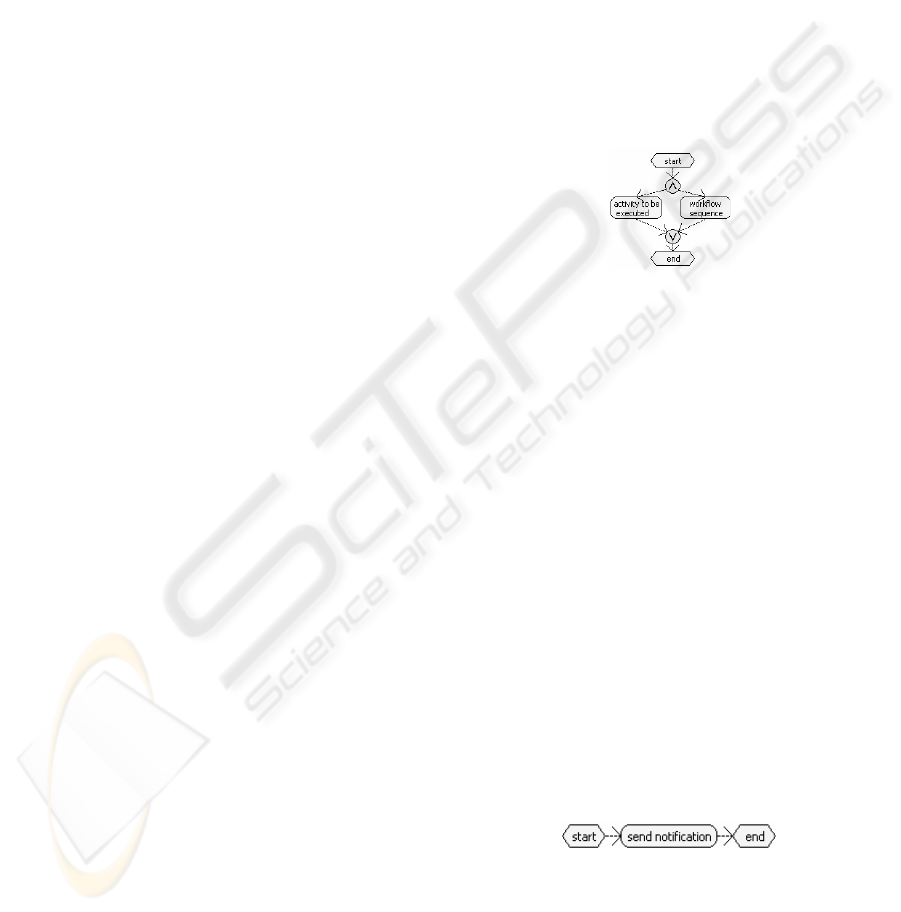

Figure 9: EPC Performative unidirectional pattern.

This mapping captures the semantics of the pat-

tern represented in UML activity diagram (cf. Figure

2). The Start event comprises the activities which

must be executed by the WfMS that executes this

process and which are related to the parameter defi-

nition and activity request dispatch. Following the

start event we have an OR-Split connector. On the

left-hand side of this structure we represent the exe-

cution of the activity which was requested. This ac-

tivity must include its correct label when the macro

is inserted into the model to better represent the

business process being specified. On the right-hand

side of the OR-Split we have the workflow sequence,

indicating that the process does not stop to wait for

the completion of the activity which was requested.

This pattern was introduced into EPC Tools in an

EPML external file, and inherits all the benefits dis-

cussed before of flexibility and easiness of imple-

mentation.

Figure 10 brings the mapping of the notification

pattern. It indicates that the notification activity is

executed after the start event is fired.

Figure 10: Notification pattern mapping.

Despite the simplicity of this mapping, the busi-

ness process modeling which includes this structure

can be done with less effort by the user as it only

needs one click to add this structure in the model.

Otherwise, it would need seven mouse clicks and

editing of the labels to construct a structure like this

EXTENDING BUSINESS PROCESS MODELING TOOLS WITH WORKFLOW PATTERN REUSE

451

from the scratch (only with basic EPC structures).

This pattern is hardcoded into EPC Tools source

and, for this reason, cannot be changed by simply

modifying an external file.

In a case study related to the implementation of

these two patterns, we found a reduction of about

one third in the amount of clicks needed to insert the

structures in the model. We considered the reduction

of design effort (e.g., time as well as errors reduc-

tion) as an important aspect which points out to new

questions to be investigated as part of a future work.

6 CONCLUSIONS

While workflow patterns were defined for several

aspects related to process execution, the aspect of

recurrent business functions is only partially ad-

dressed by existing work. In prior work, we identi-

fied a set of nine workflow patterns that appear nec-

essary and sufficient to model an extensive set of

workflows from practice. In this paper we investi-

gated in how far process modeling tools can be tai-

lored to provide a direct support for pattern reuse.

Our contribution is a set of requirements the process

modeling tool has to address. In order to demon-

strate the feasibility we extended the open source

process modeling tool EPC Tools with such reuse

support. The main advantages of this approach can

be summarized as follows: (a) the completeness and

necessity of the workflow patterns for the workflow

process design had already be evidenced in prior

work; (b) the proposed requirements are tool-

independent and can be adapted for any business

process modeling tool; (c) the requirements were

extensively tested in the case of an existent open-

source design tool; (d) we provided first evidence

that the workflow patterns integrated in a design tool

may reduce the design effort.

The main limitation faced with EPC Tools was

the lack of some concepts (e.g., block activity, role)

that are covered in the original UML version of the

workflow patterns. In the future we aim to investi-

gate whether the modeling phase of a workflow pro-

ject will result in a performance gain through the use

of workflow patterns such as the ones proposed in

this paper. To do so, it is yet necessary to perform

experiments that compare design time with and

without a pattern management tool integrated into a

workflow design editor (e.g., EPC). In conjunction

with the experiment, we consider a questionnaire to

find out whether less design effort could result in a

higher user acceptance of process modeling in gen-

eral.

REFERENCES

Aalst, W.M.P. van der; Hee, K. van, 2002. Workflow

Management: models, methods, and systems. London:

The MIT Press.

Bradshaw, D.; Kennedy, M.; West, C, 2005. Oracle BPEL

Process Manager. Developer’s Guide.

Cuntz, N.; Kindler, E., 2005. On the semantics of epcs:

Efficient calculation and simulation. In: BPM 2005,

Proceedings, volume 3649 of Lecture Notes in Com-

puter Science, pp.398–403.

Flores, F.; et al. 1998. Computer Systems and the Design

of Organizational Interaction.

Keller, G.; Nüttgens, M.; Scheer; A.-W., 1992.

Semantische Prozessmodellierung auf der Grundlage

“Ereignisgesteuerter Prozessketten (EPK)”. Heft 89,

Institut für Wirtschaftsinformatik, Saarbrücken, Ger-

many (in German).

Keller, G.; Teufel, T., 1998. SAP(R) R/3 Process Oriented

Implementation: Iterative Process Prototyping.

Kindler, E., 2006. On the semantics of EPCs: Resolving

the vicious circle. Data Knowl. Eng., 56(1):23–40.

Malone, T. W.; Crownston, K.; Herman, G. A, 2004. Or-

ganizing Business Knowledge.

Medina-Mora, R., 1992. The action workflow approach to

workflow management technology.

Mendling, J; Aalst, W. M. P. van der, 2006. Towards EPC

Semantics based on State and Context. In: Proceed-

ings of the 5th EPC Workshop EPK 2006, CEUR.

pp.25-48.

Mendling, J.; Nüttgens, M., 2006. EPC Markup Language

(EPML) - An XML-Based Interchange Format for

Event-Driven Process Chains (EPC). In: Information

Systems and e-Business Management, 4(3):245 – 263.

Muehlen, M. zur, 2002. Workflow-based process control-

ling: foundations, design, and application of work-

flow-driven process information systems. Berlin: Lo-

gos Verlag. 299 p.

Russell, N.; Hofstede, A. H. M Ter; Edmond, D., 2005.

Workflow Data Patterns. In: Proceedings of the 24th

ER, pp. 353-368.

Russell, N., 2004. Workflow Resource Patterns. Brisbane:

Queensland University of Technology.

Russell, N.; Aalst, W.M.P. Van Der; Hofstede, A. Ter. ,

2006. Workflow Exception Patterns. In: Proceedings

of 18th CAiSE, 18, p.288-302.

Thom, L. H.; Iochpe, C.; Amaral, V. L. do; Viero, D. M.

de, 2006. Toward block activity patterns for reuse in

workflow design. In: Workflow Handbook of WfMC,

pp. 249-260.

Thomas, O.; Scheer, A.-W., 2006. Tool Support for the

Collaborative Design of Reference Models - A Busi-

ness Engineering Perspective. In: 39th HICSS-39

2006), CD-ROM / Abstracts Proceedings.

Workflow Management Coalition (WfMC), 2005. Process

Definition Interface: XML Process Definition Lan-

guage. Doc. Number: WFMC-TC-1025. 2005.

ICEIS 2007 - International Conference on Enterprise Information Systems

452
