DQXSD: AN XML SCHEMA FOR DATA QUALITY

An XSD for Supporting Data Quality in XML

Eugenio Verbo, Ismael Caballero

Soluziona Consultancy and Technology

UCLM-Soluziona Research and Development Institute

Ronda de Toledo s/n – 13004 Ciudad Real, Spain

Mario Piattini

ALARCOS Research Group

Information Systems and Technology Departament

UCLM-Soluziona Research and Development Institute

Paseo de la Universidad 4 s/n – 13071 Ciudad Real, Spain

Keywords: Data Quality, Data Quality Dimensions, Data Quality measures, XML, quality attributes.

Abstract: Traditionally, data quality management has mainly focused on both data source and data target.

Increasingly, data processing to get a data product need raw data typically distributed among different data

sources. However, if data quality is not preserved when transmitted, resulting data product and consequent

information will not be of much value. It is necessary to improve exchange methods and means to get a

better information process. This paper focus on that issue, proposing a new approach for assuring and

transmitting data quality in the interchange. Using XML and related technologies, a document structure that

considers data quality as a main topic is defined. The resulting schema is verified using several measures

and comparing it to the data source.

1 INTRODUCTION

Nowadays, organizations structure is usually spread

on different locations, which requires to distribute

organizational data storage in order to achieve better

performance. On the other hand, Service Oriented

Architectures are being consolidated. These services

typically provide data in an XML format in order to

be easily transmitted. Both scenarios suppose new

challenges as data replication and data integration.

One of our concerns is to study these challenges

from the point of view of data quality.

In (Strong, 1997) the ten main problems for data

quality are outlined and justified. Two of them are

directly involved in distributed systems: a) multiple

sources of the same data produce different values

and b) distributed heterogeneous systems lead to

inconsistent definitions, formats, and values.

Last years, XML has been intensively used up to

become the main standard technology for data

exchanging between distributed systems. Using

XML, structured documents can be described,

making their retrieval more efficient and effective.

We could use it as a means/media for assessing and

improving information quality, taking advantage of

its related technologies as XSLT for easy processing

of XML documents, and the restrictions model of

XML Schema to define correct value patterns.

1.1 Data Quality Issues

A tipical example of a data quality problem consists

of having different values for the same data stored in

several sources. Suppose a decision-support system

which access to those sources and analize them.

With no additional information, the system only

know that the data has different values but it cannot

decide which is the correct one. If the system could

assess the quality of each source and only accept

those over a threshold, it would process the data

with higher quality and, in consequence, produce

better results.

359

Verbo E., Caballero I. and Piattini M. (2007).

DQXSD: AN XML SCHEMA FOR DATA QUALITY - An XSD for Supporting Data Quality in XML.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - DISI, pages 359-364

DOI: 10.5220/0002381603590364

 SciTePress

There are a lot of researching lines trying to

explain what data quality is. Most of authors have

drawn the conclusion that “fitness for use” is

probably the best definition for the term. Fitness

implies that a set of special and specific

characteristics must be observed in the data as to say

it can be used to get sound information. These

characteristics have been named as Data Quality

Dimensions. (Strong, 1997) propose a set of them

which could be tailored for a wide range of contexts.

From these Data Quality Dimensions, several

measures have to be defined to get a quantitative

idea of how good a piece of data is. These measures

(see nomenclature about SMO in (García, 2005)),

also called metrics, must be defined to rightly

manage data quality. (Lee, 2006) presents some of

these measures. A data quality management team

must use those measures to improve the data quality.

The most used methodology for this goal is TDQM,

mainly described in (Wang, 1998).

1.2 Addressing the Problems

Once brought to the context the main foundations of

data quality, we want to address the problem we

have posed. Supposing that data is currently stored

in a database, and several data quality dimensions

and measures have been defined. The problem is

How can data quality be assured when data flows

from sources to targets?

The answer comes with the technology on which

data product mainly trips from sources to targets:

XML. So the idea is to create an XML structure that

can give the necessary support for transmitting data

quality concerns used in the source to the targets in

order to be used them to maintain the quality of the

data products.

The remainder of the paper is structured as

follows: section 2 present the main foundations of

our work and design keys to elaborate our proposal.

Section 3 shows several training examples of the

proposal. Finally, section 4 outcomes several

conclussions and future researching lines.

2 DQXSD: AN XML SCHEMA

FOR DATA QUALITY

Data quality, as being quality, can be also studied

from two points of view:

 Expected Data Quality: users expect that raw

data and product data have a set of data

quality dimensions like accuracy, free-of-error

and so on. This kind of quality could almost

always be evaluated without user interaction,

for instance from metadata and quantity of

stored data for each data set.

 Required Data Quality: users need and

require that raw data and product data present

specific and context-dependant characteristics

which can be only evaluated by taking into

account the judgement of the user, so user

interaction is required, for instance, to provide

a value which can be used as a basis or

threshold to determine whether a data is good

or not. The provided values must have been

stored anywhere, and it could be necessary to

be transmitted together with the data product.

The way in which databases must be prepared

to accept these values is given for the Data

Quality Requirements in (Wang, 1995).

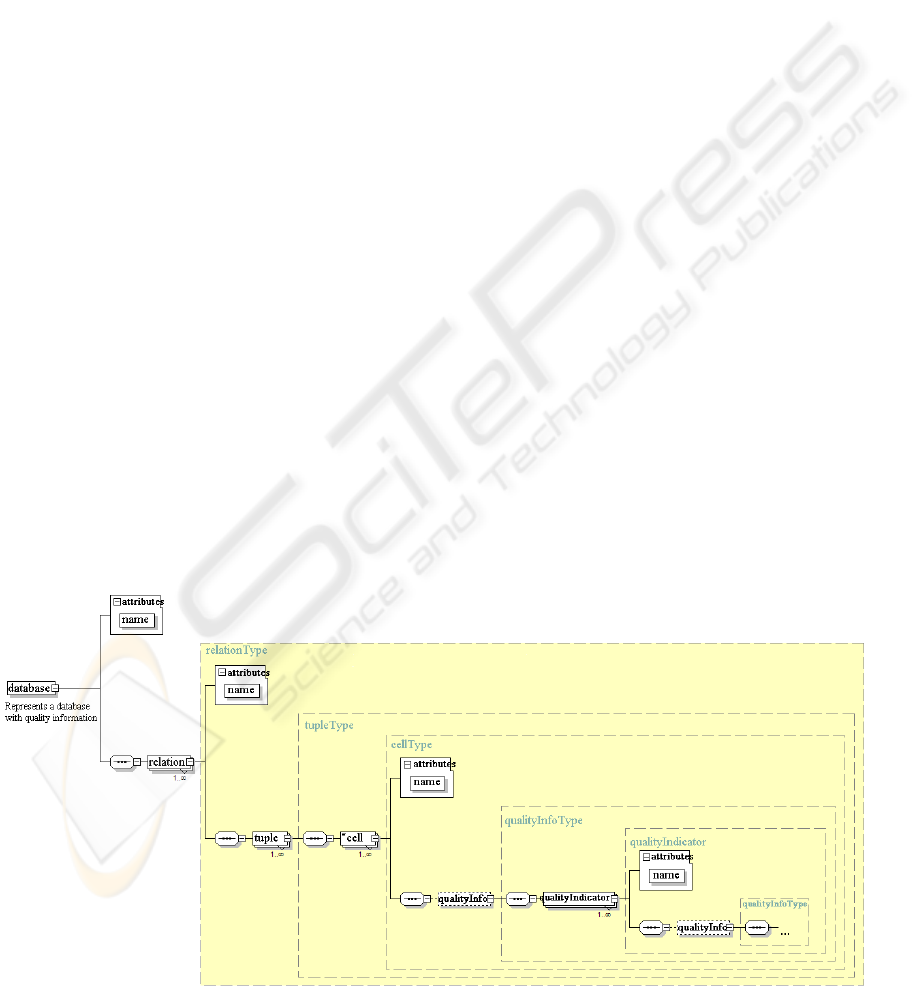

Figure 1: DQXSD Structure.

ICEIS 2007 - International Conference on Enterprise Information Systems

360

In order to grasp the special needs of XML

documents quality, we are going to use more

specific terms from now on:

 External quality: properties related to required

data quality. It answers the question of what

data is exchanged. Usually, an external agent

must provide the information needed to

address this issue.

 Internal quality: it deals with expected data

quality and answers the question of how data

is exchanged, i.e., the XML document

structure. It is usually assessed applying

measures on the document.

2.1 External Quality

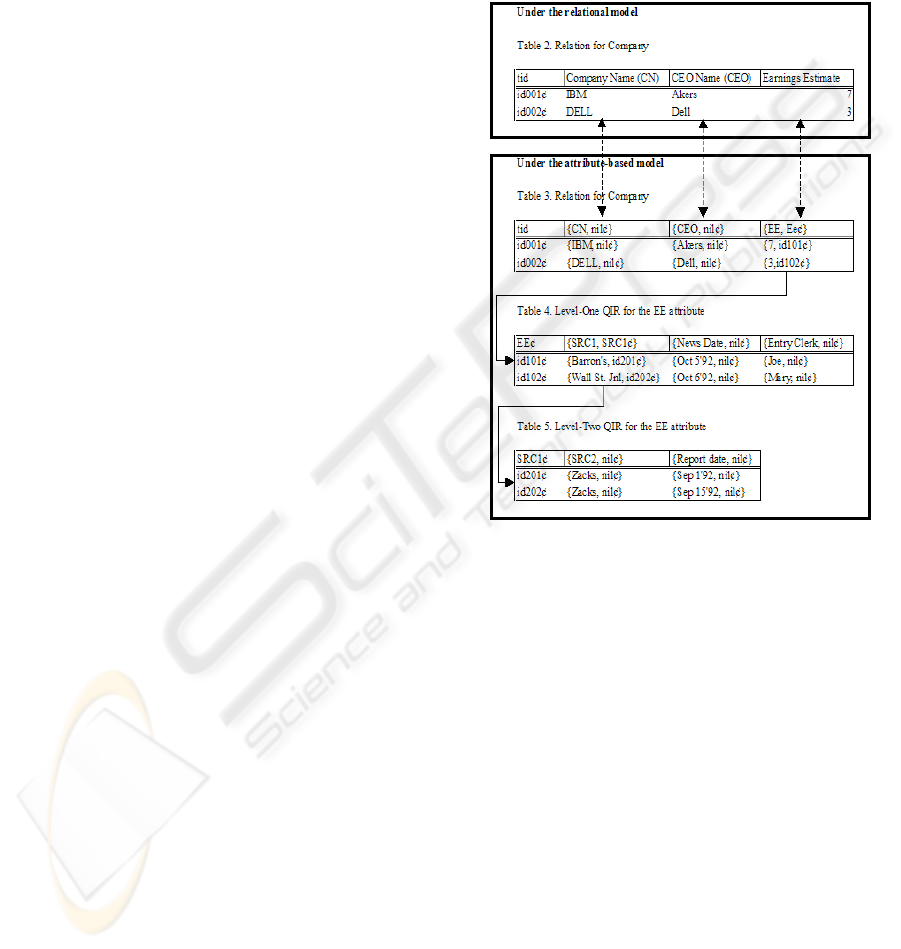

In (Wang, 1995) the relational model is extended

with an attribute-based data model to store data

related to specific data quality dimensions which can

let organizations achieve higher data quality. Since

the attribute value of a cell is the basic unit of

manipulation, it is necessary to tag quality

information at the cell level.

Its principles are built over the notion of quality

indicator. A quality indicator provides objective

information about the characteristics of data and its

manufacturing process.

It develops a mechanism to facilitate the linkage

between an attribute and its immediate quality

indicators. This mechanism is developed through the

quality key concept. An attribute in a relation

scheme is expanded into an ordered pair, called a

quality attribute, consisting of the attribute and a

quality key. The quality key is a reference to the

underlying quality indicators. It also allows to detail

a quality indicator linking it to a set of quality

indicators. To achieve data integrity, an attribute

value and its corresponding quality indicators must

be treated as an atomic unit.

Suppose an organization has a database schema

with associated quality information and they want to

interchange its content with their partners. It would

be much easier if there were a standard format to do

so. In this point is when DQXML comes into play.

Our work provides support for that model in XML.

Since XML is the preferred technology for data

exchanging, it becomes the optimum choice.

DQXML structure is defined with XML Schema and

captures the requirements of the attribute-based

approach. Figure 1 shows graphically the structure

of the schema.

Table 1: Database and DQXML measures comparison.

The main element is database, which represents

the whole database we want to exchange. It is

composed by a sequence of relations elements. Each

relation models a table of the DB scheme and is, in

turn, formed by a set of tuples, which are divided in

cells. In addition to its respective values, inside a

cell there can be a qualityInfo element that specifies

quality information and is detailed with a set of

qualityIndicator subelements that model a single

quality indicator value. Note that a quality indicator

can have nested quality information as well.

This schema defines what we have called XSD

for Data Quality (DQXSD). It preserves external

quality as data associated with quality indicators is

carefully treated in the document scheme. Moreover,

it is especially useful in the sense that there are

already several database management systems with

XML support in their queries. They also allows to

specify an XSD that defines the structure that the

results must follow so the translation of the data

stored in the database to DQXSD structure would be

quite immediate.

We would like to highlight the fact that quality

indicators are intended to contain useful data for

assessing data quality on a certain quality

dimension. The purpose of this model is acquisition

and transmission of data. It should not include any

measurement result because measurement methods

may vary depending on the role of the system user

Measure meaning Database

measure name

DQXML

measure

name

Effort necessary to

retrieve all the

information related to

a component

DRT

DDQT

Information

fragmentation degree

RD RD

Quantity of

information about a

component directly

accessible.

NA NA

Cohesion of the

system

COS COS

Wasted

communication

bandwidth

- NEE, NEA

Size of the system - NN

Number of references

between the

components of the

system

- NArc

Structural

complexity of the

system

XML

DQXSD: AN XML SCHEMA FOR DATA QUALITY - An XSD for Supporting Data Quality in XML

361

and its context. We will treat measurement in the

next section.

From now on, we will write DQXML to refer to

an XML document validated against DQXSD.

2.2 Internal Quality

After extracting database records according to the

DQXSD structure, we obtain an XML document that

preserves external quality from the original data

source but, what happens to the efficiency and

accuracy of the data representation, i.e., internal

quality? In order to assess this issue objectively we

have applied a measurement approach.

In (Ivan, 1998) a general definition for data

measures is given along with examples of use.

(Piattini, 2001) proposes some internal measures to

measure relational databases which influence its

complexity. Centered in XML documents, in (Díaz,

2003) a set of measures are proposed and

implemented in a measurement tool. However, there

is not much research work in data quality

measurement oriented to XML documents.

Our idea is to adapt validated database measures

to XML documents and compare them in order to

demonstrate that the results are similar. In (Piattini,

2001) and (Calero, 2001) the following measures are

defined:

 Depth of the referential tree: the DRT of a table

A (DRT(A)), is the length of the longest

referential path from the table A, counted as

the number of arcs on the path and

considering cycles only once.

 Referential degree: the RD of a table A

(RD(A)), is the number of foreign keys in the

table A.

 Number of attributes: the NA of a table A

(NA(A)), is the number of attributes of the

table A.

 Cohesion of the Schema: the COS of a schema

S, is the sum of the square of the number of

tables in each not connected component in the

schema graph.

We have adapted those measures to XML

documents with DQXSD structure:

a. Depth of the DQXML tree: the DDQT of a

DQXML (DDQT(D)), is the number of nested

qualityInfo elements inside a cell plus one. It

is equivalent to DRT for relational databases.

b. Referential degree: the RD of a DQXML

(RD(D)), is the number of qualityInfo

subelements that cell elements of a relation

contains.

c. Number of attributes: the NA of a relation

element R in a DQXML (NA(R)), is the

maximum number of cell elements that each

tuple element contains.

d. Cohesion of the Schema: the COS of a

DQXML (COS(D)), is the square of the

number of relation elements that are not

connected in the scheme graph.

Figure 2: Database with quality information - taken from

(Wang, 1995).

In addition to the previous measures, some specific

ones for XML from (Díaz, 2003) has been included:

e. Number of empty elements: the NEE of an

element A (NEE(A)) is the number of empty

elements that are children of the element A.

f. Number of empty attributes: the NEA of an

element A (NEA(A)) is the number of empty

attributes of the element A.

g. Number of nodes: the NN of a DQXML

(NN(D)) is the number of nodes needed to

represent the document graph considering as a

node any element, attribute or element value.

h. Number of arcs: the NArc of a DQXML

(Narc(D)) is the number of arcs needed to

represent the document graph. An arc is a

relation between parent and children elements,

element attributes and element values.

i. Structural complexity: the SC

XML

of a

DQXML is:

ICEIS 2007 - International Conference on Enterprise Information Systems

362

<tuple>

<qualityIndicator

name="SRC1">

Barron's

<qualityIndicator

name="SRC2">

Zacks

</qualityIndicator>

<qualityIndicator

name="Report

Date">

1992/09/1

</qualityIndicator>

</qualityInfo>

</qualityIndicator>

<qualityIndicator

name="News Date">

1992/10/5

</qualityIndicator>

<qualityIndicator

name="entryClerk">

Joe

</qualityIndicator>

</qualityInfo>

</cell>

...More cell elements...

</tuple>

...More tuple elements...

</relation>

</database>

XML

= NArc -NN + 1 (1)

Taking advantage of XML related technologies,

XSLT can be applied to calculate many of this

measures, simplifying the construction of a

management tool. Consequently, a second XML

document with the measurement results would be

generated for later viewing or processing. The most

remarkable benefits of this approach are portability,

interoperability and programming language

independence.

A brief summary of the measures applied to

databases and to DQXMLs is shown in Table 1.

3 EXAMPLES

3.1 External Quality

To illustrate DQXSD usage, we have borrowed the

theoretical training example shown in Figure 2 from

(Wang, 1995) with the aim of adapting it to our

model.

Suppose an organization has a database schema

that contains a table like Table 2 (Tables 2-5 are

embedded in Figure 2) with attributes like company

name, CEO name and earnings estimate. Data may

be collected over a period of time and come from a

variety of sources. If the organization wanted to

assess the believability of the data, the previous

database schema should be adapted to the new

quality requirements.

As a result, the original Table 2 is expanded into

Table 3, which consists of the ordered pairs ({CN,

nil¢}, {CEO, nil¢}, {EE, EE¢}). The “nil¢”

indicates that no quality indicators are associated

with attributes CN and CEO; whereas EE¢ indicates

that EE has quality indicators associated.

Table 4 is a quality indicator relation for the attribute

Earnings Estimate in Table 3 and Table 5 is a

quality indicator relation for SRC1 in Table 4.

First of all, we translate Table 3 to the DQXSD

format without including quality indicators (text in

normal font in Figure 3). In the resulting DQXML,

there is only one relation element, which contains

the two tuples that specifies companies data.

Later, we include the first level of quality

indicators inside the cell element named “EE” (text

in bold and italic in Figure 3). And, finally, we

include the second level of quality indicators into the

first level quality indicator SRC1 (text in italic in

Figure 3). For shortening, only one tuple and one

cell have been included in Figure 3.

3.2 Internal Quality

The results of applying the measures explained in

Section 2.2 can be consulted in Table 6.

First of all, we can see that equivalent measures

DRT and DDQT have a similar value, 3.

Figure 3: DQXML with complete quality data.

For RD, the difference is in the measure method.

For the quality database, we have three values: the

result is 2 for the table “Company”; the result is also

2 for the table with the first level of quality

indicators for attribute EE; and the result is 0 for the

table with the second level of quality indicators for

attribute EE. However, for DQXML we only have

one value, 4, for the entire document. This occurs

DQXSD: AN XML SCHEMA FOR DATA QUALITY - An XSD for Supporting Data Quality in XML

363

because the quality information embedded in cell

elements of the DQXML is divided in three tables in

the database. If we put together the values of every

table of the schema, we get the same result, 4.

For the measure number of attributes the result is

different as well. The explanation is that in the

database, the storage medium does not differentiate

between quality and raw data while DQXSD treats

quality data adding semantic value that it did not

have when stored in a database.

Table 6. Measurements results

The results of the measures NEE and NEA

shows that the DQXML has high quality because it

has no empty elements or attributes that waste

bandwidth. Lastly, NN and NArc with their low

values indicates that the DQXML has no excessive

complexity, statement confirmed by

XML

4 CONCLUSIONS AND FUTURE

WORKS

Traditionally, data quality has been only applied to

data stored in databases as being raw data for

manufacturing data products. This approach is

clearly out of date because data exchanging is

continuously getting more important in parallel to

the consolidation of Service Oriented Architectures.

Static data quality issues must also be

propagated when transmitted. To give the necessary

support to this goal, we define a new document

structure, DQXSD based on the most important

technology for information exchanging, XML. To

define it, XML Schema is used.

DQXSD helps to capture quality data stored in a

database schema and translate it to a proper format

ready to be transmitted.

To prove the data quality preservation through

that process, several measures for DQXML

documents have been developed and compared to

database equivalents getting satisfactory results.

Although the results presented in this paper are

oriented to capture quality data stored in relational

databases, DQXSD could be easily adapted to other

storage models due to the flexibility of the

technologies used for its definition.

ACKNOWLEDGMENTS

This research is part of the FAMOSO and ESFINGE

projects supported by the Dirección General de

Investigación of the Spanish Ministerio de Ciencia y

Tecnología (Ministry of Science and

Technology)(TIC2003-07804-C05-03).

REFERENCES

Calero, C., Piattini, M. & Genero, M., 2001. Metrics for

controlling Databases Complexity, Becker, S.

Díaz, E., 2003. Herramienta para la gestión de métricas

en documentos XML. Departamento de Tecnologías y

Sistemas de Información, Escuela Superior de

Informática de Ciudad Real, Universidad de Castilla-

La Mancha.

Fran, W. & Simeon, J., 2003. Integrity constraints for

XML. Journal of Computer and System Sciences.

García, F., Bertoa, M. F., Calero, C., Vallecillo, A., Ruiz,

F., Piattini, M. & Genero, M., 2005. Toward a

consistent terminology for software measurement.

Information and Software Technology, 48, 631-644.

Ivan, I., Parlog, O., Oprea, P., Nosca, G. & Ivan, A.-A.,

1998. Data Metrics. In IQ 1998, Conference on

Information Quality.

Klettke, Sheneider, M. L. & Heuer, A., 2002. Metrics for

XML Document Collections. Database Research

Group, University of Rostock, Germany.

Lee, Y. W., Pipino, L. L., Funk, J. D. & Wang, R. Y.,

2006. Journey to Data Quality, The MIT Press.

Piattini, M., Calero, C. & Genero, M., 2001. Table

Oriented Metrics for Relational Databases. Software

Quality Journal.

Strong, D. M., Lee, Y. W. & Wang, R. Y., 1997. Data

Quality in Context. Communications of the ACM.

Strong, D. M., Lee, Y. W. & Wang, R. Y., 1997. 10

Potholes in the Road to Information Quality. IEEE

Computer.

Wang, R. Y., 1998. A Product Perspective on Total Data

Quality Management. Communications of the ACM.

Wang, R. Y., Reddy, M. P. & Kon, H. B., 1995. Toward

quality data: An attribute-based approach. Decision

Support Systems.

Measure Relational database DQXML

DRT 3

DDQT 3

RD RD(Comp)=2

RD(EE

)=2

RD(EE

)=0

RD(R

)=4

NA NA(Comp)=4

NA(EE

)=4

NA(EE

)=3

NA(D)=4

COS 0 0

NEE - 0

NEA - 0

NN - 73

NArc - 72

XML

- 0

ICEIS 2007 - International Conference on Enterprise Information Systems

364
