A FLEXIBLE PERSPECTIVE FOR SOFWARE PROCESSES
Supporting Flexibility in the Software Process Engineering Metamodel
Ricardo Martinho
School of Technology and Management, Polytechnic Institute of Leiria, Leiria, Portugal
Dulce Domingos
Department of Informatics, Faculty of Sciences, University of Lisboa, Lisboa, Portugal
João Varajão
Engineering Department, University of Trás-os-Montes e Alto Douro, Vila Real, Portugal
Keywords:
Flexibility, software process modeling, process-centered software engineering environments.
Abstract:
The lack of flexibility in software process modeling is an important drawback pointed out as the main cause for
the low adoption of Process-centered Software Engineering Environments (PSEEs). The Object Management
Group (OMG) has been working on the Software Process Engineering Meta-model (SPEM) in order to provide
a uniform object-oriented meta-model for building software process models, like the Rational Unified Process
(RUP). Nevertheless, the SPEM neither takes into account flexibility aspects nor provides a flexibility meta-
model for derived software process models. This paper proposes a flexibility meta-model for building flexible
SPEM-based software process models. SPEM compliant PSEEs that implement the proposed meta-model will
provide the ability to build flexible software process models, and to associate distinct flexible mechanisms to
their corresponding modeling elements.
1 INTRODUCTION
Interest in software process modeling and program-
ming was triggered mainly by Osterweil’s keynote
addressed at ICSE 9 in 1987, and his well known
quote “Software processes are software too” (Oster-
weil, 1987). Software processes define sets of activ-
ities and related deliverables, data and organizational
resources necessary to the production of a software
product.
Over the past two decades, advances in process
automation technologies and tools have given relevant
contributions for the emergence of Process-centered
Software Engineering Environments (PSEEs). PSEEs
main goal is to manage software process models and
related instances. Software process models repre-
sent abstract architectures, designs and definitions of
software processes that may be instantiated and pa-
rameterized in the occurrence of a specific software
project. In this context, the Object Management
Group (OMG) has been developing the Software Pro-
cess Engineering Metamodel specification (SPEM),
being its latest version 1.1 dated from January, 2005
(OMG, 2005). SPEM is concerned with defining the
minimal set of process modeling elements necessary
to describe any software development process.
Nevertheless, flexibility is a cross-model property
for software process models. Software process flex-
ibility is concerned with the ability of changing or
evolving software process models and corresponding
instances. For example, a process modeler may want
to change a software process model in order to accom-
modate new activities into the process. The SPEM
specification does not provide support for defining
flexibility properties for software process modeling
elements.
In this paper we propose a flexibility meta-model
for SPEM compliant software process models. This
meta-model takes into account distinct types of flexi-
bility and related mechanisms, as well as the way they
apply for each different SPEM process modeling ele-
ment.
Below we proceed as follows: section 2 briefly de-
scribes the SPEM meta-model. Section 3 provides a
classification for flexibility concepts, along with four
examples of flexibility requirements. In section 4 we
559
Martinho R., Domingos D. and Varajão J. (2007).
A FLEXIBLE PERSPECTIVE FOR SOFWARE PROCESSES - Supporting Flexibility in the Software Process Engineering Metamodel.
In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 559-562
DOI: 10.5220/0002382505590562
Copyright
c
 SciTePress

present our flexibility meta-model for SPEM software
processes, based on the classification proposed in sec-
tion 3. Section 5 discusses related work and section 6
concludes the paper.
2 THE SPEM META-MODEL
To provide the necessary context for the rest of this
paper, we resume in this section adapted descrip-
tions according to the last (v1.1) SPEM specification
(OMG, 2005).
The SPEM meta-model is used to describe a
concrete software development process or a fam-
ily of software development processes, like Uni-
fied Process (UP) based processes (Jacobson et al.,
1999). The SPEM meta-model is materialized
in a
SPEM_Extensions package, that includes five
specific subpackages with required modeling ele-
ments and semantics for software process engineer-
ing, namely:
•
BasicElements - includes Guidance ,
GuidanceKind and ExternalDescription
elements. A ModelElement is associated with
one or more
ExternalDescription s. Guidance
elements may be associated with ModelElement s
in order to provide associated
GuidanceKind s
that may represent guidelines, techniques, met-
rics, examples, UML Profiles, tool mentors,
checklists or even templates that can be used from
a practitioner point of view;
•
Dependencies - classifies association types
between modeling elements, and includes the
Trace , RefersTo , Precedence , Impacts ,
Categorizes and Import dependency types;
• ProcessStructure - defines the main structural
elements from which a process description is con-
structed, including the
WorkProduct , Activity ,
Step and ProcessRole modeling elements;
• ProcessComponents - includes elements that
are concerned with dividing one or more pro-
cess descriptions into self-contained parts that
can be placed under configuration management
and version control. Examples include
Package ,
Process and Discipline elements;
• ProcessLifecycle - introduces process defini-
tion elements to help define the dynamic perspec-
tive of the process, that is, how will the process
perform over time and its
Lifecycle structure in
terms of
Phase s and Iteration s.
In the next section we identify and classify flexi-
bility concepts of software processes, in order to ex-
tend SPEM to accommodate flexibility.
3 FLEXIBILITY IN SOFTWARE
PROCESSES
Software process models have peculiar aspects be-
cause they include people that perform creative ac-
tivities. Therefore, it is difficult to foresee all the
lifecycle of a process. Quite often, software projects
begin without previous knowledge of all activities,
mainly because software projects involve uncertainty.
In the next sections we provide examples of flexibility
requirements related to a SPEM compliant software
process model, and then we identify generic con-
cepts and mechanisms associated with process flex-
ibility and how they can be related specifically with
the SPEM approach.
3.1 Software Process Model Flexibility:
An Example
To elicit our problem, let us consider the example
where a process modeler wants to create a customized
SPEM software process model based on UP. The flex-
ibility requirements for the customized process model
can be resumed as follows:
• R
1
- Regarding the UP Requirements
Discipline , the capture of software re-
quirements may be accomplished by using one of
two techniques ( Guidance s): 1) UML use-case
modeling; and 2) prototyping;
• R
2
- The Construction
Phase should not
be strictly modeled into the process model.
Programmers will be responsible for adjust-
ing, during execution time, the corresponding
WorkDefinition s;
• R
3
- The software project manager should be able
to adapt software quality requirements to conform
with new unforeseen standard directives. This
adaptation should affect all running projects, as
well as new projects derived from the UP-based
process model;
• R
4
- For each UP-based process model
Phase , the
number of
Iteration s will depend on the size
of the software project, and on the amount of re-
quirement changes occurred during the execution
of the project.
Given these requirements, the software process
modeler will produce a flexible UP-based process
model that can be instantiated for each project that the
company gets. In the next subsection we classify flex-
ibility concepts to serve as foundations for the flexi-
bility meta-model proposed in section 4.
ICEIS 2007 - International Conference on Enterprise Information Systems
560

3.2 Flexibility Types and Mechanisms
Several relevant works have contributed to solve the
lack of flexibility, either for generic Process Aware
Information Systems (PAIS) (e.g. (Casati et al.,
1998; Sadiq et al., 2005), or particularly for PSEEs
(Bandinelli et al., 1993; Heimann et al., 1996; Ar-
baoui et al., 2002). Based on these contributions, we
classify process flexibility in the following categories:
• flexibility by selection - the process supports
expected exceptions, i.e., it supports alternative
paths to normal behavior. These paths may either
be modeled: 1) in advance (advance modeling)
into the process definition, before execution time,
or; 2) as “black boxes”, and be specified not be-
fore its actual execution time (late modeling);
• flexibility by adaption - the process supports un-
expected exceptions, i.e., adjustments to process
definitions and/or instances to conform to unfore-
seen, emergent events. Adaptations made at the
process definition level are called evolutionary
changes and the ones made at the instance level
are called ad-hoc changes.
Further on, these categories may be achieved
through different mechanisms. For example, in
flexibility by selection, advance modeling may be
achieved either through prescriptive modeling, where
process definitions are rigorously detailed, or through
descriptive modeling, where process definitions are
reduced to a minimum set of elements, allowing for
them to combine in different ways. R
1
is an example
of an advanced prescriptive modeling requirement,
and R
2
provides a late modeling flexibility require-
ment.
In flexibility by adaption, there are several al-
ternatives regarding the propagation of evolutionary
changes, including (Casati et al., 1998): 1) stopping
all old process instances; 2) waiting for all old process
instances to complete before starting new ones; or 3)
progressively migrate old process instances to com-
ply with new ones. The R
3
requirement is an example
of an evolutionary change that should be propagated
to all running instances. Ad-hoc changes made to se-
lected process instances may also be enforced using:
1) a definition of a set of operations to change run-
ning process instances; 2) defining a new version for
the process definition to accommodate the unforeseen
changes, and migrating all affected process instances
to the new version; or 3) tolerating inconsistencies of
process instances with respect to their definitions. R
4
is a typical ad-hoc type of flexibility requirement.
In the next section we present our meta-model that
reflects these flexibility concepts applied to SPEM
modeling elements.
+getFlexibleFacet()
«interface»
FlexibleElement
+getEvolvableFacet()
«interface»
EvolvableElement
+getAdHocFacet()
«interface»
Ad-hocElement
+getAdvModelingFacet()
«interface»
AdvModelingElement
+getLateModelingFacet()
«interface»
LateModelingElement
1 0..*
Facet
main facet
ModelElement
+getFlexibleFacet()
FlexibleFacet

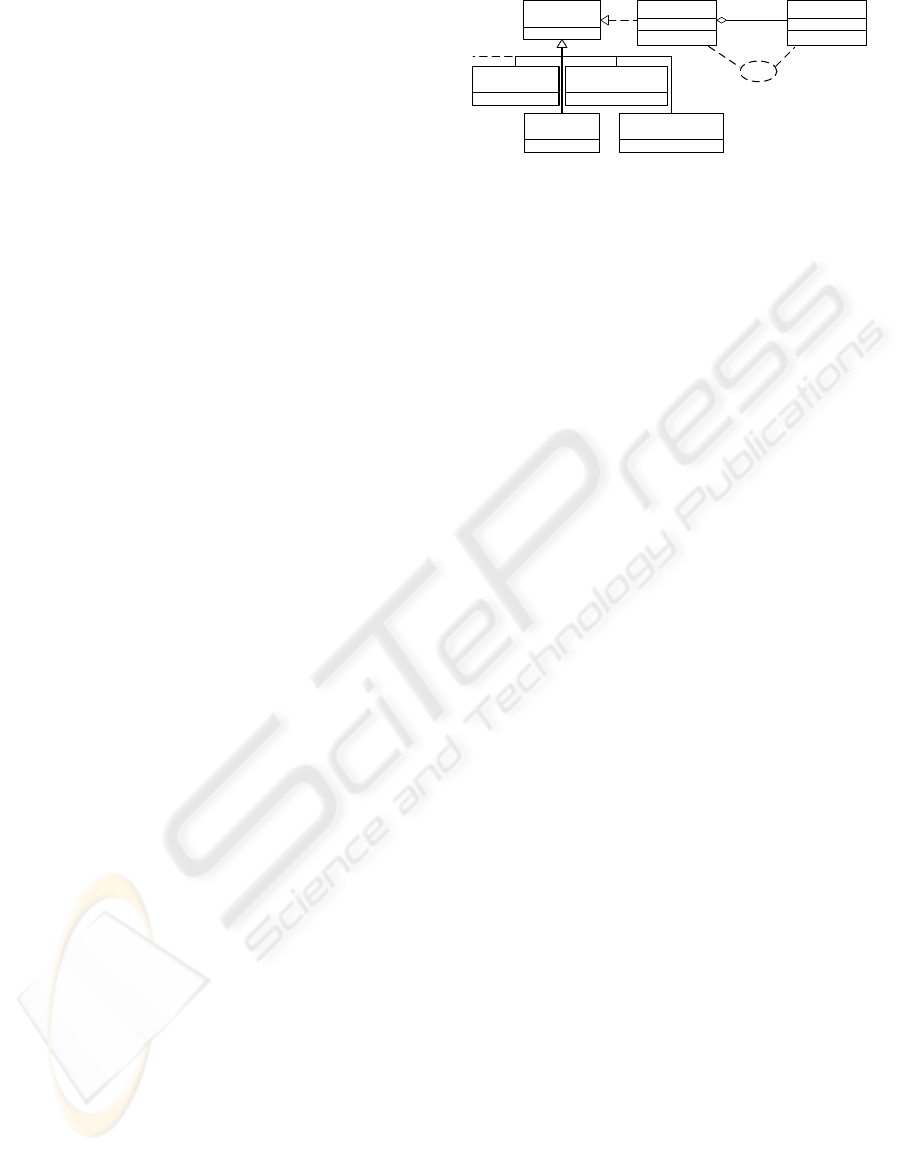

Figure 1: Proposed SPEM flexibility meta-model structure.
4 THE SPEM FLEXIBILITY
META-MODEL
SPEM modeling elements neither have to be exclu-
sively of one flexibility type, nor one type is imple-
mented in the same manner for each modeling el-
ement. For example, a software process
Activity
may be both flexible by selection and by adaption,
being associated with both mechanisms for late mod-
eling and ad-hoc changes. Thus, on one side we have
modeling elements that may implement several flex-
ible interfaces, and on the other side, operations de-
fined by those interfaces are implemented according
to a particular modeling element.
In Figure 1 we present our proposed SPEM flex-
ibility meta-model. The model implements the facet
design pattern, proposed in (Crahen and Ramamurthy,
2002). The facet pattern allows for a clean separation
of behavior from its implementation. In this case, the
pattern helps us to separate what types of flexibility
should a SPEM
ModelElement implement, from how
can they be implemented, regarding its type (e.g. if it
is of type Activity or Phase ). Elements in Figure 1
include:
• FlexibleElement - represents a flexible el-
ement interface. Specializations include sub-
types of flexible interfaces that can be imple-
mented by a SPEM
ModelElement (the dashed
generalization association). Each specialization
of FlexibleElement represents a distinct flexi-
ble interface, which defines distinct operations for
fetching the right
FlexibleFacet ;
• ModelElement - represents the topmost
generic modeling element of the SPEM meta-
model.
ModelElement s may implement none to
several
FlexibleElement interfaces, having, for
each one of them, the corresponding operations
and the associated
FlexibleFacet s;
• FlexibleFacet - corresponds to con-
crete implementations of flexible mechanisms,
driven by flexibility interfaces implemented
by
ModelElement s. The shared aggregation
association means that none to several flex-
A FLEXIBLE PERSPECTIVE FOR SOFWARE PROCESSES - Supporting Flexibility in the Software Process
Engineering Metamodel
561

ible mechanisms are strictly bounded to a
ModelElement ’s type.
A process modeler can build her own process
model by composing SPEM
ModelElement s and as-
sociating them with the required flexibility mecha-
nisms (implemented through
FlexibleFacet s). For
example, to model the R
2
requirement, the process
modeler can start by defining the four Phase s of
the
Lifecycle of the process model, and choose
the
LateModelingFacet for the Construction Phase
from a list of available facets. This means that a
software project derived from the customized process
model could be instantiated and started without the
full definition of the
Activities and Step s that com-
pose the Construction
Phase , fulfilling the R
2
flexibil-
ity requirement.
5 RELATED WORK
Important early contributions on software process
evolution include the work in (Bandinelli et al., 1993)
and the proposed SPADE system. SPADE is a PSEE
that supports software process evolution through the
reflective features of its custom Process Modeling
Language (PML). Process models may be modified
using predefined evolution mechanisms offered by the
PSEE and tightly coupled to its PML. In (Cugola,
1998) the author proposes the PROSYT PSEE and
follows a different approach, enhancing the support
of small deviations between real processes and mod-
eled processes. However, none of these works men-
tioned above promotes a clean separation of types of
flexibility, or allows for fine-grained and loose cou-
pled associations between flexibility types and flexi-
ble mechanisms for each distinct element of a process
model.
In an interesting work presented in (Balust and
Franch, 2001), the authors use a similar approach by
adopting a UML software process meta-model, and
extending it by using a PML called PROMENADE.
The definition of flexible software process models is,
however, limited to advance and late modeling mech-
anisms, and no extensible flexibility meta-model is
proposed.
6 CONCLUSIONS
This paper proposes a flexibility meta-model for
SPEM-based software process models. Main advan-
tages of our approach include: 1) considering SPEM
as the reference software process meta-model, as it
enhances process modeling standardization and ac-
ceptance; 2) using the facet design pattern to enhance
a clean separation between flexibility interfaces and
corresponding implementations (facets) that depend
on each
ModelElement specialization; and 3) provid-
ing an extensible interface hierarchy, fomenting flexi-
bility type modularity.
We are implementing this flexibility meta-model
in a SPEM-compliant PSEE. We are also apply-
ing the facet pattern to support distinct flexible per-
spectives that a process
ModelElement can have
in our PSEE. Preliminary work starts by con-
sidering
FlexibleFacet s associated with SPEM
ModelElement s that not only provide flexibility into
process enactments but also to process modeling.
REFERENCES
Arbaoui, S., Derniame, J.-C., Oquendo, F., and Verjus, H.
(2002). A comparative review of process-centered
software engineering environments. Ann. Softw. Eng.,
14(1-4):311–340.
Balust, J. M. R. and Franch, X. (2001). Building expres-
sive and flexible process models using a uml-based
approach. In EWSPT ’01: Proc. of the 8th Eu-
ropean Workshop on Software Process Technology,
pages 152–172, London, UK. Springer-Verlag.
Bandinelli, S. C., Fuggetta, A., and Ghezzi, C. (1993). Soft-
ware process model evolution in the spade environ-
ment. IEEE Trans. Softw. Eng., 19(12):1128–1144.
Casati, F., Ceri, S., Pernici, B., and Pozzi, G. (1998).
Workflow evolution. Data & Knowledge Engineering,
24(3):211–238.
Crahen, E. and Ramamurthy, B. (2002). Facet: A pattern for
dynamic interfaces. In PLoP 2002: Proc. of the 9th
Conf. on Pattern Language of Programs, Monticello,
Illinois, USA.
Cugola, G. (1998). Tolerating deviations in process sup-
port systems via flexible enactment of process models.
IEEE Trans. Softw. Eng., 24(11):982–1001.
Heimann, P., Joeris, G., Krapp, C.-A., and Westfechtel, B.
(1996). DYNAMITE: Dynamic task nets for software
process management. In ICSE ’96: Proc. of the 18th
Int’l Conf. on Software Engineering, pages 331–341,
Washington, DC, USA. IEEE Computer Society.
Jacobson, I., Booch, G., and Rumbaugh, J. (1999). The Uni-
fied Software Development Process. Addison-Wesley
Longman Publishing Co., Inc., Boston, MA, USA.
OMG (2005). Software Process Engineering Metamodel
Specification, v1.1. Technical report, Object Manage-
ment Group.
Osterweil, L. (1987). Software processes are software too.
In ICSE ’87: Proc. of the 9th Int’l Conf. on Software
Engineering, pages 2–13, Los Alamitos, CA, USA.
IEEE Computer Society Press.
Sadiq, S. W., Orlowska, M. E., and Sadiq, W. (2005). Spec-
ification and validation of process constraints for flex-
ible workflows. volume 30, pages 349–378, Oxford,
UK, UK. Elsevier Science Ltd.
ICEIS 2007 - International Conference on Enterprise Information Systems
562
