BUSINESS PROCESS MODEL TRANSFORMATION ISSUES

The Top 7 Adversaries Encountered at Deﬁning Model Transformations

∗

Marion Murzek

Women’s Postgraduate College for Internet Technologies (WIT), Institute of Software Technology and Interactive Systems

Vienna University of Technology, Austria

Gerhard Kramler

Business Informatics Group (BIG), Institute of Software Technology and Interactive Systems

Vienna University of Technology, Austria

Keywords:

Model Transformation, Business Process Modeling Languages.

Abstract:

Not least due to the widespread use of meta modeling concepts, model transformation techniques have reached

a certain level of maturity (Czarnecki and Helsen, 2006). Nevertheless, d eﬁning transformations in some

application areas in our case business process modeling is still a challenge because current transformation

languages provide general solutions but do not support issues speciﬁc to a distinct area. We aim at providing

generic solutions for model transformation problems distinct to the area of horizontal business process model

transformations. As a ﬁrst step in this endeavor, this work reports on the most pressing problems encountered

at deﬁning business process model transform ations.

1 INTRODUCTION

As companies discovered the beneﬁts of Business

Process Modeling (BPM), the use of Business Pro-

cess (BP) models moved from a ”luxury article” to

an ”everyday necessity” in the last years. Meanwhile

many companies own thousands of models which de-

scribe their business. Since business changes over the

years, e.g., business to business interoperability came

up with new inventions in communication and compa-

nies merge with others, there arises a need to keep ex-

isting business models up-to-date and to synchronize

or translate them into a contemporary BPM language.

To facilitate these scenarios, a model transformation

technique for BP models is needed.

At the moment much work is done in the area of

model transformations (MTs). The main research in-

terest lies on the technical aspects of MTs, for ex-

ample transformation languages and veriﬁcation of

model transformations. Model transformation lan-

guages like ATL (B

ezivin et al., 2005), QVT (OMG,

a) or frameworks for general purpose programming

languages like Java provide very good solutions for

∗

This research has partly been funded by the Austrian

Federal Ministry for Education, Science, and Culture, and

the European Social Fund (ESF) under grant 31.963/46-

VII/9/2002.

1:1 and 1:n correspondences, thus they seem to be

well suited for horizontal transformations as is the

case when transforming BP models. Deﬁning a trans-

formation between any two BPM languages, however,

is still a difﬁcult task as several domain-speciﬁc prob-

lems remain to be solved.

BPM languages are used for a distinct purpose,

namely the illustration processes in a company. So

they all provide very similar concepts to the modeler.

But the particular elements and attributes which are

used to express a concept are more or less different

in the BPM languages. Based on the assumption that

there exist generic solutions for these often occurring

problems, we are currently developing a framework

which provides solutions for typical transformation

problems applied on a generic meta model which con-

tains all concepts of the participating BPM languages.

To the best of our knowledge there is no work on

supporting the deﬁnition of transformation problems

in a distinct domain. The contribution of this work is

an overview of the problems one is confronted with

when deﬁning model transformations in the area of

BPM. In a ﬁrst step, we focus on the control ﬂow part

of BPM languages, as this is perhaps the most critical

part of deﬁning BP model transformations.

This reminder of this work is structured as fol-

lows. The next section puts our work into context

144

Murzek M. and Kramler G. (2007).

BUSINESS PROCESS MODEL TRANSFORMATION ISSUES - The Top 7 Adversaries Encountered at Deﬁning Model Transformations.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 144-151

DOI: 10.5220/0002383201440151

 SciTePress

of related work. Section 3 introduces the four dif-

ferent Business Process Modeling (BPM) languages

we inspected, and in section 4 we discuss the seven

most pressing model transformation issues. The con-

clusion in section 5 summarizes this work and gives

an insight into ongoing work.

2 RELATED WORK

There has been and still is much research on the dif-

ferences and equalities of Business Process Modeling

and Workﬂow languages. They all have a different fo-

cus why and how they analyzed and compared some

of the languages.

Wil van der Aalst et al. concentrated on Workﬂow

Systems and developed the workﬂow (van der Aalst

et al., ), resource (Russell et al., 2005) and data pat-

terns (Russell et al., 2004). These patterns have been

and are still used to build or analyze workﬂow and

BPM languages concerning their expressiveness. For

example Wohed et al. (Wohed et al., 2005), (Russell

et al., 2006), (Wohed et al., 2006) and White (White,

2004) inspected the Business Process Management

Notation (BPMN) and the UML 2.0 Activity Diagram

(AD) to ﬁnd out how far the WF patterns can be rep-

resented in these languages, with the aim of assessing

the weaknesses and strengths of the BPMN and AD

and its coverage of business process modeling prob-

lems. In (Mendling et al., ), EPCs have been analyzed

with regard to the representation of the WF patterns.

Additionally, an extended EPC, ”yet another EPC”

(yEPC) (Mendling et al., 2005) has been developed

which covers all WF patterns.

Zachman et. al developed a framework (Zach-

man, 1987) which deﬁnes the system architecture of

an enterprise. He uses the ﬁve basic questions ”What,

How, Where, Who, When, and Why” to achive a com-

prehensive view of the whole enterprise. This frame-

work has also been used to evaluate BPM languages,

for example UML 2.0 in (Fatolahi and Shams, 2006).

Korherr et al. (List and Korherr, 2006) compared

seven different BPM languages. Their focus lay on

the Business Process Context Perspective and they

evaluated how expressive these BPM languages are

for modeling business goals and metrics.

The recent work (St

orrle, 2006) compares EPCs

and UML 2.0 AD. The comparison is structured by

syntax, semantic and pragmatic of the two languages.

The central question which is left open in this work is

if UML 2.0 AD will replace EPCs in the long run.

In our work we focus on what is important to keep

care of, in case of transforming business process mod-

els between different BPM languages. So this work

compares the syntax and semantics - by means of the

meta model elements - of the concepts provided in

the control ﬂow part of four different BPM languages,

with a speciﬁc focus on the differences between lan-

guages and how these differences affect model trans-

formation.

3 BUSINESS PROCESS

MODELING LANGUAGES

In the following the four BPM languages,

ADONIS



Standard Modeling Language, Business

Process Modeling Notation (BPMN), Event-driven

Process Chains (EPC) and UML 2.0 Activity Dia-

grams (AD), which we have inspected concerning BP

model transformation issues are described.

The concepts illustrated in the following four meta

models capture the basic control ﬂow part (as deﬁned

by Aalst et al. - basic control ﬂow patterns) of each

language. This small core part of each BPM lan-

guage was taken to demonstrate the differences be-

tween these four languages concerning model trans-

formation. Inspections of the remaining concepts of

the BPM languages are out of scope of this work.

3.1 ADONIS Standard Modeling

Language

The ADONIS



Standard Modeling Language (BOC,

2005) provides different kinds of model types which

cover different business aspects. The BP model is

used to model the business processes itself, i.e., its

control ﬂow aspect. Furthermore it is used to inte-

grate the organizational and the information aspect.

Since our work focuses on the control ﬂow aspect, we

concentrate only on the BP model (see Fig. 1).

ADONIS



is a graph-structured BPM language,

which implies for example that there could be more

than one end element in a process model. The integral

model element is the Activity. A sequence of activi-

ties is modeled by means of the Successor which rep-

resents the control ﬂow in the ADONIS



BP model.

To depict a process call within a process, the element

Sub Process Call is used. The Control Objects are

used to model the ﬂow of control.

The ADONIS



BP model provides no special el-

ement for modeling merges of alternative control

ﬂows. Furthermore, the decision element - Decision

- does not distinguish between alternative split and

multiple alternative split.

BUSINESS PROCESS MODEL TRANSFORMATION ISSUES - The Top 7 Adversaries Encountered at Defining Model

Transformations

145

ADONIS Standard Language – Business Process Meta Model

Business Process Model

Sub Process Call

Activity

Start End

Flow Objects

Decision Parallel Split Parallel Join

Control Objects

called process

Activity

Start

End

Decision

Join

Split

Sub

Process

Successor

cond:Expression

Successor

Parallel

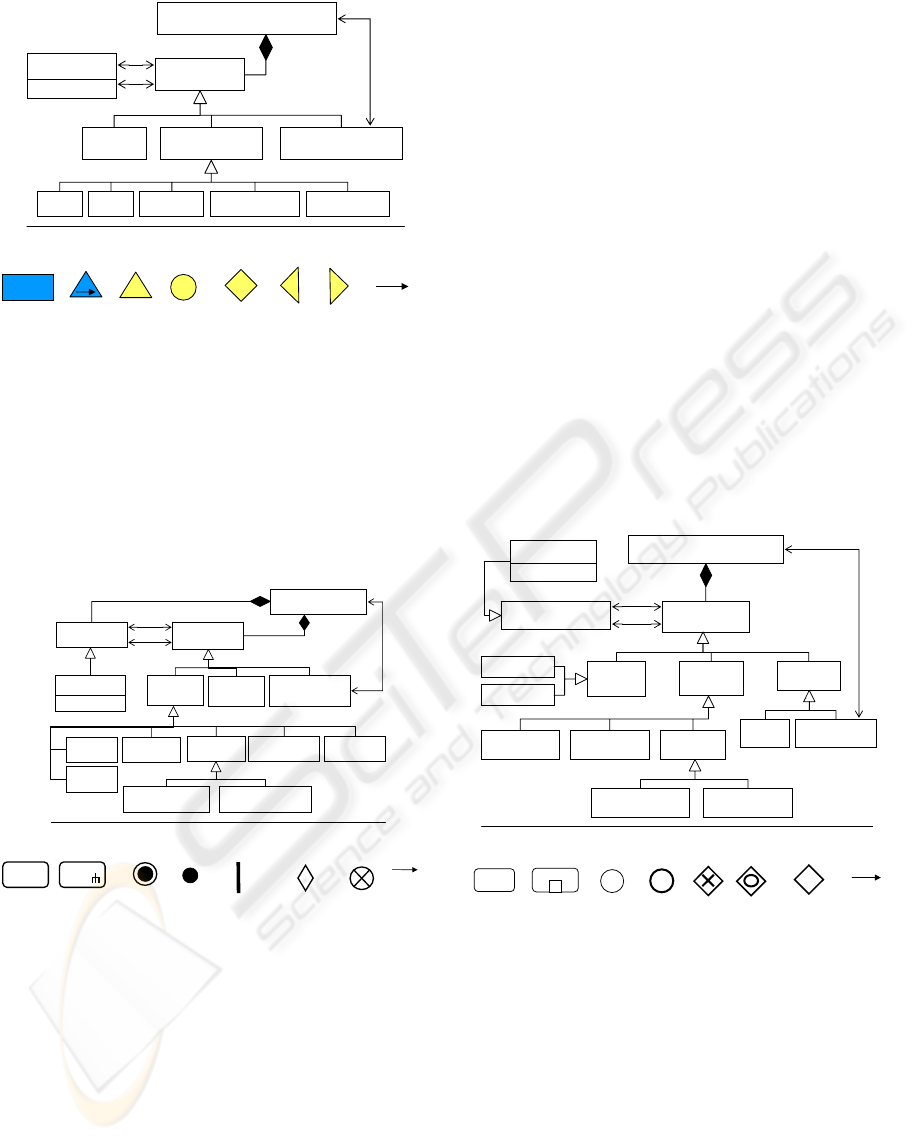

Figure 1: Part of the ADONIS



BP meta model and the

concrete syntax.

3.2 UML 2.1 Activity Diagram

The UML 2.1 AD (OMG, b) is also a speciﬁcation of

the OMG. The meta model in Fig. 2 contains a very

small part of the UML 2.1 language, the basic control

ﬂow elements which could be used for modeling BP

models.

UML 2.0 Activity Diagram

Activity

CallBehaviour

Action

Activity Node

InitialNode

DecisionNode

Control

Node

Opaque

Action

references

Activity Edge

Final Node

FlowFinalNode ActivityFinalNode

ForkNode

JoinNode

MergeNode

ControlFlow

Opaque

Action

Activity

Final

Initial

Node

Flow

Final

Decision/Merge

Node

Join/Fork

Node

CallBehaviour

Action

guard:String

Control

Flow

Figure 2: Part of the UML 2.1 AD meta model and the con-

crete syntax.

The Activity denotes different from

ADONIS



and BPMN the whole BP model.

The central element is the Opaque Action which is

used to model the activities within a process. The

Call Behavior Action represents the concept of a sub

process call. Control Nodes are used to structure

the process. There is a Fork Node and a Join Node

provided to express a concurrent ﬂow and a Decision

Node and a Merge Node to model an alternative

ﬂow. The Initial Node marks the begin of a process

model. The AD differs between two ﬁnal nodes, the

Flow Final Node (FFN) and the Activity Final Node

(AFN). The FFN is used to mark the ﬁnal of a distinct

ﬂow, that means if it is reached the remaining tokens

in the process will proceed. Whereas the AFN marks

the end of the whole process which means if it is

reached the remaining tokens in the process are killed

immediately. The only Activity Edge we considered

here is the Control Flow which is used to connect

the Activity Nodes to form the ﬂow of control of a

process.

3.3 Business Process Modeling Notation

The BPMN (OMG, 2006) was primarily intro-

duced by the Business Process Management Initiative

(BPMI.org) and is now a ﬁnally adopted speciﬁcation

by the Object Management Group (OMG). It has been

designed as a graphical language to describe business

process models and map them to the Business Pro-

cess Execution Language (BPEL) for Web Services

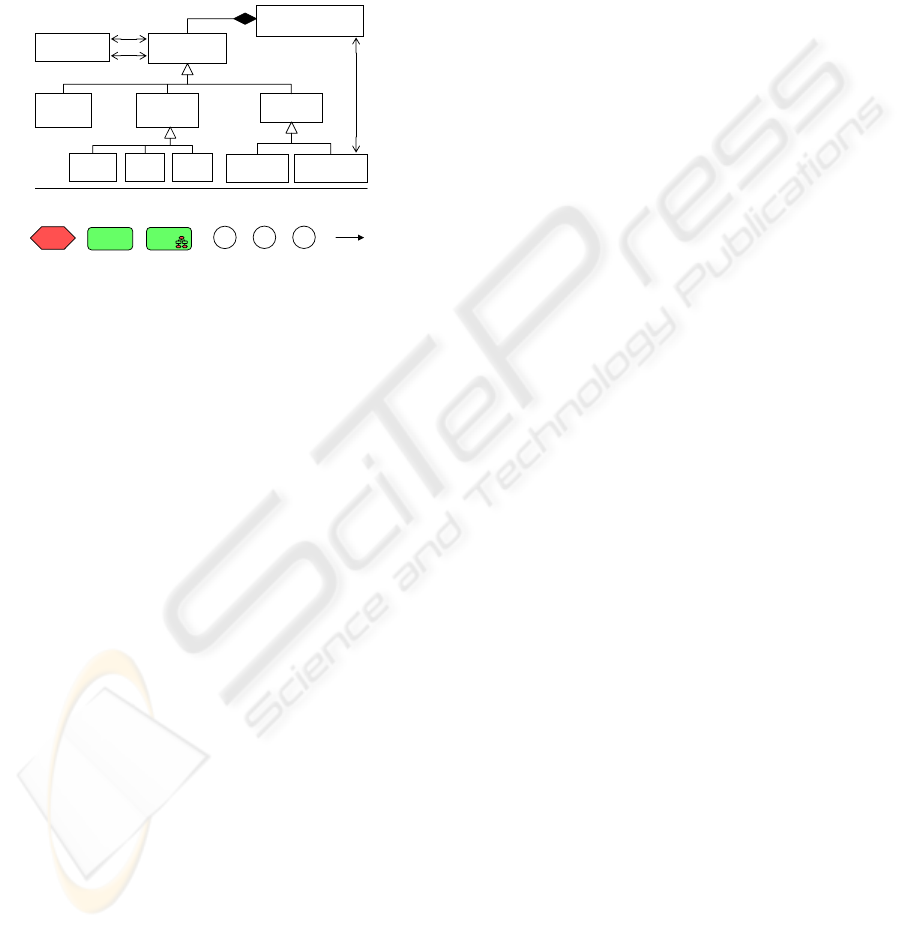

1.1 (IBM, ). The meta model illustrated in Fig. 3

shows the elements which are used to model the con-

trol ﬂow aspect.

Business Process Modeling Notation

Start

Event

End

Event

Task

Parallel

Fork/Join

Decision/Merge

Sub-Process

Business Process Diagram

Sub-Process

Event

FlowObject

Parallel Fork Parallel Join

Gateway

Activity

Task

references

ConnectingObject

Inclusive (OR)

Decision

Exclusive (XOR)

Start Event

End Event

Sequence Flow

condition:String

Sequence

Flow

XOR

Figure 3: Part of the BPMN meta model and the concrete

syntax.

In the BPMN the Task is the central element of

the process model. The Sub-Process is used to model

a reference to a sub process within a process model.

Gateways are used to depict different ﬂows (parallel,

alternative etc.) of the process. To model the be-

gin and the end of a process model Events are used.

The Core Elements can be connected by the Sequence

Flow to form the process model.

ICEIS 2007 - International Conference on Enterprise Information Systems

146

3.4 Event Driven Process Chains

Event Driven Process Chains (EPCs) (Keller et al., )

have been introduced by Keller, N

uttgens and Scheer

in 1992. EPCs are basically used to model processes.

We focus on the main elements which are used to

model the integral and control ﬂow aspect of a BPM

(see Fig. 4).

Event-driven Process Chains

EPC

Business Process

Complex

Function

Event

Process Flow

Objects

XOR OR AND

Logical

Operator

Function

Basic

Function

references

Control Flow

Basic

Function

Event

AND

XOR

AND

XOR

Complex

Function

Control

Flow

Figure 4: Part of the EPCs meta model and the concrete

syntax.

The Function describes an activity. It creates and

changes Information Objects within a certain time.

The Event represents a BP state and is related to a

point in time, it could be seen as passive element

compared to the function as an active element (com-

pare (Mendling and N

uttgens, 2003)). To model a sub

process call the Complex Function is used. The Logi-

cal Operators elements are used to structure the pro-

ceed of the BP model.

EPCs do not provide a speciﬁc element to indi-

cate the begin and the end of a BP model, therefor

the Event is used. Event elements are not allowed to

be in front of an OR and XOR element. Function and

event elements must alternate in the proceed of the BP

model and are connected via the Control Flow. An-

other restriction in EPCs is that branches parallel as

well as alternative must be split and merged with the

same kind of Logial Operator.

4 MODEL TRANSFORMATION

ISSUES

Although we have taken the control ﬂow aspect which

is a small part of each BPM language and their de-

scriptions may sound very similar, there are a lot of

differences concerning the representation of concepts.

Before introducing the transformation issues

themselves we ﬁrst have to consider how differences

between BPM languages should be handled by a

model transformation. Model transformations aim at

preserving the semantics of a model. Unfortunately

this high ambition can not always be achieved. If this

is not possible, for example if there is missing a cor-

responding semantic concept, then the next stage of

requirements is to avoid loss of information during

the transformation. This can be obtained by annotat-

ing target model elements, for example inserting in-

formation into a annotation attribute of an element,

for reasons of documentation or back-transformation.

If this is also not possible then another alternative is

to ask the user - provide user interaction - to decide

what should happen in a distinct case. It can also hap-

pen that the target model must be semantically en-

riched, because of mandatory elements in the target

meta model. In this case new information based on

the existing information has to be created.

The following transformation issues have been en-

countered during the deﬁnition of transformations be-

tween the BPM languages introduced in Section 3.

Each issue is described by its name, the participating

elements and the problem description. Different kinds

of examples are provided to establish understanding

of the transformation problem.

To illustrate some of the solutions, ATL has been

used because it is one of the most well-known trans-

formation languages. The solutions would look dif-

ferent in other transformation languages such as QVT

but the problems would remain the same.

4.1 Decision (Un)Ambiguity

In ADONIS



there is only one element (Decision) to

express inclusive and exclusive alternatives. In ADs

an exclusive split is modeled by a Decision Node

and the inclusive split by a Fork Node with guard

conditions on the departing Control Flows. BPMN

and EPCs provide one distinct element for each con-

cept Inclusive(OR)/Exclusive(XOR) in BPMN and

OR/XOR in EPCs.

The transformation problem in case of transform-

ing ADONIS



models into EPC models is to decide

if a Decision is used as an exclusive or an inclusive

split. The distinction can be made depending on the

conditions on the outgoing edges of the Decision in

ADONIS



. The main problem is to decide whether

the value of the cond attribute on the departing Suc-

cessors of a Decision are exclusive or inclusive.

In the following the transformation problem is il-

lustrated by means of an example transformation code

in ATL where a ADONIS



Decision should be trans-

formed to an EPC OR or XOR:

rule decision2xor{

from:

d: adonis!decision

BUSINESS PROCESS MODEL TRANSFORMATION ISSUES - The Top 7 Adversaries Encountered at Defining Model

Transformations

147

((d.outgoing.conditions).ifExclusive())

to:

x: epc!xor

}

rule decision2or{

from:

d: adonis!decision

(not (d.outgoing.conditions).ifExclusive())

to:

x: epc!or

}

The function ifExclusive() decides whether the con-

ditions are exclusive or not. Unfortunately there is

no straightforward implementation because there are

various kinds of exclusive conditions. For example:

True/False, 0/1, X/not X and antonyms in general.

One possibility could be to check the conditions

as words via an encyclopedia that contains antonyms,

for example WordNet (Miller et al., 1998).

4.2 Invisible Merger

Two of the BPM languages we inspected offer the

possibility to model a merger of a Alternative split

implicitly, i.e. without using a distinct element. In

ADONIS



the mergers of ﬂows which have been

split by a Decision are implicitly modeled, there

is no explicit merge element provided. In BPMN

the choice for modeling an explicit exclusive(XOR)

merger is left to the user.

In this case the transformation problem is to de-

cide on which position in the process model an im-

plicit (exclusive or inclusive) merge is used (for ex-

ample see Fig. 5). On this position an XOR or OR

merge must be inserted in the target model.

Paper

assigned

Well-known

author?

Review paper

carefully

Update own CV

"Reviewed Papers”

Review paper fast

Paper

reviewed

yes

Download and

print paper

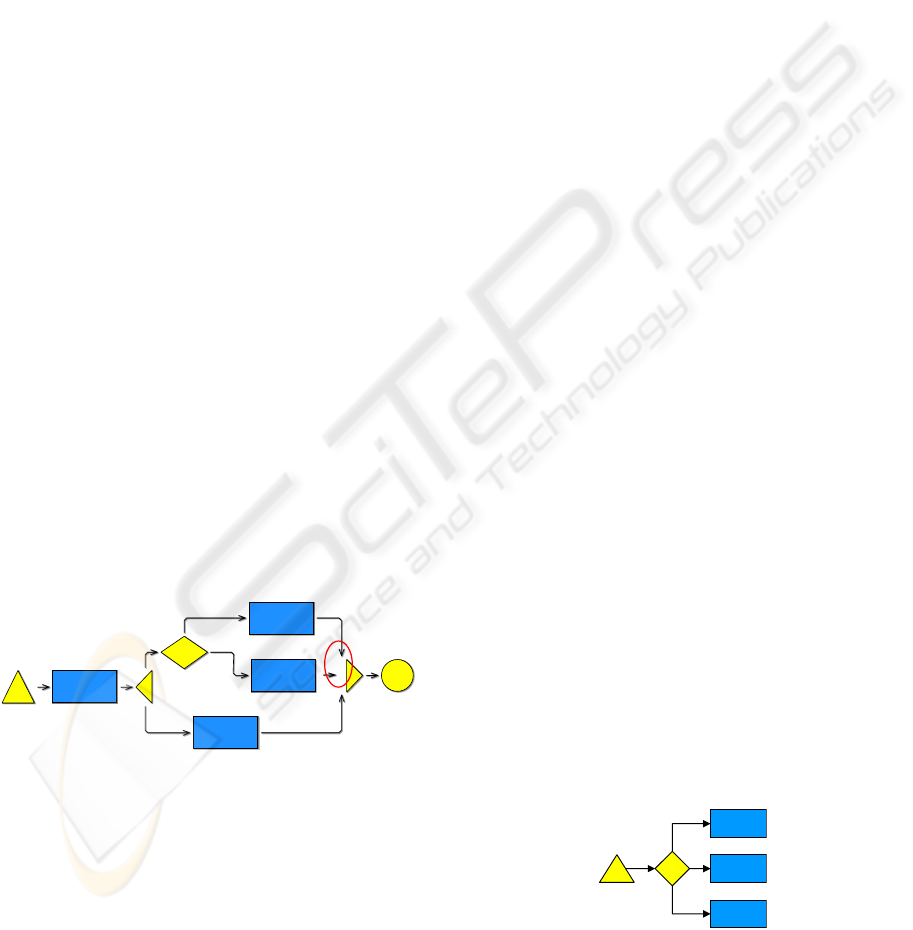

Figure 5: Invisible Merge in ADONIS



The central questions to solve this transformation

problem are ”How to ﬁnd invisible mergers?” and

”How to ﬁnd their corresponding split elements?”.

One suggestion to solve this problem is an algo-

rithm which detects the positions in the model where

more than one Successor leads into an element. Then

the algorithm must follow all the control ﬂow back-

wards until it ﬁnds a common split element. This is

easy in case of block-structured models. But if we are

faced with a BPM language which allows the mod-

eling of graph-structured models as it is the case in

our four languages, then this algorithm provides only

a partial solution. A more powerful solution approach

for this can be found in (Murzek et al., 2006).

4.3 Mandatory Events

In EPCs Events are mandatory. It is required that

before and after a function there must be an Event,

i.e. that Events and Functions have to alternate during

the ﬂow of the process model. A further restriction

in EPCs is, that it is not allowed to model an Event

which is followed by an XOR or OR element (see

semantics of EPCs in (Keller et al., ) and (Mendling

and N

uttgens, 2003)) There is no semantically

corresponding element in ADONIS



. In BPMN

(Intermediate Events) as well as in AD (Receive

and SendSignal) there are events speciﬁed. But the

concept of events in BPMN and AD differs from the

concept of the Events in EPCs. In EPCs the Events

are business states, meaning that a process is in a

distinct state, furthermore the events are used to mark

the begin and the end of a process. In BPMN and

AD events represent external triggers which could be

used to model external inﬂuences or interaction with

the process. As the events in BPMN and AD could be

assigned to an interaction aspect of BPM they have

not been taken under consideration in this work.

The transformation problem is to decide where to

insert events in the process model and to make sure

that the target model is in a valid state after the trans-

formation.

A possible straightforward solution is to convert

for example an Activity in ADONIS



into an Event

and a Function connected by a Control Flow. This

would avoid having any Events followed by an OR or

XOR. Nevertheless it could result in invalid EPC pro-

cess models. An example for this problem is shown

by the transformation of the ADONIS



model frag-

ment in Fig. 6 into the EPC model fragment in Fig. 7.

Activity

Start

End

Decision Parallel Split

Parallel Join

S_c

S_b

S_a

new

Figure 6: Start with following Decision in ADONIS



The model in Fig. 7 violates the syntax of EPC

ICEIS 2007 - International Conference on Enterprise Information Systems

148

Activity

Start

End

Decision Parallel Split

Parallel Join

S_c

S_b

S_a

new

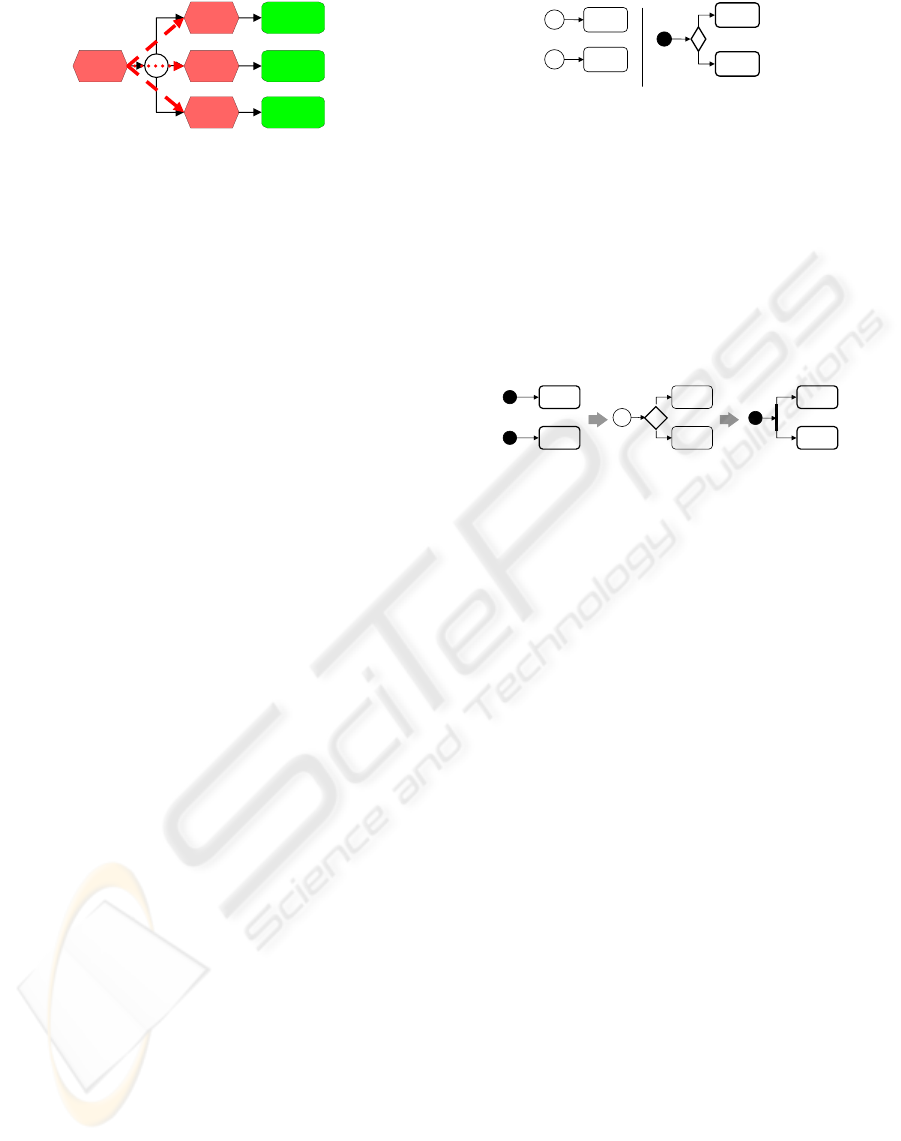

Figure 7: Invalid EPC model - alternating Event/Function

condition violated.

models in two ways. First there is an Event followed

by an OR split and second the same Event is fol-

lowed by three Events, but it is mandatory that Events

and Functions alternate during the ﬂow of the process

model. So this solution is only partially satisfying and

a review by the modeler is necessary.

4.4 Different Start Objects

In AD, BPMN and EPCs it is possible to deﬁne

multiple start objects for one process model. But the

semantics of multiple start objects is different. In

AD all Initial Nodes will be activated if the process

starts. This means that the Initial Nodes themselves

mark the beginning of a process but do not depict

any events which trigger the process. By contrast

the activation of one of the Start Events in EPCs

or BPMN is sufﬁcient to trigger the begin of the

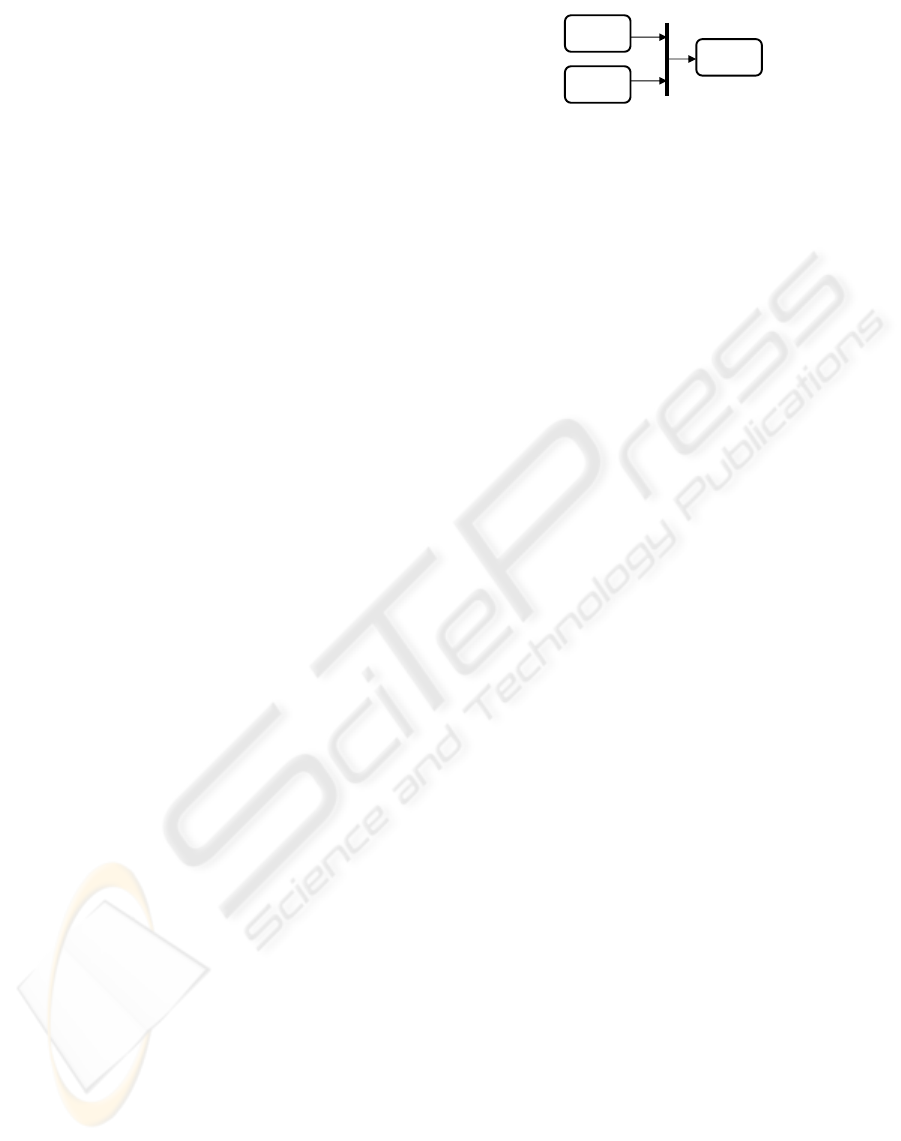

process. However the semantics of multiple Start

Events in BPMN changes if all of the outgoing ﬂows

of these Start Events are leading to the same Activity

which implies a Parallel Join in front of the Activity.

Then the process starts, if all of the Start Events

are activated. In ADONIS



only one common start

element is allowed.

This leads to two different semantical problem ar-

eas:

1. The difference in the semantics of start objects in

AD compared to the start objects in other BPM

languages and

2. The different semantics of multiple start objects.

In case of multiple start events with an exclusive

alternative semantics in BPMN (see Fig. 8(a)) it is

possible to create one common Initial Node in the AD

target model with a proceeding Decision Node (see

Fig. 8(b)). The Decision should be annotated with a

condition that checks for the trigger of the process.

This workaround preserves all of the information and

as much of the BPMN semantics as possible. When

transforming an Activity in AD back to BPMN this

workaround needs to be taken into account such that

the original model can be reconstructed.

(a) source (b) target

xor

and

xor

Start erfolgte durch?

Workaround

Rücktransformation

(a)

(c)(b)

Triggered by?

Figure 8: Possible solution in AD for multiple start objects

in BPMN.

The model transformation cycle in Fig. 9 shows

another problem resulting from a workaround neces-

sary when transforming an AD model part with two

Initial Nodes (a) into a BPMN model part (b) and

back again (c). The model in Fig. 9(a) is semantically

equivalent but syntactically different from the model

part in Fig. 9(b).

(a) source (b) target

xor

and

xor

Start erfolgte durch?

Workaround

Rücktransformation

(a) source (c) target(b) target/source

Triggered by?

Figure 9: Different model structure AD (c) at back transfor-

mation from BPMN (b).

4.5 Split/Merge Unambiguity

This problem has been considered in our work be-

cause at ﬁrst sight the provided Logical Operators

(LO) in all four BPM languages seemed to be equiva-

lent but the solution is not a trivial 1:1 transformation.

In EPCs there is only one element used to depict

splits and mergers for a distinct LO. In BPMN it is

the same, except for the parallel fork and join there

are two different elements.

The problem in case of models of these BPM lan-

guages is to decide whether a LO is the begin or the

end of a branch of the control ﬂow in a process model

when transforming to a language which requires to

make that distinction.

Once more the Control Flow elements - leading to

or departing from a LO - have to be taken into consid-

eration. Three different cases can be distinguished:

1. LO with one incoming and more than one outgo-

ing Control Flows,

2. LO with more than one incoming and one outgo-

ing Control Flow and

3. LO with more than one incoming and outgoing

Control Flows.

In case of (1) we have to transform it into a split

object. In case of (2) the LO has to be transformed to a

join or merge object. In case of (3) the AND Operator

BUSINESS PROCESS MODEL TRANSFORMATION ISSUES - The Top 7 Adversaries Encountered at Defining Model

Transformations

149

has to be split into three elements: one split element

(Parallel Split in ADONIS



, Parallel Fork in BPMN

and Fork Node in AD) and one join/fork element (Par-

allel Join) connected by a control ﬂow edge. If the LO

is an XOR then the transformation leads to one Deci-

sion element with more than one incoming and out-

going Successors in case of ADONIS



and BPMN

and to three objects, Merge Node, Control Flow and

Decision Node in AD.

The following ATL transformation code example

deﬁnes the above solutions for a transformation from

EPC to ADONIS



rule and2parallelSplit{

from a: epc!AND (a.incoming->size() = 1 and

a.outgoing->size() > 1)

to ps: adonis!ParallelSplit(...) }

rule and2parallelJoin{

from a: epc!AND (a.incoming->size() > 1 and

a.outgoing->size() = 1)

to pj: adonis!ParallelJoin(...) }

rule and2parallelJoinSplit{

from a: epc!AND (a.incoming->size() > 1 and

a.outgoing->size() > 1)

to psp: adonis!ParallelSplit(...),

suc: adonis!Successor(...),

pjo: adonis!ParallelJoin(...)

}

The transformation in the reverse direction may

be optimized to reestablish the original model. In

this case a corresponding transformation to the

”and2parallelJoinSplit” rule, which merges a Paral-

lel Split, a Successor and a Parallel Join to an AND

element, has to be found. As a rule in ATL can only

match one element in the ”from” part this will require

a more complex solution algorithm in ATL.

4.6 Join Speciﬁcation Problem

This problem can only be observed in ADs. Con-

trary to ADONIS



, BPMN and EPCs which provide

a possibility to express inclusive alternative merge in

ADs there is no semantically correct way to depict

such mergers. So the problem is how to express a in-

clusive alternative merge in ADs.

In (White, 2004) a possible but as per (Wohed

et al., 2005) incorrect (in terms of the semantics of an

executable workﬂow model) attempt to cover an in-

clusive alternative merge in ADs has been made (see

Fig. 10).

In this solution the problem of the transformation

deﬁnition lays on the derivation of the ”Join Spec” ex-

pression, which could be derived from the departing

edges of the corresponding inclusive alternative split.

The ATL transformation code for this example is to

comprehensive to illustrate it here.

1. bb

Action

Activity Final

Initial Node

Flow FinalDecision/Merge NodeJoin/Fork Node

CallBehaviourAction

{Join Spec = A or B}

Figure 10: Incorrect attempt to capture a synchronising

merge - Figure taken from (Wohed et al., 2005).

Another alternative would be to ask the user to de-

cide how to transform this problem.

BP models are not designed for executing them di-

rectly. They are used to support the understanding of

business processes and furthermore they can provide

an adequate documentation of the business processes

in a company. Therefore the solution in Fig. 10 can

be satisfying for business people.

4.7 Different Final Nodes

AD provide the possibility to model different kinds

of end nodes, the Activity Final Node (AFN) and the

Flow Final Node (FFN). The semantics of these nodes

is as follows: When a FFN is reached the remain-

ing tokens in a model will succeed. In contrary if the

AFN is reached all remaining tokens in the processed

will be ”killed” immediately. In the other BPM lan-

guages the end element is used corresponding to the

FFN. There is no semantically equivalent to the AFN.

The problem regarding the FinalNodes in AD is

to decide how to transform the AFN. A FFN can be

transformed into an end element in either of the three

BPM languages. But if an AFN is transformed into

an End element in ADONIS



, BPMN or EPC the

semantics of the process model is different.

There are two supposable solutions: First an an-

notation of the end object in the target language if

an attribute for annotations is provided. Second the

creation of an additional Activity, Function or Task

which is called ”Terminate process” and which is in-

tegrated in front of the end object.

5 CONCLUSION

In this work there have be introduced transformation

problems observed at deﬁning model transformations

between four BPM languages. Although we only fo-

cused on the transformation of the basic control ﬂow

aspect of four BPM languages we encountered seven

non-trivial problems. As they are similar between dif-

ferent BPM languages we suggest to provide general

solutions for often arising problems. This will reduce

the effort of deﬁning BP model transformations and

ICEIS 2007 - International Conference on Enterprise Information Systems

150

the number of times that some of these wheels have

to be reinvented.

The transformation issues illustrated can be cate-

gorized into two different areas:

1. Transformation requirements which raise prob-

lems at the implementation level, they have

technical complexity, for example the Decision

(Un)Ambiguity and the Invisible Merger problem.

2. Transformation requirements which raise prob-

lems concerning their feasibility are situated at the

application level, they contain application com-

plexity, for example the Different Final Nodes and

the Join Speciﬁcation Problem.

The technical complexity affects model trans-

formation languages themselves. General transfor-

mation languages like ATL (B

ezivin et al., 2005),

QVT (OMG, a) or programming languages like Java

provide very comprehensive but unspeciﬁc possibili-

ties to deﬁne such transformations. Unspeciﬁc in the

sense that they provide a language to deﬁne ”every-

thing” but nothing in special.

The problems on the application level are of con-

ceptual nature and so they could hardly be solved

with technical inventions. But there can be provided

second level mechanisms like user interaction which

does not solve the problem, but supports the user

at transformation. The ”adversaries” on the techni-

cal level can be attacked, for example by providing

reusable general solutions for distinct problems in the

area of BP model transformation.

REFERENCES

ezivin, J., Jouault, F., and Touzet, D. (2005). An Introduc-

tion to the ATLAS Model Management Architecture.

Technical report, LINA.

BOC (2005). ADONIS 3.7 - User Manual III: ADONIS

Standard Modeling Method. BOC Ltd.

Czarnecki, K. and Helsen, S. (2006). Feature-based sur-

vey of model transformation approaches. IBM Sys-

tems Journal, pages 621–645.

Fatolahi, A. and Shams, F. (2006). An investigation into

applying uml to the zachman framework. Information

Systems Frontiers.

IBM. Business Process Execution Language for Web Ser-

vices version 1.1. IBM.

Keller, G., N

uttgens, M., and Scheer, A.-W. Semantische

Prozeßmodellierung auf der Grundlage ”Ereignisges-

teuerter Prozeßketten (EPK)”. Technical report, Insti-

tut f

ur Wirtschaftsinformatik Universit

at Saarbr

ucken.

List, B. and Korherr, B. (2006). An evaluation of conceptual

business process modelling languages. In SAC ’06:

Proceedings of the 2006 ACM symposium on Applied

computing.

Mendling, J., Neumann, G., and N

uttgens, M. Towards

Workﬂow Pattern Support of Event-Driven Process

Chains (EPC). In Proceedings of the 2nd GI Workshop

XML4BPM at the 11th GI Conference BTW 2005.

Mendling, J., Neumann, G., and N

uttgens, M. (2005). Yet

another event-driven process chain.

Mendling, J. and N

uttgens, M. (2003). EPC Modelling

based on Implicit Arc Types. In Proceedings of the

2nd International Conference on Information Systems

Technology and its Applications (ISTA).

Miller, G. A., Fellbaum, C., and Tengi, R. (1998). Wordnet:

A lexical database for the english language.

Murzek, M., Kramler, G., and Michlmayr, E. (2006). Struc-

tural patterns for the transformation of business pro-

cess models. EDOCW’06, pages 18–28.

OMG. MOF QVT Final Adopted Speciﬁcation. Object

Management Group.

OMG. UML 2.1 Superstructure Speciﬁcation. Object Man-

agement Group.

OMG (2006). Business Process Modeling Nota-

tion Speciﬁcation. Object Management Group,

http://www.bpmn.org/.

Russell, N., ter Hofstede, A. H. M., Edmond, D., and

van der Aalst, W. M. P. (2004). Workﬂow D ata Pat-

terns. Technical report, Queensland University of

Technology.

Russell, N., van der Aalst, W. M. P., ter Hofstede, A. H. M.,

and Edmond, D. (2005). Workﬂow resource patterns:

Identiﬁcation, representation and tool support. In Pro-

ceedings of the 17th Conference on Advanced Infor-

mation Systems Engineering (CAiSE05).

Russell, N., van der Aalst, W. M. P., ter Hofstede, A. H. M.,

and Wohed, P. (2006). On the suitability of uml 2.0

activity diagrams for business process modelling. In

APCCM ’06: Proceedings of the 3rd Asia-Paciﬁc con-

ference on Conceptual modelling.

orrle, H. (2006). A Comparison of (e)EPC and

UML 2 Activity Diagrams. In EPK 2006

Gesch

aftsprozessmanagement mit Ereignisges-

teuerten Prozessketten.

van der Aalst, W. M. P., ter Hofstede, A. H. M., Kie-

puszewski, B., and Barros, A. P. Workﬂow Patterns.

Distributed and Parallel Databases.

White, S. A. (2004). Process Modeling Notations and

Workﬂow Patterns. BPTrends.

Wohed, P., van der Aalst, W. M., Dumas, M., ter Hofstede,

A. H., and Russell, N. (2005). Pattern-based Analy-

sis of UML Activity Diagrams. In Proceedings of the

25th International Conference on Conceptual Model-

ing (ER’2005).

Wohed, P., van der Aalst, W. M., Dumas, M., ter Hofstede,

A. H., and Russell, N. (2006). On the Suitability of

BPMN for Business Process Modelling. In Proceed-

ings 4th International Conference on Business Pro-

cess Management.

Zachman, J. A. (1987). A framework for information sys-

tems architecture. IBM System Journal.

BUSINESS PROCESS MODEL TRANSFORMATION ISSUES - The Top 7 Adversaries Encountered at Defining Model

Transformations

151
