CONCEPTS OF MODEL DRIVEN SOFTWARE DEVELOPMENT IN

PRACTICE

Generic Model Representation and DSL Interpretation

Christian Erfurth, Wilhelm Rossak, Christian Schachtzabel

Department of Computer Science, Friedrich Schiller University Jena, Ernst Abbe Platz 2, Jena, Germany

Detlef Hornbostel, Steffen Skatulla

IBYKUS AG for Information Technology, Erfurt, Germany

Keywords:

Model Driven Software Development (MDSD), Domain Speciﬁc Language (DSL), DSL-Interpreter.

Abstract:

This paper discusses possibilities to realize constructs of a domain speciﬁc model (DSL) on the concrete

development and runtime platform Ibykus AP. Here software engineering takes advantage of a combination

of generative techniques and stable so-called DSL interpreters. These techniques to implement model driven

software development (MDSD) concepts can improve the ﬂexibility, the quality and the performance of the

development of large application systems. Presenting the DSL interpreter approach underlying techniques

of generic repository structures to hold the software model as well as runtime conﬁguration information are

discussed. The importance of an associated clear and well structured interface and tuning alternatives for the

repository are pointed out. Finally the paper concludes with an outlook to future research work.

1 INTRODUCTION

In the area of generative software development differ-

ent approaches have been arisen (Czarnecki, 2004).

Starting from the state of the art we will look at prac-

tical implementation. Some challenges occurring in

practice are picked up and discussed, like e. g. model

data storage.

1.1 State of the Art of Generative

Development

In software development generative techniques are an

efﬁcient way to produce software product artifacts.

Depending on the development methodology the us-

age of generators is very different. On the one hand

there are generators which work with abstract models

e. g. domain speciﬁc models. With these generators

the level of abstraction can be reduced stepwise by

transforming abstract input into less abstract output.

On the other hand generators are used to complete

implementation details such as standard class meth-

ods or documentation. Independent from the con-

crete purpose a software company aims to speed-up

software development, to strengthen quality, and to

achieve higher software reuse by applying generative

techniques.

In recent years different approaches for an im-

provement of software development processes and of

software quality have been deﬁned. For a success-

ful application of these approaches an automation of

steps is essential at least in parts. In doing so, imple-

mentation mistakes of well-understood issues can be

avoided. Furthermore it enables system developer to

model complex systems in an adequate way focusing

rather on application level domain objects and their

processing than on technical implementation aspects.

The implementation of thereby used model elements

is carried out by generators on basis of mapping rules.

The role of code generation is a fundamental one:

Model transformation, software reuse, development

and usage of domain speciﬁc languages, etc. are ap-

plication domains. For the state of the art common

approaches will be discussed in brief.

1.1.1 Domain Speciﬁc Languages

Domain Speciﬁc Languages (DSLs) (Fowler, 2005;

Mernik et al., 2005) are expressive languages which

are used in special domains to outline a problem

space. Requirements are described formally using

278

Erfurth C., Rossak W., Schachtzabel C., Hornbostel D. and Skatulla S. (2007).

CONCEPTS OF MODEL DRIVEN SOFTWARE DEVELOPMENT IN PRACTICE - Gener ic Model Representation and DSL Interpretation.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 278-286

DOI: 10.5220/0002384802780286

 SciTePress

conventional words of the client and with client’s se-

mantics. With DSLs domain experts are able to de-

scribe the problem space in their language. So the

necessary formalization can be done in cooperation

with IT-consultants using a suitable DSL. The model

of the software product contains apparently the con-

cepts of the client.

1.1.2 Model Driven Software Development

The fundamental idea of Model Driven Software De-

velopment (MDSD) (Mellor et al., 2003; Stahl and

olter, 2006) is to separate the model of an software

product from technical details. Two aspects play a key

role: The ﬁrst technological one is to support inter-

operability and portability in software systems to be

developed. Usually application software models are

more durable than the technologies used to implement

the system. While knowledge is formalized within the

model technical implementations can be exchanged.

DSLs are used in the formalization process. Once the

model is presenting the desired system it can be trans-

formed stepwise to an implementation system using

generative techniques. The second conceptual aspect

is to strengthen the use of abstraction in the process

of software engineering. The domain expert and the

application engineer are able to focus on the domain

logic while the developer of the modeling and genera-

tion environment can focus on details of the technical

implementation.

The concepts of MDSD are applied successfully

in the area of software architectures e. g. in the EJB

sector. A software architect describes the system us-

ing platform independent terms like component, in-

terface, etc. The meaning of these terms has to be

speciﬁed with a mapping to concepts of the target

platform. The speciﬁcation of mapping can be in-

tegrated into code generators or interpreters. So the

meaning of a term like component is known to a gen-

erator and can be transformed in concepts of the plat-

form. The generator produces the skeleton of the ap-

plication. Only those parts of the application have to

be hand coded which are hard to formalize platform

independently. A change of the platform results in a

change of the mapping rules. The application logic

within the model is not affected.

A special form of MDSD is the Model Driven

Architecture (MDA) which is a standard deﬁned by

OMG (OMG, 2006). It focuses on interoperability

and portability. MDA requires an MOF-conform de-

scription language, e. g. UML, in contrast to MDSD

which does not postulate a certain language. The

standard proposes different models (CIM - Compu-

tational Independent Model, PIM - Platform Indepen-

dent Model, PSM - Platform Speciﬁc Model) which

can be annotated for transformation steps.

1.1.3 Software Factories

The idea of Software Factories (Greenﬁeld et al.,

2004) or Generative Programming (Czarnecki and

Eisenecker, 2000) can be compared with automated

industrial production processes such as the assembly

process of a car: A software product is no longer

programmed but is assembled using standard compo-

nents. Therefore reuse is essential. The tool to as-

semble the software is programmed - the assembly

line. Software developer’s work is reduced to con-

ﬁguration mainly. Programming mistakes are nearly

impossible. Conﬁguration and reuse boost generative

techniques to create standard components.

1.2 State of the Art in Practice

Different approaches to improve the software devel-

opment process are in the focus of research and are

already used in practice in some areas. But the en-

tire potential is not used yet. For different abstraction

levels different models are used. This causes consis-

tency problems: client and software developer work

on different models. One model with different views

can avoid such problems.

Generators play an important role in MDSD.

Through generative techniques large parts of software

artifacts are produced automatically. Changes are

mapped to application code by transforming models

and applying generators. But up to now interpreters

are not in the focus of MDSD although the beneﬁt can

be high and especially the ﬂexibility can be pushed.

Applications of a larger size may demand a cer-

tain level of stability and ﬂexibility. Stable data struc-

tures for (changing) application data and a ﬁxed in-

frastructure which allows ﬂexible changes on appli-

cation level could be essential for successful usage at

customer’s site. A combination of generative tech-

niques and stable interpreters are used by Ibykus AP

as described in the next section. Concepts of MDSD

can be found in the software of this company. Fur-

thermore the following section of the paper describes

concepts of MDSD which are already used in prac-

tice.

CONCEPTS OF MODEL DRIVEN SOFTWARE DEVELOPMENT IN PRACTICE - Generic Model Representation and

DSL Interpretation

279

2 APPLYING MDSD IN

PRACTICE

2.1 Ibykus AP Platform

One example for such a practical approach is the gen-

erative development and interpretative runtime envi-

ronment Ibykus AP (Ibykus, 2007). It is focused

to build large application systems in the domain of

business, administration and governmental processes.

Ibykus AP has been used to successfully develop a

number of complex software systems during the last

7 years e. g.

• systems for the management of agricultural

promotion fonds of the European Union, the

controlling of ﬁnancial resources and other e-

governmental administration processes in several

German federal states,

• applications to support business processes like

claims and contract handling, project and inno-

vation management as well as other industrial

projects.

The generative development process of Ibykus AP

is based on a repository to hold a comprehensive

model of the software application to be built. The

modeling is based on concepts like domain speciﬁc

application classes like Process, Process Participant,

Data Object and others. These domain classes can

be interrelated and be equipped with data attributes,

processing algorithms, workﬂows and more domain

speciﬁc modeling features. Practical experiences in

modeling application logic prove the inadequateness

of UML based DSLs, at least in the domain of admin-

istrative and business process management. Profes-

sionals in this area regularly do not accept and com-

prehend UML based DSLs as means of expression for

analysis and design of application logic: misunder-

standings and mistakes did occur. Therefore at Ibykus

an informal notation with a ﬁxed set of simple graph-

ical elements to represent the mentioned conceptual

items is used. It has to be emphasized, that the mod-

eling can be completely focused on to the application

domain level. No technical aspects like data storage,

transaction and error handling, user interface events,

recording of histories need to be modeled explicitly

then. These are all addressed by the software genera-

tion process and the interpretative runtime component

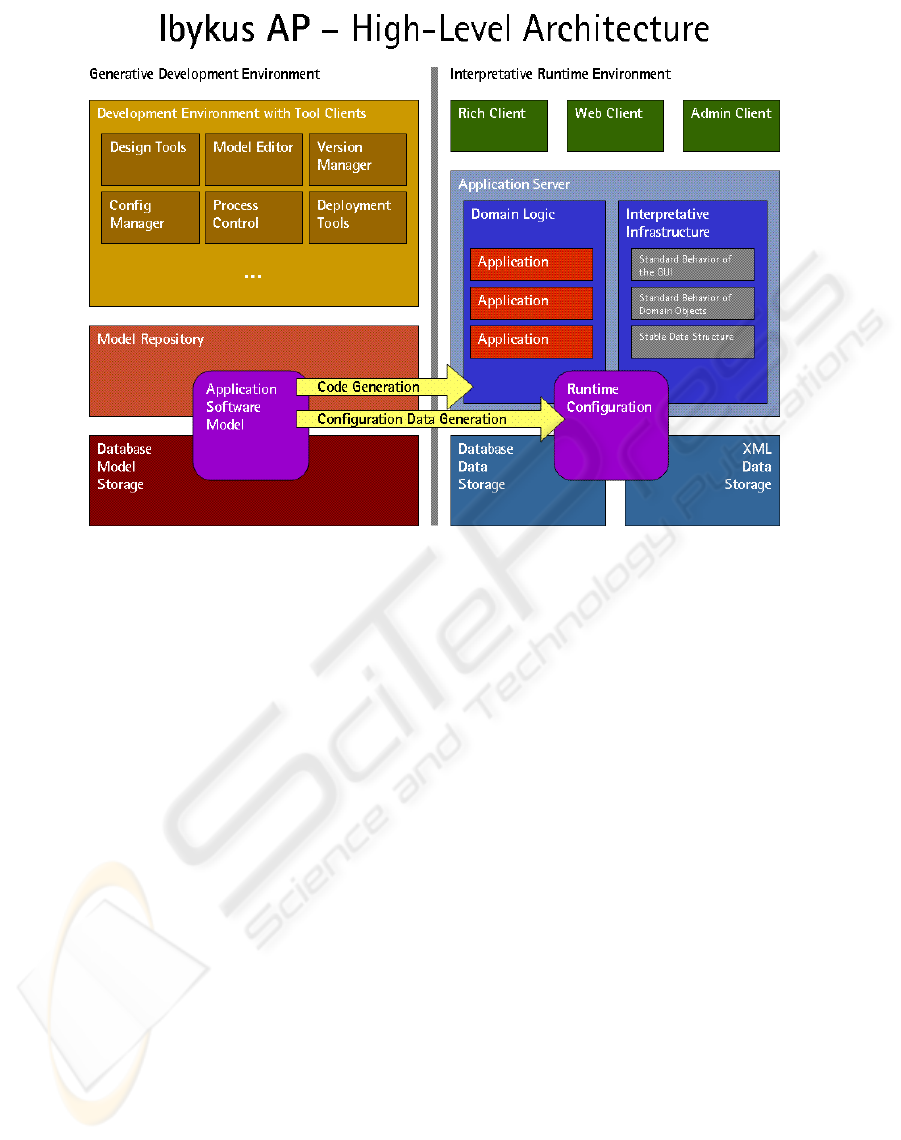

of Ibykus AP as shown in ﬁgure 1.

Based on the software model on the one hand

the application speciﬁc processing logic and the sur-

rounding technical support code are generated. On the

other hand runtime conﬁguration structures are popu-

lated to implement the structural aspects of the target

application. This conﬁguration is interpreted by the

Ibykus AP runtime system to establish the infrastruc-

ture needed to run the built application. A stable stor-

age structure is dynamically conﬁgured to keep the

needed application data and likewise the GUI is con-

ﬁgured.

2.2 Combining Code Generation and

DSL Interpretation

DSLs are an expressive way to formally de-

scribe stakeholder’s requirements and the resulting

application-level software design in domain speciﬁc

terms. The process of transforming these DSL models

into platform speciﬁc models is often done with help

of generative techniques. A stepwise transformation

(model-model-transformation) can also be applied as

proposed by MDA. Code generation is only one pos-

sibility to extract (parts of) the ﬁnal application.

A different option to DSL-based code generators

would be DSL interpreters. Such interpreters work on

the runtime level of a system. DSL terms will be read

by an interpreter and translated into operations on the

targeted platform. At runtime a DSL interpreter de-

cides how to map a speciﬁc DSL term onto the plat-

form. For instance the DSL term booking has a ﬁeld

amount. If a user creates a new booking the ﬁeld (text

control) amount is displayed as a part of the form on

the screen by the DSL interpreter. After submitting

this form the interpreter inserts a corresponding entry

into the database.

But, do we need to decide between an interpre-

tative or generative approach? Generators and in-

terpreters do not rule out each other. Far from it!

The construction of software could beneﬁt of a mix-

ture of these approaches much more. En route from

High-Level DSL terms to computer platforms a ﬁrst

generative step results in intermediate language con-

structs. These constructs are interpreted at run time by

a generic interpreter. Thereby, the intermediate lan-

guage could be a script-based programming language

or a Low-Level DSL or even entries in some control

structures.

In both approaches modeling is done application-

domain- and customer-oriented. Fundamental con-

cepts of MDSD/MDA have to be kept in mind. In

the end DSL interpreters and DSL generators are a

different technical implementation of the same con-

cept. A DSL interpreter works on the logical level

of a DSL. The main functionality is part of the run-

time level while in case of generative programming

the knowledge of the architecture is within genera-

tors.

One example for a concrete usage of the concept

ICEIS 2007 - International Conference on Enterprise Information Systems

280

Figure 1: Architecture and main components of Ibykus AP.

of the combination of generative and interpretative

techniques is Ibykus AP. As ﬁgure 1 shows, the Appli-

cation Software Model as a High-Level DSL is built

up in the Generative Development Environment. Be-

sides the generation of code parts the model elements

are automatically transformed into runtime control in-

formation to build up the executable software system.

This control information in turn is interpreted by the

Runtime Environment to display, process and store

application level objects like booking.

The approach of Ibykus AP is to improve the ﬂex-

ibility of application software and its engineering by

using MDSD. This is illustrated in ﬁgures 2 and 3.

Figure 2 presents the model of a reference between

two application domain classes: as a booking has got

an associated payee a reference form BUC to ZPA is

deﬁned. And ﬁgure 3 shows the resulting GUI inter-

pretation of the runtime conﬁguration generated from

the model: in the booking form the reference is rep-

resented by two data ﬁelds with some identifying and

describing information for the referenced payee and

by one button to navigate to the payee form and to al-

ter the associated payee. In fact the display of these

GUI elements is an interpretation of runtime conﬁg-

uration entries, that can be altered at runtime. In ad-

dition to the modeling and generation of the runtime

conﬁguration it is possible to create, alter and remove

GUI elements in an already running application. Of

course this can be guarded by an appropriate user, role

and permission management.

2.2.1 Generic Concept

A model representation is needed in both cases: For

interpreters as well as for generators. Changes in the

model have no effect on the runtime level i. e. an

interpreter remains unchanged and has to be generic

therefore. Furthermore a generic repository is neces-

sary which is able to store various models. The meta

model of such a repository is in a schema-instance-

relation with the concrete model. But how can we

determine this meta model? One way is to store the

meta model and the model within the same reposi-

tory. With this generalization, different DSLs can be

stored within the generic repository. The meta model

is common for the repository and the models of the in-

terpreter and generator. An interpreter is also able to

acquire information on used modeling language. So

a DSL becomes ﬂexible and can be extended without

changing the interpreter. The generic structure of the

data model used for the (run-time) repository can be

ﬁxed. This is an advantage for interpreters which nor-

mally may not change over lifetime.

How can we achieve that model, conﬁguration and

CONCEPTS OF MODEL DRIVEN SOFTWARE DEVELOPMENT IN PRACTICE - Generic Model Representation and

DSL Interpretation

281

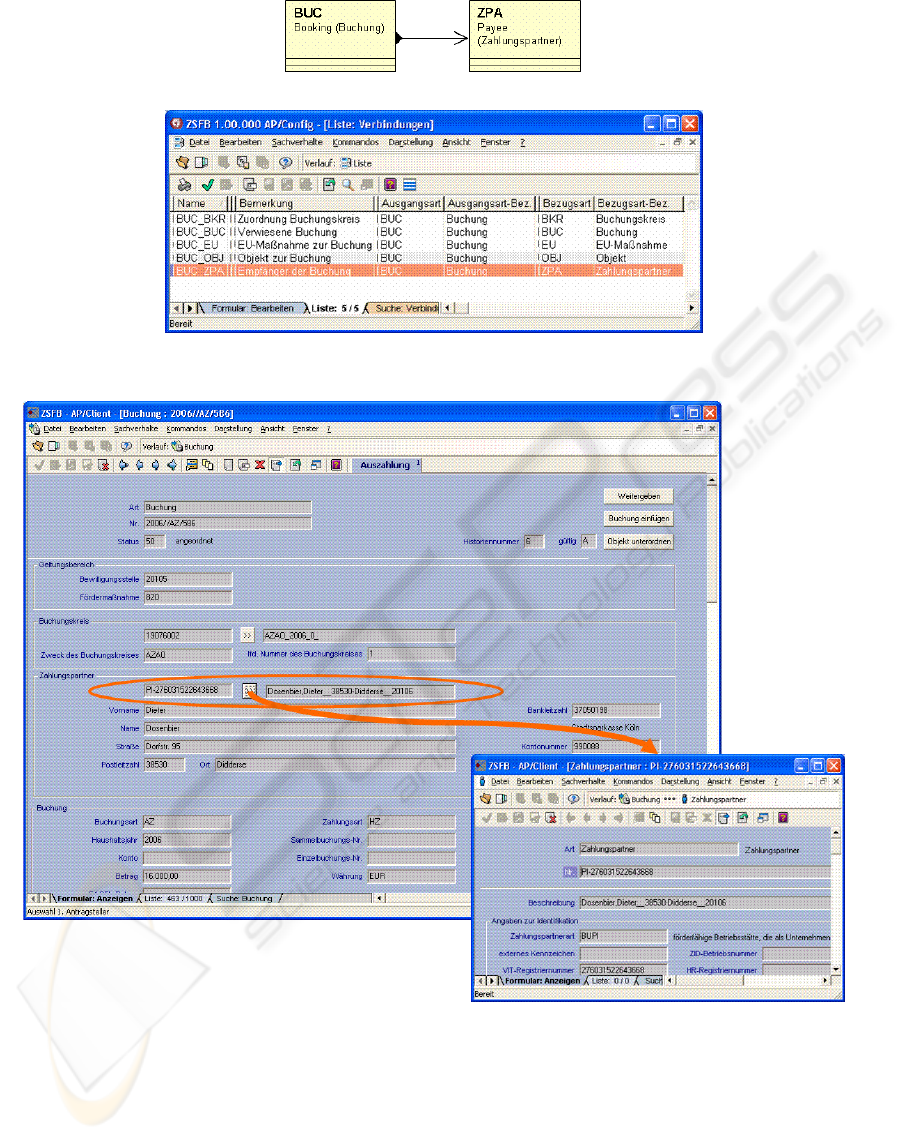

Figure 2: New model entry: Reference from Booking to Payee.

Figure 3: Resulting GUI elements for data and navigation.

application data can be stored generically in the same

way without changing repository schemes? Though

UML representations like XMI, MOF-based main

memory object representations and model transfor-

mation as well as code generation techniques are sup-

ported by a great variety of utility software and frame-

works Ibykus AP uses a model representation in a

relational database. The reasons are the following:

First, 7-10 years ago when Ibykus AP emerged, none

of these concepts and tools existed. Secondly, the

model querying and retrieval capabilities of a rela-

tional database are superior and faster by far, what is

essential especially for the online interpretation.

How generic shall such a database representation

ICEIS 2007 - International Conference on Enterprise Information Systems

282

be? Looking at most graphical modeling languages

a Node-Arc-Property-Model (NAP model, see ﬁg-

ure 4) is sufﬁcient to map any language constructs.

All DSL modeling elements are represented as in-

stances of Node and their interrelations and depen-

dencies as instances of Arc. Both, Nodes as well as

Arcs are attributable by instances of Property. This

model representation – mathematically denoted by

annotated graphs – is suitable for any DSL and mod-

eling constructs. In consequence the NAP model is

independent from a speciﬁc application which is es-

sential for a generic interpreter. A similar approach

is the GOPRR-Model (Graph, Object, Property, Rela-

tionship, and Role (Kelly, 1997)) used in MetaEdit+

from MetaCase (MetaCase, 2007)

Arc

+name : String

Node

+name : String

Property

+name : String

+value : String

+incoming

*+to

+outgoing

+from

0..1

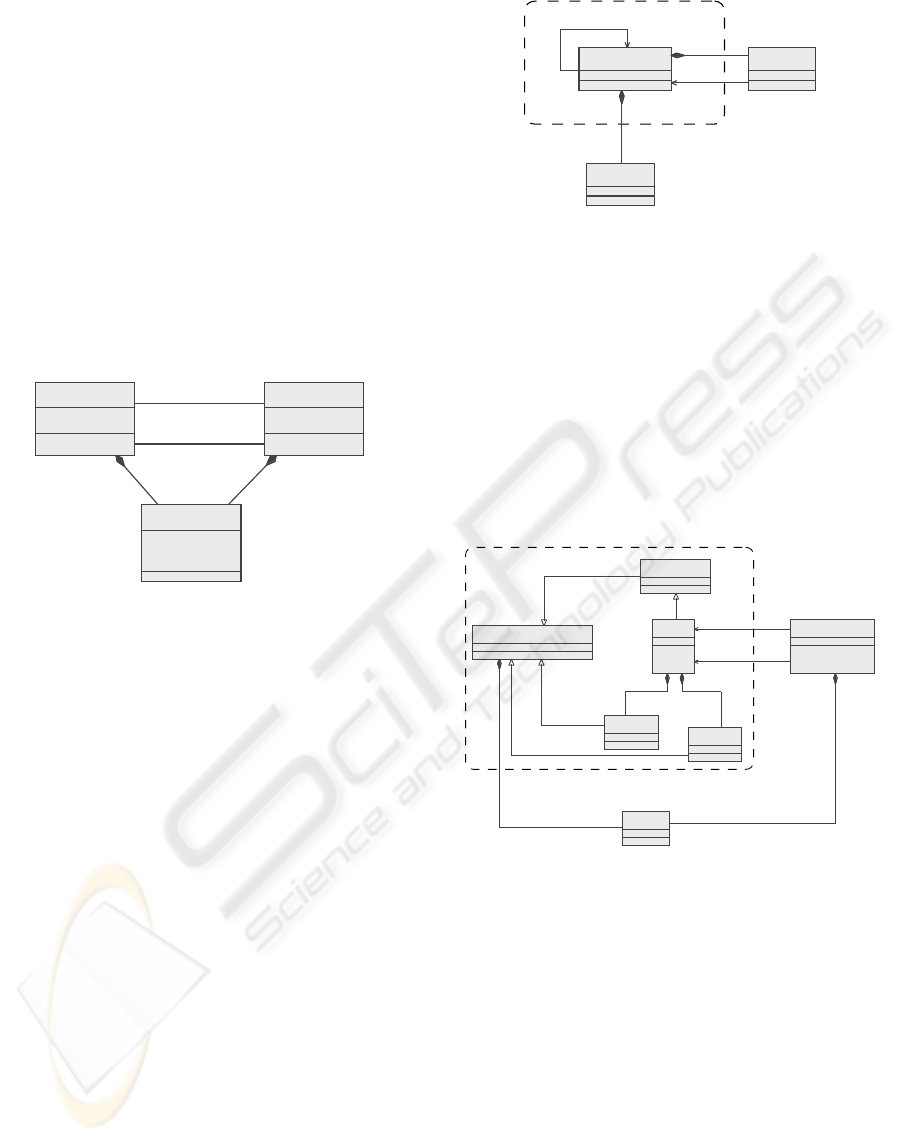

Figure 4: NAP structure.

In Ibykus AP an application data storage model

was developed on the basis of such a generic model

as shown in ﬁgure 5. All domain objects are stored

as instances (data records) of domain class. It em-

braces an optional parent reference as well as a num-

ber of ﬁxed parameters like the internal numerical id,

an additional domain level identiﬁcation called ident,

a textual object description desc, the object’s state and

other parameters that are mandatory for all objects.

More freely deﬁnable application speciﬁc parameters

and relations to other domain objects are represented

as instances of parameter and reference. With respect

to this data model in practice it turned out that data

migration due to new software versions is not neces-

sary. This is a huge beneﬁt in areas with regularly

changing application demands like the permanently

adapted agricultural promotion programs of the EU

and others.

Regarding the structures to hold the software

model repository and the runtime conﬁguration it is

important to mention that both adhere to the same

generic representation concept even though they are

usually stored in two different system environments:

the ﬁrst in the generative development environment

and the second in the interpretative runtime environ-

ment.

Domain Class

Parameter

Reference

Node

+to

+Parent Class

0..1

Figure 5: Application data storage model (simpliﬁed).

In the model repository of Ibykus AP (ﬁgure 6) all

domain classes are described as instances of type. A

type can have freely modelable data parameters (do-

main class attributes) and commands (domain meth-

ods). Types can be interrelated with a number of de-

ﬁnable relations. Additionally each domain type is

derived from a certain predeﬁned base type which

provides a set of basic domain speciﬁc attributes, pro-

cessing logic and other properties. Details of all these

modeling elements are to be described by associated

attributes.

AttributeableElement

Relation

Base Type

Type

Command

Parameter

Attribute

Node

1..*

+from

+to

1..*

Figure 6: Storage structure of software model repository

(simpliﬁed).

The AP runtime structure (ﬁgure 7) is optimized

for fast interpretation as discussed later on. It stores

the information in terms of a hierarchy of conﬁgura-

tion components, conﬁguration elements and conﬁg-

uration parts which are ﬂeshed out by attributes and

interconnected by references.

Of course modeling is not done directly with NAP

or its derived model representation structure. In the

upper part of ﬁgure 2 a sample of the GUI used for

DSL modeling in Ibykus AP is shown. It allows cre-

ating all needed application level object classes and

the relations between them, to deﬁne the required pro-

cessing commands and procedures as well as to spec-

ify all other domain-level aspects of the resulting ap-

plication. To build the ﬁnal application software the

CONCEPTS OF MODEL DRIVEN SOFTWARE DEVELOPMENT IN PRACTICE - Generic Model Representation and

DSL Interpretation

283

ReferencingElement

Component

Attribute

Element

Part

Node

+Reference

0..1

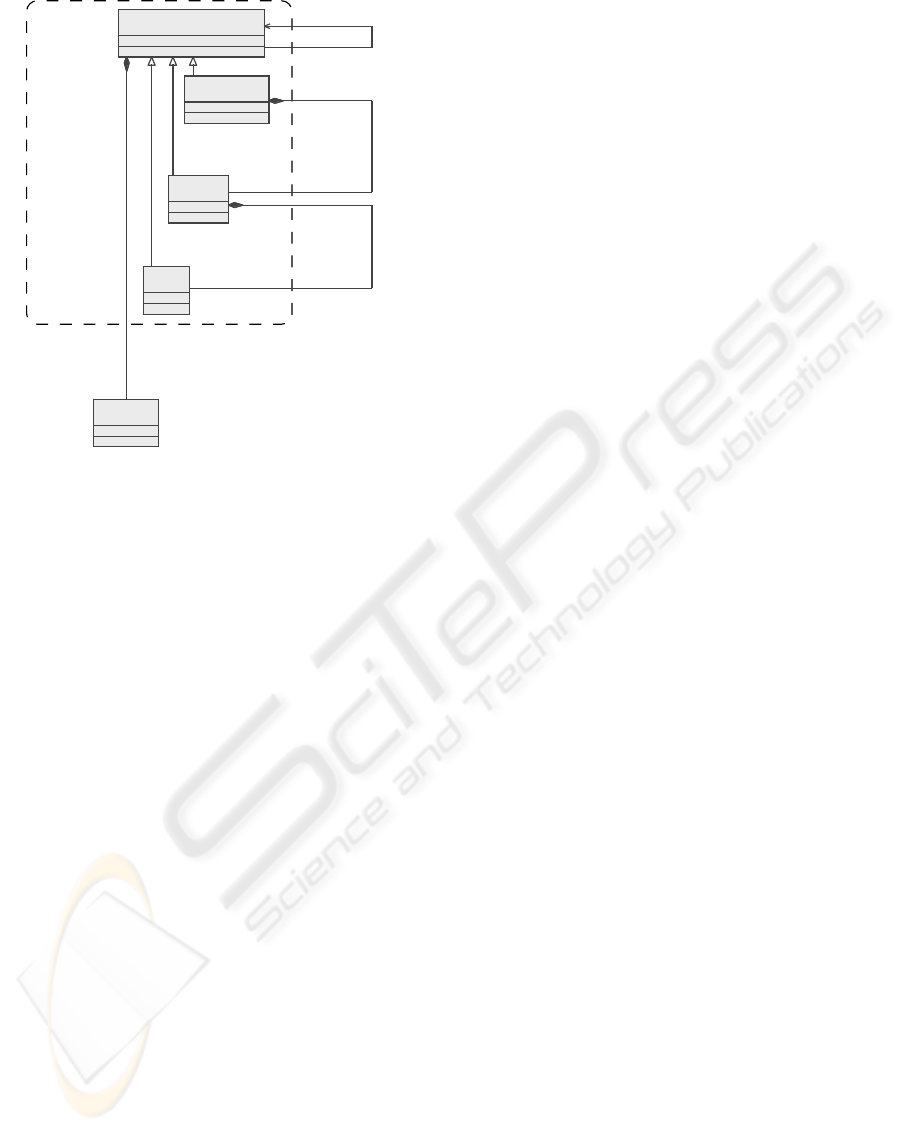

Figure 7: Storage structure of runtime conﬁguration (sim-

pliﬁed).

DSL elements are associated with fragments in an

overall generation system. In this process each mod-

eled item is transformed into application code or con-

ﬁguration entries in the generic runtime conﬁguration

or both.

2.2.2 A Boost of Flexibility

With DSL interpreters modeling and conﬁguration is

very ﬂexible and can be done even at runtime. While

the technical base (architecture) is ﬁxed, functional

changes can be made by developers or even by cus-

tomers themselves.

Using AP, it is possible to model the applica-

tion roughly and to install the platform at customer’s

site. Changes and reﬁnements are made together with

stakeholders. Results of non-structural changes like

the addition of application class attributes for instance

can be made effective directly. Structural changes

like the deﬁnition of new application classes require

a repetition of the automatic generation process. For

example, in AP a new relation between two applica-

tion classes can be added within minutes (GUI, nav-

igation, application logic and database storage – see

ﬁgure 2) at customer’s site. The changed parts of the

customized model can be synchronized into the repos-

itory at developer’s site later if reasonable. Using this

kind of prototyping the period of time to understand

complex requirements is reduced signiﬁcantly. These

short feedback cycles enable agile software develop-

ment.

2.2.3 Generative Vs. Interpretative Approach

Independent from the question which approach is ap-

plicable, the explicit preparation of domain knowl-

edge is very important. This knowledge can be inte-

grated in generators or interpreters. Especially excep-

tion handling and the missing compiler step raise the

effort to implement an interpreter. But the additional

work amortizes very fast if the gained ﬂexibility is

necessary and used.

• Pro generator

– fast program execution

– less effort to program than interpreters

– easier to debug

• Pro interpreter

– high ﬂexibility

– deployment of new application versions is eas-

ier (e. g. no client update)

– old and new software version are executable at

the same time

– low probability for data migration

– migration to new versions affect only func-

tional and no technical level

2.3 Runtime Tuning

In practice often special runtime requirements need to

comply. Due to the generic nature of the NAP model

the real storage model has to be adapted. Thereby it

is important to keep concepts of this model in mind.

With the following performance optimization the log-

ical model and their interfaces remain unchanged.

Tuning is a technical activity to improve runtime

performance. Tuning on repository level does not re-

quires any changes of DSL interpreters. It has also no

effect on modeler. One possible tuning activity is a

breakdown of data base normalizations.

For instance in the application data store (ﬁgure 5)

the heavily used relation between child and parent

data records are represented directly as a reference.

And all other references are aggregated as contained

elements of the referring data record. By separat-

ing the relations into different storage alternatives the

storage structure is optimized below its logical inter-

face in order to speedup storage and retrieval opera-

tions.

Another tuning method is applied to the runtime

conﬁguration data structure (ﬁgure 7): to increase the

retrieval speed for interpretation the conﬁguration el-

ements (nodes in NAP) are classiﬁed along their nest-

ing hierarchy. Program components are master ele-

ments without a parent. They contain elements as ma-

jor conﬁguration items which in turn contain parts as

ICEIS 2007 - International Conference on Enterprise Information Systems

284

minor items. All of them are characterized in detail

by attributes and can have references to other conﬁg-

uration items.

So in practice all three structures, the software

model repository, the runtime conﬁguration and the

application data store, are optimized in their physical

storage table layout to support their respective pro-

cessing demands: modeling and generation on the one

side and runtime interpretation and data processing on

the other.

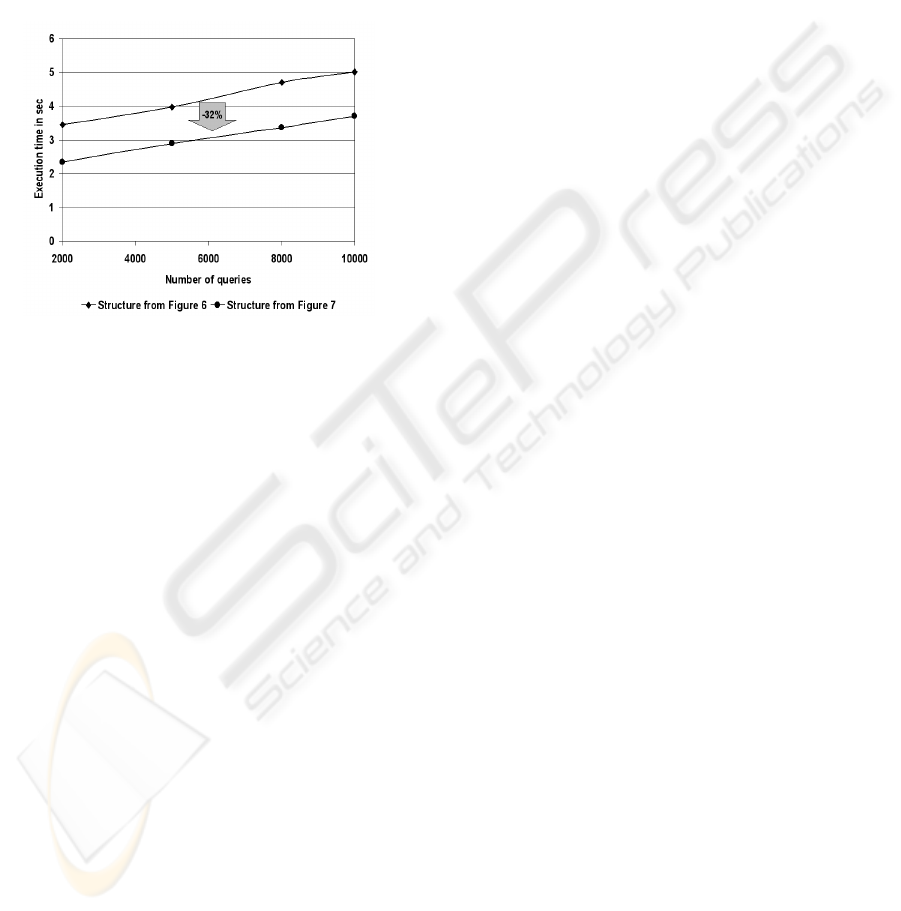

Figure 8: Retrieval performance utilizing different storage

structures.

Figure 8 points out the potential of storage struc-

ture optimization by comparing the storage structures

shown in ﬁgure 6 and 7. Slightly exceeding 80,000

model elements in hierarchies of approximately 5 lev-

els and a fan-out of about 4 on each level were stored

using both structures. A number of queries were pro-

cessed retrieving model elements and their parent el-

ements up to the root. The recorded query execution

times indicate a signiﬁcant reduction by 32% using

the optimized structure.

Additionally these structures can be partitioned

into data sets that are restricted to their respective de-

mand. For instance the GUI interpreter does not need

any information about data storage conﬁguration. So

a repository partition can be used that is restricted to

hold only the GUI conﬁguration. This concept could

be extended in a way that a complete physical reposi-

tory is not existent at all. But nevertheless, this is only

a technical optimization issue, the repository interface

is not affected at all and logically the repository as a

whole is at hand for each component.

Due to historical reasons, tuning possibilities in

AP are not covered behind interfaces completely. De-

veloper and modeler have the possibility to use the

tuned structures instead of the interface, but practice

suggests that the barrier should be very high.

3 CONCLUSION AND FUTURE

CHALLENGES

This paper discusses selected concepts of MDSD

which are applied in practice. Experiences with the

Ibykus AP platform show beneﬁts of using such con-

cepts.

Especially, using the model driven generative soft-

ware development techniques with Ibykus AP, we ex-

perienced a boost of overall project performance of

20%-50%. Though it is rather difﬁcult to number

the increase in efﬁciency, the records of more than

20 major projects in the last 7 years show this sig-

niﬁcant reduction of project duration or team size

or increase of accomplishable project size or com-

plexity. One example shows the typical performance

boost quite well: A legacy accounting solution of

the German federal state of Niedersachsen process-

ing about 1.2 millions booking records per year with

about 15 sub-records each and an overall transaction

volume of about 800 million Euros was replaced with

a new solution. The legacy application had been de-

veloped over the last 10 years with 5-10 team mem-

bers. In contrast the replacement project required 7

team members, 11 months and surpassed the func-

tionality.

Furtheron it was pointed out that a generic data

structure is a good technological base to develop a

model repository to hold different aspects e. g. the

software model and the runtime conﬁguration. On top

of that low-level format a domain speciﬁc language

can be used to model an application. A high-level

DSL is independent from technical realizations.

A generic data structure is a good base to develop

one model repository to hold different views of the

model e. g. the software model and the runtime con-

ﬁguration. On top of that low-level format a domain

speciﬁc language can be used to model an applica-

tion. A high-level DSL is independent from further

technical realizations.

In an application a generic structure is also useful.

For performance reasons the generic structure has to

be adapted to special needs. One aspect can be us-

age frequencies of special entities or relations. Due to

such a stable data structure software version updates

do not affect customer’s data. Compatibility of data is

ensured completely.

Mostly MDSD is associated with generative ap-

proaches to transform models or to produce software

artifacts. But a combination of generative and inter-

pretative techniques leads to much more ﬂexibility.

Changes within an application will be done on func-

tional level. ”On-line” modiﬁcations are possible and

can be done very fast while the technical base (inter-

CONCEPTS OF MODEL DRIVEN SOFTWARE DEVELOPMENT IN PRACTICE - Generic Model Representation and

DSL Interpretation

285

preter) remains unchanged.

Of course there are mismatches between concepts

of MDSD and practice. Regarding PSMs deﬁned

in the MDA approach no explicit platform speciﬁc

model is available. But this model is implicit present

– in form of platform speciﬁc interpreters. The map-

ping from PIM to PSMs is integrated there.

Through applying MDSD in practice agile soft-

ware development can be implemented within an en-

terprise. But there are issues which need to be ob-

served in future. For instance incremental changes in

a model should not force a complete generation pro-

cess of all elements. Such a process consumes a lot

of time in large applications. In practice incremen-

tal generation of software artifacts are important for

the creation and deployment of software updates. Es-

pecially in e-governmental areas, changing require-

ments have to be processed and delivered very fast. A

future task will be to ﬁnd a method to describe depen-

dencies between model elements on platform level.

Another question is how to handle different ver-

sions of a model. Often an application is delivered to

different customers. Main parts of the model are iden-

tical but some parts are customized. It is desirable to

have no copies of common parts because it can cause

inconsistencies and additional management work.

REFERENCES

Czarnecki, K. (2004). Overview of generative software de-

velopment. In Ban

atre, J.-P., Fradet, P., Giavitto, J.-L.,

and Michel, O., editors, UPP, volume 3566 of Lecture

Notes in Computer Science, pages 326–341. Springer.

Czarnecki, K. and Eisenecker, U. (2000). Generative

Programming – Methods, Tools, and Applications.

Addison-Wesley Professional, ﬁrst edition.

Fowler, M. (2005). Language Workbenches: The

Killer-App for Domain Speciﬁc Languages?

http://www.martinfowler.com/articles/

languageWorkbench.html.

Greenﬁeld, J., Short, K., Cook, S., and Kent, S. (2004).

Software Factories: Assembling Applications with

Patterns, Models, Frameworks, and Tools. John Wiley

and Sons Ltd, ﬁrst edition.

Ibykus (2007). Ibykus AP Version 2.12. http://www.

ibykus.com/.

Kelly, S. (1997). Towards a Comprehensive MetaCASE

and CAME Environment: Conceptual, Architectural,

Functional and Usability Advances in MetaEdit+.

PhD thesis, Jyv

askyl

a University.

Mellor, S. J., Clark, A. N., and Futagami, T. (2003).

Guest editors’ introduction: Model-driven develop-

ment. IEEE Softw., 20(5):14–18.

Mernik, M., Heering, J., and Sloane, A. M. (2005). When

and how to develop domain-speciﬁc languages. ACM

Comput. Surv., 37(4):316–344.

MetaCase (2007). MetaCase Homepage. http://www.

metacase.com/.

OMG (2006). MDA – Model Driven Architecture. http:

//www.omg.org/mda/.

Stahl, T. and V

olter, M. (2006). Model-Driven Software

Development. John Wiley and Sons Ltd, ﬁrst edition.

ICEIS 2007 - International Conference on Enterprise Information Systems

286
