STAH-TREE

Hybrid Index for Spatio Temporal Aggregation

Marcin Gorawski and Michał Faruga

Institute of Computer Science, Silesian University of Technology, Akademicka 16, 44-100 Gliwice, Poland

Keywords: Spatial databases, temporal databases, aggregation index, multiversion access methods.

Abstract: This paper presents a new index that stores spatiotemporal data and provides efficient algorithms for

processing range and time aggregation queries where results are precise values not an approximation. In

addition, this technology allows to reach detailed information when they are required. Spatiotemporal data

are defined as static spatial objects with non spatial attributes changing in time. Range aggregation query

computes aggregation over set of spatial objects that fall into query window. Its temporal extension allows

to define additional time constraints. Index name (i.e. STAH-tree) is English abbreviation and can be

extended as Spatio-Temporal Aggregation Hybrid Tree. STAH-tree is based on two well known indexing

techniques. R– and aR–tree for storing spatial data and MVB-tree for storing non-spatial attributes values.

These techniques were extended with new functionality and adopted to work together. Cost model for node

accesses was also developed.

1 INTRODUCTION

Nowadays, standard relational database systems are

not able to assure efficient processing for detailed

and aggregate queries over multidimensional spatial

data that have some non-spatial attributes changing

over time (‘spatio-temporal data’). There are many

reasons for that, naming the most important: (i)

multicolumn key for single object, (ii) spatial

relations are hard to model, (iii) large volume of

spatial data implies enormous number of temporal

data. Efficient handling of such data becomes more

and more urgent, as importance of telemetric

solutions and user requirements (concurrent users,

higher sampling rate, higher number of meters and

more demanding time constraints) grow rapidly.

Literature presents a number of dedicated solutions

for spatial data processing (R-trees, quad-trees,

…)(Guttman, 1984), (Beckerman, 1990),

(Manolopoulos, 2003), (Kamel, 1994) temporal data

processing (multiversion and overlapping

techniques) (Becker, 1996), (Bercken, 1996), (Tao,

2002) spatial aggregates processing (aR-tree, aP-

tree) (Zhang, 2002), (Tao, 2004), moving spatial

objects (TPR*-tree) (Tao, 2003) and finally

temporal aggregate processing (Zhang, 2001). But

no solution addressesing detailed and aggregate

queries for spatio-temporal data was found.

This paper presents new hybrid index based on

cooperating spatial (aR-tree) and temporal (MVB-

tree) indexes. These technologies were bounded

together and modified in order to provide requested

system properties.

2 MOTIVATING EXAMPLE

Last years were time of rapid growth of database

solutions especially based on relational model.

Despite many advantages this model is not

applicable for some solutions. Telemetric system is

one of those areas. Telemetric data are

asynchronously gathered from meters (gas, water…)

that have spatial location and unique identifier.

Measurement is characterized by a timestamp and a

meter identifier. Relational model for these data is

very easy to create. But continuous updates and

large volume of data cause query response time not

acceptable. To illustrate this problem lets assume

50000 spatial objects and data acquisition performed

every hour. The volume of temporal data is reaching

36 millions after a month (0,5 billion after a year)

Efficient searching, aggregating or processing

becomes impossible even with usage of large

computer systems. Such telemetric system can be

used in two modes. Normal user requires access to a

detailed (history of changes during last month) and

113

Gorawski M. and Faruga M. (2007).

STAH-TREE - Hybrid Index for Spatio Temporal Aggregation.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - DISI, pages 113-118

DOI: 10.5220/0002386601130118

 SciTePress

aggregate (average energy consumption within a

year) data about his energy consumption. Time

constraints are not too high. On the other hand,

producer of specific medium (gas, water, etc.)

requires aggregate information about meters that are

located in a specific region in various time scales

(year summary, predicting future usage). Answer

time should be known in advance and should be

short.

3 MODIFIED AR-TREE

AR-tree is one of two applied indexes. R-tree family

indexes are widely recognized and described in

details in literature (Manolopoulos, 2003),

(Beckerman, 1990), (Guttman, 1984), (Kamel,

1993), (Kamel, 1994). This paper put emphasis on

modifications that were introduced to base the

structure and algorithms.

Described system uses static R-trees (spatial data

are known in advance, the algorithm builds tree from

bottom to top. Such indexes are characterized by

maximum node capacity usage. AR-Hilbert Tree

(implementation based on (Kamel, 1994) and

KNNR-tree (developed in previous research) is used.

These trees were extended with aggregate info

(stored in each node) about number of spatial objects

contained in each sub tree (count aggregate). Every

node is identified with a global unique identifier.

3.1 Specific Queries

This paragraph presents types of spatial queries that

are used in the implementation. In all the cases

query area is determined by a rectangle Q Range

Query (RQ). This query is identical as in case of

standard R-tree. It retrieves all objects that intersects

Q Aggregate Query (AQ). This query was inspired

by the range aggregate query. Query result contains

aggregate value and identifiers of objects, leaves and

nodes that are contained in Q. In other words, query

returns objects that are contained in query range

despite of their level. Update Query (UQ). Two

input parameters (identifier and MBR) are used to

find specific object. MBR is used to reach leaf level

and identifier is used for filtering. List of identifiers

located on search path from root to leaf is returned.

This list is used to update the temporal index.

4 MODIFIED MVB-TREE

STAH-tree uses MVB-tree that was presented in

(Becker, 1996), (Tao, 2002). This paragraph

describes modifications required for STAH-tree.

Single temporal data entry is described with

unique identifier (ID) and temporal validity range

). It presents measurement made in T

for

object identified by ID. Value is valid till T

Base MVB-tree version was designated for

timestamp queries for single dimensional data and

reaches asymptotically optimal node access cost.

STAH-tree introduces modifications to achieve high

efficiency for other query types.

4.1 Structural Modifications

This paper presents two structural modifications of

the MVB-tree structure. There is no limitation to use

them at the same time. Both require additional

storage space and both accelerate query processing.

4.1.1 Reverse Pointers

Reverse pointers is a technique for efficient time

range query processing. Every entry is connected

with previous measurement with a pointer – similar

to backward-links presented in (Bercken, 1996).

Pointer is created when new measurement is

added into the MVB-tree as an insertion procedure

locates previous version by default. With the

pointers it is possible to retrieve all measurements

for single object. Time range query finds object

version (in T

) and follows reverse pointers till value

for T

is found. This approach is optimal in terms of

node accesses as it visits leaves containing

measurements changes and traverse tree height only

once.

4.1.2 Temporal Aggregates

There is a number of applications for which access

to a detailed data is not important or is forbidden and

emphasis is put on fast retrieval of aggregates and

summaries. STAH-tree is designed to answer

aggregate queries in efficient manner, but it also

allows to reach detailed data as a standard R-tree and

MVB-tree does. It also answers detailed time range

queries when reverse pointers are used.

Time range aggregate query summarizes or

aggregates values for object with identifier equal to

ID in given time range (T

). Each entry in

modified MVB-tree contains data that aggregates

whole history of a specified object. Thanks to that it

is possible to answer aggregate query with two

timestamp queries and some additional computation

ICEIS 2007 - International Conference on Enterprise Information Systems

114

of final results based on the retrieved values. First

query is executed for T

and the second for T

. It is

worth mentioning that MVB-tree is asymptotically

optimal for this type of queries (Becker , 1996).

This technique was inspired by aP-tree (Tao,

2004). It gathers aggregates during measurement

update. Beside value update (detailed data) system

stores aggregates selected by user (sum, average

etc.). These additional data increases space

consumption and update time (by constant factor)

but decreases answer time as aggregate computation

is done once at the load time.

4.2 Group Processing Algorithm

Group processing algorithm uses previously

described modified MVB-tree. It is based on an

assumption that I/O operations dominate CPU cost.

Multiple objects are queried in a single operation (at

a single timestamp). It calls only these nodes that

would be accessed by any of single queries. Many

nodes that would be accessed multiple times are

loaded only once. Further enhancement includes key

sorting. This solution increases CPU cost and

response time for single query. Amortized cost is

many times lower but there is upper boundary for

number of objects in query CPU cost becomes

dominant.

5 STAH-TREE

This paragraph presents basic version of STAH-tree

that does not use additional accelerating techniques.

It makes the idea easier to understand. These

extensions will be provided in the next paragraphs.

5.1 Structure

STAH-tree consists of two indexes. The first is

responsible for spatial data (R-tree, without

aggregates) It provides identifiers of objects that

fulfill specific spatial conditions. The second is a

modified version of MVB-tree (described above).

Spatial objects generate value updates. These

measurements are stored in MVB-tree with

aggregates and reverse pointers.

5.2 Queries

There are several types of queries that may be posed

to STAH-tree. STAH-tree supports original R- and

MVB- tree queries as efficiently as original indexes.

It allows also to pose new types of queries on both

indexes (detailed time range query). The most

important is the ability to pose queries that are

handled by both cooperating indexes.

Queries which operate on spatial attributes in

order to retrieve list of identifiers (range query,

nearest neighbors etc.) reference the R-tree. Any R-

tree query may be executed without performance

loss.

Queries with time constraints (range query,

timestamp query etc.) requires list of identifiers for

which they shall be executed. They may be passed

directly in the query (user knows his meter

identifier) or may be selected by a spatial query.

This approach may look not efficient as trees are

processed separately. But these indexes are efficient

and MVB-tree queries are optimized as there are

many queries for the same timestamp. Thanks to

buffering most of the operations are performed on

nodes already loaded into memory

This section presents the most important queries

along with their processing techniques. Range

query (RQ) operates only on spatial index (R-tree).

Returns spatial objects (identifiers) which are

contained within query range. Timestamp query

(TQ). It is a standard query concerning value for

object with known identifier in a specific timestamp.

This query is executed directly on MVB-tree. Time

range query (THQ). This query retrieves values for

object in specific time range (T

). It is executed

directly on MVB-tree that applies reverse pointers

technique. The algorithm was described in a section

prsenting modified MVB-tree. Timestamp query

for a set of objects. It is a query concerning values

in a specific timestamp (T) for set of objects that

fulfill spatial query (Q) that is (RQ+TQ). Such a

query is processed in two steps. First, a set of spatial

objects (identifiers) is taken from spatial index.

Next, for each identifier a timestamp query is

performed on MVB-tree (TQ). Time range query

for a set of objects. This query retrieves values in a

specific time range (T

, T

) for a set of objects that

fulfill spatial condition (Q). That is (RQ+THQ). This

query is processed in the same way, but the query is

does not concern a single value of T but retrieves

time range values for all objects. Time aggregate

query for set of objects. This query computes

aggregate over a time range (T1, T2) for objects that

fulfills spatial condition (Q). It is performed in two

steps. First a set of spatial identifiers is retrieved

from the spatial index. Next, range queries for all

identifiers are performed over MVB-tree and overall

result is calculated.

STAH-TREE: Hybrid Index for Spatio Temporal Aggregation

115

6 STAH-TREE EXTENSIONS

Idea that was presented in previous point can be

extended to achieve better performance. This section

presents implemented extensions. All of them have

strong (positive) impact on performance for all types

of compound queries. Impact on standard query

types in not negative.

6.1 Using aR-tree

Substituting R-tree with aR-tree (aggregate index)

requires large structure modifications. Changes in

loading and querying are also required. AR- tree

that is used in STAH was already described in

paragraph 3. This tree is ‘equipped’ with ‘count’

aggregate, all nodes have identifiers.

New value insertion is is performed in two steps.

In first step, update query (UQ) is performed on aR-

tree for object that generates update. This query

returns list of identifiers, object itself and identifiers

of all nodes on the path to root. Next, update value is

inserted for all identifiers from the list. Thanks to

that, the values for whole nodes can be taken from

spatial index if the whole node fulfils spatial

condition. In other words, aR-tree properties for

aggregating on higher levels were moved directly to

MVB-tree. MVB-tree is not ‘aware’ that it contains

various types of data – so no additional changes are

required within the index. The only disadvantage of

this solution is a larger number of temporal data

(higher space consumption), but this has no impact

on query efficiency. This technique will be

referenced as AGG.

6.2 Mapping of Spatial Identifiers

Mapping of spatial identifiers was implemented

based on experimental results of batch query

processing. The number of buffer accesses was

higher than expected because object identifiers were

not following their spatial location. And identifiers

in a query group were dissolved on large key range

what leads to large number of node accesses. The

best approach is to perform query for list of

consecutive identifiers. Mapping is a way to achieve

this effect. Identifiers in R-tree are mapped to

elements in the same node having consecutive

identifiers. Objects are stored with these modified

identifiers. While answering aR-query elements

form near nodes will create a list of consecutive

(more or less) identifiers. That list is sorted and used

for querying MVB-tree.

This solution needs to keep additional mapping

(old-new key) if the detailed queries on original keys

are supported. Aggregate query does not require

that. If it is possible to change identifiers

permanently, mapping in not required. This

technique will be referenced as MAP.

6.3 Batch Processing

The number of queries that needs to be performed on

MVB-tree may be large (especially for large queries)

as their number is proportional to the number of

spatial identifiers returned by an R-tree query. This

situation is ideal to introduce batch processing

technique with no modification in trees structures.

Only the new algorithm, able to process multiple

spatial objects at the same time is required. These

queries reference the same timestamp so they require

the same nodes. Most of disk operations will be

buffered. This will reduce I/O cost but will increase

CPU cost as query processing algorithm is more

demanding. This technique will be referenced as

BATCH.

7 COST MODEL

Cost model predicts query performance as a number

of node accesses. It may be used to optimize query

processing plan in query optimization module. This

section shortly presents the model for STAH-tree

with the following assumptions: (1) aR-tree is used

(AGG technique); (2) spatial data are uniform; (3)

buffering is not taken into consideration – so

predicted number of node accesses will be higher

than in reality; (4) BATCH and MAP techniques are

not used. This model require two equations: (1)

selectivity of query on aR-tree; (2) number of node

accesses for processing timestamp query on MVB-

tree. Some equations for number of nodes at R-tree

levels, node sizes in R-tree and others were taken

from literature (Theodoridis, 1996).

7.1 AR-tree Selectivity

In the case of STAH-tree aR-tree selectivity is a

sum of spatial objects and nodes that were returned

by spatial query. It is assumed that size of a spatial

area is bounded with (0,1) range in every dimension,

query and object sizes in every dimensions are the

equal. That simplifies computation with little loss of

generality. Following symbols are defined (table 1).

ICEIS 2007 - International Conference on Enterprise Information Systems

116

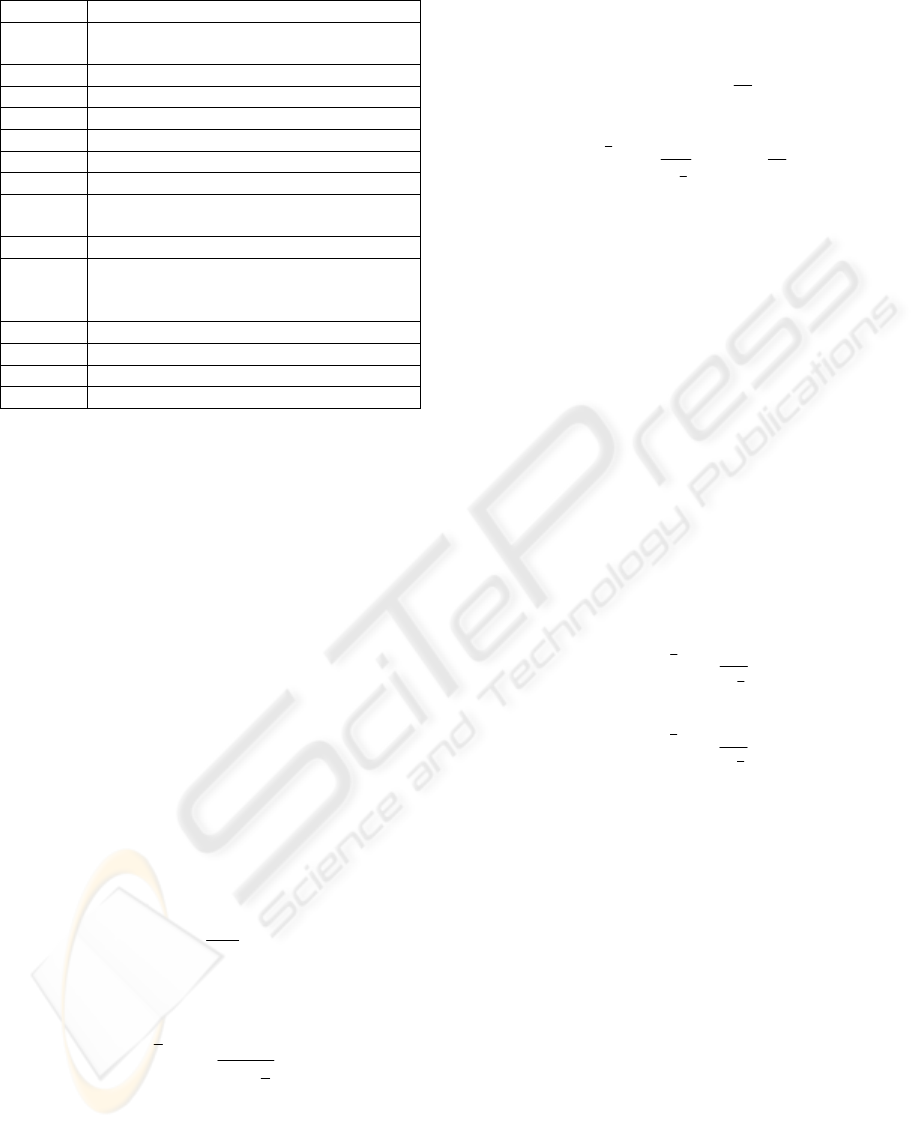

Table 1: Symbols that are used in computation.

Symbol Description

J Tree level.

j=0 for spatial objects; j=1 for leaves level

I Dimension

N Number of spatial objects

Number of objects at j level

F ‘fanout’ – number of objects in node

Q Spatial query range

Average objects size at j level

Probability that object is contained in

query range

Probability that object is crossing query

A Factor used in describing how large part of

objects falls in query range when leaf is

crossing with query

B MVB-tree node capacity

NA Number of node accesses

SEL Selectivity

n Number of dimensions

7.1.1 Dependencies between the Object and

the Query

Computations are based on a paper (Theodoridis,

1996) and basic probabilistic model derived for

dependencies between the query and the aR-tree

nodes. This model presents query-object

containment probability as an equation 1 and query-

object crossing probability as an equation 2.

()

∏

−=

iiz

sqP

(1)

()()

∏∏

−−+=

kkp

sqsqP

(2)

7.1.2 Common Computations

Number of nodes at level j+1 can be computed based

on equation 3.

(3)

Node size at level j+1 (Theodoridis, 1996) can be

computed from equation 5.

()

fs +⋅

⎟

⎠

⎞

⎜

⎝

⎛

−=

(4)

7.1.3 Selectivity Among Tree Nodes

The number of nodes that are returned is equals the

number of nodes that are contained in a query range.

It is assumed that ‘containment’ is computed only at

leaves level (always overvalued). The formula for

selectivity among aR-tree nodes (leaves) is derived

based on equations (1,3, 4). This formula is

presented in equation 7.

()

sqNPSEL

⋅

⎟

⎠

⎞

⎜

⎝

⎛

⎟

⎠

⎞

⎜

⎝

⎛

+⋅

⎟

⎠

⎞

⎜

⎝

⎛

−−

=⋅−=⋅=

(5)

7.1.4 Selectivity Among Spatial Objects

Selectivity for spatial objects takes into

consideration that a selection of objects are returned

in aggregates (query stops on higher R-tree levels).

It can be approximated by the number of leaves that

cross query range multiplied by a number of objects

in a single leaf and constant ‘a’ (within (0,1) range)

that describes how many objects in a leaf are

contained in a query. This constant was

experimentally set to 0.5. The formula for selectivity

among data objects is presented in equation 8.

faNPSEL

⋅⋅

⋅

(6)

Using equations (2,6) and assumption of same

size among spatial objects in every dimension this

formula can be rewritten as shown in equation 7.

⎟

⎠

⎞

⎜

⎝

⎛

⎟

⎠

⎞

⎜

⎝

⎛

−⋅

⎟

⎠

⎞

⎜

⎝

⎛

−−

−

⎟

⎠

⎞

⎜

⎝

⎛

+⋅

⎟

⎠

⎞

⎜

⎝

⎛

−+

⋅⋅=

aNSEL

(7)

7.2 MVB-tree

The paper investigates only one query for MVB-

tree, it is range aggregate query. This query is spitted

into two queries at extreme timestamps of time

range. Retrieval time for each of this queries may be

computed with equation 8 (Becker, 1996). The

number of node accesses for the whole time range

query is equal to this value multiplied by 2.

⎡

⎤

NNA

bgle

log

sin

(8)

7.3 Final Model

The final model is a simple combination of formulas

introduced above. The number of queries posed on

temporal index equals the spatial result set size

multiplied by the doubled height of the tree (8). The

number of node accesses to spatial index is

STAH-TREE: Hybrid Index for Spatio Temporal Aggregation

117

relatively small (at least order of magnitude). The

number of node accesses in temporal index of

STAH-tree is presented in equation 9. This formula

may be derived from equations (5,7,8).

)(2

10sin

SELSELNANA

gleMVB

(9)

8 EXPERIMENTS

We performed multiple which proved correctness of

all assumptions presented in the paper. The

experiments prove that all presented modifications

(AGG, BATCH, MAP) result in high acceleration.

Objects selectivity prediction was highly accurate

(about 5-10% and less). The selectivity for leaves

was correct with the same precision when

aggregation was performed only on the leaves level.

When aggregation was allowed on all aR-tree levels

– the error reached 30% for large values (when more

than 50% of space was covered by a query). For

smaller queries the error did not rise above 10%.

Detailed results description is not included as paper

page count is limited.

9 CONCLUSIONS AND FUTURE

WORK DIRECTIONS

STAH-tree is a complete system that allows to pose

various queries over spatio-temporal data. The

system performance is highly data parameter-

independent. Even for parameters that have large

impact on performance in standard solutions (for

example relational database).

STAH-tree is based on widely recognized and

valued solutions from spatial and temporal data

processing domain (R-tree, aR-tree, MVB-tree,…).

These ideas are combined and adapted is order to

work together and assure required features. The

original solution was extended with additional

accelerating techniques (BATCH, AGG, MAP). The

presented solution is more robust than the one using

the components separately. Disadvantage is higher

storage space consumption.

Selectivity prediction model for aggregate R-tree

was introduced. Its accuracy was proved by

experiments. The selectivity model along with node

accesses formula for MVB-tree (available in

literature) are merged in order to achieve full

performance model for STAH-tree (with respect to

node accesses).

Several main directions of future fork have been

recognized: (1) selectivity model for non uniform

data distribution; (2) extension of presented

selectivity model for aR-tree nodes with the

possibility of aggregating on higher aR-tree levels;

(3) selectivity model for different types of spatial

queries (KNN, Spatial Join etc.); (4) replace spatial

and temporal indexes with other techniques (quad

trees, OVB-trees, …). (5) use more sophisticated

way to aggregate spatial objects (not only point

aggregates) as it is done in (Zhang, 2002). Work on

some of these issues has already started.

REFERENCES

Manolopoulos, Y., Nanopoulos, A., Papadopoulos A. N.,

Theodoridis Y. 2006. R- Trees: Theory and

Applications. Springer

Beckerman N., Kriegel H.P., Schneider R., Seeger B.

1990. The R*-tree: An efficient and robust access

method for points and rectangles. Proc. SIGMOD

International Conference on Management of Data,

pages 322-331

Guttman A. 1984 R-trees: A dynamic index structure for

spatial searching Proc. SIGMOD International

Conference on Management of Data, pages 47-57

Kamel I. Faloutsos. 1994. Hilbert R-tree: An improved R-

tree using fractals. Proc. International Conference on

Very Large Databases, pages 500-509

Kamel I. Faloutsos. 1993. On packing R-trees. Proc.

International Conference on Information and

Knowledge Management, pages 490-499

Becker B., Gschwind S., Ohler T., Seeger B., Windmayer

O. 1996 An Asymptotically Optimal Multiversion B-

tree VLDB Journal, 5(4), pages 264-275

Tao Y., Papadias D., Zhang J. 2002 Efficient Cost Models

for Overlapping and Multi-Version Structures. TODS,

27(3), pages 299-342

Tao Y., Papadias D. 2004 Range Aggregate Processing in

Spatial Databases. IEEE Trans. Knowl. Data Eng.

16(12), pages 1555-1570

Theodoridis Y., Sellis T., 1996. A model for the Prediction

of R-tree Performance. Proc. Symp. Principles of

Database Systems

Comer D., 1979. The Ubiquitous B-tree. ACM Computing

Surveys, Vol. 11, No 2, pages 121-137

Zhang D., Tsotras V. J., Gunopulos D. Efficient

aggregation over Objects with Extent. PODS 2002,

pages 121-132

Zhang D., Markowetz A., Tsotras V. J., Gunopulos D.,

Seeger B. Efficient Computation of Temporal

Aggregates with Range Predicates. PODS 2001

Bercken J., Seeger B. Query Processing Techniques for

Multiversion Access Methods. VLDB 1996

ICEIS 2007 - International Conference on Enterprise Information Systems

118
