DYNAMIC ARCHITECTURE BASED EVOLUTION OF

ENTERPRISE INFORMATION SYSTEMS

Sorana Cîmpan, Herve Verjus and Ilham Alloui

University of Savoie – Polytech’ Savoie - LISTIC Lab

B.P. 806 - 74016 Annecy Cedex - France

Keywords: Software architecture, formal language, evolution scenarios, enterprise information system.

Abstract: Enterprise Information Systems have to co-evolve with the enterprise they support. Their evolution is the

one of an important software system. Software evolution should be addressed at all developpement phases

in order to notably reduce costs (Lehman, 1996). The issue of software systems evolution has been

addressed mainly at the code level. In this paper we present how evolution of enterprise information systems

can take place at higher abstraction levels, when using an architecture-centred development process. The

evolutions addressed are dynamic, i.e. they take place at runtime and concern both planned and unplanned

evolutions of the enterprise information system.

1 INTRODUCTION

Human-centric activities are more and more

supported by software applications, most enterprises

relying on an enterprise information system, which

has to evolve according to requirements, new

technologies, etc. Thus, evolution and quality of

software systems is a major issue (Andrade et. al.,

2004, Mens et. al., 2003), related to changes that

may occur at different level (market, functionalities,

needs, etc.).

The evolution is often considered at the latter

stages of software system development process, i.e.

implementation and execution, mostly by adopting

pragmatic approaches (Demeyer et. al., 2002), but it

is rarely studied in the earlier stages (design,

modelling, specification). We agree with (Lehman,

1996), which indicates that evolution should be

studied at each software development process stage

in order to notably reduce costs. We claim (Verjus

et. al., 2006) that some evolutions could be taken

into account during the design and would not have to

be postponed to latter phases, namely the

implementation or runtime.

In this paper, we focus on system evolution using

a software architecture centric approach

experimented and validated in the ArchWare

European project (ArchWare, 2001). The project

address evolutions that may have impact on the

system software architecture; maintenance tasks that

have no impact on the architecture are managed

using classical approaches.

We classified the system evolution according to

moment when it takes place, i.e. static or at runtime,

and to their predictability during the design, i.e.

planned and unplanned (Cîmpan and Verjus, 2005).

This paper does not address static evolutions, which

are taken into account by all the (architectrure)

modelling approaches (Ding et. al., 2001, Barais et.

al., 2005, Tibermacine et. al., 2005). A simplist

description of such changes (be them planned or not)

is: stop the system, do the change, check

consistency, run again the system. We focus here on

cases where the system cannot be stopped, and thus

the change has to take place at runtime. We illustrate

how our architecture-centric approch allows taking

into account, during runtime, planned and unplanned

dynamic evolutions.

Planned dynamic evolutions are managed at the

architectural level and enacted automatically (self-

contained architecture) without external help.

Unplanned dynamic evolution management implies

that the considered architecture provides an

evolution entry point and that an evolution

mechanism is available for the external environment.

Thus, human or other external means could

dynamically evolve the system (architecture) by

using such entry points. Unplanned dynamic

221

Cîmpan S., Verjus H. and Alloui I. (2007).

DYNAMIC ARCHITECTURE BASED EVOLUTION OF ENTERPRISE INFORMATION SYSTEMS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 221-229

DOI: 10.5220/0002387002210229

 SciTePress

evolution appears to be the most common situation

(Mens et. al., 2005, Demeyer et. al., 2002, Mens et.

al., 2003), particularly when considering the

maintenance of existing software systems. We show

how our approach allows to manage software

architecture evolution using a formal architecture

description language, ArchWare ADL (Oquendo et.

al., 2002). The language covers both structural and

behavioural aspects of architecture descriptions as

well as the expression of architectural constraints

and properties.

This paper is organized as follows: section 2

presents the ArchWare related foundations and

technologies; section 3 introduces scenarios that will

illustrate evolution (both planned and unplanned).

Then, we focus on planned dynamic evolution in

section 4 and on unplanned dynamic evolution in

section 5. Conclusions and perspectives will close

the paper.

2 THE ARCHWARE PROJECT

AND LANGUAGES

The work presented here has been partially funded

by the European Commission in the framework of

the IST ArchWare Project (Archware Consortium,

2001) and by the French ANR Cook project (Cook

2006). The ArchWare project proposes an

innovative architecture-centric software engineering

framework, i.e. architecture description and analysis

languages, architectural styles, refinement models,

architecture-centric tools, and a customisable

software environment. The main concern is to

guarantee required quality attributes throughout

evolutionary software development (initial

development and evolution), taking into account

domain-specific architectural styles, reuse of

existing components, support for variability on

software products and product-lines, and run-time

system evolution. The Cook project studies the role

of software architectures in the reengineering of

object-oriented applications (Pollet et. al., 2007).

In ArchWare, a software architecture is

considered as a set of typed nodes connected by

relations. When describing architectures, the nodes

are termed components and the relations termed

connectors. These components and connectors and

their compositions have specified behaviours based

on π-calculus (Milner 1999), and are annotated with

quality attributes. ArchWare proposes a set of

languages for: (1) describing the architecture

(ArchWare ADL), (2) architecture properties

(ArchWare AAL), (3) architecture refinement

(ArchWare ARL). ArchWare ADL offers different

language layers for describing architecture, from the

more generic one (the core language), to language

that are more and more specific. Such layers can be

defined by the user, using the style mechanism.

(Cîmpan et al., 2005) presents the layered

construction of the language.

The core description language ArchWare π-ADL

is based on the concept of formal composable

components and on a set of operations for

manipulating these components (Oquendo et. al.,

2002). The ADL supports the concepts of

behaviours and abstractions of behaviours, to

represent respectively running components and

parametric component types. Behaviour is described

using all the basic π-calculus operations as well as

composition and decomposition. Communication

between components is via channels represented by

connections (representing component interfaces as

well). The ArchWare ADL allows the definition of

evolvable architectures, i.e., where new components

and connectors can be incorporated and existing

ones can be removed, governed by explicit policies.

A language based on well-known component

connector, Archware C&C-ADL, is proposed as a

layer built on top of the core language. Given its

formal foundation on π-calculus, its ability to

represent both structural and behavioural aspects of

architectures, as well as architectural constraints

ArchWare ADL has an expressive power higher than

most existing ADLs (Medvidovic et. al., 2000,

Verjus et. al., 2006).

In this paper we use the Archware C&C-ADL for

illustrating the planned dynamic evolution and the

core language for illustrating the unplanned dynamic

evolution. In both cases, properties are represented

using ArchWare AAL.

3 EVOLUTION SCENARIOS

The chosen evolution scenarios are related to a

Supply Chain Management System (SCMS),

entailing an enterprise information system, with its

clients and its suppliers. The enterprise information

system and its suppliers constitute what we will call

hereafter an EAI solution. The SCMS architecture

will be modified according to particular

requirements and/or constraints. Other case studies

using the ArchWare approach in have been

published (Blanc dit Jolicoeur et. al., 2002, Pourraz

et. al., 2006, Ratcliffe et. al., 2005, Revillard et. al.,

2005).

ICEIS 2007 - International Conference on Enterprise Information Systems

222

Client

Client ToEAI

connector

EAI

Evolution port

choreographer

command

port

quote

port

command

port

quote

port

evolution

port

suppliers

port

suppliers

port

Initial scenario. Whenever a client passes an

order to the EAI, it first asks for a quotation. If the

quotation satisfies the client, it makes an order. The

ordering system (or component), takes the order,

updates the stock and may ask a supplier for

restocking if the current stock is not enough to

satisfy the order.

Planned dynamic evolution scenario. Two

dynamic evolutions are planned. One concerns the

dynamic change of the invoice system, and another

the arrival of new clients in the global architecture.

The architecture is self-contained and evolves in

response to external stimulus .

Unplanned dynamic evolution scenario. The

initial restocking process no loger fits the

requirements. We show how the architect can

improve the restocking process by adding a new

supplier and by modifying the restocking request

process. This evolution will both modify the

structure as well as the intern behaviour of

components.

4 PLANNED DYNAMIC

EVOLUTION

We consider in this section dynamic evolutions that

were planned by the system architect, while

architecting the system. ArchWare C&C-ADL offers

mechanisms for representing such evolving

architecures (Cîmpan et. al., 2005). The language

continues and improves previous language

propositions for the description of dynamic

architectures, such as Dynamic Wright (Allen et. al.,

1998) or π-Space (Chaudet et. al., 2000).

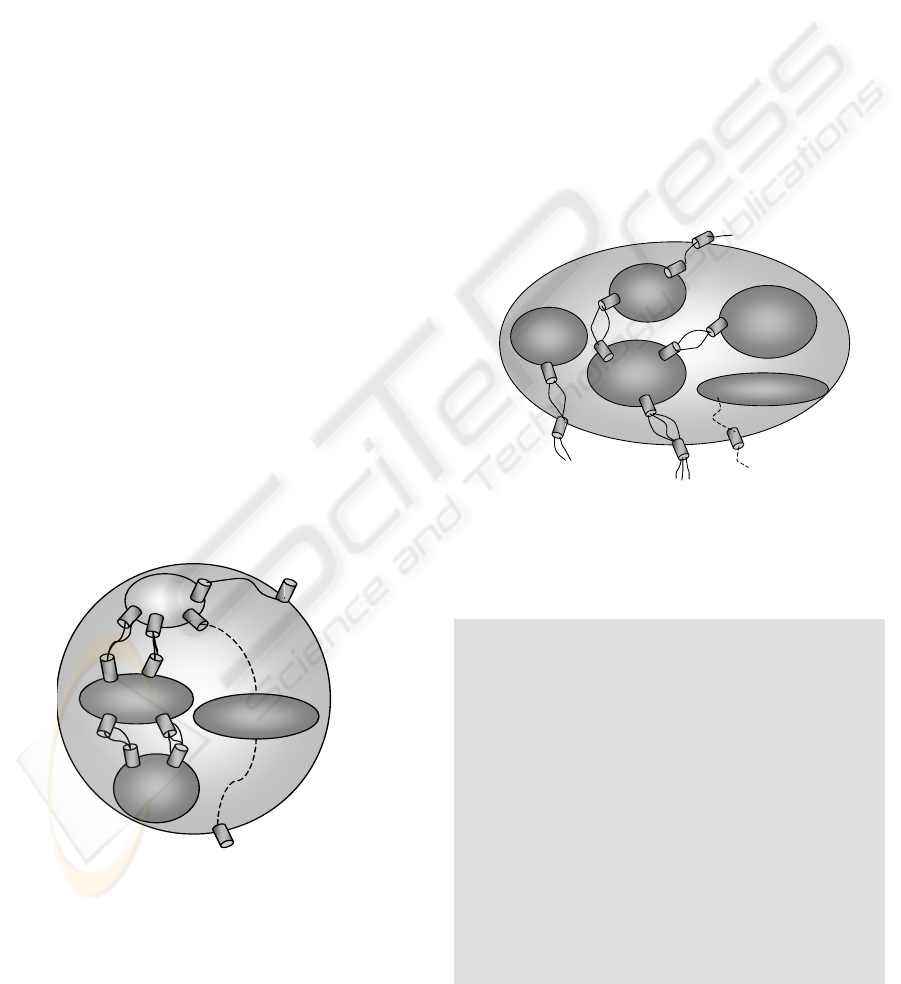

Figure 1: The SCMS global architecture.

In our scenario the clients comunicate with the

EAI component either for demanding a quote for a

product (using their respective quote port), either for

passing an order for a product (using their respective

order port).

As it is represeted by a composite component,

the supply chain has a special architectural element,

the choreographer, which handles its evolution. The

choreographer is implicitly connected to all

components and connectors in the composite. Its

ArchWare C&C-ADL description is given later.

Two planned dynamic evolutions are considered

here: (1) the integration of a new invoice system,

intern to the EAI and (2) new clients join the supply

chain (transparently for EAI and the existing

clients).

First planned dynamic evolution. The EAI

component entails four components, dedicated to the

management of respectively quotes, orders, stocks

and invoices, connected as shown in

Figure 2. The

invoice handler is intern to the composite, the other

components being attached to composite ports. The

connectors among components are basic, and not

represented here.

Quote

handle

Invoice

handler

Stock

Handler

Order

System

EAI

Choreographer

evolution

port

order port

quote

port

suppliers

port

Figure 2: The EAI composite component.

Let us have a look at the ArchWare C&C-ADL

definition of the order component, which is an

atomic component with three ports. (cf.

Figure 3).

OrderHandler is component with{

ports {

stockP is InvoiceDemandPort;

invoiceP is InvoiceDemandPort;

orderP is OrderPort; }

configuration { new stockP ; new stockP; new

orderP }

computation {

via orderP~orderReq receive product:String,

quantity:Integer;

via stockP~invoiceReq send product,

quantity ;

via stockP~invoiceRep receive ack: String;

via orderP~orderRep send ack;

if (ack==“OK”) then {

via invoiceP~invoiceReq send product,

quantity ;

via invoiceP~invoiceRep receive invoice:

String;

via orderP~invoice send invoice

}

recurse

} }

Figure 3: Order system atomic component.

DYNAMIC ARCHITECTURE BASED EVOLUTION OF ENTERPRISE INFORMATION SYSTEMS

223

The

orderP port is connected to one of the

composite ports, and allows the reception of orders

from clients, containing both a product identification

and a desired quantity. The

stockP port allows the

order system to ask the stock handler to check if the

product is available in the required quantity. The

stock handler confirms the resource availability or

indicates it’s unavailability. The message is

transmitted to the client. If the product is available,

the order system asks the invoice handler (to which

it is connected via the the

invoiceP port) an

invoice, which once received is sent to the client.

This behaviour is repeted recursively.

The ArchWare C&C-ADL EAI composite

component definition is presented in

Figure 4. Every

component in a composite is potentially dynamic,

several instances can be created at runtime. The

constituents part entails the declaration of different

component types, an instance of each being created

in the

configuration part. The later entails equally

the expression of different attachements among

components.

EAI is component with{

ports {

erpOrderP is OrderPort;

eaiQuotationP is QuotationPort;

eaiEvolveP is EAIEvolutionPort; }

constituents {

orderComponent is OrderHandler;

invoiceComponent is InvoiceHandler;

stockComponent is StockHandler;

quotationeComponent is QuoteHandler}

configuration {

new orderComponent; new invoiceComponent;

new stockComponent; new quotationeComponent;

attach orderComponent~orderP to eaiOrderP;

attach quotationComponent~quotationP to

eaiQuotationP;

attach orderComponent~stockP to

stockComponent~stockP;

attach orderComponent~invoiceP to

invoiceComponent~invoiceP; }

choreographer {

via eaiEvolveP~newInvoice receive

newInvoiceComponent:InvoiceSystem;

detach orderComponent from invoiceComponent ;

insert component newInvoiceComponent in

invoiceComponent;

attach orderComponent~invoiceP to

invoiceComponent#last~invoiceP;

via eaiEvolveP~ackP send “ok”;

recurse;

}} – end of the meta-component EAI

Figure 4: EAI composite component.

As already mentioned, a composite evolution is

handled by its choreographer. For the EAI

composite, a port is dedicated to the reception of the

evolution message (the evolution decision is taken

elsewhere). The EAI composite is ready to evolve its

invoice system, a new component version can be

received via the evolution port. Once the new

invoice component is received, the choreographer

detaches the current

orderComponent and the

invoiceComponent. The newly received invoice

handler is inserted as instance of

invoiceComponent

type. We recall that all components are dynamic,

meaning that several instances can co-exist at

runtime. The last instance can be addressed using the

component type name followed by

#last. Thus

using

invoiceComponent#last the choreographer

attaches the new invoice component version to the

order system.

Second planned dynamic evolution. We will

see how new clients can dynamically join the supply

chain, this evolution being handled by the

SupplyChain choreographer. The arrival of a new

client is completely transparent to the EAI

component. The connector that links the clients to

the EAI component also evolves, but this evolution

will not be shown here.

SupplyChain is component with{

ports {

eaiEvolveP is EAIEvolutionPort;

newClientP is ClientPort; }

constituents {

clientComponet is Client;

eaiComponent is EAI;

clientToEai is ClientToEAIConnector;}

configuration {

new clientComponet; new eaiComponent; new

clientToEai;

attach clientComponent~orderP to

clientToEai~clientOrderP;

attach clientToEai~eaiOrderP to

eaiComponent~eaiOrderP;

attach clientComponent~quotationP to

clientToEai~clientQuotationP;

attach clientToEai~eaiquotationP to

eaiComponent~eaiQuotationP; }

choreographer {

choose {

via eaiEvolveP~newInvoice

receive newInvoiceComponent:InvoiceSystem;

via eaiComponent~eaiEvolveP~newInvoice

send newInvoiceComponent;

via eaiComponent~eaiEvolveP~ack

receive ack:String;}

or {

via newClientP~createOut receive c : Client;

insert component c in Client ;

via clientToEai~newClientP~createIn send ;

via clientToEai~newClient~createOut receive ;

attach clientComponent#last~orderP to

clientToEai~clientOrderP#last;

attach clientComponent#last~quotationP to

clientToEai~clientQuotationP#last;}

then recurse

} } – end meta-component SupplyChain

Figure 5: Supply chain composite component.

The supply chain choreographer handles both the

arrival of a new client, and the reception of a new

version of the invoice handler (which is passed to

the

EAI component). Any new client is inserted in the

composite as instance of the

Client component type.

A request for evolution is sent to the

ClientToEAI

connector, which will create in response two ports in

order to allow the connection of the new client.

Once the connector indicates that the new ports have

ICEIS 2007 - International Conference on Enterprise Information Systems

224

been created, the choreographer makes the

attachement between the client and the newly

created connector ports. The access to the last

instance (for both the client and the connector ports)

are made as previously using the #last suffix.

Using these two evolution examples we shown

how ArchWare C&C-ADL allows the definition of

dyanmicaly evolving architectures.

Besides the verification of component types, as

in the reception of a new invoice component or a

new client, other properties verification can be

performed in order to ensure the global coherence

for the system. Such properties can concern both

structural and behavioural aspects. Examples of

structural properties include components

connectivity (no unconnected component), the

existence of particular components (imposing the

existence of at least one instance of invoice

component is the EAI composite), etc. Behavioural

properties concern the components or ports

behaviour. In

Figure 6, the property

requestBeforeReplyOfOrderSystem states that an

order system cannot send a reply befor receiving a

request. This property has to be preserved after the

system evolves (reception of the new invoice

system, or new client).

requestBeforeReplyOfOrderSystem is property { on

OrderSystem.instances apply

forall {os | (on os.actions apply isNotEmpty)

implies

(on os.orderP~orderReq.actionsIn apply

exists {request | on

os.orderP~orderRep.actionsOut apply

forall {reply | every sequence {(not

request)*. reply}

leads to state {false} } } ) } }

Figure 6: Property ensuring the order between send and

request.

The evolutions presented in this section have to

be planned during the system architecture definition.

In the following we will show how it is possible to

handle unplanned dynamic evolutions.

5 UNPLANNED DYNAMIC

EVOLUTION

Research activities leaded in the ArchWare project

encompass a virtual machine able to interpret

architectural descriptions coded using the core

language ArchWare π-ADL (cf. section 1 above). In

the following, the illustrating example is specified

using the core language (and not in the C&C layer,

as in the previous section). The ArchWare

environment proposes specific components that

allow managing such evolutions (Oquendo et. al.,

2004).

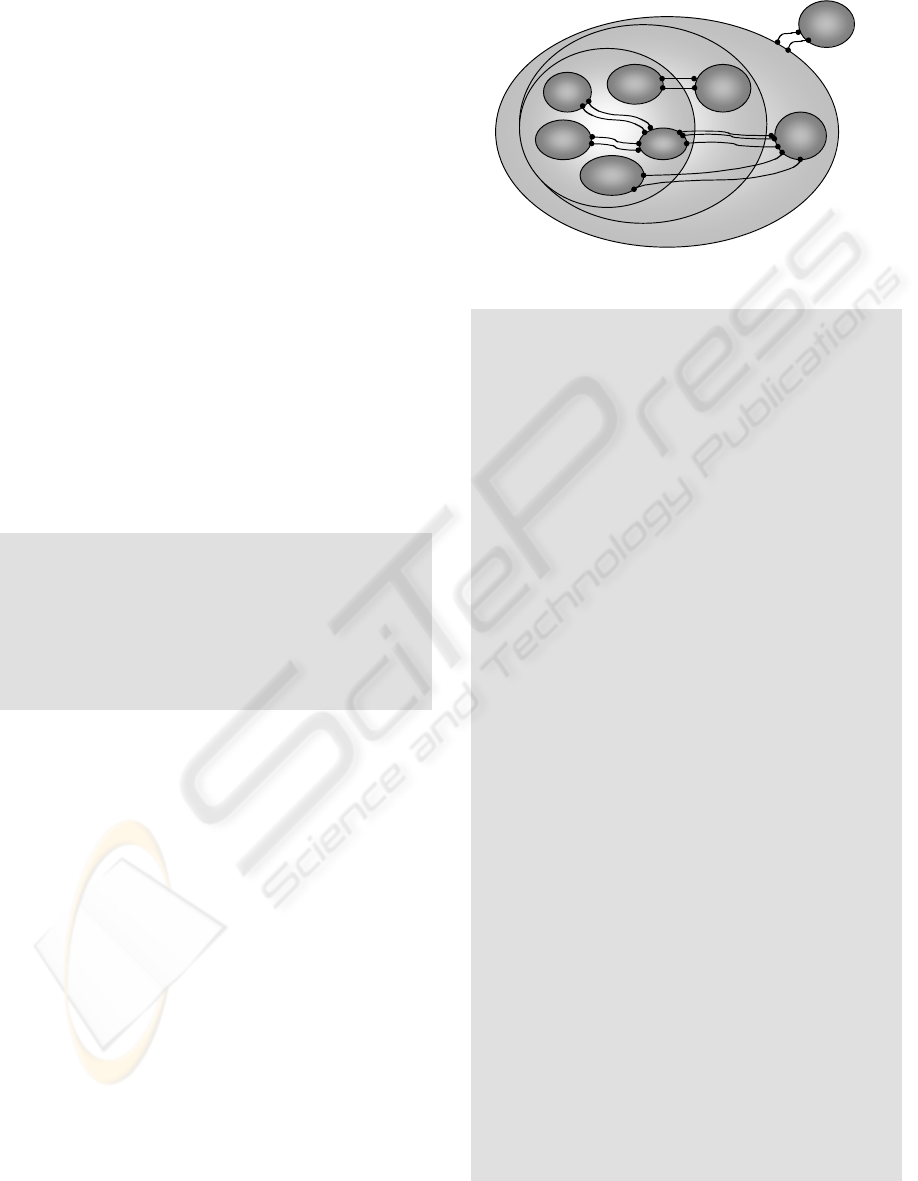

Figure 7: The initial architecture.

value client is abstraction(String:

quotationRequest, Integer: qty);{

value quotationReq is free connection(String);

value quotationRep is free connection(Float);

value orderReq is free

connection(String,Integer);

value orderRep is free connection(String);

value invoiceToClient is free

connection(String);

value quotationBeh is behaviour {

via quotationReq send quotationRequest;

via quotationRep receive amount:Float;

unobservable; }

quotationBeh();

choose {

quotationBeh();

behaviour {

via orderReq send quotationRequest, qty;

unobservable;

via orderRep receive ack:String;

if (ack == "OK") then {

via invoiceToClient receive

invoice:String;

} } }

done };

value supplier1 is abstraction(); {

value restockingOrder1Req is free

connection(String, Integer);

value restockingOrder1Rep is free

connection(String);

via restockingOrder1Req receive wares:String,

quantity:Integer;

unobservable;

via restockingOrder1Rep send "OK";

done };

value quotationSystem is abstraction(Float:

price); { … }

value orderSystem is abstraction();{ … }

value stockingControl is abstraction(Integer:

stock); { … }

value restockingSystem is abstraction();{ … }

value invoiceSystem is abstraction();{ … }

value erp is abstraction(Float: price, Integer:

stock); {

compose { quotationSystem(price)

and orderSystem()

and invoiceSystem()

and stockingControl(stock)

and restockingSystem() } };

value eai is abstraction(Float: price, Integer:

stock); {

compose { supplier1(20)

and erp(price, stock)

} }

Evolver

SCMS

Client

ERP

Supplier

ERP

Restock

Invoice

Order

Stock

Quotation

DYNAMIC ARCHITECTURE BASED EVOLUTION OF ENTERPRISE INFORMATION SYSTEMS

225

};

Figure 8: Initial architecture description (extract).

We do not present here all the tools and how they

interact and cooperate together but we focuse on

how the description language and its associated

virtual machine allow such evolution to take place.

Before focusing on the architecture evolution

process, let us recall that whenever a customer is

asking for an order, if the desired product quantity is

less that the corresponding stock quantity, a

restocking request is emited to a supplier in order to

satisfy the customer order request.

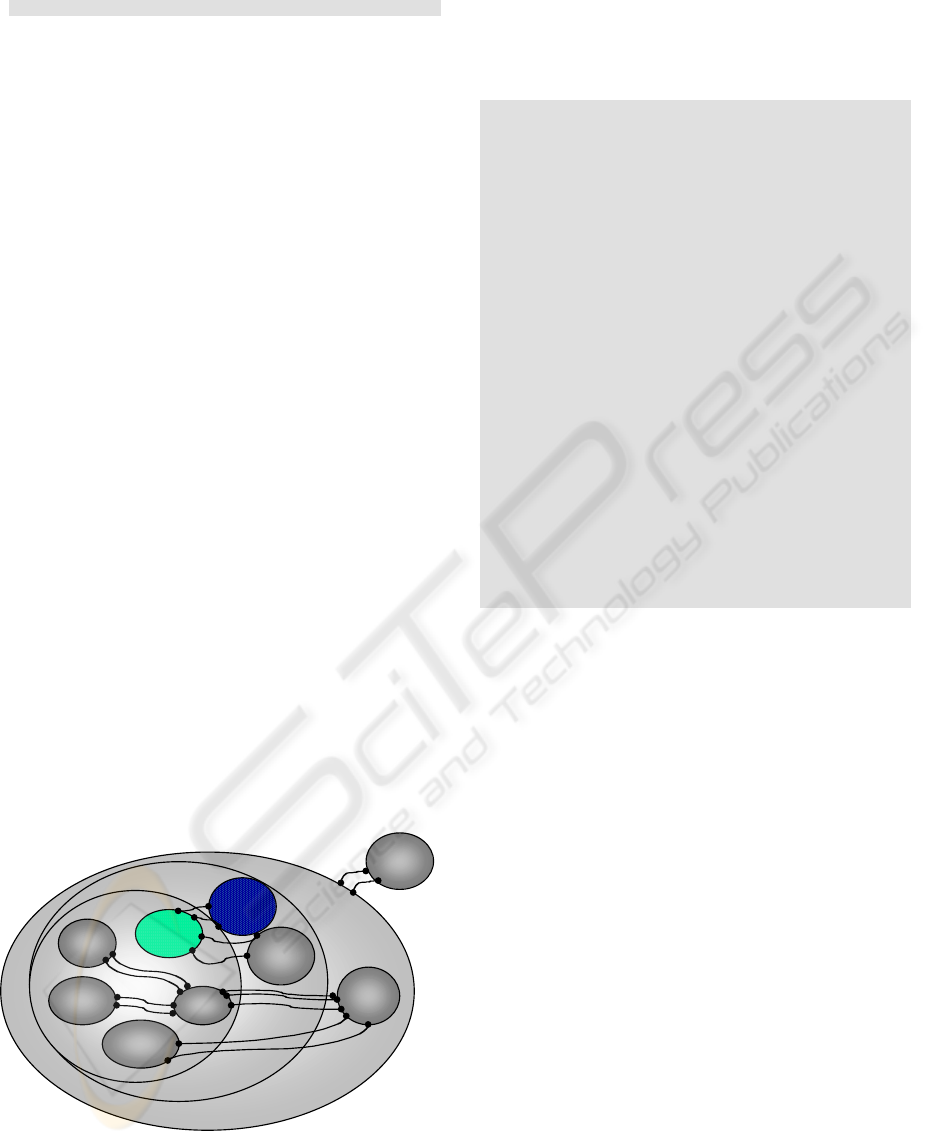

At the beginning, (cf. Figure 8), we assume that a

sole supplier is involved and is always able to satisfy

restocking requested by the restocking system. (cf.

Figure 7). Let us imagine now that this supplier is no

longer able to satisfy restocking requests, or the

restocking manager has decided to change the

restocking process by involving more than one

supplier. If the desired restocking quantity exceeds

the initial supplier (named

supplier1) restocking

ability, a second request is then addressed to another

supplier (named

supplier2); the second restocking

request quantity is computed by subtracting the

quantity the

supplier1 is willing to provide to the

customer's initial request. This evolution scenario is

interesting: on one hand it implies changes in the

system architecture structure by adding a new

supplier (cf.

Figure 9); on another hand, it enforces

the dynamic change of the restocking process for

taking into account that a restocking request may not

be satisfied; in this case, a new supplier joins the

architecture and the initial restocking request has to

be split among the two suppliers. The system

behavior has to be dynamically changed according

to the new configuration and process (cf.

Figure 9).

Figure 9: The architecture after evolution.

Let us see now how the evolution is managed at

the architectural code level and enacted by the

virtual machine. The architectural element named

evolver (cf. Figure 10) is notified (via the evolReq

connection) by the SCMS abstraction as soon as an

evolution (an architectural change) is mandatory.

value evolver is abstraction(); {

value evolReq is free connection();

value evolRep is free connection(Boolean,

abstraction);

via evolReq receive;

choose {{via evolRep send false, any();}

or {value evol_arch_part is ARCH-EVOLUTION;

via evolRep send true, evol_arch_part ;}}

};

value scms is abstraction(); {

value evolReq is free connection();

value evolRep is free connection(Boolean,

abstraction() );

compose {

behaviour {

via evolReq send;

via evolRep receive evolution:Boolean,

evol_arch_part:abstraction(Float,Integer);

if (evolution) then {

evol_arch_part(100.00, 32)

} else {

eai(100.00, 32) }

}

and client("rollings", 12)}

};

-- The SCMS abstraction that is the entire system

architecture

value scms_arch is abstraction(); {

compose { scms()

and evolver()}

};

Figure 10: The evolver and scms abstractions containing

evolution mechanisms and managing evolution process.

The way the architectural elements are organized

is quite important regarding the evolution: because

the

evolver is attached to a specific abstraction, only

this abstraction (and all of its sub-abstractions) may

evolve. If it is unknown (or difficult to anticipate) on

which abstraction the evolution will occur, one

should attach the evolver to the abstraction that

contains the entire system (the root abstraction). The

side effect of attaching the

evolver to the root

abstraction is that for a small evolution (implying a

very small part of the system), all of the architecture

has to be expressed again in the evolution

abstraction (called

ARCH-EVOLUTION in the following

and in the code examples) as shown later.

Notice that we do not make any assumptions

about the nature of the evolution and what really the

changes and the evolution policy will be. However,

we have to specify where the evolution may occur.

In the previous architectural description (cf.

Figure

), when the evolver is requested, either (choose in

the piece of code) the architect decides that no

evolution/change is required (i.e., the

evolution

parameter received on the connection is equal to

false), either the architect asks for an evolution (i.e.,

the

evolution parameter received on the connection

Evolver

SCMS

Client

ERP

Supplier

ERP

EVOL_

RCH_P

Restock

Invoice

Order

Stock

Quotation

Supplier

ICEIS 2007 - International Conference on Enterprise Information Systems

226

is equal to

true). In the latter case, the virtual

machine looks for a specific architectural abstraction

(called

ARCH-EVOLUTION), by dynamically loading an

ARCH-EVOLUTION.adl file. Thus it is up to the

architect to define the evolution and to produce the

ARCH-EVOLUTION.adl file when it is required.

The

ARCH-EVOLUTION abstraction is first sent on the

evolRep connection, and then dynamically applied:

the evolved architecture currently behaves as the one

integrating the changes expressed in the

ARCH-

EVOLUTION

abstraction (cf. architectural abstraction

7). The evolved architecture now contains a new

supplier (called

supllier2) and the restocking

process has changed accordingly. Notice that the

new supplier (

supplier2) does not behave as the

existing supplier (

supplier1) (i.e., it is not the same)

because the evolution we introduced (cf. section 3)

requires two different suppliers; we assume that a

restocking request to the new supplier (

supplier2)

will only be satisfied if the requested quantity is less

or equal to the

supplier2’s stock quantity for a given

product.

The restocking process has now to take into

account the existence of a new supplier, and the

initial demand may be split (according to the

quantity requested) between two suppliers (cf.

Figure 11). The

eai abstraction has been replaced by

the

evol_arch_part abstraction (corresponding to the

ARCH-EVOLUTION described in the ARCH-

EVOLUTION.adl file), integrating all architectural

changes (cf. Figure 11). The transformation from the

initial architecture (without evolution) and the

evolved one (integrating the changes) takes place in

the

scms abstraction (cf. Figure 10), by using the

evolReq and evolRep connections as we saw. These

mechanisms allow several evolution strategies, each

coded in a specific abstraction expressed in the

evolver architectural element.

value supplier2 is abstraction(Integer capacity);

{

value restockingOrder2Req is free

connection(String, Integer);

value restockingOrder2Rep is free

connection(String, Integer);

via restockingOrder2Req receive wares:String,

quantity:Integer;

unobservable;

if (quantity > capacity) then {

via restockingOrder2Rep send "NOK",capacity; }

else {

via restockingOrder2Rep send "OK",capacity;

}

done

};

value restockingSystem is abstraction(); {

value restockingReq is free connection(String,

Integer);

value restockingOrder2Req is free

connection(String, Integer);

value restockingOrder2Rep is free

connection(String, Integer);

value restockingOrder1Req is free

connection(String, Integer);

value restockingOrder1Rep is free

connection(String);

via restockingReq receive wares:String,

quantity:Integer;

via restockingOrder2Req send wares, quantity;

via restockingOrder2Rep receive ack:String,

qtyReceived:Integer;

if (ack == "NOK") then {

via restockingOrder1Req send wares, (quantity-

qtyReceived);

unobservable;

via restockingOrder1Rep receives ack2:String;

}

unobservable;

done

}

value erp is abstraction(Float: price, Integer:

stock); {

compose { quotationSystem(price)

and orderSystem()

and invoiceSystem()

and stockingControl(stock)

and restockingSystem()

}

-- The evolved abstraction implying two suppliers

value ARCH-EVOLUTION is abstraction(Float:price,

Integer: stock); { compose { erp(price, stock)

and supplier1()

and supplier2(20) }

};

Figure 11: ARCH-EVOLUTION.adl architectural

description (extract).

Dynamically changing an architecture may cause

drawbacks (inconsistency, lost properties). In order

to limit their importance, architectural constraints

can be defined and the architecture can be analyzed

whenever the architect wishes. Such constraints and

properties are expressed using the ArchWare AAL

language (Alloui et. al., 2003). Details on the

properties checking and architecture validation and

verification can be found in (Alloui et. al., 2003,

Alloui et. al., 2005). Remember that the modified

architecture can be checked against the initial

architecture identified properties. If such verification

succeeds, changes can be applied by dynamically

evolving the architecture as presented.

6 CONCLUSION

Enterprise information systems require evolution in

order to support enterprise activities, to adapt to

market changes and enterprise evolutions. In our

scenario, we illustrated changes that are related to

the composition of the system (by adding for

example a supplier) as well as the behaviour of the

system (in other words the business process) by

modifying the restocking process. Other case studies

have been realized using the ArchWare approach

and technologies, i.e., for a Manufacturing

Execution System for a Grid-based application in a

health-related project (Manset et al., 2006). Other

DYNAMIC ARCHITECTURE BASED EVOLUTION OF ENTERPRISE INFORMATION SYSTEMS

227

reserarch activities are directly inspired from these

results (Pourraz et al., 2006).

Architecture evolution support is an important

issue (Andrade and Fiadeiro, 2003). Current

researches in this area are concentrated either on low

abstraction levels (implementation), either on a very

high levels (traditionnaly called conceptual level).

Firstly, we claim that the ADL has to support

evolution: architecture evolution has to be expressed

using the language itself. Few ADLs have such

features (Darwin (Magee et al., 1995), π-Space

(Chaudet and Oquendo, 2000), Piccola (Nierstrasz

and Achermann, 2000)), while most of them are

based on process algebras. Secondly, the

architecture descriptions have to be enactable and on

the fly change mechanisms have to be provided.

This latter point is very important. Most research

activities focusing on architecture evolution can only

address static evolution because they are not based

on an adequate ADL: changes on architectures are

made either on abstract architectures (Egyed and

Medvidovic, 2001), either directly in the code (cf.

(Pollet et al., 2007) for a good survey on research

leaded in this topic). In this context, the consistency

between the two abstractions levels becames an

important issue (Oreizy et al., 1998, Garlan et. al.,

2003, Carriere et. al., 1999, Erdogmus, 2000, Van

der Hoeck et. al., 2001, Aldrich et. al., 2002, Pinzger

et al., 2004, Rank, 2005, Roshandel et. al., 2004,

Nistor et. al., 2005).

The approach presented in this paper proposes

the following interesting features:

• ArchWare ADL is a formal high level

Architectural Description Language that

covers structural and behavioural

architecture description; it is also an

interpretable language (accompanied by

a virtual machine) with specific

evolution support mechanisms;

• The ArchWare development process is

shorter than most of the software-

intensive system development

processes: conceptual (or abstract) level

and implementation are unified. Thus,

there is no need to manage consistency

between them avoiding gaps and

discrepancies: the executing system

architecture is the specified one;

• The ArchWare ADL formal foundations

allow the architect to formally describe

enterprise information systems, to check

the system architecture;

• The evolution is managed directly and

dynamically at the architectural code,

each change consequence(s) on the

architecture being verifyied before

being applied.

In our illustrating scenario, we showed that the

initial system is able to evolve dynamically by

applying architectural abstractions that are unknown

at the beginning (before system execution) but that

can be formalized during system (architecture)

execution. Evolution could be a cascading process

for which changes may be applied on a previously

modified architecture (with properties checking at

each evolution step).

REFERENCES

Allen R., Douence R. , Garlan D., 1998. Specifying and

Analyzing Dynamic Software Architectures, In

Proceedings on Fundamental Approaches to Software

Engineering, Lisbon, Portugal.

Alloui I., Garavel H., Mateescu R., Oquendo F., 2003. The

ArchWare Architecture Analysis Language. ArchWare

Deliverable D3.1b.

Alloui I., 2005. Property verification and change impact

analysis for model evolution, 1ères journées sur

l’Ingénierie Dirigée par les Modèles (IDM'05), Paris.

Aldrich J., Chambers C., Notkin D., 2002. ArchJava:

Connecting Software Architecture to Implementation,

International Conference on Software

Architecture (ICSE 2002), Orlando, Florida.

Andrade L.F., Fiadeiro J.L., 2003. Architecture Based

Evolution of Software Systems. LNCS 2804: 148-181.

ArchWare Consortium, 2001. The EU funded IST–2001–

32360 ArchWare – Architecting Evolvable Software -

project : http://www.arch-ware.org

Barais O., Lawall J., Le Meur A-F., Duchien L., 2005.

Providing Support for Safe Software Architecture

Transformations. In 5th IEEE/IFIP Working

Conference on Software Architecture (WICSA),

Pittsburgh, USA.

Blanc dit Jolicoeur, L., Braesch, C., Dindeleux, R.,

Gaspard, S., Le Berre, D., Leymonerie, F., Montaud,

A., Chaudet, C., Haurat, A., Théroude, F., 2002. Final

Specification of Business Case 1, Scenario and Initial

Requirements. Deliverable D7.1b, ArchWare project.

Carriere S., Woods S., Kazman R, 1999. Software

Architectural Transformation. In 6th Working

Conference on Reverse Engineering, IEEE Computer

Society.

Chaudet C., Oquendo F., 2000. π-SPACE: A Formal

Architecture Description Language Based on Process

Algebra for Evolving Software Systems, 15th IEEE

International Conference on Automated Software

Engineering (ASE’00), Grenoble - France.

Cîmpan S., Verjus H., 2005. Challenges in Architecture

Centred Software Evolution, CHASE: Challenges in

Software Evolution, Bern, Swizerland.

Cîmpan S., Leymonerie F., Oquendo F., 2005. Handeling

Dynamic Behaviour in Software Architectures. In the

European Workshop on Software Architectures, Pisa,

Italy.

ICEIS 2007 - International Conference on Enterprise Information Systems

228

Cook 2006

http://www.iam.unibe.ch/~ducasse/Research/Cook/ind

ex.html

Demeyer S., Ducasse S., Nierstrasz O., 2002. Object-

Oriented Reengineering Patterns, Morgan Kaufmann,

1-55860-639-4.

Ding L., Medvidovic N., 2001. Focus: A Light-Weight,

Incremental Approach to Software Architecture

Recovery and Evolution, In 2001 Working IEEE/IFIP

Conference on Software Architectures (WICSA-2),

Amsterdam, Netherlands.

Egyed, A., Medvidovic, N., 2001. Consistent Architectural

Refinement and Evolution using the Unified Modeling

Language, In 1st Workshop on Describing Software

Architecture with UML, co-located with ICSE 2001,

Toronto, Canada.

Erdogmus, H., 1998. Representing Architectural

Evolution, In Proceedings of CASCON '98. Toronto,

Ontario, Canada.

Garlan D., Cheng S.-W., Schmerl B., 2003. Increasing

System Dependability through Architecture-based

Self-repair. In Architecting Dependable Systems, R.

de Lemos, C. Gacek, A. Romanovsky (Eds), Springer-

Verlag.

Lehman M. M., 1996. Laws of Software Evolution

Revisited, In European Workshop on Software

Process Technology.

Magee J., Dulay N., Eisenbach S. Kramer J., 1995.

Specifying Distributed Software Architectures. In 5th

European Software Engineering Conference (ESEC

'95), Sitges, LNCS 989.

Manset D., Verjus H., McClatchey R., Oquendo F., 2006.

A Formal Architecture-Centric Model-Driven

Approach For The Automatic Generation Of Grid

Applications. In 8th International Conference on

Enterprise Information Systems (ICEIS’06), Paphos,

Chyprus.

Medvidovic N., Taylor R.N., 2000. A Classification and

Comparison Framework for Software Architecture

Description Languages, IEEE Transactions on

Software Engineering, vol. 26, no. 1, pages 70-93.

Mens T., Buckley J., Rashid A., Zenger M., 2003.

Towards a taxonomy of software evolution, In

Workshop on Unanticipated Software Evolution,

Varsovie, Poland.

Mens T., Wermelinger M., Ducasse S., Demeyer S.,

Hirschfeld R., 2005. Challenges in software evolution,

In 8th International Workshop on Principles of

Software Evolution. IEEE Press.

Milner R., 1999. Communicating and Mobile Systems: the

pi-calculus. Cambridge University Press.

Nistor E., J. Erenkrantz, S. Hendrickson, and A. v. d.

Hoek, 2005. ArchEvol: Versioning Architectural-

Implementation Relationships, In 12th International

Workshop on Software Configuration Management

(SCM05), Lisbon, Portugal.

Nierstrasz O., Achermann F., 2000. Supporting

Compositional Styles for Software Evolution,

International Symposium on Principles of Software

Evolution, IEEE, Kanazawa, Japan.

Oquendo F., Alloui I., Cîmpan S., Verjus H., 2002. The

ArchWare ADL: Definition of the Abstract Syntax and

Formal Semantics. ArchWare Deliverable D1.1b.

Oquendo F., Warboys B., Morrison R., Dindeleux R.,

Gallo F., Garavel H., Occhipinti C., 2004. ArchWare:

Architecting Evolvable Software. In First European

Workshop on Software Architecture (EWSA 2004), St

Andrews - UK.

Oreizy P., Medvidovic N., Taylor R., 1998. Architecture-

based runtime software evolution, In Inernational

Conference on Software Engineering, Kyoto, Japan.

Pinzger M., Fischer M., Gall H., 2004. Towards an

Integrated View on Architecture and its Evolution,

Elsevier Electronic Notes in Theoretical Computer

Science, Rome, Italy.

Pollet D., Ducasse S., Poyet L., Alloui I., Cîmpan S.,

Verjus H., 2007. Towards A Process-Oriented

Software Architecture Reconstruction Taxonomy, In

11th European Conference on Software Maintenance

and Reengineering (CSMR 2007), Amsterdam, the

Netherlands.

Pourraz F., Verjus H., Oquendo F., 2006. An Architecture-

Centric Approach For Managing The Evolution Of

EAI Service-Oriented Architecture, In 8th

International Conference on Enterprise Information

Systems (ICEIS’06), Paphos, Chyprus.

Rank S., 2005. Architectural Reflection for Software

Evolution, In Workshop on Reflection, AOP and Meta-

Data for Software Evolution (RAM-SE 2005), held at

ECOOP, Glasgow, UK

Ratcliffe O., Cîmpan S., Oquendo F., 2005. Case study on

architecture-centered design for monitoring views at

CERN, In 5th Working IEEE/IFIP Conference on

Software Architecture (WICSA 2005), Pittsburgh,

Pennsylvania, USA.

Revillard J., Benoit E., Cîmpan S., Oquendo F., 2005.

Architecture-centric development for Intelligent

Instrument Design, IEEE Int. Conf. on Computational

Intelligence for Measurement Systems and

Applications (CIMSA 2005), Giardini Naxos, Italie.

Roshandel R., van der Hoek A., Mikic-Rakic M.,

Medvidovic N., 2004. Mae: A System Model and

Environment for Managing Architectural Evolution,

ACM Transactions on Software Engineering and

Methodology, Vol. 13, Issue 2, pages 240-276.

Tibermacine C., Fleurquin R., Sadou S., 2005. Preserving

Architectural Choices throughout the Component-

Based Software Development Process. In 5th

IEEE/IFIP Working Conference on Software

Architecture (WICSA'05), Pittsburgh, Pennsylvania,

USA.

Verjus H., Cîmpan S., Alloui I., Oquendo F., 2006.

Gestion des architectures évolutives dans ArchWare,

1ère Conférence francophone sur les Architectures

Logicielles (CAL 2006), Nantes, France.

DYNAMIC ARCHITECTURE BASED EVOLUTION OF ENTERPRISE INFORMATION SYSTEMS

229
