INTERACTIONAL OBJECTS: HCI CONCERNS IN THE

ANALYSIS PHASE OF THE SYMPHONY METHOD

Guillaume Godet-Bar, Dominique Rieu, Sophie Dupuy-Chessa and David Juras

LIG Laboratory - 681 rue de la Passerelle

BP 72 - 38402 St Martin d'Hères - France

Keywords: Augmented Reality, Design method, Interactional Objects, HCI, Software Engineering.

Abstract: We present in this paper a set of concepts that extend a design method issued from the Software

Engineering domain, in order to take into account Human-Computer Interaction design, in particular for

Augmented Reality systems. Previous works focused on the initial phases of development (i.e.,

Specification phases). Our efforts concentrate on the Analysis phase, into which we have introduced a new

concept – Interactional Objects- that allows designers to structure the interactional space, and a specific

relation that permits to draw links between the business and interactional spaces. These contributions also

enable developers to develop reusable components and encourage code generation.

1 INTRODUCTION

The evolution of computer technologies, in terms of

communication (wireless networking) and

interaction device (visualization headsets, tactile

gloves) deeply alter the classical, implicit perception

of Human-Computer Interaction (HCI). The user can

now evolve in environments blending real and

virtual entities. We shall use the concept of

“Augmented Reality system” to designate any

interactive system that superimposes virtual data

onto the real world. These systems must address

major challenges for their development and use,

such as the cohabitation of physical and numerical

spaces, multiple and complex interactions between

these worlds (variety of device, multimodality,

usability). Neither HCI’s design methods and

evaluation practices, nor Software Engineering’s

(SE) tools and techniques are adapted to these

specific contexts.

Our goal is to propose a design method

integrating both SE methods for the development of

the functional core and HCI practices for designing

the interaction. The design of the system’s

functionalities should therefore rely on well-known

models such as UML, which is supported by several

design processes, for instance the Rationale Unified

Process (Jacobson et al., 1999). The proposed

method must also allow the development of classical

interactive systems as well as integrate specific

activities necessary to the development of

Augmented Reality systems. We address this

problem by extending an existing design method:

Symphony, into which we introduce new design

phases, new concepts – Interactional Objects – and

new models that provide a bridge and an adaptation

between SE and HCI concepts. This paper focuses in

particular on the latter.

In the next section, we present the Symphony

method, used as a medium for merging HCI and SE

approaches, and a case study from which several

examples are extracted throughout the paper. The

third section details our contributions as an

addendum to the process previously introduced. In

the fourth section, we address the problem of design

for reuse and how it applies in the context of our

contribution.

2 RELATED WORK

2.1 Models for HCI

Our design method is based on models for SE and

for HCI. For SE, we use the UML standard. In HCI,

design is often based on task analysis. So classical

models in HCI are task trees such as ConcurrTask

Trees (Paternó, 2003).

For augmented reality systems, models such as

ASUR (Dubois et al., 2002), IRVO (Chalon and

Godet-Bar G., Rieu D., Dupuy-Chessa S. and Juras D. (2007).

INTERACTIONAL OBJECTS: HCI CONCERNS IN THE ANALYSIS PHASE OF THE SYMPHONY METHOD.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - HCI, pages 37-44

DOI: 10.5220/0002388600370044

 SciTePress

David, 2004) have been proposed to take into

account their interactional specificities. These

models aim to complement classical approaches. For

example, ASUR or IRVO present possible

interactions in the context of a user task described

using a task model. User tasks correspond to the

abstract or actual actions a system user may perform,

such as select an object, move it around the

graphical interface…

2.2 Design Methods

Being based on different models and processes,

compatibility between design methods for

interactive systems and for the functional core is a

recurring problem that has already been subject to

specific studies (Tarby 2001), (Lim 1994). In

particular, (Gulliksen and Göransson, 2005) and

(Sousa and Furtado, 2003) propose to extend the

Rationale Unified Process with the design of

interaction, in a user-centred approach. (Constantine

et al., 2003) also describe a process unifying the

design of interaction and that of the functional core

but in a usage-centred approach. None of these

works addresses Augmented Reality-specific

aspects, such as the representation of interaction

device like Head-Mounted Displays, positioning

systems... Moreover, they offer a weak formalization

of proposed processes, which makes them difficult

to apply for developers.

3 SYMPHONY

3.1 General Concepts

In this section we introduce an extension of the

Symphony design method, used as a medium for

merging HCI and SE development processes.

Symphony is a user-oriented, business

component-based development process originally

proposed by the UMANIS company. It has already

been extended by (Hassine et al., 2002) and (Juras et

al., 2006a), mainly in order to improve reusability of

components, and lately to integrate the design of

complex interfaces such as those featuring

Augmented Reality systems.

Symphony is organized into three design

branches, similarly to 2TUP, into a Y-lifecycle. The

whole lifecycle is applied for each functional unit of

the system under development (see below):

– The functional (left) branch corresponds to the

traditional task of domain and user requirements

modelling, independently from technical aspects,

– The technical (right) branch allows developers

to design both the technical and applicative

architectures. It also federates all the constraints

and technical choices with relation to security,

pervasiveness, load balancing…

– The central branch integrates the technical and

functional branches into the design model, which

merges the analysis model with the applicative

architecture and details traceable components.

Organization of phases in Symphony is summarized

in Figure 1. For the sake of conciseness, we will

only cover in this section a few aspects of a system’s

design (functional branch) through the Specification

and Analysis phases of the extended Symphony

process.

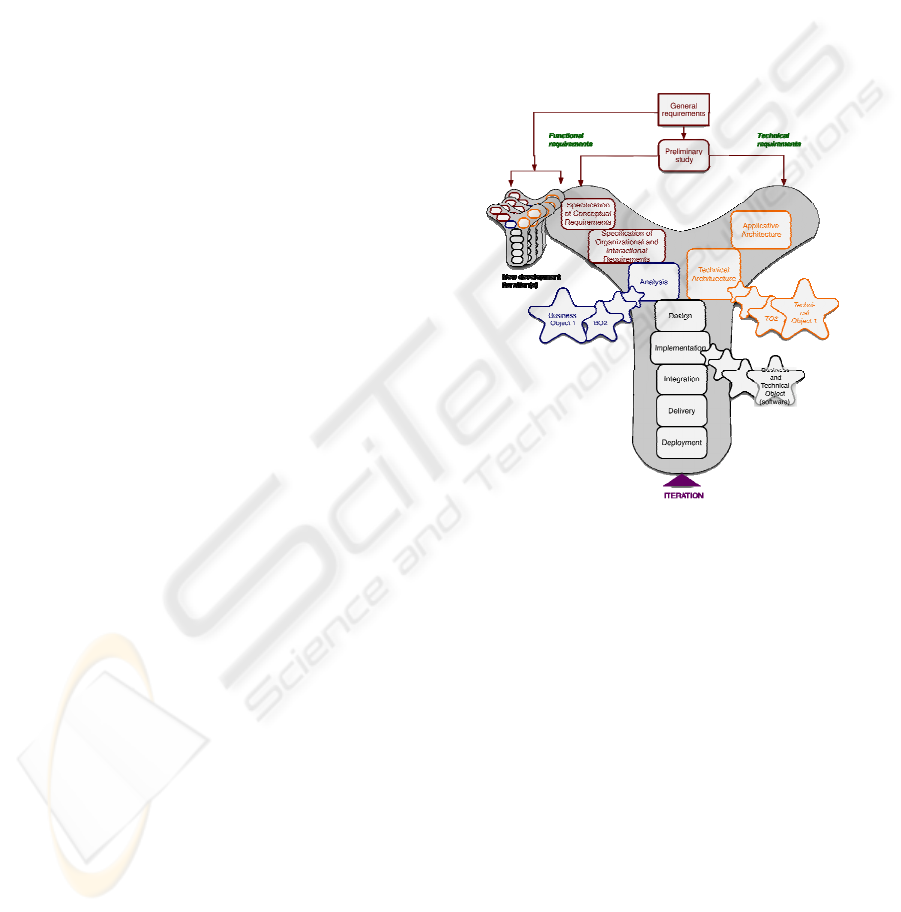

Figure 1: Symphony design phases.

All phases aim at refining models and scenarios

previously outlined. SE and HCI-oriented activities

are realized in parallel, by design actors specialized

either in Software Engineering or Human-Computer

Interaction. However, both may collaborate in order

to ensure consistency of adopted design options, as

detailed in (Juras et al., 2006b). One will note that

mappings between models exist but are not

described in this paper.

3.2 Case Study

We chose to address a well-known problematic

encountered by real estate agents when making an

inventory of fixtures: the scarcity of data available to

evaluate a housing. Indeed, most of real estate

business processes feature basic computerization:

specifically, details about damages are in most cases

lay out as paper forms and textual descriptions.

ICEIS 2007 - International Conference on Enterprise Information Systems

Such data is often insufficient when the real

estate agent needs to evaluate the evolution of a

specific damage or wearing out from one occupation

to the next, especially when this is a contentious

issue between the tenants and the expert or the

landholder.

One solution would consist in allowing the agent

to visualize directly the past and current states of the

premise, using visual cues to signal elements that

need special attention. An Augmented Reality

interface comes to mind when it comes to designing

such a system.

In the following sections, we detail the

development process we adopted for this

application.

3.3 Specification of Conceptual

Requirements

As a prologue to the Specification of Conceptual

Requirements phase, the Preliminary study

essentially deals with splitting up the system

requirements into independent functional units:

Business Processes (i.e., a Business Process can be

considered as a collection of activities taken as a

response to a specific type of input or event and

produces an output of value for the process’ client).

Each is assigned a whole iteration of the Y-lifecycle

and development priorities. Actors (e.g., landholder,

expert, tenants) interacting with the Business

Process are also identified.

During the Specification of Conceptual

Requirements phase, Business Processes are

described in terms of nominal scenario and high-

level sequence diagrams where only actors and

Business Process are represented (i.e., there s no

decomposition of the system yet). We shall focus in

this paper on the “Management of inventories of

fixtures” Business Process.

Business Processes are then refined so as to

identify uninterrupted exchanges between actors and

the Business Process. Such units constitute Business

Processes Components(BPC), which are themselves

described using scenario and sequence diagrams.

These descriptions include alternative scenarios

(extensions of the nominal scenario).

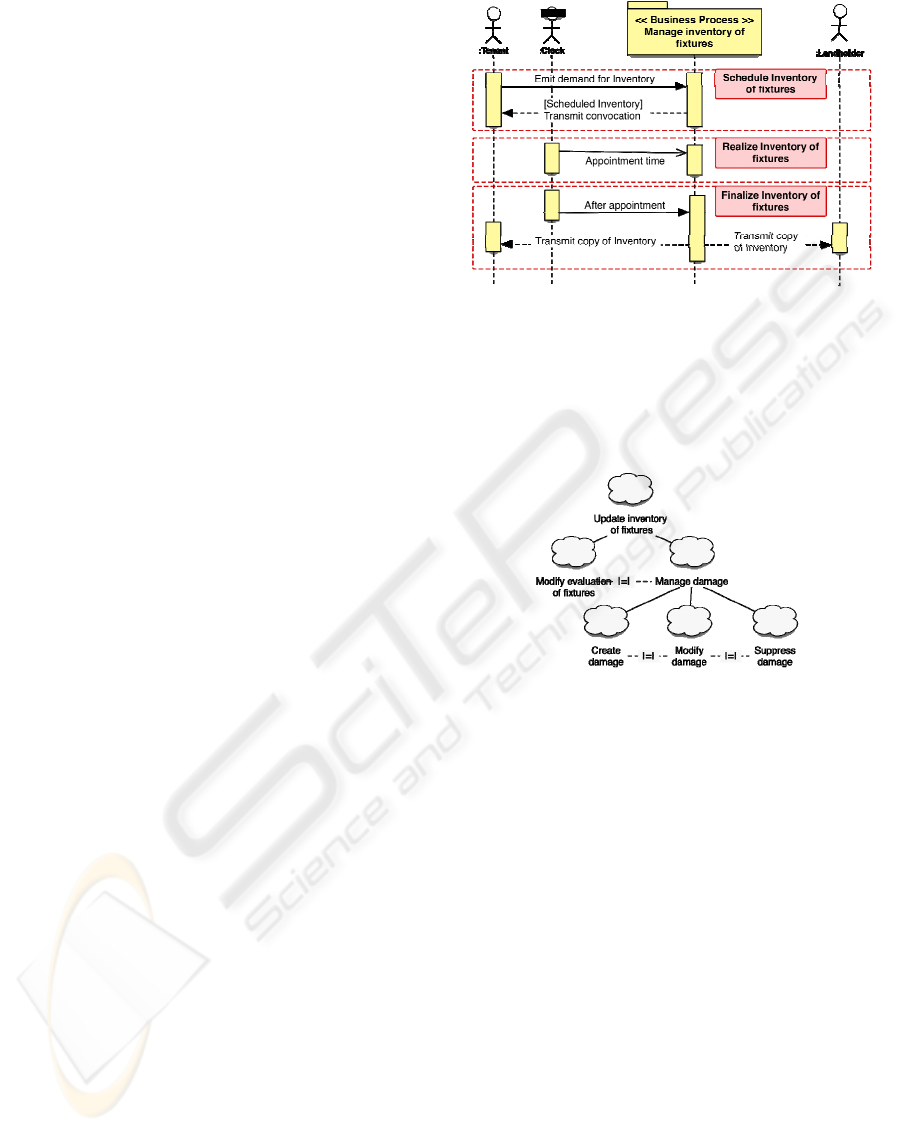

Figure 2: Sequence diagram for the Manage Inventory of

fixtures Business Process.

Successive refinements of the “Management of

the inventories of fixtures” Business Process have

led to identifying the “Realize an inventory of

fixtures” Business Process Component (

Figure 2).

Figure 3: Extract from the task tree for the inventory of

fixtures application.

Parallel to the construction of sequence diagrams

during the Specification of Conceptual

Requirements phase, task trees (Paternó, 2003)

describe abstract user tasks, for each Business

Process and BPC, that is without mentioning actual

device used or modalities such as text, speech,

pointing…

Figure 3 features an extract from the

general task tree that focuses on the tasks involving

the manipulation of the “Damage” concept. Tasks

are ordered into a hierarchy of abstraction, with the

lowest task representing refinement (and successive

reification steps) of parent tasks. The “|=|” operators

linking tasks at a same abstraction level indicate

alternatives for the user. One will note that the task

tree presented in

Figure 3 does not yet feature details

on how the damages are supposed to be

manipulated.

INTERACTIONAL OBJECTS: HCI CONCERNS IN THE ANALYSIS PHASE OF THE SYMPHONY METHOD

3.4 Specification of Organizational and

Interactional Requirements

3.4.1 Organizational Requirements

During this activity, each Business Process

Component is further refined into activity diagrams

showing internal actors (for example, the Expert)

and their interactions with the system and the

external actors (for example, the tenants). This

allows identifying manual and computerized tasks.

The latter are then generalized into Use Cases.

Finally, all identified Use Cases are organized

into logical packages usually representing the

Business Process Component (

Figure 4).

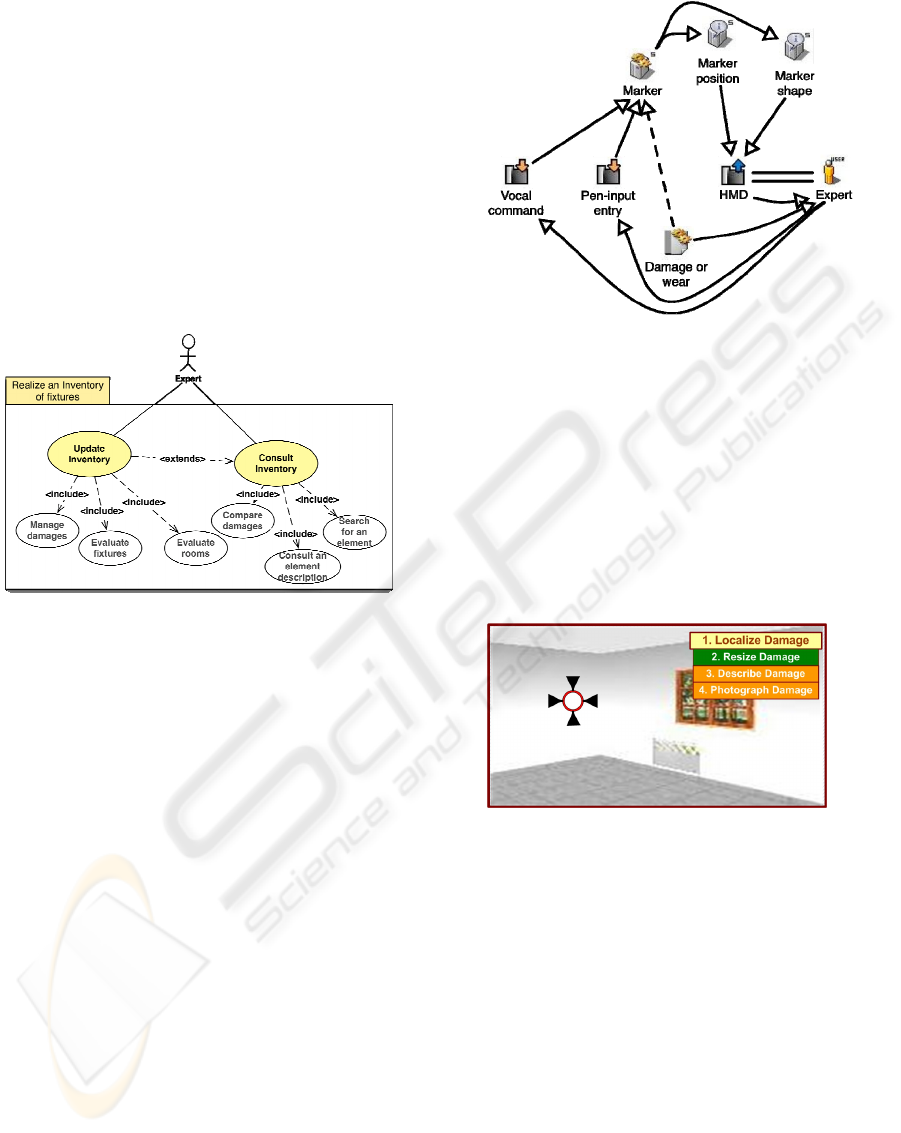

Figure 4: Organization of Use Cases into packages.

3.4.2 Interactional Requirements

The Interactional Requirements refines abstract user

task trees into concrete tasks, thus detailing device

and interaction languages (e.g., vocal commands,

gesture input…) manipulated by the users. Usability

concerns are also addressed during this phase.

Additional models help describe and design the

envisaged interaction, depending on the complexity

of the future system’s interface. Our case study

featuring an Augmented Reality interface, we resort

to ASUR models (Dubois et al., 2002) to assist the

design of interaction. ASUR essentially allows the

designer to describe device, mechanical relations

between device, real objects used to interact with the

system, users and numerical objects used as virtual

representations of real entities. Relations traced

between these concepts finalize the representation of

the system’s Human-Computer Interaction. Figure 5

thus details parts of the interaction technique used

for the task “Manage Damage” in

Figure 3.

Figure 5: ASUR model as a representation of the task

"Manage Damage”.

In the figure above the user, identified as the

Expert, is wearing a Head-Mounted Display (“==”

relation) which provides information (Æ relation

symbolizes physical or numerical data transfer)

about the position and shape of a Marker virtual

object. The Marker is a numerical representation (“--

>” relation) of a physical Damage in the physical

world. The Expert can interact with the Marker

object using Vocal command and Pen-input entries.

Figure 6: Interface prototype as projected on the Head-

Mounted Display.

Figure 6

represents an interface prototype

deduced from both the task tree described in

Figure 3

and the ASUR diagram illustrated in

Figure 5, as

should be displayed on the Head-Mounted Display.

The Marker object indeed helps the user identifying

damages (possible actions are described in the top-

right menu) while walking around the premise.

3.5 Analysis

This phase is quite activity-dense in the Symphony

method. Two types of studies are carried out:

structural (static) and dynamic analysis. The latter

consists in refining the Use Cases into detailed

scenarios and sequence diagrams (similarly to the

ICEIS 2007 - International Conference on Enterprise Information Systems

process described in the Rational Unified Process),

in order to identify logic entities: Business Objects.

The dynamic analysis only allows outlining the

services (i.e., the interface) that these entities are

supposed to provide, for example: adding a Marker

object, defining its properties…

During the structural analysis, the Business Objects

identified are expounded in terms of Interface,

Master, Part and Role classes and then organized.

We describe in the following paragraphs such

activities.

Symphony conceptualizes the system as an

assembly of independent and interconnected

Business Objects. This guarantees a modularity of

specifications and encourages their reuse.

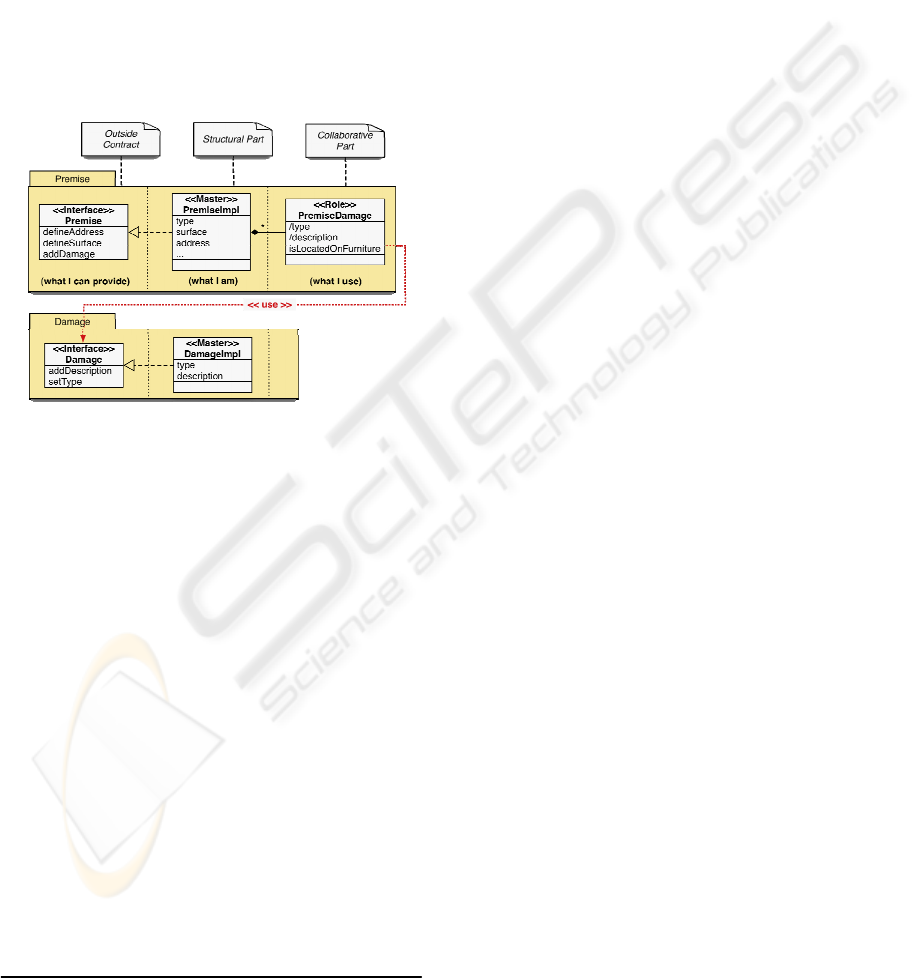

Figure 7: Example of organization between two Business

Object.

Figure 7

presents an example of Business Object

as described during the Analysis phase. One will

note its representation as a tripartite UML package,

into which classical UML stereotyped classes are

defined. The three parts of the Business Object are

conceptually analogous to that of a UML

component

. They are composed of:

An outside contract, into which an Interface

class describes the services that can be provided by

the object. For example, the Premise Business

Object can be required to define its address, its

surface or add a damage description,

A structural part, composed of two types of

classes: the Master class, which is a central,

autonomous part, which keeps all the knowledge

about the object’s manipulations, and implements

the Interface ; if needed a Part class (in Figure 8,

the “Localization” class) may complement the

UML superstructure – version 2.0 - http://www.omg.org/cgi-

bin/doc?formal/05-07-04

Master class in order to structure its attributes and

highlight key concepts of the Master class.

A collaborative part, where Role classes

feature service providers for the client object (i.e.,

another Business Object) and their adaptation to the

object’s requirements. In Figure 7, the

“PremiseDamage” role is in fact an adaptation of a

generic “Damage” Business Object. The slash-

prefixed attribute “type” describes a concept derived

from the “Damage” object, while the

“isLocatedOnFurniture” attribute represents a notion

proper to the “PremiseDamage” role.

Amongst the different relation types which

enable the designer to organize Business Objects,

the “use” relation, allows developers to represent the

adaptation between a given Business Object and its

role as another’s collaborator (i.e., an object able to

provide services defined into the “Role” class).

Figure 7 illustrates such an organization between

Business Objects, in which the “PremiseDamage”

role’s adaptation of the “Damage” Business Object

is clearly represented.

The interactional aspects of the Analysis phase

are treated in current versions of the Symphony

process as an unspecified technical layer, usually

using applicative architectures such as Struts. We

address the problematic of a more structured

approach to interaction design in the following

paragraphs.

4 INTERACTIONAL OBJECTS

AND CONCEPT MAPPING

4.1 Interactional Concepts

The decisions taken during the specification phases

contribute to constructing an interactional space, as

opposed to the traditional business space. Indeed, we

saw in the previous section that the elaboration of

the human-computer interaction generates new

concepts that need to be integrated into the system

(e.g., the Marker object as a representation of a

Damage). These concepts should facilitate co-design

between SE and HCI developers, as well as reuse

and generation efforts already explored for the

business space. Additionally, they emerge from

interactional diagrams such as ASUR or more

implicit notions that do not appear in these models.

In that respect, we identify three cases:

Explicit mapping: Some concepts, which are

represented in the interaction diagrams previously

elaborated (e.g., see

Figure 5), are mappings of

INTERACTIONAL OBJECTS: HCI CONCERNS IN THE ANALYSIS PHASE OF THE SYMPHONY METHOD

business concerns into the interactional space: for

example, a “Marker” is a mapping of the “Damage”

notion. One will note that these mappings translate

properties from Business Objects into wholly

different modalities: for example, the type of

damage (wearing out or alteration) is represented by

different marker shapes and/or colours.

Implicit mapping: Other concepts emerge from

implicit aspects of the interaction diagrams. For

example, in order to show the “Marker” objects to

the user, it is necessary to maintain a numerical

representation of the premise (a 3D mesh, or even a

simple 2D plan) where the markers will be

positioned. However, the numerical representation

also corresponds to the “Premise” concept

introduced in the business space.

No mapping: Finally, other aspects of the

interactional space are neither represented in ASUR

diagrams nor in the business space. For example, it

is necessary to identify the user’s position and

orientation into the premise (in fact, of the numerical

representation of the premise, see above) using

passive sensors (GPS positioning, gyroscopes,

triangulation… that were not represented in the

ASUR diagram, essentially because they are

common to most Augmented Reality systems).

Defining the user’s position in the numerical world

is necessary so as to display the correct virtual point

of view on the HMD’s screens. However, this

concept of “Avatar” has no equivalent into the

business space, as there is no to identify the

application’s current user (i.e., the Expert), at least

when considering the “Realize an Inventory of

Fixtures” Business Process.

From a practical point of view, the mappings

between the interactional and business spaces would

be more clearly and easily expressed if the same

models structures both spaces. Therefore, a set of

evolutions needs to be undertaken concerning the

Analysis phase, in order to take into account the

models described during the Specification of

Interactional Requirements phase, on one hand. On

the other hand, it is also necessary to combine HCI

models with the technical, Software Engineering-

oriented aspects usually described during the

Analysis phase, in order to provide a common

ground for describing HCI and SE concepts. The

following paragraphs describe such addenda.

4.2 Interactional Objects

In analogy with Business Objects, which constitute a

conceptual view of the system’s functional aspects,

within a business space, we introduce the concept of

Interactional Objects, which correspond to a more

technical or programmatic view of the system’s

interactional aspects, within an interactional space.

They are technology-independent models that should

not put excessive constraints on the development

practices of HCI designers.

As a comparison, one will note that other

notations aim at structuring the interactional space.

For instance, as an extension of the ASUR model for

Augmented Reality, (Dubois et al., 2006) proposes a

participatory design process and ASUR-IL: a

transformation of ASUR components into MVC-

based software units, which also allows for rapid

prototyping of the system. However, this approach

does not provide any formalization of the design

process or mapping with SE concepts. Also, apart

from restraining development to MVC-based

architectures, reuse is not addressed in this work.

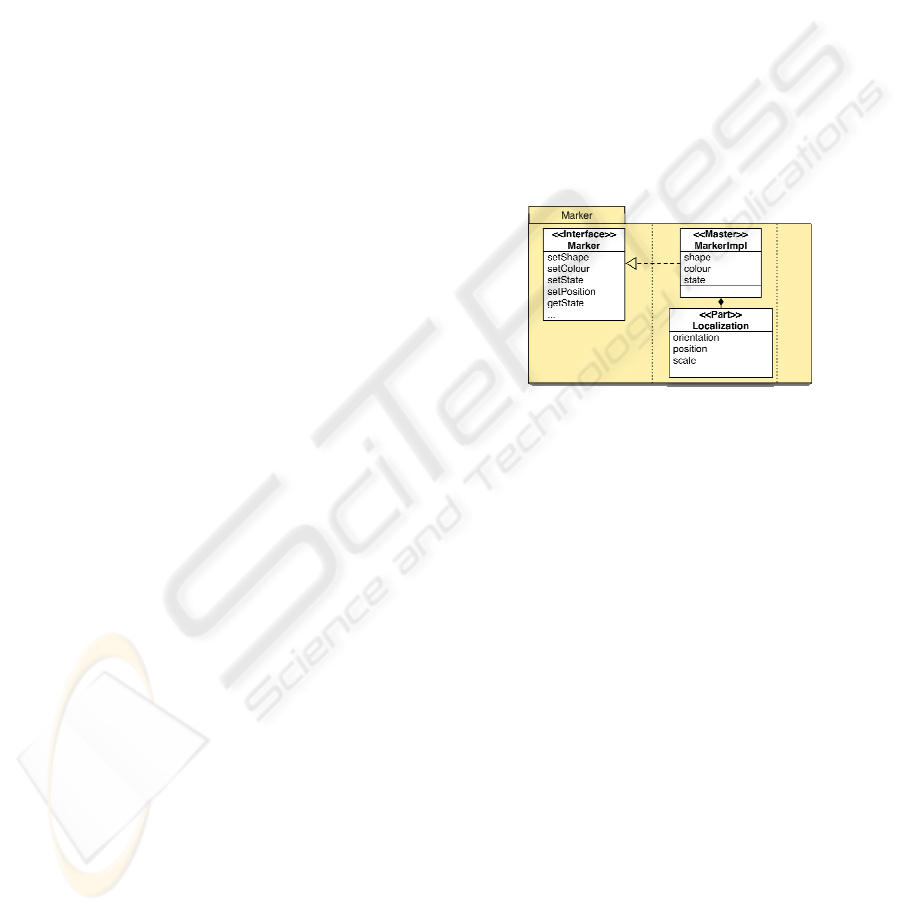

Figure 8: Interactional Object example

Despite the distinct conceptual spaces to whom

they are attached, Interactional Objects and Business

Objects are structurally similar: they are described as

tripartite UML packages as an incentive to build

interactional components. Using Roles allows the

developers to adapt these components to applicative

concerns. Figure 8 presents the Interactional Object

“Marker”, which corresponds to the concept detailed

in the above sections. It is thus possible to define the

Marker’s shape, colour, position, orientation or

current state (locked or unlocked)…

Additionally, Interactional Objects can be

organized similarly to Business Objects, through the

“use” relation. As a rule, these relations can only

bind Symphony Objects from the same conceptual

space (i.e, interactional or business).

ICEIS 2007 - International Conference on Enterprise Information Systems

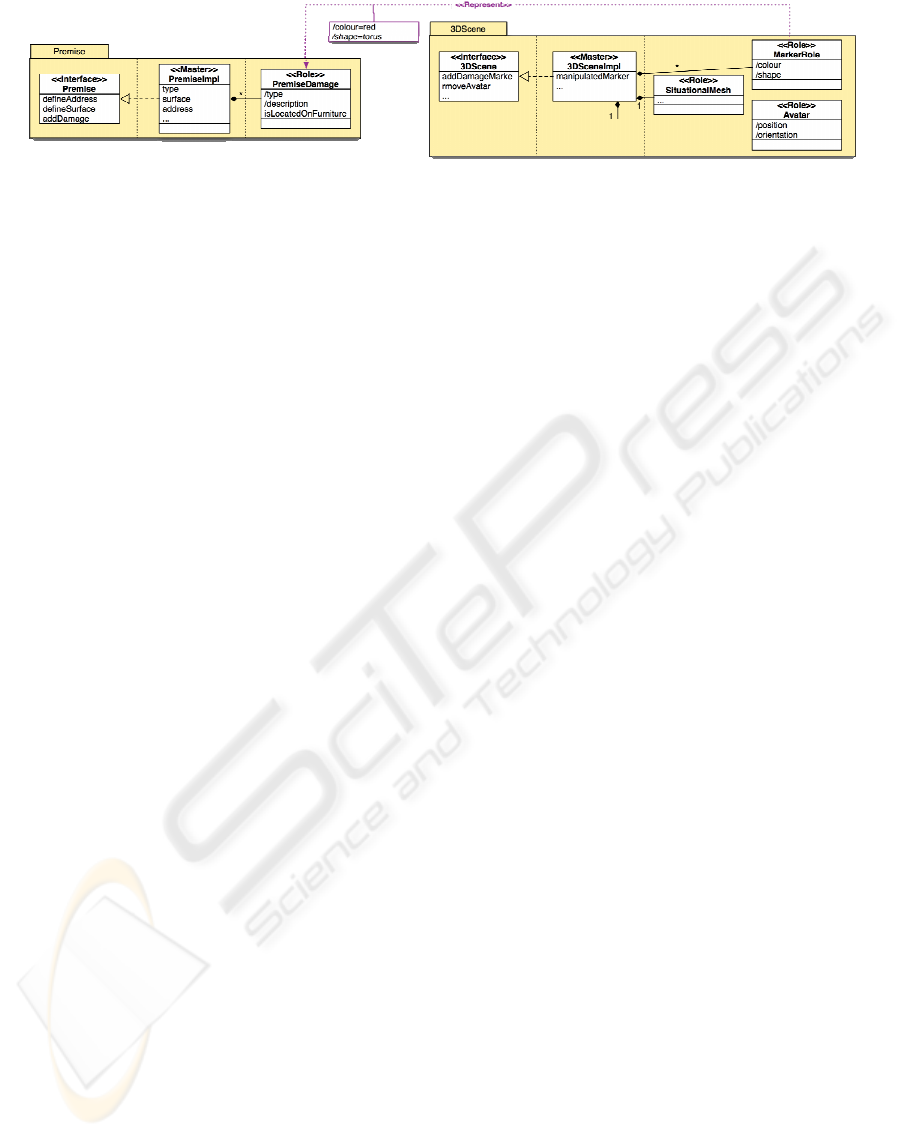

Figure 9: Example of adaptation between Interactional Object and Business Object.

4.3 Adaptation Modelling

In order to illustrate the representation of business

concepts into the interactional space and realize

mappings between both spaces, we introduced a new

“Represent” relation.

Figure 9 illustrates the use of

this relation, which binds the “MarkerRole” class to

the “PremiseDamage” role: in our application a

graphical marker is indeed responsible for

representing the “Damage” concept, which is itself

adapted to the “Premise” business-specific context.

The adaptation between the interactional and

business spaces occurs in two steps:

Signature modelling: the adaptation realized

when instantiating the Interactional Object. It is

constituted by the mapping and transformation of

Interactional Object attributes (and, if needed, their

instanciation) to their Business Object counterpart.

For instance, the “Marker” Interactional Object is

adapted to the inventory of fixtures’ problematic

(that of a Damage Marker) by assigning it a specific

colour (red) and shape (torus), through the

“Represent” relation. These attributes do not have

specific equivalents in the “PremiseDamage”

Business Object, but correspond to the signature of

this specific MarkerRole-PremiseDamage relation.

State mapping correspond to the mapping of

interactive events’ semantic into the business space,

if it implies a modification of its corresponding

Interactional Object’s state. For instance, if a

“DamageMarker” object (i.e., a Marker adapted to

signalling damages through its static modelling

specialization, see above) is set into its “locked”

state, the corresponding “PremiseDamage” object

must be validated (i.e., saved into the real estate

agency’s database). State mapping can thus be

represented as statechart diagram mappings with

user events triggering transitions. For the sake of

conciseness, we shall not treat the specifics of these.

mechanisms in this paper.

In the next section, we explore how the use of

Interactional Objects and “Represent” relations eases

the design “for reuse” of Interactional Components.

5 DESIGN “FOR REUSE”

While system modularity is central to the Symphony

method, it is less trivial to organize development

with reuse in mind. This is especially true for

business components, which although theoretically

sound, are in practice seldom developed or seldom

reused as each project features a very specific

approach to business.

However, by their very nature, interactional

components are often reused in different

applications. For instance, most of the Interactional

Objects we designed (SituationalMesh, Marker,

Avatar and 3DScene…) are recurrent concepts

found in Augmented Reality systems.

Although we do not intend to detail design time

aspects of Symphony, suffice it to say that

Interactional Objects can be considered as logical

abstractions from technical implementations, or

Interaction Components. For instance, the

Interaction Objects in the prototype we designed for

the Augmented Inventory of Fixtures features an

OpenGL implementation of our Interactional

Components that was quite effortless to develop. In

that respect, it is possible to build libraries of

reusable Interactional Objects as abstractions from

technical component libraries.

Moreover, aside from building single-element

libraries, Interactional Objects can be provided into

organized sets, for example an “Augmented Reality

set” that includes commonly used Interactional

Objects such as “SituationalMesh”, “Avatar” and

“3DScene”, into which common services are

described (e.g. adding an object into the scene,

localizing…). Such elements could for example be

reused for the MEMO system described in (Bouchet

et al., 2004), for which a user wearing a HMD and

using vocal commands may create virtual post-its

that may be disposed anywhere (for instance, close

to an interesting spot in a city) for other MEMO

users to see (when visiting the aforesaid city).

Thus, Interactional Objects encourages the

development of reusable components and sets of

components for human-computer interaction.

INTERACTIONAL OBJECTS: HCI CONCERNS IN THE ANALYSIS PHASE OF THE SYMPHONY METHOD

6 CONCLUSION AND FURTHER

WORK

We have introduced in this paper a set of concepts

that allows designers to take into account the design

of the HCI throughout the specification and analysis

phases of a design method: Symphony. While

originally aimed at designing classic systems, HCI

models and processes were integrated into the

specification phases, during a first evolution of the

method, thus permitting the design of Augmented

Reality (AR) interfaces.

As a complement to these efforts, our first

contribution – Interactional Objects –, allows HCI

designers to describe and organize interaction-

specific concepts similarly to current SE practices

for the business space. Our second contribution – the

“Represent” relation –, allows SE and HCI designers

to draw links between the concepts that emerge in

the business and interactional spaces.

Future works include finalizing the Augmented

Inventory of Fixtures application, refining the

method further on and applying it to a variety of

projects, either in terms of domains (airport security)

or type of interface (classical interaction, AR). This

will also enable us to explore the reuse capacities of

Interactional Objects and Interactional Components

for AR as well as enlarge our component repository.

Additionally, we need to explore to what extent

Interactional Objects should be adapted or variable.

Finally, we plan to provide rationale concerning

component choice using patterns, similarly to the

approach described in (Godet-Bar et al., 2006).

Refining the method shall also imply describing

more formally SE and HCI model weaving.

ACKNOWLEDGEMENTS

The authors wish to thank the INPG and the IMAG

federation for their financial support.

REFERENCES

Bouchet, J., Nigay, L., Ganille, T., 2004. ICARE software

components for rapidly developing multimodal

interfaces. In Proc. of the Sixth International

Conference on Multimodal Interfaces, pages 251-258.

Chalon, R., David, B. T., 2004. Modélisation de

l’interaction collaborative dans les systèmes de Réalité

Mixte. In Proc. of the ACM Conference IHM’04,

pages 37-44. ISBN : 1-58113-926-8. In French.

Constantine, L., Biddle, R., Noble, J., 2003. Usage-centred

design and Software Engineering : Models for

integration. In Proc. of the IFIP TC13 workshop on

Closing the gaps: Software Engineering and Human-

Computer Engineering. Borup Harning & Jean

Vanderdonckt eds.

Dubois, E., Nigay, L., Troccaz, J., 2002. Assessing

continuity and compatibility in augmented reality

systems. In UAIS, International Journal on Universal

Access in the Information Society, Vol. 4, pages 263-

273. Springer-Verlag.

Dubois, E., Gauffre, G., Bach, C., Salembier, P., 2006.

Participatory design meets Mixed Reality design

models : Implementation based on a formal

instrumentation of an informal design approach. In

CADUI’06, Computer-Aided Design of User

Interfaces, pages 75-88. Springer-Verlag.

Godet-Bar, G., Dupuy-Chessa, S., Nigay, L., 2006.

Towards a system of patterns for the design of

multimodal interfaces. In CADUI’06, Computer-Aided

Design of User Interfaces, pages 27-40. Springer-

Verlag.

Gulliksen, J, Göransson, B., 2005. Usability design :

Integrating user-centred systems design. In The System

Development Process tutorial at CHI’2005, USA.

Hassine, I., Rieu, D., Bounaas, F., Seghrouchni, O., 2002.

Symphony : a conceptual model based on business

components. In SMC’02, IEEE International

Conference on Systems, Man, and Cybernetics, Vol. 2.

Jacobson, I., Booch, G., Rumbaugh, J., 1999. The Unified

Software Development Process. Addison-Wesley.

Juras, D., Rieu, D., Dupuy-Chessa, S., 2006. Vers une

méthode de développement pour les Systèmes Mixtes.

In INFORSID’06, Actes du 24

ème

Congrès

Informatique des Organisations et Systèmes

d’Information et de Décision, pages 33-48. In French.

Juras, D., Rieu, D., Dupuy-Chessa, S., Front, A., 2006.

Conception collaborative pour les Systèmes Mixtes. In

Revue Génie Logiciel nb.77, GL-IS, pages 31-36. In

French.

Lim K. Y., Long J., 1994. The MUSE method for usability

engineering, Cambridge University Press.

Paternò, F., 2003. The handbook of task analysis for

human-computer interaction. Chapter

ConcurTaskTrees: An Engineered Notation for Task

Models, pages 483-503. Lawrence Erlbaum

Associates.

Sousa, K. S., Furtado, E., 2003. An approach to integrate

HCI and SE in requirements engineering. In Proc. of

the IFIP TC13 workshop on Closing the gaps:

Software Engineering and Human-Computer

Engineering. Borup Harning & Jean Vanderdonckt

eds.

Tarby J.C., Barthet M.F., Analyse et modélisation des

tâches dans la conception des systèmes d’information :

la méthode Diane+. In : Analyse et conception de

l’IHM, pp 117-144, Hermès, 2001. In French.

ICEIS 2007 - International Conference on Enterprise Information Systems
