BORM POINTS – NEW CONCEPT PROPOSAL OF

COMPLEXITY ESTIMATION METHOD

Zdeněk Struska and Vojtěch Merunka

Department of Information Engineering, Faculty of Economics and Management

Czech University of Life Sciences in Prague, Kamycka 129, 165 21 Prague 6 – Suchdol, Czech Republic

Keywords: BORM method, analysis and design of information systems, complexity, design phases of information

system, BORM points, technical factor, environment factor, customer factor and productivity factor.

Abstract: This paper contains an introduction of new method ‘BORM points’ from the area of complexity estimation

in object environment. In the first part of the paper there is a BORM description (Business and Object

Relation Modelling). In the second part there is a world-wide premiere of ‘BORM points’' concept. It is the

suggestion of estimation method using for the BORM environment. At the end of the paper there is list of

next steps to finish the methods and promote it to the wide scientific communities.

1 INTRODUCTION

First methods developed for software project

complexity estimation were designed in the 1970’s.

‘Function points’ method introduced by Allan

Albrecht, originally called the ‘IBM function

points’, was become one of the most well known

estimation method.

IFPUG (International function points users

group) ‘function points’ are marked like the direct

follower of all. Next method is ‘Feature points’,

which was developed during ‘function points’

testing on management information systems.

‘Feature points’ eliminated one ‘function points’’

disadvantage – inaccurate estimation of information

systems (IS) consisting of many algorithms. By

these systems ‘function points’ predicted higher

values than ‘feature points’ (Struska, 2005).

Unfortunately, all these approaches did not

reflect current style of software development, which

is based on strong object–oriented paradigm and

agile approach. This is why, in the 1990’s the

introduction of ‘use case points’ was move in the

area of complexity estimation. This method based on

‘function points’ added a new dimension to the area

of complexity estimation (Struska, 2005). Our

approach continues this idea of ‘use case points’

towards business analysis of information systems

assembled by the pure object-oriented technology.

We are presenting a new method for information

systems estimation in BORM methodology

(Business and Object Relation Modelling) in

connection with studying ‘use case points’.

This paper introduces a concept of new method –

‘BORM points’, which applies estimation technique

rules for the BORM methodology. The ‘BORM

points’ frame is deduced from ‘use case points’.

Therefore the new ‘BORM points’ has additional

factor - “customer factor“, which should represent

customers‘ requirements in the information system

project.

2 METHOD CONCEPT

The BORM (Business and Object Relation

Modelling) method has been in use since 1993.

From the beginning the BORM was oriented on the

support of pure object-oriented programming

languages and development environment software

systems design, which are for example Smalltalk

environment and non-relational object databases.

BORM can be used not only for software design, but

for requirement analysis of planned systems and

business process modelling, as well.

BORM development has been supported by

Deloitte&Touche Czech Republic and Central

Europe, where the method is currently being used.

580

Struska Z. and Merunka V. (2007).

BORM POINTS – NEW CONCEPT PROPOSAL OF COMPLEXITY ESTIMATION METHOD.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 580-586

DOI: 10.5220/0002389105800586

 SciTePress

BORM differentiates 6 phases of the system

development lifecycle (Carda, Merunka and Polak,

2003):

1) Strategic analysis – determination of problem,

interface is defined here, basic processes are

recognized, which occur in the system or in its

neighbourhood.

2) Initial analysis – recognition of problem,

required processes in system and properties of

basic objects are mapping including its share on

the processes.

3) Advanced analysis – development of analysis

into details of individual object types (set of

objects, object classes) and object linkages

(composition, inheritance, dependences…).

4) Initial design – we try to set up a system to be

able software implementation.

5) Advanced design – items of existing model are

transformed in so form, which is applicable in

the target implementation environment. In this

phase properties of programming languages,

databases are take into consideration.

6) Implementation (design, program composition) –

required software is designed (programming,

generation by the help of CASE).

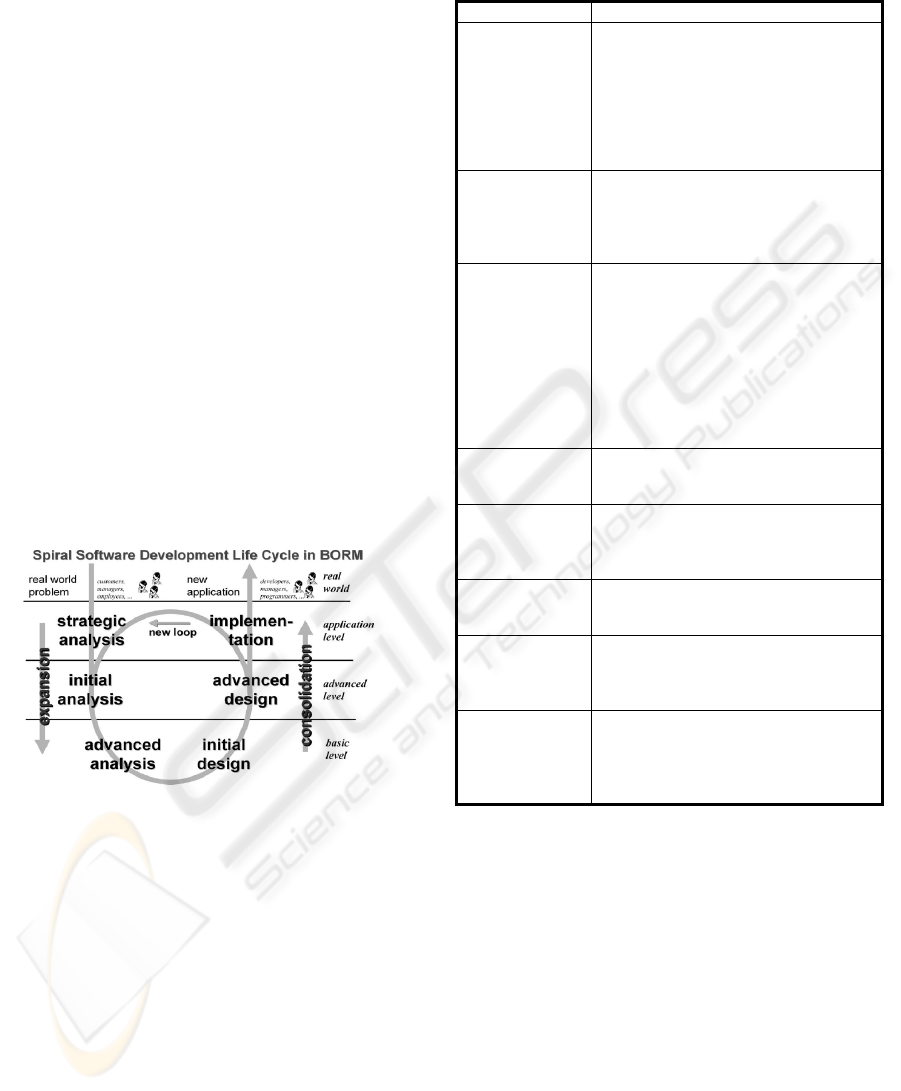

Figure 1: 6 phases of system development lifecycle in

BORM (Knott, Merunka and Polak, 2003).

The BORM method covers two level of

information system proposal – business analysis of

IS and conceptual analysis of IS. Business analysis

is concerning with current and future process

mapping, which is described by functions, scenarios,

architecture and business diagrams. Conceptual

analysis reassumes the results of business analysis to

transform the business model into programmers’

submissions, which are described by the objects and

classes diagram, software objects diagram and the

software component diagram.

Table 1: Explanation of BORM notions. (Carda, Merunka

and Polak, 2003).

Notions Explanation

Architecture

Provides complex system models, which

consist of layers, which concerns with

models of one side of the system.

For example layers of processes, logical

model (data, functions and rules

description) and component model (e.g.

software application or organisational

structure).

Activity

Activities introduce individual parts of

business objects behaviour to, how they

were recognized by OBA technique. In

business diagrams transition between

object states are realized by activities.

Business

diagram

This diagram introduces a map of all

possible process development in current

display of two dimensions of this

problem. Roles of participating objects as

automatic machine with states and

transitions are first dimension. Sequences

of communications between objects,

which represent driving and data flow

between objects in process, are the

second dimension.

Communication

Activities diving of business objects.

Communication is report abstraction

between objects.

Data flow

Data, which objects exchange through

communications or report sending, it

distinguishes report parameters and

return values.

Function

The simplest description of required

processes in system according to OBA.

Scenarios are derived from the functions.

Scenario

System scenario is more detailed

description of process in OBA technique.

There are 4 scenario parts – initiation,

action, list of participants and result.

State

State represents concrete constellation of

automatic machine in time. If automatic

machine receives some data flows, it can

initiate transition from one state to

second state.

We consider business diagrams the most

important point in BORM method. For design this

main output from IS business analysis functions,

scenarios, participants and data flow has to be

defined for the business diagram creation. Each

involved participant performs as well as activities

and states.

Transitions between states and activities are

completed by communications connecting activities

with activities of other participants. Business

diagrams can be improved by data flows that are

exchanged between individual participants. These

can be informational, financial or material flows

(documents, forms, confirmations, etc.). Explanation

of these notions can be found in table 1.

BORM POINTS – NEW CONCEPT PROPOSAL OF COMPLEXITY ESTIMATION METHOD

581

Notation of BORM business maps

Relationship between

Participants = assosiation.

Participants hierarchy

= „IS-A“ taxonomy.

Transition between

States

Data flow

Communication

State

Activity

Participant

End state

Start state

NotationDefinition

Figure 2: Notation of BORM business diagrams.

Figure 3: Business diagram in BORM.

BORM diagrams are used for information

systems requirement capture. Figure 3 displays

example of the invoice processing process in BORM

methodology.

We have chosen participants as the most

important element in the business diagram, because

they represent the concrete part of modelling reality.

It is possible to define participants as objects, which

have a distinct role in the modelling processes in

connection with proposal information systems.

Participants are not limited to persons, but can be

machines, information systems and other elements

taking part of the process.

The BORM method details can be found in

(Carda, Merunka and Polak, 2003), (Merunka,

2004),

(Knott, Merunka and Polak, 2003), (Merunka,

2002).

3 BORM POINTS METHOD

The concept of ‘BORM points’ (BORMp) is based

on the calculation of ‘use case points’ (Struska and

Pergl, 2006). ‘Use case points’ are method used for

complexity estimation of information systems. The

‘BORM points’ use chosen parts of ‘use case

points’, which are useful for the BORM

methodology.

New ‘BORM points’ method is designed to

eliminate the known disadvantages of ‘use case

points’. We think that one of them is small

concentration on customer. The customer with his

requirements can influence project complexity very

much.

The ‘BORM points’ try to estimate the

complexity on the basis of chosen components,

which are characteristic for BORM. Calculation is

divided into two independent parts. In the first step

the number of participants and the number of

business diagram is counted. The second step

consists of technical, environment and customer

factors evaluation.

Total BORM points

Adjusted number

Unadjusted number

Adjusted

number

Unadjusted number

Technical factor

Environment factor

Customer factor

Number of

participants

complex – average - simple

Number of business

diagrams

Number of activities

and communications

Figure 4: Structure of BORM points calculation.

3.1 Complexity Estimation by BORM

Points

Calculation of complexity estimation by ‘BORM

points’ is divided into two steps. The reason is that it

is necessary to separate the unadjusted number,

which is based on the real modelling system and

technical, environment and customer factor, which

evaluate the environment in, which information

systems are designed.

In the first step we count unadjusted number,

in the second we evaluate individual factors –

technical, environment and customer factors:

 Unadjusted part of BORM points,

o Number of participants,

o Number of business diagrams.

 Technical factor.

 Environment factor.

 Customer factor.

 Productivity factor.

ICEIS 2007 - International Conference on Enterprise Information Systems

582

3.2 Unadjusted Part of BORM Points

The first part divides the count in next two parts.

This separation provides clear definition of the

participants number and number of the business

diagrams. The unadjusted part is directly connected

with the designed information system.

3.2.1 Unadjusted Participant Weights

(uapw)

We suppose that participants are external objects,

which have a relationship with system. They are

defined like users, next programs, data warehouses,

etc. This should be a part included project

documentation.

Participants are divided by their complexity:

simple – average - complex.

Simple – different system with interface to measured

system through various automated

programs (e.g. standard application

program).

Average – either next system, which is connected

with measured system through protocol or

through user interface. Average participant

cooperates with the system through

protocol (e. g. http, TCP/IP) or next

participant type can be data warehouse.

Complex – person cooperates with the system

through graphical interface (mostly final users,

which are classified as complex) After participant’s

separation into three categories are counted their

numbers in individual category. Individual

participant gets weight 1; average gets weight 2 and

complex 3. Total unadjusted participants weight is

counted in table 3.

Table 2: Proposal of weights for individual participants’

category.

Participant

type

Definition Weight

Simple

System interface

Average

Interactive or protocol driven

interface

Complex

Graphical interface (human factor)

Table 3: Proposal of total unadjusted participants weight.

Participants

type

Participants

weight

Participants

number

Total

Simple

1 __ • 1 =

Average

__ • 2 =

Complex

__ • 3 =

Total unadjusted participants weight (upw)

3.2.2 Unadjusted Business Diagram Weights

(ubdw)

BORM is used for its wide area of process mapping

(including IT mapping). Therefore it is necessary to

identify business diagrams, which are directly

connected with the designed information system.

The business diagrams get complexity weight

according to their number of activities and/ or

transactions.

First the business diagrams are divided into the

following three categories:

simple – average – complex.

Separation is realized on the base of activities

number and transactions number, border values are

suggested in table 4.

The activities were chosen for complexity

definition by reason of they represent situations,

which participants have to solve. In business

diagrams the transactions are performed with the

help of chosen activities and they communicate with

activities of cooperated objects at the same time.

Activities are important for conceptual analysis as

well because they are used for methods deduction.

Next criteria are communication number

between individual activities of participants and

number of transactions between states and activities

by all engaged participants in the business diagram

at the same time. These two numbers are counted

and used like the second evaluative factor with

lower priority. In the situation where the

communications are out of the interval, it is

recommended to determine according to activities

number.

Table 4: Factors proposal for complexity estimation by

business diagrams.

Business

diagram

type Description Weight

1 - 5 activities

Simple

or 3 – 11 communications

(communications + transactions)

6 - 10 activities

Average

or 12 – communications

(communications +

transactions)

11 and more activities

Complex

or 18 and more

communications

(communications + transactions)

BORM POINTS – NEW CONCEPT PROPOSAL OF COMPLEXITY ESTIMATION METHOD

583

Every level of complexity receives the weight

according to number of activities and

communications (table 4). Further sum of business

diagrams’ numbers perform in individual categories,

it is multiplied by assigned weight and then the rows

of the table are counted (table 5).

Table 5: Proposal of total unadjusted business diagram

weight.

Business

diagram

type

Activities

number

Business

diagram

weight

Count Total

Simple 1 – 5 5 __ • 5 =

Average 6 – 10 10

__ • 10 =

Complex

11 and more 15

__ • 15 =

Total unadjusted business diagram weight (ubdw)

3.2.3 Unadjusted BORM Points (uBORMp)

Total unadjusted ‘BORM points’ are the sum of the

two numbered parts – unadjusted participant weight

(upw) and unadjusted business diagram weight

(ubdw).

unadjusted BORM points (uBORMp) = upw

+ ubdw

(1)

3.3 Technical Factor

Technical factor is necessary to specify in the

second part of method.

Table 6: BORMp – Technical factors.

Factor

number

Description

t1 Distributed system

Response time or throughput performance

objectives

t3 End user efficiency

t4 Complex internal processing

t5 Code must be reusable

t6 Easy to install

t7 Easy to use

t8 Portable

t9 Easy to change

t10 Concurrent

t11 Includes special security objectives

t12 Provides direct access for third parties

t13 Special user training facilities are required

Total technical factor (tFactor)

In table 6 there are 13 factors, which define

technical project site of the designed information

system. Evaluation scale is from 0 to 5: the factor

with no influence gets 0; the most considerable

factor gets 5.

‘BORM points’ use the same table for technical

factor as ‘use case points’. We think that these

factors cover sufficiently technical area of software

development, which is very important part of whole

project.

The factors with high impact on the project

should be identified here and evaluate with the

highest weight. The assigned values (0 – 5) are

multiplied with each factors’ weight and then

summed. Technical factor (tFactor) is counted this

way, further it is used in the formula – technical

complexity factor (tcf). The factors’ weights and the

formula for technical complexity factor are proposed

in the testing phase.

3.4 Environment Factor

The environment is in BORMp understood from the

view of supplier and that is the reason why

employee skills, used equipments or methods are

evaluated in the software development project.

These influences are coved by environment factor.

The evaluation is the same as the technical factor.

The first 8 factors are evaluated by weights (0 – non

influence, 5 – most considerable influence).

Table 7: BORMp – Customer factors.

Factor

number Description

Familiar with the project model that is

used

e2 Application experience

e3 Object-oriented experience

e4 Lead analyst capability

e5 Motivation

e6 Stable requirements

e7 Part-time staff

e8 Difficult programming language

Total environment factor (eFactor)

After factor evaluation are assigned values to

multiple with factors’ weights and then summed to

give the total environment factor (eFactor). This

factor is used in the formula of environment

complexity factor (ecf). The factors’ weights and the

formula environment complexity factor are proposed

in the testing phase.

ICEIS 2007 - International Conference on Enterprise Information Systems

584

3.5 Customer Factor

The software development process of complexity

estimation ‘BORM points’ introduces new view –

“customer factor”. It should cover an impact of

customers’ requirements in the information system

project. As it was mentioned above uncoordinated

customer requirements can significantly affect effort

of information system development.

Procedure of its evaluation is the same as the

technical and environment factors. Six customer

factors are weighted from 0 – 5 (0 – non influence, 5

– most considerable influence).

Table 8: BORMp – Customer factors.

Factor

number

Description

c1 Knowledge of IS

c2 Customer’s project manager capacity

c3 Customer’s project members capacity

c4 Knowledge of project organisation

c5 Connection with existing IT projects

c6 Complexity of replaced IS

Total customer factor (cFactor)

After factor evaluation they are multiplied with

their weights and then summed. The result is total

customer factor (cFactor), which is used to

determine customer complexity factor (ccf). Its

result is value of customer factor. The factors’

weights and the formula customer complexity factor

are proposed in the testing phase as well.

3.6 Productivity Factor

Important input for methods of complexity

estimation is productivity factor as well. It is

recommended number of man-hours per one BORM

point in dependence on various influences (e. g.

experience of project team, size of IS development,

etc.).

We suppose higher value than by ‘use case

points’; reason is customer factor, which BORMp

introduce.

‘use case points’ use simple rule for

determination of man-hours per use case point. The

number of factors in e1 through e6 that are below 3

are counted and added to the number of factors in e7

through e8 that are above 3. if the total is 2 or less,

the general idea is to use twenty staff hours per ucp;

if the total is 3 or 4, use twenty-eight staff hours per

ucp. If the number exceeds 5, it is usually

recommended that changes should be made to the

project so the number can be adjusted because in this

case the risk is unacceptably high. another

possibility is to increase the number of staff hours to

thirty-six per use case point.

Similar rule will be very helpful in next phases

of ‘BORM points’ development and we would like

to create it too.

3.7 Total BORM Points

Above counted numbers are installed to one

formula, which will count result of adjusted ‘BORM

points’. The formula consists of unadjusted part

(participant and business diagram number) and

technical, environment and customer factor.

aBORMp = uBORMp

•

tcf

•

ecf

•

ccf (2)

The complexity is now defined by non-

dimensional number, which is the result of the

aBORMp formula. To get actual effort it is

necessary to multiple adjusted BORMp and

productivity factor.

Effort = aBORMp

•

pf (3)

4 CONCLUSIONS

We understand the introduced BORMp concept like

the start for next research. Very important next step

is a set of weights by technical, environment and

customer factors and number their formulas.

Important will be definition man-hours per one

BORMp.

Numbers and evaluations of value (mentioned

above) are realized on the concrete projects, which

are designed in BORM. We believe that introduced

method can become usable instrument for

complexity estimation in IT projects, where software

requirements must be carefully captured via detailed

business analysis.

REFERENCES

Albrecht, A. J. and Gaffney, J. E., Jr., 1983. Software

Functions, Source Line sof Code and Development

Effort Prediction.: A Software Science Validation,

IEEE Transactions on Software Engineering (TSE) 9,

no. 6.

Carda A., Merunka V., Polák J., 2003. The art of system

design (in czech), Grada, ISBN 80-247-0424-2

BORM POINTS – NEW CONCEPT PROPOSAL OF COMPLEXITY ESTIMATION METHOD

585

Hall J., Merunka V., Polák J. et al., 2004. Accounting

information systems - Part 4: System development

activities , Thomson South-Western New York, 4th

edition, ISBN 0-324-19202-9

International Function Point Users Group, 2002. IT

Measurement Practial Advice from the Experts,

Addison-Wesley Boston. ISBN 0-201-74158-X.

Karner, G., 1993. Use Case Points - Resource Estimation

for Objectory Projects, Objective Systems SF AB

(copyright owned by Rational Software).

Knott, R., Merunka, V., Polak, J., 2003. The BORM

methodology: a third-generation fully object-oriented

methodology In: Knowledge-Based Systems Elsevier

Science International New York, ISSN 0950-705

Liping, L., Roussev, B., Knott, R., Merunka, V., Polák, J.

et al., 2005. Management of the Object-Oriented

Development Process - Part 15: BORM Methodology,

Idea Group Publishing. ISBN 1-59140-605-6

Merunka, V., 2004. Object oriented database

normalization. In the proceeding conference Objecty

2004. Prague. ISBN 80-248-0672-X.

Merunka, V., 2002. BORM – overview of the

methodology and case study of agrarian information

system In: UZPI Agriculture economics. Prague.

ISNN 0139-570X

Pergl, R., Struska, Z., 2006. Agile modelling and BORM

methodology. In the proceeding conference of

Software development 2006. Ostrava. ISBN 80-248-

1082-4

Struska, Z, Pergl, R., 2006. Model based on Effort

estimation methods. In the proceeding conference of

Software development 2006. Ostrava. ISBN 80-248-

1082-4

Struska, Z., 2005. Complexity estimation method in object

oriented environment – Function and Feature points.

In the proceeding conference of Objekty 2005.

Ostrava. ISBN 80-213-0682-3.

Struska, Z., Vaníček, J., 2005. Measurement and rating of

information systems quality. Part 3: Design

Complexity and Software Engineering Consequences.

PEF ČZU Prague.

Struska, Z., Vaníček, J., 2005. Measurement and rating of

information systems quality. Part 2: Quality Model,

PEF ČZU Prague.

Struska Z., Pergl, R., 2006. The Comparison of Methods

COCOMO and Function Points Analysis. In the

proceeding conference of Agrarian prospects 2006.

Prague. ISBN 80-213-1531-8.

Struska, Z., 2005. Comparison of miscelaneous

approchaes to function points application. In the

proceeding conference of Agrarian prospects 2005.

Prague. ISBN 80-213-1372-2.

Vaníček, J., 2004. Measurement and estimation of

information system quality (in czech), PEF

ČZU

Prague. ISBN 80-213-0667-X.

ICEIS 2007 - International Conference on Enterprise Information Systems

586
