EVENT-BASED INFORMATION SYSTEM MODELS

Lars Bækgaard

Aarhus School of Business, Aarhus University, Fuglesangs Alle 4, DK-8210 Aarhus V, Denmark

Keywords: Information Systems, modeling languages, activity models, events.

Abstract: Activity modeling plays important roles in information systems development. Activity models are used to

support analysis and design of information systems. Events are central in modeling languages like EPC and

BPMN that use events to control the order in which sub activities are performed. The purpose of this paper

is to analyse a set of activity modeling languages with respect to their use of events as modeling constructs.

We base our analysis on modeling examples and a conceptual model of events. We argue that it is possible

to unify the languages’ event concepts and to use a unified event concept to improve the languages.

1 INTRODUCTION

Activity modeling plays important roles in

information systems development. Activity

modeling and activity modeling languages have

been the subject of significant research efforts lately

(Kalnins, Barzdins et al. 2000; Lauesen 2003;

Rittgen 2003; Andersen 2006; Lübke, Lüecke et al.

2006).

Events and event-based activity modeling are

central in a number of modeling approaches (Keller

and Teufel 1998; Bækgaard 1999; White 2004;

Dietz 2006). However, well-known modeling

approaches like EPC (Keller and Teufel 1998) and

BPMN (White 2004) use events in different and

apparently incompatible ways.

The purpose of this paper is to analyse a set of

modeling languages and to argue that it is possible to

use a conceptual event model to unify and improve

the languages’ use of events.

The paper is structured as follows. In Section 2

we discuss the notion of events and present a

conceptual event model. In Section 3 we discuss and

analyse three event-based activity modeling

languages. In Section 4 we conclude the paper and

suggest directions for future research.

2 EVENTS

In this section we discuss our understanding of the

notion of events and we present a conceptual event

model that we use in Section 3 to analyse event-

based activity modeling languages.

We view an event as a significant occurrence

whose duration is assumed to be negligible

(Jackson 1983). Even the smallest process takes

time. When we view a phenomenon as an event we

assume that a further subdivision of the phenomenon

is irrelevant in the given context and that it makes

sense to neglect its duration. Events occur within

processes like chemical processes, biological

processes, technical processes, or social processes.

We can view phenomena like “Customer files an

order”, “Borrower borrows a book”, ”Website user

clicks”, “Heart beats”, or “Elevator starts moving”

as events. These phenomena have durations but in

certain contexts it makes sense to assume that they

occur at points in time.

Events may have descriptive properties and

participants (Bækgaard 1999; Bækgaard 2004). All

events have occurrence times. For example, ordering

events may have properties like quantities and

occurrence times. Participants can be human actors,

IT-systems, machines, things like produced items, or

information like sales reports. An event is shared if

it has two or more participants. An ordering event

can be viewed as a time point where a customer and

a product meet. Ordering events may have

participants like customers and products.

Events have consequences. They can trigger,

terminate, and prohibit activities. When an event

occurs activity may be initiated. When a book is

borrowed in a library an activity that monitors

timely returning of the book may be initiated. When

587

Bækgaard L. (2007).

EVENT-BASED INFORMATION SYSTEM MODELS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 587-590

DOI: 10.5220/0002390305870590

 SciTePress

a business receives an order one or more employees

may carry out packing and shipping activities, and

an ERP system may carry out invoicing activities.

Events may be constrained in the sense that

participants may not be ready to participate in

requested events at certain points in time. For

example, a book that is currently borrowed can not

participate in a borrowing event.

Events can be viewed as information objects that

are observed and described. For example, a data

warehouse with multi-dimensional information

about customer behaviour may be based on

information about events like ordering and payment

(Bækgaard 1999). Information about events can be

registered, stored, manipulated, and presented for

actors. Information about an event can refer to its

type, participants, and properties.

Individual events can be grouped into types of

events with similar types of participants and

properties. We use event expressions to represent

individual events as illustrated by the following

example: Borrow [X: Borrower, Y: BookItem]

(September 29 2001).

This expression states that an event named

Borrow has occurred with the participants X and Y.

X belongs to the set Borrower and Y belongs to the

set BookItem. The event has the property

“September 29 2001”. We can interpret an event

expression in different ways. The example may

represent the fact that the Borrower element X and

the BookItem element Y have participated in a

Borrow event on September 29 2001.

We use event signatures on the following form

to define types of conforming events: Name

[Participants] (Properties).

The element Participant defines the types of

participants that can participate in events of the

defined type. The element Property defines the types

of properties of events of the defined type.

An event expression conforms to a signature if it

has the same name as the signature and if its

participants and properties conform to the

participant and property types of the signature. For

example, the event expression Borrow [Borrower1,

BookItem4] (September 29, 2001) conforms to the

signature Borrow [Borrower, BookItem] (Date).

3 MODELING LANGUAGES

In this section we discuss and analyse three event-

based activity modeling languages. We use

modeling examples and our conceptual event model

from Section 2 to support our analysis.

3.1 EPC Diagrams

Event-driven Process Chains (EPC) use events,

functions, and logical operators to represent business

activities. An event represents the entering of a state

that causes a consequence a state change (Keller and

Teufel 1998). Events trigger functions and/or they

are the results of functions.

Evaluate credit

Credit

roved

Credit

ecte

Pack and ship Reject order

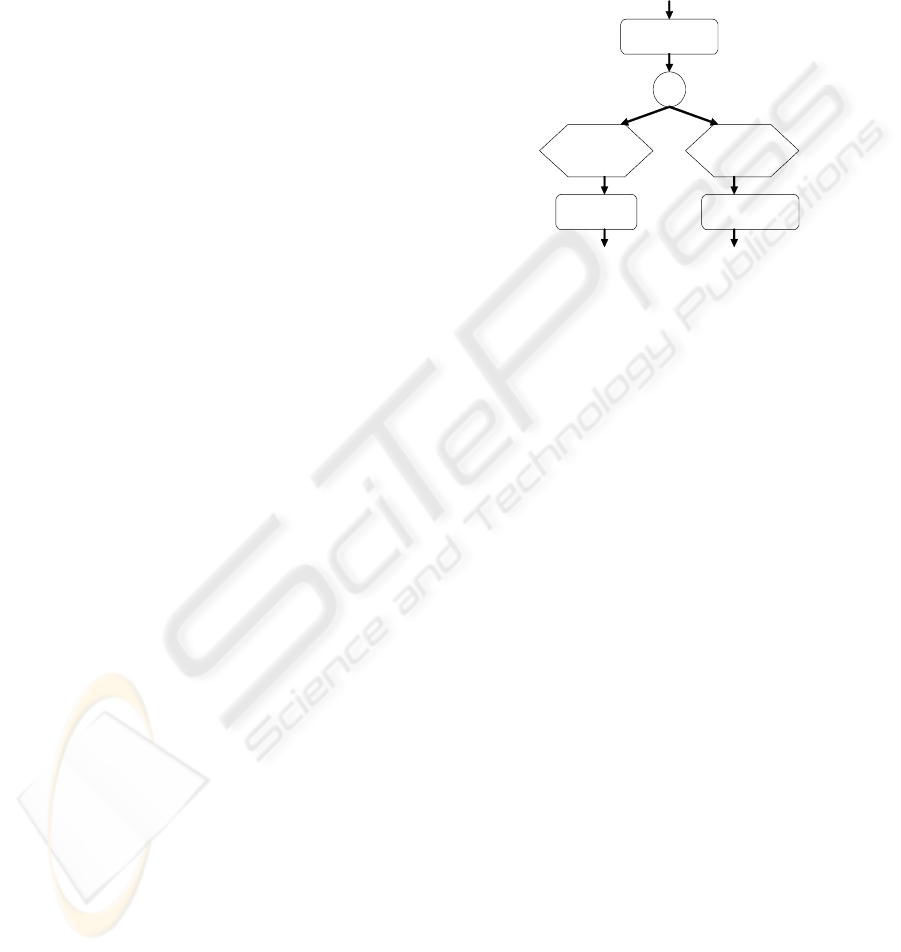

Figure 1: Partial EPC diagram.

Events can be used to control the flow of functions

as illustrated in the partial diagram in Figure 1 that

illustrates how events are used to trigger functions.

First, the function “Evaluate credit” is executed.

Then, one of two options is chosen. If the event

“Credit rejected” occurs the function “Reject order”

is executed. If the event “Credit approved” occurs

the function “Pack and ship” is executed.

An EPC event can be represented by its name in

terms of a signature on the form Name [] (). EPC-

diagrams do not utilize the fact that events can have

multiple interacting participants. The selection of a

the particular sequence depends on the state changes

(represented by events) that occur. Because of the

fact that EPC-events has no participants or

properties EPC is based on the simplest view on

events—namely a named state change.

3.2 BPMN Diagrams

Business Process Modeling Notation (BPMN)

supports business activity modeling in terms of

events and activities. BPMN is based on the

assumption that an event is something that happens

during the course of a business process. Events

affect the flow of a process and usually have a cause

or an impact. BPMN has restricted the use of events

to include only those types of events that will affect

the sequence or timing of activities of a process

(White 2004).

Events can be used to control the flow of

activities as illustrated by the partial diagram in

Figure 2 that illustrates how events are used to

ICEIS 2007 - International Conference on Enterprise Information Systems

588

trigger and interrupt activities. First, the activity

“Evaluate credit” is executed. Then, one of two

options is chosen. If the event “Credit rejected”

occurs the activity “Reject order” is executed. If the

event “Credit approved” occurs the activity “Pack

and ship” is executed. The activity “Pack and ship”

can be interrupted by the event “E”.

Evaluate credit

Approve

credit

Reject

credit

Pack

and

ship

Reject order

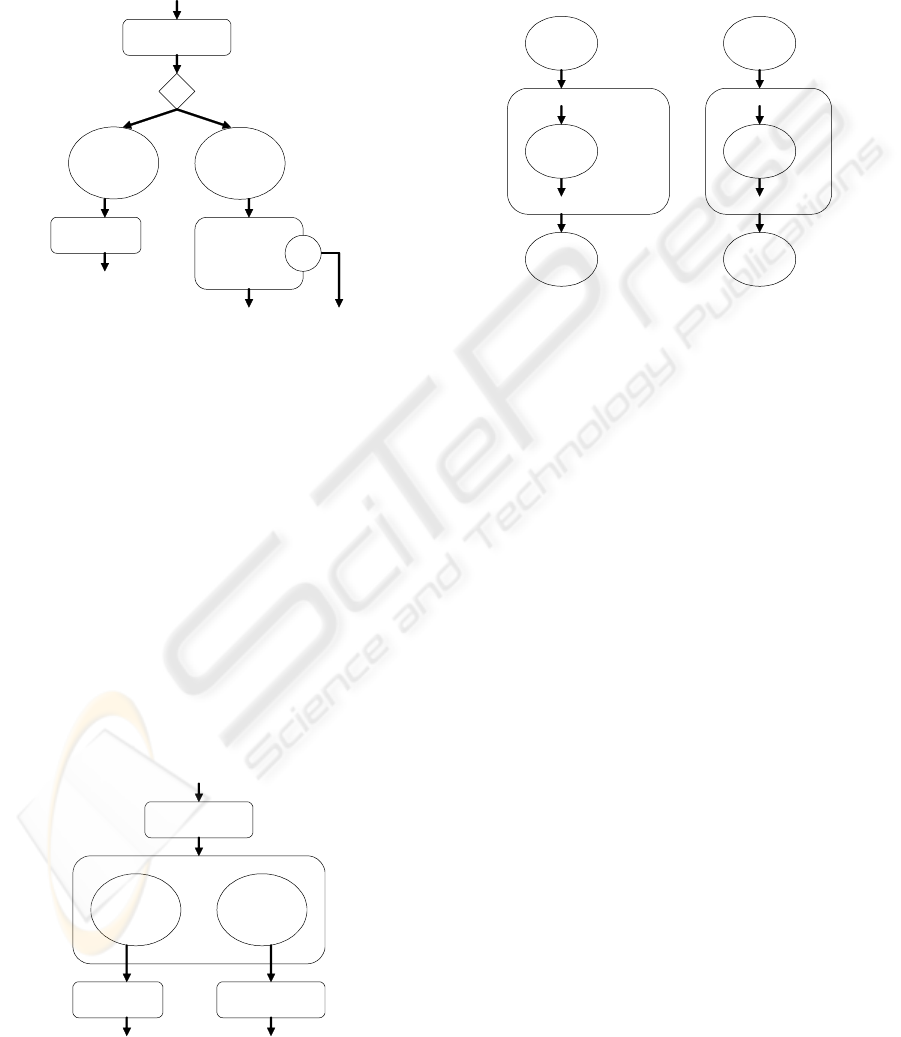

Figure 2: Partial BPMN diagram.

An event may have an associated occurrence time.

No actors or objects are involved. This implies that a

BPMN event can be represented by its name and

occurrence time in terms of a signature on the form

Name [] (Time). Consequently, events cannot be

used to synchronize the activities of multiple

interacting participants.

3.3 Event-activity Diagrams

Event-activity diagrams are UML activity diagrams

extended with shared events (Bækgaard 2004). An

event-activity diagram defines a type of activity and

it is composed of triggering events, interrupting

events, and an activity. An activity is initiated when

a triggering event occurs. The activity runs until it

reaches an exit point or until an interrupting event

occurs. One or more actors carry out the activity.

Evaluate credit

Approve

credit

Reject

credit

Pack and ship Reject order

Figure 3: Partial Event-activity diagram.

Events can be used to control the flow of activities

as illustrated by the partial diagram in Figure 3 that

illustrates how events are used to trigger activities.

First, the activity “Evaluate credit” is executed.

Then, one of two options is chosen. If the event

“Credit rejected” occurs the activity “Reject order”

is executed. If the event “Credit approved” occurs

the activity “Pack and ship” is executed.

Borrower

Borrow

Quit

Enroll

Book

Borrow

Sell

Buy

Figure 4: Partial Event-activity diagrams.

Events can be used to trigger and interrupt activities

and to synchronize two or more autonomous

activities as illustrated by the partial diagrams in

Figure 4. An event-activity diagram defines an

activity type that can have multiple, concurrent

instances. An instance of an activity type is

generated by the occurrence of an event that

conforms to a triggering event type. An instance of

the activity “Borrower” is triggered by an “Enroll”

event and it is interrupted by a “Quit” event. An

instance of the activity “Book” is triggered by a

“Buy” event and it is interrupted by a “Sell” event.

Each “Borrow” events has two participants—a

borrower and a book. This implies that each

“Borrow” event synchronizes the activities of the

participating borrower and book.

Events with multiple participants represent time

points where multiple activities must be

synchronized.

Event-activity diagrams are based on a view on

events that corresponds to a general signature on the

form Name [Participants] (Properties).

3.4 Discussion

EPC diagrams, BPMN diagrams, and Event-activity

diagrams use rather similar modeling constructs to

use events to trigger activity as indicated by the

previous examples—the partial diagrams in Figure

1, Figure 2, and Figure 3 have the same structure.

BPMN diagrams and Event-activity diagrams

use events to interrupt activities. EPC diagrams do

not support the modeling of interrupting events. In a

EVENT-BASED INFORMATION SYSTEM MODELS

589

BPMN diagram all activities can have an attached

interrupting event that defines conditions for

interruption of the activity. An Event-activity

diagram can have a set of attached event types that

defines interrupting events. However, the individual

activities in Event-activity diagrams cannot have

attached interrupt events. EPC diagrams and Event-

activity diagrams can be improved by incorporating

the interrupt mechanism that us used in BPMN.

Event-activity diagrams are based on events with

multiple participants. Therefore, events can be used

to synchronize two or more activities each of which

are defined by an event-activity diagram as

illustrated by the partial diagrams in Figure 4 that

are synchronized when the shared event “Borrow”

occurs.

The notion of shared events with multiple

participants can be used to improve the modeling

power of EPC diagrams and BPMN diagrams. This

could be expressed in terms of event signatures in

the following way. The general signature of EPC

events would become Name [Participants] () and

the general signature of BPMN diagrams would

become Name [Participants] (Time).

The consequence of this is that EPC diagrams

and BPMN diagrams will be able to use shared

events to synchronize two or more activities in the

same way that Event-activity diagrams are (see

Figure 4).

4 CONCLUSION

Our analysis of three event-based activity modeling

languages has revealed that their seemingly

incompatible event concepts are special cases of a

more general event concept.

Most importantly, we have argued that the event

concepts of EPC and BPMN can be extended to

support shared events with multiple participants. We

have illustrated elsewhere that shared events make it

possible to support modeling of multiple instances of

activities of the same type (Bækgaard 2004).

Event-activity diagrams are based on events with

participants. This perspective on events is different

from the event perspective used by EPC (Dehnert

2002) and BPMN (White 2004). These languages do

not consider the participants of events.

Event-activity diagrams use events with

participants to synchronize two or more concurrent

activities. The subdivision of activities into

concurrent, interacting activities that is facilitated by

this mechanism makes it possible to define activities

in a distributed manner that resembles the

distribution of activity among actors in a business.

Future work includes design of a modeling

language that is based purely on a general event

signature on the form Name [Participants]

(Properties). The purpose is twofold. First, the

purpose is to illustrate the modeling power of being

able to use shared events to synchronize two or more

independent activities. Second, the purpose is to

define the semantics that are necessary in order to

incorporate synchronization based on shared events

into modeling languages like EPC and BPMN.

REFERENCES

Andersen, P. B. (2006). "Activity-Based Design of

Information Systems". European Journal of

Information Systems 15: 9-25.

Bækgaard, L. (1999). "Event-Entity-Relationship

Modeling in Data Warehouse Environments".

DOLAP'99. International Workshop on Data

Warehousing and OLAP. Kansas City, USA.

Bækgaard, L. (2004). "Event-Based Activity Modeling".

ALOIS'04 - Action in Language, Organisation and

Information Systems. Linköping, Sweden.

Dehnert, J. (2002). "Making EPCs fit for Workflow

Management". EPK’2002 -

Geschäftsprozessmanagement mit Ereignisgesteuerten

Prozessketten. Trier, Germany.

Dietz, J. L. G. (2006). Enterprise Ontology. Theory and

Methodology, Springer-Verlag.

Jackson, M. (1983). System Development, Prentice Hall

International.

Kalnins, A., J. Barzdins, et al. (2000). "Modelling

Languages and Tools: State of the Art". 2nd

International Conference on Simulation, Gaming,

Training and Business Process Reengineering. Riga:

211-214.

Keller, G. and T. Teufel (1998). SAP R/3 Process-

Oriented Implementation, Addison-Wesley Longman

Limited.

Lauesen, S. (2003). "Task Descriptions as Functional

Requirements." IEEE Software.

Lübke, D., T. Lüecke, et al. (2006). "Using Event-Driven

Process Chains for Model-Driven Development of

Business Applications". Workshop XML4BPM 2006 -

XML Integration and Transformation for Business

Process Management. Passau, Germany.

Rittgen, P. (2003). "Business Processes in UML". UML

and the Unified Process. L. Favre, Idea Group

Publishing.

White, S. A. (2004). "Introduction to BPMN",

WWW.BPMN.ORG

ICEIS 2007 - International Conference on Enterprise Information Systems

590
