A DATA WAREHOUSE ARCHITECTURE FOR INTEGRATING

FIELD-BASED DATA

Alberto Salguero, Francisco Araque and Ramón Carrasco

Dpt. LSI – ETSII, University of Granada (Andalucía), España

Keywords: Spatial Data Warehouse, extraction, field-based data.

Abstract: Spatial DataWarehouses (SDWs) combine DWs and Spatial Data Bases (SDBs) for managing significant

amounts of historical data that include spatial location. Some spatial information can be seen as a

continuous field, and the information of interest is obtained at each point of a space. The previously

proposed extensions of the multidimensional data model, used in Data Warehousing, only deal with spatial

objects. None of them consider field-based information. This paper presents a Data Warehouse architecture

that automatically determines the best parameters for refreshing and integrating field-based data from

different data sources.

1 INTRODUCTION

Spatial Data Bases (SDB) have a long experience in

managing spatial data, and there is extensive

research referring to spatial index structures, storage

management, and dynamic query formulation. In

order to manipulate spatial objects, a SDB must

include special data types to represent geometric

characteristics of objects. On the other hand, space

also can be seen as a continuous field, and the

information of interest, temperature, pressure,

elevation…, is obtained at each point of the space.

Geographic Information Systems (GIS) are the

obvious potential candidates for such tasks. While

having some spatio-temporal analytical capabilities,

it is recognized that existing GISs per se are not

adequate for decision-support applications when

used alone (Bédard et al., 2001). Among the possible

solutions, the coupling of spatial and non-spatial

technologies, GIS and OnLine Analytical Processing

(OLAP) for instance, may be an interesting option.

OLAP systems are usually implemented through

Data Warehouses (DWs). A Spatial Data Warehouse

(SDW) combines DWs and Spatial Data Bases for

managing significant amounts of historical data that

include spatial location.

Inmon (Inmon, 2002) defined a DW as “a

subject-oriented, integrated, time-variant, non-

volatile collection of data in support of

management’s decision-making process.” A DW is a

database that stores a copy of operational data with

an optimized structure for query and analysis. In

terms of a more limited scope, a new concept is

defined: a Data Mart (DM) is a highly focused DW

covering a single department or subject area.

The generic architecture of a DW is illustrated in

Figure 1. It can be seen that data sources include

existing operational databases and flat files (i.e.,

spreadsheets or text files) in combination with

external databases. The data are extracted from the

sources and then loaded into the DW using various

data loaders and other tools (Araque and Samos,

2003). The warehouse is then used to populate the

various subject (or process) oriented data marts and

OLAP servers. Data marts are subsets of a DW

categorized according to functional areas depending

on the domain (problem area being addressed) and

OLAP servers are software tools that help a user to

prepare data for analysis, query processing,

reporting and data mining.

Files

Data Warehouse

Data Marts

Analysis

Extract

Transform

Load

Load Serve

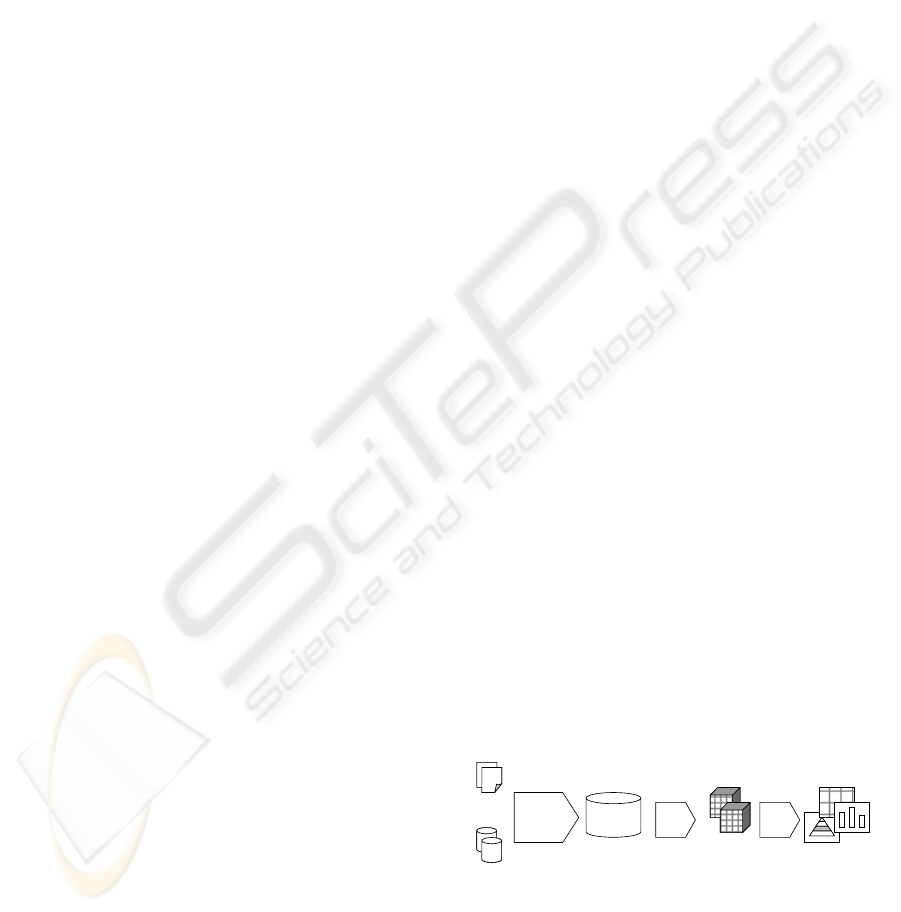

Figure 1: A generic DW architecture.

DWs are usually based on a multidimensional

data model to make easy the querying and the

analysis of the data. Several extensions of the

577

Salguero A., Araque F. and Carrasco R. (2007).

A DATA WAREHOUSE ARCHITECTURE FOR INTEGRATING FIELD-BASED DATA.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - DISI, pages 577-580

DOI: 10.5220/0002391105770580

 SciTePress

multidimensional data model that consider the

spatial aspects of data have been proposed last years.

These works usually incorporate the concepts of

SDBs to the multidimensional data model (Bimonte

et al., 2005), (Malinowski and Zimányi, 2004),

(Gascueña et al., 2006). These models focus on the

representation of complex spatial objects (SO). None

of the reviewed models deal with field-based

information. The addition of this kind of information

to the conceptual data model is not a difficult task.

The main problem is that the data should be obtained

from autonomous data sources. Usually, the field-

based information is created by interpolating the

values of several sensors distributed along a surface.

In Data Warehousing it is necessary to integrate this

semantically-related data from several data sources.

Furthermore, when the information refers to the

same spatial location it can be consider information

semantically equivalent. It is possible that two data

sources refer to the same real-world entity at the

same time with different spatial or temporal detail.

This paper presents an architecture that

automatically determines the best parameters for

refreshing and integrating field-based data from

different data sources.

The remainder of this paper is organized as

follows. In section 2 our architecture for integrating

spatial data is presented; in section 3 an illustrative

example is explained; finally, section 4 summarizes

the conclusions of this paper and discusses future

work.

2 ARCHITECTURE

The architecture described here can determine the

best parameters for refreshing data sources which

contain spatial data semantically related. If we use a

set of sensors distributed along a surface, for

instance, to know the temperature at each point of

that surface (interpolating), we need to know the

values of all sensors at a given instant in order to

make comparable captures of field-based data.

Taking paper (Sheth and Larson, 1990) as point

of departure, we propose the following reference

architecture. Three more different levels should be

considered:

 Component Scheme ST: the conversion of a

Native Scheme to our Canonical Data Model

(CDM), enriched so that temporal and spatial

concepts could be expressed.

 Exportation Scheme ST: it represents the part of

a component scheme which is available for the

DW designer. It is expressed in the same CDM

as the Component Scheme.

 Data Warehouse Scheme: it corresponds to the

integration of multiple Exportation Schemes ST

according to the design needs expressed in an

enriched CDM so that temporal concepts could

be expressed

We will describe now the functional architecture

in a detailed way.

Native Schema. Initially we have the different

data source schemes expressed in its native schemes.

Each data source will have, a scheme, the data

inherent to the source and the metadata of its

scheme. In the metadata we will have huge

temporal and spatial information about the source:

temporal and spatial data on the scheme, metadata

on availability of the source…

The temporal parameters we consider of interest

for the integration process are (Araque et al., 2006a):

 Availability Window (AW). Period of time in

which the data source can be accessed.

 Extraction Time (ET). Period of time taken by

the monitoring program to extract significant

data from the source.

 Granularity (Gr). It is the extent to which a

system contains discrete components of ever-

smaller size. In our case it is common to deal

with granules like meter, kilometre…

To solve the problem of getting this information

from Web accessible sources, we present tools to

define and generate wrappers. We define a wrapper

interface to specify the capability of Web Sources

and extend a wrapper generation toolkit. We use

DETC (Data Extraction with Temporal Constraints)

to refer to the software tool.

Preintegration. In the Preintegration phase, the

semantic enrichment of the data source native

schemes is made by the conversion processor. In

addition, the data source spatial and temporal

metadata are used to enrich the data source scheme

with temporal properties. We obtain the component

scheme (CS) expressed in the CDM, in our case,

ODMG-ST (ODMG enriched with spatial and

temporal elements).

Componet and Export Schemas. From the CS

expressed in ODMG-ST, the negotiation processor

generates the export schemes (ES) expressed in

ODMG-ST. These ES are the part of the CS that is

considered necessary for its integration in the DW.

For privacy reasons part of the CS can be hidden.

Integration. From many data sources ES, the

DW scheme is constructed (expressed in ODMG-

ST). This process is made by the Integration

Processor that suggests how to integrate the Export

ICEIS 2007 - International Conference on Enterprise Information Systems

578

Schemes helping to solve semantic heterogeneities

(out of the scope of this paper). In the definition of

the DW scheme, the DW Administrator participates

in order to contemplate the characteristics of

structuring and storage of the data in the DW.

Three modules have been added to the reference

architecture in order to carry out the integration of

the data, considering the data extraction method

used:

- The Temporal Integration Processor uses the

set of semantic relations and the conformed schemes

obtained during the detection phase of similarities.

As a result, we obtain data in form of rules about the

integration possibilities existing between the

originating data from the data sources (minimum

granularity...). This information is kept in the

Temporal Metadata Warehouse. In addition, as a

result of the Temporal Integration process, a set of

mapping functions is obtained.

- The Spatial Integration Processor does the

necessary transformations of the spatial data in data

sources in order to integrate them. It is necessary to

convert all of data to the same format and unit of

measurement. It is also responsible of dealing with

the different spatial granularity of data we can find

in different data sources.

- The Metadata Refreshment Generator

determines the most suitable parameters to carry out

the refreshment of data in the DW scheme. The DW

scheme is generated in the resolution phase of the

methodology of integration of schemes of data. It is

in this second phase where, from the minimum

requirements generated by the temporal integration

and stored in the Temporal Metadata warehouse, the

DW designer fixes the refreshment parameters. As

result, the DW scheme is obtained along with the

Refreshment Metadata necessary to update the

former according to the data extraction method and

other temporal properties of a concrete data source.

Data Warehouse Refreshment. After temporal

integration and once the DW scheme is obtained, its

maintenance and update will be necessary. This

function is carried out by the DW Refreshment

Processor. Taking both the minimum requirements

that are due to fulfill the requirements to carry out

integration between two data of different data

sources (obtained by means of the Temporal

Integration module) and the integrated scheme

(obtained by the resolution module) the refreshment

parameters of the data stored in the DW will be

adjusted.

3 EXAMPLE

A Decision Support System (DSS) being based on a

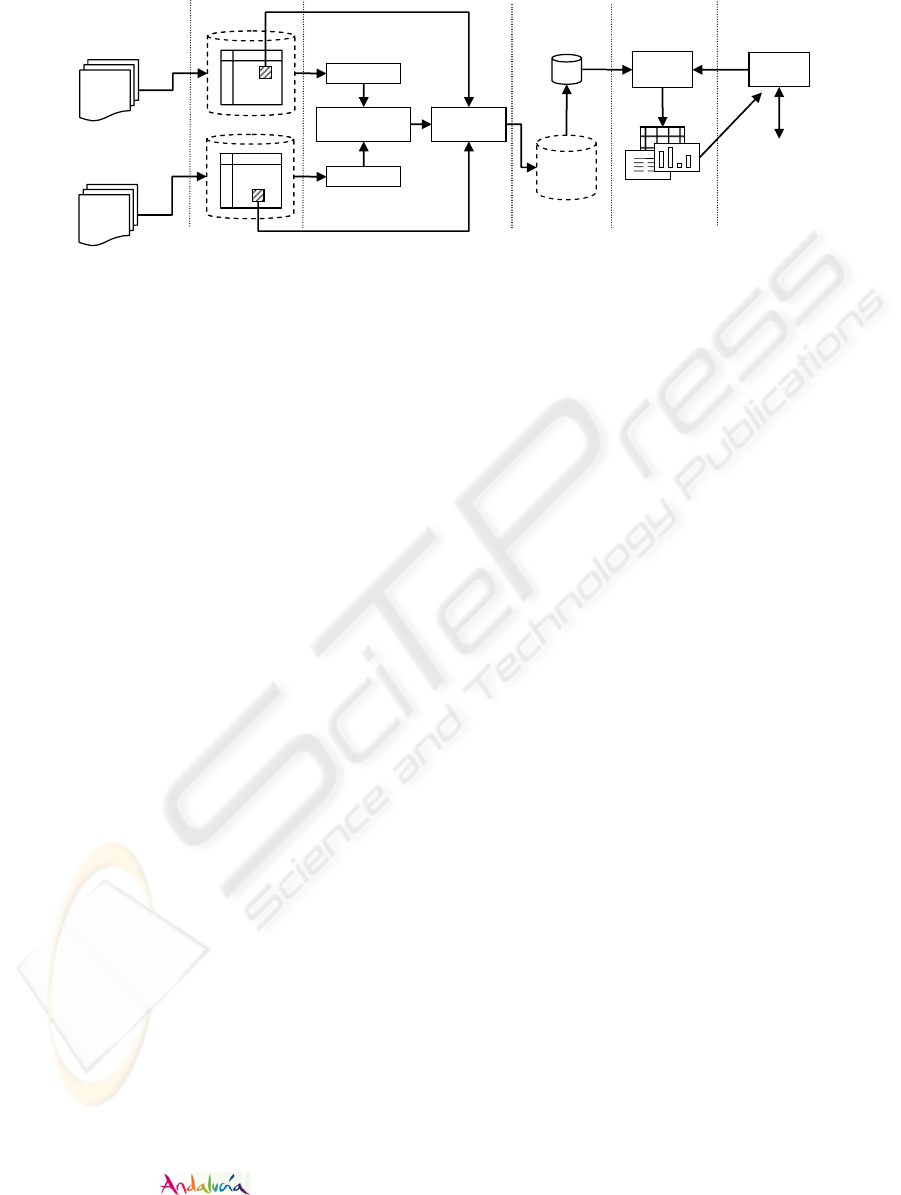

DW is presented as an example (fig. 2). This can be

offered by Small and Medium-Sized Enterprises

(SMEs) as a plus for adventure tourism. Here, a DSS

is used to assist novel and expert pilots in the

decision-making process for a soaring trip (Araque

et al., 2006b). These pilots depend to a large extent

on meteorological conditions to carry out their

activity and an important part of the system is

responsible for handling this information. Two web

data sources are mainly used to obtain this kind of

information:

 The US National Weather Service Website. We

can access weather measurements (temperature,

pressure, humidity, etc) in every airport in the

world. In Spain we can find 48 airports where

we can extract this information.

 In order to obtain a more detailed analysis and to

select the best zone to fly, pilots can access to

the Spanish National Weather Institute (INM)

website. There are 205 meteorological stations

distributed along the Spanish surface. They are

usually refreshed every thirty minutes.

The continuous integration of Web data sources

may result in a collapse of the resources of the

SMEs, which are not designed to support the

laborious task of maintaining a DW up to date.

In our approach, the DW administrator

introduces the data sources temporal properties in

DETC tool and selects the parameters to integrate,

for example the temperature. This tool is able to

determine the maximum level of detail (granularity).

We find out that in the second source, the

information about the temperature can be precise

with a detail of “minute” (for example, that at 14

hours and 30 minutes there were a temperature of

15ºC), whereas in the first case it talks about the

temperature with a detail of “hour” (for example,

that at 14 hours there were 15ºC).

It can also determine the time intervals in which

this information is available to be queried (useful

when dealing with other kind of data sources).

Applying the temporal algorithms, out of the

scope of this paper, we would obtain all possible

instants of querying which both sources are

accessible at, so the extraction and integration

process can be performed (Araque et al., 2006a).

Let us suppose that both data sources in this

example are always available for querying. The

DWA, who usually wants to get the most detailed

information, would select to extract the changes

from the first data source every hour and every half

an hour in the case of the second one. There is a

waste of resources in this approach.

A DATA WAREHOUSE ARCHITECTURE FOR INTEGRATING FIELD-BASED DATA

579

DSS Tools

Online reservation

system

End user

DETC

Spatial/temporal

integrator

Travel

agency

Report

Generator

Reports

US National Weather

Service Website

Spanish National Weather

Institute website

DETC

Refreshment

processor

NATIVE

SCHEMAS

COMPONENT/

EXPORT

SCHEMAS

INTEGRATION

& DW

PROCESSOR

DW / DM

SCHEMAS

Figure 2:

Illustrative example.

The field-based data distribution obtained using only

the second data source (every thirty minutes) is not

always comparable with the data distribution

obtained combining both data sources because

almost 20% of the sensors are unavailable (airports

sensors are refreshed every hour). Therefore, if we

cannot make use of the information obtained from

the second data source for analysis when there are

not values to get from the first one, we are actually

discarding about 205/(205+205+48) = 45% of

extracting, transforming and loading processes.

The architecture presented in this work is able to

detect this kind of issues and determine that it has no

sense to query the second data source every thirty

minutes.

4 CONCLUSIONS

Several extensions of the multidimensional data

model, which is mainly used in Data Warehousing,

that consider the spatial aspects of data have been

proposed. The problem is that in Data Warehousing

it is necessary to integrate data from several data

sources. This issue has not been widely studied,

especially in the case of field-based data. In Data

Warehousing, the integration of this kind of data

requires all values of sensors to be accessible in

order to compare the results.

This paper presents a Data Warehouse

architecture that automatically determines the best

parameters for refreshing and integrating field-based

data from different data sources.

This work has been supported by the Spanish

Research Program under project TIN2005-09098-

C05-03 and the by

Research Program

under project 2006/282916.

REFERENCES

Araque, F., Salguero, A., Abad, M.M., 2006b. Application

of data warehouse and Decision Support System in

Soaring site recommendation. Proc. Information and

Communication Technologies in Tourism, ENTER.

Springer Verlag, Lausanne, Switzerland.

Araque, F., Salguero, A.G., Delgado, C., Garvi, E., Samos,

J., 2006a. Algorithms for integrating temporal

properties of data in Data Warehouse. 8th International

Conference on Enterprise Information Systems

(ICEIS). Paphos, Cyprus.

Araque, F., Samos, J., 2003. Data warehouse refreshment

maintaining temporal consistency. 5th Intern.

Conference on Enterprise Information Systems,

ICEIS. Angers. France.

Bédard, Y., T. Merrett and J. Han. 2001. Fundamentals of

spatial data warehousing for geographic knowledge

discovery. Geographic Data Mining and Knowledge

Discovery. Ed. H. Miller & J. Han, Taylor & Francis.

Bimonte, S., Tchounikine, A., Miquel, M., 2005. Towards

a Spatial Multidimensional Model , DOLAP05, ACM

Eighth International Workshop on Data Warehousing

and OLAP , Bremen, Germany.

Gascueña, C. M., Cuadra, C., Martínez, P. A., 2006.

Multidimensional approach to the representation of the

spatio-temporal multi-granularity. In proceedings of

the Intern. Conference on Enterprise Information

Systems (ICEIS). Paphos, Cyprus.

Inmon, W.H., 2002. Building the Data Warehouse. John

Wiley.

Malinowski, E., Zimányi, E., 2004. Representing spatiality

in a conceptual multidimensional model. In

proceedings of the 12th annual ACM International

workshop on Geographic information systems.

Washington DC, New York, USA.

Sheth, A., Larson, J., 1990. Federated Database Systems

for Managing Distributed, Heterogeneous and

Autonomous Databases. ACM Computing Surveys,

Vol. 22, No. 3

ICEIS 2007 - International Conference on Enterprise Information Systems

580
