A METRICS PROPOSAL TO EVALUATE SOFTWARE

INTERNAL QUALITY WITH SCENARIOS

Anna Grimán, María Pérez, Maryoly Ortega and Luis Mendoza

Processes and Systems Department – LISI

Universidad Simón Bolívar

Caracas, Venezuela

Keywords: Software quality assurance, Evaluation, Internal quality, Metrics.

Abstract: Software quality should be evaluated from different perspectives; we highlight the internal and external

ones (ISO/IEC, 2002). Specially, internal quality evaluation depends on the software architecture (or

design) and programming aspects rather than on the product behaviour. On the other hand, architectural

evaluation methods tend to apply scenarios for assessing the architecture respect to quality requirements;

however, mainly scenarios aren’t effective enough to determine the level of satisfaction of the quality

attributes. In practice, each scenario could need more than one measurement. Also, we need a quantitative

way of comparing and reporting results. The main objective of this article is presenting a proposal of

metrics grouped by quality characteristics and sub-characteristics, according to ISO 9126 standard, which

can be applied to assess software quality based on architecture. Once selected the most important quality

requirements, these metrics can be used directly, or in combination with quality scenarios, into an

architectural evaluation method. Metrics proposed also consider some particular technologies, such as OO,

distributed and web systems.

1 INTRODUCTION

According to Barbacci et al. (1997) the software

quality is defined by the degree in which the

software exhibits the correct combination of desired

attributes. Such attributes encompass system

requirements which are different from the functional

requirements (Clements et al., 2002), and which

refer to the specific characteristics that the software

must meet. We know these characteristics or

attributes as quality attributes and they are defined

as properties inherent to a service rendered by a

particular system to its users (Barbacci et al., 1997).

In this sense, most of the Architectural

Evaluation Methods of Software Quality use

scenarios to assess the degree of satisfaction of the

quality attributes or requirements in a software. In

reality, however, these scenarios cannot be measured

directly; on the contrary they require an assigned

metric or measure whose value can be represented in

different scales and can be incorporated to the

results from the whole of the quality attributes.

Thus, the objective of this article is to present a

proposal of metrics organized into quality

characteristics and sub-characteristics, according to

the ISO 9126 standard, which can be applied to

assess software quality based on its architecture.

This study was inspired in a previous research

(Grimán et al., 2006) which established the elements

to be evaluated in software architecture in order to

estimate software quality.

There are different works which related ISO

9126 to software measurement (Mavromoustakos

and Andreou, 2007; Lee and Lee, 2006; Azuma,

1996; among others), however, they don’t present

the evaluation in an architectural level. In this

investigation we have used two related works

(Losavio and Levy, 2002) and (Ortega et al., 2003)

which proposed some metrics for software

evaluation considering internal (architectural)

elements according to ISO 9126.

In section 2 we briefly outline the theoretical

basis for this work; in sections 3 and 4 we propose a

set of metrics aimed at internal quality evaluation

and its application within a case study; finally in

section 5 we introduce the conclusions of our work

and our recommendations for future researches.

558

Grimán A., Pérez M., Ortega M. and Mendoza L. (2007).

A METRICS PROPOSAL TO EVALUATE SOFTWARE INTERNAL QUALITY WITH SCENARIOS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - DISI, pages 558-563

DOI: 10.5220/0002391905580563

 SciTePress

2 BACKGROUND

The ISO 9126 standard (ISO/IEC, 2002) does not

define software quality incorporation; it simply

defines a model with the characteristics to be taken

into account when establishing quality requirements

for product evaluation. This standard outlines a

software quality model which includes internal and

external quality and quality of use. It specifies six

(6) characteristics for internal and external quality,

with subsequent divisions (or sub-characteristics),

which are the product of internal attributes and come

into play externally whenever the software is used as

a part of a computing system. The characteristics are

applicable to any type of software.

The ISO/IEC 9126 model organizes quality

attributes into six characteristics (Functionality,

Reliability, Usability, Efficiency, Maintainability,

and Portability). Each characteristic is, in turn,

subdivided into sub-characteristics that can be

measured through internal and external metrics. The

Quality of Use refers to the software’s capability to

allow users to attain specific goals effectively,

productively, securely and satisfactorily within a

particular context.

A metric of software quality refers to a

quantitative method and scale used to determine the

value of a particular quality characteristic in a

software product. According to ISO 9126 the

evaluation of software quality can be achieved

through internal and external metrics (ISO/IEC,

2002).

In this study we are particularly interested on

internal metrics which can be applied to a software

product without executing (to specifications or

source code) during the design or codification.

When a software product is developed the

intermediate product can be evaluated using internal

metrics to measure intrinsic properties.

In order to generate the internal metrics we used

the Goal Question Metric (GQM) approach (Basili,

1992) (sometimes called the GQM paradigm) which

supports a top-down approach to define the goals

behind measuring software processes and products,

and using these goals to decide precisely what to

measure (choosing metrics). It additionally supports

a bottom-up approach to interpreting data based on

the previously defined goals and questions.

In our case, the expected quality attributes, as

outlined by the ISO 9126 standard, were established

as goals, where the steps previously mentioned were

applied to each attribute. Due to space constraints

we have omitted the questions that emerged during

the research, focusing on the metrics generated

which are shown in the next section.

3 METRICS FOR EVALUATING

INTERNAL QUALITY OF

SOFTWARE

As previously stated, in this work we have

considered our previous findings about architectural

evaluation (Grimán et al., 2006). According to that

study an evaluation method include a quality model

to estimate the satisfaction of quality requirements.

Metrics can be used to compose a quality model and

evaluate software architecture. In this sense they

must assess architectural mechanisms (patterns and

styles) and models (composed by components,

relationships, and views). Grimán et al. (2006) also

established that ISO 9126 is a convenient framework

to organize the quality model needed in the

evaluation. This way, in this investigation the

organization of the proposed metrics followed the

ISO 9126 structure.

Based on this study we oriented the metrics

proposal towards the evaluation of: elements

(presence/absence, quantity), relationships

(presence/absence, type), views (consistency, layers,

and balance), models (consistency, layers, and

balance), and mechanisms (presence/absence of

architectural patterns or styles). These key

architectural aspects constituted the goal of our

assessment; the next step was proposing one or more

metrics to achieve each goal.

Respect to the metrics proposal, two other works

were considered as antecedents: (1) Ortega et al.

(2003), which, in turn, was inspired on ISO 9126

and proposed a seminal set of metrics to measure

mainly the external quality of the product, factoring

in efficiency and effectiveness for each one of the

characteristics. After analyzing, we found they

included 10 internal metrics (related to

Maintainability), which were generalized and

incorporated in our proposal; (2) Losavio and Levy

(2002) who proposed definitions and parameters to

measure and evaluate the quality characteristics and

sub-characteristics at the architectural level. Four

metrics proposed by (Losavio and Levy, 2002) were

incorporated in our proposal, they were related to

Functionality, Reliability and Portability.

As a result of this study we obtained a model of

117 internal metrics as follows: Functionality: 24,

Reliability: 30, Maintainability: 31, Efficiency: 15,

Portability: 4 and Usability: 13. We had also to

determine if all the sub-characteristics were

architectural in nature, as a result of this analysis we

were able to organize the 117 metrics into

characteristics and sub-characteristics.

These metrics were validated through the

application of different architectural evaluations

onto different case studies (Grimán et al., 2003;

A METRICS PROPOSAL TO EVALUATE SOFTWARE INTERNAL QUALITY WITH SCENARIOS

559

Grimán et al., 2003b; Grimán et al, 2004; Grimán et

al., 2005; Grimán et al., 2006) where Collaborative

Systems, Enterprise Information Systems, Financial

Systems, CASE tools, and Geographical Information

Systems were evaluated. In these validations 22

stakeholders (developers, architects, project

managers, etc.) were involved to evaluate the

proposal of metrics according to the following

features: appropriateness, feasibility, depth, and

scale. In general, we obtained values higher than the

minimal level of acceptance (75%) for each

evaluated metric.

Because of space restrictions, we only present a

sample of the 117 metrics. Figure 1 presents the

proposed metrics for Functionality which were

considered pertinent to the software’s architecture,

based on the definitions by Bass et al. (2003) and

Losavio and Levy (2002): Adequacy, Precision,

Security and Interoperability. Note that 2 metrics in

this set were marked (

) because they were proposed

by Losavio and Levy (2002). For each metric, we

have established a corresponding scale within the

range of 1 through 5, where 5 always represents the

highest value (see Table 1).

Table 1: Sample of ordinal scales.

Type 1

5: Yes; 1: No

Type 2

5 = All; 4= Nearly All; 3= Median.;

2=Few; 1=None

Type 3

1=Unacceptable; 2=Below Average;

3=Average; 4=Good; 5=Excellent

Type 4

5 = Completely satisf.; 4 = Almost

Always satisf.; 3= Occasionally Satisf.; 2

= Rarely satif.; 1= Never satisf.

Type 5

5=Completely satisf.; 3=somewhat

satisf.; 1= Not satisf.

In the case of Functionality, we must point out

that, even though the software’s functional

requirements can be regarded as orthogonal to the

architecture; there are specific architectural

strategies to achieve the desired Security, Precision

and Interoperability requirements.

3.1 Analysis of Metrics

Regarding Functionality we proposed metrics

essentially oriented to evaluating the presence of

elements or components within the architecture,

which support the identified requirements. Some of

the metrics proposed will have to be refined in order

to be applied upon each actual evaluation e.g. the

existence of any component/function/method for

each specific task within the requirements would

have to be specialized in as many metrics as

requirements have been identified.

Usability is a quality characteristic which can be

translated into Functionality; however in this work

we have also considered other internal aspects that

would have an impact on the software’s interaction

e.g. modules or components which are responsible

for only one task. The complexity of the required

interfaces are evaluated by a module or method i.e.

the more specific the method is, the simpler its

interface.

Regarding Reliability, the proposed metrics

evaluate the presence or existence of mechanisms to

prevent or handle exceptions. Some metrics can be

applied to Distributed Systems e.g. Presence of

mechanisms which allow shared access to the

resources within the system or Presence of

mechanisms which allow stopping non-operative

processes are metrics aimed at evaluating the

maturity of the architecture in order to prevent

malfunctions, whereas the metric Presence of

mechanisms of failure notification will evaluate

aspects regarding the management of exceptions The

metrics Presence of mechanisms which allow

restarting the system in degrade mode and Presence

of any mechanism which allows the recovery of the

previous status of the system are designed to

determine the probability for future software to

remain operative after a malfunction has occurred.

Even though Efficiency is a quality

characteristic that is difficult to estimate through the

architecture –especially because it is hardware

dependent, as well as dependent on the

communication aspects,- we proposed a set of

metrics aimed at evaluating resource management

within the architecture, in order to optimize resource

consumption within large or complex systems. This

will translate into a better response time ratio. Thus,

such metrics do not contemplate the platform where

the software will be executed, but rather the

performance inherent to a particular architectural

organization, e.g. Existence of unnecessary

connections between classes or Presence of

mechanisms which optimize broadband use.

As far as Portability we found that it is

fundamentally an architectural characteristic, even

though it can be translated into some functionality

especially regarding Installability e.g. Presence of

mechanisms which allow the system’s installation.

We proposed a number of general metrics designed

to evaluate the presence of mechanisms and

strategies which render the software usable within

multiple platforms e.g. Presence of mechanisms

(layer or subsystem) which encapsulates the

restrictions of the environment.

ICEIS 2007 - International Conference on Enterprise Information Systems

560

The last characteristic we found was

Maintainability, which originates a number of

important general metrics, which can be further

refined. These metrics are designed to evaluate the

effortlessness with which the architecture can be

understood and modified, focusing mainly on its

organization and distribution, e.g. Responsibility of

each object within the Interaction Diagrams. Our

proposal did not contemplate semiotic-related

metrics, such as the ideality of any particular

symbol.

Finally, the proposed metrics include

measurements at various levels which correspond to

different architectural views, in order to apply some

estimates even in cases where no refined design is

available.

4 CASE STUDY: GIS

EVALUATION

With the objective of showing a practical application

of the metrics proposed in this work, we present the

study of a particular case in which the architecture of

a Geographical Information System (GIS) for an

electrical distribution company’s was evaluated. The

system was very demanding in terms of quality, and

it was developmentally complex. The system’s

purpose was to address the optimization needs of

those processes inherent to electric energy

distribution while meeting the legal dispositions

outlined in the quality regulations of the National

Electrical Distribution System (GISEN).

The evaluation of this architecture was done

following the Architectural Trade-offs Analysis

Method – ATAM (Clements et al., 2002), which

required establishing the architectural drivers and

the utility tree. Given that the former is based on

quality scenarios, we included some of the metrics

proposed in our work in order to facilitate the

quantitative analysis of such scenarios.

The quality requirements as well as the expected

attributes of the system were: precision in the

calculations (Accuracy); communication with other

systems (Interoperability); access control (Security);

quantification of the permitted malfunctions,

management of internal and external errors

(Reliability); requirements of interface and

communication with users (Usability); speed,

response-timeframe and consumption of resources

(Efficiency).

Once we identified the characteristics we

designed a utility tree based on the quality scenarios

and on their weight and frequency. One or more of

the proposed metrics were assigned to each scenario

in order to allow an evaluation by the evaluating

group; two examples are shown next:

Scenario

: We require communication with the

Incidence System. Metrics Proposed

: Existence of

elements which allow connections with other

Functionability

Existence of any component /function/method for each specific task within users’

requirement (e.g. enquiries, reports, transactions)

Type_1

System functions adequately refined in the architecture Type_2

Completion of Use-case Model vs. Logical Model Type_2

Completion of Concepts vs. Database Components Type_2

Completion of the Logical Model vs. Component Diagrams Type_2

Existence of mechanisms which promote communication Type_1

Re-configurable architecture in run-time Type_1

Design adapted to the original problem

Type_3

Adequacy

Class conceptual diagram adapted to software specifications Type_1

Precision Presence of software components responsible for the calculations needed by the

client

Type_4

Presence of architecture components for detection of non-authorized system access Type_1

Presence of a mechanism/subsystem/kernel which determines user access when

users need to perform a particular operation

Type_1

Presence of a secure mechanism which allows users to remember their password Type_1

Presence of a mechanism which reminds users to change their password after some

time

Type_1

Presence of a mechanism within the software architecture which includes a function

to evaluate the amount of access logs within the system

Type_1

Presence of an access blocking mechanism after a number of failed attempts Type_1

Presence of mechanisms (methods, procedures or functions) which register user

operations in a log

Type_1

Compliance with security standards Type_5

Presence of mechanisms for recovery after failures due to attacks Type_1

Presence of mechanisms for data update used for authentication Type_1

Presence of mechanisms for data encryption Type_1

Security

Presence of mechanisms which limit domain access in the network (applicable to

intranet development

Type_1

Existence of elements which allow connections to other systems

(e.g. middleware,

COBRA etc.)

Type_1

Components with clear communication interfaces Type_1

The Architecture uses certified components Type_5

Interoperability

Clear identification of architecture extension points (applicable to systems based on

plug-in and components

Type_1

Figure 1: Internal quality metrics for Functionality.

A METRICS PROPOSAL TO EVALUATE SOFTWARE INTERNAL QUALITY WITH SCENARIOS

561

systems (e.g. middleware CORBA, etc), Components

with clear communication interfaces.

Scenario

: A transmission of sensitive is

preformed through a public network. Metrics

Proposed: Presence of mechanisms for data

encryption.

In order to evaluate the architecture quality, we

coordinated a one-day session with different

stakeholders to assign values to each

scenario/metric. After evaluating, the results

obtained were quantitative (see Figure 2) and

showed the required architectural improvements

upon those characteristics which are inhibited. In

this case, this was represented by those

characteristics whose values were less than 75%.

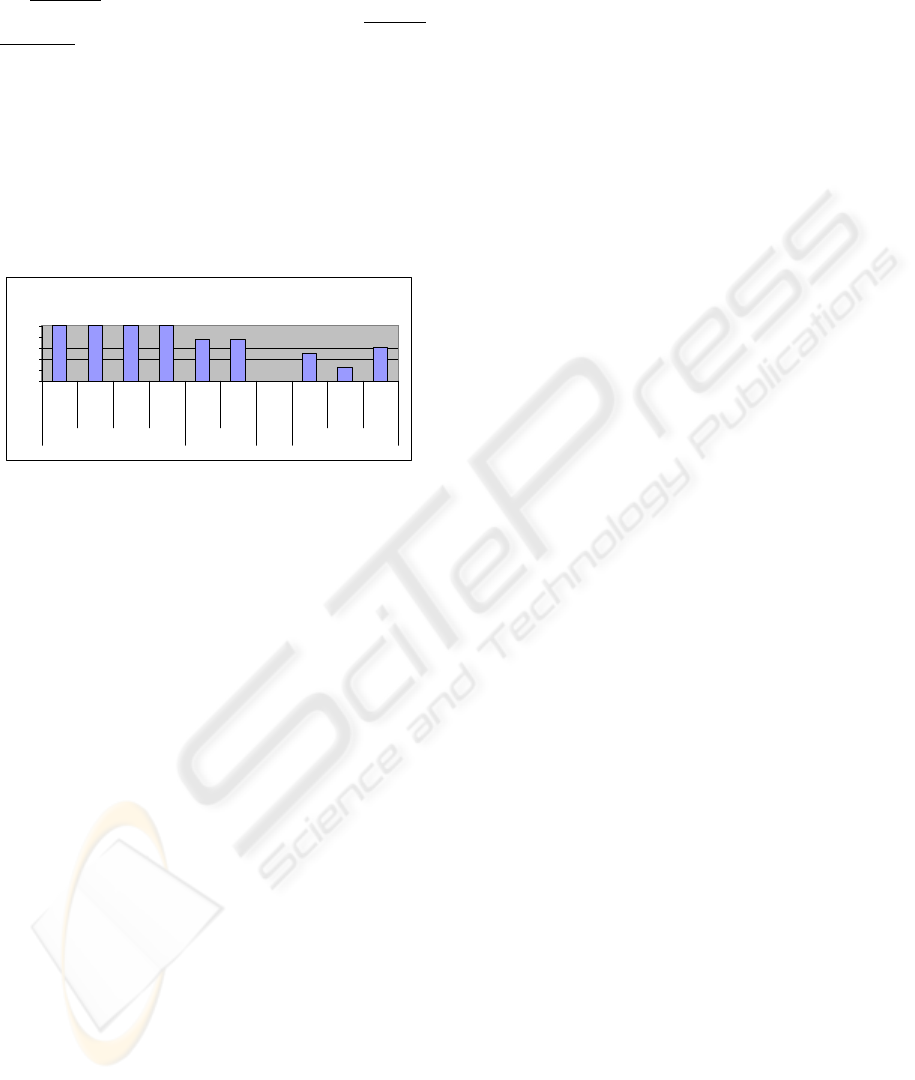

Figure 2: Percentages of coverage of quality

characteristics.

Based on these results, we were also able to

provide practical recommendations regarding the

architecture improvements. Some examples are: use

of concurrent processing and of dispatch policies,

mechanisms to manage the workload, helps for users

(including tool tips), use of mechanisms of data

updating for authentication, among others.

After illustrating the practical application of the

proposed metrics in a real context, we present the

conclusions and opened questions of this research in

the next section.

5 CONCLUSIONS

Through the results achieved in this work, it

becomes evident that some of the quality

characteristics or attributes (especially the non-

observable during execute time), are more easily

evaluated through the architecture (e.g.

Maintainability).

It is also evident, however, that those quality

attributes which are observable during execute time

are directly determined by the architecture. It is

possible then to establish objective measurements

about the architecture’s specifications which would

allow us to estimate the levels of product quality at

an early stage.

These metrics can be used in combination with

different architectural evaluating techniques, (e.g.

scenarios and simulations), in order to obtain

quantitative measures of quality. Similarly, the

metrics can be redefined so as to obtain more precise

evaluations of specific architectural mechanisms or

technologies. This way we have proposed a

compendium of metrics aimed at estimating internal

quality (based on standard ISO 9126) and which, at

the same time, functions as a model for

specification. This work provides important

orientation for the application of the different

methods of architectural evaluation which claim for

quantitative measurements.

In the future and as a complement to our

proposal, we intend to include aspects of

Consistency, Conceptual Integrity, Simplicity of

Construction and Comprehension of the

Architecture, which are regarded as inherent to the

quality of the architecture more so than to the

software quality.

REFERENCES

Azuma, M. 1996. Software products evaluation system:

Quality models, metrics and processes -international

standards and Japanese practice. Information and

Software Technology, 38 (3 SPEC. ISS.):145-154.

Barbacci, M, Klein, M., Weinstock, C., 1997. Principles

for evaluating the quality Attributes of a Software

Architecture. Technical Report CMU/SEI-96-TR-036.

Basili, V., 1992. Software modeling and measurement:

The Goal/Question/Metric paradigm. Technical Report

CS-TR-2956, Department of Computer Science,

University of Maryland, College Park, MD 20742.

Bass, L., John, B., Kates, J., 2001. Achieving Usability

through Software Architecture. CMU/SEI-TR-2001-

005. Software Engineering Institute.

Bass, L., Clements, P. and Kazman, R., 2003. Software

arquitecture in practice. Addison Wesley Longman

Inc., USA.

Clements, P., Kazman, R., Klein M., 2002. Evaluating

Software Architectures: Methods and Case Studies.

The SEI Series in Software Engineering.

Grimán, A., Pérez, M., Mendoza, L, 2003. Estrategia de

pruebas para software OO que garanticen

requerimientos no funcionales. In III Workshop de

Ingeniería del Software, Jornadas Chilenas de

Computación.

Grimán, A., Lucena, E., Pérez, M., Mendoza, L., 2003.

Quality-oriented Architectural Approaches for

Enterprise Systems. In 6th Annual Conference of the

Southern Association for Information Systems.

Grimán. A., Pérez, M., Mendoza, L, Hidalgo, I., 2004.

Evaluación de la calidad de patrones arquitectónicos a

través de experimentos cuantitativos. In Jornadas

Quality satisfaction by Characteristic

100 100 100 100

75 75

100

Adecuacy

Acuracy

Interoperb

Security

Behaviour

Resources

Operability

Recovery

Maturity

Fault Tol.

Functionality Efficiency Usability Reliability

ICEIS 2007 - International Conference on Enterprise Information Systems

562

Iberoamericanas de Ingeniería del Software e

Ingeniería del Conocimiento.

Griman, A., Valdosera, L., Mendoza, L., Pérez, M.,

Méndez, E., 2005. Issues for Evaluating Reliability in

Software Architecture. In 8th Americas Conference on

Information Systems.

Griman, A.; Chávez, L.; Pérez, M.; Mendoza, L.;

Dominguez, K. 2006. Towards a Maintainability

Evaluation in Software Architectures. In 8th

International Conference on Enterprise Information

Systems - ICEIS . Vol. 1: 555 - 558.

ISO/IEC, 2002. Software Engineering – Software quality

– General overview, reference models and guide to

Software Product Quality Requirements and

Evaluation (SQuaRE). Reporte. JTC1/SC7/WG6.

Lee, K. and Lee, S. 2006. A quantitative evaluation model

using the ISO/IEC 9126 quality model in the

component based development process. Lecture Notes

in Computer Science: 917-926.

Losavio, F., Levy, N., 2002. Putting ISO standards into

practice for Architecture evaluation with the Unified

Process. Journal of Object Technology, Vol. 2, Nº 2.

Mavromoustakos, S. and Andreou, A. 2007. WAQE: A

Web Application Quality Evaluation model. In

International Journal of Web Engineering and

Technology, 3 (1): 96-120.

Ortega, M, Pérez, M., Rojas, T., 2003. Construction of a

Systemic Quality Model for evaluating a Software

Product. Software Quality Journal. Kluwer Academic

Publishers, 11 (3): 219-242.

A METRICS PROPOSAL TO EVALUATE SOFTWARE INTERNAL QUALITY WITH SCENARIOS

563
