EXTRACTION OF SEMANTIC RELATIONSHIPS STARTING

FROM SIMILARITY MEASUREMENTS

Mohamed Frikha, Mohamed Mhiri and Faiez Gargouri

MIRACL Laboratory, ISIM Institute, BP 1030 - 3018, Sfax, Tunisia

Keywords: Information System, Ontology, semantic relationships, similarity measurement, Conceptual Schema.

Abstract: Current applications’ modelling becomes increasingly complex. Indeed, it requires a hard work to study the

particular domain in order to determine its main concepts and its relationships. The designers can

have, in certain case many ambiguities concerning the comprehension of the domain to be modelled and the

concepts to be used. In order to solve these ambiguities, we used ontology like a reference to give more

semantics to conceptual schemas. For that, we used an approach for an ontology building to represent the

pertinent concepts for a domain. In this paper, we propose a set of allowing determining the resemblance

between the concepts of a conceptual schema and the ontology. Then, we propose an algorithm using these

similarity measurements to determine the semantic relationships.

1 INTRODUCTION

In general, the majority of conceptual schemas (CS)

of information systems (IS) are created from scratch,

wasting time and many resources. These CS can

contain errors, due to the ignorance of the domain to

be modelled. Several approaches were proposed to

make more semantics and to solve these errors. The

ontology is the most known. It represents « a

description of the concepts and relations which can

exist » (Gruber, 1993).

The solution which we proposed consists in the

definition and the building of an ontology known as

IS design ontology (Mhiri

et al., 2005). The latter

constitutes a means of help and assistance in the

realization of design task. Such ontology makes it

possible to solve the problems of knowledge

representation of IS, such as the problems of the

expressivity, the comprehensibility, the sharing and

the reuse.

In this paper, we present the complementarity

between the design of IS and ontologies. Then in the

following section, we present the various

interactions between ontology and a conceptual

schema. Then, we present our contribution

consisting in integrating ontologies in the IS design

process. For that, similarity measurements must be

calculated and an algorithm of search in ontology

must be established.

2 ONTOLOGY VERSUS

INFORMATION SYSTEMS

Modelling consists in creating a virtual

representation of a reality in order to emphasize the

interesting points. There are several methods and

languages of IS design like MERISE, UML

language, etc. However, the design of the complex

applications handles a significant quantity of

changed information. It risks to have ambiguities

and to contain errors (Gargouri, 2002).

To solve these problems, we used ontology. It

makes possible to study the semantics of the whole

concepts and the relationships between these

concepts of the various CS for a given domain.

The existing conceptual schema can be used to

create ontology (figure 1), whereas existing ontology

can be used to improve CS

(Fonseca et al., 2003).

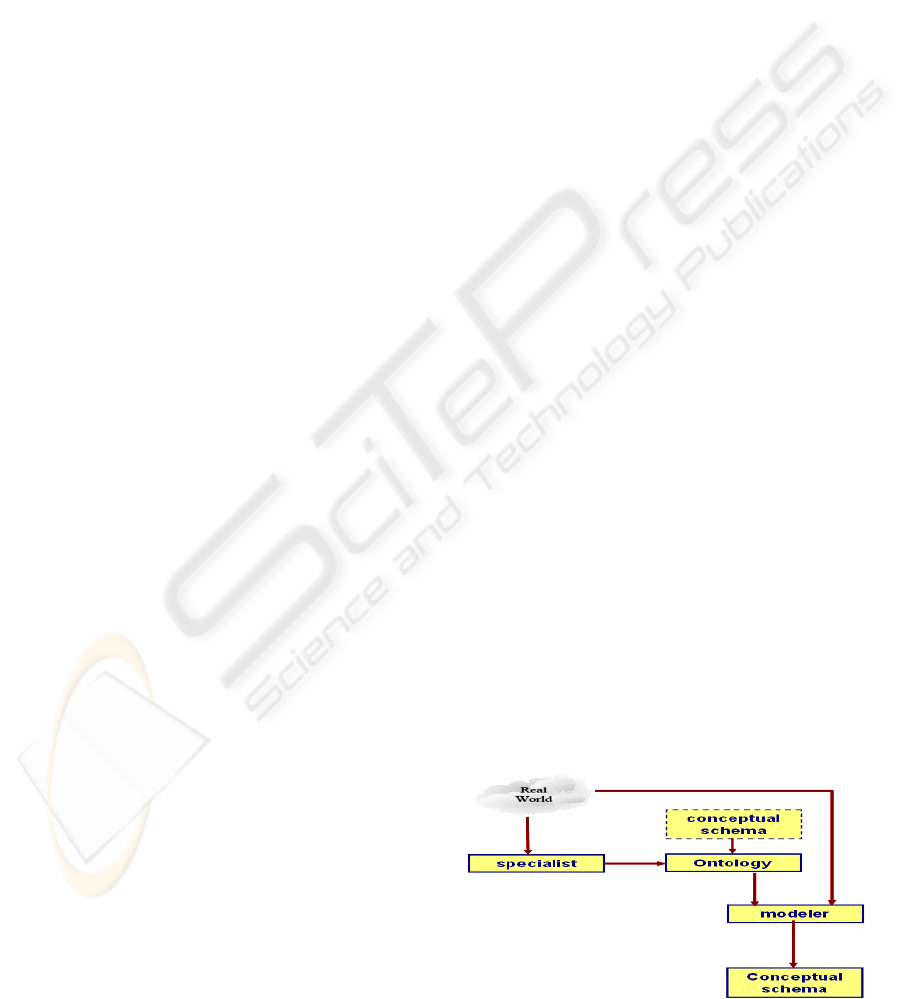

Figure 1: Ontology-based modelling process.

603

Frikha M., Mhiri M. and Gargouri F. (2007).

EXTRACTION OF SEMANTIC RELATIONSHIPS STARTING FROM SIMILARITY MEASUREMENTS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 603-606

DOI: 10.5220/0002392706030606

 SciTePress

Each conceptual schema to integrate is compared

to the ontology, and for each conflict to find the

system calculates similarities measurements between

the concept of ontology and the component of the

conceptual schema to check.

In the following paragraph, we present our

approach to ensure an interaction between a built

ontology and a given CS.

3 DIFFERENT INTERACTIONS

BETWEEN ONTOLOGY AND

To verify a conceptual schema, it is necessary, at

first, to check any component of this CS with its

correspondence in the ontology. A component can

be a class, a conceptual relationship (association,

aggregation, composition and inheritance).

This checking requires a comparison step by

using the similarities measurements calculation

between the ontology concepts and CS components.

3.1 Similarities Measurements

We define a similarity measurement between two

concepts (C1, C2) like a value ranging between 0

and 1 allowing reassembling these concepts. To

reach a more precise level of similarity between the

concepts, we propose a set of formulas used during

the algorithm of comparison.

To measure the similarities between two

concepts, we combine syntactic matching between

strings and semantic matching.

3.1.1 Syntactic Similarities

For syntactic matching, a function of distance is

applied to a pair of strings, to determine the

dissimilitude between them. In this work we

adopted the Levenshtein distance. It is applied to

the calculation of the similarity between the concept

names (SimName(Cc,Co)) and between the attribute

names (SimNameAt(Cc

, Co)).

SimName (Cc

,Co

) = 1– ( Lev ( Cc

, Co

Max( long(Cc

) ,long(Co

)))

(1)

SimNameAt (Cc

, Co) =

MAX

( 1 –

Lev(Cc

,Co

at j

) /

Max(long(Cc

),long(Co

atj

)))

(2)

To calculate the similarity between attribute names

of two concepts, we use a formula for the

comparison of two concepts Cc and Co. Cc

is an

attribute from the Cc and Co

is an attribute from

the Co. n is the number of attributes in the Cc and K

is the number of attributes in the Co.

SimNameAtts(Cc,Co) =

(3)

3.1.2 Semantic Similarities

We consider the nearest neighbour (Holt, 2000),

which is used to calculate the similarity in terms of

the attributes each concept presents, and is given by

the formula:

Where Cc and Co are, respectively, the

conceptual schema and the ontology concepts. n is

the number of attributes considered, i is the index of

the attribute being processed, SimNameAt(Cc

,Co)

is the function which calculates the similarities

between the attributes of the compared concepts and

Wat

is the weight of the i

attribute in the ontology.

The weight of an attribute is given by following

formula:

= Σ Co

Σ Co

(5)

Where Co

is the number of concepts that the

attribute has and Co is the total number of concepts

belonging to ontology.

Three types of relationships are considered for

the similarities measurement of a pair of concepts.

The first one is the taxonomic associations (IS-A),

and the other two are the aggregation and

composition ones. The similarity in terms of the

place in the hierarchy, where each concept is

located, is obtained by the formula:

SimHier(Cc,Co)=

Σ(Hier(Cc,Pc).Wt(c,p))

Nhier(Cc,Pc)

(6)

Where Hier(Cc,Pc) is each one of the taxonomic

relationships existing in both the conceptual schema

and the ontology. Wt(c,p) is the weight of the

hierarchical relationship arc, and Nhier(Cc,Pc) is the

number of IS-A associations in both the ontology

and the conceptual schema.

The weight Wt(c,p) of a taxonomic arc is given

by the following formula (Jiang and Conrath,1997):

SimAt(Cc,Co)=

∑

i 1

xWati) COi,CCat SimNameAt(

(4)

∑

j)COat , i(CCat SimName

Max

ICEIS 2007 - International Conference on Enterprise Information Systems

604

Wt(c,p) = (E)

. (d(p)+1) . (IC(c) – IC(p))

E(p) d(p)

(7)

Where d(p) is the depth of the parent node (p) of

the node corresponding to the concept being

compared. E is the density of the whole ontology’s

hierarchy, that is, the number of nodes it has. E(p) is

the density of the taxonomy considering the node p

as the root concept, that is, the number of direct and

indirect children it has. Finally, IC (Information

Content) represents the amount of information the

node has (Resnik, 1998), and its value is given by:

IC(c) = -log( (

Σ(1/sup(c) ) ).1/N)

(8)

Where sup(c) is the number of super classes

(direct or indirect) the class c has, and N is the total

number of concepts of the ontology. The more

specialized a concept is, the more information it

intrinsically possesses.

Finally, the aggregation and composition links

are considered to calculate the similarity between

two concepts, by the simple formula:

SimRel(Cc,Co) = (

Σ(Rel(Cc,Co))/Rel(Cc))

(9)

Where Rel(Cc,Co) is each composition/

aggregation link existing both in the ontology and in

the conceptual schema and Rel(Cc) is concerned

with the ones present only in the conceptual schema.

3.1.3 Extractions of the Semantic

Relationships between the Concepts

After having calculated the similarities between the

concepts, we will use these formulas to determine the

semantic relations (Mhiri

et al., 2006) which can

exist between these concepts. These relationships are

defined as follow:

Table 1: Determination of semantic relationships between

concepts.

SAn is the threshold of Analysis. It is the

minimal value which two concepts can have

between them, by being applied to a formula, to

analyze them. SAc is the threshold of Acceptance, if

the two concepts have a value higher than the

threshold of acceptance for a formula, then we can

say that they satisfied this formula. These values are

given by a domain’s expert.

This table determines the semantic relationships

which can exist between two concepts according to

the values of the syntactic and semantic formulas.

Each formula is calculated for each concept in

the conceptual diagram with ontology concepts. The

ontology can also be dynamically updated

depending on the similarities measurements carried

out with every new conceptual schema. Attributes

and relationships can be added to existing concepts,

and even new concepts may be inserted.

3.2 The Algorithm of Search in

Ontology

The algorithm is described then illustrated in figure

2 details in a high level of abstraction, the

relationships that can be exist between two concepts.

The concept which does not exist in our ontology

and which does not have semantic relations with

another concept in the ontology, will be added as

being new concept.

If a candidate has a semantic relationship with a

concept of ontology it will not be automatically

considered as a new concept. Any semantic relation

must be presented at the expert.

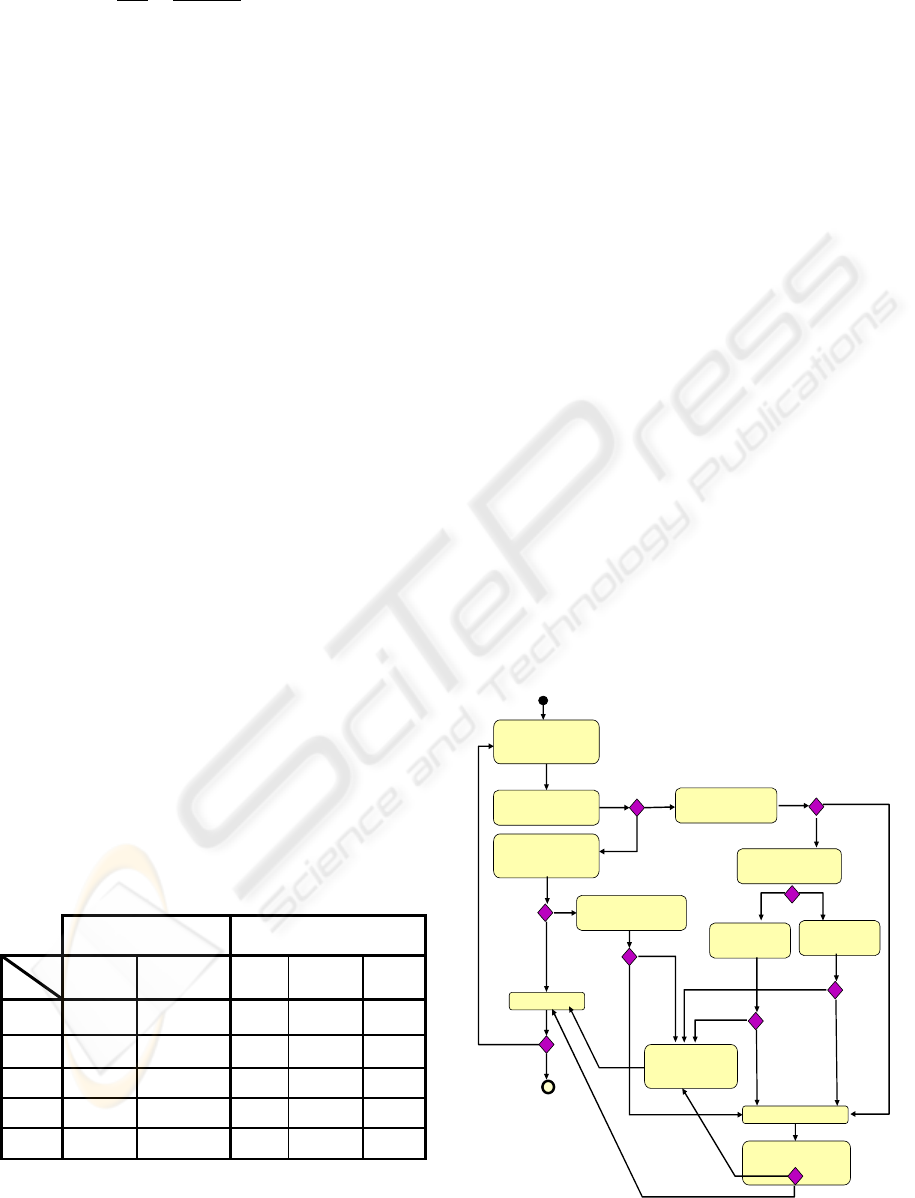

Figure 2: Algorithm search of semantic relationships.

Syntactic formulas Semantic formulas

formula

relation

SimName(C,C) SimNameAtts(C,C) SimAt(C,C

)

SimHier(C,C)

imRel(C,C)

Identity

= 1 =1 = 1 = 1 = 1

Synonymy

< SAn > SAc > SAc > SAc > SAc

Homonymy

= 1 < SAn < SAn < SAn < SAn

quivalence

< SAn < SAn > SAc > SAc > SAc

Kind of

< SAn > SAn

> SAc

Load a conceptual

schema concept

Identify concept name

in the ontology

Identify concept

structure in the

ontology

Not

found

Same structure

yes

Homonymy existence ?

Found

Formulas values are

> SAc

yes

SimNameAtts(Cc,Co)

> SAn

Show candidates

<<expert choose the

equivalent candidate>>

Give hand to expert

for adding concept

to ontology

Found

Not found

Last concept ?

Synonymy

Check existence

of kind of

Check existence

of equivalence

Kind of

equivalence

found

No yes

Not found

EXTRACTION OF SEMANTIC RELATIONSHIPS STARTING FROM SIMILARITY MEASUREMENTS

605

Thereafter, we will present the steps of progress of

this algorithm:

Step 1 – Search concept’s name in the ontology:

If the concept’s name is found in the ontology, go to

step 2. Else go to step 5.

Step 2 – Search concept’s structure in the

ontology: Once the term which nominates the

concept is found in the ontology, its structure is

compared against the ontology, attribute by attribute.

The algorithm verifies if there is a one to one

correspondence between each input concept’s

attribute and the ontology concept’s attribute, if we

find the same structure, it is the identity and we go

to step 3. If there are differences in at least one of

the attributes, go to step 4.

Step 3 – Tests if it is the last concept:

If the

current concept is the last one of the schema, go to

the end. Else go back to step 1 to processes of the

next concept.

Step 4 – determine the existence of a homonymy:

we calculate measurements of similarities presented

in the preceding step in order to check if it is a

homonymy relation. If yes, go to step 8, else go to

step 10.

Step 5 – calculate the similarities:

The formulas

of similarity will be calculated between the CS

concept and each concept of ontology. Go to the

following step.

Step 6 – Verify threshold:

Check if the similarity

value of these formulas SimNameAtts(Cc,Co),

SimAt(Cc,Co), SimHier(Cc,Co) and SimRel(Cc,Co).

If all formulas values are higher than the acceptance

threshold, it is the synonymy and go to step 8, else

go to the following step.

Step 7 – check if it is an equivalence or a kind of

relation: compare the value of SimNameAtts(Cc, Co)

with the analysis threshold. If it is higher than the

analysis threshold, check if it is a kind of relation by

comparing the other formulas with the thresholds,

else check if it is an equivalence relation. Go to the

following step, else go to step 10.

Step 8 – present the Candidates:

present each

candidate found, with his relationship with the CS

concept. Go to step 9.

Step 9 – relation selection:

At this point the

domain expert intervention is necessary. He selects

the concept he judges as the most equivalent to the

input schema’s concept. If the expert chooses a non-

existing relation in our ontology, then we add this

relation to ontology. Go to step 3.

Step 10 - Addition of a new concept to ontology:

In this step, we give the hand to an expert for adding

the new concept in ontology, with all its attributes

and their new semantic relation. Go again to step 3.

4 CONCLUSION

We presented an approach of ontology building for

the IS design. It allows the extraction of the concepts

and its relations starting from CS of UML. Then, we

presented the role of ontology in the modelling

phase. Then, we showed the different interactions

between ontology and an unspecified CS in order to

check the CS and assist the designer in his work and

guarantee the reuse, the extensibility and the

comprehension of a conceptual diagram. For that,

we defined some formulas using similarities

measurements to compare and integrate different CS

modelling the same part of reality.

Like perspective for this work, we will use these

formulas in a case study for a particular domain.

Then, we will integrate these rules in design process

to ensure the coupling between CS and ontology.

REFERENCES

Fonseca, F. T., Davis, C., Câmara, G.,2003. Bridging

Ontologies and Conceptual Schemas in Geographic

Information Integration. GeoInformatica. v.7, n.4,

p.355-378. Kluwer Academic Publishers, 2003.

Gargouri F. , 2002. Modélisation de la complexités des

systèmes d’information à travers la coopération par

intégration de représentation conceptuelles.

Habilitation universitaire en informatique. Tunis 02.

Gruber T. R., 1993. Towards principle for the design of

ontology used for knowledge sharing. In N. Guarino

and R. Poli, editors, Formal Ontology in Conceptual

Analysis and Knowledge Representation, International

Workshop on Ontology.Kluwer Academic.

Hess G., Iochpe N.,Cirano, 2004. Ontology-driven

resolution of semantic heterogeneities in GDB

conceptual schemas. GEOINFO 2004 VI Brasilian

Symposium of GeoInformatic.

Holt, A., 2000. Understanding environment and

geographical complexities trough similarity matching.

In Complexity International, number 7.

Jiang, J., and Conrath, D.,1997. Semantic Similarity Based

in Corpus Statistics and Lexical Taxonomy. In Proc of

International Conference Reasearch in Computational

Linguistics. Taiwan.

Mhiri

, M., Mtibaa, A., Gargouri, F., 2005. Towards an

approach for building information systems’ontologies.

FOMI’2005, Verona, Italy, 9-10, June.

Mhiri

M.,

Chabaane S.,Mtibaa A.,Gargouri F.,

2006. An

Algorithm for Building Information System’s

Ontologies, ICEIS 2006.

Resnik, P., 1998. Semantic Similarity in a Taxonomy: An

Information-Based Measure and its Application to

Problems of Ambiguity in Natural Language. Journal

of Artificial Intelligence Research, p. 95-130.

ICEIS 2007 - International Conference on Enterprise Information Systems

606
