FLEXIBLE RECONCILIATION OF XML DOCUMENTS IN

ASYNCHRONOUS EDITING

∗

Claudia-Lavinia Ignat and G

erald Oster

LORIA-INRIA Lorraine, Campus Scientiﬁque, F-54506 Vandœuvre-l

es-Nancy Cedex, France

Keywords:

Collaborative editing, asynchronous communication, XML, conﬂict management, operational transformation.

Abstract:

As XML documents are increasingly being used in a wide variety of applications and often people work in

teams distributed across space and time, it is very important that users are supported for editing collaboratively

XML documents. Existing tools do not offer appropriate support for the management of conﬂicting changes

performed in parallel on XML documents. In this paper we propose a merging mechanism that offers users

the possibility to deﬁne conﬂict nodes prevented from integration of concurrent changes. Changes referring to

non-conﬂict nodes are automatically merged, while users are assisted to manually merge changes referring to

conﬂict nodes. Changes are tracked by means of operations associated to the nodes they target and merging

relies on an operation-transformation mechanism adapted for hierarchical structures.

1 INTRODUCTION

Collaboration is a key requirement of teams of in-

dividuals working together towards some common

goal. Computer-supported collaboration is becoming

increasingly common, often compulsory in academia

and industry where people work in teams and are dis-

tributed across space and time. XML is a popular

format for marking up various kinds of data, such as

application data, metadata, speciﬁcations, conﬁgura-

tions, templates, web documents and even code. Of-

ten XML documents are created and edited by users

either in raw text format or through special tool sup-

port. In this paper we describe our approach for sup-

porting users in the process of collaboratively editing

XML documents.

A typical way of editing XML documents is the

asynchronous collaboration where users work in iso-

lation on their copies of the document and synchro-

nise their changes against a shared repository where

changes are published. In this paper we describe our

approach for this kind of asynchronous collaboration

over XML documents.

∗

The work presented in this paper was done when both

authors were members of the GlobIS group at ETH Zurich,

Switzerland.

Some state-based approaches for merging XML

documents have been proposed in (Wang et al., 2003;

Cobena et al., 2002; Fontaine, 2001). State-based ap-

proaches use only the information about the states of

the documents and no information about the evolution

of one state into another. In this way they do not keep

information about the process of transformation from

one state to the other, such as the order of execution of

the operations. Moreover, there is usually more than

one function that can be used to transform an initial

state of document into a ﬁnal one. On the other side,

operation-based merging approaches (Lippe and van

Oosterom, 1992) keep information about the evolu-

tion of one document state into another in a buffer

containing the operations performed between the two

states of the document. Merging is done by executing

the operations performed on one copy of a document

on the other copy of the same document. Conﬂicts

might exist between concurrent changes and therefore

an important issue is how to provide users support for

the deﬁnition and resolution of conﬂicts. State-based

merging approaches detect the units of the document

where conﬂicting changes were performed, but they

do not offer support on how to recover from a situa-

tion of conﬂict. Usually, users have to manually edit

the versions of the document in order to recover from

359

Ignat C. and Oster G. (2007).

FLEXIBLE RECONCILIATION OF XML DOCUMENTS IN ASYNCHRONOUS EDITING.

In Proceedings of the Ninth International Conference on Enterprise Information Systems, pages 359-366

 SciTePress

conﬂict. Merging based on operations offers good

support for conﬂict resolution by having the possibil-

ity of tracking user operations. User operations can be

integrated or cancelled in order to recover from situa-

tions of conﬂict.

Some operation based approaches for merging

XML documents have been proposed in (Molli et al.,

2002) and (Davis et al., 2002). These approaches did

not deal with issues related to the deﬁnition and res-

olution of conﬂicts. They adopt an automatic resolu-

tion of conﬂicts by combining the effects of all con-

current operations, but do not allow users the possi-

bility to include some changes and restrict others.

For instance, consider the following part of XML

document:

<?xml version=“1.0”?>

</movie>

</movieDB>

Assume that two users start working from the

above version of the document. Suppose that the ﬁrst

user inserts the

director element <director>Alejandro

G. Inarritu

</director> as the ﬁrst child of the movie

element.

Further, suppose that the second user, concur-

rently with the ﬁrst user, inserts a second

actor ele-

ment <

actor>Naomi Watts</actor> as child of the

movie element.

One of the possibilities for merging is to take into

account the changes performed by both users and to

obtain:

<?xml version=“1.0”?>

<director>Alejandro G. Inarritu</director>

<actor>Naomi Watts</actor>

</movie>

</movieDB>

Another possibility is to consider that concurrent

changes done at the level of the

movieDB element

should be integrated, but concurrent changes done at

the level of the movie element should not be permit-

ted and users should be asked which changes to keep.

For instance, it could have been the case that two users

concurrently insert a

director element and their works

cannot be merged as a

movie element has at most one

director.

In order to allow such behaviour, it should be pos-

sible to deﬁne conﬂict nodes in the hierarchical struc-

ture associated with an XML document. Changes per-

formed on the nodes belonging to the path from the

root node to the conﬂict node will be merged, while

changes belonging to the conﬂict nodes will be con-

sidered conﬂicting and users have to manually solve

these conﬂicts.

For keeping track of the changes performed on

nodes of the documents, we use a model of the doc-

ument where we associate operations with the nodes

they refer to. In this way, conﬂicting operations that

refer to the same subtree of the document are eas-

ily detected by the analysis of the histories associated

with the nodes belonging to the subtree.

In this paper we present our merging approach for

XML documents and present an asynchronous col-

laborative editor that supports users in the process of

managing conﬂicts. In section 2 we start by describ-

ing some requirements for editing XML documents.

We then go on by presenting in section 3 the structure

of the document and the set of operations modelling

the editing process. Section 4 presents our merging

approach for XML documents. We show how our

merging approach recursively applies an existing op-

erational transformation algorithm over the document

hierarchical structures. Moreover, we describe the ex-

tension of the operational transformation mechanism

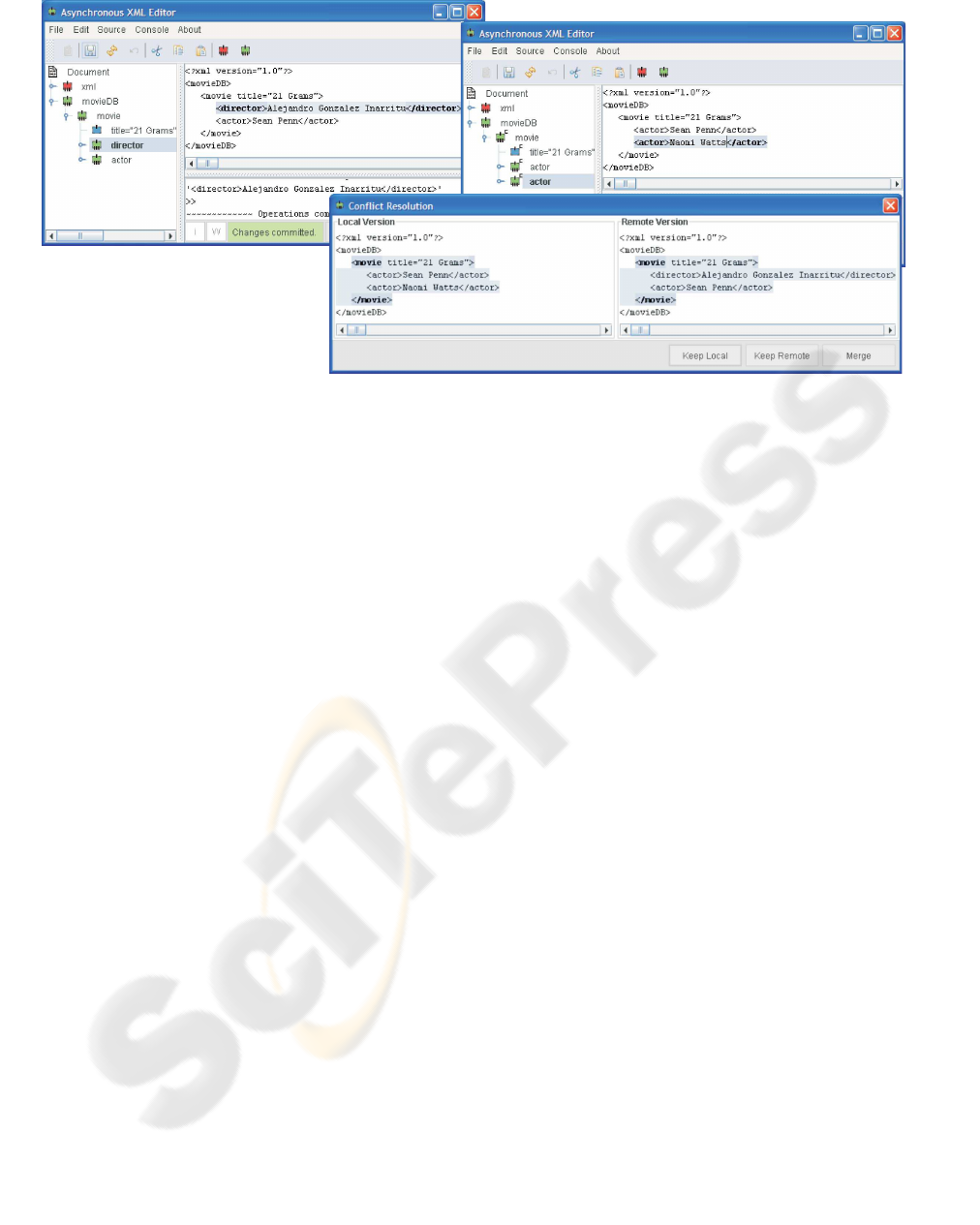

for our set of operations. In section 5 we show how

users can use our XML editor and set various policies

for reconciliation. We then compare in section 6 our

approach with other related works. We end our paper

by some concluding remarks.

2 EDITING XML DOCUMENTS

In this section we describe some features present in

existing single-user XML editors and that should be

offered also by collaborative XML editors. For ex-

ample, single-user XML editors, such as XML Spy

(XMLSpy, 2007), offer features of auto-completion to

speed up and make more convenient editing of well-

formed XML documents. In collaborative editing a

necessary condition for obtaining a well-formed rec-

onciled document is that the two XML documents

to be merged are well-formed. Therefore, our goal

was to build a collaborative editor that uses auto-

completion during editing in order to maintain well-

formed documents.

Consider that a user edits an XML document, e.g.

by adding the line ‘<

test>hello world</test>’ char-

acter by character. In this way, the XML document

will not be well-formed until the closing tag is com-

pleted. Our editor provides support to insert complete

elements, so that the operations can be tracked un-

ambiguously at any time in the editing process. For

instance, every time the user inserts a ‘<’ character,

the insertion of ‘<><

/>’ is performed. Of course,

Level 1

Hist

RootNode

Hist

‘\n’

xml

movieDB

Hist

‘ ’

Hist

version=”1.0"

‘\n’ ‘\t’

movie

Hist

‘\n’

c0 c1 c2

a0 a1 c0

‘ ’

title=”21 Grams"

Hist

‘\n’ ‘\t’

‘\t’

actor

‘\n’ ‘\t’

Hist

Sean

Penn

‘ ’

Hist Hist

Level 0

Level 2

Level 3

Level 4

Figure 1: Structure of an XML document.

an empty tag such as ‘<><

/>’ is not a valid XML

element, but at least it constitutes a good support for

the creation of a new valid element.

Additional rules for the deletion of characters

have to be provided. A user should be prevented

from deleting parts of the structure of an element,

such as the beginning or closing tag, unless the

whole element is deleted. For instance, the user can-

not delete ‘<

/test>’ from an element ‘<test>hello

world

</test>’.

Another issue regarding editing of elements are

the two different forms that an element can take: the

form containing both the opening and closing tags

such as ‘<

test></test>’, or the form of an empty

element such as ‘<

test/>’ containing only the clos-

ing tag meaning that no further child elements are de-

ﬁned. The user is prevented from directly deleting the

closing tag (‘<

/test>’). Instead the user can insert a

‘

/’ character at the end of the beginning tag (‘<test>’

⇒ ‘<

test/>’) in order to inform the system that the el-

ement should be transformed into an element contain-

ing only a closing tag. The operation is not performed

if the element contains other child nodes. On the other

hand, the deletion of the ‘

/’ character in an empty ele-

ment leads to the creation of an element containing a

beginning and a closing tag.

The editor that we built supports users editing

XML documents by automatically validating the con-

tent of the documents. The user can format the doc-

ument, i.e. insert white spaces to make the content

more readable, which is not possible using a graphi-

cal interface where the user has only a structured view

of the content.

3 DOCUMENT MODEL AND

OPERATIONS SET

We now present our model for XML documents and

the operations used in the editing process of XML

documents.

XML documents are based on a tree model. We

classiﬁed the nodes of the document into root, pro-

cessing, element, attribute, word and separator in or-

der that various conﬂict rules can be deﬁned. The root

node is a special node representing the virtual root of

the document that contains the nodes of the document.

Processing nodes deﬁne processing instructions in the

XML document. Element and attribute nodes deﬁne

elements and attributes of the XML document. Word

nodes compose the textual content of an XML ele-

ment. Separator nodes are used to preserve XML for-

matting and they represent white spaces and quotation

marks. A conﬂict could then be deﬁned, for example,

for the case that two users perform operations on the

same word node or for the case that users concurrently

modify the same attribute node.

The set of operations contains insert and

delete operations targeting one of the previ-

ously mentioned types of nodes, i.e. IN-

SERTPROCESSING, INSERTELEMENT, INSERTAT-

TRIBUTE, INSERTWORD, INSERTSEPARATOR and

respectively DELETEPROCESSING, DELETEELE-

MENT, DELETEATTRIBUTE, DELETEWORD and

DELETESEPARATOR. Additionally we deﬁned oper-

ations for the insertion and deletion of characters to

update processing or element names, attributes and

words, i.e. INSERTCHAR and DELETECHAR. We

also deﬁned operations for the insertion and deletion

of closing tags of elements, i.e. INSERTCLOSING-

TAG and DELETECLOSINGTAG.

The two operations INSERTCLOSINGTAG and

DELETECLOSINGTAG were considered as a user may

want to keep different forms for the representation of

empty elements in a certain document and does not

want to have an implicitly established form for the

representation of empty elements. Our solution to

considering both forms for the representation of an

element is more general than the solution of having a

single form for the visualisation of empty elements.

Elements of an XML document are ordered and,

therefore, each node in the document is identiﬁed by

a vector of positions representing the path from the

root node to the current element. A node contains

as children the child element nodes and the attributes

associated with that element. For achieving a unifor-

mity between the representation of elements and at-

tributes, we considered that the attributes of an ele-

ment are ordered. However, to distinguish between

child elements and attributes, an element in the posi-

tion vector has associated a preﬁx ‘c’ or ‘a’ showing

whether it refers to a child or an attribute element.

Consider the following XML document:

<?xml version=“1.0”?>

</movie>

</movieDB>

The structure of this document is illustrated in

Figure 1. We associated different levels with the

nodes of the document corresponding to their heights

in the tree. Each node in the document, except

separator nodes, has an associated history buffer

containing the list of operations associated with its

child nodes. For instance, the operation of in-

sertion of a second

actor element <actor>Naomi

Watts

</actor> as child of the movie element

has the form INSERTELEMENT(‘<

actor>Naomi

Watts

</actor>’,c2.c2.c4) and is kept in the history

buffer associated with the

movie element.

An operation has as argument the position of the

node it targets. When an operation is applied, it has

to be transformed against other concurrent operations

that might change the position of the target node. The

idea of storing operations distributed throughout the

structure of the tree was to restrict the searching range

of operations that might affect an operation. In the

model we used in (Ignat and Norrie, 2003) an oper-

ation has to be transformed against all other opera-

tions in the histories of the nodes on the path from the

root to the target node. The model was applied for

text documents, where the operations were insertions

and deletions of elements. For XML documents more

types of operations have to be deﬁned, and, therefore,

a decision has to be done where to store these opera-

tions.

Operations targeting child elements or attributes

such as INSERTELEMENT, DELETEELEMENT,

INSERTWORD and DELETEWORD, INSERTAT-

TRIBUTE and DELETEATTRIBUTE change the

structure of the element, while operations targeting

the tags of an element such as INSERTCLOSING-

TAG, DELETECLOSINGTAG, INSERTCHAR and

DELETECHAR change the content of the element.

Operations that change the structure of an element

have to be kept in the history associated with that

element. In the same way, operations INSERTCHAR

and DELETECHAR targeting a character of a word

are kept in the history buffer associated with that

word. The main decision that we faced was where

to keep operations that change the name of a tag.

We decided to keep these types of operations in the

history associated with the node they refer due to

the following reason. Consider the case of an empty

element containing the beginning and closing tags.

Further consider that a user is deleting the closing tag

of the element. Consider that a second user inserts

a child element to the empty element. Operations

of deletion of a closing tag and of insertion of

elements as direct children of the element whose

closing tag has to be deleted cannot be both applied.

As seen in section 2, the execution of one of these

operations will make impossible the execution of

the other operation. We have chosen to cancel the

DELETECLOSINGTAG operation and to keep the

inserted elements, due to the fact that a DELETE-

CLOSINGTAG operation means simply to rewrite

the form of an empty element. As targeting closing

tags have to be transformed against operations

targeting child elements and vice-versa, we had to

keep these operations in the same history buffer.

Moreover, the DELETECLOSINGTAG operation is

issued by inserting an ‘

/’ at the end of the name of the

empty element in the beginning tag of the element.

The INSERTCLOSINGTAG operation is issued by

deleting the ‘

/’ at the end of the name of the empty

element. Therefore, the DELETECLOSINGTAG and

INSERTCLOSINGTAG are implemented as operations

of insertion of characters in the name of the empty

element. Consequently, operations targeting closing

tags and characters in the name of the element

are kept in the history buffer associated with that

element.

4 MERGING PROCESS

The basic methods supplied by an asynchronous col-

laborative editing tool are checkout, commit and up-

date. A checkout operation creates a local working

copy of the document from the repository. A com-

mit operation creates in the repository a new version

of the document based on the local copy, assuming

that the repository does not contain a more recent ver-

sion of the document than the local copy. An update

operation performs the merging of the local copy of

the document with the last version of that document

stored in the repository.

In the commit phase, the operations executed lo-

cally and stored in the local log distributed through-

out the tree have to be saved in the repository. The

hierarchical representation of the history of the doc-

ument is linearised using a breadth-ﬁrst traversal of

the tree, ﬁrst the operations of level 0, then operations

of level 1 and so on. In the checkout phase, the op-

erations from the repository are executed in the local

workspace.

In the rest of this section we describe the up-

date stage involving the merging process of XML

documents. In the update phase we recursively ap-

plied over the different document levels an opera-

tional transformation (Ellis and Gibbs, 1989) algo-

rithm for merging lists of operations. Therefore,

in what follows we present the basic principles of

operational transformation mechanism and then the

FORCE (Shen and Sun, 2002) operational transfor-

mation algorithm for merging linear structured docu-

ments. We then present how we adapted FORCE for

merging hierarchical structured documents. We also

show that FORCE does not work for the case of de-

pendent operations. We present our solution to adapt

the algorithm for our set of dependent operations.

4.1 Operational Transformation

For merging we used the operational transformation

approach (Ellis and Gibbs, 1989). We ﬁrst illustrate

the basic mechanism of the operational transforma-

tion, called inclusion transformation, by means of an

example. The Inclusion Transformation - IT(O

)

transforms operation O

against operation O

such

that the effect of O

is included in O

. Suppose

the repository contains the document whose struc-

ture is represented in Figure 1 and two users check-

out this version of the document and perform some

operations in their workspaces. Further, suppose

User

performs the operation O

=INSERTELEMENT(

‘<

actor>Naomi Watts</actor>’,c2.c2.c4) to add the

‘<

actor>Naomi Watts</actor>’ element on the

path /c2/c2 as the 4th child of the

movie ele-

ment. Afterwards, User

commits the changes

to the repository and the repository stores the

list of operations performed by User

consist-

ing of O

. Concurrently, User

executes opera-

tion O

=INSERTELEMENT(‘<

director>Alejandro G.

Inarritu

</director>’,c2.c2.c3) of inserting the ele-

ment

director on the path /c2/c2, as the 3rd child

of the

movie element before the existing actor ele-

ment in the document. Before performing a commit,

User

needs to update the local copy of the docu-

ment. O

stored in the repository needs to be trans-

formed in order to include the effect of O

. O

and

have the same path from the root element to the

parent node and they are operations of the same level.

As O

inserts an element before the insertion posi-

tion of O

, O

needs to increase its position of inser-

tion by 1. In this way, the transformed operation of

becomes O

′

=INSERTELEMENT(‘<

actor>Naomi

Watts

</actor>’,c2.c2.c5) and it can be executed on

the local copy of User

4.2 Force Merging Algorithm

In this subsection we describe the FORCE algorithm.

Suppose that a user started to work in their local

workspace on a copy of version V

in the reposi-

tory and executed the list LL of operations in their

workspace. Suppose that at a later time, the user

wants to commit their changes to the repository. Con-

sider that concurrently the version in the repository

was updated to version V

n+1

, and therefore the user

has to update their local copy of the document. The

merging has to be done between the list LL of oper-

ations executed by the user in their local workspace

and the list DL of operations representing the delta

between versions V

n+1

and V

. Two basic steps have

to be performed. The ﬁrst step consists of applying

the operations from DL on the local copy of the user

in order to update the local document to versionV

n+1

The operations from the repository, however, cannot

be executed in their original form, as they have to be

transformed in order to include the effect of all the lo-

cal operations before they can be executed in the user

workspace. The second step consists of transforming

the operations in LL in order to include the effects of

the operations in DL. The resulting list of transformed

local operations represents the new delta to be stored

in the repository.

From the list of operations in the list DL not all of

them can be executed in the local workspace as some

of these operations may be in conﬂict with some of

the operations from LL. If an operation O

from DL

is in conﬂict with at least one operation from LL, it

cannot be executed in the local workspace. Moreover,

all operations following it in the list DL need to ex-

clude the effect of O

from their context, i.e. they

have to be transformed to a form that does not include

the effect of O

. In order to exclude the effect of op-

eration O

from the context of all the operations fol-

lowing it in the list DL, operation O

has to be trans-

posed towards the end of the list DL. The transposi-

tion transpose(O

) between operations O

and O

changes the execution order of O

and O

and trans-

forms them such that the same effect is obtained as if

the operations were executed in their initial order and

initial form. When the new delta is saved to the repos-

itory it has to include the inverse of the transposed O

in order to reﬂect the fact that operation O

was can-

celled.

4.3 Merging XML Documents

The update procedure updates the local version of

the hierarchical document with the changes that have

been committed by other users to the repository. It

aims to compute a new delta to be saved in the repos-

itory, i.e. the transformation of the local operations

associated with each node against the non-conﬂicting

operations from the remote log in the repository.

Moreover, a modiﬁed version of the remote log has

to be executed on the local version of the document in

order to update it to the version on the repository. The

update procedure is repeatedly applied to each level

of the document starting from the document level. A

detailed description of the update procedure applied

for text documents represented as a hierarchical struc-

ture is presented in (Ignat and Norrie, 2005). For

merging XML documents we applied the same princi-

ples. In what follows we want to report on the special

issues for the adaptation of FORCE linear merging al-

gorithm for XML documents.

As we saw in section 4.2, if an operation O has to

be cancelled and it has to be removed from the log,

the operation has to be transposed at the end of the

log. The FORCE approach considers that a trans-

position between two operations O

and O

can al-

ways be performed. For operations applied on strings

this fact holds true if the two operations do not have

overlapping ranges. In FORCE operations in the log

are transformed into non-overlapping operations by a

compression procedure.

However, generally, ordering constraints between

operations exist which do not allow operations to be

executed in reverse order. This general case cannot

be resolved by a compression procedure. In what fol-

lows we present the cases that we encountered in the

editing of XML documents that restrict the change of

order between operations and the solutions that we

adopted.

Between the set of deﬁned operations relations of

dependency or before constraints exist. These con-

straints restrict the possibility of changing the or-

der between the operations. Consider the case of an

empty element of the form ‘<

elem/>’. In order that a

child element of this element is inserted, an operation

INSERTCLOSINGTAG has to be issued. The opera-

tion INSERTELEMENT of insertion of a child element,

such as ‘<

subelem></subelem>’, in order to ob-

tain ‘<

elem><subelem></subelem></elem>’, is

said to depend on operation INSERTCLOSINGTAG.

This means that operations INSERTELEMENT could

not have been issued if INSERTCLOSINGTAG would

not have been executed before.

Further, consider that the element

‘<

subelem></subelem>’ is deleted by issuing

the operation DELETEELEMENT and the operation

DELETECLOSINGTAG is issued for the element

‘<

elem></elem>’ in order to obtain ‘<elem/>’.

Between the operations DELETEELEMENT and

DELETECLOSINGTAG there is a before constraint,

meaning that the order between the operations

should be maintained, i.e. the DELETEELEMENT

operation and any other operation referring to a child

element of a certain node should be ordered before

the DELETECLOSINGTAG operation applied on that

node.

Therefore, the operations of INSERTELEMENT,

DELETEELEMENT, INSERTWORD, DELETEWORD,

INSERTPROCESSING, DELETEPROCESSING exe-

cuted between INSERTCLOSINGTAG and DELETE-

CLOSINGTAG operations and targeting child nodes

of the element targeted by INSERTCLOSINGTAG and

DELETECLOSINGTAG cannot be transposed to a po-

sition outside the range deﬁned by INSERTCLOSING-

TAG and DELETECLOSINGTAG.

The solution that we adopted was to detect the

cases when the removal of an operation would result

into making the transposition of that operation violate

existing ordering constraints between operations. If

an operation is cancelled, all its dependent and before

operations have to be cancelled, too.

5 USER INTERFACE SUPPORT

FOR MERGING

Our asynchronous editor for XML documents lets

users edit the document from a textual interface, with

an overview over the tree structure of the document

visualised alongside where the user can deﬁne the

policies for merging. Two policies were adopted for

merging, namely automatic and manual. Automatic

policies merge the operations performed locally with

the operations from the repository without the inter-

vention of the user. Manual policies for merging in-

volve the intervention of user for conﬂict resolution.

In what follows we are going to illustrate the

merging policies by means of some examples. As-

sume the two users start working from the same ver-

sion of the document illustrated in Figure 1. Suppose

that the ﬁrst user inserts a

director element as child of

the

movie element, as shown in the left client window

in Figure 2 and afterwards commits the changes to the

repository. Suppose that the second user concurrently

inserts a second

actor element as child of the movie

Figure 2: Conﬂict Resolution for Merging.

element, as shown in the right client window in Fig-

ure 2. In order to commit their changes, the second

user has to update the local version of the document

with the changes from the repository.

Assume ﬁrst that the second user chooses the de-

fault merging policy, i.e. the automatic policy for res-

olution where no rules for the deﬁnition or resolution

of conﬂicts are set. The merged version of the doc-

ument combines the changes performed locally with

the remote ones, as explained also in the example pre-

sented in section 1.

Alternatively, assume the second user does not

want to automatically merge changes, but prefers to

set the detection of concurrent modiﬁcations targeting

the

movie element. Concerning the resolution of con-

ﬂict, suppose that the user wants to manually choose

between the conﬂicting versions of the movie element

and, therefore, the user can specify the semantic de-

tection for the node movie on the hierarchical docu-

ment view. In the case of an update, due to the fact

that the node was concurrently modiﬁed, the user is

then presented with the two versions of the

movie

element, as shown in Figure 2. The user can then

choose to keep either the local or remote version of

the document or to perform an automatic merging of

the changes.

Another feature provided by our editor is locking

of elements. In the case that users want to keep their

local modiﬁcations referring to parts of document by

ignoring concurrent changes on those parts, they can

lock the corresponding elements. For instance, in the

above example, before performing an update, the sec-

ond user can choose to lock node

movie and therefore

keep the local changes performed on the element.

6 RELATED WORK

Some approaches for detection of changes in XML

documents have been proposed in (Wang et al., 2003;

Cobena et al., 2002; Fontaine, 2001). However, no

mechanisms for the reconciliation of detected concur-

rent changes have been proposed. Moreover, these ap-

proaches are state-based and the changes are detected

by computing a difference between versions of XML

documents. Computing the difference between two

versions of hierarchical structures each time a rec-

onciliation has to be performed is very complex and

it does not reﬂect the exact user changes. Our ap-

proach is operation-based and changes done by users

are easily tracked. We proposed also ﬂexible ways for

the reconciliation of documents where users can spec-

ify if XML elements should be merged automatically,

semi-automatically or manually.

Other operation-based merging approaches have

been proposed, but these mechanisms were mainly

designed for linear structures, such as (Shen and

Sun, 2002). Operation-based approaches for merging

XML documents have been proposed in (Molli et al.,

2002) and (Davis et al., 2002). As opposed to our ap-

proach, these approaches perform an automatic merg-

ing of changes and do not let users to ﬂexibly deﬁne

rules for the reconciliation. Moreover, the set of oper-

ations considered in our approach is larger and offers

support for the deﬁnition of various rules for conﬂict

handling.

A ﬂexible object framework that allows the def-

inition of a merge policy based on a particular ap-

plication was adopted by the Suite collaboration sys-

tem (Shen and Dewan, 1992). Merging can be auto-

matic, semi-automatic or interactive. The objects sub-

ject to collaboration are structured and therefore se-

mantic ﬁne-grained policies for merging can be spec-

iﬁed. Our approach was driven by the same motiva-

tion as Suite of obtaining a ﬂexibility for merging and

it was applied for text documents as shown in (Ignat

and Norrie, 2006) and for XML documents as shown

in this paper. The framework proposed in (Shen and

Dewan, 1992) is a general framework where a merge

matrix deﬁnes merge functions for the possible set of

operations. For two concurrent operations it is spec-

iﬁed if one of these operations should be executed,

if the intervention of users is needed to decide which

operation to execute or if both operations should be

executed. In the case that both operations should be

executed, it is not speciﬁed how the two operations

should be executed, such as a certain order of execu-

tion. In our approach we have an exact mechanism

of executing two operations such that their intentions

are preserved. In fact, our approach could be seen as a

combination of the general merging approach used in

Suite and the operational transformation mechanism.

7 CONCLUSIONS

In this paper we proposed a mechanism for the recon-

ciliation of XML documents where users can specify

various ways of merging changes referring to an el-

ement - automatically, semi-automatically and man-

ually. Our merging approach is based on opera-

tions that track user changes performed on different

units of the document. We extended the operational

transformation mechanism for merging hierarchical

structures. An asynchronous collaborative editor over

XML documents was build based on the approach de-

scribed in this paper.

Our approach is currently based on a central

repository. We plan to extend collaboration over

XML documents for decentralised environments.

REFERENCES

Cobena, G., Abiteboul, S., and Marian, A. (2002). Detect-

ing changes in XML documents. In Proceedings of the

18th International Conference on Data Engineering

(ICDE’02), pages 41–52, San Jose, California, USA.

Davis, A. H., Sun, C., and Lu, J. (2002). Generaliz-

ing operational transformation to the standard general

markup language. In Proceedings of the 2002 ACM

conference on Computer supported cooperative work

(CSCW ’02), pages 58–67, New Orleans, Louisiana,

USA.

Ellis, C. A. and Gibbs, S. J. (1989). Concurrency control

in groupware systems. SIGMOD Record, 18(2):399–

407.

Fontaine, R. L. (2001). A delta format for XML: Identifying

changes in XML ﬁles and representing the changes in

XML. In Proceedings of XML Europe, Berlin, Ger-

many.

Ignat, C.-L. and Norrie, M. C. (2003). Customizable

collaborative editor relying on treeOPT algorithm.

In Proceedings of the 8th European Conference on

Computer-supported Cooperative Work (ECSCW’03),

pages 315–334, Helsinki, Finland.

Ignat, C.-L. and Norrie, M. C. (2005). Flexible merging of

hierarchical documents. Seventh International Work-

shop on Collaborative Editing, GROUP’05, IEEE

Distributed Systems online.

Ignat, C.-L. and Norrie, M. C. (2006). Flexible deﬁnition

and resolution of conﬂicts through multi-level editing.

In Proceedings of the 2nd International Conference on

Collaborative Computing: Networking, Applications

and Worksharing (CollaborateCom’06), Georgia, At-

lanta, USA.

Lippe, E. and van Oosterom, N. (1992). Operation-based

merging. In Proceedings of the ﬁfth ACM SIGSOFT

symposium on Software development environments,

pages 78–87, Tyson’s Corner, Virginia, USA.

Molli, P., Skaf-Molli, H., Oster, G., and Jourdain,

S. (2002). SAMS: Synchronous, asynchronous,

multi-synchronous environments. In Proceedings of

the Conference on Computer-supported Cooperative

Work in Design (CSCWD’02), pages 80–85, Rio de

Janeiro, Brazil.

Shen, H. and Dewan, P. (1992). Access control for collabo-

rative environments. In Proceedings of the 1992 ACM

conference on Computer-supported Cooperative Work

(CSCW’92), pages 51–58, Toronto, Ontario, Canada.

Shen, H. and Sun, C. (2002). Flexible merging for asyn-

chronous collaborative systems. In Proceeding of

the Conference on Cooperative Information Systems

(CoopIS’02), pages 304–321, Irvine, California, USA.

Wang, Y., DeWitt, D. J., and Cai, J. (2003). X-diff: An

effective change detection algorithm for XML doc-

uments. In Proceedings of the International Con-

ference on Data Engineering (ICDE’03), pages 519–

530, Bangalore, India.

XMLSpy (2007). Altova XMLSpy. Available online.

http://www.altova.com/products

ide.html.
