Checking Properties of Business Process Models with

Logic Programming

Volker Gruhn and Ralf Laue

Chair of Applied Telematics / e-Business

⋆

Computer Science Faculty, University of Leipzig, Germany

Abstract. Logic programming has been successfully used for reasoning about

various kinds of models. However, in the area of business-process modeling it

has not yet gained the attention it deserves. In this article, we give some exam-

ples how logical programming can be exploited for verifying or ﬁnding proper-

ties of graphical models that are used by business process modelers, for example

event driven process chains (EPC)[1], UML activity diagrams[2], BPMN[3] or

YAWL[4].

We show how the approach works on different properties of business process

models, including semantic (structural) correctness and modeling style.

1 Introduction

Business process modelers can chose from various languages like event driven pro-

cess chains (EPC)[1], UML activity diagrams[2], BPMN[3] or YAWL[4] for drawing a

model of a business process (BPM).

Often, such BPMs need to be exchanged between different organizations as well as

between different editors, workﬂow engines or process simulators. For the most BPM

languages, exchange formats based on the markup language XML are deﬁned. When an

XML ﬁle that contains a BPM is imported into a tool, input validation should be done in

order to make sure that the XML ﬁle really contains a syntactically correct BPM. Often,

the structural requirements are much more difﬁcult to test than the syntactic restrictions

that can be veriﬁed using schema languages like the W3X XML Schema. Examples for

such more complex syntactic requirements will be shown in Sect. 2.

In this paper, we show how logic programming with languages like PROLOG can

be used for the validation of syntactic requirements that cannot be validated with XML

Schema.

Furthermore, we also show how PROLOG can be used for reasoning about more

complex properties of a BPM, for example for ﬁnding patterns in a model or for check-

ing cross-model consistency.

2 The BPM Language EPC and its Exchange Format EPML

In order to keep the examples simple, we will use the notation of EPCs in this paper.

EPCs consist of functions (activities which need to be executed, depicted as rounded

⋆

The Chair of Applied Telematics / e-Business is endowed by Deutsche Telekom AG

Gruhn V. and Laue R. (2007).

Checking Properties of Business Process Models with Logic Programming.

In Proceedings of the 5th International Workshop on Modelling, Simulation, Veriﬁcation and Validation of Enterprise Information Systems, pages 84-93

DOI: 10.5220/0002413100840093

 SciTePress

customer

order

arrived

check

availability

article is

available

article is

not available

send

article

reject

order

processed

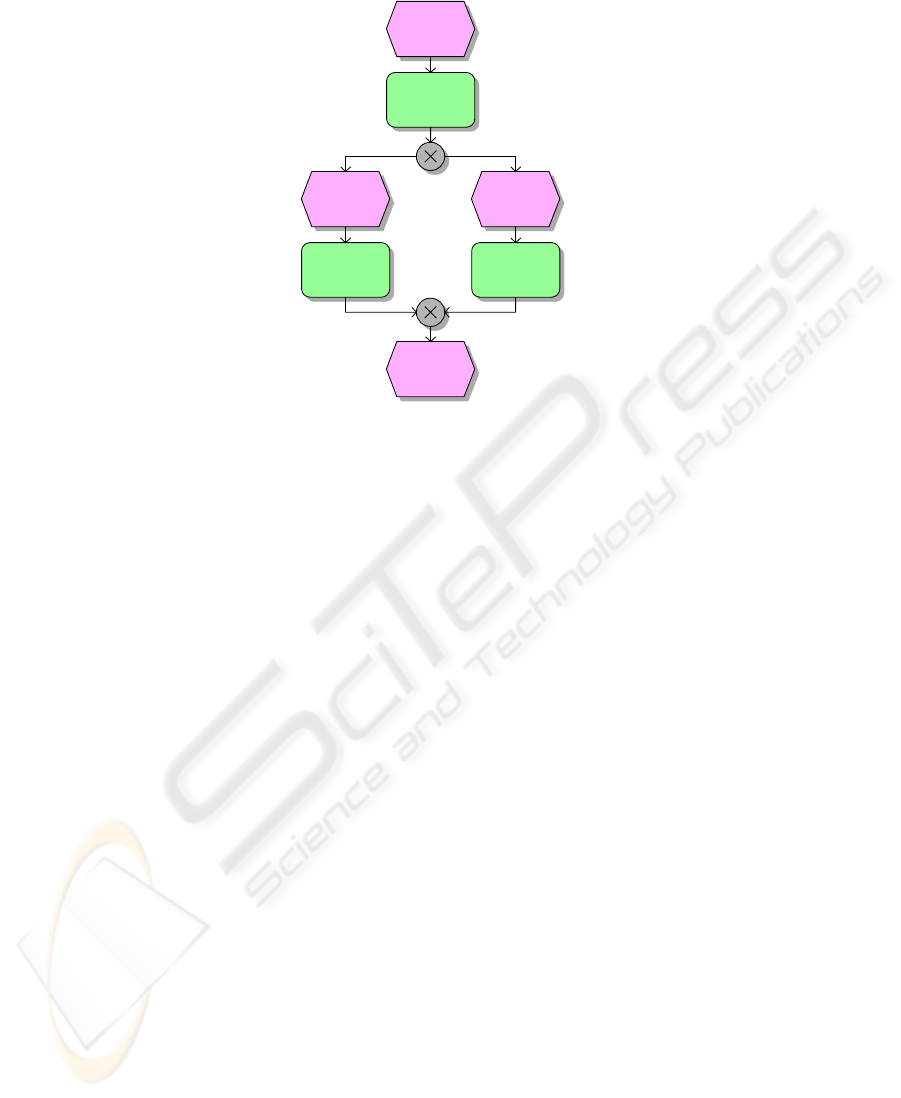

Fig.1. Simple Business Process modeled as EPC.

boxes), events (pre- and postconditions before / after a function is executed, depicted

as hexagons) and connectors (which can split or join the ﬂow of control between the

elements). Arcs between these elements represent the control ﬂow. The connectors are

used to model parallel and alternative executions. There are two kinds of connectors:

Splits have one incoming and at least two outgoing arcs, joins have at least two incom-

ing arcs and one outgoing arc.

AND-connectors (depicted as

∧

) are used to model parallel execution. When an

AND-split is executed, the elements on all outgoing arcs have to be executed in parallel.

The corresponding AND-join connector waits until all parallel control ﬂows that have

been started are ﬁnished.

XOR-connectors (depicted as ×) can be used to model alternative execution:

A XOR-split has multiple outgoing arcs, but only one of them will be processed. The

corresponding XOR-join waits for the completion of the control ﬂow on the selected

arc.

Finally, OR-connectors (depicted as ∨) are used to model parallel execution

along one or more control ﬂow arcs. An OR-split starts the processing of one or more

of its outgoing arcs. The corresponding OR-join waits until all control ﬂows that have

been started by the OR-split are ﬁnished.

The EPC elements described above are sufﬁcient for modeling simple business pro-

cesses like the following one: “When a request from a customer arrives, the availability

of the product has to be checked. If it is available, the item will be sent; otherwise the

customer will get a negative reply.” Fig. 1 shows this business process modeled as EPC

diagram.

uttgens and Mendling[5] deﬁned the XML-based EPC Markup Language (EPML)

as a tool-neutral interchange format for EPC business process models. The basic ele-

ments of EPML are easy to understand: Events and functions are represented by the tags

event and function, connectors are represented by the tags and, or and xor. Ev-

ery event, function and connector has a unique attribute called id. The control ﬂow is

represented by elements named arc. Inside an arc-element, there is an element called

flow that names the source and target of the control ﬂow arrow (represented by the

ids of the source and target element.)

The BPM shown in Fig. 1 is represented by the following EPML ﬁle:

<epml:epml xmlns:epml="http://www.epml.de"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xsi:schemaLocation="epml_1_draft.xsd">

<name>customer order arrived</name>

</event>

<name>check availability</name>

</function>

<name/>

</xor>

<name>article is available</name>

</event>

<name>article is not available</name>

</event>

<name>send article</name>

</function>

<name>reject order</name>

</function>

<name/>

</xor>

<name>order processed</name>

</event>

</arc> ... more arc-elements omitted...

</epc>

</epml:epml>

3 Related Work

Mendling and N

uttgens[6] have shown that W3C XML Schema[7, 8] as well as Relax

NG[9] can be used for validating rather simple syntactic requirements only. They pro-

pose to use the language Schematron[10] which enabled them to validate the most (but

not all) syntactic requirements. However, a drawback of this approach is that it requires

that the modeler adds redundant information to the model before. For example, for an

event without incoming arcs, one has to write

which adds undesirable redundancy to the XML ﬁle.

An approach that is powerful enough to check even the most advanced syntactic

requirements in XML ﬁles is the Constraint Language in XML (CLiXML)[11]. Even

though the authors of CLiXML admitted in [11] that expressing a graph in the way it is

done in EPML makes “things unnecessarily complicated” for CLiXML, it is possible

to check all necessary syntactic requirements. The main advantages of our PROLOG

based approach over special-purpose solutions like Schematron or CLiXML are that

the PROLOG source ﬁles used to reason about a model are extremely short and that

existing PROLOG systems that offer a lot of interfaces to other programming languages

can be integrated into other tools very easily.

Another approach that makes use of a special-purpose-built tool has been published

by Mammar[12]. Mammar uses the Object Constraint Language (OCL) for specifying

required structural properties of UML diagrams an translates the diagrams into the in-

ternal representation of the USE tool[13]. Afterwards, this tool can be used for checking

the required properties. This work has a lot of similarities with our logic programming-

based approach.

The related work discussed so far, lies the focus on validating rather “simple” se-

mantic properties. However, logic programming can be used as well for discovering

more advanced model properties. For example, it has be used for ﬁnding errors related

to the consistency between several models[14], locating patterns in a model[15], apply-

ing metrics to models[16, 15] and for deciding which diagram version among several al-

ternative possibilities is the best one according to recommended design guidelines[17].

The preceding list of references (which is by far not exhaustive) contains papers that

deal with various kinds of models, including UML class diagrams, structure charts and

ﬂow diagrams. As far as we know, there is less work on applying the ideas on business

process models in languages like EPC or BPMN.

4 Models as Logical Facts

Logic Programming deals with logical facts and logical rules. At ﬁrst, let’s have one

more look at the example model in Fig. 1. The EPML representation of the model

contains these lines:

<name>order processed</name>

</event>

</arc>

From a logical point of view, this part of the model contains three facts:

1. The model contains an event whose id is 10.

2. The event whose id is 10 has the name “order processed”

3. The model contains an arc from the element whose id is 1 to an element whose id

is 2.

In PROLOG, all the information that is included in the model in Fig. 1 is written as

predicates (that should be self-explanatory) as follows:

event(i_1).

elementname(i_1,’customer order arrived’).

event(i_5).

elementname(i_5,’article is available’).

event(i_6).

elementname(i_6,’article is not available’).

event(i_10).

elementname(i_10,’order processed’).

function(i_2).

elementname(i_2,’check availability’).

function(i_7).

elementname(i_7,’send article’).

function(i_8).

elementname(i_8,’reject order’).

arc(i_1,i_2).

arc(i_2,i_4).

arc(i_4,i_5).

arc(i_4,i_6).

arc(i_5,i_7).

arc(i_6,i_8).

arc(i_7,i_9).

arc(i_8,i_9).

arc(i_9,i_10).

xor(i_4).

xor(i_9).

Due to the fact that the interchange format EPML is based on XML, it is very easy

to “translate” the EPML ﬁle into the PROLOG facts using a short XSLT stylesheet.

5 Terminology and Model Properties as Logical Rules

In the last section we have shown how the logical facts that are contained in a business

process model can be extracted from the model. In order to reason about the model,

we have to “teach” the PROLOG system something about the terminology used in the

domain of process modeling. This means that we have to write some logical rules that

specify this terminology. Here are some examples for such rules:

connector(I) :- clause(and(I),true) ; clause(or(I),true);

clause(xor(I),true).

means that we refer to and-connectors, or-connectors and xor-connectors as connectors.

no_outgoing_arcs(X) :- not(arc(X,_)).

means that for some model element the logical predicate “has no outgoing arcs” holds

if there is no arc that originates from this element.

endevent(X) :- event(X),no_outgoing_arcs(X).

means that we call an event without outgoing arcs an end event.

Once we have deﬁned such basic logical predicates, we can ask queries about the

model to the PROLOG system. For example, the query

endevent(X).

would ask for all end events in the model. For our example model, the PROLOG system

will answer with

X = ’order processed’

6 Applications of the Method

In this section, we show some examples for queries to the PROLOG system that are

useful for ﬁnding interesting properties of the model.

6.1 Syntactical Correctness

The need for validating the syntactic requirements has been discussed in Sect. 1. For

Event-Driven Process Chains, such syntactic requirements have been formalized in the

literature [18, 6]. These syntactic requirements specify for example that there must be

at least one end event in the model and that the graph formed by the model is antisym-

metric (i.e. if there is an arc from node X to node Y than there is not an arc from node

Y to node X). The latter property can be checked with the following simple query (the

comma means “and” in the PROLOG language):

prop4(X,Y) :- arc(X,Y),arc(Y,X).

This query prompts the PROLOG system to search for a counterexample: a pair of

nodes X and Y for which there is an arc from X to Y as well as an arc from Y to X.

If the PROLOG system does not ﬁnd a counterexample, it answers with “no” which

means that the model fulﬁlls the given property.

In [19] we have shown that all syntactic requirements that can be found in the lit-

erature can be easily veriﬁed using only a few lines of PROLOG code. This includes

syntactic requirements that could not be validated with the Schematron approach de-

scribed in [6], for example the requirement that the graph formed by the model must be

a coherent graph.

6.2 Separability

When model checking is used for reasoning about a model, it can be useful to separate

the model into independent submodels in order to avoid state-space explosion. The

question arises, how to decompose a given model into submodels that can be model-

checked separately. It is easy to see that “cutting” a model into two separate submodels

is possible at some arcs whose deletion would separate the modeled graph into two

separate graphs. Such arcs are known as cut-vertices in graph theory, and the parts of

the model that forms the separate submodels are called single-entry-single-exit region in

compiler theory. Once again, such arcs can be found with a simple PROLOG query. The

following example assumes that we have already deﬁned a predicate prop2 that checks

the syntactical requirement that the graph must be coherent. The complete source code

for such a predicate can be found in [19].

cut_here(X,Y) :- arc(X,Y),

(retract(arc(X,Y)),prop2,assertz(arc(X,Y));

(assertz(arc(X,Y),fail))).

In order to ﬁnd out that the arc from X to Y is a cut-vertex, at ﬁrst we have to require that

there is actually an arc from X to Y. Afterwards, we use the PROLOG-clause retract

that deletes the fact that such an arc exists from the PROLOG knowledge base. Now,

we use the predicate prop2 in order to check whether the new model (that no longer

contains the arc X → Y ) is still coherent. If it is not, prop2 should become “true”,

and we have found an arc at which we can separate the model into two submodels. The

ﬁnal assertz predicate makes sure that the temporarily deleted fact that there is an

arc X → Y will be added to the knowledge base of the PROLOG system again.

6.3 Modeling Style and Modeling Errors

abc

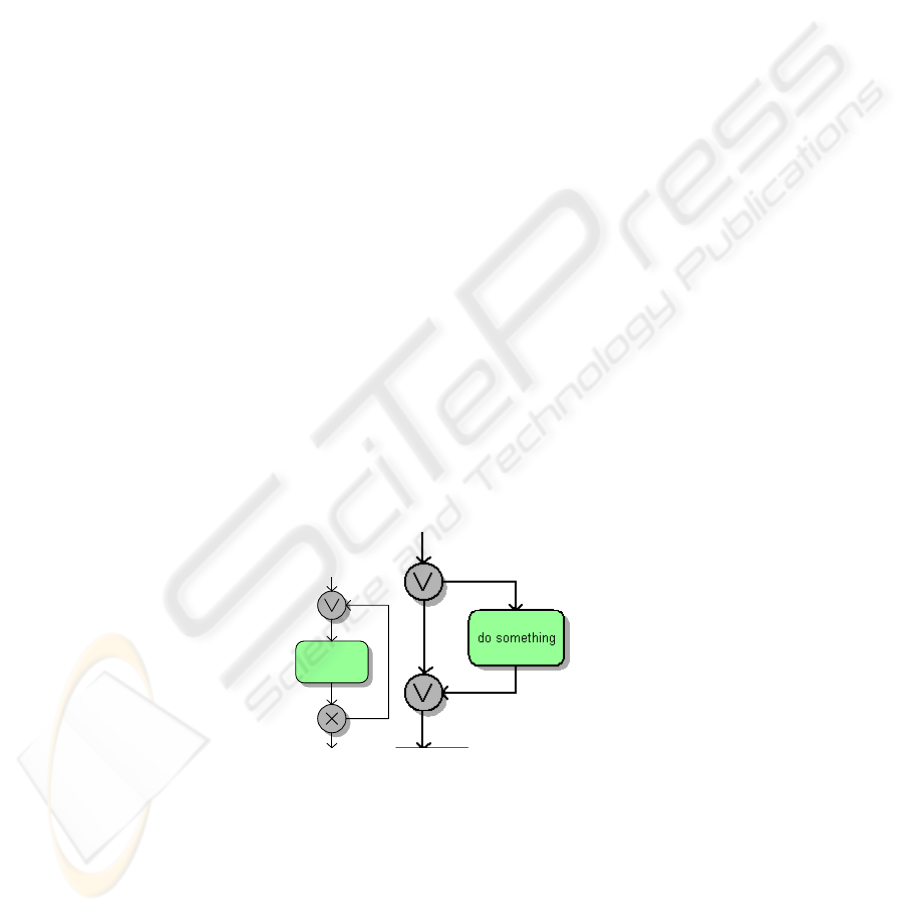

Fig.2. Bad Modeling Style.

In the ﬁeld of software development, coding style rules[20] (also known as code

conventions) are widely used. They help developers to read and understand source code

more quickly, and as a consequence they help to avoid errors. For graphical models,

modeling style rules [21] have been established for the same purposes: Such style rules

can improve the comprehensibility of a model. This is important, particularly for busi-

ness process models, whose main purpose is to serve as a communication tool.

In [22], we have discussed some common style problems found in real-world mod-

els. Fig. 2 shows two example style problems that are related to the usage of the OR-

connector. In the left example, the entry into the loop should be a XOR-join rather than

an OR-join, in the right example, the optional execution of an activity should also be

modeled with XOR. Even if both examples in Fig. 2 are not formally wrong, there exist

a better way (namely using a XOR-join instead of the OR-join) for modeling the desired

behavior, and the latter can help to avoid misinterpretation of the model.

It is easy for the PROLOG system to ﬁnd such style problems. We just have to deﬁne

the PROLOG predicate path(X,Y,Path) that becomes true if model element Y can

be reached from model element Y along a list of elements that is stored in the variable

Path. Also we deﬁne the predicate join(X)to become true if X is a connector without

outgoing arcs (see [19] for the code for both predicates).

Using these predicates, we can deﬁne a loop entry as a model element X that is part

of a loop (i.e. there is a path from X to X) but also has an incoming arc from some

element outside the loop:

loop_entry(X) :- join(X),path(X,X,Path),arc(Y,X),

not(member(Y,Path)).

Now we can look for loop entry nodes that are modeled as OR-join, complain about

the style rule and suggest replacing the OR-join by the XOR join.

In the same way, we can not only ﬁnd style problems but also reducable model parts

(like a sequence of activities that can be reduced to a single activity in order to reduce

the state space in model checking) and “hard” errors in the model. An example for such

a “hard” error would be a loop entry point modeled as an AND-join which will cause a

deadlock. The “causal footprint” approach published in [23] guides the way for ﬁnding

such errors in a model. The advantage of our approach over other formal methods like

model-checking is that with logic programming we can ﬁnd problems for models that

are still incomplete or even without an agreement about the formal semantics of the

model[23].

6.4 Consistency between Models

Often, a business process is not modeled by a single diagram. Instead, different dia-

grams are used for depicting different aspects of the business process or the business

process model is de-composed into several submodels. Consistency between those dif-

ferent models is obviously an important requirement. Logic programming has success-

fully be used for such cross-diagram consistency checks[14]. The ideas from [14] and

similar papers can easily be adapted for business process models.

7 Conclusions

The work presented in this paper deals with the analysis of several properties of busi-

ness process models using logic programming. As shown in Sect. 3, the use of logic

programming for ﬁnding properties of several kinds of models is a well-established re-

search area. For this reason, we do not claim that the general approach presented in this

paper is a new one. However, we gave several examples for exploiting the existing ideas

for the domain of business process modeling, an area where logic programming has not

widely been used in the past.

Because the use of logic programming can help to describe statements about models

quickly and in a very condensed form (mainly because of the intrinsic backtracking

mechanism in languages like PROLOG), we believe that these ideas are helpful for the

research on validation of business process models.

References

1. van der Aalst, W.M.: Formalization and veriﬁcation of event-driven process chains. Infor-

mation & Software Technology 41 (1999) 639–650

2. Object Management Group: UML 2.0 Superstructure Final Adopted Speciﬁcation. Technical

report (2003)

3. Business Process Management Initiative: Business Process Modeling Notation. Technical

report, BPMI.org (2004)

4. van der Aalst, W.M., Hofstede, A.: YAWL: Yet another workﬂow language. Technical Report

FIT-TR-2002-06, Queensland University of Technology, Brisbane (2002)

5. Mendling, J., N

uttgens, M.: Exchanging EPC Business Process Models with EPML. In

uttgens, M., Mendling, J., eds.: XML4BPM 2004, Proceedings of the 1st GI Workshop

XML4BPM – XML Interchange Formats for Business Process Management at 7th GI Con-

ference Modellierung 2004, Marburg Germany, March 2004. (2004) 61–80

6. Mendling, J., N

uttgens, M.: EPC syntax validation with XML schema languages. In: EPK.

(2003) 19–30

7. World Wide Web Consortium: XML Schema Part 1: Structures. (2001)

8. World Wide Web Consortium: XML Schema Part 2: Datatypes. (2001)

9. Clark, J., Makoto, M.: RELAX NG Speciﬁcation. OASIS. 1 edn. (2001)

10. Jelliffe, R.: The Schematron Assertion Language 1.5. Academia Sinica Computing Centre.

(2002)

11. Jungo, D., Buchmann, D., Nitsche, U.U.: Testing of semantic properties in xml documents.

In: Proceedings of the 4th International Workshop on Modelling, Simulation, Veriﬁcation

and Validation of Enterprise Information Systems, Paphos, Cyprus. (2006)

12. Mammar, A.: A formal approach and its tool support for the speciﬁcation and the veriﬁcation

of structural properties on UML activity diagrams. In: Software Engineering Research and

Practice. (2006) 988–994

13. Richters, M., Gogolla, M.: Validating UML models and OCL constraints. In Evans, A., Kent,

S., Selic, B., eds.: Proc. 3rd International Conference on the Uniﬁed Modeling Language

(UML). Volume 1939., Springer-Verlag (2000) 265–277

14. Kielland, T., Borretzen, J.A.: UML consistency checking. Technical Report SIF8094, Insti-

tutt for datateknikk og informasjonsvitenskap, Oslo, Norway (2001)

15. Gustafsson, J., Paakki, J., Nenonen, L., Verkamo, A.I.: Architecture-centric software evo-

lution by software metrics and design patterns. In: CSMR ’02: Proceedings of the Sixth

European Conference on Software Maintenance and Reengineering, Washington, DC, USA,

IEEE Computer Society (2002) 108

16. St

orrle, H.: A lightweight platform for experimenting with model driven development. Tech-

nical Report TR0503, University of Munich (2005)

17. Tse, T.H., Chen, T.Y., Chan, F.T., Chen, H.Y., Xie, H.L.: The application of Prolog to struc-

tured design. Software: Practice and Experience 24 (1994) 659–676

18. N

uttgens, M., Rump, F.J.: Syntax und Semantik Ereignisgesteuerter Prozessketten (EPK).

In: Promise 2002 - Prozessorientierte Methoden und Werkzeuge f

ur die Entwicklung von

Informationssystemen. (2002) 64–77

19. Gruhn, V., Laue, R.: Validierung syntaktischer und anderer EPK-Eigenschaften

mit PROLOG. In N

uttgens, M., Rump, F.J., Mendling, J., eds.: EPK 2006,

Gesch

aftsprozessmanagement mit Ereignisgesteuerten Prozessketten, 5. Workshop der

Gesellschaft f

ur Informatik e.V. (GI). (2006) 69–84

20. Kernighan, B.W., Plauger, P.J.: The Elements of Programming Style. McGraw-Hill, Inc.,

New York, NY, USA (1982)

21. Ambler, S.W.: The Elements of UML Style. Cambridge University Press (2003)

22. Gruhn, V., Laue, R.: How style checking can improve business proces models. In: Proceed-

ings of the 4th International Workshop on Modelling, Simulation, Veriﬁcation and Validation

of Enterprise Information Systems, Paphos, Cyprus. (2006)

23. vanDongen, B., Mendling, J., van der Aalst, W.: Structural patterns for soundness of business

process models. EDOC (2006) 116–128
