Supporting Time-variant Artifacts

in Groupware Applications

Eberhard Grummt

1,2

and Alexander Lorz

Dresden University of Technology

SAP Research, CEC Dresden

Abstract. Asynchronous groupware strives to provide a “shared memory” for

distributed workers. However, current systems fail to keep track of changes in

work and organizational structures, leading to old information being discarded

instead of being archived. Especially in so called “Virtual Organizations”, where

such changes happen often, being able to “go back in time” is desirable. We

present a generic relational data model including operations capable of storing

and querying time-variant data. The applicability of this model is discussed based

on experiences with a prototypical application enabling visualization and interac-

tion with respective information.

1 Introduction

Groupware systems supporting collaboration, coordination, and communication have

established themselves as valuable tools for people working on joint projects. Especially

in Virtual Organizations (VOs) spanning several physically distributed teams such sup-

port is crucial. The ultimate goal of asynchronous groupware is to provide a “shared

memory” for all co-workers so every participant stays aware of appointments, tasks,

documents etc. However, a widely accepted quality of VOs is their frequent reconﬁgu-

ration by dynamically mapping satisﬁers to requirements [7], which means that all these

things as well as the teams themselves are changing constantly. Reﬂecting these changes

is a requirement that is not sufﬁciently addressed by most open source groupware prod-

ucts. Their majority can store only one speciﬁc view of the modeled real world. This

view is a “snapshot” considered to be “current”, whereas former views are discarded

by overwriting or deleting the respective data. For example, after a task has been re-

moved, it is not possible to tell if it has ever existed, let alone who was responsible for

it. To remedy these shortcomings, concepts in at least two areas have to be developed.

Firstly, sound and easy to use generic data models describing objects and their rela-

tions with respect to temporal changes are essential. Secondly, suitable metaphors and

user interfaces are required to seamlessly integrate time-variance into human-computer

interaction.

This paper illustrates the need for supporting time-variance in asynchronous group-

ware tools as well as arising technical issues (Section 3). Based on requirements de-

scribed in Section 4, we present a temporal data model (Section 5). In Section 6, we de-

scribe our experimental prototype, including our approach to introducing time-variance

at the user interface level. We close with a discussion of the lessons learned and an

outlook towards future work.

Grummt E. and Lorz A. (2007).

Supporting Time-variant Artifacts in Groupware Applications.

In Proceedings of the 4th International Workshop on Computer Supported Activity Coordination, pages 35-44

DOI: 10.5220/0002417400350044

 SciTePress

2 Related Work

Frank [2] gives an overview of concepts for modeling temporal phenomena. Jensen

and Dyreson [4] provide a glossary of terms related to time-variance and temporal

databases. Knolmayer and Myrach [6] discuss how temporal data can be represented

in business software. Most approaches to modeling time-variant data are extensions

of the Entity-Relationship-Model. Gregersen and Jensen [3] survey more than ten of

these, including ERT, TEER, and TERM [5]. A discussion of the meaning of “now” in

databases is conducted by Clifford et al. [1]. Even though current commercial databases

do not feature comprehensive support for temporal structures, a lot of theoretical back-

ground has already been explored. Snodgrass et al. [9] introduce the language TSQL2,

an extension of the SQL standard supporting complex time-related queries. Wang and

Zaniolo [10] propose an XML-based language for describing and querying temporal

data.

However, existing approaches to incorporating time-variance in actual database systems

suffer performance issues and high complexity, leading to a lack of reference implemen-

tations.

The kind of groupware we focus on is characterized by providing asynchronous ac-

cess to shared tools and information such as a calendars and tasks. Other types of group-

ware include Wikis and Version Control Systems. These do feature a notion of “time”

by preserving past states of the system. However, they are rather focused on processing

information rich data (such as arbitrarily structured text) than on highly structured (se-

mantically rich) data that contains relations and has speciﬁc demands regarding (tem-

poral) integrity. An approach to enhancing the desktop metaphor by a notion of time

is presented by Rekimoto [8]. The time-variant desktop called TimeScape can be set to

any desired time, where objects can be created, pasted, modiﬁed, or removed. Objects

are not deleted but archived, graphically this is expressed by letting icons of “removed”

objects fade away as time passes by. The backup tool “Time Machine” of the announced

Mac OS X Leopard reﬂects some of these ideas.

3 The Need for Time-variant Groupware in Virtual Organizations

None of the web based groupware systems we evaluated is capable of sufﬁciently docu-

menting the changes over time regarding team membership, task assignment and other

highly structured data. Yet often, it is desirable to “go back in time” to see what data

was considered “current” at a chosen point in time. When dealing with potentially large

objects such as media ﬁles, the costs of not deleting data that users discard need to be

considered. In groupware systems processing mostly short and highly structured textual

or numeric data this is not a limiting aspect. However, security and privacy concerns

arise when potentially conﬁdential information cannot be deleted permanently.

When talking about “time” with regard to groupware or database systems, it is im-

portant to distinguish between several notions (see [4]). Valid Time speciﬁes when cer-

tain propositions in the modeled real world are considered true. In IT systems, these are

usually speciﬁed by the user. In contrast, Transaction Time represents the time when

an element was available inside the IT system. User-deﬁned Time refers to temporal

attributes not interpreted by the system. A Temporal Database supports at least one

of the ﬁrst two conceptions of time. Databases supporting Valid Times are called His-

toric Databases, whereas databases supporting Transaction Times are called Rollback

Databases. Bitemporal Databases support both aspects. These distinctions can be ap-

plied to groupware systems, too. We argue that in such systems, Valid Time is more

important than Transaction Time, because we are more interested in facts about the real

world than in functional aspects of the technical system. However, it needs to be con-

sidered that forcing users to enter Valid Times puts additional effort on the involved

interactions.

Regarding group awareness, most systems only support the current time and place

of co-workers, but not the respective history. Yet, information about “who worked on

what, when and where” is potentially useful.

4 Requirements Analysis

The main requirement of the conceived time model is the ability to seamlessly document

changes of the modeled real-world artifacts. Thus, we focus on Valid Time. We need to

consider that certain points in time in the past or in the future may be unknown to the

user. The reasons can be different: either the user does not have speciﬁc plans for the

future yet, or he does not have access to all necessary facts from the past.

Since members of a VO can be distributed over different time zones, these need to

be supported either explicitly or by using normalized time values. The time and data

models need to support persistent storage mechanisms in a way that saving, loading,

deleting and searching of data sets can be conducted with sufﬁcient performance. The

precision of the time information is to be derived from practical requirements of VOs.

The data model has to be as versatile as possible, to meet not only the requirements

of a groupware system for VOs but also other potential applications. It is meant to serve

as a solid, low-level basis for semantically rich (highly structured) models. Hierarchies

and non-hierarchical relations are to be supported. The data model needs to support the

basic operations create, read, update and delete with respect to well-deﬁned temporal

consistency constraints. To ensure ease of use, manageability, and reasonable imple-

mentation effort, the model needs to be easy to comprehend and should rely on as few

operations as possible.

5 A Relational Data Model for Time-variant Structures

In this section, we describe our time and data models including temporal consistency

constraints and a set of operations.

5.1 Time Model

Our time model is based on intervals describing the temporal validity of speciﬁc infor-

mation about the real world (validity intervals). Intervals are deﬁned by their start and

end points (t

start

und t

end

) on a discrete time axis with a resolution of one second.

We consider this resolution sufﬁcient for typical applications in VOs, however, the ap-

proaches presented below can equally well be applied to discrete time models of higher

resolutions. The intervals are closed, i.e. their t

start

and t

end

values are part of them.

The format of time values is taken from XML Schema and is structured like this:

YYYY-MM-DDThh:mm:ss, with T being a separating character. All time values are

relative to a reference time zone (UTC), so the internal operations for comparison and

checking of consistency constraints can be implemented with less effort. This only af-

fects the internal storage of data, not necessarily the user interface built on top of this

data.

Besides concrete time values, two special values are part of the model. Until changed

(uc) represents the fact that information is valid until something different is speciﬁed.

Consequently, uc can only be used as a value for t

end

. Its counterpart is not known

(nk), describing that the start time of a validity interval is unknown. Thus, nk can only

be assigned to t

start

5.2 Data model

Objects are considered unique entities composed of time-variant attributes. They can

be put in time-variant relationships with other Objects. Objects are composed of

Versions, each of which represents attributes and relations that are constant over a

particular time interval. That means our data model is temporally ungrouped, however

a temporally grouped view, e.g. using XML, can be created easily. Every Object con-

tains at least one Version and itself has a validity interval, which can be derived from

its Versions. Using a particular Version, holistic statements about the Object it

belongs to can be made.

Time

V ersion

Object

+ 1 t

+ 1

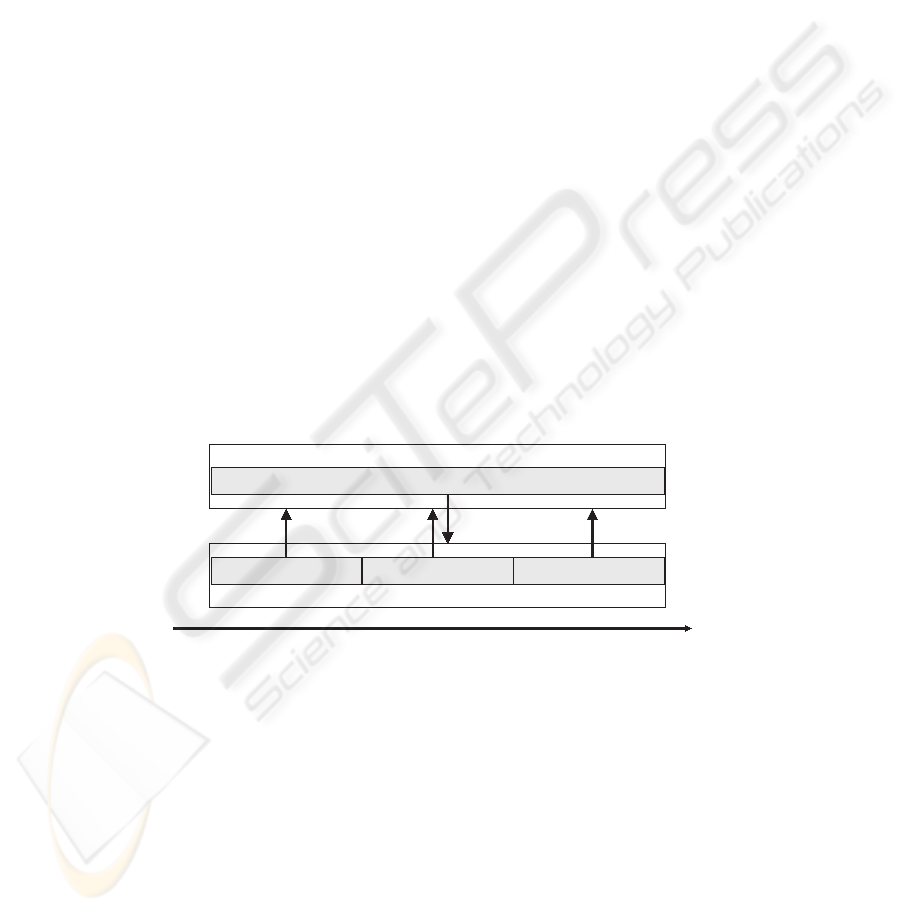

Fig.1. Two related Objects and their Versions.

Relations are symmetric links between two Objects. They are treated as attributes

of Versionsand thus are not modeled as separate entities. Relations themselves have

no attributes and inherit their validity intervals from the respective Versions. Be-

cause Objects are actually a kind of a container for Versions, relations point to

Objects rather than to speciﬁc Versions of the linked Object (see Fig. 1). The

required symmetry of the relation needs to be ensured by proper setup of the involved

Versions.

5.3 Consistency Constraints

For Objects and their Versions, we introduce the following consistency con-

straints regarding their validity intervals:

– C1: No changes during the validity interval. The attributes and relations stored

in a Version are constant over its whole validity interval.

– C2: No redundancy through similar Versions. Adjacent Versions differ in

at least one attribute or relation.

– C3: No gaps. There are no gaps between the validity intervals of an Object’s

Versions.

– C4: No overlapping. For any given point in time, each Object has exactly one

or no Version.

– C5: Temporal consistency of relations. All Objects that are put in relation are

valid throughout the whole validity interval of the relation.

From C3 follows that, for a given Object, the union of all the Version’s validity

intervals is equal to the Object’s validity interval. It also follows that the validity

interval of an Object can be determined by combining the oldest Version’s t

start

and the newest Version’s t

end

into an interval. From C4 follows that, for a given

Object, the intersection of all the Version’s validity intervals is empty. This also

implies that for only one Version per Object t

start

=nk or t

end

=uc may be true

(one single Version with t

start

=nk and t

end

=uc is in particular valid). From C5 and

C1 follows that at the beginning and the end time of a relation, all involved Objects

need to have “version borders”. While gaps in an Object’s validity interval are not

permitted (C3), relations can have temporal breaks. For example, a user can be part of a

group, then leave it and later rejoin it, leading to a logical “is member of”-relation with

a gap.

5.4 Deﬁnition of Operations

In this section, we present four basic and two derived operations on our data model.

They allow integration of new information with already known facts, automatically en-

forcing our constraints by adjusting validity intervals and creating, merging, or deleting

Versions as needed. This simpliﬁes usage of functionality for both the application

programmer and the end user.

(1) Add Version. This operation adds a Version to an Object. It can be distin-

guished between adding with overwriting and adding without overwriting. The latter is

equivalent to checking the consistency constraints and adding only if no constraints are

violated (exception: overlapping with a right open Version, see Fig. 2A). The gen-

eral case, that is, “adding with overwriting”, only requires the validity interval of the

input information (Version) to touch or overlap the validity interval of the Object

that the new Version is to be assigned to (C3). The other consistency constraints

can be satisﬁed automatically by overwriting, splitting (C1) or merging (C2) existing

Versions.

(2) Remove Version. When removing a Version, two general cases can be dis-

tinguished. Firstly, the Version to be removed can be the temporally ﬁrst or last

Version of an Object. In this case, it can simply be removed from the Object.

However, further steps might be necessary to meet C5. Secondly, a Version can be an

“inner Version”, having a temporal predecessor and successor. In this case, simply

removing it would leave a gap and thus violate C3. This is compensated by extending

the adjacent Versions by half the length of the removed Version. Another possi-

bility would be to extend only one of the adjacent Versions, letting the user decide

which one to use. However, we opted for the “interpolation approach” to keep required

user interactions at a minimum.

(3) Change Version. Solely changing a Version’s attributes corresponds to adding

a new Version with the desired attributes at exactly the same place, thus overwriting

the old Version. Practically, the attributes can be changed directly.

Changing the validity interval of a speciﬁc Version is more complicated because

all other Versions of the respective Object could be affected. The length of a

Version’s validity interval can either remain unchanged, be compressed or stretched.

The case that the length remains unchanged and t

start

and t

end

are shifted by the

same amount into one direction can be described by using compression on one side

and stretching on the other.

before

intermediate result

after

to add

splitting

V ersion

new

Relation

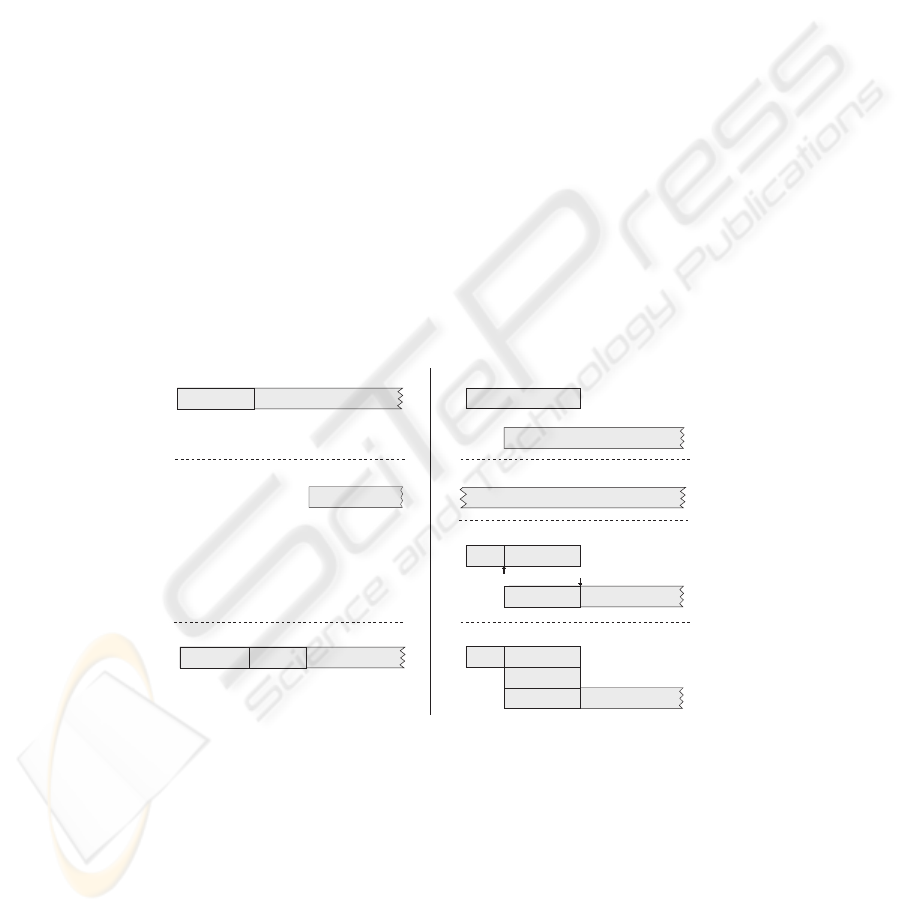

Fig.2. Adding a Version (A) and Adding a relation (B).

If a Version is to be compressed, it is shortened and inserted into the Object.

Then, copies of the formerly adjacent Versions are stretched to touch the newly in-

serted Version and inserted, thus overwriting the remainders of the formerly adjacent

Versions. Stretching is done by making a copy of the respective Version, adjust-

ing the validity interval and adding it. This can lead to several (not only the adjacent)

Versions to be partially or completely overwritten.

(4) Add Relation. Handling relations needs special care because C5 is not only af-

fected by directly manipulating relations, but also by manipulating the Objects that

are linked by a speciﬁc relation. The simplest case is that a relation is added between

two Objects consisting of only one Version each and sharing a common validity

interval. Here, the relation can be established without any further steps. When a rela-

tion is to be established between two Objects that only partially overlap in time, the

maximum possible interval for the relation is determined by intersecting the validity

intervals of the two Objects and the desired relation. Then, the Versions at t

start

and t

end

of this interval are split to ensure C1 after the relation is added. Finally, the

relation itself can be applied (see Fig. 2B). Splitting Versions at t

start

and t

end

the relation’s validity interval can result in up to two new Versions.

(5) Remove Relation. Relations can be removed completely by deleting the respective

references in all affected Versions. Afterwards, some Versions might need to be

merged to ensure compliance with C2. If only a part of a relation is to be removed, then

this part is subtracted from the original relation. Again, splitting or merging at the new

start

and t

end

values of the resulting relations’ intervals may be necessary.

(6) Change Relation. Changing a relation can be expressed as adding (overwriting) or

removing parts of a relation.

Effects on relations of changes to Objects. When Versions are modiﬁed, the rela-

tions between the respective Objects might need to be updated. Deleting, compress-

ing or stretching of Versions might become necessary, but also splitting or merging.

Just like in relational databases, the referential integrity needs to be assured when a

Version referencing an Object is deleted. Overwriting Versions containing re-

lations is a separate problem. The easy way would be to remove the relations in the

new Version’s validity interval. However, the information about the Object’s re-

lations does not need to be sacriﬁced. Because adding a Version can not shorten an

Object’s validity interval, C5 can not be violated. However, it needs to be ensured

that after adding the Version, C1 is still valid. Therefore, the new Version needs to

be split at all borders of the overwritten Versions where changes regarding relations

occur.

6 Experimental Prototype

Using the Java programming language and JSP scripts, we implemented a groupware

prototype demonstrating the developed concepts. Temporal data can be inserted, modi-

ﬁed and deleted using a web-based GUI. Data is persisted by means of an XML-based

language we speciﬁed using XML Schema, proving our model’s applicability in XML

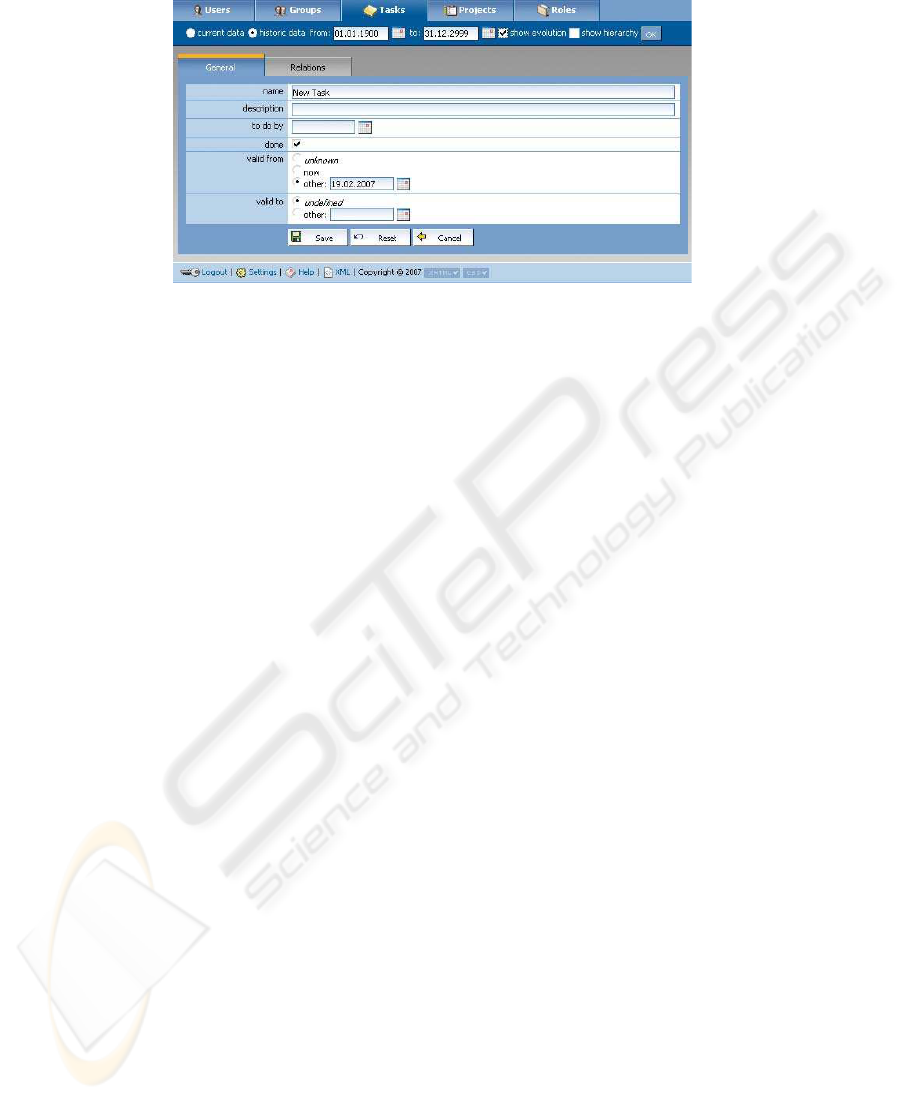

Fig.3. Our GUI showing a form for entering time-variant information.

databases. As an example scenario, we used a typical data model for groupwork, con-

sisting of hierarchical groups, projects, and tasks along with users that can be associated

directly or by role. Each of these entities is derived from a special data type providing

functionality for the operations discussed in Section 5.4. Working with these versioned

objects and treating relations as attributes of versions proved to be convenient once the

implementation taking care of our consistency constraints was available.

The user interfaces employs a set of widgets called “time control bar” enabling the

selection of arbitrary time intervals. This selection acts as a ﬁlter for the data that can be

interacted with in a main area. Information from the selected interval can be presented

as lists, detail views, forms, and interactive timelines. Time variance is reﬂected in all

of these elements:

Lists can be rendered either to display the current information or to show data from an

arbitrary, user-deﬁned time interval. In the latter case, the newest Versionoverlapping

the chosen interval is used to represent the respective Object. Using the checkbox

“show evolution”, earlier Versions of each Object can be displayed in separate,

indented rows. Using colors and icons, the temporal role of each Version is further

illustrated.

Detail views display all the Versions of one Object, highlighting attributes and

relations that have changed from one Version to its successor. Bars are used to illus-

trate the validity intervals of each Version.

Interactive timelines display multiple Object’s and their Version’s validity inter-

vals and, on mouse-over, their attributes and relations.

Forms provide common widgets to enable user input. In addition, each form lets users

specify the information’s validity interval. By default, this interval is set to (now, uc).

Relations can be speciﬁed using a separate tab which provides “select multiple” lists

with Objects that can potentially be put in relation with the input data. Users found it

intuitive to enter data using the enhanced forms. Detail views were also easily grasped.

However, lists were sometimes found confusing as it was not clear which Version

was actually used for display.

7 Lessons Learned and Future work

Our concepts of relations and Objects consisting of Versions have proved to be

technically well suited for storage and retrieval of time-variant data. The advantage

of using Versions is that holistic statements (as opposed to statements about single

attributes) about some entity over certain intervals can be made.

Adding support for time-variant artifacts doesn’t come for free, but the experience

with applying our model to the prototype scenario has shown that it can be done with

reasonable effort. The model provides lightweight metaphors and a small but sufﬁcient

set of predeﬁned operations promising a steep learning curve. Application developers

often implement relations as attributes of the objects involved. Expressing temporal

changes of relations between objects as changes in their respective attributes instead

of using additional time-variant entities supports this point of view. The ability to ex-

press temporal changes can be incorporated into an existing application model without

changing its basic structure. Business logic can be implemented with a few rules in

mind that map desired changes in the data model to the six operations of our temporal

model. The price for simplicity is increased redundancy by saving unchanged attributes

multiple times. This should be coped with by a more efﬁcient versioning layer for ob-

jects that stores version differences instead of full object copies. Another solution would

be a temporally grouped representation (that is, every attribute holds its own history).

Such a representation can be serialized using XML, rather complicated table structures

in common RDBMS, or nested tables as supported by SQL:2003.

From our point of view, ﬁnding sufﬁcient user interface metaphors is crucial for

implementing “temporal awareness” into groupware. Users are accustomed to software

that only has concepts for “now”. If a person is removed from a group, the interaction

either happens because the person just left the group or the person was wrongly assigned

to it. In conventional groupware there is no need to care about the difference between

these operations because the result is the same – the person is currently not in the group.

If we start to support time variance we have to make the user aware of a distinction he

is not used to express explicitly. This could prove to be much harder than implementing

an efﬁcient data model.

Virtual Organizations can employ software similar to our prototype to keep track of

all their internal changes. However in real world settings, one would need to consider

concurrency and transactional issues. Enhanced access control would be necessary to

prevent unauthorized users from overwriting information that refers to the past.

We also strive for more intuitive ways to input information, not forcing users to think

in terms of versions. Our goal is to empower users to intuitively enter facts like “person

X changed her e-mail address to w@xyz.com in 2006”. We want them to be able to

specify single facts (as opposed to ﬁlling in a complete form) and also want to support

additional unspeciﬁc, “fuzzy” time values. Next, we want to examine possibilities how

this can be supported at the user interface level. In addition, we want to explore how

time-variant information can be visualized and manipulated graphically. We already

developed concepts for interactive “time bars”, that were however not included in our

prototype due to technical limitations. These concepts need to be reﬁned, evaluated and

extended to support large amounts of data and longer time intervals, for example using

perspective distortion and Overview and Detail techniques.

References

1. James Clifford, Curtis Dyreson, Tomas Isakowitz, Christian S. Jensen, and Richard Thomas

Snodgrass. On the semantics of “now” in databases. ACM Trans. Database Syst., 22(2):171–

214, 1997.

2. Andrew Frank. Spatial and Temporal Reasoning in Geographic Information Systems, chapter

Different types of “times” in GIS. Oxford University Press, 1995.

3. Heidi Gregersen and Christian S. Jensen. Temporal entity-relationship models - a survey.

Knowledge and Data Engineering, 11(3):464–497, 1999.

4. C. S. Jensen and C. Dyreson. The consensus glossary of temporal database concepts february

1998 version. 1998.

5. M. R. Klopprogge. Term: An approach to include the time dimension in the entity-

relationship model. In Proceedings of the Second International Conference on the Entity

Relationship Approach, pages 477–512, Washington, DC, 1981.

6. G. Knolmayer and T. Myrach. Zur abbildung zeitbezogener daten in betrieblichen informa-

tionssystemen. Wirtschaftsinformatik, 38:63–74, 1996.

7. Abbe Mowshowitz. Virtual organization. Communications of the ACM, 40:30–37, 1997.

8. Jun Rekimoto. Timescape: a time machine for the desktop environment. In CHI ’99: CHI

’99 extended abstracts on Human factors in computing systems, pages 180–181, New York,

NY, USA, 1999. ACM Press.

9. Richard T. Snodgrass, Ilsoo Ahn, Gad Ariav, Don S. Batory, James Clifford, Curtis E. Dyre-

son, Ramez Elmasri, Fabio Grandi, Christian S. Jensen, Wolfgang Kafer, Nick Kline, Kr-

ishna G. Kulkarni, T. Y. Cliff Leung, Nikos A. Lorentzos, John F. Roddick, Arie Segev,

Michael D. Soo, and Suryanarayana M. Sripada. Tsql2 language speciﬁcation. SIGMOD

Record, 23(1):65–86, 1994.

10. Fusheng Wang and Carlo Zaniolo. An xml-based approach to publishing and querying the

history of databases. World Wide Web, 8(3):233–259, 2005.
