A SUCCESS STORY: COLLABORATIVE EFFORT WITH THE

INDUSTRY IN ADDRESSING REQUIREMENTS CHALLENGES

FOR EARLY ADOPTION OF IWARP IN LINUX

Venkata Jagana,

Claudia Salzberg,

Renato Recio and

Bernard Metzler

STG, IBM

S&D, IBM

Zurich Research, IBM

Keywords: Business process, iWARP, RDMA, OpenSource, OpenFabrics.

Abstract: As customers are embracing Linux in solving business-critical problems, the demand to support innovative

and cutting edge technologies is also increasing at a dramatic pace. This has forced the system vendors to

offer these technologies much sooner than the traditional cycles allowed. In addition, the open source of

different implementations of the same technology by different vendors poses a significant risk in getting an

agreement on the common implementation. In order to address the multitude of problems and get an open

source implementation of new technology for acceptance into Linux main kernel sooner, we have adopted

an innovative method. This method allowed us to work on a common implementation for Linux by avoiding

the clash of multiple implementations right from the beginning but of bringing all the relevant vendors,

much before the technology gains foothold in the market with any proprietary implementations. In this

paper, we'll clearly describe in detail the success story of iWARP support for Linux

right from the start of

how we have formed a community, generated the requirements that are agreeable to all vendors and open

source developers, how it further drove an industry standard to define a programming interface in parallel

with the implementation and how the code convergence should happen with an existing Infiniband

technology. We’ll also describe further how this model can be applied for faster adoption of the upcoming

future technologies into Open source-based implementations after addressing the new technology

challenges.

Linux – Registered Trademark of Linus Torwalds

1 INTRODUCTION

The Linux operating system has matured from

serving simple mail, print, and web services to

solving business-critical problems within datacenter

environments and thus today has become the

mainstream operating system in customer

deployments across various industry segments.

However, without the active participation and

contributions from major vendor companies in the

IT industry, Linux wouldn’t have matured to the

level it is today. In fact, this active involvement

from the industry and from end customers was a

primary factor in changing how Linux adds newer

technologies at a rapid pace within its core operating

system. Even though this is a good thing for Linux

overall it also brought with it a set of problems, such

as causing significant delays in the support of new

technologies that requires upstream code support

within the core operating system. One of the major

causes for this type of delay was due to the conflicts

between different implementations of the code

submitted by different vendors promoting the same

technology. Additionally, these conflicting

implementations put Linux at a disadvantage when

competing with other competitive OSes within the

industry because these other OSes could dictate a

specific implementation and thereby enable faster

adoption of these leading edge technologies.

Obviously, this issue was considered serious and

640

Jagana V., Salzberg C., Recio R. and Metzler B. (2007).

A SUCCESS STORY: COLLABORATIVE EFFORT WITH THE INDUSTRY IN ADDRESSING REQUIREMENTS CHALLENGES FOR EARLY

ADOPTION OF IWARP IN LINUX.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 640-645

DOI: 10.5220/0002418806400645

 SciTePress

required to be solved with any of the upcoming

leading edge technologies for Linux.

An example of leading edge technology, for

which multiple conflicting implementations were

being pursued in the industry for Linux, was

iWARP support using RNICs (RDMA enabled

Ethernet adapters). Before describing the solution

approach we pursued for this problem, we will

briefly introduce the concepts of this technology.

We will then describe in subsequent sections the

various steps we took to: form a community for

developing the code, obtain requirements for the

Linux iWARP implementation, define the process

for creating the iWARP implementation, execute

that process, and ultimately merge the efforts on the

iWARP stack with the IB stack. We’ll also describe

how we ensured the agreed requirements are being

carried over in each of these steps.

2 RDMA AND IWARP

OVERVIEW

RDMA is a data transfer model that enables out of

user space operations to a previously registered user

space memory buffer without involvement from

either the source or destination’s operating system

(OS). The RDMA model is dependent on

registrations that are stored in memory translation

and protection tables (MTPT), which reside in

system or adapter memory. These registrations can

be used to translate and validate data that is being

transmitted from or placed into the registered buffer.

The RDMA model provides three basic data transfer

mechanisms: Sends, RDMA Writes and RDMA

Reads. These data transfer mechanisms are provided

to an RDMA-capable adapter through the Send

Queue associated with one of many Queue Pairs.

InfiniBand is an example of a protocol stack that

supports the RDMA model. Unfortunately, most

data center communications use the IP/Ethernet

networks stack. Adaptec, Dell, Intel, Broadcom,

EMC, Microsoft, Cisco, Hewlett-Packard, NetApp,

and IBM founded the RDMA Consortium to create

an initial set of specifications for supporting RDMA

over existing IP/Ethernet networks. The intention

was twofold: to allow vendors to support these

initial specifications as is and to seed the IETF’s

Transport Area’s Remote Direct Data Placement

Working Group with Internet Drafts that could form

the basis for iWARP protocol Request for

Comments. The RDMAC specifications are

available at the RDMAC Website

(http://www.rdmaconsortium.org/home) and the

IETF RFCs are available at the IETF Website

(http://www.ietf.org/html.charters/rddp-

charter.html).

Unlike the IB version of RDMA, iWARP

requires integration with the host OS’s TCP/IP

stack. For example, it requires the handoff of a

TCP/IP connection from the host OS to an iWARP

QP at the start of an RDMA Stream. An RDMA

based stack with defined interfaces to the host OS’s

TCP/IP stack was required. This stack included

defining the required: APIs, interfaces between

internal OS components, and interfaces between the

OS and the RNIC. The following section will

describe the methodology used to create this stack.

3 LAUNCHING AN OPEN

SOURCE PROJECT

IBM uses a System I/O Networking team that is

responsible for generating the strategic mission and

roadmap of IBM servers and storage. The goal of

the work is to generate a roadmap that, for the most

part, proves to be accurately in line with the

unfolding of I/O networking technology

improvements and advances. The process used by

this team requires input from a diverse set of thought

leaders from several disciplines. The input includes:

application environment and workload

requirements; basic and derivative technology

trends; system platform requirements; competitor

directions; business model innovations; applicable

new and substitute technologies/products;

technology/product risk analysis; and the team’s

capabilities. Additional input is obtained from the

larger I/O networking technical community within

IBM and outside of IBM. The strategy created by

this team is used to drive architecture work,

standards work, create plan line items and/or

provide input to plan line items. The plan line items

are used in the IBM System’s Integrated Product

Development Process (Grzinich et al., 1997) to drive

technologies and products from conception through

launch and marker support.

The Systems I/O Networking team discussed

the need for an Open Source stack that would

support RDMA-enabled NICs (RNICs). A small

sub-team was created to define how to enable an

Open Source iWARP stack. The team evaluated

several alternatives, including having RNIC vendors

create their own stacks, leveraging the IB stack, and

launching an Open Source project.

A SUCCESS STORY: COLLABORATIVE EFFORT WITH THE INDUSTRY IN ADDRESSING REQUIREMENTS

CHALLENGES FOR EARLY ADOPTION OF IWARP IN LINUX

641

In order to avoid the problem of independent

implementations of iWARP support for Linux, we

decided to launch a community collaborated open

source project that would be used as a common

platform to gather the requirements and further to

implement code in addressing those requirements.

Before launching this community collaborated

project, we understood that it was critical to gather

the requirements from the interested external system

and adapter vendors and then have discussions to

come up with an agreed list of common

requirements that would ultimately become the basis

for the launch of the project.

Having laid out that strategy, several system

vendors, adapter vendors, and key customers were

invited to participate in this collaborative project.

Each participating member company was expected

to contribute resources to not only discuss and agree

upon the requirements, but also help in the

subsequent phases to make the overall project a

success.

Participating members agreed to pool together

the requirements from their respective companies

and then came up with a common set of

requirements. During this process, members agreed

that the process must be flexible enough to change

the requirements based on changing needs of the

customers and the technology direction. In order to

get a better understanding on the approach being

discussed, it was important to identify the following

key requirements, and some of which will be

referenced in later sections.

Requirement R1 – Use Standards defined interface

to support the portability aspect

Requirement R2 – RNICPI (RNIC-Programming

Interface) is the preferred path for both kernel and

user-level APIs. There is no need to provide the

user-level APIs direct access (for example,

bypassing the kernel) to hardware and Requirement

R3 - Agreed to have a thin intermediate user-level

access layer to hide the underlying kernel

implementation details to avoid the changes in the

APIs every time there are changes in kernel code

and also to address some inefficiencies through

optimizations provided.

Requirement R4 - Agreed to collect all potential

major issues (such as TOE service, kernel stack

intrusion, ...) internally before going public to

discuss with maintainers.

Requirement R5 - OpenRDMA project should aim

to support OS version independent of RDMA

enablement support, because it would be good for

the device drivers porting.

Requirement R6 - Convergence of IB and RDMA

interfaces to satisfy the ultimate goal of having a

single interface supporting both IB and iWARP. For

example, the convergence path needed to be defined

for VAPI/IB and RNICPI/iWARP. The expectation

was that we could have a single user access layer

supporting IB and iWARP interfaces to have single

uDAPL or MPI API implementations supporting

both types of fabrics.

Having achieved the first and foremost step of

arriving at a common set of requirements helped the

project to move forward with the architecture

definition which was the next big next step before

proceeding with the code design and

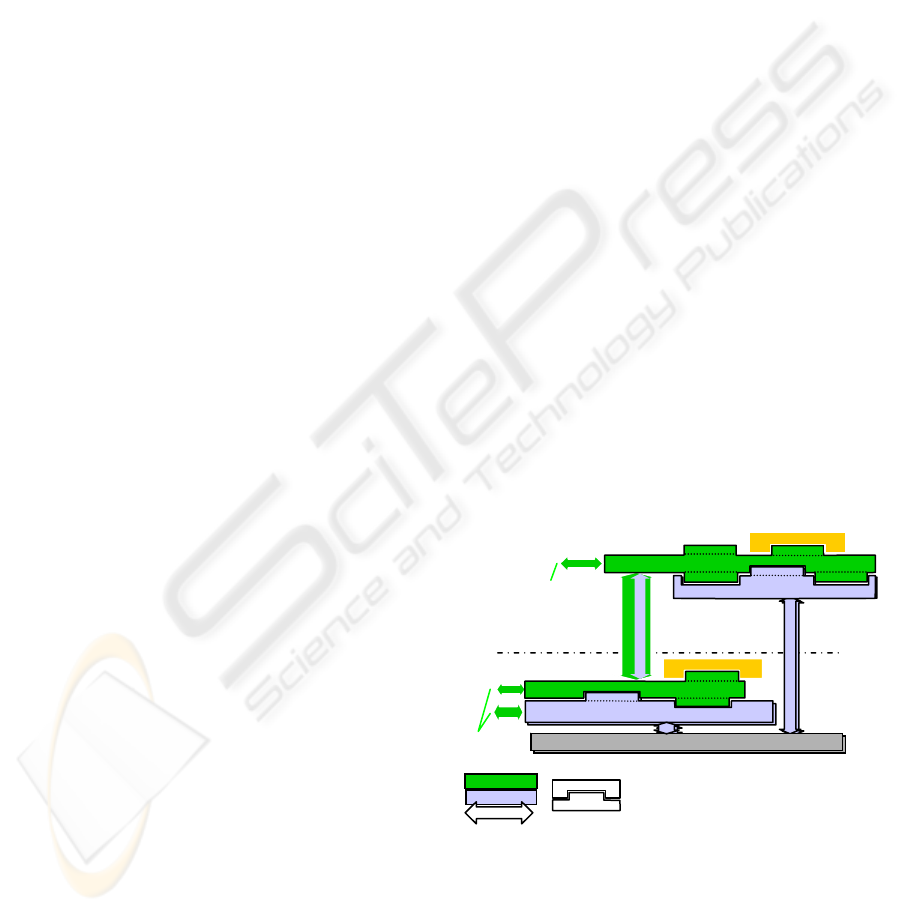

implementation. The architecture for iWARP

enablement along with coexistence of Infiniband

support was put together by some of the key

members of the community and then it was

thoroughly reviewed by the broader community of

this project to ensure the relevant requirements were

taken into consideration. Before proceeding with the

next step, we’ll briefly discuss the high level design

of this architecture to provide a view of the

complexity of the requirement dependencies

involved in driving this project to success.

4 OPENRDMA ARCHITECTURE

OVERVIEW

Figure 1: OpenRDMA Architecture.

Fig. 1 summarizes the high level design of the

OpenRDMA software architecture. It provides a

generic infrastructure (green in Fig. 1) for the

integration of IHV (Independent Hardware Vendor)

private code (blue in Fig. 1) into the Linux OS. This

Services

IT-API

OS generic code

IHV private code

Private Interface

Interface

B exports Interface to A

Kernel

User

Kernel Consumer

Kernel RDMA Verbs Provider (kVP)

Privil. Ops + Conn/Res Mgmt

Non-privil. Ops: Fast Path

User RDMA Access La

(

uAL

)

uDAT

User RDMA

Verbs Provider (uVP)

P-RNICPI

NP-RNICPI

Resource Handles

SVC-RNICPI

IT-API

Kernel RDMA Access Layer (kAL)

RNIC Hardware

1 .. 10 Gb RNIC (ENIC with iWARP support)

SVC-RNICPI

Services

SYS-RNICPI

DDI

Consumer

ICEIS 2007 - International Conference on Enterprise Information Systems

642

infrastructure offers RDMA services for both user

level and kernel level RDMA applications also

known as RDMA consumers (grey in Fig. 1).

4.1 OS Generic OpenRDMA

Components

The IHV independent infrastructure for RDMA

support consists of a kernel level Access Layer

(kAL) and a user level Access Layer (uAL). On a

host system, only one instance of the kAL may exist.

The uAL is a loadable library module instantiated by

each user level application that is accessing

OpenRDMA services. kAL and uAL’s are

interacting through a generic, but OS-private

interface. This interface is further used to support

interaction between user-level and kernel-level

software components of an IHV.

The implementation of the RDMA API’s is part

of the OS generic infrastructure. Thus, the kAL may

implement DAPL and/or IT-API to serve kernel-

level consumers and uAL may implement and

expose these services to the non privileged

consumer.

4.2 IHV Private OpenRDMA

Components

The architecture expects that every RNIC vendor

will provide a kernel-level RDMA Verbs Provider

module. Optionally, it may provide a user-level

RDMA Verbs Provider library for efficient user-

level RDMA services. RDMA Verbs Provider

modules encapsulate functions that are private to the

RNIC implementation, such as QP management and

conversion of work requests into WQEs.

The kVP module provides vendor-specific

software implementing the semantics of the RDMA

verbs as defined in (Jeff et al., 2003). It translates

the verb calls issued by the kAL into appropriate

actions such as the creation and management of QPs

and the insertion and removal of WQEs. All QP,

CQ, and SRQ data structures are under direct

control of the module and are not accessible to the

consumer. While the module’s interfaces to the

RNIC hardware are IHV-private, its upper interface

to the kAL will implement the RNICPI (RNICPI,

2005) as defined by the Open Group.

The uVP contains vendor-specific software for

the provision of user-accessible RDMA Verbs

services to the uAL and for direct access to the

RNIC hardware. It establishes a fast path to the

RNIC hardware for all performance critical

operations that can be performed without holding

exclusive access permissions. This includes all send-

and-receive type operations. As with the Kernel

RDMA Verbs Provider, all QP, CQ and SRQ data

structures are under direct control of the library and

are not accessible to the consumer.

Even though the architecture focus has been

primarily around Linux, it was easily adaptable to

other OS variants for meeting adapter vendor needs.

5 PARTICIPATION IN RNICPI

STANDARD EFFORT

There have been several assumptions made within

the architecture about the use of either existing or

new internal interfaces within the OS kernel and

also at the user space. One of the critical internal

interfaces required for supporting RNIC verbs is a

standard-based interface that would ensure the

adapter vendors could easily port their driver across

OSes. Since the standardization of this interface

required broader industry support, for example,

through a standard-based organization such as

OpenGroup, a separate effort was needed to be

driven outside of this community.

Interestingly enough, at around the time that the

OpenRDMA project was launched, there was also

an effort brewing within the industry to create a

workgroup under OpenGroup to standardize the

interface for Unix systems. The objective of this

workgroup was to provide an abstract interface

based on RNIC verbs and coincidentally, this effort

was in line with OpenRDMA community

requirement R1. Some of the key community

members from this project had started working with

OpenGroup in not only providing the requirements

of this interface but also contributed to the evolution

of this interface definition. Another significant

impact that this OpenRDMA community made in

the interface definition was to convince the

OpenGroup to allow, which is not its normal

practice, its draft versions of the standard to be

reviewed by this OpenRDMA community to provide

its input early in the process before it becomes a

standard. This was made possible simply because

OpenGroup understood that this OpenRDMA

community could develop an early prototype that

would validate the interface but also this community

established credibility with OpenGroup right from

the start of forming this WG through requirements

input.

A SUCCESS STORY: COLLABORATIVE EFFORT WITH THE INDUSTRY IN ADDRESSING REQUIREMENTS

CHALLENGES FOR EARLY ADOPTION OF IWARP IN LINUX

643

Because there was a good representation of

OpenRDMA community members participating in

the standard effort of this interface, it made it

simpler to get its requirements met in terms of what

the broader community would like to see in the

interface function calls and the related required

arguments. This type of participation and

collaborative effort further proves that there can be

significant advantages in a collaborative model over

traditional development models.

Based on an early definition of RNICPI interface

available to the OpenRDMA community, the

developers started to contribute the code for

components defined in the agreed architecture. In

fact, a separate code maintainer for the project was

identified and made responsible for ensuring the

contributions not only met the required opensource

guidelines but also ensured the conformity for

agreed architectural definition such that the original

requirements were continuing to be met.

6 MERGE OF OPENIB AND

OPENRDMA

The project was making good progress but in order

to meet the requirement R6 of converging Infiniband

(OpenIB) and OpenRDMA for a single common

stack, the strategy was to merge these two projects

before these independent stacks had fully evolved.

However, the challenge, which was recognized as a

major issue later, was to find a common ground in

merging the different interface APIs adopted for

both of these implementations. Since RNICPI was

evolving to support both IB and RNIC verbs, but the

OpenIB interface API was supporting only IB verbs

at that time and the interface APIs were different, it

was perceived that the possible convergence

approach might be to support through RNICPI

rather than modifying the existing OpenIB verbs.

However, it was realized that this could be a

challenge in getting this approach being accepted

upstream as the OpenIB API was already made

upstream.

Since the OpenRDMA implementation is

completely based upon RNICPI supporting both

transport-independent and transport-dependent

functions, it was critical to have both transport

modes supported in the merged interface. Hence,

this approach was absolutely taken into

consideration during the merge effort by developing

a separate connection manager for each of the

underlying transport of Infiniband and iWARP and a

generic RDMA connection manager. Even though

the Linux implementation ultimately did not pick up

the RNICPI primarily because changing to a new

interface in supporting the existing IB drivers and

upper layer protocols meant more changes

everywhere in the stack which is not realistic, it did

pick up some of the good concepts from RNICPI.

As the progress of this OpenRDMA project

reached a good pace, the OpenIB community was

also making good progress in its code acceptance

upstream. Although this was good news, it

inherently put pressure on OpenRDMA to merge

both of the projects sooner rather than later. This

merge was required sooner to avoid the discreet

implementations of two independent stacks, one for

Infiniband and the other for iWARP, to exist in

Linux and also to avoid the duplication of the

similar components of two stacks.

In order to have a successful merge of these two

emerging stacks into a single common stack, the

need was to bring in the key community members of

both communities onto common ground and quickly

agree upon the requirements in a collaborative

manner. The leaders of both communities had come

to an absolute understanding that this convergence

effort must be clearly driven with urgent timelines to

avoid further confusion of overlapping projects in

the communities.

This agreement has further allowed for quick

progress on the convergence aspects from an

architecture, interface and implementation

standpoint with the better commitments from both

communities. This was only possible after ensuring

the corresponding requirements were being

discussed first and agreed upon by the combined

collaborative community. For example, to be

specific on the set of requirements agreed upon, one

of the few requirements (a) is to combine the best

features of both stacks to generate a unified stack

that would allow applications and Upper Layer

protocols to use a single set of interfaces rather than

using a different set of interfaces for Linux. Another

requirement (b) is to ensure the existing IB stack

functionality is not impacted while the code

convergence happens from both of the projects.

The key here was to ensure the set requirements

were taken into consideration during the actual code

merge process. After agreeing on how to satisfy

these requirements, it paved the clear path for the

projects to merge, forming the OpenFabrics

community (OpenFabrics Alliance). Through the

OpenFabrics community, the infrastructure code for

ICEIS 2007 - International Conference on Enterprise Information Systems

644

supporting iWARP in an incremental fashion is

currently made into Linux mainline kernel.

7 SUMMARY

In summary, the success of this project really proved

that the collaboration effort among the vendors and

customers through an early participation in an open

source project for addressing the requirements

meeting most of the needs would really work. But

also, this success has set a new trend for vendors

who could use the resources much more efficiently

without having to duplicate the software effort to

enable new hardware and thus avoiding the

migration from their own proprietary stacks to an

open source stack and this further reduces the

burden on the customers in their environments. In

the future, this requirement model could easily be

applied to other emerging technologies.

ACKNOWLEDGEMENTS

We would like to thank the following folks for their

contributions to this effort: Kanoj Sarcar, Krishna

Kumar, Pradipta Kumar, Leonid Grossman, Aaron C

Brown., Caitlin Bestler, Michael Krause, Thomas

Talpey, Tom Tucker and Steve Wise.

LEGAL STATEMENT

This work represents the view of the author and

does not necessarily represent the view of IBM.

IBM and IBM (logo) are trademarks or registered

trademarks of International Business Machines.

Corporation in the United States and/or other

countries.

Linux is a registered trademark of Linus Torvalds.

Other company, product, and service names may be

trademarks or service marks of others.

REFERENCES

Grzinich, J. C.; Thompson, J H.; Sentovich, M.F.;

“Implementation of an Integrated Product

Development Process for Systems”, PICMET '97: pp:

427 -430,1997

Jeff, H; Paul, C; Jim, P; Renato, R; “RDMA Protocol

Verbs Specification (Version 1.0)”, Apr, 2003

“RNIC Programming Interface (RNICPI) Version 1.0”,

OpenGroup, Sep, 2005

“OpenFabrics Alliance”, www.openfabrics.org

A SUCCESS STORY: COLLABORATIVE EFFORT WITH THE INDUSTRY IN ADDRESSING REQUIREMENTS

CHALLENGES FOR EARLY ADOPTION OF IWARP IN LINUX

645
