Shot Boundary Detection in Football Video

Management System

Sanparith Marukatat

Image Laboratory

National Electronics and Computer Technology Center (NECTEC)

112 Thailand Science Park, Phahon Yothin Road

Pathumthani 12120, Thailand

Abstract. Today, video has become an important part in multimedia data which

is broadcasted through various networks. Shot boundary detection is a fundamen-

tal task in the video processing system. This paper presents a shot boundary de-

tection technique for football video. The detector is based on color histogram with

adaptive threshold chosen by the entropic thresholding technique. This allows de-

tecting both cut and gradual transition in the video. A special attention is taken

to identify wipes among detected gradual transitions. This system is evaluated on

more than one hour of football video. The obtained results are encouraging. An

analysis of detection errors is also presented. This can give a guideline for further

investigation of shot boundary detection.

1 Introduction

Today, video, especially sport video, has become an important part in multimedia data

which is broadcasted through various networks. With the advance in compression and

transmission techniques, user can receive more and more video data. Video manage-

ment system is then necessary to assist user in exploring their video collection. In this

paper, we are interested in football video which represent a large volume of broadcasted

sport video in many countries.

A fundamental step in every video analysis (indexing, retrieval or summarization)

is shot boundary detection. Shot is deﬁned as a group of frames which are ﬁlmed from

the same camera. The transitions between shots can be divided in two main categories:

abrupt and gradual transition. Abrupt transition, also referred to as a cut, happens when

there is a complete change of shot over two consecutive frames. This is the common

transition used in video editing process especially in live reports and in sport events.

Gradual transition happens when the change spans over a larger number of consecutive

frames. Dissolve and wipe are two types of gradual transition which are often found in

common video. During dissolve the intensity of disappearing shot gradually decreases

from normal to zero while the intensity of appearing shot increases from zero to normal.

During wipe transition, both shots coexist in different spatial regions, and the region

occupied by the appearing shot grows until it entirely replaces the other [2]. It should

be noted that in some sport event, wipe is accompanied by the logo of that event. We

Marukatat S. (2007).

Shot Boundar y Detection in Football Video Management System.

In Proceedings of the 7th International Workshop on Pattern Recognition in Information Systems, pages 207-214

DOI: 10.5220/0002421902070214

 SciTePress

will use the term logo-wipe to denote this special kind of wipe. Both wipe and logo-

wipe are usually used in transition between a normal play and a replay sequence. Hence

they can be a key indicator in event detection module. Figure 1 (a), (b), and (c) show

examples of frames during dissolve, wipe and logo-wipe respectively.

(a)

(b)

(c)

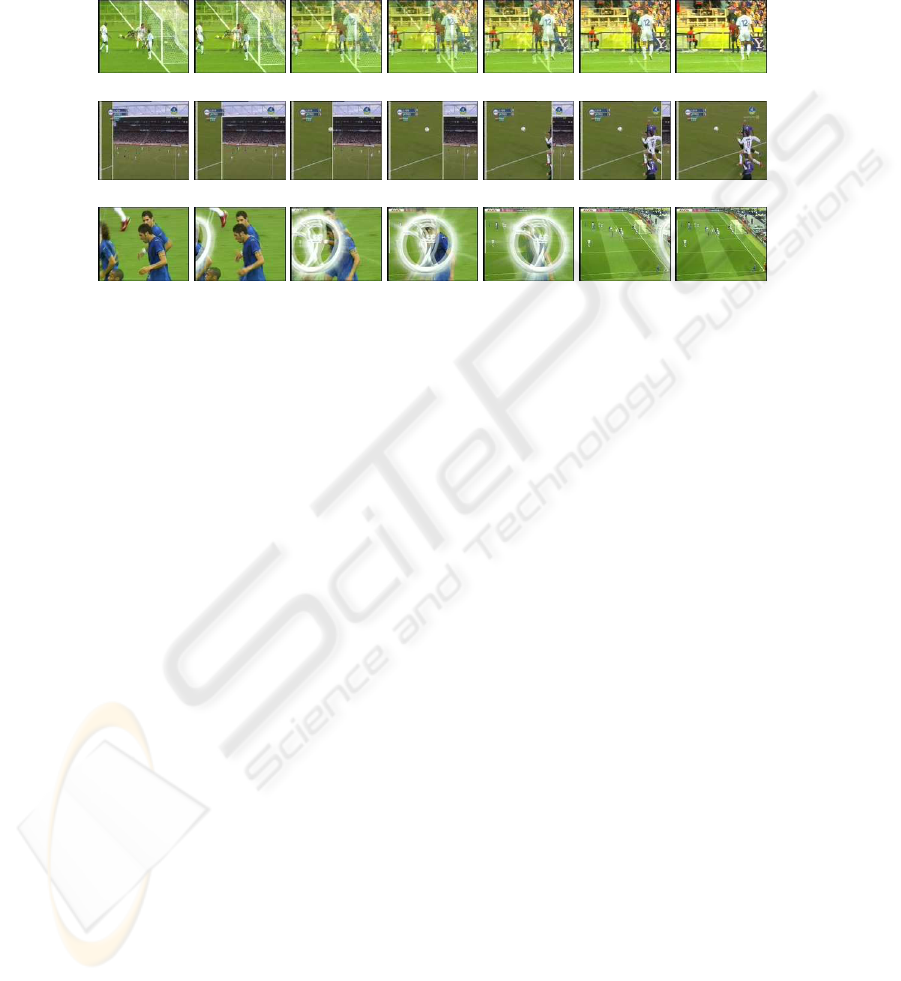

Fig.1. Examples of images during dissolve (a), wipe (b) and logo-wipe (c).

This paper deals with the detection of both cut, and gradual transition in foot-

ball video. After reviewing some related works on this subject in Section 2, Section

3 presents our shot boundary detection module. Sections 4 and 5 present our experi-

mental result and the conclusion respectively.

2 Related Works on Shot Boundary Detection

While cut can be reliably detected using some low level features (e.g. pixel, histogram,

edge, etc.) the gradual transition detection is still an open issue. Several algorithms

have been proposed to deal with gradual transition. In [12] frame differences with value

between two thresholds were accumulated and gradual transition was declared when

this accumulated score exceeded the higher threshold. In [11] the authors proposed

the so-called edge change ratio to detect cut, dissolve as well as fades transition, i.e.

dissolve toward a monochrome image (fade out) or from this monochrome image (fade

in). The authors argued that these transition effects have their characteristics in the edge

change ratio time series. In [6], the author reported that many dissolves do not show the

desired characteristics and remain undetected by this technique then proposed a similar

measure called edge based contrast. Indeed, during gradual transition, the disappearing

shot lose its contrast leading to the reduction of strong edge in favor of the weak edge.

As consequent, the authors have designed this measured to accentuate the different

between strong edge and weak edge. However, for football scene, the rare strong edges

found in the image usually correspond to the line on the ﬁeld. Therefore, this measure

can not reliably detect dissolve transition in our problem.

In [4,3,10] the authors supposed that the dissolve transition follows a simple linear

transform from the disappearing shot toward the appearing shot. Under this assumption,

208

it can be proved that the variance curve during the dissolve will have a parabola form.

The authors proposed to analyzed this variance curve in order to identify the candidate

dissolve region. Unfortunately, in our preliminary experiment, we have found that the

variance curve on football video exhibits a parabola form event on non dissolve area.

This is mainly due to motion contained in the video.

Another approach to gradual transition detection is based on machine learning tools

like SVM [9, 7, 1,8]. In these works, the authors used SVM to combine multiple fea-

tures in order to classify if a frame is part of cut or dissolve or not. In [9] the authors

used frame difference based feature along with the likelihood of current camera motion

as feature in their system. In [7] SVM was used with the so-called variance projec-

tion function features. [1] proposed an SVM-based cut detection using color histogram,

Zernike moments, Fourier-Mellin moments, projection histograms, and phase correla-

tion method features. In [8], a dozen of SVMs were used in a 2-stage classiﬁcation

system working with more than 100 features to be extracted. These techniques reached

high recalls and precisions but with large overhead on features extraction. Moreover,

for a task dependent as in our case, we believe that a more simple technique should

be adopted. In this work, we investigate the use of histogram based difference with

adaptive threshold in detecting both cut and gradual transition.

3 Proposed Shot Boundary Detection

This work is based on histogram different between frames in order to detect shot bound-

ary. Subsection 3.1 describes the features used for cut and gradual transition detection.

Subsection 3.2 describes how to choose an appropriate threshold for each video. In Sub-

section 3.3 we describe how to deal with large motion which is normally present in the

football video.

3.1 Histogram Based Frame Difference

We suppose that all transitions (both cut and gradual) happen between two shots with

different color distributions. To detect shot transition, color histogram is used to mea-

sure the difference between frames. The histogram difference between two frames F

and F

is given by:

d(F

, F

) = 1 −

W H

i=1

min {Hist(F

, i), Hist(F

, i)} (1)

where W and H are width and height of each frame, n is the total number of bins in

the histogram and Hist(F

, i) is the count associated with the bin i in the histogram of

frame F

Our cut detector relies on this histogram based difference between two consecutive

frames. For gradual transition like dissolve the difference between consecutive frame

is relatively small. Hence comparison should be done between frames a certain step

apart. As consequent, for gradual transition detection, we compute the histogram dif-

ferent between frame t + w and frame t − w, where w is the window size determined

experimentally. This skipped-frame difference is used as feature to determine if frame t

is part of gradual transition or not.

209

3.2 Entropic Thresholding

The two thresholds T

cut

and T

gradual

will be used to detect cut and dissolve respec-

tively. Finding common thresholds for every video seems not to be realistic. However,

we believe that for a single video, we can choose appropriate thresholds for cut and for

gradual transition detection. First, we notice that shot boundaries are only a small part

in a video. Therefore a large number of frames will be concentrated on low frame differ-

ence values and only a small number of frames will have high difference values. This is

similar to document binarization problem where large number of pixels is concentrated

on white value that is the background and only a small number of pixels have black

value. Entropic thresholding has been applied with success to document binarization

[5]; hence it should be able to handle this threshold selection problem as well.

The basic idea is to select the threshold which yields maximum entropy for the two

sets namely the set of values lower than this threshold and the set of values higher than

this threshold. Let P

, P

, . . . , P

be a histogram of values we considered, e.g. frame

difference or skipped-frame difference, with m bins. For each bin i we compute

low

(i) = −

j=1

log

(2)

high

(i) = −

j=i+1

1 − Q

log

1 − Q

(3)

with Q

j=1

. The entropic threshold T

ent

is chosen as the mid value of the i∗

bin given by

i∗ = arg max

i=1,...,m

low

(i) + H

high

(i)} . (4)

The threshold T

cut

is selected by applying this entropic thresholding technique on

the set of consecutive frame differences. A cut is declared whenever a consecutive frame

difference is higher than T

cut

. In analogeous manner, the threshold T

gradual

is selected

by applying this entropic thresholding technique on the set of skipped-frame differ-

ences. A gradual transition is declared whenever a skipped-frame difference is higher

than T

gradual

3.3 Filtering High Activity Areas

The skipped-frame difference can be used to detect gradual transition area but unfortu-

nately it also yields high value for sequences containing large motion or high activity.

Not only are the gradual transitions detected in these areas not reliable but also the de-

tected cuts. It is then necessary to ﬁlter out the shot boundaries detected in these areas.

Usually, the high activity areas contain higher frame difference value than normal

but of course lower than that of cut transition. A simple heuristic to detect these large

motion areas is based on another entropic threshold on frame differences. Indeed, the

frame differences which are higher than T

cut

are ﬁrst ﬁltered out. Then another entropic

threshold, denoted as T

, is selected using the remaining frame differences. The frame

t whose frame difference is higher than T

is considered as part of a high activity area.

210

High activity area is supposed to be at least 5 frames long. Cuts and gradual tran-

sitions which correspond to the change from high activity area to another high activity

area are considered as not reliable and are removed.

3.4 Wipe and Logo-transition Identiﬁcation

Usually, in normal wipe, the new shot ﬁrst appear on the left side of the screen then it

enlarge toward the right side or vice versa. Thus, if we consider the pixel-based differ-

ence between any consecutive frames in these transition areas, we should see a group

of pixels with large difference moving either from left to right or from right to left.

Figure 2 (a) and (b) show examples of the pixel-based difference during wipe and dur-

ing logo-wipe presented in Figure 1 (b) and (c) respectively. In this work, wipe is ﬁrst

detected as a gradual transition. Then for every detected gradual transition area, we use

the variation of the abscissa of the center of mass from pixel-based difference between

consecutive frames as feature to detect wipe.

(a)

(b)

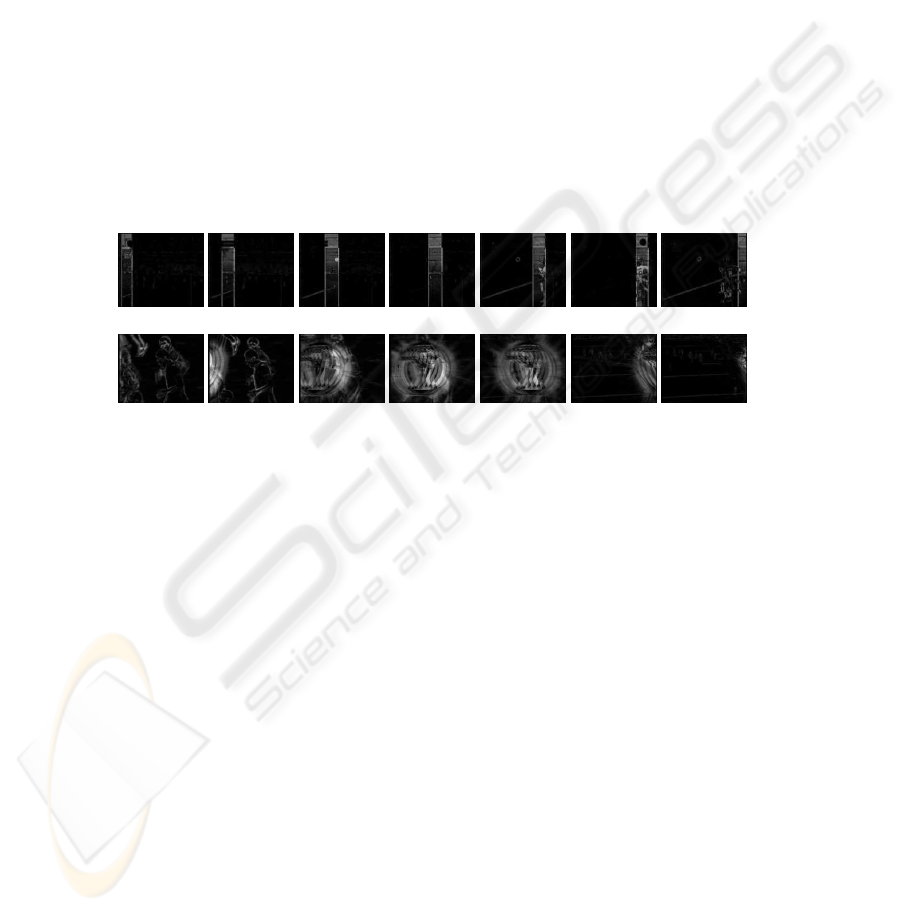

Fig.2. Examples of pixel-based difference during wipe (a) and logo-wipe (b) presented in Figure

1 (b) and (c) respectively.

4 Experiments

Five football videos were used in these experiments. The ﬁrst and second videos are

from the match between France and Italy in ﬁnal FIFA world cup 2006 in DVD quality.

The ﬁrst one is the debut of the match including scenes of players entering the stadium

and singing the national anthems. The second one is during the match play including

the goal scene. The other 3 videos are recorded from TV broadcasting in lower quality.

These 3 videos correspond to 3 different matches in different stadiums, thus present

different ﬁeld colors, different crowds, as well as different commercial boards along

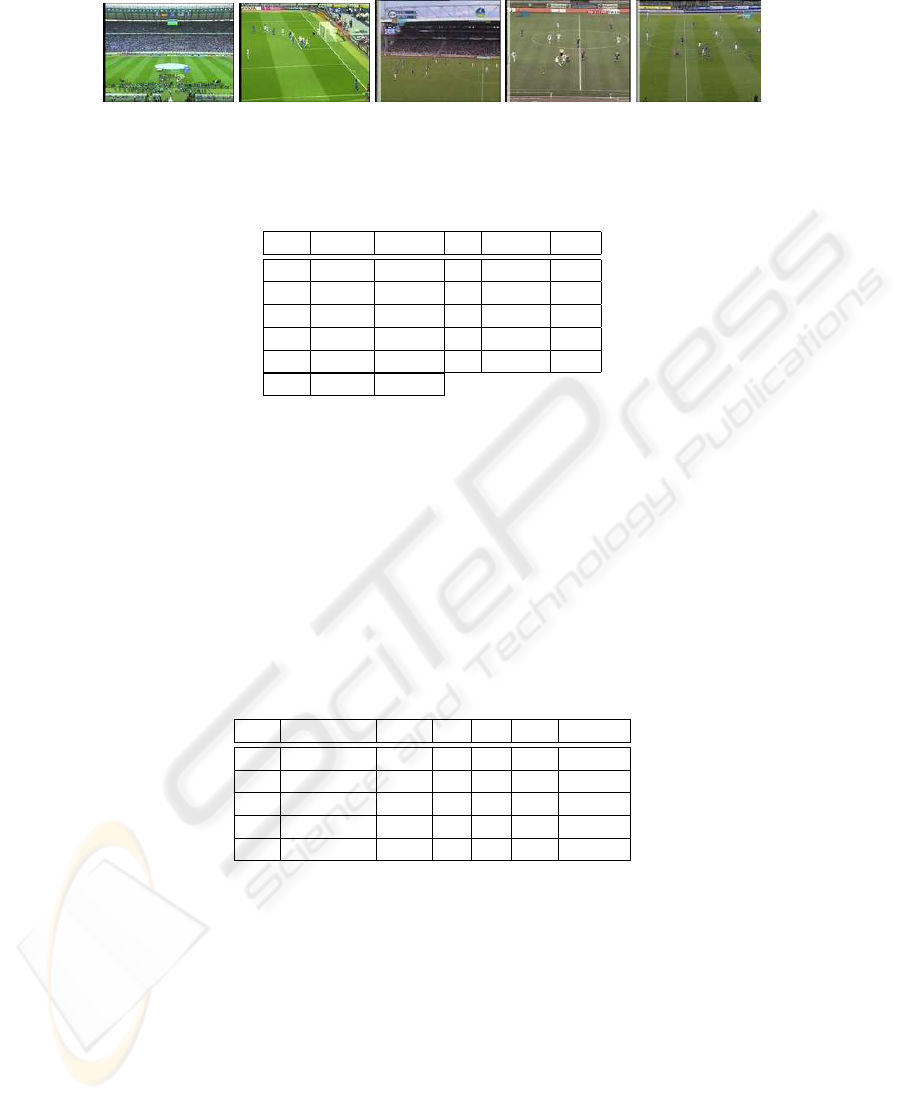

the ﬁeld. Figure 3 present examples of image from these 5 videos. The shot boundaries

in these videos are manually labeled. The Table 1 summarizes the statistics of these 5

videos.

For these experiments, RGB colors pace was used with 8x8x8 bins histogram. The

window of 5 frames was used to compute the skipped frame difference. In these exper-

iments, all video images were ﬁrst resize to 180x120 before computing the histogram.

211

(1) (2) (3) (4) (5)

Fig.3. Examples of images from ﬁve videos.

Table 1. Number of frames and duration in videos used in these experiments.

video #frames duration #cut #gradual #wipe

1 40268 00:14:12 93 112 26

2 40306 00:14:12 200 60 30

3 32816 00:21:36 233 28 24

4 22055 00:14:31 63 30 0

5 21896 00:14:25 100 29 0

total 157341 01:18:56

To evaluate the performance of our system, we measure the classical recall and

precision for both detected cut and gradual transition. In this work, a detected gradual

is considered as correct if it overlaps at least 10% with a true gradual transition segment.

Tables 2 and 3 present the result of cut and gradual transition detection from ﬁve

videos. From these results, we may see that the cut detection can be done with average

recall up to 95.7% while having the average precision of 96.3%. This is encouraging re-

sults compared to the performance of cut detection reported in other works. For gradual

transition, lower recall and precision were obtained, i.e. 86.9% and 61.4% respectively.

Table 2. Cut detection results.

video ground truth correct miss false recall precision

1 93 92 1 1 98.92 98.92

2 200 192 8 0 96 100

3 233 229 4 2 98.28 99.13

4 63 60 3 5 95.24 92.31

5 100 90 10 9 90 90.91

While the gradual transition’s recall was acceptable, the obtained precision was too

low. In order to get better idea about the behavior of the system, we analyzed the video

5 where the lowest precision was obtained. The principal error in video 5 occured when

the camera followed some player who walked pass different backgrounds. In this case,

the color distribution in the image slowly changes just like during dissolve. The second

types of error happened in close up shots when the focused player was occluded by

some other player. This will cause similar effect as a wipe. Figure 4 (a) and (b) show

some examples of these two principal causes of error.

212

Table 3. Gradual transition detection results.

video ground truth correct miss false recall precision

1 112 108 14 18 88.52 85.71

2 60 50 10 41 83.33 54.95

3 28 26 2 20 92.86 56.52

4 30 25 5 14 83.33 64.1

5 29 25 4 30 86.21 45.45

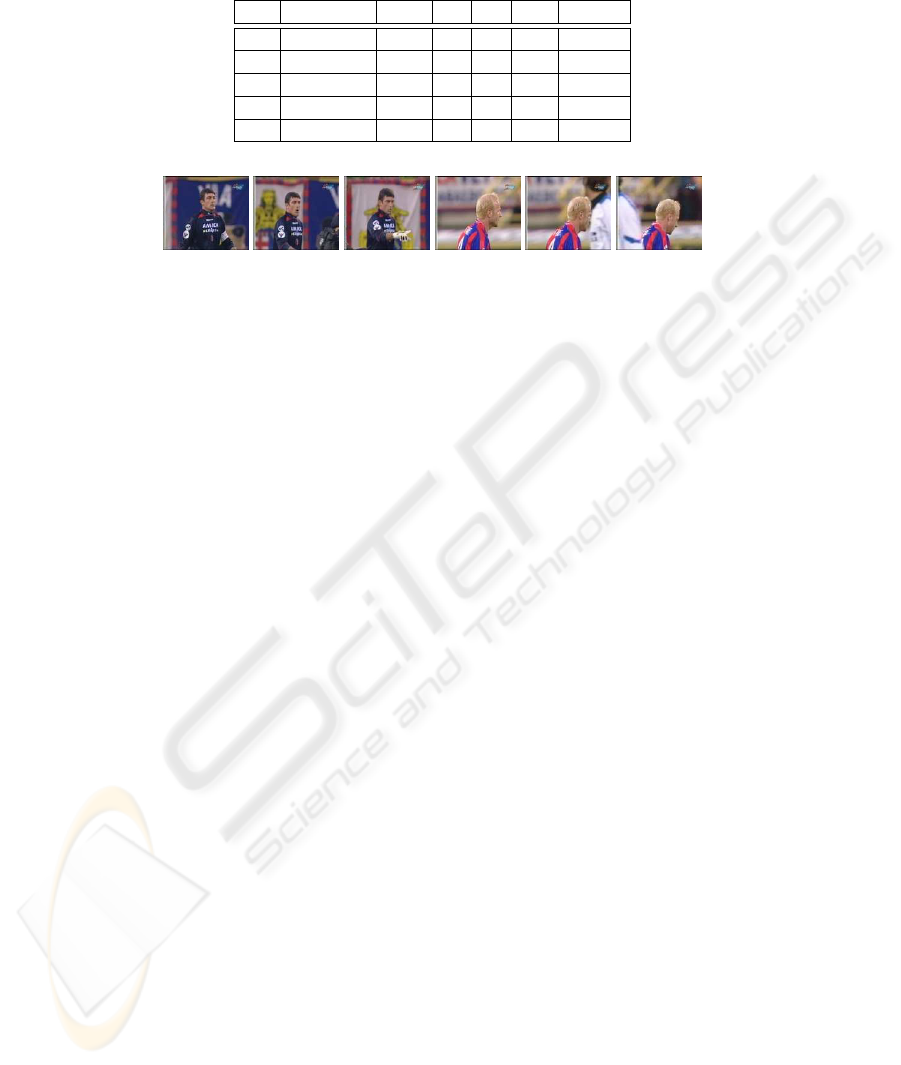

(a) (b)

Fig.4. Examples of two principal errors that happens in video 5.

For wipe identiﬁcation, we obtained 96.15%, 91.67% and 56.52% from videos 1,

2, and 3 respectively. The ﬁrst two videos 1 and 2 used logo-wipe instead of normal

wipe. As the size of logo was fairly large, the detection task was made easier. For video

3 where usual wipe was used, the identiﬁcation fail especially when the wipe was used

between shots containing high motion. We believe that the proposed wipe identiﬁcation

technique can be modiﬁed to better handle the normal wipe transition.

5 Conclusion and Future Works

This paper presents our shot boundary detection system for football video. The color

histogram is used with automatically selected thresholds by the entropic thresholding

method. This system reaches a good recall and precision for cut. For gradual transition,

moderate recall and precision are obtained. This is due to some errors which frequently

happen in close up shots. Our future works will include mechanism to deal with these

errors.

References

1. G. Camara-Chavez, M. Cord, S. Philipp-Foliguet, F. Precioso, and A. de Albu-

querque Araújo. Robust scene cut detection by supervised learning. In EUSIPCO, Firenze,

Italy, 2006.

2. C. Cotsaces, N. Nikolaidis, and I. Pitas. Video shot detection and condensed representation.

IEEE Signal Processing Magazine, pages 28–37, March 2006.

3. W. A. C. Fernando, C. N. Canagarajah, and D. R. Bull. Fade and dissolve detection in

uncompressed and compressed video sequences. In Proceedings of the 1999 International

Conference on Image Processing (ICIP ’99), volume III. IEEE Computer Society, 1999.

4. A. Hampapur, R. Jain, and T.E. Weymouth. Production model based video segmentation.

Multimedia Tools and Applications, 1(1), 1995.

213

5. J. N. Kapur, P. K. Sahoo, and A. K. C. Wong. A new method of gray-level picture threshold-

ing using the entropy of the histogram. Computer Vision, Graphics, and Image Processing,

29:273–285, 1985.

6. Rainer Lienhart. Comparison of automatic shot boundary detection algorithms. In Image

and Video Processing VII 1999, Proc. SPIE, 1999.

7. J. Ling, Y.-Q. Lian, and Y.-T. Zhuang. A new method for shot gradual transition detection

using support vector machine. In Proceedings of the Fourth International Conference on

Machine Learning and Cybernatics, pages 5599–5604, 2005.

8. K. Matsumoto, M. Naito, K. Hoashi, and F. Sugaya. Svm-based shot boundary detection with

a novel feature. In Proceedings of the Fifth International Conference on Machine Learning

and Cybernatics, pages 1837–1840, 2006.

9. Y. Qi, A. Hauptmann, and T. Liu. Supervised classiﬁcation for video shot segmentation. In

IEEE Conference on Multimedia & Expo (ICME’03), 2003.

10. Jing-Un Won, Yun-Su Chung, In-Soo Kim, Jae-Gark Choi, and Kil-Houm Park. Correlation

based video-dissolve detection. In Proceedings of the International Conference on Informa-

tion Technology: Research and Education (ITRE), pages 104– 107, August 2003.

11. R. Zabih, J. Miller, and K. Mai. A feature-based algorithm for detecting and classifying

production effects. Multimedia Systems, 7(2):119–128, 1999.

12. H. J. Zhang, A. Kankanhalli, and S. W. Smoliar. Automatic partitioning of full-motion video.

Multimedia Systems, 1(1):10–28, 1993.

214
