A Specification and Validation Approach for Business

Process Integration based on Web Services and Agents

Djamel Benmerzoug

, Mahmoud Boufaida

and Fabrice Kordon

LIRE Laboratory, Computer Science Department

Mentouri University of Constantine 25000, Algeria

LIP6 Laboratory, Pierre et arie Curie University

4, place Jussieu, 75252 Paris Cedex 05 France

Abstract. In this paper, we present a new approach for business processes inte-

gration. Our approach is based on interaction protocols that enable autonomous,

distributed business process modules to integrate and collaborate. In our case,

the business processes integration is modelled using AUML and specified using

BPEL4WS. Furthermore and to increase the reliability of interaction protocols

at design time, our approach presented in this paper can validate the BPEL4WS

specification with business constraints (specified by means of OCL). The vali-

dated BPEL4WS specification is considered as a specification language for ex-

pressing the interaction protocols of the multi-agents system, which can then

intelligently adapt to changing environmental conditions.

1 Introduction

Business Processes Integration (BPI) is a key technology for business to business

collaborations. Nowadays many enterprises have automated their internal business

processes with workflow technologies. They have now a new challenge: the automa-

tion of their collaborations with partner enterprises, in open and very dynamic envi-

ronments, to accelerate their business in a cost-effective manner. Web Services (WS)

are a promising technology to support these type of collaborations [1]. WS are an

XML-based middleware technology that provides RPC-like remote communication,

using in most cases SOAP over HTTP.

Heterogeneity, distribution, openness, highly dynamic interaction, are some

among the key characteristics of another emerging technology, that of intelligent

agents and Multi-Agent Systems (MASs). WS and intelligent software agents share

many common features, and this suggests that some relationship between the two

technologies should exist. Actually, the most recent literature in the agents' field de-

votes much space to these relationships [2].

This paper present a new approach based on WS and agents for integrating busi-

ness process. The used approach is based on interaction protocols that enable

autonomous, distributed business process management modules to integrate and col-

laborate. In order to reach an implicit consensus about the possible states and actions

Benmerzoug D., Boufaida M. and Kordon F. (2007).

A Speciﬁcation and Validation Approach for Business Process Integration based on Web Services and Agents.

In Proceedings of the 5th International Workshop on Modelling, Simulation, Veriﬁcation and Validation of Enterprise Information Systems, pages

163-168

DOI: 10.5220/0002424301630168

 SciTePress

in an interaction protocol, it is necessary for the protocol itself to be correct. Indeed

and to increase the reliability of interactions protocol at design time, we have devel-

oped an approach for the specification and the validation of BPI. In our case, the BPI

is modelled using AUML (Agent UML) [7] and specified using BPEL4WS (Business

Process Execution Language for Web Services) [8]. We then use this precise specifi-

cation to generate a validation tool that can check that a BPEL4WS document is well-

formed (that is the BPEL4WS preserving the business constraints).

In the next section we briefly introduce our approach. Sections 3 and 4 discuss our

approach to engineering interaction protocols exploiting AUML/OCL for the model-

ling stage, and BPEL4WS for the specification stage. Section 5 gives a short descrip-

tion on how the BPEL4WS specifications can be validated. Our conclusion and future

work are described in the final section.

2 An Overview of the Proposed Approach

BPI modelling and reengineering have been longstanding activities in many compa-

nies in recent years. Most internal processes have been streamlined and optimized,

whereas the external processes have only recently become the focus of business ana-

lysts and IT middleware providers. The static integration of inter-enterprise processes

as common in past years can no longer meet the new requirements of customer orien-

tation, flexibility and dynamics of cooperation [4].

In this paper, we consider two type of business processes, the private business

processes and the public business ones. The first type is considered as the set of proc-

esses of the company itself and they are managed in an autonomous way. Private

processes are supported within companies using traditional Workflow Management

Systems, Enterprise Resources Planning systems or proprietary systems. These sys-

tems were intended to serve local needs. In other hand, public business processes

span organizational boundaries. They belong to the companies involved in a B2B

relationship and have to be agreed and jointly managed by the partners.

The B2B integration scenarios typically involve distributed business processes

that are autonomous to some degree. Companies participating in this scenario pub-

lishes and implements a public process. The applications integration based on public

process is not a new approach. The current models for BPI are based on process flow

graphs [4], [5], [6]. A process flow graph is used to represent the public process. This

approach lacks the flexibility to support dynamic B2B integration. In contrast, our

approach (figure 1) presents an incremental, open-ended, dynamic, and personaliz-

able model for B2B integration.

We have previously developed an agent-based method for developing cooperative

enterprises information systems [10]. This method permits to explicitly mapping the

business process into software agents. In this paper, we describe the use of interaction

protocols to define and manage public processes in B2B relationships. This process is

modelled using AUML [7] and specified using BPEL4WS [8]. The use of interaction

protocols to define public processes enable a greater autonomy of companies because

164

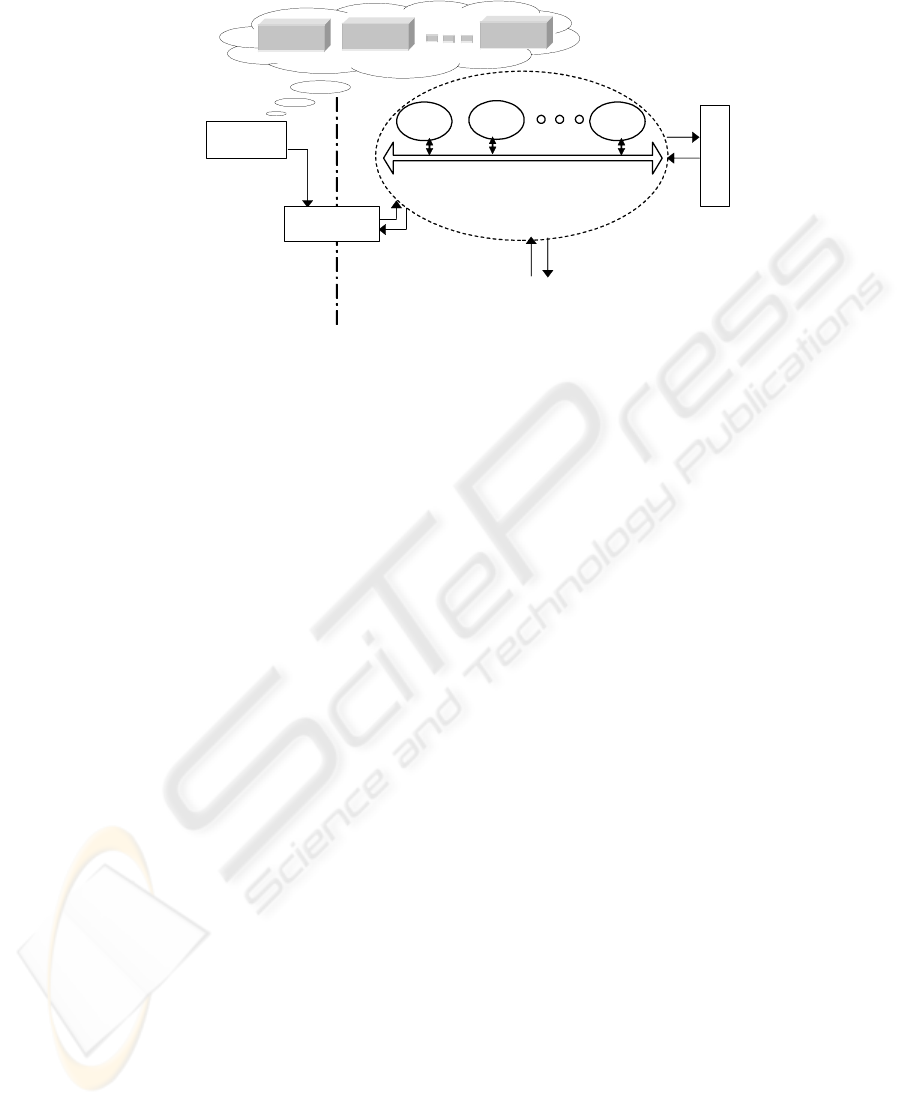

Fig. 1. The Proposed Approach.

each company hides its internal activities, services and decisions required to support

public processes. In this way, the interaction protocols provide a high abstraction

level in the modelling of public processes. The AUML model is mapped to a

BPEL4WS specification, which represents the initial social order upon a collection of

agents (figure 1). Since BPEL4WS describes the relationships between the WS in the

public process, agents representing the WS would know their relationships a priori.

Notably, the relationships between the WS in the public process are embedded in the

process logic of the BPEL4WS specification. This relationships entails consistency

problems, which can best be solved at the level of models. We then use this precise

specification to generate a validation tool that can check that a BPEL4WS document

is well-formed (the BPEL4WS preserves the business constraints).

3 Modelling Public Business Processes with Interaction Protocols

Interaction Protocols have been used in the area of multi-agent systems to represent

interactions among agents [7]. In the context of B2B relationships, an interaction

protocol allows to model and manage the interactions among the enterprises involved

in a B2B relationship. These interactions represent public business processes that the

enterprises agreed on the collaboration. The main objective of interaction protocols is

to abstract public processes from the services to be invoked within each enterprise for

executing the internal activities supporting public processes [2]. In AUML, we can

define an interaction protocol through a protocol diagram, which is an extension of

the sequence diagram of UML. Roles are represented by a rectangular box indicating

the company that performs the role. Role lifeline defines the time period during which

the company participates in the protocol. The lifeline may split up into two or more

lifelines, using logical connectors, to show AND and OR parallelism and decisions,

corresponding to the branches on the incoming message flow.

<SOAP>

AUML/OCL

model

Petri net

FIPA compliant Agent

Mana

ement S

stem

Agent

Mathematical methods for

evaluation of Petri nets

Design

Space

Implementation

Space

Other MAS Application

Company

BPEL4WS

ecification

Web Services

165

In our approach, initial requirements permit to capture dependencies between dif-

ferent roles in different private business processes (possibly other public business

process). This dependencies are detailed using protocol diagrams.

The only use of modelling languages (like AUML) is not sufficient, since it miss-

ing adequate means to specify constraints over the dynamic behavior of an AUML

model. However, it is essential to support the definition of business rules constraints

already in the early phases of development in order to specify correct system behavior

over time. Facing this problem, the Object Constraint Language (OCL) [9] provides

the chance to explicitly and automatically deal with business constraints when build-

ing agent-based applications. The reason for using OCL is that offers a textual means

to enhance AUML diagrams, offering formal precision in combination with high

expressiveness.

The definition of a business process constraints is nothing else then a constraint

on the interaction diagrams of the AUML-based public business process. In our case,

we used OCL to define the preconditions and postconditions for our interaction pro-

tocols defined previously. The precondition captures necessary and sufficient condi-

tions that determine when a constraint is applicable. The postcondition describes the

intended update to the model, that is, the effect of the messages exchange. In the case

of defining the business process constraints, we specify the corresponding business

interaction protocol after the OCL keyword context and followed by the keyword

inv for invariants.

4 From an AUML Model to a BPEL4WS Specification

BPEL4WS represents the merger of two process description language, IBM's Web

Services Flow Language (WSFL) and Microsoft's XLANG. It provides both graph-

based and block-based control structures, making it capable of representing a wide

range of control flows. This merger has created the market consolidation necessary to

make BPEL4WS the de facto standard for expressing BPI consisting of WS.

BPEL4WS can be used to describe executable business processes and abstract proc-

esses. Abstract processes are used to create behavioral specifications consisting of the

mutually visible messages exchanged between transacting parties executing a busi-

ness protocol.

In our case, a BPEL4WS specification describes a public business process by stat-

ing whom the participants are, what services they must implement in order to belong

to the public business process, and the control flow of the public process. for exam-

ple, the <partners> section defines the different parts that participate in the public

process. Each partner is given a service link type and the role it will perform as part

of the service link. The <variables> section defines the variables used by the process.

The process definition of the public process occurs after the fault handlers section and

before the close process tag. A public business process is defined using BPEL4WS

activity constructs (sequence, flow, while, switch,…etc).

Many of the features that characterize BPEL4WS abstract processes, make it very

suitable to represent interaction protocols and correspond in a prettyprecise way to

166

those that characterize AUML. Table 1 describes the ideas behind the automatic

translator from AUML to BPEL4WS.

Table 1. The AUML/BPEL4WS Mapping Overview.

AUML BPEL4WS

Roles

partners

sequence

sequence

AND-split

flow

OR-split 

switch

XOR-split

if

Iteration

while

Message

invoke, receiveand reply

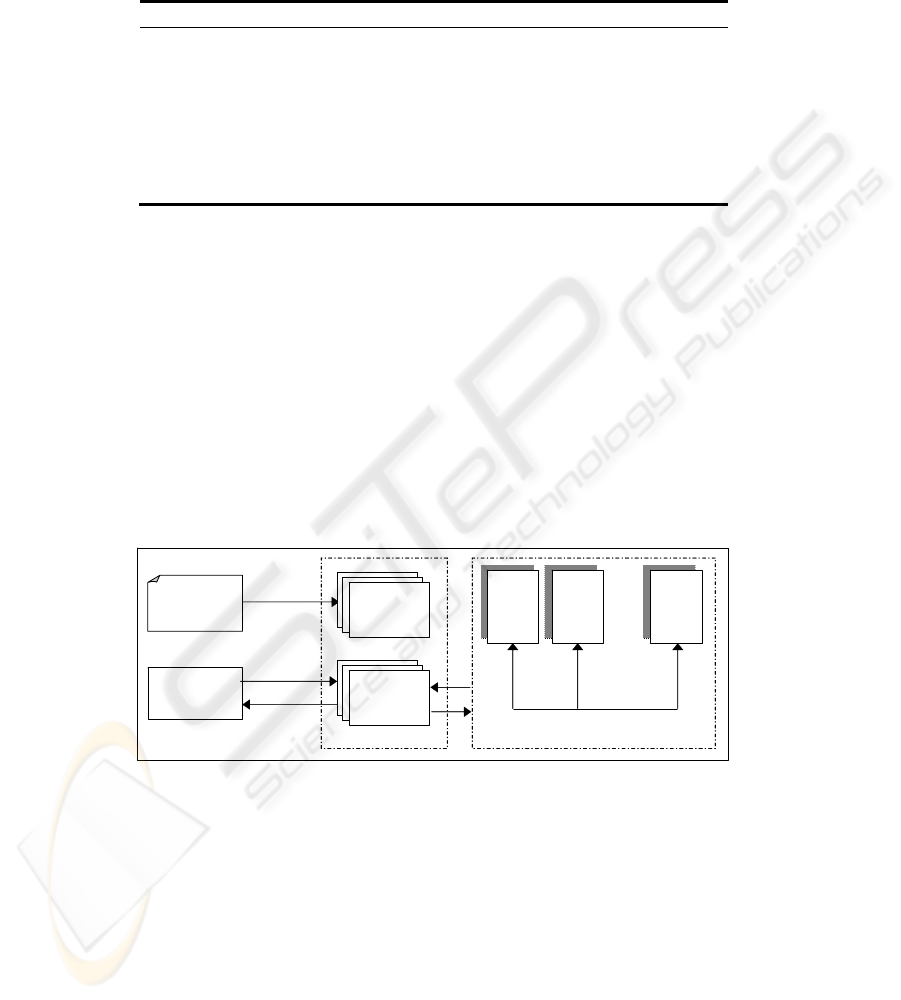

5 Generating a BPEL4WS Validator

As we already have said before, the BPEL4WS process specification is considered as

a specifying language to express the interaction protocol of the multi-agents system.

In order to reach an implicit consensus about the possible states and actions in an

interaction protocol, it is necessary for the protocol itself to be correct. We believe

that from the point of view of efficient integration of business process, there are two

key issues: (1) a precise and intuitive way to integration conversation partner into an

interaction protocol (the combination of AUML/OCL model); (2) the ability to simu-

late the interaction protocol is a helpful addition to formal validation and verification

(the verification stage is not described in this paper).

marshal

unmarshal

Interaction

Protocols as

BPEL4WS

Validator

JAXB

FIPA compliant Agent

Management System

Business

constraints as

OCL

Agent 1 Agent 2 Agent n

ACL Message

Java

classes

Derived

Java

classes

Fig. 2. Validation of the BPEL4WS Specification.

A set of AUML interaction diagrams are created to model the public business

process, where business constraints are specified in OCL. We then use this precise

specification to generate a Validation tool that can check that a BPEL4WS document

is well-formed (the BPEL4WS preserves the business constraints). A model con-

straint that fails would indicate an invalid combination of BPEL constructs.

In this research, we exploit the Sun Microsystem Web Services Developer Pack

[11]. In particular, we use the JAXB (Java Architecture for XML Binding) library to

167

build Java classes from an BPEL4WS specification. Our validation tools permits the

combination of code generation from BPEL4WS specification and code generation

from constraints; with the resulting code facilitating the validation of the constraints

against instances of the specification. In particular, the BPEL4WS code and the con-

straint code are generated separately (see figure 2).

6 Conclusion

In this paper, we presented an approach to modelling, specification and validation of

BPI. Our approach is based on interaction protocols where the autonomy of the par-

ticipants must be preserved. Indeed, the BPI is modelled using AUML and specified

using BPEL4WS. Our approach presented in this paper can validate the BPEL4WS

with the business constraints through the BPEL4WS validator. The validated

BPEL4WS specification is considered as a specification language for expressing the

interaction protocol of the multi-agents system.

Our primary future work direction is certainly the exploitation of BPEL4WS fea-

tures to publishing the protocols specification on the Web and we will describe how

the MAS can use the verified and the validated BPEL4WS specification to establish

the BPI.

References

1. Jae-yoon Jung, W.H., Kang, S.H.: Business Process Choreography for B2B Collaboration.

IEEE Internet Computing (2004) 37-45

2. Luck, M., McBurney, P., Shehory, O., Willmott, S.: Agent Technology: Computing as

Interaction - A Roadmap for Agent-Based Computing. AgentLink III, (2005)

3. Koehler, J., Tirenni, G., Kumaran, S.: From Business Process Model to Consistent Imple-

mentation: A Case for Formal Verification Methods. 6

International Enterprise Distrib-

uted Object Computing Conference. IEEE Computer Society (2002)

4. Peregrine B2B Integration Platform, www.peregrine.com

5. WebMethods B2Bi www.webmethods.com.

6. Vitria Business Ware. www.vitria.com.

7. Huget, M., Odell, J.: Representing agent interaction protocols with agent UML. In 3rd

International Joint Conference on Autonomous Agents and Multiagent Systems. IEEE

Computer Society (2004) 1244-1245

8. Business Process Execution Language for Web Services Version 1.1, 05 May 2003.

http://www-106.ibm.com/developerworks/

9. OMG; Object Constraint Language Specification; http://www.omg.org/cgi-bin/doc?

formal/03-03-13

10. Benmerzoug, D., Boufaida, Z., Boufaida, M.: From the Analysis of Cooperation Within

Organizational Environments to the Design of Cooperative Information Systems: An

Agent-Based Approach. R. Meersman et al. (Eds.): OTM Workshops 2004, LNCS

Springer-Verlag, (2004) 496-506

11. Sun Microsystems. Java Web Services Development Pack 1.1.

http://java.sun.com/webservices/webservicespack.html/, (2006).

168
