Recognition of Human Movements Using Hidden

Markov Models - An Application to Visual Speech

Recognition

Wai Chee Yau

, Dinesh Kant Kumar

and Hans Weghorn

School of Electrical and Computer Engineering, RMIT University

GPO Box 2476V, Melbourne, Victoria 3001, Australia

Information Technology, BA-University of Cooperative Education

Stuttgart, Germany

Abstract. This paper presents a novel approach for recognition of lower facial

movements using motion features and hidden Markov models (HMM) for visual

speech recognition applications. The proposed technique recognizes utterances

based on mouth videos without using the acoustic signals. This paper adopts

a visual speech model that divides utterances into sequences of smallest, visu-

ally distinguishable units known as visemes. The proposed technique uses the

viseme model of Moving Picture Experts Group 4 (MPEG-4) standard. The facial

movements in the video data are represented using 2D spatial-temporal templates

(STT). The proposed technique combines discrete stationary wavelet transform

(SWT) and Zernike moments to extract rotation invariant features from the STTs.

Continuous HMM are used as speech classiﬁer to model the English visemes.

The preliminary results demonstrate that the proposed technique is suitable for

classiﬁcation of visemes with a good accuracy.

1 Introduction

Machine analysis of human motion is a growing research area with vast potential appli-

cations. The classiﬁcation of human movements is challenging due to complex motion

patterns of the human body [17]. Human movements are very diversiﬁed ranging from

running to more subtle motions such as the facial movements while speaking. Identiﬁ-

cation of facial movements is an important aspect in recognition of utterances. Speech-

based systems are emerging as attractive interfaces that provide the ﬂexibility for users

to control machines using speech.

In spite of the advancements in speech technology, speech recognition systems has

yet to be used as mainstream human-computer interfaces (HCI). The difﬁculty of audio

speech recognition systems is the sensitivity of such systems to changes in acoustic

conditions. The performance of such systems degrades drastically when the acoustic

signal strength is low, or in situations with high ambient noise levels [21]. To overcome

this limitation, the non-acoustic modalities are used. Possible methods are such as visual

[21], recording of vocal cords movements [5] and recording of facial muscle activity

Chee Yau W., Kant Kumar D. and Weghorn H. (2007).

Recognition of Human Movements Using Hidden Markov Models - An Application to Visual Speech Recognition.

In Proceedings of the 7th International Workshop on Pattern Recognition in Information Systems, pages 151-160

DOI: 10.5220/0002424901510160

 SciTePress

[2]. The vision-based techniques are more desirable options as such techniques are non

intrusive and do not require placement of sensors on the speaker.

Research where audio visual speech recognition (AVSR) systems are being made

more robust, and able to recognize complex speech patterns are being reported [21,

10]. While AVSR systems are useful for applications such as for telephony in noisy

environment, such systems are not suitable for people with speech impairment. AVSR

systems are also not useful when it is essential to maintain silence. The need for visual-

only, voice-less communication systems arises. Such systems are also known as visual

speech recognition (VSR) systems.

The design of a typical pattern recognition system would involve three stages : 1)

data acquisition and preprocessing, 2)data representation and, 3) decision making [11].

Similarly, the design of a VSR system consists of the recording and preprocessing of

video, extraction of visual speech features and a speech classiﬁer. The visual speech

features represent the movements of the speech articulators such as the lips and jaw.

The advantages of VSR system are : (i) not affected by audio noise (ii) not affected by

change in acoustic conditions (iii) does not require the user to make a sound. The visual

cues contain far less classiﬁcation power for speech compared to audio data [21] and

hence it is to be expected that VSR systems would have a small vocabulary.

Visual features proposed in the literature can be categorized into shape-based, pixel-

based and motion-based features. The shape-based features rely on the shape of the

mouth. The ﬁrst VSR system was developed by Petajan [20] using shape-based features

such as height and width of the mouth. Researchers have reported on the use of artiﬁcial

markers on speaker’s face to extract the lip contours [12, 1]. The use of artiﬁcial markers

is not suitable for practical speech-based HCI applications. VSR systems that use pixel-

based features assume that the pixel values around the mouth area contain salient speech

information [14,21].

Pixel-based and shape-based features extractedfrom static frames and can be viewed

as static features. Such features attempt to model visual speech through the different

static poses of the mouth in frames of the video. Features that directly utilize the dynam-

ics of speech are the motion-based features. Few researchers have focused on motion-

based features for VSR. The dynamics of the visual speech is important in the design

and selection of visual features [22]. Goldschen et. al. [8] demonstrates that dynamic

visual features are most discriminative when comparing static and motion features. One

of the early motion features are based on the optical ﬂow analysis [19]. Image subtrac-

tion techniques are used to extract motion-based features for visual speech recognition

in [24]. Motion feature based on image subtraction are demonstrated to outperform

optical ﬂow analysis method [9]. This paper proposes a novel VSR technique based

on motion features extracted using spatial-temporal templates (STT) to represent the

dynamics of visual speech. STT are grayscale images that contain both spatial and tem-

poral information of the motion in the video data. This paper proposes a system where

the camera is attached in place of the microphone to the commonly available head-sets.

The advantage of this is that it is no longer required to identify the region of interest,

reducing the computation required. This paper reports on the use of wavelet transform

and Zernike moments to extract rotation invariant features from the STT and hidden

Markov models (HMM) to classify the features.

152

2 Background

2.1 Visual Speech Model

Speech can be organized as sequences of contiguous speech sounds known as phonemes.

Visemes are the atomic units of visual movements associated with phonemes. This pa-

per proposes the use of visemes to model visual speech. The motivation of using viseme

as the recognition unit is because visemes can be concatenated to form words and sen-

tences, thus providing the ﬂexibility to increase the vocabulary of the system. The total

number of visemes is much less than phonemes as speech is only partially visible [10].

While the video of the speaker’s face shows the movement of the lips and jaw, the

movements of other articulators such as tongue and glottis are often not visible. The

articulation of different speech sounds (such as /p/ and /b/) may be associated with

identical facial movements. Each viseme may corresponds to more than one phoneme,

resulting in a many-to-one mapping of phonemes-to-visemes. It is difﬁcult to differen-

tiate phonemes with identical facial motions based solely on the visual speech signals

and hence other information from other sensory components is required to disambiguate

these phonemes.

There is no deﬁnite consensus about how the sets of visemes in English is consti-

tuted [10]. The number of visemes for English varies depending on factors such as the

geographical location, culture, education background and age of the speaker. The geo-

graphic differences in English is most obvious where the sets of phonemes and visemes

changes for different countries and even for areas within the same country. This pa-

per adopts a viseme model established for facial animation applications by an interna-

tional audiovisual object-based video representation standard known as MPEG-4. This

model is selected to enable the proposed VSR system to be easily coupled with any

MPEG-4 supported facial animation or speech synthesis systems to form an interactive

speech-based HCI. Based on the MPEG-4 viseme model shown in Table 1, the English

phonemes can be grouped into 14 visemes.

2.2 Motion Segmentation

This proposed technique adopts a motion segmentation approach based on spatial-

temporal templates (STT) to extract the lower facial movements from the video data.

STT are grayscale images that show where and when facial movements occurs in the

video [3]. The spatial information of the motion is encoded in the pixel coordinates of

the STT whereas the temporal information of the facial movements are implicitly rep-

resented by the intensity values of the pixels that varies linearly with the recency of the

lower facial motion [26].

STT are generated by using accumulative image difference approach. Image sub-

traction is applied on the video of the speaker by subtracting the intensity values be-

tween successive frames to generate the difference of frames (DOF). The DOFs are

binarised using an optimum threshold value, a that is determined through experimenta-

tion. The delimiters for the start and stop of the motion are manually inserted into the

image sequence of every articulation. The intensity value of the STT at pixel location

153

Table 1. Viseme model of the MPEG-4 standard for English phonemes.

Viseme Number Corresponding Phonemes

1 p, b, m

2 f,v

3 T , D

4 t , d

5 k, g

6 tS, dZ, S

7 s , z

8 n , l

9 r

10 A:

11 e

12 I

13 Q

14 U

(x, y) of t

frame is deﬁned by

ST T

(x, y) = max

N−1

[

t=1

(x, y) × t (1)

where N is the total number of frames of the mouth video. B

(x, y) represents the

binarised version of the DOF of frame t. In Eq. 1, B

(x, y) is multiplied with a linear

ramp of time to implicitly encode the temporal information of the motion into the STT.

By computing the STT values for all the pixels coordinates (x, y) of the image sequence

using Eq. 1 will produce a grayscale image (STT) where the brightness of the pixels

indicates the recency of motion in the image sequence. Figure 1 illustrates the STTs of

fourteen visemes used in the experiments.

This motivation of using STT to segment the facial movements is because of the

ability of STT to remove static elements and preserve the short duration facial move-

ments in the video data. The STT approach is computationally inexpensive. Also, STT

is insensitive to the speaker’s skin color due to the image subtraction process. The speed

of phonation of the speaker might vary for each repetition of the same phone. The vari-

ation in the speed of utterance results in the variation of the overall duration and there

maybe variations in the micro phases of the utterances. The details of such variations

are difﬁcult to model due to the large inter-experiment variations. This paper suggests a

model to approximate such variations by normalizing the overall duration of the utter-

ance. This is achieved by normalizing the intensity values of the STT to in between 0

and 1.

STT is a view sensitive motion representation technique. STT generated from the

sequence of images is dependent on factors such as position, orientation and distance

of the speaker’s mouth from the camera. Also STT is affected by small variations of

the mouth movements while articulating the same phone. This paper proposes the use

154

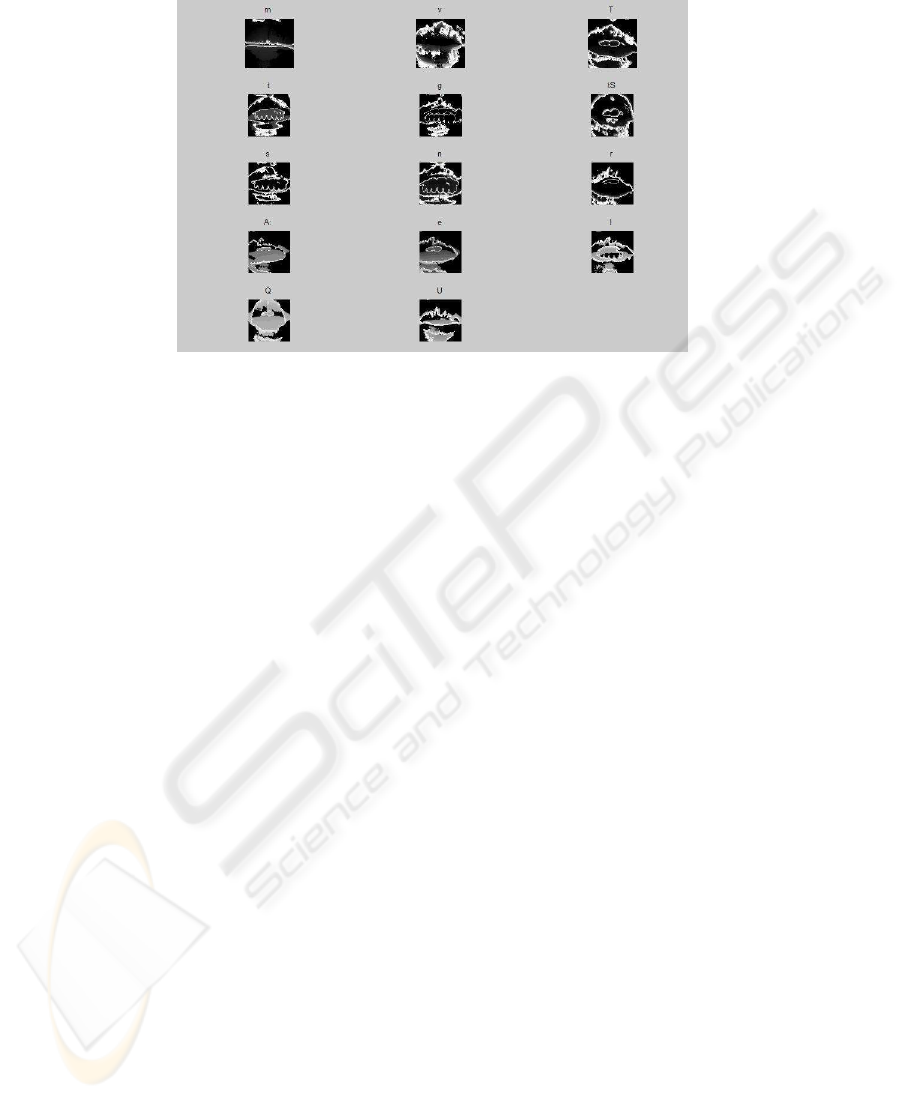

Fig.1. Spatial-temporal templates (STT) of fourteen visemes based on the viseme model of

MPEG-4 standard.

of approximate image of discrete stationary wavelet transform (SWT) to obtain a time-

frequency representation of the STT that is insensitive to small variations of the facial

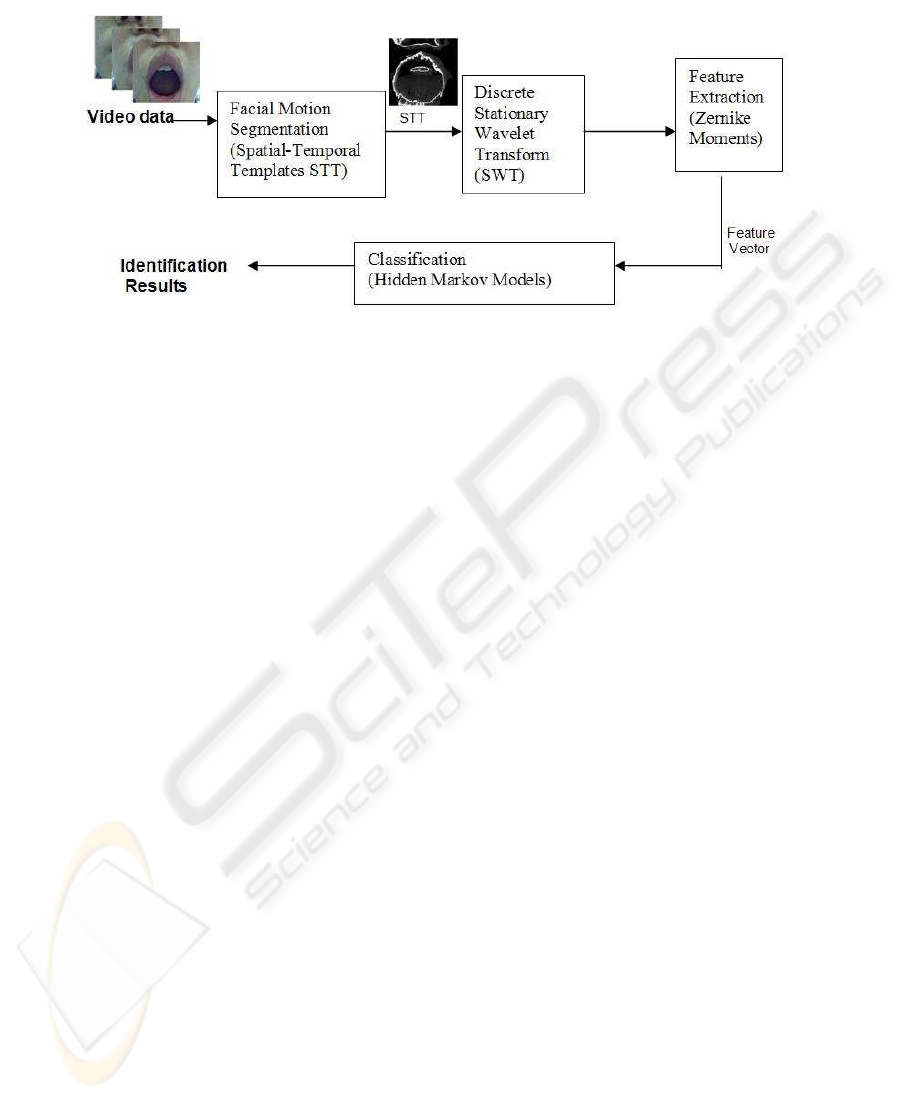

movements. Figure 2 shows a block diagram of the proposed visual speech recognition

technique.

2.3 Preprocessing of Spatial-Temporal Templates

This proposed technique uses discrete stationary wavelet transform (SWT) to obtain a

transform representation of the STT that is insensitive to small variations of the facial

movements. While the classical discrete wavelet transform (DWT) is suitable for this,

DWT results in translation variance [16] where a small shift of the image in the space

domain will yield very different wavelet coefﬁcients. SWT restores the translation in-

variance of the signal by omitting the downsampling process of DWT, and results in

redundancies. 2-D SWT at level 1 is applied on the STT to produce a spatial-frequency

representation of the STT. Haar wavelet has been selected due to its spatial compactness

and localization property. Another advantage is the low mathematical complexity of this

wavelet. SWT decomposition of the STT generates four sub images. The approximate

(LL) sub image is the smoothed version of the STT and carries the highest amount of

information content among the four images. The LL subimage is used to represent the

STT. The paper proposes to use Zernike moments to represent the SWT approximate

image of the STT to reduce the dimension of the data.

2.4 Feature Extraction

Zernike moments are one of the image moments used in recognition of image patterns

[13,25]. Zernike moments have been demonstrated to outperformed other image mo-

ments such as geometric moments, Legendre moments and complex moments in terms

155

Fig.2. Block Diagram of the Proposed Technique.

of sensitivity to image noise, information redundancy and capability for image repre-

sentation [25]. The proposed technique uses Zernike moments as visual speech features

to represent the SWT approximate image of the STT.

Zernike moments are computed by projecting the image function f(x, y) onto the

orthogonal Zernike polynomial V

of order n with repetition l is deﬁned within a unit

circle. The main advantage of Zernike moments is the simple rotational property of the

features [13]. Zernike moments are also independent features due to the orthogonality

of the Zernike polynomial V

[25]. Changes in the orientation of the mouth in the

image result in a phase shift on the Zernike moments of the rotated image as compare to

the original (non rotated image) [26]. Thus, the absolute value of Zernike moments are

invariant to the rotation of the image patterns [13]. This paper uses the absolute value of

the Zernike moments, |Z

′

| as the rotation invariant features. 49 Zernike moments that

comprise of 0

up to 12

order moments are extracted from the approximate image of

the STT.

2.5 Hidden Markov Models Classiﬁer

To assign the motion features to an appropriate viseme group (class), a number of pos-

sible classiﬁers exists such as artiﬁcial neural network (ANN), support vector machines

(SVM) and hidden Markov models (HMM). Left-right HMM is the most commonly

used classiﬁers in speech recognition [21]. HMM is a ﬁnite state network that is con-

structed based on the theory of stochastic processes [6]. The strength of left-right HMM

lies in its ability to statistically model the time-varying speech features [23].

A HMM is characterized by parameters the number of states in the model, the num-

ber of possible observation symbols, the state transition probability distribution ,obser-

vation symbol probability distribution and initial state distribution. Based on the appro-

priate values of HMM parameters, the HMM can generate a sequence of observation

156

vectors (feature vectors) by sampling a sequence of hidden states according to the tran-

sition probability distribution [23].

This paper adopts single-stream, continuous HMMs to classify the motion features

of the visemes. Continuous HMMs is used as opposed to discrete HMMs to avoid the

loss of information occur in the quantization of the features. The motion features are

assumed to be Gaussian distributed. Each viseme is modelled using a left-right HMM

with three states, one mixture of Gaussian component per state and diagonal covariance

matrix. To use a continuous observation density in HMM, the observation probability

distribution is assumed to be ﬁnite Gaussian mixture of the form

P (O

|v) =

k=1

v,k

; m

v,c

, s

v,k

) (2)

where the v represents the state of the HMM and O

is the observed features at time

t. The K

mixture weights w

v,k

are positive and add to one, and N

(O; m, s) is the

l-variate normal distribution with mean m and a diagonal covariance matrix s.

During training of the HMMs, the unknown HMMs parameters vectors consisting

of the transition probability and observation probability are estimated iteratively using

Expectation-Maximization (EM) algorithm [4] based on the training samples. In the

classiﬁcation stage, the unknown motion features are presented to the 14 trained HMMs

and the features are assigned to the viseme class whose HMM produces output with the

highest likelihood.

3 Methodology

Experiments were conducted to test the proposed visual speech recognition technique.

The experiments were approved by the university’s Human Experiments Ethics Com-

mittee. Fourteen visemes from the viseme model of MPEG-4 standard (highlighted in

bold fonts in Table 1) were evaluated in the experiments. Video data was recorded us-

ing an inexpensive web camera in a typical ofﬁce environment. This was done towards

having a practical voiceless communication system using low resolution video record-

ings. The camera focused on the mouth region of the speaker and was kept stationary

throughout the experiment. The following factors were kept the same during the record-

ing of the videos : window size and view angle of the camera, background and illumi-

nation. 280 video ﬁles (240 x 240 pixels) were recorded and stored as true color (.AVI)

ﬁles.The frame rate of the AVI ﬁles was 30 frames per second. One STT was generated

from each AVI ﬁles. An example of STT for each visemes are shown in Figure 1. SWT

at level-1 using Haar wavelet was applied on the STTs and the approximate image (LL)

was used for analysis. 49 Zernike moments have been used as features to represent the

SWT approximate image of the STT. The Zernike moments features were used to train

the hidden Markov models (HMM) classiﬁer. One HMM was created and trained for

each viseme. The leave-one-out method was used in the experiment to evaluate the per-

formance of the proposed approach. The HMMs were trained with 266 training samples

and were evaluated on the 14 remaining samples (1 sample from each viseme group).

This process is repeated 20 times with different sets of training and testing data. The

average recognition rates of the HMMs for the 20 repetitions were computed.

157

4 Results and Discussion

The classiﬁcation accuracies of the HMM are tabulated in Table 2. The average recogni-

tion rate of the proposed visual speech recognition system is 88.2%. The results indicate

that the proposed technique based on motion features is suitable for viseme recognition.

Table 2. Recognition Rates of the proposed system based on viseme model of MPEG-4 standard.

Viseme Recognition Rate (%)

m 95

v 90

T 70

t 80

g 85

tS 95

s 95

n 40

r 100

A: 100

e 100

I 95

Q 95

U 95

Based on the results, the proposed technique is highly accurate for vowels clas-

siﬁcation using the motion features. An average success rate of 97% is achieved in

recognizing vowels. The classiﬁcation accuracies of consonants are slightly lower due

to the poor recognition rate of one of the consonant - /n/. One of the possible reason for

the misclassiﬁcations of /n/ is due to the inability of vision-based technique to capture

the occluded speech articulators movements. The movement of the tongue within the

mouth cavity is not visible (occluded by the teeth) in the video data during the pronun-

ciation of /n/. Thus, STT of /n/ does not contain information on the tongue movement

which may have resulted a high error rate for /n/.

To compare the results of the proposed approach with other related work is in-

appropriate due to the different video corpus and recognition tasks used. In a similar

visual-only speech recognition task (based on the the 14 visemes of MPEG-4 standard)

reported in [7], a similar error rate was obtained using shape-based features (geomet-

ric measures of the lip) extracted from static images. Nevertheless, the errors made

in our proposed system using motion features are different compare to the errors re-

ported in [7] that uses static features. This indicates that complementary information

exist in static and dynamic features of visual speech. For example, our proposed system

has a much lower error rate in identifying visemes /m/, /t/ and /r/ by using the facial

movement features as compare to the results in [7]. This shows that motion features

158

are better in representing phones which involve distinct facial movements (such as the

bilabial movements of /m/). The static features of [7] yield better results in classifying

visemes with ambiguous or occluded motion of the speech articulators such as /n/.

The results demonstrate that a computationally inexpensive system which can easily

be developed on a DSP chip for voice-less(mime speech) communication application.

The proposed system has been designed for speciﬁc applications such as control of

machines using simple commands consisting of discrete utterances without requiring

the user to make a sound.

5 Conclusion

This paper reports on a facial movement classiﬁcation technique using HMM for visual

speech recognition. The proposed technique recognizes utterances based on the visible

movements of the jaw and mouth of the speaker. The facial movements of the video data

are represented using spatial-temporal templates (STT). This paper adopts the MPEG-4

viseme model as the visual model to represent English phonemes. The proposed tech-

nique employs continuous hidden Markov models (HMM) as the supervised classiﬁer.

A low error rate of 12% is obtained in classifying the visemes using the proposed ap-

proach. Our results demonstrate that the proposed technique based on motion features

is suitable for facial movement recognition.

The differences in classiﬁcation errors of the proposed technique using motion fea-

tures compare to the approach using static features [7] suggest that complementary in-

formation may exists between dynamic and static features. For future work, the authors

intend to combine static and dynamic features for recognition of facial movements.

Such a system could be used to drive computerized machinery in noisy environ-

ments. The system may also be used for helping disabled people to use a computer and

for voice-less communication.

References

1. Adjoudani, A., Benoit, C., Levine, E.P.: On the Integration of Auditory and Visual Param-

eters in an HMM-based ASR. Speechreading by Humans and Machines: Models, Systems,

and Applications, Springer,(1996) 461–472

2. Arjunan, S. P., Kumar, D. K., Yau, W. C., Weghorn, H. : Unspoken Vowel Recognition Using

Facial Electromyogram. IEEE EMBC, New York, (2006)

3. Bobick, A. F., Davis, J. W.: The Recognition of Human Movement Using Temporal Tem-

plates. IEEE Transactions on Pattern Analysis and Machine Intelligence, Vol. 23 (2001)

257–267

4. Dempster, A. P., Laird, N. M., Rubin, D. B.: Maximum likelihood from incomplete data via

the EM algorithm. J. Royyal Statist. Soc., Vol. 39 (1977) 1–38

5. Dikshit, P. S., Schubert, R. W.: Electroglottograph as an additional source of information in

isolated word recognition. Fourteenth Southern Biomedical Engineering Conference (1995)

1–4

6. Fred, A., Marques, J. S., Jorge, P. M. : Hidden Markov models vs syntactic modeling in

object recognition. In Intl Conference on Image Processing, ICIP97, Santa Barbara (1997)

893-896

159

7. Foo, S. W., Dong, L.: Recognition of Visual Speech Elements Using Hidden Markov Models.

Lecture notes in computer science, Springer-Verlag, Vol. 2532 (2002) 607–614

8. Goldschen, A. J., Garcia, O. N., Petajan, E.:Continuous Optical Automatic Speech Recog-

nition by Lipreading.presented at 28th Annual Asilomar Conf on Signal Systems and Com-

puter(1994)

9. Gray, M. S., Movella, J. R., Sejnowski, T. J.: Dynamic features for visual speechreading : a

systematic comparison. 3rd Joint Symposium on Neural Computation, La Jolla (1997)

10. Hazen, T. J.: Visual Model Structures and Synchrony Constraints for Audio-Visual Speech

Recognition. IEEE Transactions on Audio, Speech and Language Processing (2006) Vol. 14

No. 3 1082–1089

11. Jain, A. K., Duin, R. P. W., Mao, J. : Statistical Pattern Recognition : A Review. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence, Vol. 22, No. 1 (2000) 4–37

12. Kaynak, M. N., Qi, Z., Cheok, A. D., Sengupta, K., Chung, K. C. : Audio-visual modeling for

bimodal speech recognition. IEEE Transactions on Systems, Man and Cybernetics, (2001)

Vol. 34 564–570

13. Khontazad, A., Hong, Y. H.: Invariant Image Recognition by Zernike Moments. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence (1990) Vol. 12 489–497

14. Liang, L., Liu, X. , Zhao, Y., Pi, X., Neﬁan, A. V.: Speaker Independent Audio-Visual Con-

tinuous Speech Recognition. In IEEE Int. Conf. on Multimedia and Expo (2002)

15. Lippmann, R. P.: Speech recognition by machines and humans. J. Speech Communication

(1997) Vol. 22 1–15

16. Mallat, S.: A Wavelet Tour of Signal Processing. Academic Press (1998)

17. Moeslund, T. B., Hilton, A., Kruger, V. : A survey of advances in vison-based human motion

capture and analysis. Computer Vision and Image Understanding, Vol. 104 (2006) 90–126

18. Manabe, H., Hiraiwa, A. : Unvoiced speech recognition using EMG - mime speech recogni-

tion. Conference on Human Factors in Computing Systems CHI ’03,Ft. Lauderdale, Florida,

USA, (2003) 794–795

19. Mase, K., Pentland, A.: Automatic lipreading by optical-ﬂow analysis. Systems and Com-

puters in Japan, (1991) Vol. 22, 67–76

20. Petajan, E. D.: Automatic Lip-reading to Enhance Speech Recognition. In GLOBE-

COM’84,IEEE Global Telecommunication Conference (1984)

21. Potamianos, G., Neti, C., Gravier, G., Senior, A. W.: Recent Advances in Automatic Recog-

nition of Audio-Visual Speech. In Proc. of IEEE, Vol. 91 (2003)

22. Potamianos, G., Neti, C., Luettin, J., Matthews, I.: Audio-Visual Automatic Speech Recog-

nition: An Overview. Issues in Visual and Audio-Visual Speech Processing, (2004)

23. Rabiner, L. R. : A tutorial on HMM and selected applications in speech recognition.Proc.

IEEE, Vol. 77, No. 2, Issue 2 ,(1989) 257–286

24. Scanlon, P., Reilly, R. B., Chazal, P.D.: Visual Feature Analysis for Automatic Speechread-

ing. Proceedings of Audio Visual Speech Processing Conf., France, (2003)

25. Teh, C. H., Chin, R. T.: On Image Analysis by the Methods of Moments. IEEE Transactions

on Pattern Analysis and Machine Intelligence,Vol. 10. (1988)496–513

26. Yau, W. C., Kumar, D. K., Arjunan, S. P. : Visual Speech Recognition Method Using Trans-

lation, Scale and Rotation Invariant Features. IEEE International Conference on Advanced

Video and Signal based Surveillance, Sydney, Australia (2006)

160
