A Key Generation Scheme of Self-Encryption based

Mobile Distributed Storage System

Yoshihiro Kawahara, Hiroki Endo and Tohru Asami

The University of Tokyo, 7-3-1 Hongo Bunkyo-ku Tokyo 113-8656, Japan

Abstract. Mobile phones are frequently lost or stolen. Latest mobile handsets

contain important information such as an address book, short mail messages,

and e-cash. To prevent a stranger from accessing to such private information,

practical security mechanisms have to be introduced into mobile handsets. We

have developed a distributed network storage system that protects private data

files stored on the mobile handsets without demanding complex operations for

users. As computation resource on the mobile handsets is limited, a lighter en-

cryption scheme is indispensable. In this paper, we report a self-encryption

scheme for mobile distributed storage system. Different from existing encryp-

tion schemes such as PKI (Public Key Infrastructure), this scheme exploits a

diversity of data files for generating unique encryption keys while minimizing

computation overhead of encryption. Experimental results show that our

scheme can generate completely random keys from zipped text files with light

operations.

1 Introduction

Advanced mobile handset features such as digital camera, music player, and e-cash

have made mobile phones so convenient and attractive for all people. The most recent

mobile handsets are equipped with high-speed wireless link and gigabytes of storage,

and multiple CPUs for different purposes. Its performance is far better than the com-

puters of several decades ago. Along with such technological advances, each mobile

handset came to contain various kinds of important information such as an address

book, short mail messages, and e-cash. However, mobile handsets are so small that

they are easily lost or stolen. Tokyo metropolitan police department reports that more

than 100,000 mobile handsets have been lost or stolen only in Tokyo area in 2006 [1].

Currently, mobile operators provide a networked based blocking service that black-

lists the user’s phone so it will be unusable until picked up by the owner. However,

such a service is helpless for preventing a stranger from accessing to the private data

stored inside the mobile handsets.

In this paper, we first review technical requirements for security mechanisms of

mobile handsets in preparation for lost and theft. In general, there are design trade-

offs between ease of use and safety. As the computational and communication re-

sources of mobile handsets are limited, general security mechanisms are not always

Kawahara Y., Endo H. and Asami T. (2007).

A Key Generation Scheme of Self-Encryption based Mobile Distributed Storage System.

In Proceedings of the 1st International Joint Workshop on Wireless Ubiquitous Computing, pages 3-12

DOI: 10.5220/0002425200030012

 SciTePress

applicable. Therefore we clarify design criteria peculiar to mobile devices in order to

maximize the usability while minimizing security risks. Then we describe a design of

mobile distributed storage system based on self-encryption scheme. The self-

encryption scheme refers to an encryption scheme which we define in this paper. An

encryption key management scheme is one of the main challenges in the security

community. Conventional block ciphers aim at generating stronger cipher text from

plain text while minimizing the length of the encryption key. On the other hand, our

self-encryption scheme exploits the heterogeneity of data files (plain text) to generate

a longer encryption key sequence. As we use a longer key, we can use a simpler

stream cipher which requires less computational resources. By integrating the self-

encryption scheme into distributed storage system, we aim at realizing a practical

secure file system for mobile handsets.

2 Security Technologies for Mobile Handsets

In this section, we introduce security technologies provided for mobile communica-

tion services such as mobile phones and PHS (Personal Handy-phone System). Then

we clarify the technical requirements and design criteria for data protection of mobile

handsets.

2.1 Existing Approaches

Existing security mechanisms for mobile handsets include unauthorized access pre-

vention mechanisms, data backup mechanism, and data encryption mechanisms for

locally stored data. Table 1 shows security mechanisms provided for mobile handsets

such as laptop PC and mobile phones. When a user’s mobile terminal is lost or stolen,

terminal security mechanisms can reduce the risk of strangers to access to confiden-

tial data stored in the terminal. However, if the malicious attacker breaks the chassis

to pick out HDD or a flash memory, data may be analyzed easily. When data security

mechanisms are applied to the local storage data, the data can be protected with cryp-

tographic assurance.

If we look at existing data security services for mobile handsets, a remote deletion

service is the only feasible choice. With remote lock services, the owner can lock the

mobile handset and/or delete locally stored data by sending a special command over

wireless network [2,3]. This approach, however, is helpless if the mobile handset is

intentionally placed outside the coverage area. Though data encryption and remote

storage can be the potential choices for sustaining data security, actual realization

mechanisms are sometimes too heavy for resource constrained hardware like mobile

handsets[4,5]. Remote storage approach works without a local data storage and

downloads necessary files from a remote storage over the network. This approach is

acceptable for desktop PC and workstations that are always connected to high speed

LAN. Mobile handsets, on the other hand, are connected to the network by wireless

link, which is, in general, error-prone and limited in bandwidth. Therefore download-

ing the entire file may lose usability. A distributed storage divides a file into several

pieces and stores them in different places in order to increase data confidentiality and

availability at the same time.

Shamir’s secret sharing scheme [6] can be used as a method to realize a distributed

storage. This scheme divides data D into n pieces in such a way that D is easily re-

constructable from any k pieces, but even complete knowledge of k - 1 pieces reveals

absolutely no information about D. This technique enables the construction of robust

key management schemes and cryptographic schemes that can function securely and

reliably. As this scheme is based on polynomial interpolation, even the most efficient

algorithms are too heavy to implement as a file system on the resource limited mobile

handsets.

Table 1. Security Mechanisms for Mobile Terminals.

Laptop PC Mobile Phones

Terminal

Security

Biometric Authentication

Secure IC Memory

BIOS Password

Log-in Password

9 (SD, Felica, etc.)

9 (finger print)

9 (SIM)

9 (PIN code)

Data Security Authentication / Authorization

Encryption

Remote Lock

Remote Storage

2.2 Capabilities of Mobile Handsets

Computation and communication resources of mobile handsets such as PDA and

mobile phones are limited compared to personal computers and workstations. Some

of the mobile handsets are equipped with wireless LAN (IEEE 802.11) and Bluetooth

interface for local area communication. As a global connection, 3G and GPRS data

connection services are available. In Japanese market, HSDPA (High Speed

Downlink Packet Access) and CDMA2000 1xEV-DO services are provided as 3G

service and those services offer upto several Mbps communication[7].

Other than the difference of abilities, mobile handsets afford less complex opera-

tions for users because its user interfaces is constrained (a tiny screen and several

pieces of keys) and a range of potential users are so wide regardless of age and sex.

2.3 System Design

Fig. 1 shows a basic design of our system. In the mobile handset, confidential data is

encrypted and divided into a pair of cipher text files by using a self encryption

scheme (which will be described in next section). Each piece of cipher text cannot be

decrypted alone. One of the cipher text files is stored in the local storage area of the

mobile handset and the other piece is automatically uploaded to remote storage.

Moreover, the piece stored locally can be copied to another remote storage for backup

purpose. When a user hopes to use a file, the file system of the mobile handset seeks

for the local and remote pieces and decrypts the cipher text files. When the mobile

handset is lost or stolen, the user blocks the access to remote storage to prevent de-

cryption of confidential files. When the user hopes to switch to a new mobile handset,

he just needs to copy the backed up pieces to the new handset.

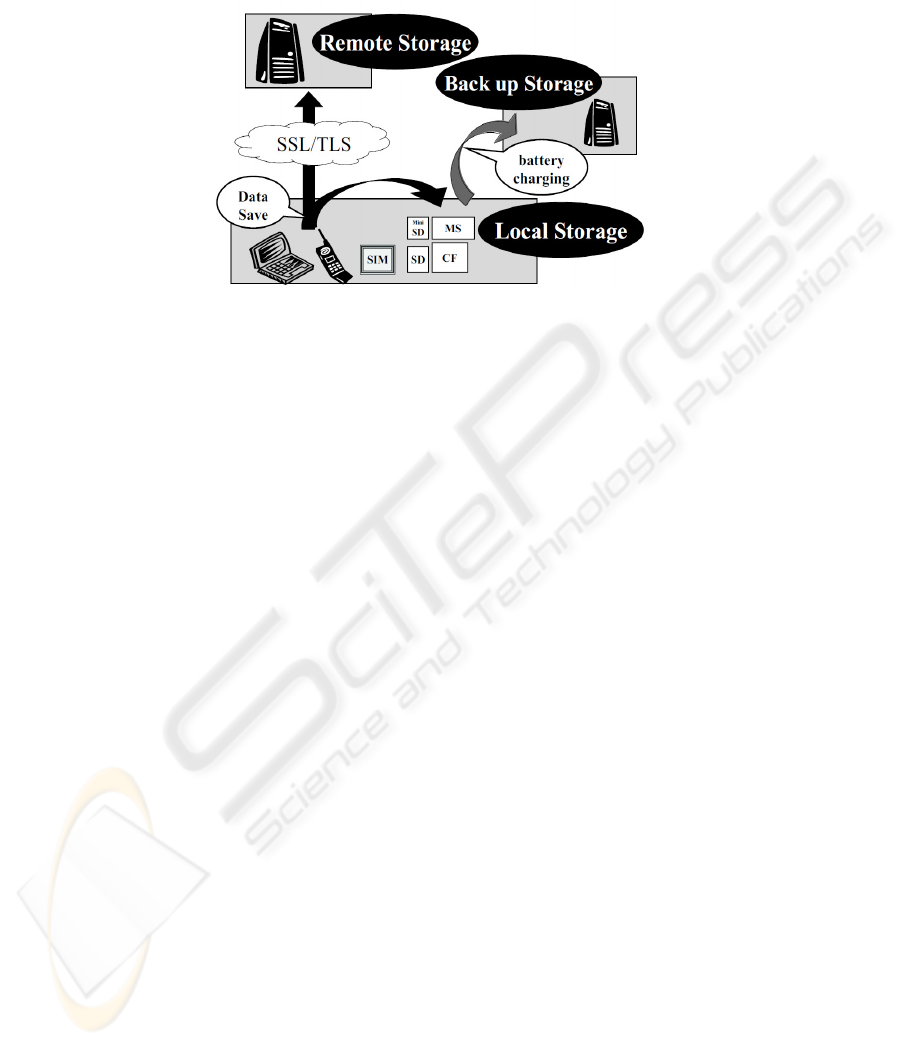

Fig. 1. A System Design. A secret data file is divided into two pieces of plaintexts. One of

them is scrambled and used as a key. The key is uploaded to a remote server. The other piece is

encrypted by the key and stored locally. The locally stored ciphertext is sometimes backed up

to a back up storage.

As this scheme needs to download a piece of a file from the remote storage and

decrypt it, the user may experience short delay in using files. However, most text-

based files can be downloaded within several seconds when we use high speed wire-

less network such as HSDPA. Multimedia data such as MP3 files requires longer time

for downloading.

3 Self Encryption Scheme

In this section, we present a self encryption scheme for mobile distributed storage

system. In this paper, we define self encryption scheme as an encryption scheme

whose encryption key is generated from the information contained in the target file

itself. In other words, self encryption scheme exploits the diversity inherent in data

files, and uses various information such as meta-data and a part of plain text as an

input of key generation process. As a self-encryption scheme automatically generates

unique keys, users do not need to worry about key management.

3.1 Block Cipher and Stream Cipher

In general, typical encryption mechanism such as DES[8] and AES[9] are called a

block cipher. A block cipher is a symmetric key cipher which operates on fixed-

length groups of bits, termed blocks, with an unvarying transformation. When en-

crypting, a block cipher might take a (for example) 128-bit block of plaintext as input,

and output a corresponding 128-bit block of ciphertext. The exact transformation is

controlled using a second input — the secret key. Decryption is similar: the decryp-

tion algorithm takes, in this example, a 128-bit block of ciphertext together with the

secret key, and yields the original 128-bit block of plaintext. To encrypt messages

longer than the block size (128 bits in the above example), a mode of operation is

used. Block ciphers can be contrasted with stream ciphers; a stream cipher operates

on individual digits one at a time and the transformation varies during the encryption.

Stronger block cipher requires much computation overhead. A stream cipher, on

the other hand, typically executes at a higher speed than block ciphers and has lower

hardware complexity[10]. However, stream ciphers can be susceptible to serious

security problems if the encryption key is generated from weak random sequence

generators. In this sense, stream cipher requires stronger random sequence generator,

which is typically provided as a hardware module.

Our approach, self encryption scheme, can generate a long key (random sequence)

from the data file (plaintext). Therefore a plaintext can be encrypted at higher speed

without any special hardware support. Moreover, the encryption key is unique to each

plaintext, thus the entire system remain safe even if one of the ciphertext has been

defeated by an attacker.

3.2 Formulation of Self Encryption Scheme

The whole process of self encryption scheme is described in Table 2, Figure 2 and 3.

The encryption procedure is performed as follows:

1. A file content message M is split into M

and M

by a split function S

2. Generate an encryption key K

from M

by a function F

3. Encrypt(E

) the message M

using K

to generate a ciphertext C

4. Store C

in the local storage area

5. Generate a key K

using C

with a function F

6. Encrypt(E

) M

using K

to generate a ciphertext C

7. Upload C

to a remote storage area

8. Backup C

to a backup storage

Then the decryption procedure is performed as follows:

1. Download C

from the remote storage

2. Generate the key K

from locally stored data C

by F

3. Decrypt C

using K

to recover the message M

4. Generate the key K

from M

by F

5. Recover M

by decrypting(E

) C

using K

6. Concatenate(S

-1

) M

and M

to recover the original M

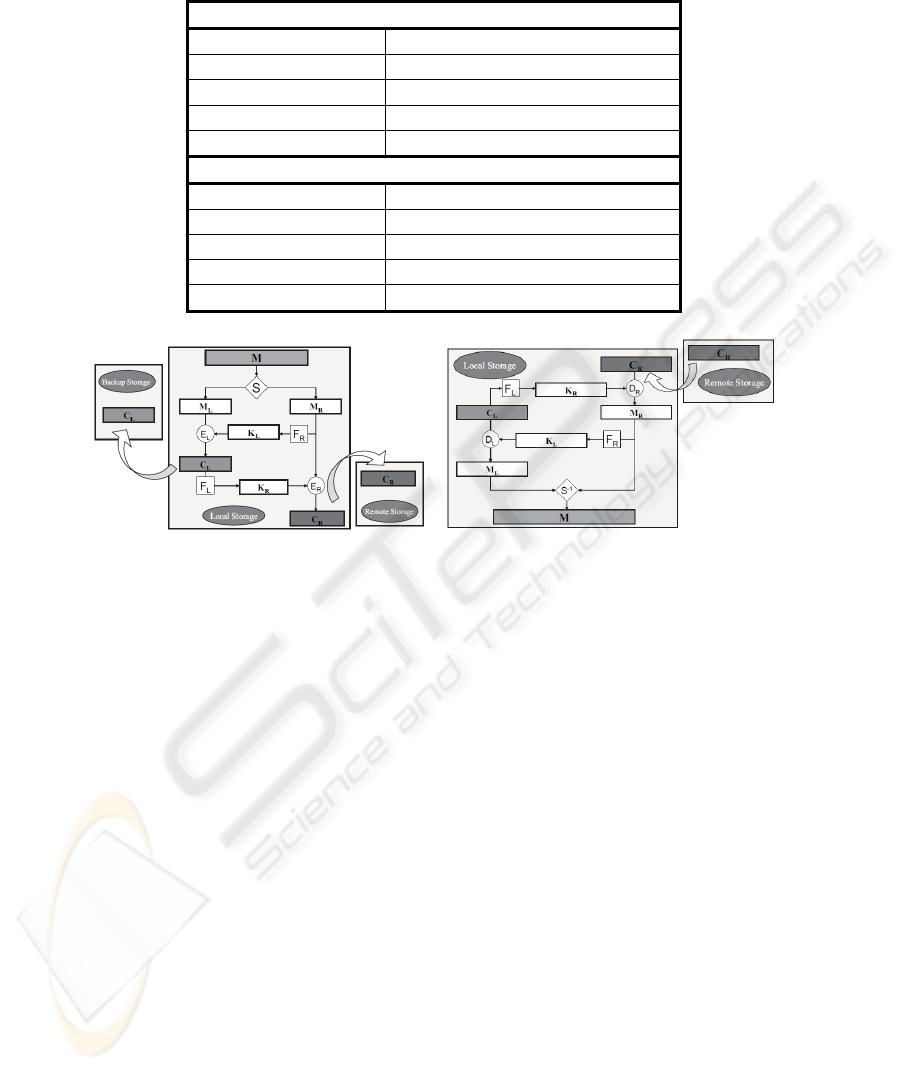

Table 2. Formulation of Self Encryption Scheme.

Encryption

} = S(M) Split M into M

and M

= F

) Generate K

from M

= E

) Encrypt M

using K

= F

) Generate K

from C

= E

) Encrypt M

using K

Decryption

= F

) Generate K

from C

= D

) Decrypt C

from K

= F

) Generate K

from M

= D

) Decrypt C

using K

M = S

-1

} Concatenate M

and M

into M

Fig. 2. Encryption Procedure. Fig. 3. Decryption Process.

3.3 Algorithms for Self Encryption

We presented a formulation of self encryption scheme in 3.1. When thinking of a real

implementation of the self encryption scheme, we need to be careful in choosing

algorithms and parameters. In this section, we mention the file split method S, the

encryption algorithm E, and the key generation function F.

The main objective of splitting a message M into M

and M

is to generate a key for

encryption. When using shorter M

, it means that longer messages are encrypted with

shorter keys. It makes, in general, easier to defeat the resulting ciphertext but requires

shorter time for uploading (and downloading) the key from the remote server. If

longer M

is chosen, ciphertext becomes stronger. But note that the maximum length

of M

is 1/2 of the length of original message M. When the length of M

and M

equal and the resulting keys K

and K

are random enough, ciphertext C

and C

become unbreakable.

In our implementation, XOR is used as an encryption algorithm E (E

and E

) to

combine the plaintext with the key. This stream cipher based approach executes at a

higher speed than block ciphers (such as AES and Triple DES) and have lower hard-

ware complexity, which is very important in mobile handsets.

When using stream ciphers, we need to be careful in the key used for encryption.

For stream ciphers to be safe, the key needs to be completely random and must not be

used again. When M

is shorter than M

, we need to generate a longer key (K

) from

shorter message M

by using a KDF (Key Derivation Function) based on hash func-

tions such as SHA-1 and SHA-256[9]. When |M

| = |M

|, we can choose lighter shuf-

fling algorithms.

4 Key Generation Functions

In this section, we look into the key generation functions F

and F

. We evaluate the

strength of K

and K

which are generated by two different algorithms: A KDF using

SHA-1 (|M

| < |M

|) and a proposed scrambler (|M

| = |M

|).

4.1 Methodologies

Figure 4 shows a key derivation function used in ANSI X9.63[12]. The message M is

split into j pieces and fed to SHA-1 hash function along with counter values. By con-

catenating resulting stings k

…k

, the key K is achieved.

Counter

+1 +1 +1

SHA-1

・・・

・・

nbitnbit

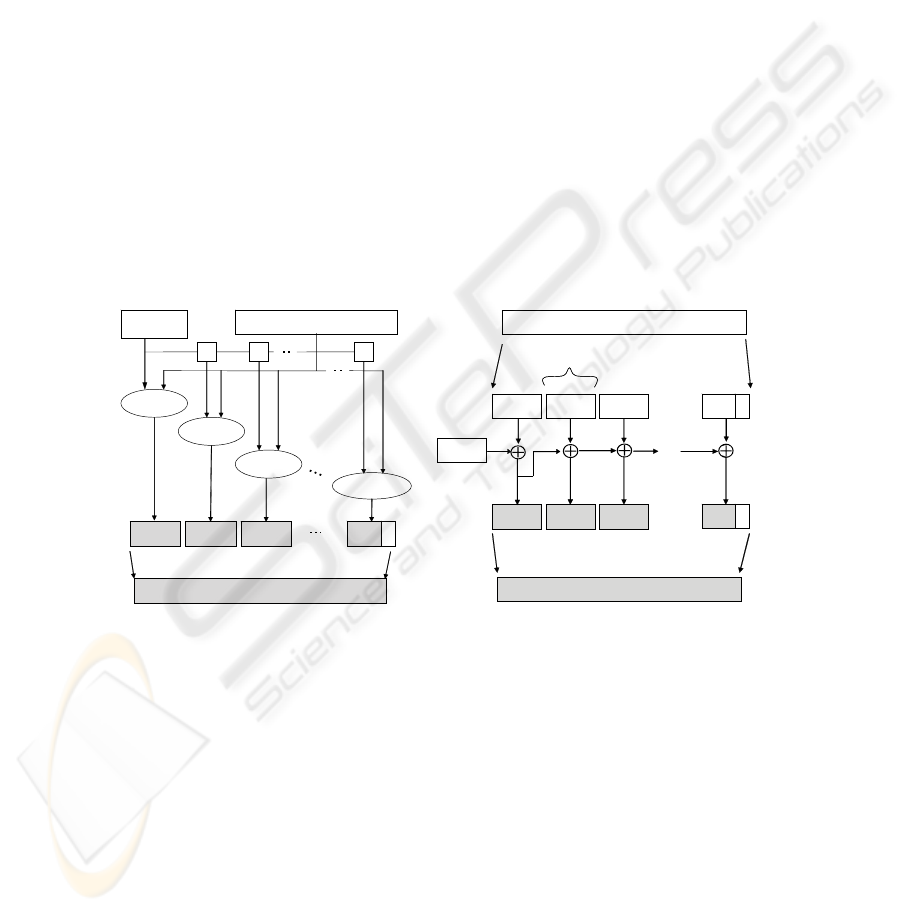

Fig. 4. A Key Derivation Function. Fig. 5. Scrambling Algorithm.

Figure 5 shows our proposed scrambling algorithm. This algorithm splits input

message Y with every fixed length (64, 128, 256, 512 bytes) to generate m

, m

, …,

. Then calculate k

= IV ⊕ m

, k

= k

i-1

⊕ m

. Here ⊕ denotes XOR operation and

IV denotes initial value. We get the entire key K by concatenating m

, m

, … , m

4.2 Evaluation

We evaluate the strength of the key generated by the algorithms mentioned previously.

The strength of the key is assessed as a randomness of symbols appeared in K. Vari-

ous statistical tests can be applied to a sequence to attempt to compare and evaluate

the sequence to a truly random sequence. A practical randomness assessment of a

string is defined in NIST SP800-22[13]. A statistical test is formulated to test a spe-

cific null hypothesis (H

). The null hypothesis under test is that the sequence being

tested is random. Associated with this null hypothesis is the alternative hypothesis

) which is that the sequence is not random. For each applied test, a decision or

conclusion is derived that accepts or rejects the null hypothesis. Each test is based on

a calculated test statistic value, which is a function of the data. The test statistic is

used to calculate a P-value that summarizes the strength of the evidence against the

null hypothesis. For these tests, each P-value is the probability that a perfect random

number generator would have produced a sequence less random than the sequence

that was tested, given the kind of non-randomness assessed by the test. If a P-value

for a test is determined to be equal to 1, then the sequence appears to have perfect

randomness. A P-value of zero indicates that the sequence appears to be completely

non-random. A P-value ≥ 0.01 would mean that the sequence would be considered to

be random with a confidence of 99 %. A P-value < 0.01 would mean that the conclu-

sion was that the sequence is non-random with a confidence of 99 %. For practical

reasons, 0.01 is often used as a threshold to test the sequence. In this paper, we use

proportion and uniformity of p-value is assessed.

Table. 3. Proportion of p-value > 0.01.

Method Material Frequency Runs Rank Cusum

(Original M) Plain text

Zip

0 (NG)

0.021 (NG)

0 (NG)

0.029 (NG)

0 (NG)

0.014 (NG)

0 (NG)

0.988 (OK)

KDF

Plain text

Zip

0.992 (OK)

0.991 (OK)

0.994 (OK)

0.988 (OK)

0.994 (OK)

0.993 (OK)

0.987 (OK)

0.988 (OK)

Scrambler

(64 bytes)

Plain text

Zip

0.540 (NG)

0.992 (OK)

0.436 (NG)

0.987 (OK)

0.514 (NG)

0.993 (OK)

0.713 (NG)

0.985 (OK)

Scrambler

(128 bytes)

Plain text

Zip

0.565 (NG)

0.988 (OK)

0.567 (NG)

0.991 (OK)

0.539 (NG)

0.987 (OK)

0.992 (NG)

0.960 (OK)

Scrambler

(256 bytes)

Plain text

Zip

0.489 (NG)

0.995 (OK)

0.578 (NG)

0.983 (OK)

0.383 (NG)

0.988 (OK)

0.960 (OK)

0.984 (OK)

Table 4. Uniformity of p-value.

Method Material Frequency Runs Rank Cusum

(Original

Plain text

Zip

0 (NG)

3.2×10

-4

(OK)

KDF Plain text

Zip

0 (NG)

0.244 (OK)

7.3×10

-8

(NG)

3.2×10

-1

(OK)

0 (NG)

0.123 (OK)

1.3×10

-6

(NG)

2.9×10

-6

(NG)

Scrambler

(64 bytes)

Plain text

Zip

0 (NG)

0.850 (OK)

0 (NG)

0.132 (OK)

0 (NG)

0.738 (OK)

0 (NG)

5.4×10

-2

(OK)

Scrambler

(128 bytes)

Plain text

Zip

0 (NG)

0.083 (OK)

0 (NG)

0.138 (OK)

0 (NG)

0.010 (OK)

6.1×10

-13

(NG)

1.2×10

-3

(OK)

Scrambler

(256 bytes)

Plain text

Zip

0 (NG)

0.070 (OK)

0 (NG)

3.5×10

-3

(OK)

0 (NG)

1.4×10

-2

(OK)

We choose 1,000 documents available at copyright free online library named Ao-

zora Bunko[14]. We choose cumulative sums (cusum) test, runs test, rank test, and

frequency test as a measure. The result is shown in Table 3 & 4.

The experiment results show that random keys can be generated from zipped text

files by using either KDF or proposed scrambler. On the other hand, it turned out that

original plain text data is not suitable as source of keys. This is mainly due to the

biased appearance probability of ascii code in the plain text data. As a zipped file

consists of a sequence of randomized symbols due to the compression operation,

randomness of plaintext is higher than uncompressed text message. In this sense,

compressed files such as zipped file, JPEG, PNG picture files, MP3, MPEG multime-

dia files can be used as a good input data for generating a strong key. Plain text mes-

sages have to be compressed or randomized before key generation. As a randomize

mechanism, it will appropriate to apply XOR with a random sequence generated by

fast random sequence generators such as Mersenne Twister[15].

5 Conclusions

In this paper, we presented a self-encryption scheme for mobile distributed storage

system. Self-encryption scheme exploits the heterogeneity of data files to automati-

cally generate a longer encryption key sequence. A distributed storage system based

on this approach has several advantages as follows:

1. As an encryption key is automatically generated from each data file, the keys be-

come unique to the files. It means the key becomes stronger against attacks. More-

over, even if one of the keys is broken, the others stay safe.

2. Each encryption key can be generated by different ways. Users can optimize the

cost and benefit by choosing the algorithms, the size of key (M

and C

), the en-

cryption algorithm (E

and E

) depending on the available computation and com-

munication resources and necessary security levels.

3. As a long and strong key can be generated, lighter encryption algorithm such as

XOR based stream cipher can be chosen.

As an evaluation of our approach, we presented a randomness test of encryption keys

generated in different ways. The evaluation results show that resulting keys are ran-

dom as long as zipped files are fed as input source.

Currently, we are implementing our system into mobile handsets and see the feasi-

bilities of our approach. The primal goal is to realize a user-friendly security mecha-

nism that balances usability and security. In this sense, we will look for an integrated

mechanism with existing security infrastructure such as PKI.

References

1. Tokyo Metropolitan Police Department: Annual report on lost and found service in 2006

(2007)

2. Remote Data Deletion Service, KDDI, http://www.kddi.com/business/pr/security/

address/index.html

3. Omakase Lock Service, NTT DoCoMo http://www.nttdocomo.co.jp/service/anshin/lock

4. Sobti, S., Garg, N., Zheng, F., Lai, J., Shao, Y., Zhang, C., Ziskind, E., Krishnamurthy, A.

and Wang, R.,: Segank: A Distributed Mobile Storage System, In Proceedings of 3rd Con-

ference on File and Storage Technologies (FAST), (2004)

5. Kistler, J. J., and Satyanarayanan, M.: Disconnected operation in the Coda file system, In

proceeding of the thirteenth ACM symposium on Operating systems principles, pp. 213-

225. (1991)

6. Adi Shamir: How to share a secret, In Communications of the ACM 22, 1979, S. 612–613

(1979)

7. Dahlman, E.B. and Yu-Chuen Jou, Further evolution of 3G radio access, Communications

Magazine, IEEE, Vol. 44, Issue 3, March 2006, pp. 34 - 35 (2006)

8. Data Encryption Standard, Federal Information Processing Standard (FIPS) Publication 46,

National Bureau of Standards, U.S. Department of Commerce, Washington D.C. (1977)

9. Advanced Encryption Standard (AES), Federal Information Processing Standard (FIPS)

Publication 197, National Bureau of Standards, U.S. Department of Commerce, Washing-

ton D.C. (2001)

10. Matt J. B. Robshaw, Stream Ciphers Technical Report TR-701, version 2.0, RSA Laborato-

ries, (1995)

11. Specifications for a Secure Hash Standard (SHS), Federal Information Processing Stan-

dards Publication DRAFT (1992)

12. Public Key Cryptography For The Financial Services Industry: Key Agreement and Key

Transport Using Elliptic Curve Cryptography, Draft ANSI X9F1, (1999)

13. NIST, Special Publication 800-22, A statistical test suite for random and pseudorandom

number generators for cryptographic applications, (2001)

14. Aozora Bunko, http://www.aozora.gr.jp/

15. M. Matsumoto and T. Nishimura, Mersenne twister: A 623-dimensionally equidistributed

uniform pseudorandom number generator, ACM Transaction on Modeling and Computer

Simulations, (1998)
