An Aspect-oriented Approach to Manage QoS

Dependability Dimensions in Model Driven Development

Carsten Köllmann

, Lea Kutvonen

, Peter Linington

and Arnor Solberg

University of Duisburg-Essen, Germany

University of Helsinki, Finland

University of Kent, Canterbury, UK

SINTEF, Forskningsveien 1, 0314 Oslo, Norway

Abstract. Model-driven development approaches commonly use an abstraction

of platform specific features for improving reusability and verifiability of the

core functionality models. However, the core functionality may still be tangled

with features that address important dependability concerns across a design

model – for example features such as security, trust and performance. These

features can commonly be called Quality of Service (QoS) features. This paper

presents an approach for managing several dependability dimensions. We use

aspect oriented and model driven development techniques to separate and

construct QoS independent models, and graph-based transformation techniques

to derive the corresponding QoS specific models.

1 Introduction

Model driven development (MDD) shifts software development from a code-centric

activity to a model-centric activity. Accomplishing this shift entails support for

modelling concepts at different levels of abstraction and transforming abstract models

to more concrete descriptions of software. Model driven development approaches

have emphasized abstraction of platform specific features. For example, the Model

Driven Architecture (MDA™) [1] specifies three abstraction levels: A Computation

Independent Model (CIM) describes the environment and specifies system

requirements; a Platform Independent Model (PIM) describes the parts of a solution

that do not change from one platform to another; and a Platform Specific Model

(PSM) includes descriptions of the parts that are platform dependent.

However, construction of distributed software systems typically involves the

treatment of other dependability dimensions than just the platform dimension. The

Quality of Service aspects of system design such as security, trust, performance and

availability incorporate decisions about organizational policy that then need to be

applied to many different business processes within an enterprise. They frequently

form separate areas of concern in the design process, and techniques are needed to

Köllmann C., Kutvonen L., Linington P. and Solberg A. (2007).

An Aspect-oriented Approach to Manage QoS Dependability Dimensions in Model Driven Development.

In Proceedings of the 3rd International Workshop on Model-Driven Enterprise Information Systems, pages 85-94

DOI: 10.5220/0002425600850094

 SciTePress

support this separation and ensure that unnecessary dependencies between the

different sorts of design activities are avoided. Thus activities relating to extending or

updating business processes should not depend in detail on the activities that ensure

that enterprise-wide security or other such aspects are effectively and consistently

managed. Furthermore, Quality of Service aspects of software systems are

dependability concerns that tend to be tangled and cross cut the primary functionality

of the system. Thus, the QoS dependability dimensions add to the complexity of

software system development.

This paper describes an approach for extracting QoS concerns from the initial

design process to provide QoS transparent software specifications and then

introducing QoS support via suitable transformations applied to these to form QoS

specific models. We use aspect oriented techniques for separating the QoS

dependability dimensions. Transformation and model checking are then based on

graph transformation theory.

The principal technologies, concepts and techniques of the approach are described

in Section 2. First the usage of aspect oriented techniques to separate QoS

dependability dimensions is described, and then the pattern matching and replacement

using graphs is presented. Section 3 describes an application of these ideas to an on

line shopping system to illustrate the approach. Section 4 discusses the approach and

related work. Conclusions and further work are discussed in Section 5.

2 Model Driven Engineering with QoS Aspects

Model Driven Engineering (MDE) has increasingly been recognised as a key

technology in providing flexibility and reducing the cost of system maintenance. It is

based on the use of transformations. These transformations can be implemented

within a development tool chain so that it processes design models to derive further

designs that are more suited for some target design or deployment environment.

Most of the early applications of the MDE ideas were based on the need to control

steps in a refinement hierarchy. The basic idea was that a transformation applied to an

abstract model would generate a more specific model, based on constraints that were

embodied within the transformation. The transformation is generally required to be

reversible, so that round trip processes can be applied to re-incorporate changes to the

more specific design into the original abstract model. This style of transformation can

be applied to various steps in the refinement chain, although the most emphasis to

date has been placed on the step from Platform Independent Models to Platform

Specific Models, which are defined with regard to whatever concepts of

computational model and platform are selected by the designers of the particular

system.

As we wish to enhance this architecture by separation of QoS dependability

dimensions, we need to incorporate lessons learned from known aspect technologies.

Aspect-Oriented Software Development (AOSD) approaches [2][3][4] provide

mechanisms for encapsulating cross-cutting features.

In particular we base the approach on the aspect oriented modelling framework

(AOMDF) [5], where cross-cutting features are modelled separately as aspects and

composed with the primary design model, to form integrated models. In AOMDF a

design is expressed in terms of the following artefacts: i) a primary model that

describes the business logic of the application, ii) a set of generic aspect models,

where each model is a generic description of a crosscutting feature, iii) a set of

bindings that determine where in the primary model the aspect models are to be

composed, and iv) a set of composition directives that influence how aspect models

are composed with the primary model.

Based on this framework we introduce an architecture that provides transparency

of QoS dimensions. In this architecture the primary model is the specification of the

QoS independent model of the system, while separate aspect transformations are used

to provide a transparent method to refine the model and so introduce the selected set

of QoS aspects. Each QoS aspect is modelled as a separate aspect model, while the

primary model describes the QoS transparent model and describes the business logic

of the system. In Fig. 1a the QoS independent model (QoSIM) is a system

specification where the QoS aspects are transparent. The QoS specific model

(QoSSM) is derived through a chain of transformations composing a selected set of

QoS aspects. The approach supports transparencies with respect to a set of

dependability dimensions such as security, availability, trust and performance.

QoS-aspect 1

QoS aspect 2

…

QoSIM

QoSSM

…

QoS aspect n

Security aspect 1

SIM

SSM

Security aspect 2

Security aspect 1

SIM

SSM

Security aspect 2

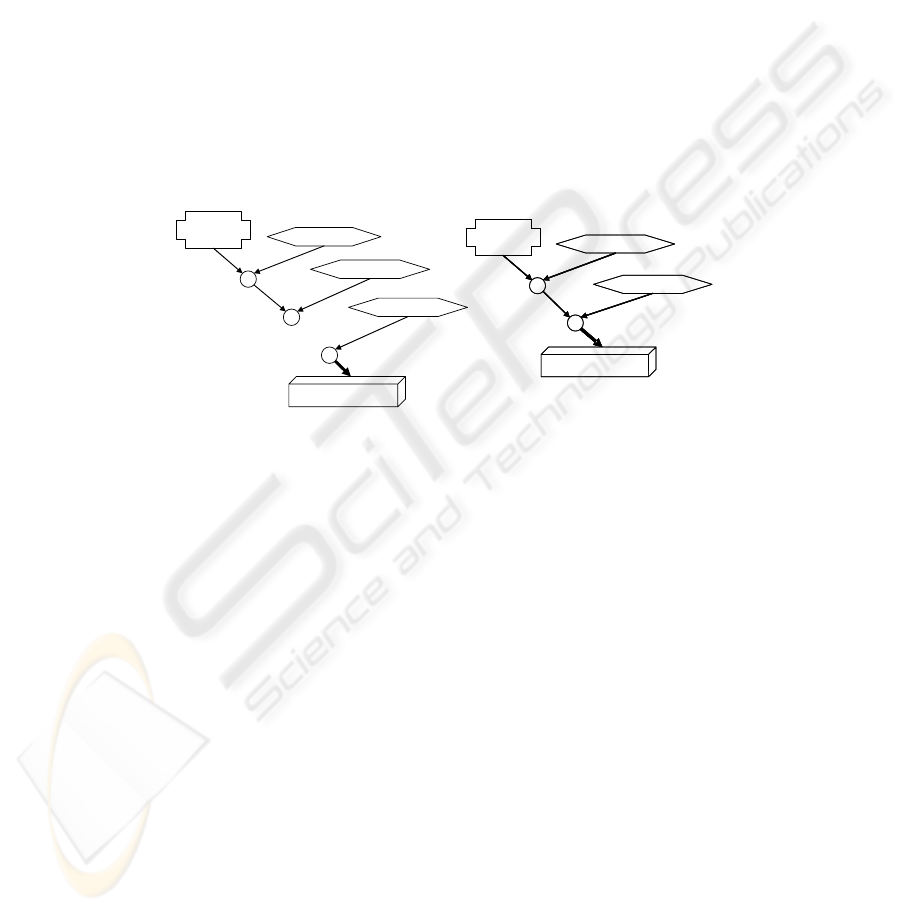

Fig. 1. a) conceptual architecture, b) transforming a security independent model to a security

specific model.

A QoS dependability dimension can include several aspect models Fig. 1b shows an

example where a security specific model (SSM) is derived from a security

independent model (SIM) by composing it with two security related aspects.

One of the key elements in the design is the way of declaring the necessary

bindings between elements in the aspect model and elements in the base application

model. The elements matched may be any appropriate modelling elements, such as

classifiers or relationships, and may be constrained by assertions about their required

properties. Other elements in the aspect model that do not correspond directly to

elements in the base model are abstracted out when forming the matching pattern. The

transformation that results from this binding process will match the appropriate bound

elements in the base model and use the rest of the template information either to

replace them with a refined structure or to add additional properties or supporting

elements to them. The resulting model is therefore consistent with both the base

application model and the aspect model being applied.

For the matching step, we utilize pattern matching and replacement using graphs

for which graph transformation [7] provides a suitable formal approach. Its

descriptive formalization and visual way of defining transformations supports graph

modifications in an intuitive way.

Graph transformation is based on a graph grammar that includes an initial graph

and transformation rules. These rules have a left hand side defining the structure that

is to be modified, called a match, and a right hand side defining the target structure.

The application of a rule can be guarded by preconditions, avoiding the

transformation for defined contexts. Furthermore, dependencies between

transformation rules can be analysed by using critical pair analysis [8] or consistency

checks.

Adapting graph transformation to MDA the initial graph can be instantiated as a

UML diagram and the transformation step can be interpreted as the weaving of an

aspect. The application of graph transformation to different parts of UML is currently

ongoing work [9], covering different issues like coherent change introduction in

different diagram types, or verification of state diagrams.

Graph rules are used for the execution of the actual transformations. The syntax of

the QoSIM and of the QoS aspect describing the objects and connectors of the base

model are used to bind the common graph structure and rules to concrete elements.

The components that realize the chosen QoS aspect are defined at the right hand

side of the rule while the join points where these are inserted are described at the left

hand side.

LHS

RHS

{secure}

{non secure}

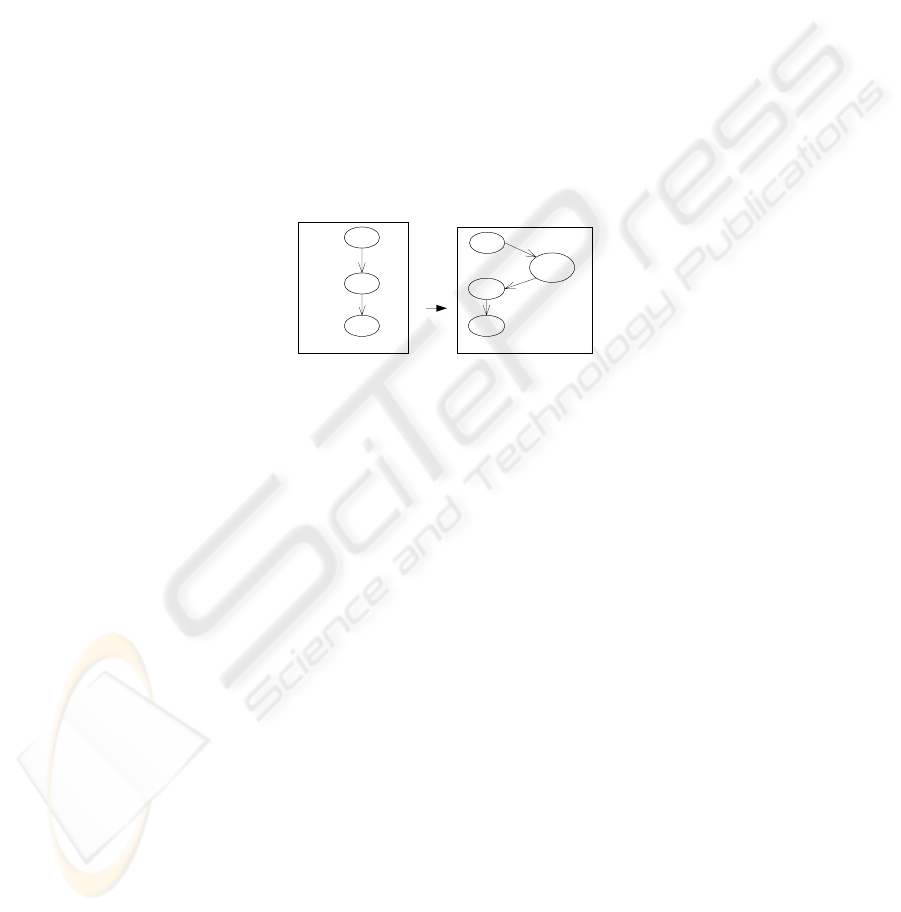

Fig. 2. Rule introducing a security component.

To govern the pattern matching, tags and the categorization of model elements can be

used. Fig. 2 presents a graph rule that inserts a security aspect between two

components representing the join points of a given base model. The security aspect is

inserted between C1 and C2, since the edge between them is categorized as a secure

connection. The connector between C1 and C2 has been deleted and replaced by the

new connections to the aspect.

If several rules are to be applied in sequence, care needs to be taken that there are

no unintended interactions between them. Various kinds of analysis can be applied to

do this. For example, critical pair analysis can be used to detect cross-links between

rules and show which elements are affected, and to assess the significance of the

impact. Deletion of an element by a rule when that element is referenced by a

subsequent rule is likely to have serious consequences, since application of the later

rule is likely to fail. Rules that exchange, or otherwise modify, elements used later on

may not cause an immediate failure, but may change the properties of the system in

such a way as to undermine its intended behaviour. For example, if a performance-

related aspect validates delay bounds for part of a system, and a security aspect

subsequently introduces some costly encryption step within it, the performance

guarantees derived earlier may be invalidated in a way that is not immediately

detected. In general, guidance will be needed from the system architect to determine

the priority, and hence the sequence of application, to be applied to any conflicting

aspects, or conflicting features within an aspect.

3 Illustrative Case Study

The following case study illustrates our approach in more detail. The example system

used is an online shop that includes a billing system and delivery chain, as shown in

Fig. 3. A customer orders items from the online shop and pays by credit card, and the

credit-worthiness is confirmed by a credit check service. The order is then processed

by the shop and a corresponding order is sent to the warehouse. The Transport Service

organizes and schedules the shipment to the customer.

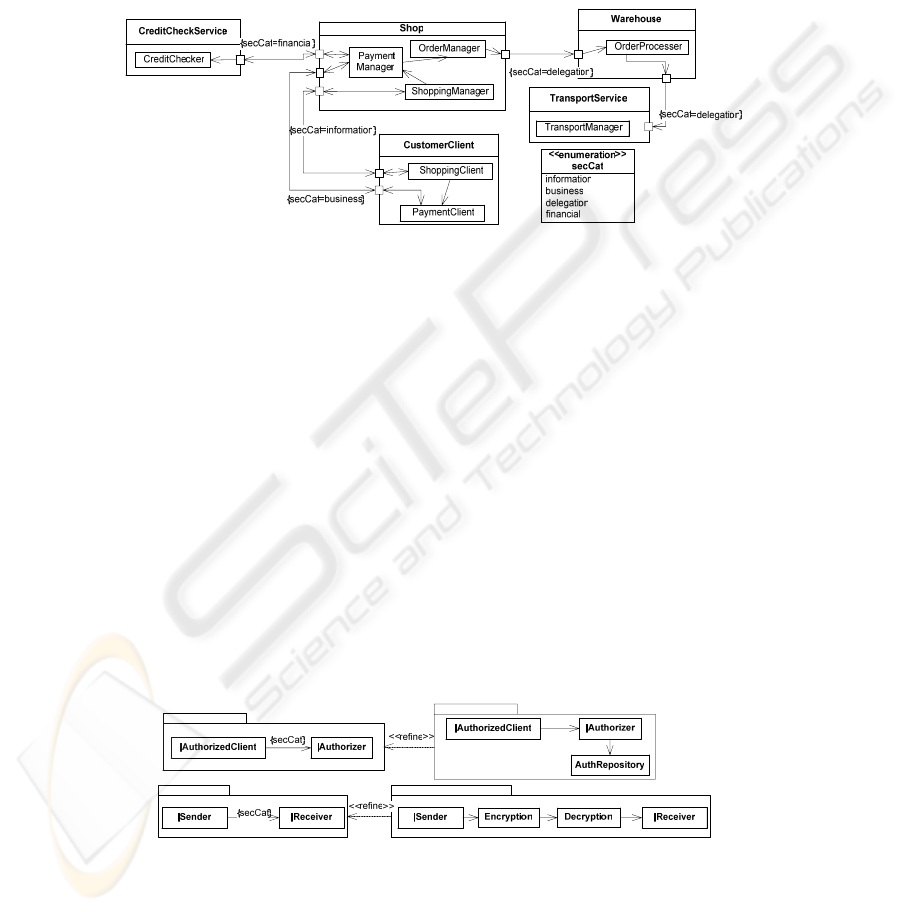

Fig. 3. Shopping application, QoS independent.

The development process starts with the development of the QoS independent

shopping application (Fig. 3). The primary composite structure model describes the

main components, their composites and their interaction connectors. The connectors

between the main components are associated with security constraints identifying the

required security category needed for the actual interaction (for example

{secCat=financial}). During transformation these constraints are used to identify the

points where security aspects should be applied and also, which security aspect to

employ.

Two security aspect models are then acquired. Aspect models will typically be

specified once for a particular domain and reused across applications. Thus, aspect

models will in general be acquired from an aspect model library. The authorization

and encryption aspect models are shown in Fig. 4. The aspect models consist of

template forms of composite structure diagrams, expressed using a template variant of

the Role Based Meta-Modelling Language (RBML) [6].The aspect templates are

instantiated by binding template parameters to values. In RBML, parameters are

introduced by the symbol “|”. When the role binding is specified the security

independent model is composed with the aspect models according to specified

composition rules and algorithms.

Fig. 4. Security aspects: Authorization and encryption.

In our example, security categories are associated with the connectors between the

main components, giving a business-oriented statement of the nature and sensitivity

of the actual interactions at these points. These categories are used during the

transformation to identify which security aspects need to be applied at each point. The

categories are: i) financial: carries interactions that relate to financial status and

commitment: they need to be private and non-reputable, ii) business: carries

commitments for supply and payment; they need to be private, but carry their own

credentials, so can be taken at face value, iii) delegation: links business partners

where non-repudiation is still important, but the interactions are within the virtual

organization, so that privacy is already guaranteed, and iv) information: the

interactions carried are in the public domain.

The following composition rules are applied:

if (secCat = delegation or secCat = financial)

composeAuthorizationAspect()

if (secCat = business or secCat = financial)

composeEncryptionAspect()

The actual matching of components and the transformation are done by graph rules.

To map the components into graph rule components, each bi-directional arrow has to

be replaced by a pair of arrows, with one pointing in each direction. The types of the

connectors and component and their attributes have to be mapped to node and edge

types and their attributes. The graph transformation rules are derived from the aspect

models. Fig. 5 shows the graph transformation rule for the encryption and

authorization aspects.

Rules can be derived from a given aspect model in the following way (taking the

authorization aspect as an example). First, components that have to be included in a

match are identified. The primary correspondence here is with any edge having a

securityCategory attribute, since this is what is referenced in the composition rules,

but there are also consequential correspondences with nodes linked by such edges

(giving placeholders C1 and C2). Next, the right hand side of the transformation rule

is constructed. This starts by identifying those elements of the match that are to be

preserved (C1 and C2 again) and then adds the necessary pattern functionality to them

(here by introducing interceptor objects |

AuthorizationClient and |AuthorizationServer,

between C1 and C2). In general, it may also involve merging functions and attributes

from the elements matched and the pattern elements, and renaming the resulting

elements to reflect their new broader role. This can often result in optimizations that

combine closely coupled objects (as with the replacement of C1 and

AuthorizationClient by a combination called C1_name_secured). Finally, new

components are created (such as AuthRepository) and linked to the appropriate points

in the structure. This optimization rule can be expressed as shown in Fig. 6.

LHS

System 1

System 2

RHS

System 1

System 2

{secCat}

Encryption Decryption

{secCat }

LHS

System 1

System 2

RHS

System1

System2

{secCat}

AuthClient AuthServer

{secCat }

AuthRep

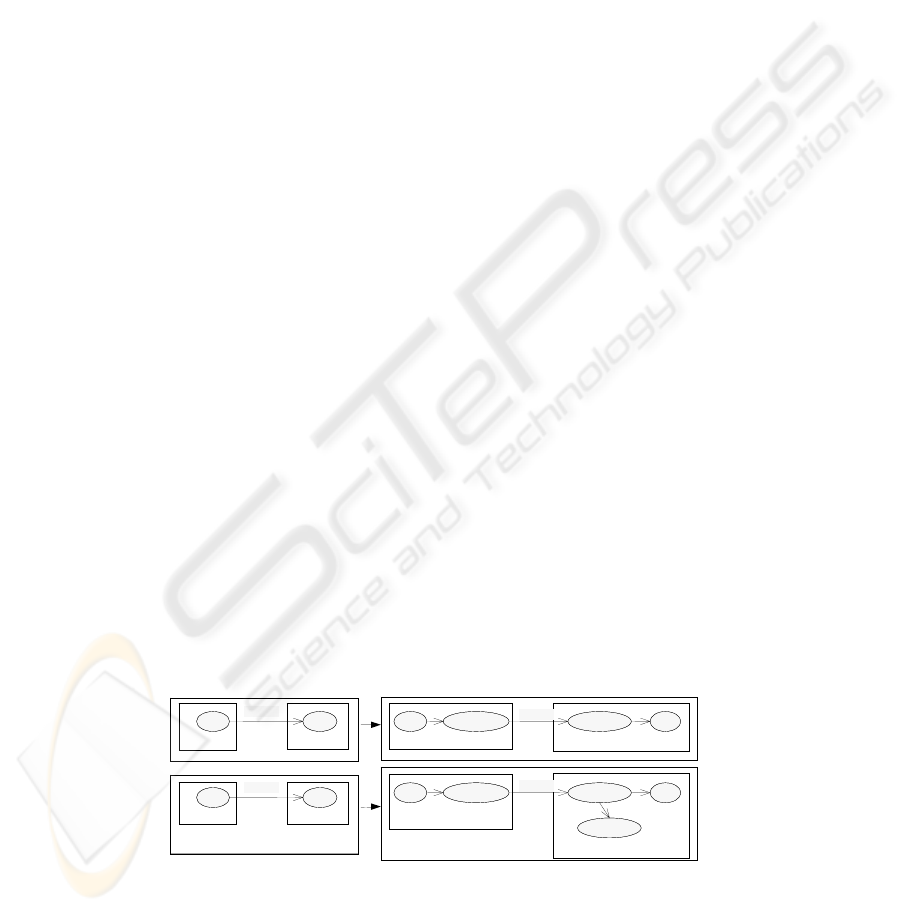

Fig. 5. Graph rules for encryption and authorization insertion.

LHS

RHS

C2_Secured

AuthRep

C2AuthServer

AuthRep

Fig. 6 Optimization rule.

Executing this rule the arbitrary components C1 and C2 are preserved, while the

connecting edge is deleted. To introduce the authorization aspect a client and a server

component are inserted and connected to each other and the existing components. The

security category of the old connection is preserved and attached to the new external

connections. Applying this rule to all the matches found, the authorization mechanism

is introduced for every connection between two systems. It is assumed that the

transformation engine applying the rules in Fig. 5 will not do so when the structure is

already equal to the structure of the right hand side, so the aspect is introduced just

once for every external connection.

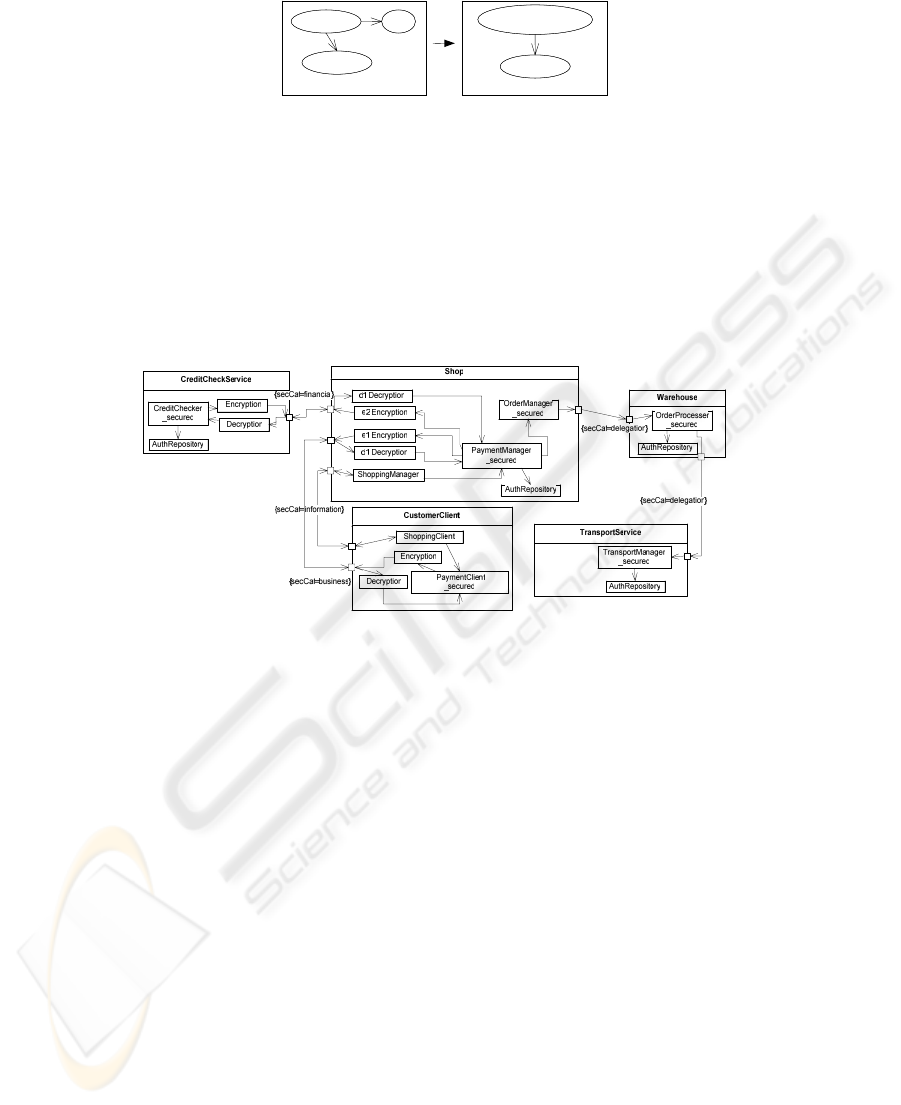

Fig. 7. Composing security specific aspects.

In general nodes are merged in a graph transformation rule by deleting the old nodes

while preserving the information included in their attributes. Thereafter a new node is

created including this preserved information. Of course not all information has to be

preserved, only that which is needed. The edges connected with the old nodes are also

deleted while the information is preserved. New edges can be generated from this

information, if necessary.

Fig. 7, the optimized security specific model resulting from the transformations

described above is given. This is a view of the implementation level, where the new

edge between C1 and the authorization client represents a proxy call, and is therefore

implicit. The resulting modified components include both their original functionality

and the added operations given by the aspect model. E.g.,

OrderManager_secured

combines the functionality of

OrderManager and AuthorizationServer.

4 Discussion and Related Work

One of the problems in managing a complex set of QoS dimensions is that there may

be unintended interdependencies between the transformations applied. We identified

earlier that this implies a need to check for conflicts and select a sequence for the

transformation steps that minimizes the problems. There may be a need for the system

architect to be involved in determining the safest sequence of transformations, but this

intervention is itself a possible source of errors.

What is needed if the system is to be well behaved is for the later transformations

in the chain to honour obligations on them not to change properties guaranteed by

earlier transformation steps. This implies a piece of record keeping too complex to be

performed reliably by a human user, and so some automated support is needed. There

are two alternatives; either the later transformations must be analysed to prove that

they do not change the properties of interest, or the model generated must include

internal checks that the property achieved does remain true.

The first of these two options is hard to achieve, and, in all but the simplest cases,

is likely to be undecidable. The second option seems more attractive. It requires the

target of each aspect model to include not just the desired structure, but also some

assertion to be generated that remains true as long as the desired properties are

achieved. This is still not trivial, but is a simpler task than proving properties of the

transformation steps.

There are several approaches focusing on separation of dependability concerns at

the implementation level [2][11][3][10]. Even if some of the implementation level

mechanisms and principles can be utilized at the model level (for example the notion

of a primary model is similar to the base hierarchy in AspectJ), there are differences.

Compared to AOP approaches our models are independent of any programming

language and the aspects models can be implemented using a non-AOP language.

Furthermore, through usage of graph transformation our approach in principal allows

composition of two aspect models or even two primary models. This generality is

similar to Hyperspaces [3]. Hyperspaces is an extension of subject oriented

programming [10], used to achieve multi-dimensional separation of concerns at the

implementation level. This is a generic separation of concern approach where any

slice can be defined and composed with any other. The hyperslices are composed to

obtain the overall system. In our approach the composition procedure depends on the

model element properties specified rather than just the names of model elements,

primarily to govern the composition at a finer grained level and because not all UML

model elements are named elements.

Krishna et al. [12] presents and approach for pruning unnecessary actions to better

meet the QoS requirements. The pruning is based on the expected context of different

products in a product line. Our approach facilitate similar pruning at the model level

when deriving the QoS specific model level through fine tuning of composition. Fine

tuned composition directives can be applied through the graph based pattern matching

and categorization of model elements (e.g., the secCat categorization of connectors).

Categorization can be defined based on context to avoid unnecessary actions, for

example by differentiating what actions are necessary for different parts of the system

for particular contexts

Gray et al. [14][15] use aspects in domain-specific models that specifically target

embedded systems. Requirements, architecture and the environment of a system are

captured in the form of formal high-level models that allow representation of

concerns. Their research is part of Model-Integrated Computing (MIC) and extends

the scope and usage of models such that they form the backbone of a development

process for building embedded software systems. The work in our research can

complement theirs by providing UML based approach for representing aspects.

In [16], Burt et al. explore how QoS requirements can impact decisions related to

the transformation from platform-independent models in UML to platform-specific

models in IDL. It complements our work but does not address how QoS requirements

can be integrated in a UML specification and how they should be resolved or refined

in model transformations.

5 Conclusions

Separation of concerns is recognized as a key principle to cope with complexity in

software development. In this paper we have presented how to use model driven and

aspect oriented techniques for the separation of QoS dependability dimensions. The

approach presented provides a more flexible view than the single platform view

traditionally provided in MDE frameworks like the MDA.

The introduction of QoSIM and QoSSM enables user defined QoS transparencies

and supports separation of different sorts of QoS design activities from the design of

the primary functionality. A chain of transformations is performed to introduce the set

of dependency dimensions. This approach includes a conceptual model providing

transparency of the QoS dependability dimensions. The transparencies are provided

through abstractions similar to the platform abstraction. Transformations are used to

carry out a refinement embodying a set of design choices related to the management

of QoS aspects such as security, availability and performance.

In further research we will continue investigating how to handle conflicts when

composing interrelated aspects and also the challenge of ensuring the preservation of

properties discussed in the previous section. This challenge is related to the feature

interaction problem, and we will base our research on results published in this area.

We will also work further on ensuring consistency between behavioural and structural

model views and how to achieve this using graph transformations.

Acknowledgements

The work presented in this paper has been carried out as part of the InterOP project,

FP6-508011 and MODELPLEX project IST 34081. We would like to express our

gratitude towards the InterOP and MODELPLEX consortium and the Commission for

their valuable support.

References

1. OMG, MDA™ Guide v1.0.1, http://www.omg.org/docs/omg/03-06-01.pdf

2. Kiczales. G., Lamping, J. Mendhekar, A., Maeda, C., Lopes, C., Loingier, J., Irwin, J.:

Aspect-Oriented Programming. Proc. of the European Conference on Object-Oriented

Programming, Lecture Notes in Computer Science, Vol. 1241 (1997).

3. Ossher, H., Tarr, P.: Using Multidimensional Separation of Concerns to (Re)shape evolving

Software, Communications of the ACM, Vol. 44, No. 10 (2001), 43-50

4. Ray, I., France, R., Li, N., Georg, G.: An Aspect-Based Approach to Modeling Access

Control Concerns, Journal of Information and Software Technology, Vol. 46, No. 9 (2004),

575-587

5. Solberg Arnor, Simmonds Devon, Reddy Raghu, France Robert, Ghosh Sudipto,

Aagedal.Jan Øyvind Developing Service Oriented Systems Using an Aspect Oriented

Model Driven Framework In the International Journal of Cooperative Information Systems

Company

6. R. B. France, D. Kim, S. Ghosh, and E. Song, A UML-Based Pattern Specification

Technique. IEEE Trans. on Software Eng., Vol. 30, No. 3 (2004), 193–206.

7. Hartmut Ehrig, Gegor Engels, Hans-Jörg Kreowski, and Grzegorz Rozenberg, editors.

Handbook of Graph Grammars and Computing by Graph Transformation, Vol.2:

Applications, Languages and Tools. World Scientific, Signapore, 1999

8. P. Bottoni, A. Schurr, G. Taenzer, Efficient Parsing of Visual Languages based on Critical

Pair Analysis and Contextual Layered Graph Transformation. Tech. Report si-2000-06,

University of Rome, 2000

9. Paul Ziemann, An Integrated Operational Semantics for a UML Core Based on Graph

Transformation, Logos, Berlin, 2006

10. H. Ossher, M. Kaplan, A. Katz, W. Harrison, and V. Kruskal, “Specifying subject-oriented

composition,” Theory and Practice of Object Systems, Wiley and Sons, vol. 2, no. 3, 1996.

11. Batory, D. and O’Malley, S. The design and implementation hierarchical software systems

with reusable components. ACM Software Engineering and Methodology (Oct. 1992).

12. Krishna, A. S, Gokhale A. S., Scmidt D. C.. Context-Specific Middleware Specialization

Techniques for Optimizing Software Product-line Architectures, Eurosys’06 April 18-21.

ACM 1-59593-322-0/06/0004, 2006.

13. I. Jacobson. Case for Aspects - Part I. Software Development Magazine, pages 32-37,

October 2003.

14. J. Gray, T. Bapty, S. Neema, D. C. Schmidt, A. Gokhale and B. Natarajan, "An Approach

for Supporting Aspect-Oriented Domain Modeling," in Proceedings of the 2nd Intl.

Conference on Generative Programming and Component Engineering (GPCE'03), Erfurt,

Germany, Sept. 2003

15. J. Gray, T. Bapty, S. Neema, and J. Tuck. Handling crosscutting constraints in domain-

specific modeling. Communications of the ACM, 44(10):87-93, October 2000.

16. Burt et. al, “Quality of Service Issues Related to Transforming Platform Independent

Models to Platform Specific Models”, Proceedings of EDOC 2002, Lausanne, Switzerland
