Generating and Merging Business Rules

by Weaving MDA and Semantic Web

Mouhamed Diouf, Soﬁan Maabout and Kaninda Musumbu

Universit

e Bordeaux I, LaBRI (UMR 5800 du CNRS), Domaine Universitaire 351, cours de la

Libration 33405 Talence Cedex, France

Abstract. Information systems (IS) are getting more and more complex. The

design of such systems requires various individuals with varied expertises. The

requirements expressed, when the design of such a system is decided, may change

upon time. These changes may even occur very often. Thus, the more the system

is ﬂexible, the easier the upgrades will be. One of the standard ways to design

ﬂexible systems is the use of the so called “business rules” whose aim is the

separation of business from system in an application. Business rules deﬁne and

constrain business processes in enterprizes. Therefore, many business-governing

rules have to be implemented in business-supporting applications, in order to

reﬂect the real business environment. The aim of this paper is to give the way

to automatically generate and merge a part of the business rules by combining

Model Driven Architecture and the Semantic Web using the Ontology Deﬁnition

Metamodel.

1 Introduction

Business rules are statements that express (certain parts of) a business policy, deﬁn-

ing terms and deﬁning or constraining the operations of an enterprize, in a declarative

manner [1–4]. The business rule approach is more and more used due to the fact that

in such system, business experts can maintain the complex behavior of their applica-

tion in a “zero development” environment. There exist more and more business rule

management systems (BRMS) and rule engines, adding new needs in the business rules

community. Currently the main need in this domain is having a standard language for

representing business rules, facilitating their integrations and share. Work for solving

this lack is in progress at OMG and W3C [5–9] and others initiatives [10, 11].

In another side, an enough heavy step during business rules bases systems realization

is the step of elicitation of rules from the business. Entreprises, generally, have (legacy)

models in a UML or Entity Relation like model. A question which results from this is,

using models, is it possible to automatically generate a part of business rules? For doing

automatic generation by machines, they need to understand formally (semantics) terms

and concepts they are manipulating.

In Model Driven Architecture (MDA) [12] every concept is expressed by a model,

but it does say anything about semantics [13]. In another side, researches in Seman-

tic Web, especially the use of ontologies, give many possibilities for adding semantics

to semistructured data, making automatic reasoning possible. Logic is a key component

Diouf M., Maabout S. and Musumbu K. (2007).

Generating and Merging Business Rules by Weaving MDA and Semantic Web.

In Proceedings of the 3rd International Workshop on Model-Driven Enterprise Information Systems, pages 19-28

DOI: 10.5220/0002427000190028

 SciTePress

in the Semantic Web. Also, the Semantic Web will be one of the biggest open systems,

so merging information coming from different sources with different reliability level,

in a correct way will be crucial. In this paper, we focus in “how can business rules be

automatically generated and merged from conceptual models semantically enriched?

And what is the interest in doing so?”

The paper is divided in two main parts. Section 1 is devoted to an introduction to busi-

ness rules and the concept of Model Driven Architecture and semantics. In section 2,

we give a methodological overview of our approach and discuss the possibilities and

the beneﬁts provided by mixing models and web semantics. We insist of its wide appli-

cability and theoretical soundness.

2 The Business Rules Approach

2.1 Business Rule’s Deﬁnition

The aim of business rules is to capture customer needs [14]. The term business rule has

a different meaning according to business or system point of view:

• From an information system perspective: “A business rule is a statement that deﬁnes

or constrains some aspect of the business (policies, know-how). It is intended to

assert business structure, or to control or inﬂuence the behavior of the business.”

[3].

• From a business perspective: “A business rule is a directive, which is intended to in-

ﬂuence or guide business behavior, in support of business policy that is formulated

in response to an opportunity or threat.” [15].

In a more simple and basic formulation, a business rule is a pair of if-then statements

(we will see it in more details in next sections).

Principles and Objectives. In information systems, we do no more ask “whether the

behavior will change” but rather “when the behavior will change”. So it is a good thing

to handle those changes from the beginning of the conception step. Business rules are

at the center of any application, however hardest is to list them and to structure them

in an effective approach of management [1]. The use of a Business Rules Management

System (BRMS) facilitates the census and the implementation of business rules [1].

The business rules approach makes it possible to allow a “collaboration” place between

business and system experts. It allows legacy code curation that becomes through time

very difﬁcult and heavy to maintain and also to make evolve.

The principle of business rules is not a new one, it is a direct application of the Seven-

ties artiﬁcial intelligence theories [16] which, at that time, passed to be utopian due to

a problem of computer’s power.

The objective of the business rules approach is to allow information systems design

guided by the business, for the business and by the business [3]. To the traditional crite-

ria of information systems, namely robustness, maintainability, extensibility, scalability,

a new one is added: adaptability [14]. A system must be able to be adapted to the ﬂuc-

tuations of the market. Further more, the behavior of such systems must be directly

modiﬁed by business people in a zero-development environment. Who know the busi-

ness of the application better than them? With this, requests of update will no longer

inundate the information technology service with work. Business maintenance will no

longer wait eternal time to be processed. The business rule approach allows satisfying

these requirements by separating the business logic (the what) and the system logic (the

how). The business rules approach makes it possible for business experts to manage the

behavior of the system using natural languages (business languages).

The hardest task in making business rules based systems is to extract them from knowl-

edge. Generally, knowledge is at the end represented by models. In the next sections,

we will talk about MDA models and show how can we use them for extracting business

rules.

3 Model Driven Architecture

The Model-Driven Architecture starts with the well-known and long established idea of

separating the speciﬁcation of the operation of a system from the details of the way that

a system uses the capabilities of its platform [12].

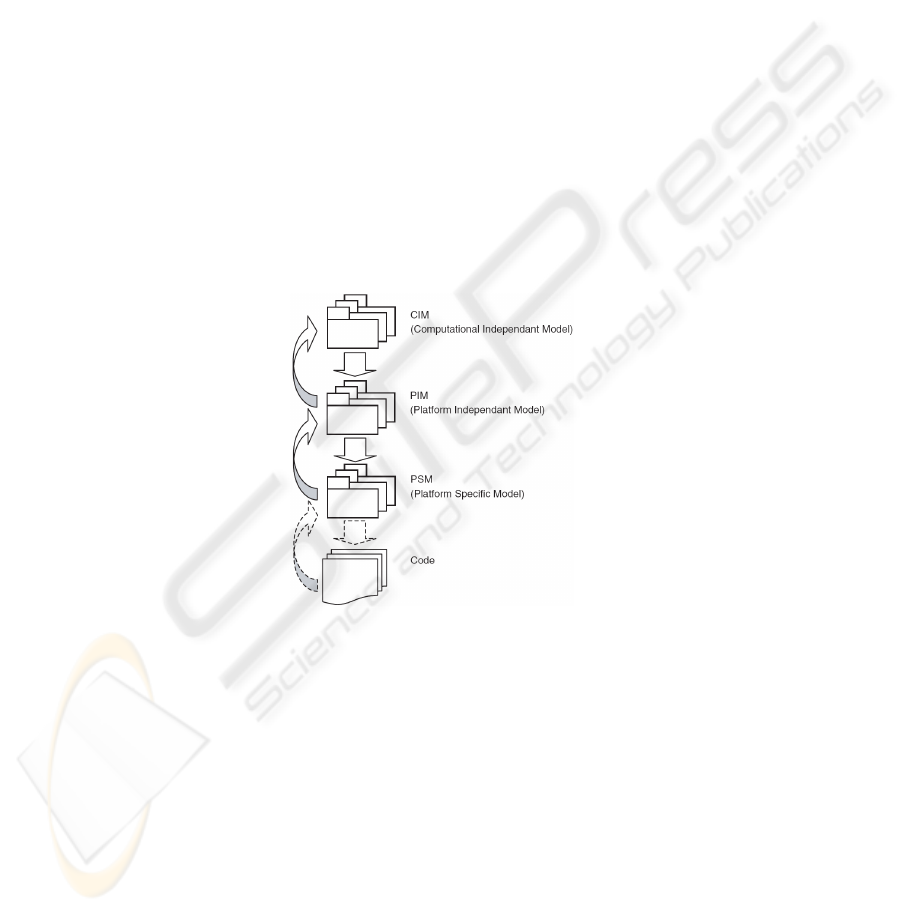

Fig.1. Global view of the Model Driven Architecture approach.

Figure 1 gives a general view of the MDA approach. We can see that a construction

of a new Information System begins with the development of one or more requirements

models (CIM). Then we may develop models independent from any platform (PIM).

In theory, the latter models must be partially generated from the former. PIM must be

permanent, i.e. they do not contain any information about execution platform (is it a

J2EE or .NET etc. application).

For constructing the concrete application, we must have Platform Speciﬁc Models (PSM)

that are obtained by transforming PIM and by adding technical information relative to

platforms. PSM are not permanent models. All these models are for facilitating code

generation. The MDA approach is widely used and advanced generators do exist.

3.1 MDA Models and Semantics

MDA principles are very interesting and allow economizing time during application life

cycle by code and model generation. However, MDA speciﬁcation does not tell anything

about semantics on models. MDA is only interested by content and not context. So using

semantics will offer a more interesting way in automatic generation.

Business rules are about meanings and act on models. Generating all business rules

is impossible but it would be possible and helpful to generate a large part of them. For

doing this automatically, it is clear that adding semantics in models is needed.

Some Solutions for Adding Semantics to Models. In MDA, an instance of MOF

(Meta Object Facilities) [17] is used for representing models but our work is only con-

cerned by UML models. For adding semantics to UML models we can use:

1. UML proﬁle: UML can be used for modeling many domains. The problem with

this is that UML models are so generic that it is impossible to know either it is an

object application, a metamodel, a model, a database structure or anything else just

by looking at it [13]. For adding precision, the OMG has standardized the concept

of UML proﬁle [18]. A UML proﬁle is a set of technics allowing to adapt UML to

a particular domain. Once these proﬁles are pasted on models, we can use them for

making inference. As we can see, doing this can solve our problem of semantics

lack on models in a low level, but this is not exploitable by machines because there

is no notion of logic and semantics is not formally deﬁned.

2. Object Constraint Language: In UML it was not possible to deﬁne the body of

an operation (or a method) so the OCL [19] was standardized by OMG for this

purpose. OCL allows expressing many kinds of constraints on UML models, e.g

“before renting a car one must be sure that this person is ok”. OCL seems to be a

good solution for our problem but it is not the case. Indeed, the ﬁrst problem with is

that it does not offer automatic inference and the second is that it does not support

side effect operations. However OCL 2.0 does permit reference to operations that

change the state of the system in a constraint expression, but the semantics of such

a reference is that the operation will have been invoked when the truth of the con-

straint is tested. This semantics, which is permitted only in post-conditions, does

not satisfy the requirements of the action clause of production rules, which cannot

be used as post-conditions of operations.

3. Action Semantics: remember that the main constraint with OCL was that it only

supports no side effects operations. To solve this constraint, the OMG standardized

Action Semantics [20]. Now we have a formalism which is able to express any kind

of operations and constraints but it is not enough. Indeed, this formalism is too com-

plicated to be used [13], was not created while thinking to machine comprehension

and self-use, and does not have a textual formalism.

As we can see, none of the UML “technics” is suitable for adding semantics to mod-

els. In another side the semantic web aims to make the web comprehensible by both

humans and machines [21]. A part of semantic web is about ontology and reasoning.

Ontologies are used to model concepts, relationships between them, properties and in-

stances of those concepts [22]. In addition, the Web Ontology Language [23] supports

the inclusion of certain types of constraints in ontology, allowing new information to be

deduced when combining instance data with these description logics [22]. At this point

our dilemma is how can we use MDA models and Semantic Web? Ontology Deﬁnition

Meta Model (ODM) is the response.

3.2 The Ontology Deﬁnition Metamodel

MDA provides a solid basis for deﬁning the metamodels of any modeling language, and

thus a language for modeling ontologies based on the MOF [24]. The ODM is a pro-

posal for an OMG’s RFP (Request For Proposal) [25] resulting of an extensive previous

research in the ﬁelds of the MDA and ontologies [26–28]. The main goal of ODM is

to bridge the gap between traditional software tools for modeling (like UML) and ar-

tiﬁcial intelligence technics (Description Logics) for making ontologies. The principle

of ODM is to merge Model Driven Architecture and Semantic Web. ODM is still in

standardization process at the OMG [29] when this paper is being written. Basically

ODM allows creating ontologies using UML and transforming it to OWL/RDF, Topic

Map or Common Logic (Figure 2).

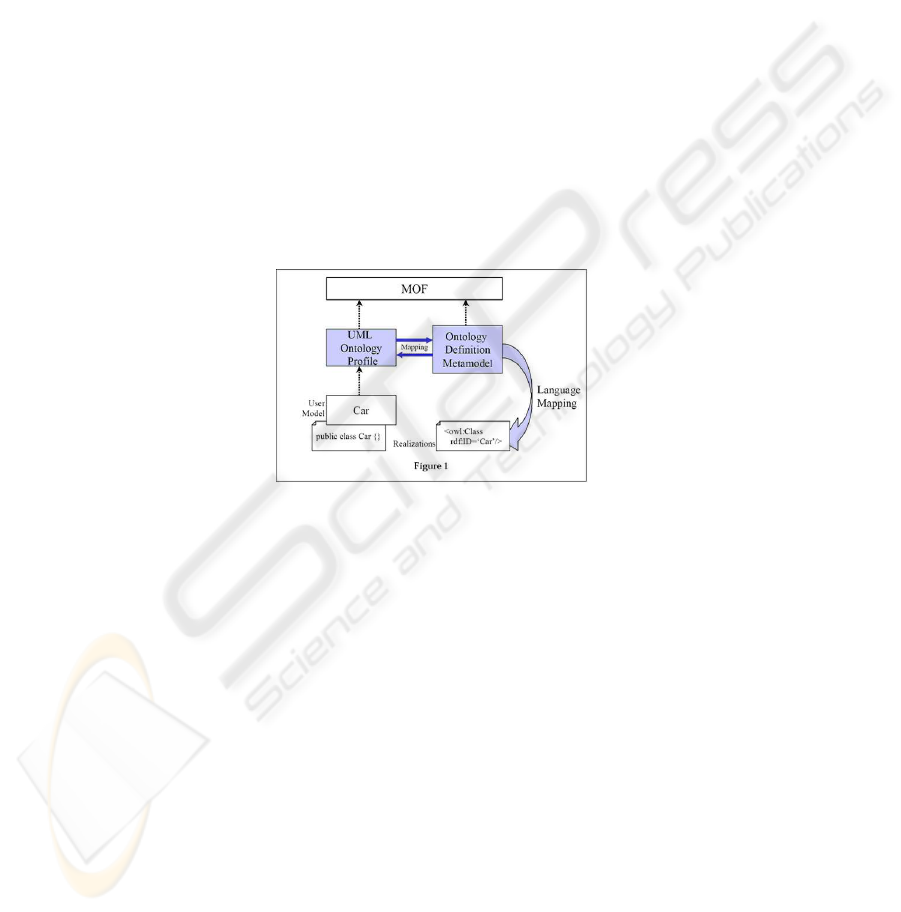

Fig.2. ODM principle.

Next section, we see how ontology reasoning is used to solve the lack of semantics

in models.

4 Adding Semantics to Models for Automatic Business Rules

Generation

MDA technologies and Semantic web are complementary; the former is concerned

about automating the physical management and interchange of metadata, while the lat-

ter is focused on the semantics embodied in the content of the metadata as well as

on automated reasoning over that content [30]. Model Driven Development (MDD)

is being developed in parallel with the Semantic Web [31]. Emerging applications in

ﬁnance, healthcare, security, communications, business intelligence, and many other

vertical markets are content and context sensitive (semantics) [30]. Merging Semantic

Web and MDA will be beneﬁc to both:

– MDA is only interested by content and not by context (semantics), semantic web

will solve this important problem.

– For semantic web: an interesting thing is that so mature UML tools could be used

for making ontologies rather than using so theoretical languages. Very often, soft-

ware engineers use UML, so it will be a good thing for allowing them using their

preferred UML tools for modeling Ontologies. Doing so will facilitate the use of

ontologies.

Merging MDA and Semantic Web technologies allow more automatic processing like:

generation of constraints and business rules from models. Now for example, suppose

that, to our little model in Figure 3 we add an ontology where we declare that a human

must have a mother that must be a human to. Therefore, with qualiﬁed “reasoners”

we can generate that: IF a Human is the mother of a Human then that Human is a

Woman. Therefore, we can infer that “IF Christ mother’s name is Marie THEN Marie

is a Woman”.

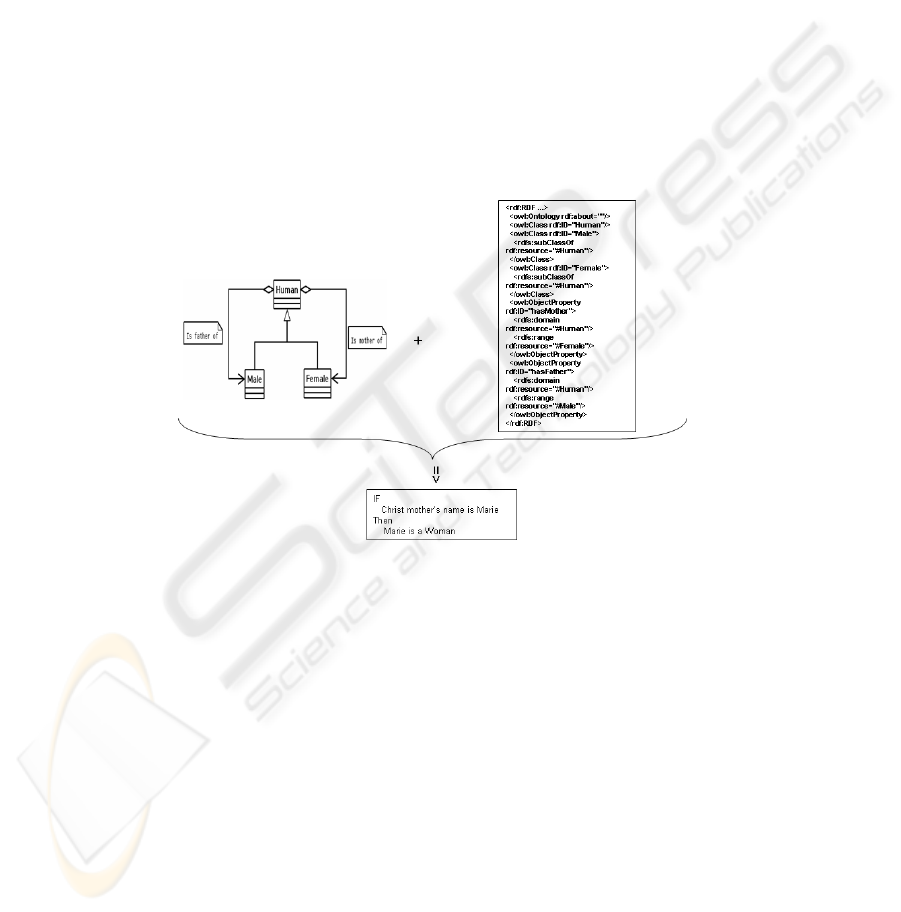

Fig.3. A little ontology for a little model.

4.1 Our Approach for Business Rules Automatic Generation

For generating business rules automatically, we will use principally the semantics in

OWL format. In OWL, we can make automatic reasoning with both structures (TBox)

or assertion on individuals and properties (ABox) [32]. In our case for example, if

we have: Predicate : Domain17−→Domain2. This declaration means that we have a

property Predicate going from the domain Domain1 to the range Domain2. So we want

to generate that:

IF Object1 Predicate Object2

THEN Object1 is o f type Domain1 AND Object2 is of type Domain2

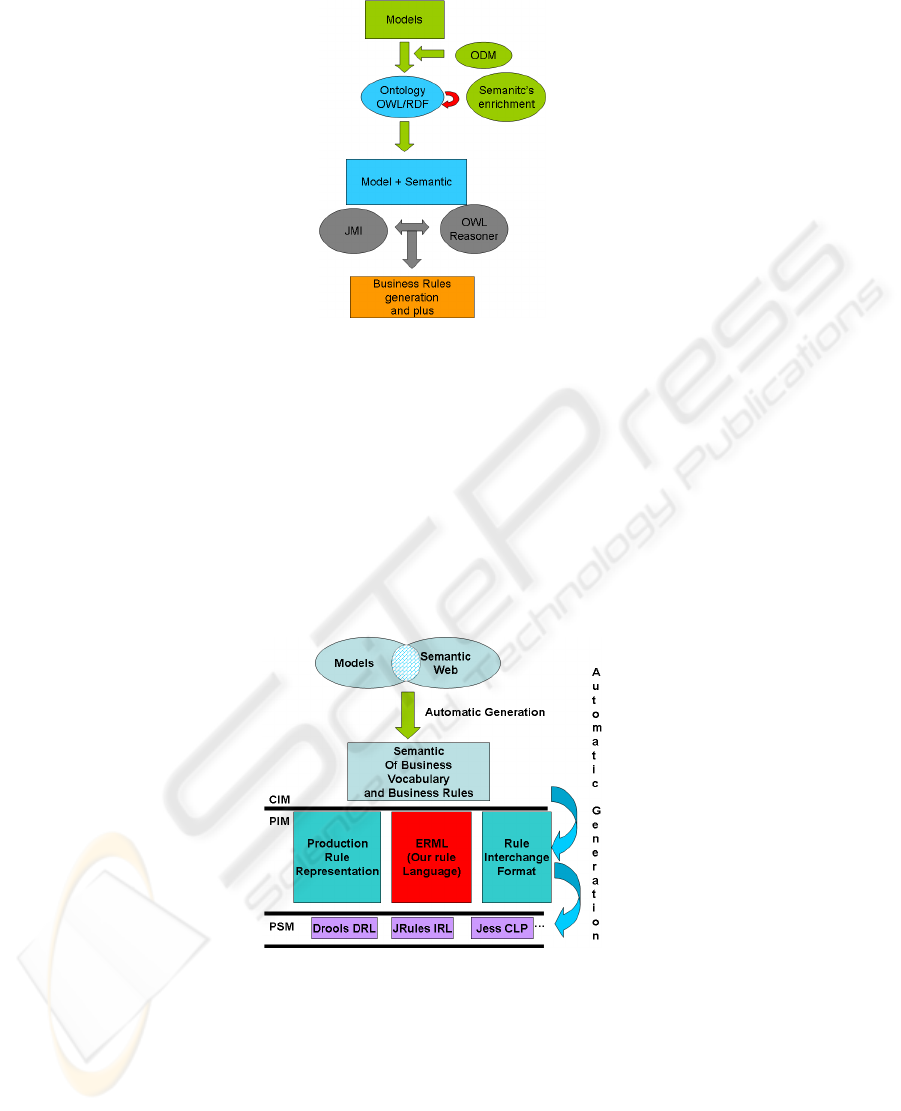

Fig.4. Our approach.

Figure 4 describes our approach: using ODM, our model is generated in OWL/RDF

model and this last one is enriched with semantics. Now two solutions are possible for

generating rules: serialize the rich model in XMI [33] and use e.g JMI [2] for parsing

it manually or making inference directly with the OWL model using a OWL reasoner.

We have adopted the last solution because there exist good OWL Reasoners and this

solution uses less intermediary steps.

Recall that our gaol is not to generate all kinds of business rules. Indeed, this is in-

feasible. However, the part of them that we will be able to generate will save time for

business experts. Figure 5 summarizes our approach throughout MDA layers.

Fig.5. Our approach throughout the MDA layers.

As we can see the ﬁrst step is a generation according to the CIM in an OMG SBVR

[5] like syntax (in strict natural language), the next step is to generate executive rules ac-

cording to the PIM and models based on XMI like standard. At the PIM level either our

business rules language ERML [34], the RIF W3C standard, the PRR OMG proposal

or RuleML [6, 7,11] may be used. At this step we use our “translators” for generating

rules at the PSM level for a speciﬁc rule engine. We are still missing a standardized rule

language.

5 Merging and Aligning Business Rules

Information sharing is the key issue in cooperative information systems. One particu-

lar advantage of sharing information among multiple systems is that it is often able to

deduce additional knowledge that is not locally held by any of the systems, but collec-

tively by all of them. However, information from different systems might, and often do,

conﬂict each other. Logic is a key concept in the Semantic Web and will come from dif-

ferent entities and sources. Business rules coming from different sources with different

reliability level and intervening at the logical level in the Semantic Web stack, must be

merged or aligned. This work must be done regardless of whether the ultimate goal is

to create a single coherent rule base that includes the information from all the sources

(merging) or if the sources must be made consistent and coherent with one another but

kept separately (alignment) [35]. The issue of modularity in logic programming has

been, during the 90s [36], and is still, actively investigated. For example, suppose that

we have a model M

with a data base DB

in which we have tuples Name, Birthtown

and a set of rules KB

formed by:

– R

: IF Name is empty THEN throw error

– R

: IF Birth town is empty THEN throw error

Moreover suppose we have a model M

with a data base DB

in which we have tuples

Name, Basetown and a set of rules KB

formed by:

– R

: IF Name is empty THEN cancel

– R

: IF Base town is empty THEN cancel

If we want to use both M

and M

in the same system, we will probably want to use

and DB

and merge KB

and KB

. Doing so, a conﬂict is raised: R

and R

have the same conditions but actions are not the same. How to do? Currently the work

of merging, or aligning business rules is performed mostly by hand, without any tool

to automate the process fully or partially. The experience of manually merging and

aligning the knowledge bases is an extremely tedious and time-consuming process. At

the same time we can notice that many steps in the process could be automated, many

points where a tool could make reasonable suggestions, and many conﬂicts and con-

straints violations for which a tool could help.

Our approach presented in previous sections can be used for merging knowledge base

in a semi-automatic way based on a semantic level rather than syntactic. Like busi-

ness rules generation, ﬁrst models transformed in ontologies are enriched semantically.

Then we use the PROMPT [35] Algorithm for merging ontologies. PROMPT takes two

ontologies as input and guides the user in the creation of one merged ontology as out-

put. All terms and concepts used in business rules constitute the ontologies, so merging

business rules is equivalent to merge ontologies. We choose PROMPT because, due to

his extremely general knowledge model (Classes, Slots, Facets and Instances), it can

be applied over a variety of knowledge representation systems. A part of business rules

could be automatically merged (like R

and R

), and the other part will be presented

to business experts for validation (like R

and R

6 Conclusion

A business rules application is intentionally built to accommodate continuous change

in business rules. The ability to change them effectively is fundamental for improving

business adaptability. The platform on which the application runs should support such

continuous change. Offering to knowledgeable business people (experts) the possibility

to formulate, validate, and manage rules in a “zero-development” environment brings

more value-added to this notion of “computer sciences in humanity’s service”. Auto-

matically generating a part of these business rules will be valuable. In this paper, we

have seen that by combining Model Driven Architecture and Semantic Web, a solution

is possible. Right now we can only make generation according to the CIM in a OMG

SBVR like syntax. The next step will be to generate executable rules according to the

PIM using our rule language or models based on XMI. The last step will be to have an

editor allowing to edit both models and semantics.

Manually merging and aligning knowledge bases is an extremely tedious process. We

also have seen that using MDA and Semantic Web a semi-automatic solution is possible

for merging and aligning rule bases. Making simple generic business rules generation

from models possible will facilitate the use of the business rules approach.

Adding semantics on conceptual models will open an exciting and interesting domain

of application because, ontologies reasoning principle becomes possible with MDA

models.

References

1. Barbara von Halle. Business Rules Applied. John Wiley & Sons, New York, USA, 2002.

2. Java Community Process(JCP). Java Metadata Interface (JMI). Sun (JSR 40), 2002.

3. Ronald G. Ross. Principles of the Business Rule Approach. Addison-Wesley, 2003.

4. Kuldar Taveter and Gerd Wagner. Agent-Oriented Enterprise Modeling Based on Business

Rules. In Springer-Verlags, editor, 20th International Conference on Conceptual Modeling

(ER2001), LNCS, November 2001.

5. The Object Management Group OMG. Semantics of Business Vocabulary and Business

Rules (SBVR). OMG Speciﬁcation, March 2006.

6. W3C. Rule Interchange Format (RIF). W3C Workgroup, 2005.

7. The OMG. Production Rule Representation (PRR) RFP. OMG Request For Proposal

(br/2003-09-03), 2003.

8. Ian Horrocks, Peter F. Patel-Schneider, Harold Boley, Said Tabet, Benjamin Grosof, and

Mike Dean. SWRL: A Semantic Web Rule Language Combining OWL and RuleML. W3C

Member Submission, May 2004.

9. W3C. Rule interchange format Workgroup, http://www.w3.org/2005/rules/, 2005.

10. IBM T.J. Watson Research Center. CommonRules project. Intelligent Agents project 1997.

11. RuleML. The RuleML initiative.

12. The Object Management Group OMG. Model Driven Archtecture Guide Version 1.0.1. OMG

Speciﬁcation, June 2003.

13. Xavier Blanc. MDA en action. Eyrolles, France, 2005.

14. Ronald G. Ross. The Business Rule Book. Business Rule Solutions, 1997.

15. D. Hay and K. A Healy. GUIDE Business Rule Project Final Report. Technical report,

October 1997.

16. Ernest Friedman-Hill. JESS in Action. Manning Publications Co, Greenwich, UK, 2003.

17. The Object Management Group OMG. Meta Object Facility (MOF)1.4. OMG Speciﬁcation

(formal/02-04-03), April 2002.

18. The Object Management Group. Uniﬁed Modeling Language: Superstructure. OMG Speci-

ﬁcation, February 2004.

19. The Object Management Group OMG. UML 2.0 OCL Speciﬁcation. OMG Speciﬁcation,

October 2003.

20. The Action Semantics Consortium. Action semantics for the uml. OMG Speciﬁcation

(ad/2001-03-01), March 2001.

21. Thomas B. Passin. Explorer’s guide to the Semantic Web. Manning Publications Co, Green-

wich, UK, 2004.

22. Stephen Craneﬁeld and Jin Pan. Bridging the Gap Between the Model-Driven Architecture

and Ontology Engineering. Proc. of AOSE 2004 Workshop, 2004.

23. W3C OWL M. K. Smith, C. Welty, and D. L. McGuinness. OWL Web Ontology Language

Reference. W3C Standard, February 2004.

24. Dragan Ga

evi

c, Dragan Djuri

e, and Vladan Deved

c. Model Driven Architecture and On-

tology Development. Springer-Verlag, Berlin, DE, 2006.

25. The Object Management Group OMG. Request For Proposal for Ontology Deﬁnition Meta-

model. OMG Request For Proposal, March 2003.

26. Kenneth Baclawski, Mieczyslaw K. Kokar, Paul A. Kogut, Lewis Hart, Jeffrey Smith,

William S. Holmes III, Jerzy Letkowski, and Michael L. Aronson. Extending UML to

Support Ontology Engineering for the Semantic Web. Lecture Notes in Computer Science,

2185:342+, 2001.

27. Saartje Brockmans, Raphael Volz, Andreas Eberhart, and Peter L

ofﬂer. Visual Modeling of

OWL DL Ontologies Using UML. In International Semantic Web Conference, pages 198–

213, 2004.

28. Dragan Djuric, Dragan Gasevic, and Vladan Devedzic. Ontology Modeling and MDA. Jour-

nal of Object Technology, 4(1):109–128, 2005.

29. The Object Management Group OMG, IBM, and Sandpiper Software. Ontology Deﬁnition

Metamodel. OMG Speciﬁcation, June 2006.

30. H. Knublauch. Ontology-Driven Software Development in the Context of the Semantic Web:

An Example Scenario with Protege/OWL. 1st International Workshop on the Model-Driven

Semantic Web (MDSW2004), 2004.

31. Stephen J. Mellor, Anthony N. Clark, and Takao Futagami. Guest Editors’ Introduction:

Model-Driven Development. IEEE Software, 20(5):14–18, 2003.

32. Raphael Volz. Web Ontology Reasoning with Logic Databases. PhD thesis, Universit

Karlsruhe (TH), Universit

at Karlsruhe (TH), Institut AIFB, D-76128 Karlsruhe, 2004.

33. The Object Management Group OMG. MOF 2.0/XMI Mapping Speciﬁcation, v2.1. OMG

Speciﬁcation (formal/05-09-01), 2005.

34. Mouhamed Diouf, Kaninda Musumbu, and Soﬁan Maabout. Standard Business Rules Lan-

guage: why and how? The 2006 International Conference on Artiﬁcial Intelligence, June

2006.

35. Natalya Fridman Noy and Mark A. Musen. PROMPT: Algorithm and Tool for Automated

Ontology Merging and Alignment. In AAAI/IAAI, pages 450–455, 2000.

36. Michele Bugliesi, Evelina Lamma, and Paola Mello. Modularity in Logic Programming. J.

Log. Program., 19/20:443–502, 1994.
