Automatic Face Alignment by Maximizing

Similarity Score

Bas Boom, Luuk Spreeuwers and Raymond Veldhuis

University of Twente, EEMSC, Signals & Systems

P.O. box 217, 7500 AE, Enschede, The Netherlands

Abstract. Accurate face registration is of vital importance to the performance

of a face recognition algorithm. We propose a face registration method which

searches for the optimal alignment by maximizing the score of a face recogni-

tion algorithm. In this paper we investigate the practical usability of our face

registration method. Experiments show that our registration method achieves bet-

ter results in face veriﬁcation than the landmark based registration method. We

even obtain face veriﬁcation results which are similar to results obtained using

landmark based registration with manually located eyes, nose and mouth as land-

marks. The performance of the method is tested on the FRGCv1 database using

images taken under both controlled and uncontrolled conditions.

1 Introduction

Several papers have shown that correct registration is essential for good face recogni-

tion performance [1],[2]. The performance of popular face recognition algorithms, for

instance PCA, LDA and ICA, depend on accurate face registration. We propose a new

method for face registration which searches for the optimal face alignment by max-

imizing the score of a face recognition algorithm. Our new method outperforms the

landmarks methods described in [3]. In this paper we investigate the practical usability

of the new face registration method for face veriﬁcation.

In practice, we need to locate the face region using a face detection algorithm. Using

this region, we register the face image to a user template in the database and then recog-

nize the face. Our face registration algorithm, ﬁrst described in [4], ﬁnds an optimal face

alignment from the located face region. In this paper we investigate different practical

aspects of our face registration method. We test our face registration method with dif-

ferent face classiﬁers as evaluation criteria in the search procedure. We test our method

under circumstances where lighting is controlled and uncontrolled, and we also lower

the resolution of the face images. We investigate if our method works with automati-

cally registered training images, so it becomes fully automatic. Finally, we look at the

mistakes of our registration method and introduce some solutions to overcome these

problems.

In the literature, face registration is usually achieved by ﬁnding landmarks in a face im-

age. An approach which is similar to our face registration algorithm is described in [5]

and [6], which uses a form of robust correlation to ﬁnd the alignment to a user template.

Recently, Wang et al [7] improve the face identiﬁcation on the the FERET database by

Boom B., Spreeuwers L. and Veldhuis R. (2007).

Automatic Face Alignment by Maximizing Similarity Score.

In Proceedings of the 7th International Workshop on Pattern Recognition in Information Systems, pages 221-230

DOI: 10.5220/0002427602210230

 SciTePress

calculating the similarity score of different alignments and selecting the maximal score.

The main differences with their approach are the assumption of a face identiﬁcation

problem and using the manually labelled eye coordinates as start points.

In section 2 we ﬁrstly explain our method. Secondly, we specify our search procedure

and ﬁnally we describe the face recognition algorithms. In section 3, we describe the

experimental setup we used to evaluate our method. Section 4 describes the various ex-

periments carried out using our registration method. The ﬁnal section gives a conclusion

about this face registration method.

2 Matching Score based Face Registration

We have developed a new face registration method, namely Matching Score based Face

Registration (MSFR). This method searches for the optimal alignment between the

probe image and a user template in the database. To evaluate the alignment, we use

the output of a face classiﬁer. This output is also called the matching score in the case

of a genuine user or the similarity score in the case of a unknown user. We assume that

the similarity score becomes higher if the alignment of face image to the template image

improves. The second assumption is that the optimal alignment of the genuine user’s

face image gives a higher similarity score than the optimal alignment of an imposter’s

face image.

2.1 Face Registration

Based on the assumptions described above, we have developed the following method.

The region of the face is found by a face detection algorithm, in our case the face

detector ﬁrst described by Viola and Jones [8]. Using an afﬁne transformation T

on the

pixel p of the probe image I

, given by the region found by the face detection algorithm,

we vary the multiple registration parameters θ searching for the optimal alignment. The

geometric transformation function is :

(x, y) = (θ

cosθ

x − θ

sinθ

y + θ

cosθ

x + θ

sinθ

y + θ

) (1)

In the transformed image I

(p)), the pixel values are calculated using bilinear

interpolation. The optimal alignment parameters to person i in the database are given

by:

max

= arg max

θ∈Θ

S(I

(p)), i) (2)

Of course, the similarity score S(I

max

(p)), i) can also be used to verify the

person’s identity. It is also possible to use one face recognition algorithm to ﬁnd the

optimal alignment parameters but another face recognition algorithm to classify the

face.

222

2.2 Search for Maximum Alignment

To search for the maximum similarity score, we use a search algorithm called the down-

hill simplex method [9]. This search algorithm ﬁnds four parameters θ which maximize

the similarity score. The starting point of the search algorithm is the region given by the

face detection algorithm, where θ

= (1, 0

◦

, 0, 0). For the downhill simplex method,

we need to determine a simplex (geometrical ﬁgure in N dimensions consisting of N +1

points). This is created from the starting point parameters and four points for which we

varied a single parameter. The other four points of the simplex are: θ

= (1.2, 0

◦

, 0, 0),

= (1, 5

◦

, 0, 0), θ

= (1, 0

◦

, 5, 0) and θ

= (1, 0

◦

, 0, 5). We have also experimented

with other simplexes to start the search algorithm. Details will be given later on in this

paper. We have also experimented with the search algorithm of Powell-Brent [10],[11],

but it performs worse for this search problem.

2.3 Face Recognition Algorithms

Face recognition involves performing several steps to be able to recognize a face in an

image. Using an aligned image I

(p)) given by the search algorithm, we select a

region of interest (ROI) and we normalize the image inside the ROI to zero mean, unit

variance. After that, the pixels in the ROI are vectorized and the resulting vectors are

then used in our face recognition algorithm.

We use four algorithms to calculate the similarity score, these algorithms are based on

PCA [12] some in combination with LDA [13]. In this paper, we used a ﬁxed num-

ber of PCA and LDA dimensions, 100 and 50 respectively. The ﬁrst algorithm is PCA

in combination with the Euclidean distance (eucl), where we calculate the Euclidean

distance between the probe image with the template in the database and use this as

similarity score. The second algorithm is PCA in combination with the Mahalanobis

distance (mah), where we use the Mahalanobis distance instead of the Euclidean dis-

tance. In the third algorithm, we perform feature reduction using PCA and LDA and use

the log-likelihood ratio proposed in [14] to calculate the similarity score. For a certain

class i, the similarity score S is calculated by:

y ,i

= −(y − µ

W,i

)

−1

(y − µ

W,i

)

−1

y − log |Σ

| + log |Σ

| (3)

Where y is a vector which is a representation of the face image after feature reduc-

tion, Σ

is the total covariance matrix, Σ

is the within class covariance matrix and

W,i

is the ith class average. The ﬁnal algorithm uses the numerator of the likelihood

ratio, which is given by:

y ,i

= −(y − µ

W,i

)

−1

(y − µ

W,i

) − log |Σ

The reason behind using only the numerator is that we register to a certain user

template. This means that it is not necessary to maximize with respect to the background

distribution, given by the denominator in the likelihood ratio. We call this ﬁnal method

223

the within ratio. This method is only intended for ﬁnding a maximal alignment to a user

template and not for face recognition. After the face registration, a ﬁnal face veriﬁcation

is always performed using the likelihood ratio.

3 Experimental Setup

In our experiments, we use the Face Recognition Grand Challenge (FRGC) version

1 database [15]. We only used face images in which the face was correctly found by

the face detection algorithm of Viola-Jones [8], because we are not interested in the

mistakes made during face detection. The face images are correctly found when the

eyes, nose and mouth coordinates lie inside the face region and the width and height

of this region are less then four times the distance between the eyes. The FRGC ver-

sion 1 database contains 275 individuals, from which we use a set of 3761 face images

taken under controlled conditions and a set of 1811 face images taken under uncon-

trolled conditions. In our experiments we randomly split these sets into two subsets,

each consisting of approximately half of the images of each person. One subset is used

for training and enrollment and the other is used for testing. The same random split is

used for all experiments.

We compare our face registration method with the best landmark based face registration

methods in [3], namely MLLL + BILBO. The results of the face registration are mea-

sured on the performance in face veriﬁcation by calculating Equal Error Rate (EER):

this is the point of operation where the False Accept Rate (FAR) is equal to the False

Reject Rate (FRR). To measure the accuracy of registration we use the RMS error. We

calculated the location of the eyes, nose and mouth in the original image based on the

alignment found by MSFR. The RMS error is then calculated between these positions

and the manually labelled landmarks given by the FRGC database and we normalize to

a distance of 100 pixels between the eyes.

4 Experiments

Since our earlier paper [4], we have performed more extensive experiments. We have

done several experiments to gain a better understanding of our method. In our ﬁrst

experiment we report the results of the different recognition algorithms on the FRGC

database. In the second experiment, we use a lower resolution making the algorithm

faster and applicable to video surveillance environments. The third experiment inves-

tigated if this face registration algorithm can be trained on face images which are reg-

istered using automatically obtained landmarks. The ﬁnal experiments try to address

some failures of the search algorithm by performing the search several times and adding

registration noise to the training data.

4.1 Comparison between Recognition Algorithms

Searching for the best alignment requires a recognition algorithm. In this section, we

describe our experiments using the various recognition algorithms. We compare the re-

sults with both manually labelled landmarks and automatically obtained landmarks. For

224

our experiment, we use the experimental setup described in section 3. We use face im-

ages with a resolution of 128 × 128 pixels. Training the face classiﬁer is achieved using

a training set which is aligned using the manually labelled landmarks. Face recognition

applied to images registered using MLLL + BILBO, however, is train also on images

which were registered using MLLL + BILBO [3]. After registering the face, we recog-

nize the registered faces using the Likelihood ratio classiﬁer.

Table 1. Results of the face veriﬁcation using various registration algorithms.

FRGC Controlled FRGC Uncontrolled

Registration EER [%] RMS error RMS error EER [%] RMS error RMS error

Method users impostors users impostors

Manually labelled 0.59 - - 1.7 - -

MLLL+BILBO 3.6 7.9 7.9 9.7 10.2 10.2

PCA eucl 1.8 3.4 9.5 3.2 4.3 10.3

PCA mah 1.3 3.0 5.7 1.5 2.9 4.2

Likelihood ratio 1.01 3.2 9.4 2.3 4.0 7.9

Within ratio 1.07 3.2 8.7 2.1 3.8 7.2

In Table 1, we compare the results of the various registrations in EER and RMS er-

ror. The columns for the EER show that the MSFR outperforms the landmark registra-

tion. By comparing the various classiﬁers of MSFR, it becomes clear that the likelihood

ratio and the within ratio perform best on the controlled images of FRGCv1, although

the performance of PCA with Mahalanobis distance is also very good. On the uncon-

trolled image of FRGCv1, PCA with Mahalanobis distance performs best, even better

than the manually labelled landmarks. In RMS error, the various MSFR methods are

more accurate than MLLL+BILBO when it comes to registration to the genuine user.

If we look at registration of an imposter, the RMS error of most of the MSFR is higher

than the RMS error of MLLL + BILBO. This does not need to have any effect on the

EER, because poorly registered images usually do not improve the similarity score. In

the case of PCA with Mahalanobis distance, the RMS error of the impostor is still lower

than that of MLLL+BILBO.

Figure 1 shows the FAR and FRR curves of the manually labelled landmarks and

the MSFR approaches on the controlled images of the FRGC. Both the matching and

non-matching scores increase when using MSFR, which means that for genuine users,

better alignments than manually labelled landmarks can be found using MSFR.

4.2 Lowering Resolution

In [4] we report that our method takes about 20-30 seconds to register and classify a

face image using an Intel Pentium 2.80 GHz. Currently, it takes about 5-10 seconds on

the same computer for a face image of 128 × 128 pixels, because we optimized some

of our source code. In [16] we investigated the effect of the image resolution on face

recognition. It turns out that the EER does not increase much on face recognition by

225

−400 −350 −300 −250 −200 −150 −100 −50

−4

−3

−2

−1

Matching score

Error rates

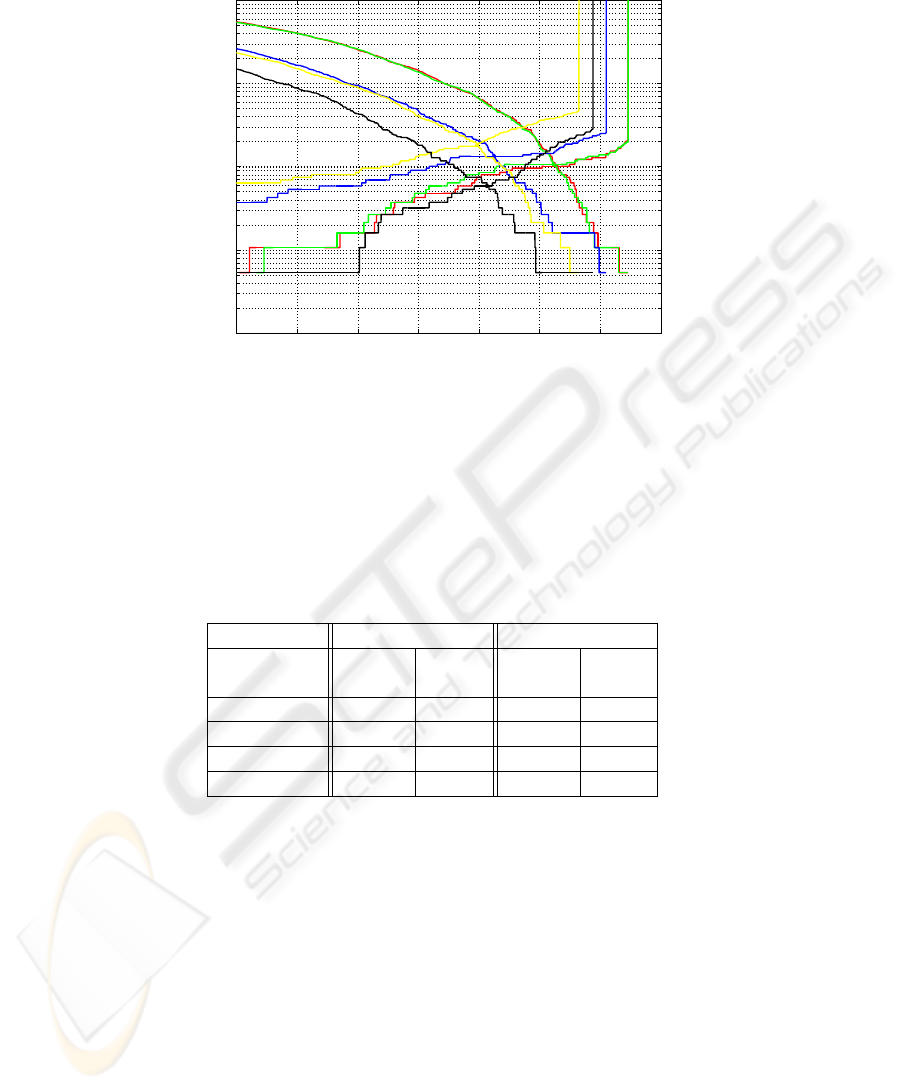

Fig.1. FAR and FRR curves: the red line is the likelihood ratio, the green line is within ratio, the

blue line is PCA mah, the yellow line is PCA eucl and the black line is the manual registration.

lowering the resolution to 32 × 32. In practice, we do not always have high resolutions

face images, so we performed a experiment at a resolution of 32 × 32 pixels, which

also leads to a decrease in computation time. The results of the recognition are stated in

Table 2 together with the results of using the normal resolution of 128 × 128 pixels.

Table 2. The EERs by using face images with a resolution of 32 × 32.

FRGC Controlled FRGC Uncontrolled

Registration resolution resolution resolution resolution

Methods 128 × 128 32 × 32 128 × 128 32 × 32

PCA eucl 1.8 2.4 3.2 5.5

PCA mah 1.3 2.3 1.4 2.8

Likelihood ratio 1.01 1.3 2.3 3.8

Within ratio 1.07 1.7 2.1 3.6

Although Table 2 shows that the EER increases somewhat by using face images of

32 × 32 pixels, these results are still acceptable and better than face registration using

MLLL + BILBO. It takes about 2-5 seconds to register and classify a face image of

32 × 32 pixels on a Intel Pentium 2.80 GHz. More improvements in the operation time

of our method can be realised, because we have not payed much attention to this subject

yet.

4.3 Training using Automatically Obtained Landmarks

Until now, we have assumed that for training and enrollment of the face registration

we can use a set of manually labelled face images. In practice, this usually is not the

226

case, especially for the enrollment of a new user. This is the reason we performed an

experiment where we trained and enrolled images which have been aligned using the

landmarks given by MLLL + BILBO. The results of this experiment are given in Table

Table 3. The EERs when the training en enrollment are registered using MLLL + BILBO on

images from the controlled set of FRGCv1.

Registration EER [%] EER [%]

Methods manual automatic

PCA eucl 1.8 2.0

PCA mah 1.3 1.5

Likelihood ratio 1.01 1.7

Within ratio 1.07 1.8

Although the results we report in table 3 show increased error rates, the performance

is still much better than using MLLL + BILBO for face registration. This shows that

correct registration of training set is not critical.

4.4 Improving Maximization

In this paper we already reported a large improvement in the results of face registration.

But after some analysis of our method, we found that a correct registration is not al-

ways found by simply running the downhill simplex search algorithm. The main reason

is that the search algorithm can ﬁnd a local maximum far away from the global maxi-

mum. In ﬁgure 2, we show the incorrectly found registration results by the likelihood

ratio classiﬁer. These results can easily be determined by considering the RMS error of

face images. The faces depicted in ﬁgure 2 all have a RMS error bigger than 11 pixels,

except for the bottom right face image. The main reason for these errors is that in these

cases, the search algorithm searches in the wrong direction and gets stuck in a local

maximum.

To correct these outliers, we have developed two strategies to address this problem.

Firstly, we use the downhill simplex method several times but start with a different

simplex in the search space. Secondly, we change the search space by training on a

database with some registration noise.

Using a Different Start Simplex The ﬁrst strategy is based on the idea that if we start

searching from another side in the search space, we will probably never come across the

same local maximum. For this experiment, we have deﬁned two new start simplexes;

the ﬁrst simplex consists of the points: θ

= (1, 0

◦

, 0, 0), θ

= (0.8, 0

◦

, 0, 0), θ

(1, −5

◦

, 0, 0), θ

= (1, 0

◦

, −5, 0) and θ

= (1, 0

◦

, 0, −5), so that we start from the

opposite side of the search space. For the second simplex, we start at the points: θ

(0.9, −2.5

◦

, −2.5, −2.5), θ

= (1.1, −2.5

◦

, −2.5, −2.5), θ

= (0.9, 2.5

◦

, −2.5, −2.5),

227

Fig.2. Face images which have been incorrectly registered, the bottom-right image is an example

of a correct alignment.

= (0.9, 2.5

◦

, −2.5, −2.5), θ

= (0.9, −2.5

◦

, −2.5, 2.5) and θ

= (0.9, −2.5

◦

, −2.5, 2.5),

which gives us a search area around the located face region.

Table 4. The EERs when searching from different positions in the search space on images from

the controlled set of FRGCv1.

Registration start start start combining

Methods position 1 position 2 position 3 1,2,3

PCA eucl 1.8 7.4 3.5 3.6

PCA mah 1.3 1.6 5.2 0.64

Likelihood ratio 1.01 2.6 6.7 0.59

Within ratio 1.07 2.4 6.5 0.64

In Table 4 we present the results of the three different start positions. The EERs 2

and 3 in table 4 are the new start positions, while EER 1 gives the start position which

has been used throughout the entire paper. Also, the results of combining these out-

comes of registration by using the maximum similarity score of the three different start

positions is given in table 4, this procedure is done for both genuine users and impos-

tors. These combinations give results which are similar to registration using manually

labelled landmarks. The EERs of the other start positions are not particularly good, but

using other starting points results in different failures. By using the similarity score to

evaluate the ﬁnal outcomes of the different starting points, the local maxima are dis-

carded.

Adding Noise to Train Our Registration Method The second strategy is based on

changing the search space. This is done by adding gaussian noise to the manually la-

228

belled landmarks of the training examples. By adding noise to the training, we also hope

that we can model the registration error better. The results of this experiment are given

in Table 5 where the t is the standard deviation of the noise in pixels, normalized to 100

pixels between the eyes.

Table 5. The EERs when adding noise to the registration of the training on controlled face image

of FRGCv1.

Registration noise combining

Methods t = 0, 1, 2

t 0 1 2 3 4 5

PCA eucl 1.8 1.5 1.5 1.8 1.3 1.5 1.9

PCA mah 1.3 0.91 0.85 0.80 0.69 1.2 0.80

Likelihood ratio 1.01 0.69 0.75 0.91 0.91 1.3 0.59

Within ratio 1.07 0.64 0.75 0.91 0.96 1.2 0.64

In Table 5 we show that by combining the results of adding registration noise to

the training set we reach the same result as with manually labelled landmarks. Another

observation is that by adding a little registration noise to the training, the EER seems

to decrease anyway. This is because a reduction in the number of outliers. We suspect

that the registration noise makes the search space smoother in the areas further away

from the optimal registration. By adding too much noise, the EER increases. This can

be observed for t = 5 in table 5.

5 Conclusion

In this paper, we present a system for face registration which uses the output of the

face recognition classiﬁer to ﬁnd an optimal registration. We search for an optimal reg-

istration by varying the face alignment parameters. Our new face registration method

performs better than the landmark based methods of [3]. The experiments show that our

method performs well with both face images taken under controlled as well as uncon-

trolled conditions. The operating speed of the method has been improved and we show

that lowering the resolution improves the speed even more while still obtaining good

performance. Our face registration method also works with an automatically registered

training set and achieves good results despite registration errors in the training set. This

makes our face registration method very useful in practise when dealing with a face

veriﬁcation problem. By using multiple searches, the results of our face registration

method are equivalent to the results obtained with registration using manually labelled

landmarks. This kind of performance has not yet been achieved by any fully automatic

face registration method known to us.

229

References

1. Riopka, T., Boult, T.: The eyes have it. In: Proceedings of ACM SIGMM Multimedia

Biometrics Methods and Applications Workshop., Berkeley, CA (2003) 9–16

2. Beumer, G., Bazen, A., Veldhuis, R.: On the accuracy of EERs in face recognition and the

importance of reliable registration. In: SPS 2005, IEEE Benelux/DSP Valley (2005)

3. Beumer, G., Tao, Q., A.M.Bazen, Veldhuis, R.: A landmark paper in face recognition. 7th

International Conference on Automatic Face and Gesture Recognition (FGR06) (2006) 73–

4. Boom, B., Beumer, G., Spreeuwers, L., Veldhuis, R.: Matching score based face registration.

In: PRORISK 2006, STW (2006)

5. Jonsson, K., Matas, J., Kittler, J., Haberl, S.: Saliency-based robust correlation for real-time

face registration and veriﬁcation. In: Proc British Machine Vision Conference BMVC98.

(1998) 44–53

6. Matas, J., Jonsson, K., Kittler, J.: Fast face localisation and veriﬁcation. In: Image and Vision

Computing. Volume 17. (1999) 575–581

7. Wang, P., Tran, L.C., Ji, Q.: Improving face recognition by online image alignment. In: 18th

International Conference on Pattern Recognition (ICPR 2006). Volume 1. (2006) 311–314

8. Viola, P.A., Jones, M.J.: Rapid object detection using a boosted cascade of simple features.

In: CVPR (1). (2001) 511–518

9. Nelder, J., Mead, R.: A simplex method for function minimization. The Computer Journal 7

(1965) 308–313

10. Brent, R.: Algorithms for Minimization without Derivatives. Prentice-Hall, Englewood

Cliffs, N.J. (1973)

11. Powell, M.: An efﬁcient method for ﬁnding the minimum of a function of several variables

without calculating derivatives. Computer Journal 7 (1964) 155–162

12. Turk, M., Pentland, A.: Eigenfaces for recognition. Journal of cognative neuroscience (1991)

71–86

13. Belhumeur, P.N., Hespanha, J., Kriegman, D.J.: Eigenfaces vs. ﬁsherfaces: Recognition

using class speciﬁc linear projection. In: ECCV 2. (1996)

14. Veldhuis, R., Bazen, A., Booij, W., Hendrikse, A.: Hand-geometry recognition based on

contour parameters. In: Proceedings of SPIE Biometric Technology for Human Identiﬁcation

II, Orlando, FL, USA (2005) 344–353

15. NIST: Frgc face db. (http://www.frvt.org/FRGC/)

16. Boom, B., Beumer, G., Spreeuwers, L., Veldhuis, R.: The effect of image resolution on the

performance of a face recognition system. In: ICARCV’06. (2006)

230
